ZebraPhones

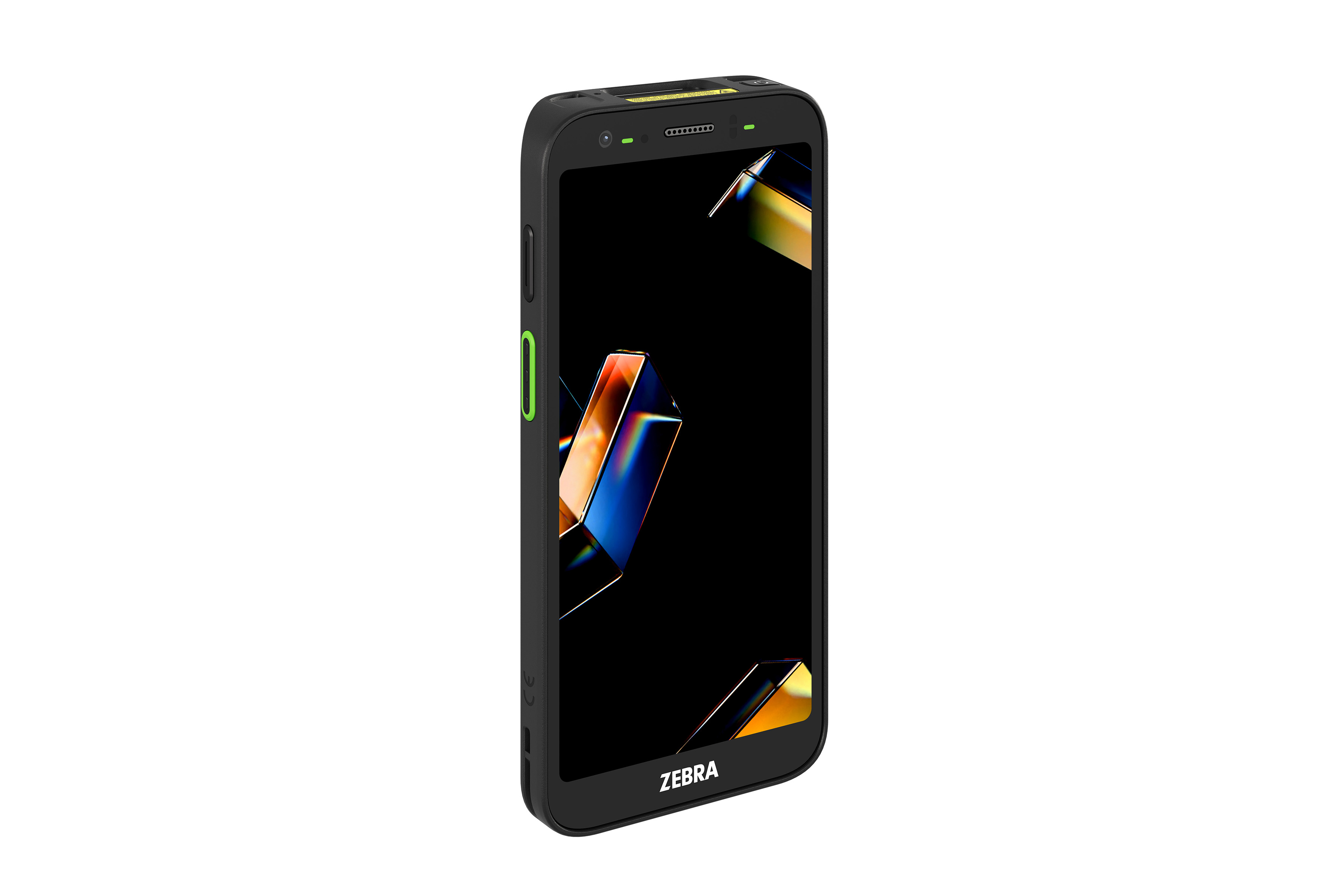

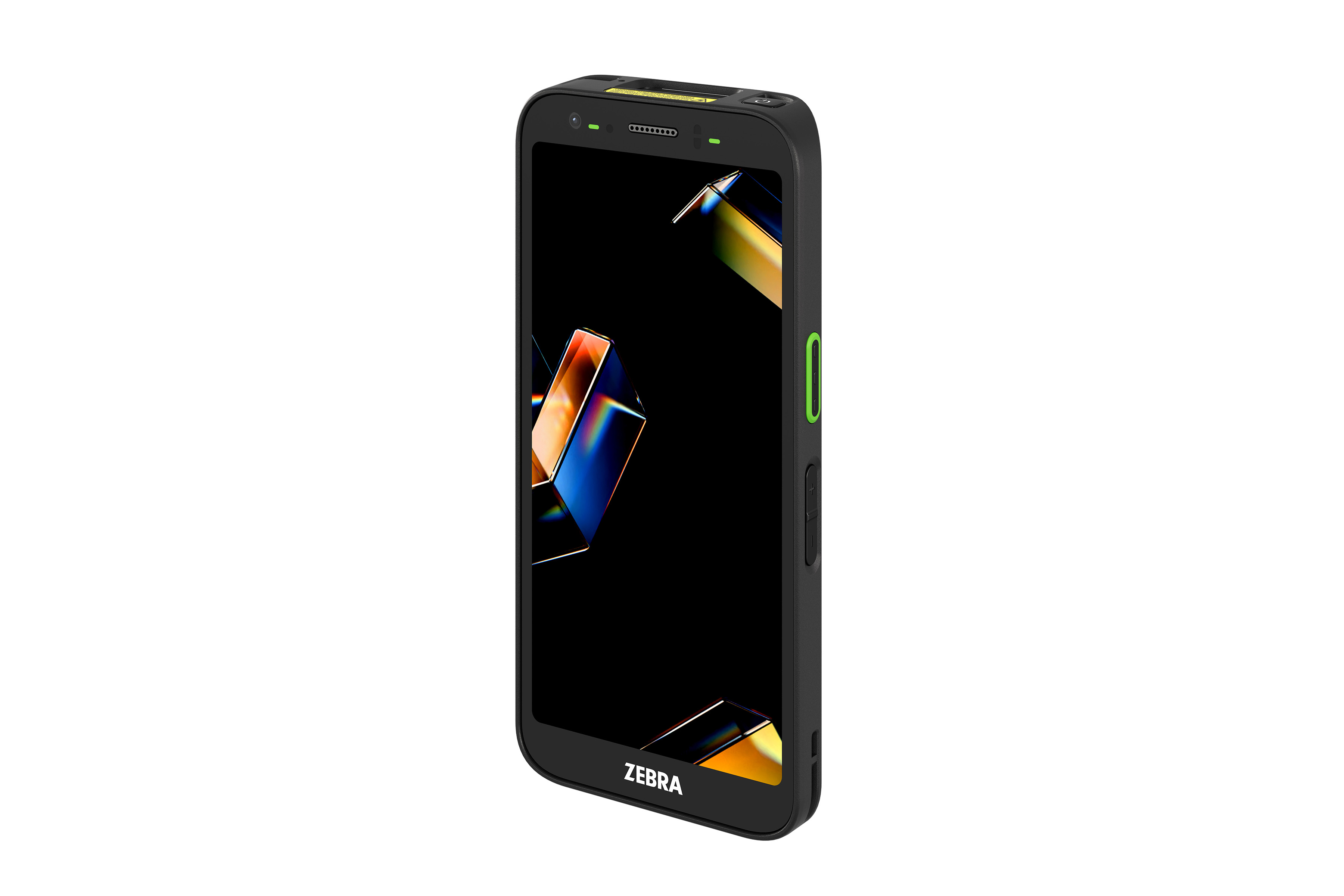

Zebra TC501 5G Rugged Mobile Computer with Wi-Fi 7, SR560 Imager and Ultra-Wide Camera

5GMPN TC501G-341B2B1A01-NA
  • 256 GB
  • Rugged
$3,004.38$4,370.00Save $1,365.62

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Zebra TC501G-341B2B1A01-NA is a North America-only configuration of the TC501 rugged mobile computer. It pairs a 5G WWAN radio and Wi-Fi 7 with a 2.9 GHz Qualcomm Dragonwing Q-6690 processor, 12 GB RAM and 256 GB flash. This SKU adds the SR560 1D/2D imager, a 50 MP rear camera and a 13 MP ultra-wide rear camera. It runs on a hot-swappable standard 5,000 mAh battery and includes a Secure Element for hardware-level protection, making it suited to retail, field service and delivery teams.

  • 5G Release 17 WWAN (Sub-6 NSA/SA) with one physical SIM plus dual eSIM, CBRS (US only) and private cellular support
  • Wi-Fi 7 tri-band 2x2 MU-MIMO with MLO, plus Bluetooth 6.0 and NFC
  • Qualcomm Dragonwing Q-6690 at 2.9 GHz with 12 GB LPDDR5 RAM and 256 GB UFS 3.1 flash, microSD up to 2 TB
  • SR560 1D/2D imager, 50 MP autofocus rear camera, 13 MP ultra-wide rear camera and 8 MP front camera
  • Integrated short-range UHF RFID reading more than 200 tags per second at up to 6.5 ft (2 m)
  • 6.0-inch FHD+ AMOLED display, 1,500 nits peak, Gorilla Glass Victus
  • IP68/IP65 sealing, 8 ft (2.44 m) drops to concrete, and a hot-swappable standard 5,000 mAh battery
  • Stay connected across sites with 5G, dual eSIM and a physical SIM, and fall back to Wi-Fi 7 indoors

The Zebra TC501 is a 6-inch rugged Android mobile computer for frontline workers in retail, field service and parcel delivery, and it replaces the TC52x, TC57x and TC52ax. This configuration, TC501G-341B2B1A01-NA, is built for North America. It combines a 5G Release 17 modem (Sub-6 NSA and SA, one physical SIM plus dual eSIM, CBRS in the US) with tri-band Wi-Fi 7 and Bluetooth 6.0. The Qualcomm Dragonwing Q-6690 runs at up to 2.9 GHz and includes a dedicated AI engine. Zebra rates it at up to 300% more performance than legacy TC5 devices, and this SKU carries the top memory tier of 12 GB LPDDR5 RAM and 256 GB UFS 3.1 flash, with a microSD slot for cards up to 2 TB.

Data capture is the reason to choose this SKU. The SR560 imager uses a red laser cross-hair aimer and white illumination for moderate to intense 1D/2D scanning, including in bright sunlight. The 50 MP autofocus rear camera is joined by a 13 MP autofocus ultra-wide camera for vision applications that need a wider field of view. The 8 MP front camera, integrated short-range UHF RFID that reads more than 200 tags per second at up to 6.5 ft, and NFC with wallet and EMVCo contactless payment support round out the data capture options.

The device is sealed to IP68 and IP65. It survives 8 ft drops to concrete at room temperature, or 9 ft with the rugged boot, and 2,000 tumbles of 1.6 ft. The 6-inch AMOLED display reaches 1,500 nits peak behind Gorilla Glass Victus. The standard 5,000 mAh battery is hot-swappable, so shifts are not interrupted for charging. Security comes from the Secure Element with Android Strongbox, FIPS 140-3 validation, Common Criteria certification and Secure Boot. A Quick Start Guide and Regulatory Guide ship in the box.

Ideal for

  • Retail inventory counts, price checks and item location with built-in RFID and barcode scanning
  • Buy online, pick up in store order fulfillment and line busting with contactless payments
  • Planogram, merchandising and promotion compliance photos using the ultra-wide camera
  • Field service asset management, parts inventory and mobile invoicing over 5G
  • Courier proof of delivery and condition capture with timestamped images and GNSS location

Specifications

General

MPN
TC501G-341B2B1A01-NA
Brand
Zebra Technologies
Model
TC501 Mobile Computer
Region
North America (NA) only
Replaces
Replaces TC52x, TC57x, TC52ax
IN The Box
Mobile Computer, Regulatory Guide, Quick Start Guide

Warranty

Warranty
1-year Zebra hardware warranty

Zebra Dna

Zebra Dna
Zebra DNA tools (features vary; support contract may be required)

Data Capture

NFC
NFC (ISO 14443 A/B, FeliCa, ISO 15693, Mifare Desfire), EMVCo contactless payments, HCE, Apple VAS and Google Smart Tap certified
Rear Camera
50 MP autofocus (PDAF), LED flash, Torch mode, HDR
Scan Engine
SR560 1D/2D imager (red laser cross-hair aimer, white illumination)
Front Camera
8 MP fixed focus
Integrated Rfid
Integrated UHF RFID, up to 6.5 ft (2 m), >200 tags/sec, EPC Class 1 Gen2 / Gen 2 V2
Ultra Wide Rear Camera
13 MP ultra-wide autofocus (PDAF), 5 cm to infinity

Wireless LAN

Radio
Wi-Fi 7 tri-band 2x2 MU-MIMO with MLO, IPv4/IPv6, Wi-Fi Aware
Fast Roam
802.11r FT, PMK caching, Cisco CCKM, OKC
Data Rates
Up to 344 Mbps (2.4 GHz), 2882 Mbps (5 GHz), 5764 Mbps (6 GHz)
Multimedia
WMM, WMM-PS, TSPEC
Certifications
Wi-Fi CERTIFIED 7, 6E, ac, n; WPA2/WPA3; PMF; Voice-Enterprise; Wi-Fi Direct; Agile Multiband; Passpoint and more
Operating Channels
2.4 GHz ch 1-13, 5 GHz ch 36-165, 6 GHz ch 1-233; 20-320 MHz bandwidth
Security And Encryption
WPA3 Enterprise (incl. 192-bit), WPA3 Personal, WPA/WPA2, Enhanced Open, WEP, EAP-SIM/AKA/AKA'

Wireless Pan

Bluetooth
Bluetooth 6.0, Class 1/2, 2x2 Tx, secondary BLE beaconing

Wireless WAN

GPS
Triple-band GNSS (L1/L5/L2): GPS, GLONASS, Galileo, BeiDou, QZSS, a-GPS, XTRA
CBRS
CBRS (US only)
Radio
5G Rel-17 NR Sub-6 (NSA/SA), Gigabit LTE-A, Dual SIM/Dual Standby
2g Bands
850/900/1800/1900 MHz (ROW SKUs only)
3g Bands
B1/2/4/5/6/8/19
LTE Bands
4G: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
MIMO 4x4 DL
4x4 DL MIMO on 5G n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79 and LTE 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70
NR Fr1 Bands
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
Private Cellular
B48/53/106/68
Carrier Aggregation
LTE CA up to 3DL/2UL; NR CA up to 3DL/2UL

User Environment

Sealing
IP68 and IP65 per IEC 60529
Humidity
5%-95% non-condensing
Storage Temp
-40°F to +158°F (-40°C to +70°C)
Operating Temp
-4°F to +122°F (-20°C to +50°C)
Drop Specifications
Exceeds MIL-STD-810H: 6 ft across temp range, 8 ft at room temp; with rugged boot 7 ft across temp range, 9 ft at room temp (to concrete)
Tumble Specification
2,000 x 1.6 ft (0.5 m) tumbles; 2,000 x 3.3 ft (1.0 m) with rugged boot
Electrostatic Discharge
±15 kV air, ±8 kV direct, ±8 kV indirect

Sku Configuration

Radios
5G WWAN and Wi-Fi 7
Battery
Standard battery, hot swap
Cameras
50 MP rear + 13 MP ultra-wide rear, 8 MP front
Security
Secure Element
Processor
Qualcomm Dragonwing Q-6690, 2.9 GHz
Scan Engine
SR560 imager
Memory Storage
12 GB RAM / 256 GB flash

Recommended Services

Services
Zebra OneCare Essential/Select; VisibilityIQ Foresight

Environmental Compliance

Compliance
RoHS 2011/65/EU (amend. 2015/863), REACH SVHC 1907/2006, EPEAT Certified

Physical Characteristics

SIM
One physical SIM and dual eSIM
Power
Li-Ion with PowerPrecision+; standard 5000 mAh (19.45 Wh), extended 7240 mAh (28.16 Wh), wireless charge 5000 mAh (19.45 Wh); fast charging; hot swap
Keypad
On-screen keypad
Weight
9.63 oz (273 g) with 5000 mAh battery; 10.69 oz (303 g) with 7240 mAh battery
Buttons
Programmable dual scan buttons, push-to-talk button, volume up/down
Display
6.0 in FHD+ 2160x1080 AMOLED, 600/1000 HBM/1500 peak nits, adaptive refresh, optically bonded, Gorilla Glass Victus
Dimensions
L x H x D: 6.42 x 3.07 x 0.61 in (163.15 x 77.9 x 15.5 mm)
Touch Panel
Multi-mode capacitive touch (bare/gloved finger, passive stylus sold separately), water droplet rejection, anti-smudge coating
Notifications
Audible tone, multi-color LEDs, vibration
Expansion Slot
User-accessible microSD, up to 2 TB
Imager Windows
Corning Gorilla Glass
Interface Ports
USB Type-C (USB 3.1); bottom and back I/O (USB 2.0)
Voice And Audio
Stereo speakers, two mics, USB-C/Bluetooth headsets (BLE Audio 5.3), VoNR, VoLTE, circuit-switched voice, HD voice, VoIP with FB/SWB audio, PTT
Network Connections
Wi-Fi 7, Bluetooth 6.0, USB 2.0 back I/O (host), USB 3.1 Type-C bottom (host/client), 5G WWAN

Performance Characteristics

CPU
Qualcomm Dragonwing Q-6690, 2.9 GHz
Memory
12 GB LPDDR5 RAM / 256 GB UFS 3.1 flash
Security
Android Strongbox with Secure Element IC, FIPS 140-3 validated, Common Criteria certified, Secure Boot and Verified Boot
Operating System
Android (supported versions listed at zebra.com/android-versions)

Interactive Sensor Technology

Light Sensor
auto display brightness
Magnetometer
eCompass for direction and orientation
Motion Sensor
3-axis gyroscope, 3-axis accelerometer
Pressure Sensor
Pressure sensor/barometer (WWAN SKU)
Proximity Sensor
Disables display and touch when held to the ear

Questions buyers ask

Is this TC501 SKU intended for the US market?

Yes. TC501G-341B2B1A01-NA is a North America-only configuration. It supports 5G bands including n41, n71 and n77, LTE bands such as B2, B4, B12, B13, B66 and B71, and CBRS, which is available in the US only.

What makes this configuration different from other TC501 models?

It combines the 12 GB RAM / 256 GB flash tier, the SR560 imager and a second 13 MP ultra-wide autofocus rear camera next to the 50 MP main camera. The ultra-wide camera suits vision-based applications that need a wider view.

Can the battery be changed without shutting the device down?

Yes. The standard 5,000 mAh (19.45 Wh) Li-Ion battery is hot-swappable. The TC501 platform also offers a 7,240 mAh extended battery and fast charging from 0 to 70% in 45 minutes with Zebra's fast charging options.

Does it need an external RFID sled?

No. Every TC501 includes short-range UHF RFID that reads more than 200 tags per second at up to 6.5 ft (2 m), covering both the US 902-928 MHz and EU 865-868 MHz bands.

How rugged is the TC501?

It is sealed to IP68 and IP65. It survives 8 ft (2.44 m) drops to concrete at room temperature, or 9 ft (2.74 m) with the rugged boot, and 2,000 tumbles of 1.6 ft (0.5 m). It operates from -4°F to +122°F.
