ZebraPhones

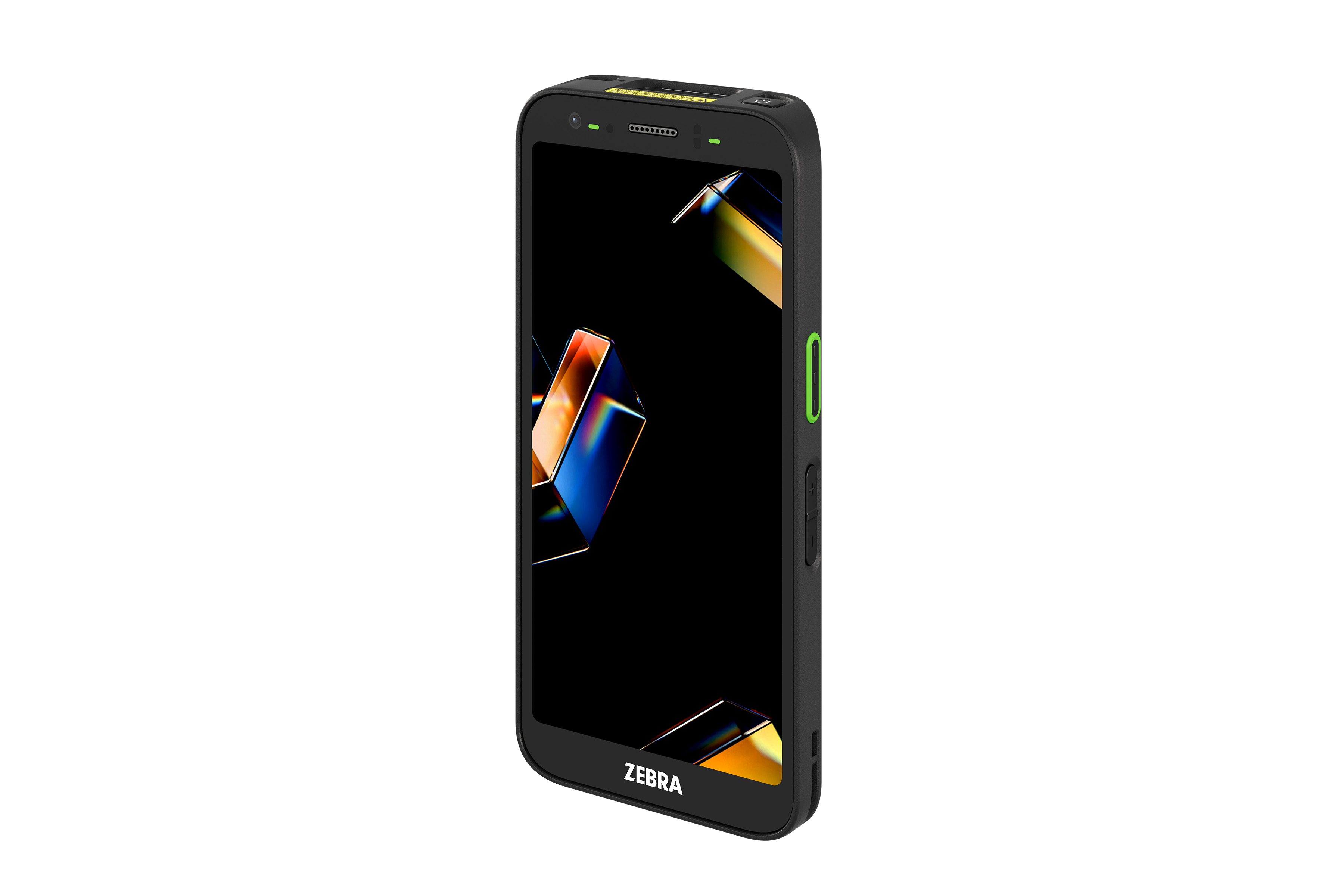

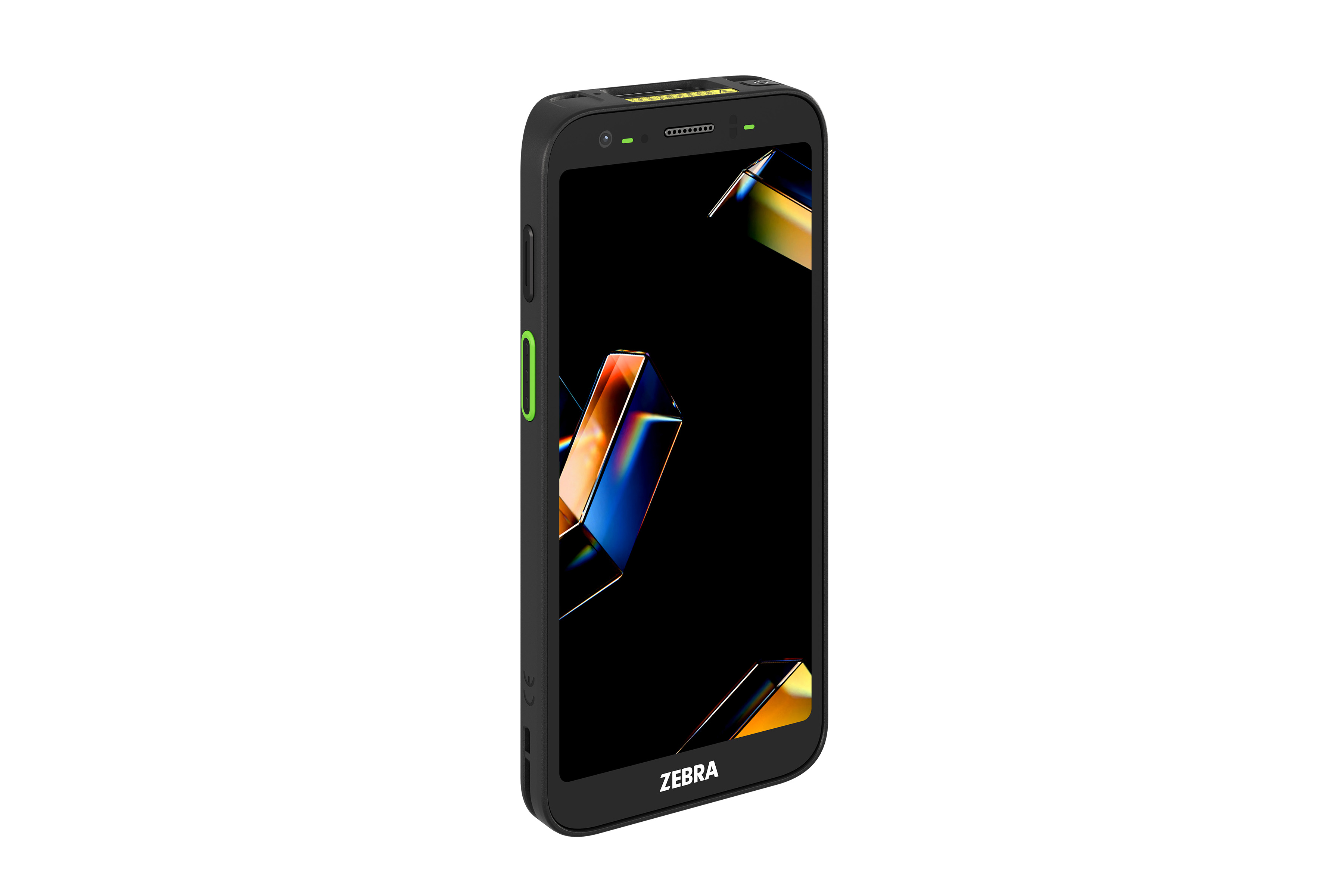

Zebra TC501 5G Rugged Mobile Computer with Wi-Fi 7, SR560 Imager and Time-of-Flight Sensor

5GMPN TC501G-341B2C1AA1-NA
  • 256 GB
  • Rugged
$3,162.50$4,600.00Save $1,437.50

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Zebra TC501G-341B2C1AA1-NA is a North America-only configuration of the TC501 rugged mobile computer with a built-in Time-of-Flight (iToF) depth sensor. It pairs 5G WWAN and Wi-Fi 7 with a 2.9 GHz Qualcomm Dragonwing Q-6690, 12 GB RAM and 256 GB flash. It also carries an SR560 imager, 50 MP rear and 8 MP front cameras, a hot-swappable standard battery and a Secure Element. Zebra lists it as a supported device for Mobile Parcel 3.0 dimensioning.

  • Time-of-Flight (iToF) sensor for depth, distance and volume capture, supported by Zebra Mobile Parcel 3.0
  • 5G Release 17 WWAN (Sub-6 NSA/SA) with one physical SIM plus dual eSIM, CBRS (US only) and private cellular support
  • Wi-Fi 7 tri-band 2x2 MU-MIMO with MLO, plus Bluetooth 6.0 and NFC
  • Qualcomm Dragonwing Q-6690 at 2.9 GHz with 12 GB LPDDR5 RAM and 256 GB UFS 3.1 flash, microSD up to 2 TB
  • SR560 1D/2D imager, 50 MP autofocus rear camera, 8 MP front camera and integrated UHF RFID
  • 6.0-inch FHD+ AMOLED display, 1,500 nits peak, Gorilla Glass Victus
  • IP68/IP65 sealing, 8 ft (2.44 m) drops to concrete, and a hot-swappable standard 5,000 mAh battery
  • Measure parcels and pallets on the handheld to plan truck and warehouse space, without a separate dimensioning station

The Zebra TC501 is a 6-inch rugged Android mobile computer for retail, warehouse, field service and delivery teams, and it replaces the TC52x, TC57x and TC52ax. This configuration, TC501G-341B2C1AA1-NA, is built for North America. Its defining feature is a Time-of-Flight (iToF) sensor that captures depth, distance, presence/absence and volume data in any lighting. Zebra lists this SKU as a supported device for Zebra Mobile Parcel 3.0 (non-certified parcel dimensioning), so parcels and pallets can be measured on the handheld workers already carry.

Connectivity covers a 5G Release 17 modem (Sub-6 NSA and SA) with one physical SIM plus dual eSIM, CBRS (US only) and private cellular bands. It also has tri-band Wi-Fi 7 with MLO and Bluetooth 6.0. The Qualcomm Dragonwing Q-6690 runs at 2.9 GHz and includes a dedicated AI engine. It is paired with 12 GB LPDDR5 RAM, 256 GB UFS 3.1 flash and a microSD slot for cards up to 2 TB. Data capture includes the SR560 1D/2D imager, a 50 MP autofocus rear camera, an 8 MP front camera, integrated UHF RFID that reads more than 200 tags per second at up to 6.5 ft, and NFC with EMVCo contactless payment support.

The TC501 is IP68 and IP65 sealed. It survives 8 ft drops to concrete at room temperature, or 9 ft with the rugged boot, and it has passed thermal shock testing for workers moving between very different temperatures. The 6-inch AMOLED display reaches 1,500 nits peak behind Gorilla Glass Victus. The standard 5,000 mAh battery is hot-swappable. Security layers include the Secure Element with Android Strongbox, FIPS 140-3 validation, Common Criteria certification and Secure Boot. A Quick Start Guide and Regulatory Guide are included in the box.

Ideal for

  • Parcel and pallet dimensioning with Zebra Mobile Parcel to plan truck and warehouse capacity
  • Courier and postal proof of delivery, condition capture and location services over 5G
  • Warehouse receiving and inventory with barcode, RFID and depth data on one device
  • Retail back-of-store management, order fulfillment and cycle counts
  • Field service asset tracking, parts inventory and mobile invoicing

Specifications

General

MPN
TC501G-341B2C1AA1-NA
Brand
Zebra Technologies
Model
TC501 Mobile Computer
Region
North America (NA) only
Replaces
Replaces TC52x, TC57x, TC52ax
IN The Box
Mobile Computer, Regulatory Guide, Quick Start Guide

Warranty

Warranty
1-year Zebra hardware warranty

Zebra Dna

Zebra Dna
Zebra DNA tools (features vary; support contract may be required)

Data Capture

NFC
NFC (ISO 14443 A/B, FeliCa, ISO 15693, Mifare Desfire), EMVCo contactless payments, HCE, Apple VAS and Google Smart Tap certified
Rear Camera
50 MP autofocus (PDAF), LED flash, Torch mode, HDR
Scan Engine
SR560 1D/2D imager (red laser cross-hair aimer, white illumination)
Front Camera
8 MP fixed focus
Time OF Flight
Time-of-Flight (iToF) depth sensor for 3D data and parcel dimensioning
Integrated Rfid
Integrated UHF RFID, up to 6.5 ft (2 m), >200 tags/sec, EPC Class 1 Gen2 / Gen 2 V2

Wireless LAN

Radio
Wi-Fi 7 tri-band 2x2 MU-MIMO with MLO, IPv4/IPv6, Wi-Fi Aware
Fast Roam
802.11r FT, PMK caching, Cisco CCKM, OKC
Data Rates
Up to 344 Mbps (2.4 GHz), 2882 Mbps (5 GHz), 5764 Mbps (6 GHz)
Multimedia
WMM, WMM-PS, TSPEC
Certifications
Wi-Fi CERTIFIED 7, 6E, ac, n; WPA2/WPA3; PMF; Voice-Enterprise; Wi-Fi Direct; Agile Multiband; Passpoint and more
Operating Channels
2.4 GHz ch 1-13, 5 GHz ch 36-165, 6 GHz ch 1-233; 20-320 MHz bandwidth
Security And Encryption
WPA3 Enterprise (incl. 192-bit), WPA3 Personal, WPA/WPA2, Enhanced Open, WEP, EAP-SIM/AKA/AKA'

Wireless Pan

Bluetooth
Bluetooth 6.0, Class 1/2, 2x2 Tx, secondary BLE beaconing

Wireless WAN

GPS
Triple-band GNSS (L1/L5/L2): GPS, GLONASS, Galileo, BeiDou, QZSS, a-GPS, XTRA
CBRS
CBRS (US only)
Radio
5G Rel-17 NR Sub-6 (NSA/SA), Gigabit LTE-A, Dual SIM/Dual Standby
2g Bands
850/900/1800/1900 MHz (ROW SKUs only)
3g Bands
B1/2/4/5/6/8/19
LTE Bands
4G: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
MIMO 4x4 DL
4x4 DL MIMO on 5G n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79 and LTE 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70
NR Fr1 Bands
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
Private Cellular
B48/53/106/68
Carrier Aggregation
LTE CA up to 3DL/2UL; NR CA up to 3DL/2UL

User Environment

Sealing
IP68 and IP65 per IEC 60529
Humidity
5%-95% non-condensing
Storage Temp
-40°F to +158°F (-40°C to +70°C)
Operating Temp
-4°F to +122°F (-20°C to +50°C)
Drop Specifications
Exceeds MIL-STD-810H: 6 ft across temp range, 8 ft at room temp; with rugged boot 7 ft across temp range, 9 ft at room temp (to concrete)
Tumble Specification
2,000 x 1.6 ft (0.5 m) tumbles; 2,000 x 3.3 ft (1.0 m) with rugged boot
Electrostatic Discharge
±15 kV air, ±8 kV direct, ±8 kV indirect

Sku Configuration

Radios
5G WWAN and Wi-Fi 7
Battery
Standard battery, hot swap
Cameras
50 MP rear, 8 MP front
Security
Secure Element
Processor
Qualcomm Dragonwing Q-6690, 2.9 GHz
Scan Engine
SR560 imager
Depth Sensing
iToF sensor, supported by Zebra Mobile Parcel 3.0
Memory Storage
12 GB RAM / 256 GB flash

Recommended Services

Services
Zebra OneCare Essential/Select; VisibilityIQ Foresight

Environmental Compliance

Compliance
RoHS 2011/65/EU (amend. 2015/863), REACH SVHC 1907/2006, EPEAT Certified

Physical Characteristics

SIM
One physical SIM and dual eSIM
Power
Li-Ion with PowerPrecision+; standard 5000 mAh (19.45 Wh), extended 7240 mAh (28.16 Wh), wireless charge 5000 mAh (19.45 Wh); fast charging; hot swap
Keypad
On-screen keypad
Weight
9.63 oz (273 g) with 5000 mAh battery; 10.69 oz (303 g) with 7240 mAh battery
Buttons
Programmable dual scan buttons, push-to-talk button, volume up/down
Display
6.0 in FHD+ 2160x1080 AMOLED, 600/1000 HBM/1500 peak nits, adaptive refresh, optically bonded, Gorilla Glass Victus
Dimensions
L x H x D: 6.42 x 3.07 x 0.61 in (163.15 x 77.9 x 15.5 mm)
Touch Panel
Multi-mode capacitive touch (bare/gloved finger, passive stylus sold separately), water droplet rejection, anti-smudge coating
Notifications
Audible tone, multi-color LEDs, vibration
Expansion Slot
User-accessible microSD, up to 2 TB
Imager Windows
Corning Gorilla Glass
Interface Ports
USB Type-C (USB 3.1); bottom and back I/O (USB 2.0)
Voice And Audio
Stereo speakers, two mics, USB-C/Bluetooth headsets (BLE Audio 5.3), VoNR, VoLTE, circuit-switched voice, HD voice, VoIP with FB/SWB audio, PTT
Network Connections
Wi-Fi 7, Bluetooth 6.0, USB 2.0 back I/O (host), USB 3.1 Type-C bottom (host/client), 5G WWAN

Performance Characteristics

CPU
Qualcomm Dragonwing Q-6690, 2.9 GHz
Memory
12 GB LPDDR5 RAM / 256 GB UFS 3.1 flash
Security
Android Strongbox with Secure Element IC, FIPS 140-3 validated, Common Criteria certified, Secure Boot and Verified Boot
Operating System
Android (supported versions listed at zebra.com/android-versions)

Interactive Sensor Technology

Light Sensor
auto display brightness
Magnetometer
eCompass for direction and orientation
Motion Sensor
3-axis gyroscope, 3-axis accelerometer
Pressure Sensor
Pressure sensor/barometer (WWAN SKU)
Proximity Sensor
Disables display and touch when held to the ear

Questions buyers ask

What does the Time-of-Flight sensor do on this TC501?

The iToF sensor captures depth, distance, presence/absence and volume data in any lighting. Zebra lists this SKU as a supported device for Zebra Mobile Parcel 3.0, which provides non-certified parcel dimensioning.

Is this TC501 SKU intended for the US market?

Yes. TC501G-341B2C1AA1-NA is a North America-only configuration. It supports 5G bands including n41, n71 and n77, LTE bands such as B2, B4, B12, B13, B66 and B71, and CBRS, which is available in the US only.

Does this model include the ultra-wide camera?

No. This configuration pairs the Time-of-Flight sensor with a 50 MP autofocus rear camera and an 8 MP front camera. The 13 MP ultra-wide camera is offered on a different TC501 SKU.

Can the battery be swapped during a shift?

Yes. The standard 5,000 mAh (19.45 Wh) battery is hot-swappable. Zebra's fast charging options take batteries from 0 to 70% in 45 minutes.

Does it need an external RFID reader?

No. Every TC501 has integrated short-range UHF RFID that reads more than 200 tags per second at up to 6.5 ft (2 m).
