ZebraPhones

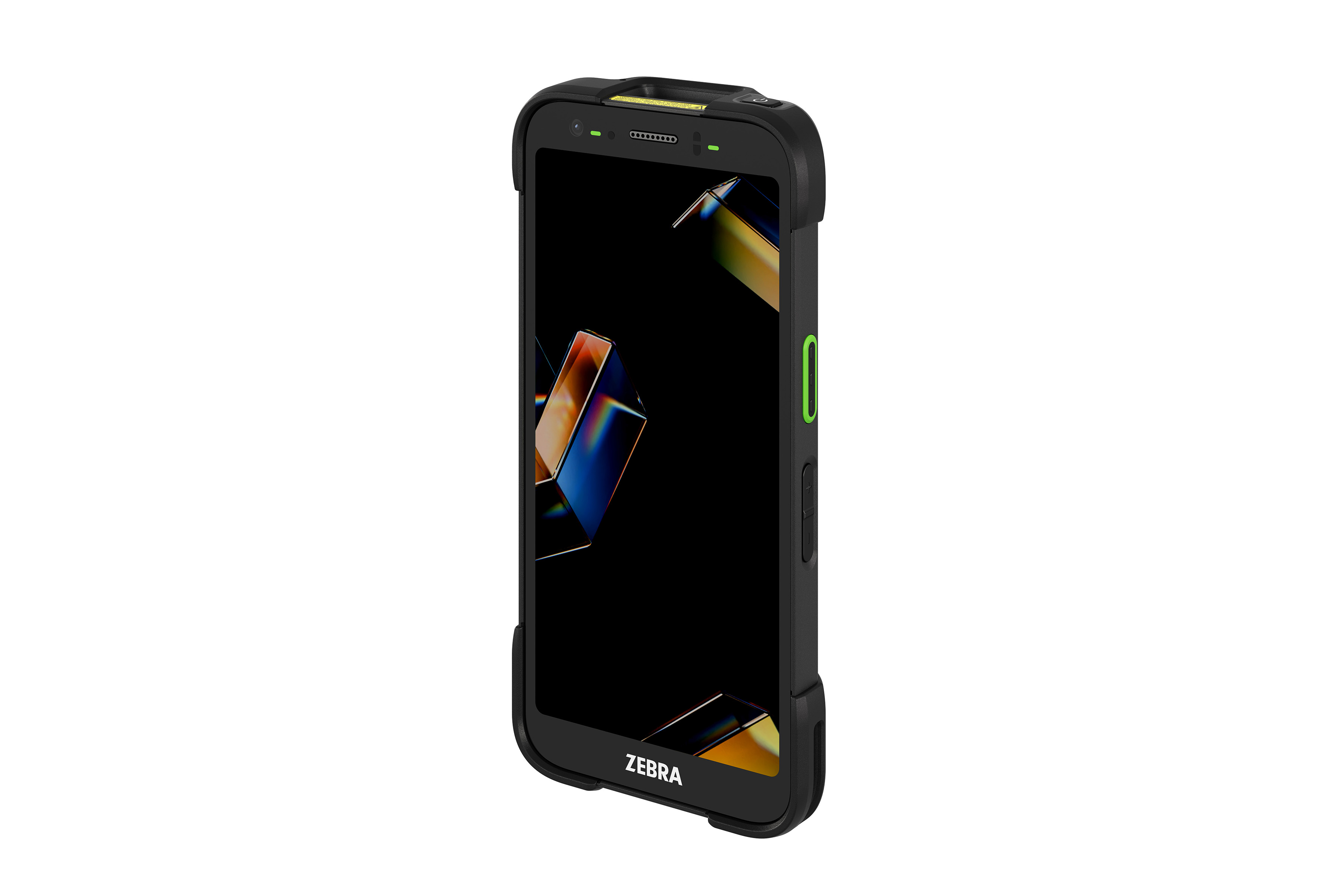

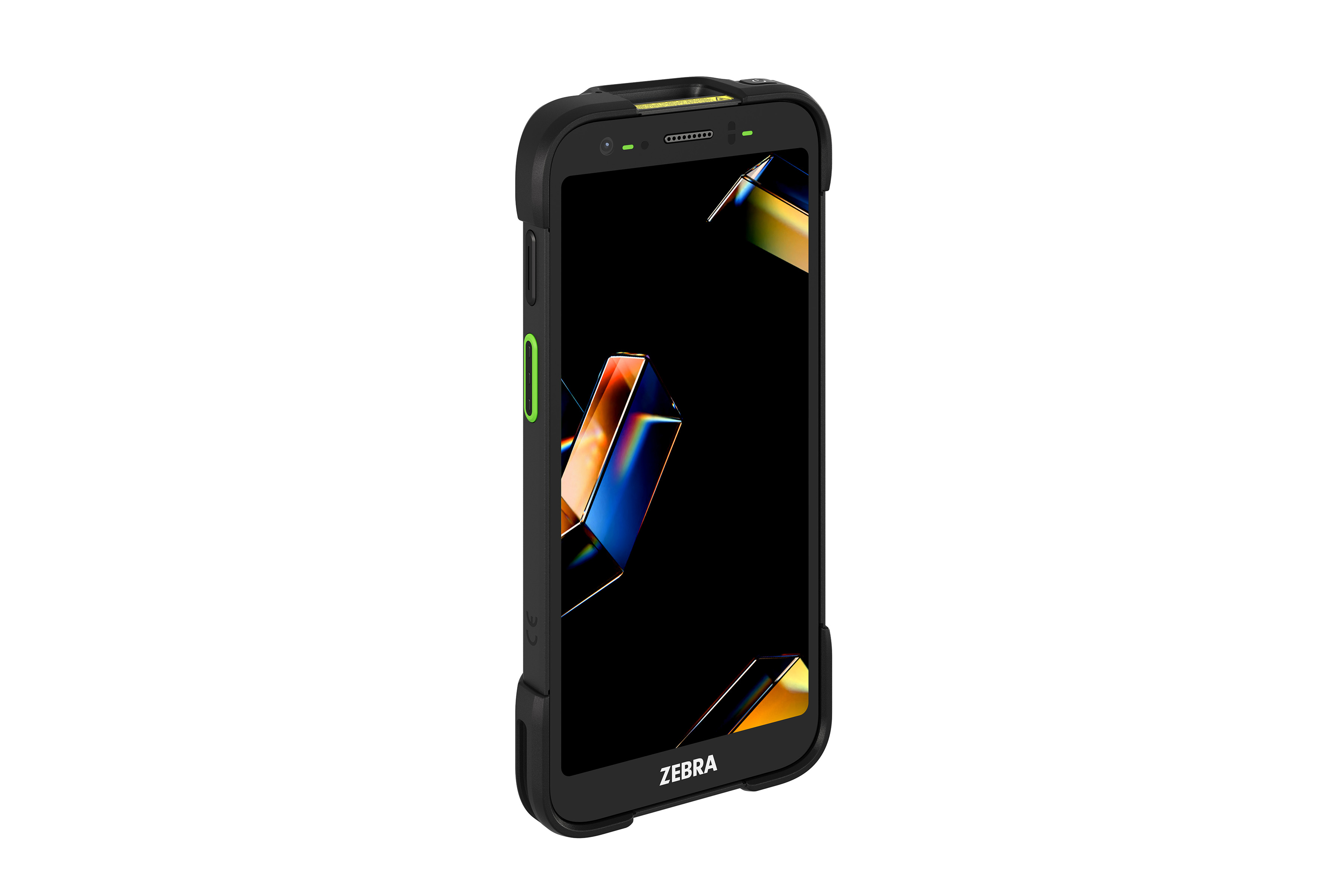

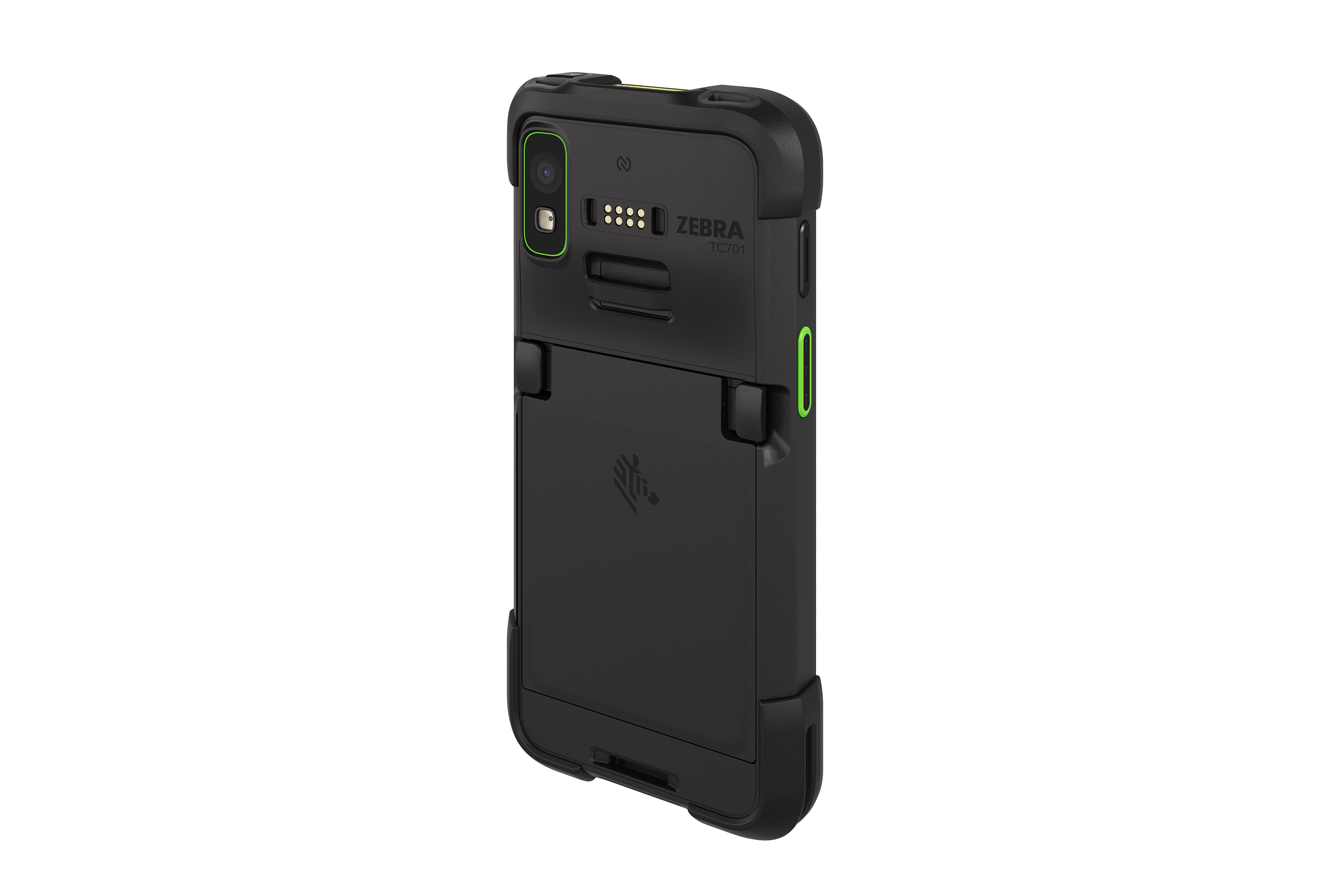

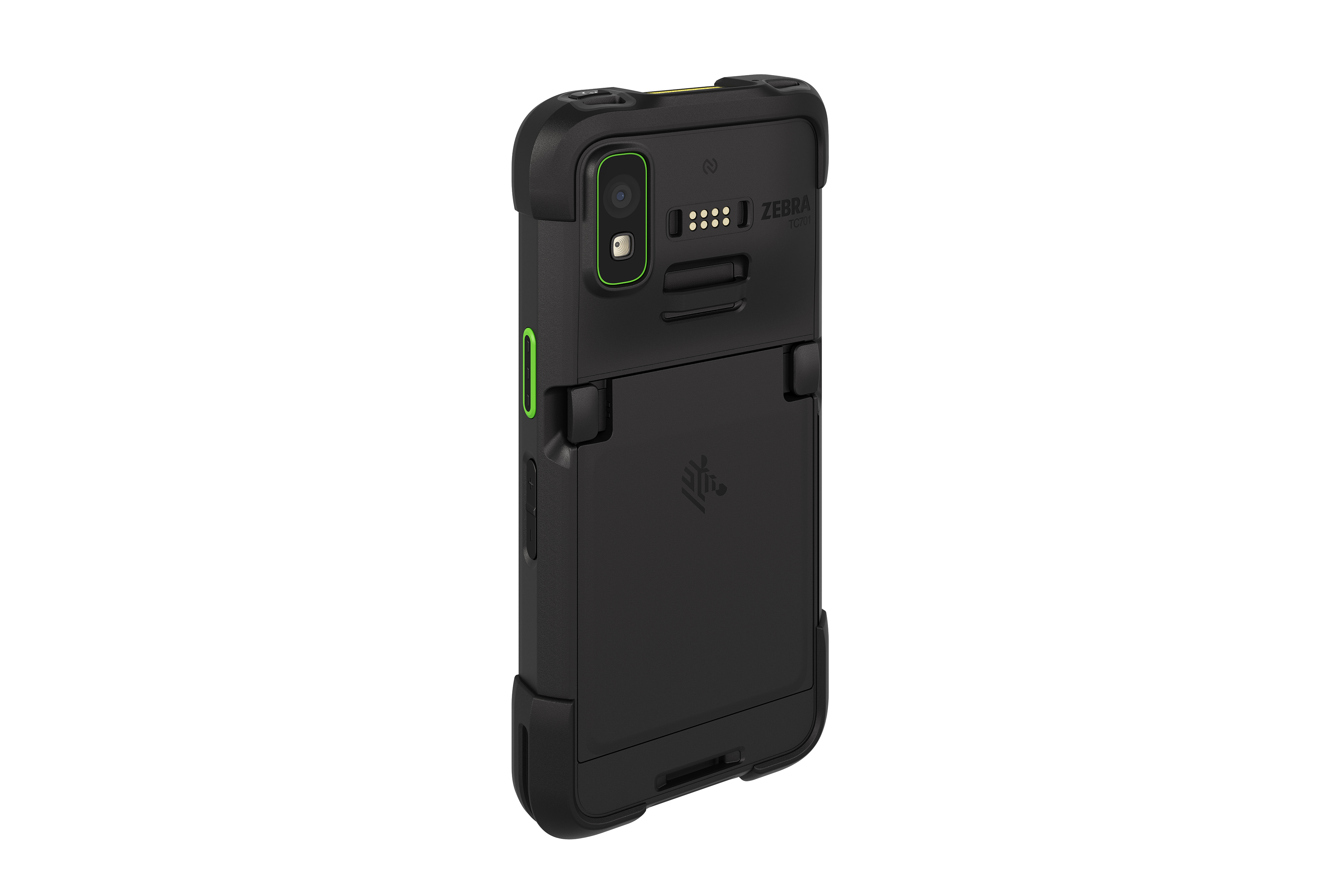

Zebra TC701 5G Ultra-Rugged Mobile Computer, Wi-Fi 7, 8GB/128GB, SR560 Imager, North America (TC701G-321B1A1A01-NA)

5GMPN TC701G-321B1A1A01-NA
  • 128 GB
  • Rugged
$2,805.00$4,521.73Save $1,716.73

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Zebra TC701 (TC701G-321B1A1A01-NA) is a North America ultra-rugged 5G Android mobile computer built for on-device AI. This configuration runs a Qualcomm Dragonwing Q-6690 at 2.0 GHz with 8GB RAM and 128GB flash, connects over 5G, Wi-Fi 7 and Bluetooth 6.0, scans with the SR560 imager, and pairs a 50 MP rear camera with an 8 MP front camera. It includes a Secure Element and a hot-swappable standard 5000 mAh battery.

  • 5G Release 17 (NR Sub-6 NSA/SA), CBRS (US only), one physical SIM plus dual eSIM
  • Tri-band Wi-Fi 7 with MLO and Bluetooth 6.0
  • Qualcomm Dragonwing Q-6690 at 2.0 GHz with dedicated AI engine; 8GB LPDDR5 / 128GB UFS 3.1
  • SR560 1D/2D imager, integrated UHF RFID and NFC
  • 50 MP rear and 8 MP front cameras; 6.0-inch FHD+ AMOLED, 1500 nits peak, Gorilla Glass Victus
  • 12 ft (3.66 m) drop spec, 3,500 tumbles, IP68/IP65
  • Secure Element with Android Strongbox, FIPS 140-3; hot-swap 5000 mAh battery
  • Run AI and OCR apps on-device with the Dragonwing Q-6690 and its integrated AI engine

The Zebra TC701 replaces the TC72 and TC77 as Zebra's most rugged handheld mobile computer, built for delivery, logistics, field service and warehouse teams running AI-driven apps. This North America SKU combines 5G WWAN and Wi-Fi 7 with a Qualcomm Dragonwing Q-6690 processor at 2.0 GHz, 8GB LPDDR5 RAM, 128GB UFS 3.1 flash, the SR560 imager, 50 MP rear and 8 MP front cameras, a Secure Element and a hot-swappable standard battery.

The 5G radio is 3GPP Release 17 with NR Sub-6 (NSA and SA), Gigabit LTE-A, carrier aggregation, Dual SIM/Dual Standby and private cellular support including CBRS (US only). One physical SIM and dual eSIM give carrier flexibility. Wi-Fi 7 is tri-band with MLO and up to 5764 Mbps on 6 GHz at 320 MHz, and Bluetooth 6.0 handles peripherals. Triple-band GNSS improves location accuracy for workers in remote areas.

The SR560 uses a red laser cross-hair aimer and white illumination for moderate to intense scanning, including in bright sunlight and on the move. Integrated short-range UHF RFID reads more than 200 tags per second up to 6.5 ft (2 m), and NFC supports EMVCo contactless payment, Apple VAS and Google Smart Tap. The 6.0-inch FHD+ AMOLED display reaches 1500 nits peak under Gorilla Glass Victus with adaptive refresh rate.

The TC701 exceeds MIL-STD-810H with 12 ft (3.66 m) drops to concrete at room temperature, is rated for 3,500 1.0 m tumbles, and is IP68/IP65 sealed. Security includes Android Strongbox with a Secure Element IC, FIPS 140-3 validation and Common Criteria certification. The 5000 mAh (19.45 Wh) PowerPrecision+ battery supports hot swap and fast charging. The box includes the device, regulatory guide and quick start guide.

Ideal for

  • Proof of pickup, delivery and condition for parcel and postal carriers
  • Airline asset management and baggage reconciliation
  • Field service remote expert, documentation and customer sign-off
  • Warehouse picking, put-away, receiving and RFID inventory control
  • Package and pallet dimensioning and track and trace

Specifications

Power

Battery
Standard 5000 mAh (19.45 Wh) battery (this SKU)
Battery Options
Standard, extended and wireless charge batteries
Battery Features
PowerPrecision+, fast charging, hot swap

General

MPN
TC701G-321B1A1A01-NA
Brand
Zebra Technologies
Model
TC701 Mobile Computer
Region
North America (NA) only
Replaces
Replaces TC72, TC77
Sku Configuration
5G, Wi-Fi 7, 8GB/128GB, SR560, 50MP/8MP, hot swap, Secure Element

Package

IN The Box
Mobile computer, regulatory guide, quick start guide
Shipping Weight
5.00 lb

Sensors

Interactive Sensor Technology
Light, gyroscope, accelerometer, eCompass, barometer, proximity

Data Capture

NFC
NFC with EMVCo payment, Apple VAS, Google Smart Tap
Rear Camera
50 MP autofocus, PDAF, LED flash, Torch mode, HDR
Scan Engine
SR560 1D/2D imager (this SKU)
Front Camera
8 MP fixed focus
Integrated Rfid
UHF RFID up to 6.5 ft (2 m), 200+ tags/sec
Scan Engine Options Family
Family options: SR500, SR560, AC670

Wireless LAN

Radio
Tri-band Wi-Fi 7, 2x2 MU-MIMO, MLO
Fast Roam
802.11r, PMK caching, CCKM, OKC
Data Rates
Up to 5764 Mbps on 6 GHz
Multimedia
WMM, WMM-PS, TSPEC
Certifications
Wi-Fi CERTIFIED 7 and related Wi-Fi Alliance certifications
Operating Channels
2.4, 5 and 6 GHz, up to 320 MHz channels
Security And Encryption
WPA3 incl. 192-bit, OWE, EAP-SIM/AKA/AKA'

Wireless Pan

Bluetooth
Bluetooth 6.0, BLE beaconing

Wireless WAN

GNSS
Triple-band GNSS, a-GPS
Radio
5G Rel-17 NR Sub-6 NSA/SA, DSDS, Gigabit LTE-A
Bands 3g
B1/2/4/5/6/8/19
Bands 4G
LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
Bands 5G
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
Private Cellular
Private cellular B48/53/106/68, CBRS (US only)
MIMO 4x4 Downlink
4x4 DL MIMO on key 5G and LTE bands

Certifications

Security Certifications
FIPS 140-3, Common Criteria
Environmental Compliance
RoHS, REACH, EPEAT Certified

User Environment

Esd
±15 kV air, ±8 kV direct/indirect
Sealing
IP68 and IP65
Humidity
5% to 95% non-condensing
Drop Specification
12 ft (3.66 m) to concrete at room temp; 8 ft across temperature
Storage Temperature
-40°F to +158°F (-40°C to +70°C)
Tumble Specification
3,500 tumbles at 1.0 m
Operating Temperature
-4°F to +122°F (-20°C to +50°C)

Software And Services

Warranty
1 year Zebra hardware warranty from date of shipment
Zebra Dna
Zebra DNA supported
Recommended Services
Zebra OneCare, VisibilityIQ Foresight

Physical Characteristics

SIM
1 physical SIM + dual eSIM
Keypad
On-screen keypad
Weight
10.02 oz (284 g) with 5000 mAh battery; 11.08 oz (314 g) with 7240 mAh battery
Buttons
Dual scan, PTT, volume up/down
Display
6.0-inch FHD+ AMOLED, up to 1500 nits peak, Gorilla Glass Victus
Dimensions
6.5 x 3.07 x 0.61 in (165.0 x 77.9 x 15.5 mm)
Touch Panel
Capacitive multi-mode touch, glove/stylus input, water droplet rejection
Notifications
Audible tone, multi-color LEDs, vibration
Expansion Slot
MicroSD up to 2 TB
Imager Windows
Corning Gorilla Glass
Interface Ports
USB-C 3.1; USB 2.0 bottom/back I/O
Voice And Audio
Stereo speakers, VoNR, VoLTE, HD voice, VoIP FB/SWB, PTT
Network Connections
Wi-Fi 7, Bluetooth 6.0, USB 2.0, USB-C 3.1, WWAN 5G

Performance Characteristics

CPU
Qualcomm Dragonwing Q-6690, 2.0 GHz (this SKU; up to 2.9 GHz SKU specific)
Memory
8GB LPDDR5 RAM / 128GB UFS 3.1 Flash (this SKU)
Security
Secure Element with Strongbox, FIPS 140-3, Common Criteria, Secure/Verified Boot
Operating System
Android
Memory Options Family
Family options: 8/128GB, 12/256GB

Questions buyers ask

Is this TC701 configuration for North America?

Yes. TC701G-321B1A1A01-NA is an NA-only SKU with 5G WWAN, Wi-Fi 7 and CBRS support (CBRS is US only).

What processor and memory does it have?

A Qualcomm Dragonwing Q-6690 at 2.0 GHz with a dedicated AI engine, 8GB LPDDR5 RAM and 128GB UFS 3.1 flash, plus a microSD slot supporting up to 2 TB.

Does the TC701 have built-in RFID?

Yes. Zebra integrates short-range UHF RFID in every TC701 model, reading more than 200 tags per second at up to 6.5 ft (2 m).

Can the battery be swapped without shutting down?

Yes. The standard 5000 mAh (19.45 Wh) PowerPrecision+ battery is hot-swap capable and supports fast charging.

How durable is the TC701?

It exceeds MIL-STD-810H with 12 ft (3.66 m) drops to concrete at room temperature and 8 ft across -4°F to +122°F, handles 3,500 1.0 m tumbles, and is IP68/IP65 sealed.
