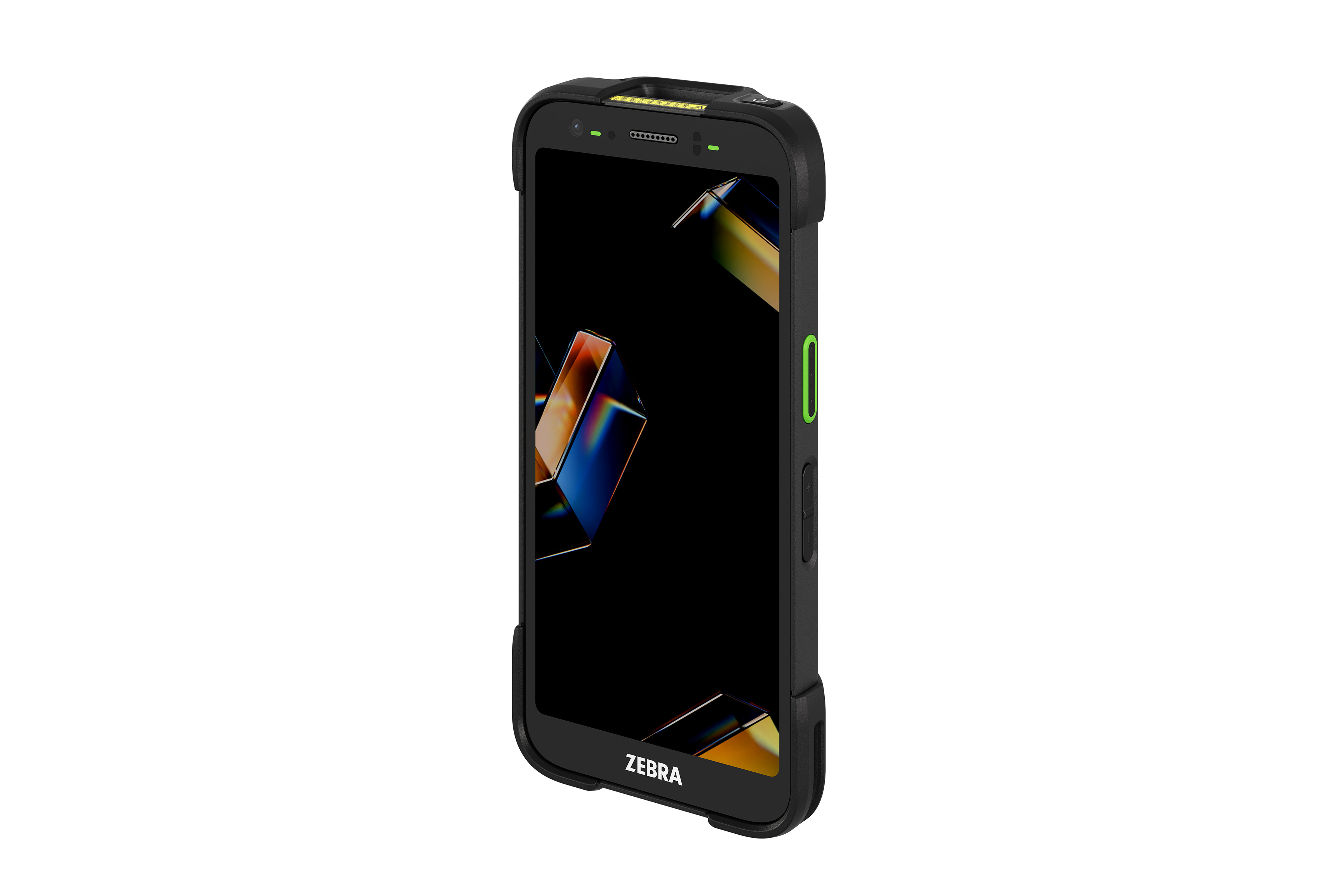

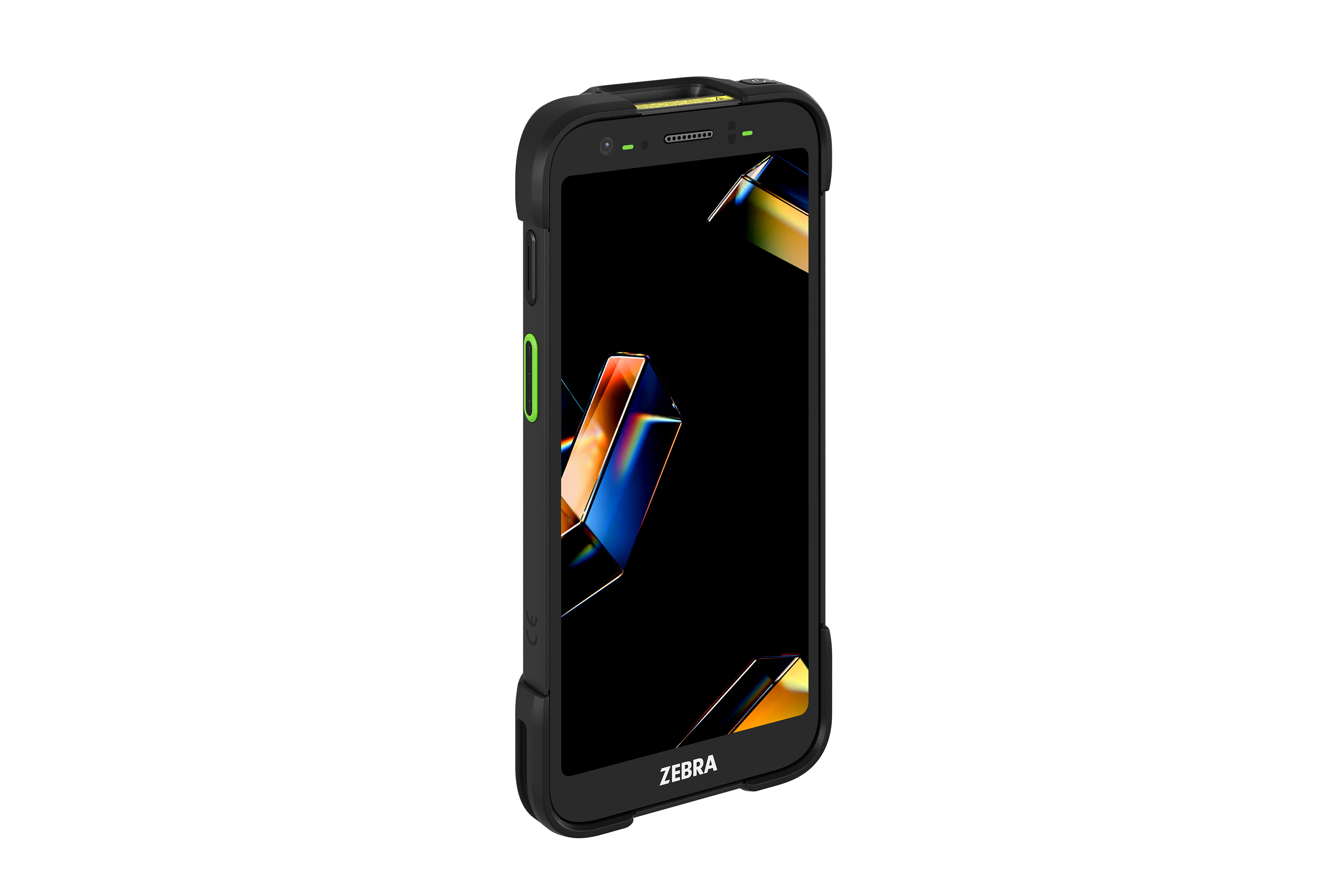

Zebra TC701 5G Rugged Mobile Computer with Wi-Fi 7, 12GB/256GB, SR560 Imager, Ultra-Wide Camera

5GMPN TC701G-341B2B1A01-NA
  • 256 GB
  • Rugged
$3,241.56$5,217.39Save $1,975.83

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Zebra TC701 (TC701G-341B2B1A01-NA) is the top memory configuration of Zebra's most rugged TC7 handheld, built for the North American market. It runs a Qualcomm Dragonwing Q-6690 at 2.9 GHz with 12 GB RAM and 256 GB flash, on 5G WWAN and Wi-Fi 7. For capture it has an SR560 scan engine, a 50 MP rear camera, a 13 MP ultra-wide rear camera and an 8 MP front camera. It also has a hot-swappable standard battery and a Secure Element.

  • Qualcomm Dragonwing Q-6690 at 2.9 GHz with dedicated AI engine, 12 GB LPDDR5 RAM, 256 GB UFS 3.1 flash
  • 5G NR Sub-6 (NSA/SA, Release 17), tri-band Wi-Fi 7 with MLO and Bluetooth 6.0
  • SR560 1D/2D scan engine with red laser cross-hair aimer and white illumination
  • 50 MP rear, 13 MP ultra-wide rear and 8 MP front cameras
  • Integrated UHF RFID and NFC with contactless payment support
  • 12 ft drop, 3,500 tumbles, IP68/IP65 sealing
  • Hot-swappable 5000 mAh standard battery; Secure Element and Android Strongbox
  • Run demanding AI, OCR and dimensioning apps with the most memory offered in the TC7 Series

The Zebra TC701 replaces the TC72 and TC77 and is the most rugged device in the TC7 Series. This TC701G-341B2B1A01-NA configuration is the performance build. The Qualcomm Dragonwing Q-6690 runs at its top 2.9 GHz speed and includes a dedicated AI engine. It is paired with 12 GB LPDDR5 RAM and 256 GB UFS 3.1 flash, plus a microSD slot for cards up to 2 TB. That headroom suits AI, OCR, dimensioning and multi-app workloads.

The SR560 scan engine uses a red laser cross-hair aimer with white illumination. It is designed for moderate to intense scanning, with an improved 2D barcode finder that works in bright sunlight and tolerates motion. This SKU adds a 13 MP auto-focus ultra-wide rear camera (5 cm to infinity) alongside the 50 MP rear camera, for vision applications that need a wider view. Integrated UHF RFID reads more than 200 tags per second up to 2 m. NFC supports EMVCo contactless payment and major wallets.

The 6.0-inch Full HD+ AMOLED display reaches 1500 nits peak under Gorilla Glass Victus and works with gloves and wet fingers. Connectivity includes 5G NR Sub-6 (NSA/SA, Release 17), Gigabit LTE-A, private cellular and CBRS, with one physical SIM plus dual eSIM. It also has tri-band Wi-Fi 7 with MLO, Bluetooth 6.0 and triple-band GNSS.

The TC701 exceeds MIL-STD-810H with 12 ft (3.66 m) drops to concrete and 3,500 1 m tumbles, and it is sealed to IP68 and IP65. The standard 5000 mAh battery hot-swaps. Secure Element, Android Strongbox, and FIPS 140-3 and Common Criteria certification protect the device. Zebra's spec sheet, Quick Start Guide and Product Reference Guide are available.

Ideal for

  • High-volume warehouse picking, receiving and reverse logistics
  • Last-mile delivery with proof of delivery, photo capture and route optimization
  • Field service with remote expert sessions, documentation and customer sign-off
  • Retail inventory counts, item location and BOPIS fulfillment
  • Vision-based applications that need an ultra-wide camera view

Specifications

Power

Hot Swap
Hot swap capable
Battery Type
Rechargeable Li-Ion with PowerPrecision+ real-time metrics
Fast Charging
Fast charging, 0 to 70% in 45 minutes (with fast charging options)
Battery Capacity
Standard battery: 5000 mAh (19.45 Wh)
Extended Battery Option
Optional extended battery: 7240 mAh (28.16 Wh)

Display

Size
6.0 in (15.2 cm)
Type
AMOLED, optically bonded, adaptive refresh rate
Brightness
600 nits typical, 1000 nits HBM, 1500 nits peak
Resolution
2160 x 1080 Full HD+
Cover Glass
Corning Gorilla Glass Victus
Touch Panel
Capacitive, glove and passive-stylus capable, water droplet rejection, anti-smudge

General

MPN
TC701G-341B2B1A01-NA
Brand
Zebra Technologies
Model
TC701 Mobile Computer
Region
North America (NA) SKU
Replaces
Replaces TC72, TC77
IN The Box
Mobile computer, Regulatory Guide, Quick Start Guide
Operating System
Android (supported versions listed at zebra.com/android-versions)

Package

Shipping Weight
7.00 lb shipping weight

Sensors

Interactive Sensor Technology
Light, motion, eCompass, barometer, proximity sensors

Physical

SIM
1 physical SIM + dual eSIM
Keypad
On-screen keypad
Weight
10.02 oz (284 g) with 5000 mAh battery
Buttons
Programmable dual scan, PTT and volume buttons
Dimensions
6.5 x 3.07 x 0.61 in (165.0 x 77.9 x 15.5 mm)
Imager Window
Corning Gorilla Glass
Notifications
Audible tone, multi-color LEDs, vibration
Expansion Slot
User-accessible microSD, up to 2 TB
Interface Ports
USB-C (USB 3.1), back I/O USB 2.0

Compliance

Warranty
1 year from shipment, per Zebra hardware warranty statement
Environmental
RoHS, REACH, EPEAT Certified
Recommended Services
Zebra OneCare Essential/Select, VisibilityIQ Foresight

Performance

CPU
Qualcomm Dragonwing Q-6690 with integrated AI engine
RAM
12 GB LPDDR5 RAM
Storage
256 GB UFS 3.1 Flash
Security
Secure Element, Android Strongbox, FIPS 140-3, Common Criteria, Secure Boot and Verified Boot
Clock Speed
2.9 GHz (this SKU)

Voice Audio

Voice And Audio
Stereo speakers, dual mics, VoNR, VoLTE, HD voice, PTT

Data Capture

NFC
NFC with contactless payment and wallet support
Rfid
Integrated UHF RFID, >200 tags/sec up to 2 m
Rear Camera
50 MP auto focus, flash LED, Torch mode and HDR
Scan Engine
SR560 1D/2D scan engine, red laser cross-hair aimer, white illumination
Front Camera
8 MP fixed focus
Ultra Wide Rear Camera
13 MP auto focus ultra-wide, PDAF, 5 cm to infinity

Wireless LAN

Radio
Wi-Fi 7 tri-band, 2x2 MU-MIMO, MLO
Security
WPA3 incl. 192-bit Enterprise, WPA2, OWE, EAP-SIM/AKA
Fast Roam
802.11r, PMK caching, Cisco CCKM, OKC
Data Rates
Up to 344 Mbps (2.4 GHz), 2882 Mbps (5 GHz), 5764 Mbps (6 GHz, 320 MHz)
Multimedia
WMM, WMM-PS, TSPEC
Certifications
Wi-Fi Alliance certified: Wi-Fi 7, 6E, Voice-Enterprise, Passpoint and more
Operating Channels
2.4, 5 and 6 GHz channels; 20-320 MHz bandwidth (subject to regulatory rules)

Wireless Pan

Bluetooth
Bluetooth 6.0 with BLE beaconing

Wireless WAN

GNSS
Triple-band GNSS with a-GPS and XTRA
Radio
5G NR Sub-6 NSA/SA Rel-17, Gigabit LTE-A, DSDS
Bands 2g
rest-of-world SKUs only (not this NA SKU)
Bands 3g
B1/2/4/5/6/8/19
Bands 4G
4G LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
Bands 5G
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
MIMO 4x4 DL
4x4 DL MIMO on listed 5G and LTE bands
Private Cellular
B48/53/106/68; CBRS (US only)

User Environment

Esd
±15 kV air, ±8 kV direct/indirect
Drop
12 ft (3.66 m) to concrete; 8 ft across operating temperature
Tumble
3,500 1.0 m tumbles
Sealing
IP68 and IP65 per IEC 60529
Humidity
5% to 95% non-condensing
Storage Temp
-40°F to +158°F (-40°C to +70°C)
Operating Temp
-4°F to +122°F (-20°C to +50°C)

Questions buyers ask

Is this TC701 configuration for the US market?

Yes. TC701G-341B2B1A01-NA is the North America SKU. It supports CBRS (US only), and 2G is limited to rest-of-world SKUs.

What does the ultra-wide camera add?

A 13 MP auto-focus ultra-wide rear camera with phase detection, focusing from 5 cm to infinity. It supports vision applications that need a wider field of view than the 50 MP main camera.

What kind of scanning is the SR560 designed for?

The SR560 uses a red laser cross-hair aimer with white illumination for moderate to intense scanning. It has an improved 2D barcode finder that works in all lighting, including bright sunlight, and high motion tolerance.

How rugged is the TC701?

It exceeds MIL-STD-810H with 12 ft (3.66 m) drops to concrete at room temperature and 8 ft drops across its operating temperature range. It is rated for 3,500 1 m tumbles and is sealed to IP68 and IP65.

Can the battery be changed during a shift?

Yes. The standard 5000 mAh battery is hot-swappable. A 7240 mAh extended battery is also available for the model.
