Zebra TC701 5G Rugged Mobile Computer with Wi-Fi 7, 12GB/256GB, AC670 Long-Range Imager and Ultra-Wide Camera (NA)

5GMPN TC701G-341E2B1A01-NA
  • 256 GB
  • Rugged
$3,320.63$4,830.00Save $1,509.37

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

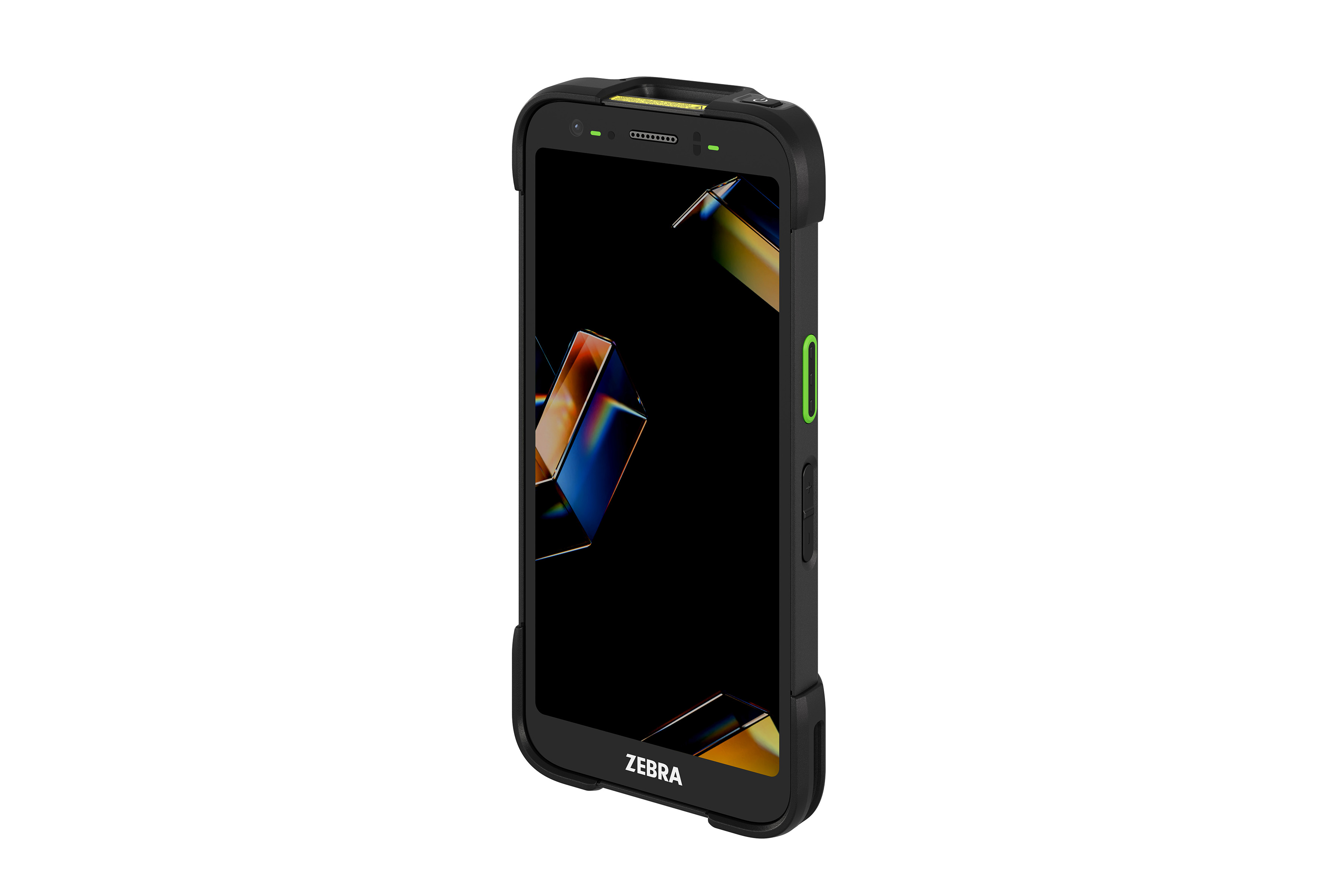

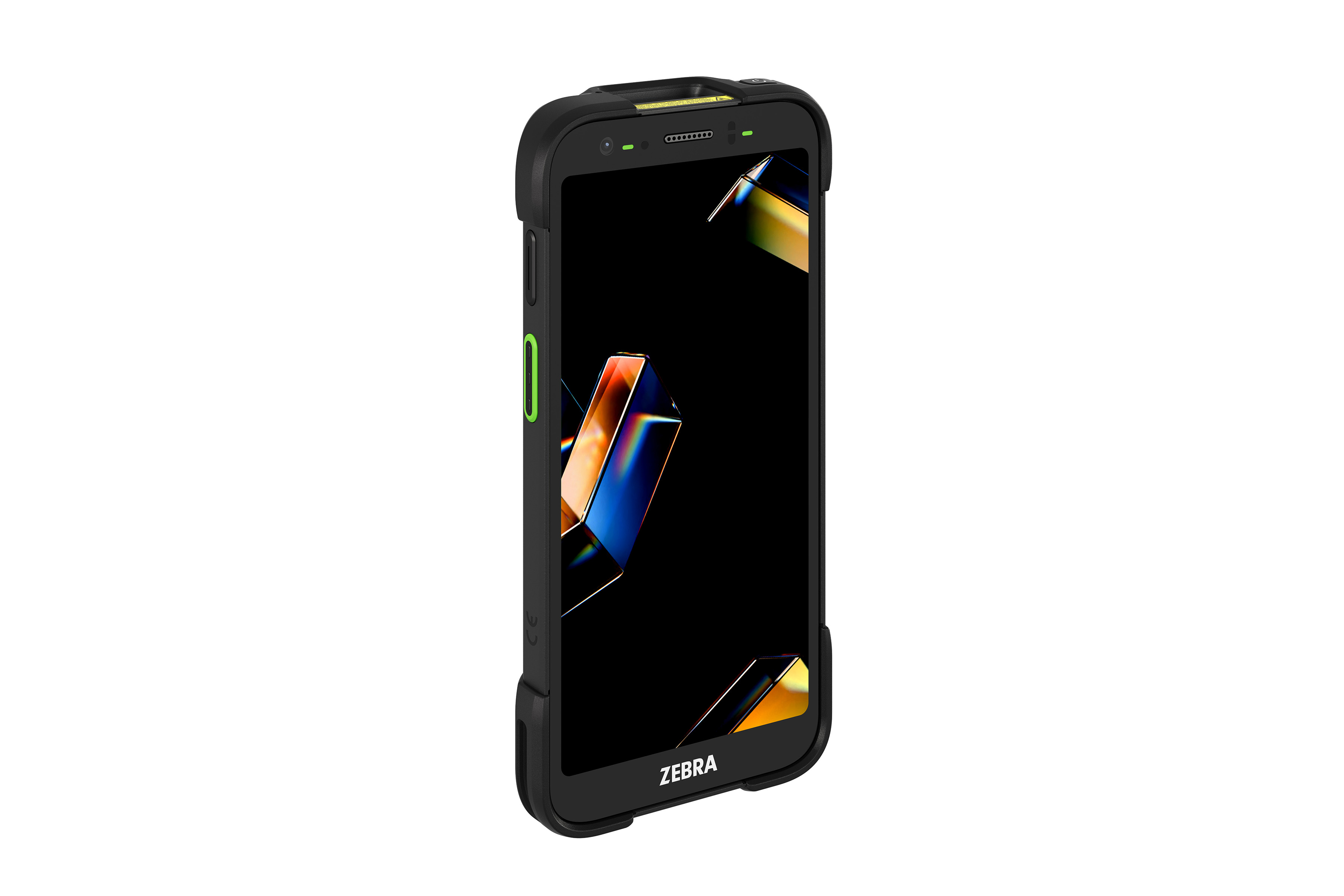

The Zebra TC701 (TC701G-341E2B1A01-NA) is an ultra-rugged 6-inch Android mobile computer for logistics, field service, retail and warehouse teams. This North America configuration pairs 5G and Wi-Fi 7 with a Qualcomm Dragonwing Q-6690 at 2.9 GHz, 12 GB RAM and 256 GB storage. It adds the AC670 advanced long-range color scan engine, a 50 MP rear camera with a 13 MP ultra-wide rear camera, and an 8 MP front camera. A hot-swappable standard battery and a Secure Element complete the build.

  • 5G NR Sub-6 (Rel-17) WWAN, Wi-Fi 7 tri-band with MLO and Bluetooth 6.0; one physical SIM plus dual eSIM
  • Qualcomm Dragonwing Q-6690 at 2.9 GHz with 12 GB LPDDR5 RAM, 256 GB UFS 3.1 flash and microSD up to 2 TB
  • AC670 advanced long-range color scan engine that captures barcodes and color photos up to 100 ft (30 m)
  • 50 MP autofocus rear camera plus 13 MP ultra-wide rear camera and 8 MP front camera
  • Integrated UHF RFID and NFC with EMVCo contactless payment support
  • 6-inch FHD+ AMOLED display at 1500 nits peak; IP68/IP65; 12 ft drops to concrete
  • Hot-swappable 5,000 mAh standard battery with fast charging and Secure Element hardware security
  • Scan labels on top racking, trailers and yard assets from up to 100 ft away without ladders or lifts

The Zebra TC701 is Zebra's most rugged TC7 Series handheld and replaces the TC72 and TC77. This SKU, TC701G-341E2B1A01-NA, is the North America-only 5G WWAN model with 12 GB LPDDR5 RAM and 256 GB UFS 3.1 flash. It runs on the Qualcomm Dragonwing Q-6690 at up to 2.9 GHz, which has an integrated AI engine for on-device AI apps. A microSD slot supports cards up to 2 TB.

This configuration is built for reach and wide views. The AC670 is Zebra's premium advanced long-range color 1D/2D scan engine. It captures barcodes and high-resolution color photos up to 100 ft (30 m) away, so workers can read labels on high racking or across a yard without a ladder or lift. The 13 MP ultra-wide autofocus rear camera focuses from 5 cm to infinity and sits beside the 50 MP autofocus main camera, supporting vision-based apps that need a wider field of view. The device also includes an 8 MP front camera, short-range UHF RFID that reads more than 200 tags per second at up to 2 m, and NFC with contactless payment and wallet support.

For connectivity, the TC701 offers 5G NR Sub-6 (Release 17) with one physical SIM plus dual eSIM, CBRS and private cellular support. Wi-Fi 7 runs tri-band across 2.4, 5 and 6 GHz with MLO, and Bluetooth 6.0 handles peripherals. Triple-band GNSS supports routing and location work.

The 6-inch AMOLED display reaches 1500 nits peak and is covered in Gorilla Glass Victus. The housing is sealed to IP68/IP65 and survives 12 ft drops to concrete at room temperature and 3,500 1 m tumbles. The standard 5,000 mAh battery is hot-swappable and fast-charges from 0 to 70% in 45 minutes. Secure Element, Android Strongbox, FIPS 140-3 validation and Common Criteria certification protect the device and its data.

Ideal for

  • Scanning labels on high warehouse racking, trailers and yard assets from a distance
  • Inspection, condition and damage photography with the ultra-wide camera
  • Last-mile delivery with proof of pickup, delivery and condition
  • Field service documentation, parts inventory and invoicing
  • Retail and warehouse inventory counts with integrated RFID

Specifications

General

MPN
TC701G-341E2B1A01-NA
Brand
Zebra Technologies
Model
TC701 Mobile Computer
Region
North America (NA) only
Replaces
Replaces TC72, TC77

Package

IN The Box
Mobile computer, regulatory guide, quick start guide

Compliance

Warranty
1-year Zebra hardware warranty
Environmental Compliance
RoHS 2011/65/EU and 2015/863; REACH SVHC 1907/2006; EPEAT Certified

Data Capture

NFC
NFC (ISO 14443 A/B, FeliCa, ISO 15693, Mifare); EMVCo contactless payment; HCE; Apple VAS/ECP and Google Smart Tap certified
Scanning
AC670 advanced range color 1D/2D scan engine; barcodes and color photos up to 100 ft (30 m)
Rear Camera
50 MP autofocus (PDAF), LED flash, torch mode, HDR
Front Camera
8 MP fixed focus
Integrated Rfid
Integrated UHF RFID, up to 6.5 ft (2 m), >200 tags/s, EPC Class 1 Gen2 / Gen2 V2
Ultra Wide Rear Camera
13 MP ultra-wide autofocus (PDAF), 5 cm to infinity

Wireless LAN

Radio
802.11be/ax/ac/n/a/g/b and more; tri-band 2.4/5/6 GHz; 2x2 MU-MIMO; Wi-Fi CERTIFIED 7; MLO; DBS; IPv4/IPv6; Wi-Fi Aware
Fast Roam
802.11r FT; PMK caching; Cisco CCKM; OKC
Data Rates
2.4 GHz up to 344 Mbps; 5 GHz up to 2882 Mbps; 6 GHz up to 5764 Mbps
Multimedia
WMM, WMM-PS, TSPEC
Certifications
Wi-Fi CERTIFIED 7, 6E, ac, n; WPA2/WPA3; PMF; Enhanced Open; WMM; Voice-Enterprise; Wi-Fi Direct; Agile Multiband; QoS Management; Optimized Connectivity; Passpoint
Operating Channels
Ch 1-13 (2.4 GHz), Ch 36-165 (5 GHz), Ch 1-233 (6 GHz); 20/40/80/160/320 MHz
Security And Encryption
WPA3 Enterprise (incl. 192-bit), WPA3 Personal, WPA/WPA2, Enhanced Open, WEP; EAP-TLS/TTLS/PEAP/PWD; EAP-SIM/AKA/AKA' (WAN)

Wireless Pan

Bluetooth
Bluetooth 6.0, Class 1/2 configurable, 2x2 Tx; secondary BLE beaconing

Wireless WAN

GPS
Triple-band GNSS (L1/G1/E1/B1 + L5/E5a/B2a + L2C): GPS, GLONASS, a-GLONASS, Galileo, BeiDou, QZSS; a-GPS; XTRA
CBRS
CBRS (US only)
Bands 2g
850/900/1800/1900 (ROW SKU only)
Bands 3g
B1/2/4/5/6/8/19
Bands 4G
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106
MIMO 4x4 DL
4x4 DL MIMO: 5G n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79; LTE 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70
Bands 5G Fr1
n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79
Private Cellular
B48/53/106/68
Radio Frequency Band
Rel-17; DSDS; Gigabit LTE-A; 5G NR Sub-6 (NSA, SA); LTE CA up to 3DL/2UL; NR CA up to 3DL/2UL

Zebra Software

Zebra Dna
Zebra DNA tools (features vary; support contract may be required)
Recommended Services
Zebra OneCare Essential/Select; VisibilityIQ Foresight

User Environment

Sealing
IP68 and IP65 (IEC 60529)
Humidity
5% to 95% non-condensing
Drop Specification
Exceeds MIL-STD-810H: 8 ft (2.44 m) to concrete across operating temp; 12 ft (3.66 m) to concrete at room temp
Storage Temperature
-40°F to +158°F (-40°C to +70°C)
Tumble Specification
3,500 tumbles at 3.3 ft (1.0 m)
Operating Temperature
-4°F to +122°F (-20°C to +50°C)
Electrostatic Discharge
±15 kV air; ±8 kV direct; ±8 kV indirect

Sku Configuration

Radios
WWAN 5G; Wi-Fi 7
Battery
Standard battery, hot swap
Cameras
50 MP rear + 13 MP ultra-wide rear, 8 MP front
Security
Secure Element
Processor
Qualcomm Dragonwing Q-6690, 2.9 GHz
Scan Engine
AC670 imager (advanced long-range color)
Memory Storage
12 GB RAM / 256 GB

Physical Characteristics

SIM
One physical SIM and dual eSIM
Power
Li-Ion with PowerPrecision+; standard 5000 mAh (19.45 Wh), extended 7240 mAh (28.16 Wh), wireless charge 5000 mAh (19.45 Wh); fast charging; hot swap
Keypad
On-screen keypad
Weight
10.02 oz (284 g) with 5000 mAh battery; 11.08 oz (314 g) with 7240 mAh battery
Buttons
Programmable: dual scan buttons, push-to-talk button, volume up/down
Display
6.0 in FHD+ 2160x1080 AMOLED; 600 nits typical, 1000 nits HBM, 1500 nits peak; adaptive refresh; optically bonded; Gorilla Glass Victus
Dimensions
L x H x D: 6.5 x 3.07 x 0.61 in (165.0 x 77.9 x 15.5 mm)
Touch Panel
Multi-mode capacitive touch (bare/gloved finger or passive stylus, sold separately); water droplet rejection; anti-smudge coating
Notifications
Audible tone; multi-color LEDs; vibration
Expansion Slot
User-accessible microSD, up to 2 TB
Imager Windows
Corning Gorilla Glass
Interface Ports
USB Type-C (USB 3.1); bottom and back I/O (USB 2.0)
Voice And Audio
Stereo speakers; two mics; USB-C or Bluetooth headsets (BLE Audio 5.3); VoNR; VoLTE; circuit-switched voice; HD voice; VoIP incl. FB and SWB audio; PTT
Network Connections
Wi-Fi 7, Bluetooth 6.0, USB 2.0 back I/O (host only), USB 3.1 SuperSpeed bottom Type-C (host and client), WWAN 5G

Performance Characteristics

CPU
Qualcomm Dragonwing Q-6690, up to 2.9 GHz
Memory
12 GB LPDDR5 RAM / 256 GB UFS 3.1 Flash (this SKU)
Security
Android Strongbox with Secure Element IC; FIPS 140-3 validated; Common Criteria certified; Secure Boot and Verified Boot
Operating System
Android (supported versions listed at zebra.com/android-versions)

Interactive Sensor Technology

Light Sensor
auto display brightness
Magnetometer
eCompass: direction and orientation
Motion Sensor
3-axis gyroscope, 3-axis accelerometer
Pressure Sensor
Pressure sensor/barometer (WWAN SKU only)
Proximity Sensor
disables display and touch near the ear

Questions buyers ask

How far can the AC670 scan engine read barcodes?

Zebra states the AC670 advanced long-range color scan engine captures barcodes and high-resolution color photos up to 100 ft (30 m) away.

What cameras does the TC701G-341E2B1A01-NA have?

It has a 50 MP autofocus rear camera, a 13 MP ultra-wide autofocus rear camera that focuses from 5 cm to infinity, and an 8 MP fixed-focus front camera.

Is this model intended for use outside North America?

No. This part number is the North America (NA only) configuration. CBRS support applies in the US only.

Can the battery be changed during a shift?

Yes. The standard 5,000 mAh battery is hot-swappable, so it can be replaced without powering down. Fast charging takes a battery from 0 to 70% in 45 minutes.

What documentation is available?

Zebra publishes a TC701 spec sheet, Quick Start Guide, Product Reference Guide and Accessory Guide. The box contains the mobile computer, a regulatory guide and a quick start guide.
