Zebra TC78 Premium 5G Rugged Mobile Computer with Wi-Fi 6E, SE55 Scanner, 8GB/128GB, North America

5GMPN TC78A1-3T1K6E2A1A-FT
  • 128 GB
  • Rugged
$3,888.29$5,655.69Save $1,767.40

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

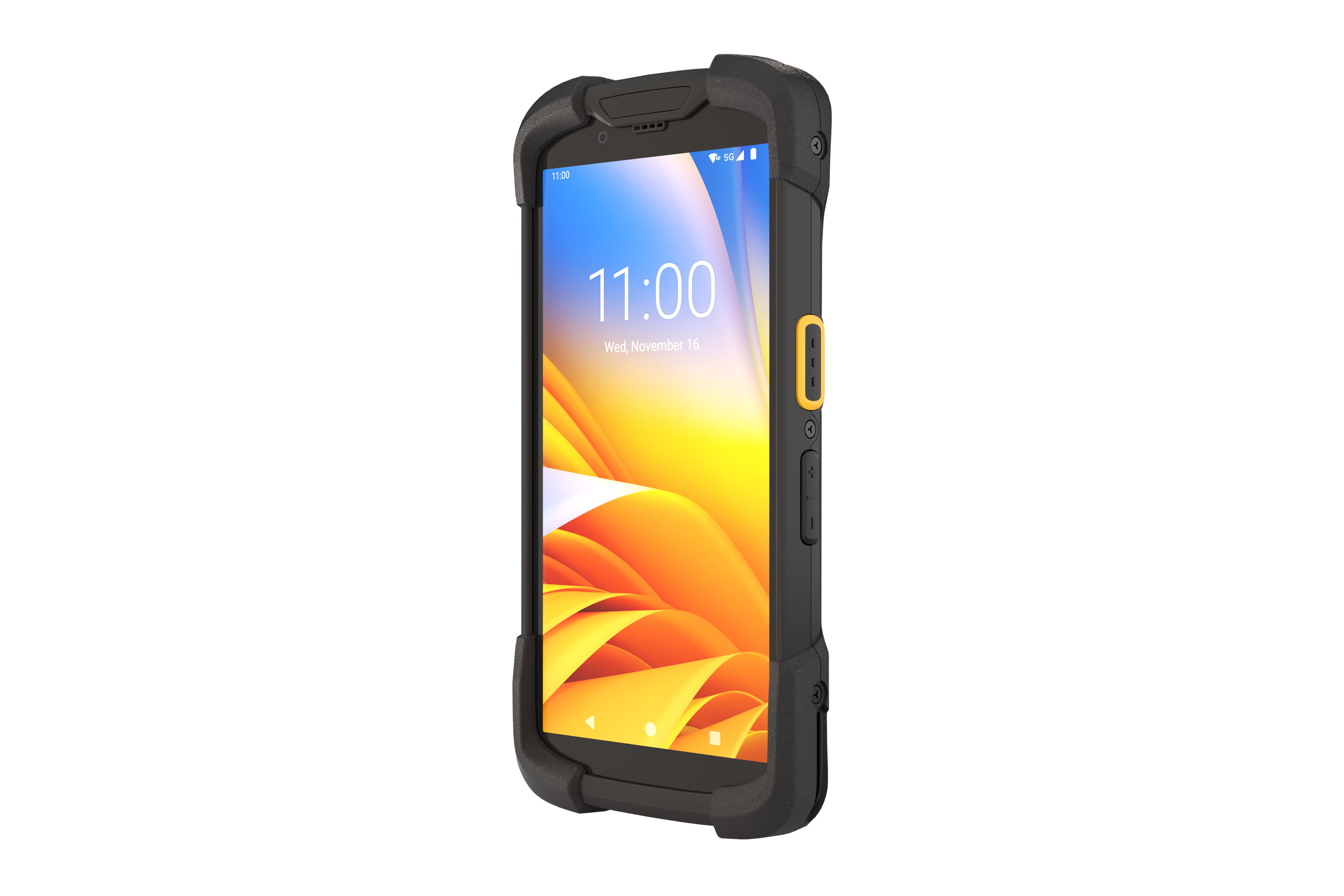

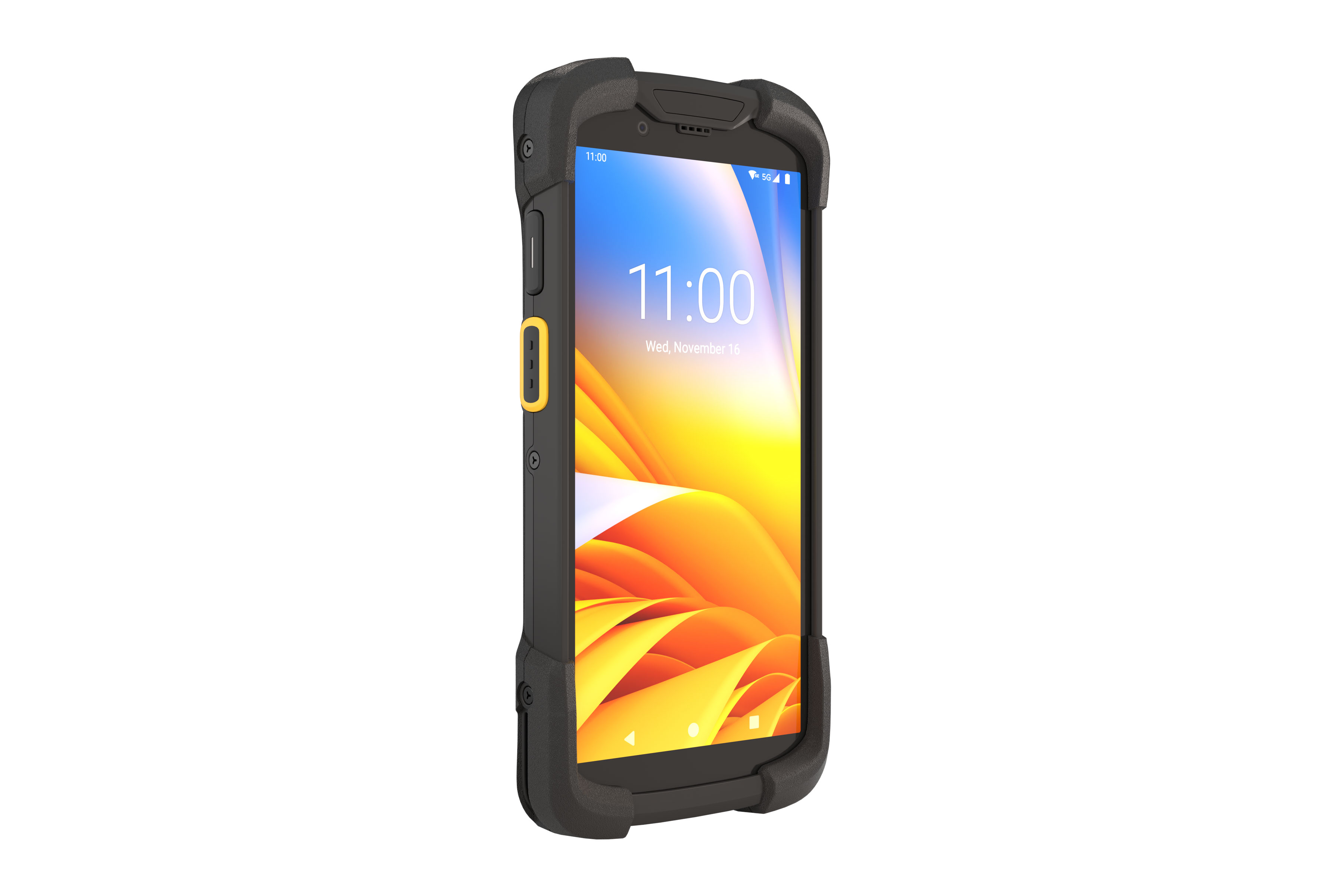

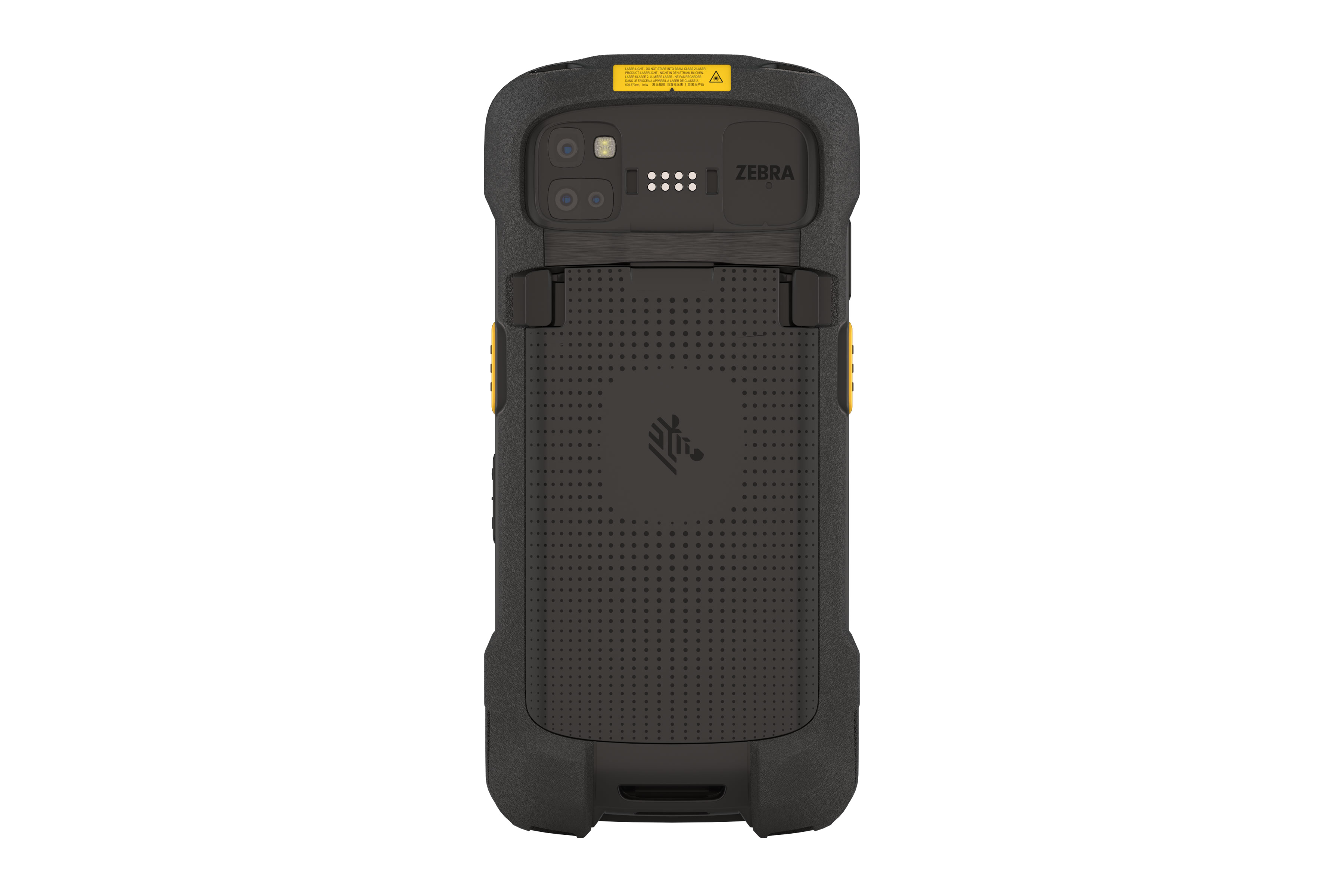

The Zebra TC78 Premium (TC78A1-3T1K6E2A1A-FT) is an ultra-rugged 6-inch Android mobile computer for North American field and logistics teams. This configuration pairs sub-6 5G, CBRS and Wi-Fi 6E with the SE55 Advanced Range scan engine, 8GB RAM and 128GB flash. It also includes a 16MP OIS rear camera, true hot swap on a 4680 mAh battery, wireless charging, non-certified parcel dimensioning and GMS.

  • Sub-6 5G WWAN with CBRS private LTE support (US) plus Wi-Fi 6E and Bluetooth 5.2
  • SE55 1D/2D Advanced Range scan engine with IntelliFocus, reading barcodes up to 40 ft (12.2 m)
  • Qualcomm 6490 octa-core 2.7 GHz with 8GB RAM, 128GB UFS flash and microSD up to 2 TB
  • 6.0-inch Full HD+ (1080 x 2160) Gorilla Glass display with glove, wet and stylus input
  • 16MP rear camera with OIS, 8MP front camera and Time-of-Flight sensor for non-certified parcel dimensioning
  • 4680 mAh standard battery with true hot swap, fast charging and wireless charging enabled
  • IP65/IP68 sealing, 10 ft drops to concrete per MIL-STD 810H and 2,000 tumbles
  • Stay connected on the route with North American 5G bands, then roam onto Wi-Fi 6E at the depot or warehouse

The Zebra TC78 is a 5G rugged handheld built for workers who spend their day outdoors: couriers, route drivers, field service crews and yard teams. It replaces the TC77. This North America SKU is the Premium tier. It carries a sub-6 5G WWAN radio with CBRS private LTE support for US deployments, Wi-Fi 6E for indoor sites, and Bluetooth 5.2. SIM options are one nano SIM and one eSIM. A Qualcomm 6490 octa-core processor at 2.7 GHz runs with 8GB RAM and 128GB UFS flash. A microSD slot takes cards up to 2 TB.

The SE55 1D/2D Advanced Range scan engine with IntelliFocus reads barcodes in hand and out to 40 ft (12.2 m). The Premium camera package adds a 16MP autofocus rear camera with optical image stabilization, an 8MP front camera and a Time-of-Flight sensor. Here the sensor is configured for non-certified parcel dimensioning. The 6.0-inch Full HD+ display is protected by Corning Gorilla Glass and works wet, gloved or with a conductive stylus.

The unit weighs 12.3 oz (349 g) with the standard battery. Zebra rates it for multiple 10 ft drops to concrete per MIL-STD 810H, 2,000 tumbles at 3.3 ft, and IP65/IP68 sealing. The 4680 mAh standard battery supports true hot swap, fast charging and PowerPrecision+ battery metrics, and this SKU is wireless charging enabled.

For IT teams, the device runs Android with Google Mobile Services and supports Zebra Zero-Touch and StageNow provisioning, LifeGuard for Android security updates, OEMConfig and Secure Boot. It is TAA compliant. Zebra publishes a spec sheet, product reference guide and accessory guide for the TC73/TC78 family.

Ideal for

  • Parcel pickup and proof-of-delivery with on-the-spot dimensioning
  • Route accounting and direct store delivery
  • Track and trace in warehouses and distribution centers using long-range scanning
  • Airline under-wing and airport asset management
  • Field service and government field operations on 5G or CBRS private networks

Specifications

General

MPN
TC78A1-3T1K6E2A1A-FT
Tier
Premium SKU
Brand
Zebra Technologies
Model
Zebra TC78 Mobile Computer
Region
North America (NA)
Replaces
Replaces Zebra TC77
Software
Android with Google Mobile Services (GMS)

Package

IN The Box
Mobile computer, regulatory guide, quick start guide

Sensors

Gyro
Gyro
Light Sensor
Light sensor
Magnetometer
Magnetometer
Motion Sensor
3-axis accelerometer with MEMS gyro
Pressure Sensor
Pressure sensor
Proximity Sensor
Proximity sensor

Compliance

Warranty
1-year Zebra hardware warranty
Environmental
RoHS compliant
Recommended Services
Zebra OneCare Essential/Select, VisibilityIQ Foresight
General Certifications
TAA compliant; ARCore certified

Performance

CPU
Qualcomm 6490 octa-core, 2.7 GHz
Memory
8 GB RAM / 128 GB UFS flash
Security
Secure Boot, Verified Boot; FIPS 140-2 via custom SKU
Operating System
Android (see zebra.com/android-versions for supported versions)

Data Capture

NFC
NFC with HCE, contactless payment, Apple VAS and Google Smart Tap
Camera
8 MP front; 16 MP AF rear with flash, HDR and OIS; ToF sensor
Scanning
SE55 1D/2D Advanced Range, up to 40 ft (12.2 m)

Wireless LAN

Radio
Wi-Fi 6E (802.11ax), 2x2 MU-MIMO, DBS, IPv4/IPv6
Fast Roam
PMKID caching, CCKM, 802.11r, OKC
Data Rates
Up to 2402 Mbps on 5/6 GHz; up to 286.8 Mbps on 2.4 GHz
Certifications
Wi-Fi CERTIFIED 6 and 6E with Voice-Enterprise and Agile Multiband
Operating Channels
2.4, 5 and 6 GHz channels, 20/40/80/160 MHz bandwidth
Security And Encryption
WPA3 Personal/Enterprise (incl. 192-bit), WPA2, OWE, EAP-SIM/AKA

Wireless Pan

Bluetooth
Bluetooth 5.2 Class 2 with BLE beaconing

Wireless WAN

GNSS
Dual-band GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS), a-GPS, XTRA
Multimedia
WMM and WMM-PS with TSPEC
Private Networks
Private LTE/5G networking; CBRS in the US
Frequency Bands North America
5G n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78; LTE B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71; 3G B2/4/5; 2G 850/1900

User Environment

Esd
±15 kV air, ±8 kV direct, ±8 kV indirect
Sealing
IP65 and IP68 with battery
Humidity
5% to 95% non-condensing
Vibration
4 g PK sine 5 Hz-2 kHz; 0.04 g²/Hz random 20 Hz-2 kHz; 60 min/axis, 3 axes
Drop Specification
10 ft (3.05 m) drops to concrete at room temp; 8 ft (2.4 m) across operating temp; MIL-STD 810H
Storage Temperature
-40°F to 158°F (-40°C to 70°C)
Tumble Specification
2,000 tumbles at 3.3 ft (1.0 m), meets or exceeds IEC
Operating Temperature
-4°F to 122°F (-20°C to 50°C)

Sku Configuration

Radios
Sub-6 5G WWAN, CBRS, Wi-Fi 6E
Battery
4680 mAh standard battery with true hot swap
Cameras
16MP rear with OIS, 8MP front
Charging
Wireless charging enabled
Scan Engine
SE55 Advanced Range scan engine
Dimensioning
Non-certified parcel dimensioning via Time-of-Flight sensor

Physical Characteristics

SIM
1 Nano SIM + 1 eSIM
Power
Li-Ion with PowerPrecision+; standard 4680 mAh/18.01 Wh; optional 7000 mAh extended, BLE and Qi wireless-charge batteries; fast charging; hot swap on premium SKUs
Keypad
On-screen keypad and Zebra Enterprise Keyboard
Weight
12.3 oz (349 g) with standard battery
Buttons
Programmable dual scan buttons, dedicated PTT button, volume up/down, trigger via Back I/O
Display
6.0 in Full HD+ (1080 x 2160), LED backlight, optically bonded
Grip Area
3.179 in W x 0.80 in H (80.75 x 20.3 mm)
Dimensions
6.96 in L x 3.38 in W x 1.12 in H (176.8 x 85.8 x 28.4 mm)
Touch Panel
Multi-mode capacitive touch, glove and stylus capable, water droplet rejection, anti-smudge coating
Imager Window
Corning Gorilla Glass
Notifications
Audible tone, multi-color LEDs, haptic feedback
Expansion Slot
User-accessible microSD, up to 2 TB
Interface Ports
USB 2.0 Back I/O (host), USB 3.0 Type-C SuperSpeed (host/client)
Voice And Audio
Noise-suppression mics, dual speakers, speakerphone, HD Voice, VoLTE EVS, VoIP with SWB audio, wired and Bluetooth headsets
Display Brightness
600 nits
Network Connections
WWAN 5G, WLAN, Bluetooth

Questions buyers ask

Is this TC78 for use in the US?

Yes. This is the North America (NA) SKU, supporting North American 5G FR1, LTE, 3G and 2G bands plus CBRS private networks, which are available in the US only.

Is the parcel dimensioning legal for trade?

No. This configuration has non-certified parcel dimensioning, using the integrated Time-of-Flight sensor for dimension estimates.

How far can the SE55 scanner read barcodes?

The SE55 Advanced Range scan engine with IntelliFocus captures barcodes in hand and up to 40 ft (12.2 m) away. Range depends on symbology type and size.

Can I change batteries without shutting down?

Yes. As a Premium SKU, it supports true hot swap with the 4680 mAh standard battery. It also supports fast charging, charges from any standard USB-C cable, and is wireless charging enabled.

How rugged is the TC78?

It is rated for multiple 10 ft drops to concrete per MIL-STD 810H, 2,000 tumbles at 3.3 ft, and IP65/IP68 sealing. It operates from -4°F to 122°F.
