Zebra TC27 5G Mobile Computer with SE55 Advanced Range Scanner, 8GB/128GB, BLE Battery, North America

5GMPN WCMTA-T27B8CBD8-NA
  • 128 GB
  • Rugged
$1,678.84$2,467.00Save $788.16

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

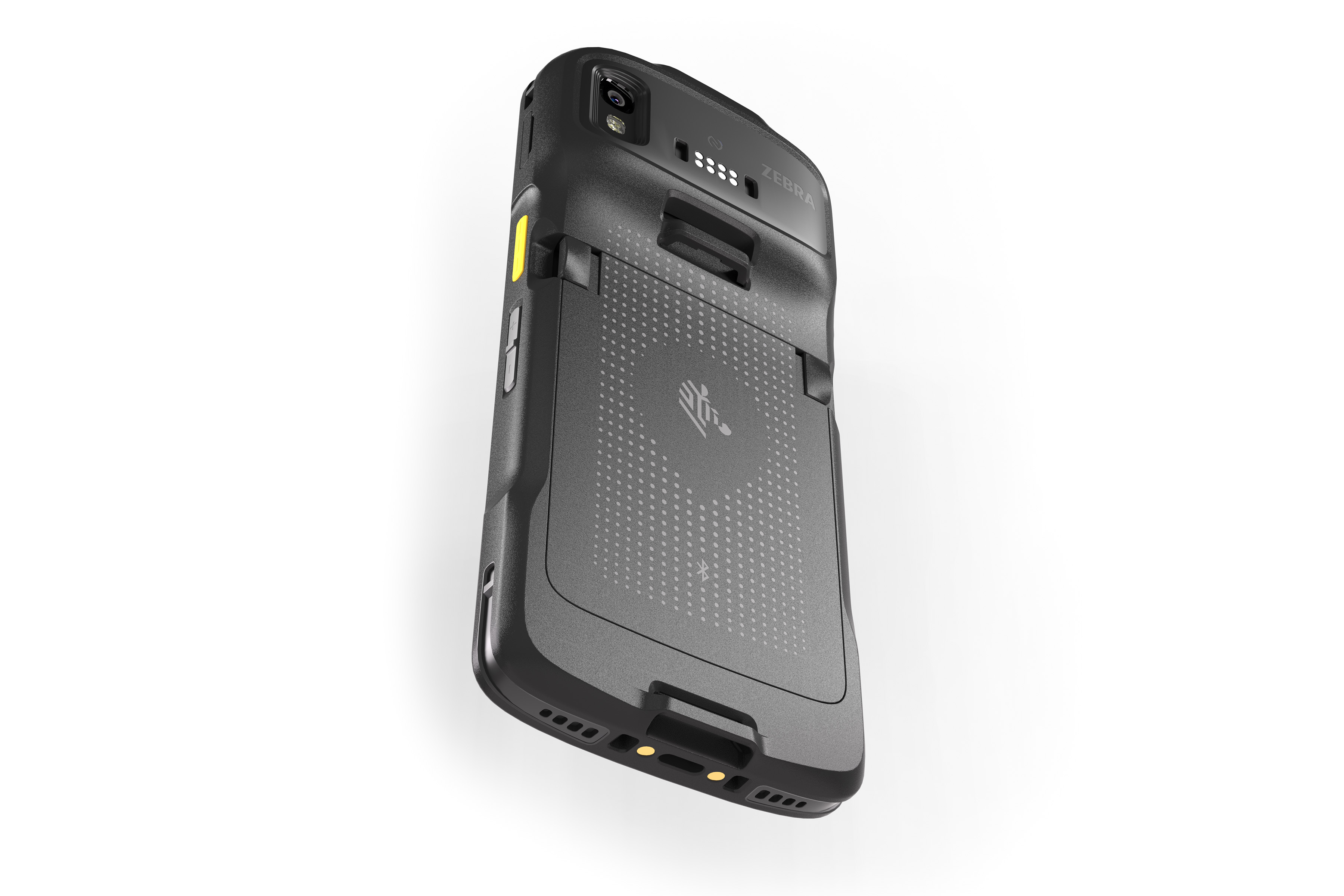

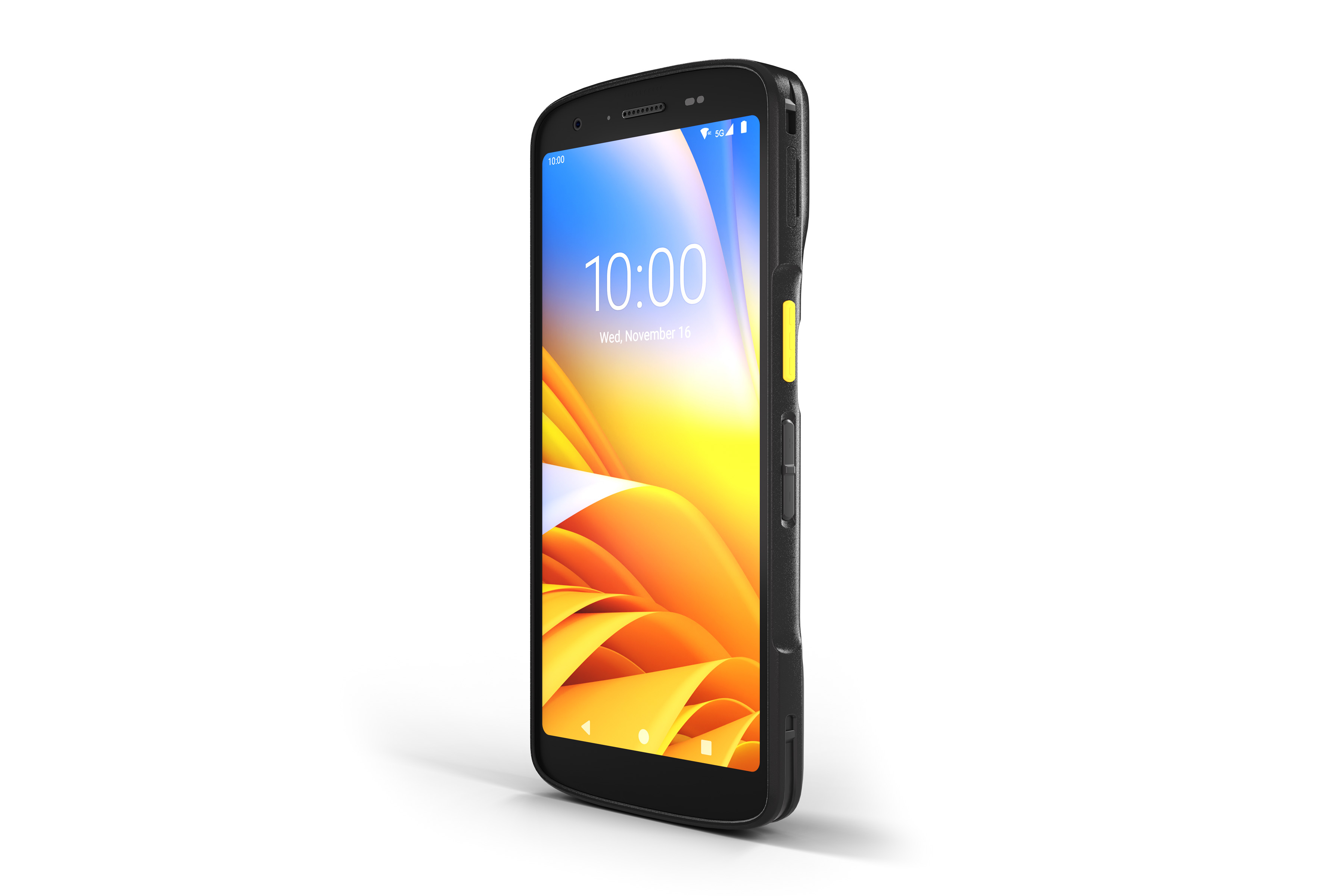

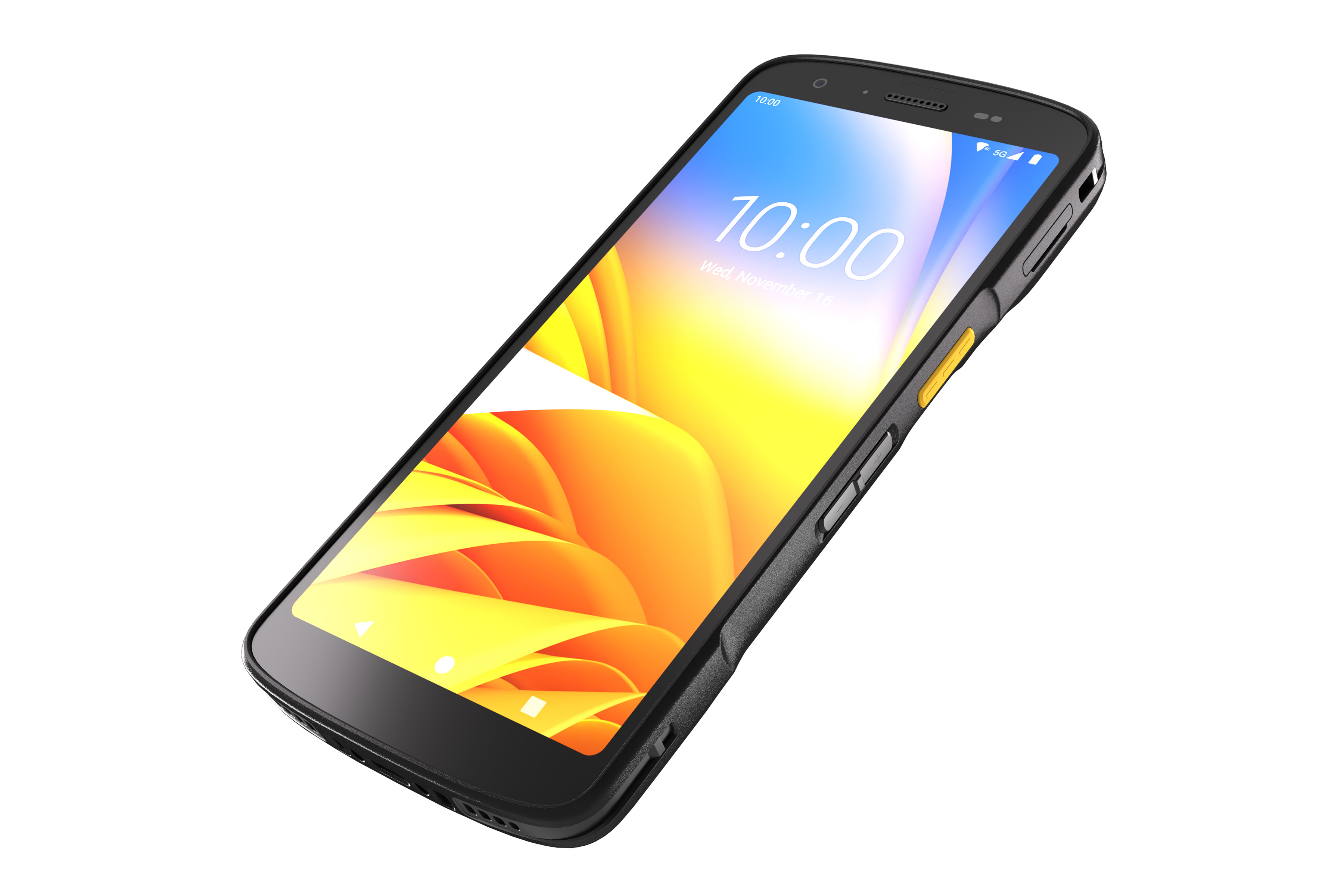

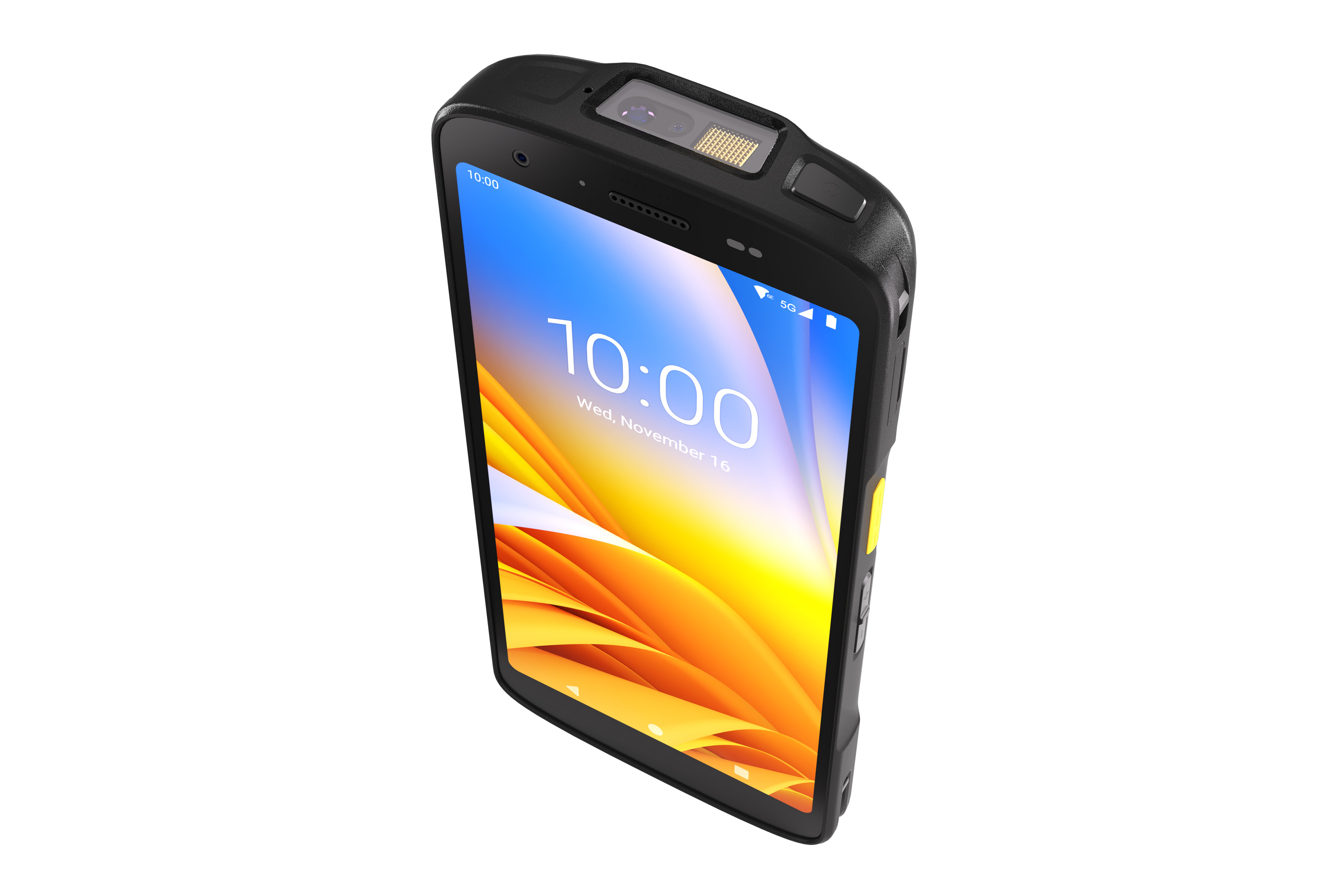

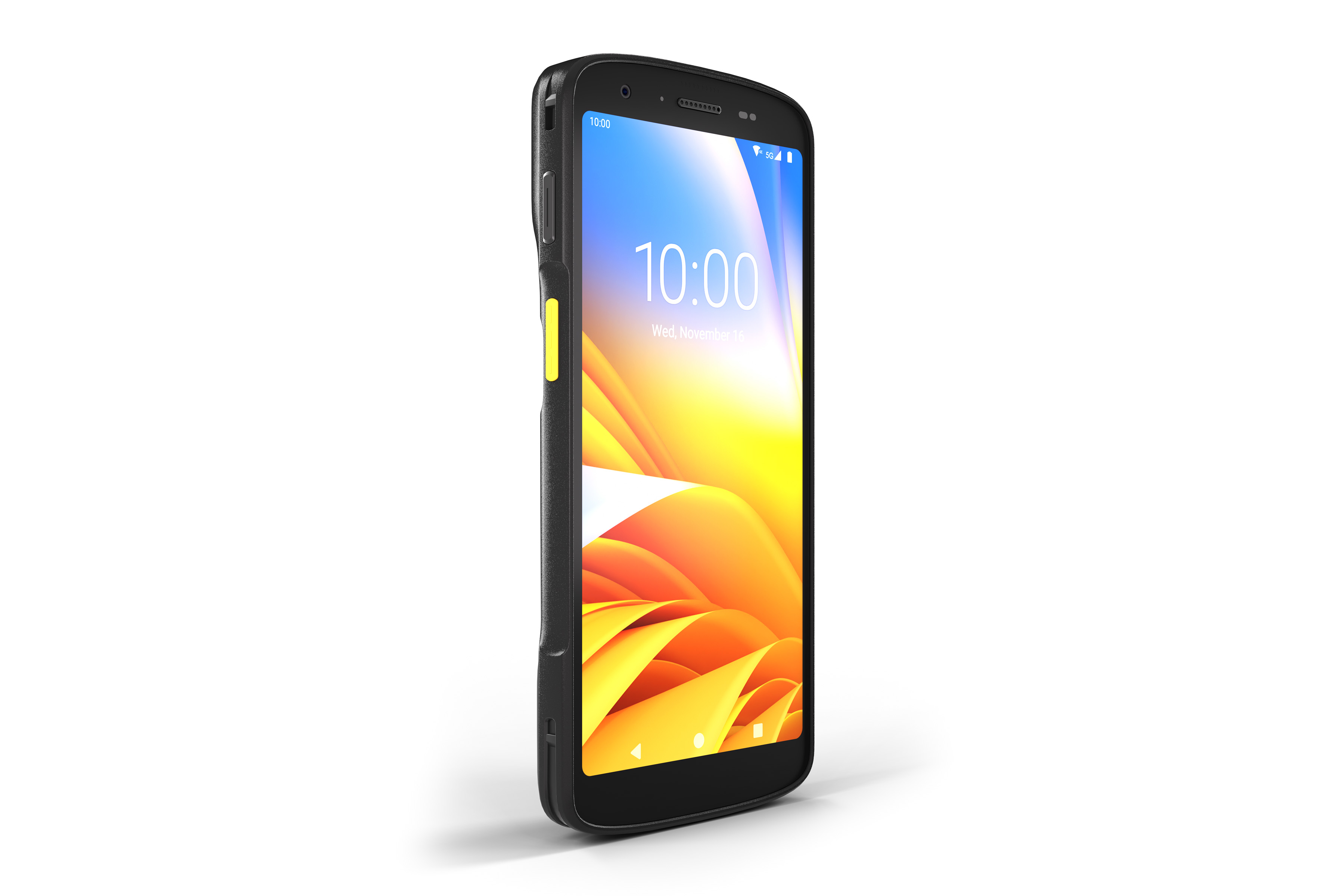

The Zebra TC27 (WCMTA-T27B8CBD8-NA) is a 5G Android mobile computer with Zebra's SE55 1D/2D Advanced Range scan engine and IntelliFocus technology. It reads barcodes in hand or on the highest warehouse shelf. This North America build includes 8 GB RAM and 128 GB flash, a 6 in. Full HD+ display and a 3800 mAh BLE battery. It also has an 8-pin rear connector, NFC tap-to-pay, and a Nano SIM plus eSIM.

  • SE55 1D/2D Advanced Range scan engine with IntelliFocus technology
  • 5G NR Sub-6 (NSA/SA), Gigabit LTE-A and VoLTE with 1 Nano SIM + 1 eSIM, plus private 5G and CBRS support (US only)
  • 8 GB RAM / 128 GB UFS flash on a Qualcomm 5430 hex-core 2.1 GHz CPU, microSD up to 2 TB
  • 3800 mAh / 14.63 Wh removable BLE battery with secondary BLE beaconing
  • 6.0 in. FHD+ (1080 x 2160) 450-nit display with Corning Gorilla Glass
  • NFC contactless payment support, Apple VAS and Google Smart Tap certified; RFD40/RFD90 RFID sled support
  • IP68/IP65 sealing and MIL-STD-810H drop testing; 8-pin rear connector
  • Scan items in hand and labels on top warehouse shelves with one device, without a ladder

The Zebra TC27 is the 5G model of Zebra's third-generation TC2x Series and replaces the TC26. SKU WCMTA-T27B8CBD8-NA is the top scanning configuration for North America. It carries the SE55 1D/2D Advanced Range scan engine with IntelliFocus technology, which Zebra designed to capture barcodes on items in hand or on the highest warehouse shelf. That makes one device workable for both counter tasks and back-room or warehouse picking.

The rest of the build includes: - 8 GB RAM and 128 GB UFS flash, with microSD up to 2 TB - 16 MP rear and 5 MP front cameras - An 8-pin rear connector - Google Mobile Services - A 3800 mAh / 14.63 Wh BLE battery that is user-removable

The battery's secondary BLE beaconing lets a separately licensed Zebra Device Tracker locate missing devices, even when the battery is dead.

For connectivity, the TC27 offers: - 5G NR Sub-6 (NSA and SA), Gigabit LTE-A, VoLTE and dual SIM/dual standby using one Nano SIM and one eSIM - Private 5G and CBRS private LTE (CBRS in the US only) - 2x2 MU-MIMO Wi-Fi 6, with Wi-Fi 6E enabled by the Mobility DNA Enterprise License - Bluetooth 5.2

NFC supports tap-to-pay and is Apple VAS and Google Smart Tap certified. The TC27 also pairs with Zebra RFD40 and RFD90 UHF RFID sleds for inventory work.

A Qualcomm 5430 hex-core 2.1 GHz processor runs a 6.0 in. 1080 x 2160, 450-nit display under Corning Gorilla Glass. The device is sealed to IP68 and IP65, drop-tested to MIL-STD-810H and rated for operation from 14°F to 122°F. Mobility DNA Professional tools are preloaded at no cost.

Ideal for

  • Warehouse picking, receiving, sortation and shelf scanning at height
  • Retail stores combining sales-floor lookups with back-room inventory
  • RFID-assisted inventory counts with an RFD40 or RFD90 sled
  • Direct store delivery and click-and-collect with tap-to-pay
  • Facilities and field service teams needing 5G voice and data plus device locating

Specifications

General

MPN
WCMTA-T27B8CBD8-NA
Brand
Zebra Technologies
Model
Zebra TC27 Mobile Computer
Region
NA (North America) configuration
Replaces
Replaces Zebra TC26
IN The Box
TC27 Mobile Computer
Sku Radios
WWAN 5G, Wi-Fi 6, Bluetooth, NFC
Sku Back I/O
8-pin rear connector
Sku Battery
Standard 3800 mAh battery with BLE
Sku Software
Google Mobile Services (GMS)
Sku Scan Engine
SE55 1D/2D Advanced Range scan engine

Services

Recommended Services
Zebra OneCare Special Value (SV); Zebra VisibilityIQ Foresight; Professional Services Video on Device

Software

Mobility Dna
Mobility DNA Professional preloaded and pre-licensed at no cost; full Mobility DNA suite requires Mobility DNA Enterprise License; Device Tracker requires a separate licence

Warranty

Hardware Warranty
1 year from date of shipment against defects in workmanship and materials, per Zebra hardware warranty statement

Compliance

General Certifications
ARCore Google certified
Environmental Compliance
RoHS Directive 2011/65/EU, Amendment 2015/863; REACH SVHC 1907/2006

Data Capture

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2, 3, 4, 5; Host Card Emulation; contactless payment support; VAS and wallet support; Apple ECP1.0 and ECP2.0; Apple VAS and Google Smart Tap certified; VAS Library/SDK
Scanning
SE55 1D/2D Advanced Range scan engine with IntelliFocus technology
Uhf Rfid
Supports RFD40 UHF RFID Sled and RFD90 Ultra-Rugged UHF RFID Sled
Rear Camera
16 MP rear camera
Front Camera
5 MP front camera

Wireless LAN

Fast Roam
PMKID caching; Cisco CCKM; 802.11r; OKC
Data Rates
6 GHz 802.11ax 20/40/80/160 MHz up to 2402 Mbps; 5 GHz 802.11a/n/ac/ax 20/40/80/160 MHz up to 2402 Mbps; 2.4 GHz 802.11b/g/n/ax 20 MHz up to 286.8 Mbps
Wlan Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6 Certified; Wi-Fi 6E (802.11ax, requires Mobility DNA Enterprise License); dual band simultaneous; IPv4, IPv6
Certifications
Wi-Fi CERTIFIED n, ac and 6; Enhanced Open; WPA2/WPA3 Personal and Enterprise (incl. 192-bit); Protected Management Frames; Agile Multiband; WMM, WMM-Power Save, WMM Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE
Operating Channels
Channel 1-13 (2401-2483 MHz); Channel 36-165 (5150-5850 MHz); Channel 1-233 (5925-7125 MHz); bandwidth 20/40/80/160 MHz; actual channels depend on regulatory rules
Security Encryption
WEP (40/104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP, AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP, AES); WPA3 Enterprise (AES) with EAP-TTLS, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit (GCMP256) EAP-TLS; EAP-SIM, EAP-AKA, EAP-AKA Prime on WWAN models

Wireless Pan

Bluetooth
Class 2, Bluetooth v5.2; secondary BLE for beaconing within BLE battery

Wireless WAN

GNSS
GPS, GLONASS, Galileo, BeiDou, QZSS; dual-band GNSS concurrent L1/G1/E1/B1 + L5/E5a/BDSB2a; a-GPS; supports XTRA
3g Bands
North America 3G: B2/4/5
4G Bands
North America 4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71
5G Bands
North America 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78
Wwan Features
Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR carrier aggregation, private networking (LTE/5G)
Private Networks
5G private network and CBRS private LTE (CBRS US only)

User Environment

Esd
+/-15 kV air discharge, +/-8 kV direct discharge, +/-8 kV indirect discharge
Sealing
IP68 and IP65, with battery, per applicable IEC sealing specifications
Humidity
5% - 95% non-condensing
Drop Spec
Multiple 5 ft./1.5 m drops to concrete over operating temp with protective boot per MIL-STD-810H; multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp per MIL-STD-810H
Tumble Spec
500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot
Storage Temperature
-40°F to 158°F / -40°C to 70°C
Operating Temperature
14°F to 122°F / -10°C to 50°C

Physical Characteristics

SIM
1 Nano SIM and 1 eSIM
Audio
Two microphones with noise cancellation; dual speakers; Bluetooth wireless headset support; high quality speakerphone; PTT headset (Zebra USB-C) support; HD Voice incl. Super-wideband, Wideband and Fullband
Power
User removable, rechargeable Li-Ion, PowerPrecision real-time battery metrics; BLE battery: 3800 mAh / 14.63 Wh
Keypad
On-screen keypad
Weight
Published: 8.32 oz/236 g (TC22 with 3800 mAh battery); 9.24 oz/262 g with 5200 mAh battery
Buttons
Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power
Display
6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 nits; Corning Gorilla Glass
Dimensions
6.5 in. L x 3.0 in. W x 0.49 in. D; 165 mm L x 76.3 mm W x 12.5 mm D
Touch Panel
Multi mode capacitive touch with bare or light gloved fingertip input
Imager Window
Corning Gorilla Glass
Notifications
Audible tone; multi-color LEDs; vibration
Expansion Slot
User accessible microSD card, supports up to 2 TB
Interface Ports
USB 3.1 (bottom Type-C) SuperSpeed, host and client; 8-pin rear connector
Network Connections
WWAN, WLAN, WPAN

Performance Characteristics

CPU
Qualcomm 5430 hex-core, 2.1 GHz
Memory
8 GB RAM / 128 GB UFS Flash
Operating System
Android with GMS; supported versions listed at zebra.com/android-versions

Interactive Sensor Technology

Light Sensor
Automatically adjusts display backlight brightness
Magnetometer
eCompass to detect direction
Motion Sensor
3-axis accelerometer with MEMS gyro
Pressure Sensor
Altitude for locating (TC27 North America)
Proximity Sensor
Disables display and touch input when held to the head during calls

Questions buyers ask

What is the difference between the SE55 and SE4710 scan engines?

Both are 1D/2D engines. The SE55 is Zebra's Advanced Range engine with IntelliFocus technology, able to scan items in hand or on the highest warehouse shelf. The SE4710 is the standard scan engine.

Is this TC27 5G capable?

Yes. It supports 5G NR Sub-6 (NSA and SA), Gigabit LTE-A and VoLTE, as well as private 5G and CBRS private LTE networks (CBRS in the US only).

Can it read RFID tags?

Yes, when paired with Zebra's RFD40 UHF RFID Sled or RFD90 Ultra-Rugged UHF RFID Sled.

What battery ships with WCMTA-T27B8CBD8-NA?

It ships with the 3800 mAh / 14.63 Wh BLE battery. The battery is user-removable and includes secondary BLE beaconing for device locating with a separately licensed Zebra Device Tracker.

What documentation is available?

Zebra publishes the following for the TC22/TC27: - Spec sheet - Product Reference Guide - Quick Start Guide - Accessory Guide - Product overview brochure
