Panorama WM-IN2582-10 Wall-Mount 4x4 MIMO Antenna Kit, 600-6000 MHz, 10 m CS240 Cables

5GMPN WM-IN2582-10
  • 4x4 MIMO
  • 9 dBi and up
  • Over 5 m
$598.21$819.82Save $221.61

In stock · only 1 leftShips from the US

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Overview

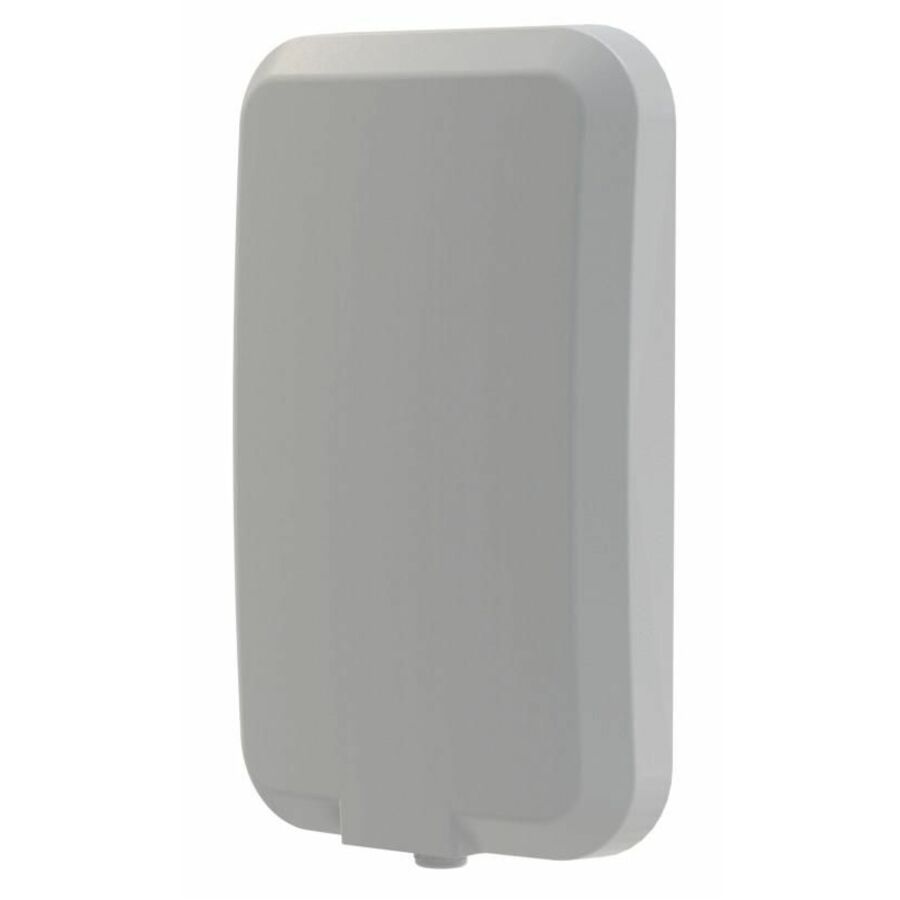

The Panorama WM-IN2582-10 pairs the WMM4G-6-60 directional 4x4 MIMO panel with four 10 m runs of low-loss CS240 cable, reaching routers far from the mounting wall. It covers 617-960 / 1710-6000 MHz and delivers 9 dBi peak (6 dBi at 617-960 MHz) of gain through a SMA male (4x) connector. When the router rack is 10 meters from the best signal, this is the kit that closes the gap.

  • 617-960 / 1710-6000 MHz operating frequency range
  • 9 dBi peak (6 dBi at 617-960 MHz) antenna gain
  • SMA male (4x) connector termination
  • White housing finish
  • Wall or mast (brackets included) mounting
  • Integrated cable: 4 x 10 m low-loss CS240 coax
  • Panorama part number WM-IN2582-10
  • UPC 5055416040114

The Panorama WM-IN2582-10 solves the long-cable-run problem for high-gain 4x4 installs. The directional panel carries four separately fed wideband elements covering 617-960 and 1710-6000 MHz with 6 dBi peak gain at low band and 9 dBi at 1710-6000 MHz, supporting Cat 18/20 LTE and 5G sub-6 GHz client devices. CS240-grade coax holds the link budget across the 10 m run.

RF performance is matched to cellular service: the element operates from 617-960 / 1710-6000 MHz with 9 dBi peak (6 dBi at 617-960 MHz) of gain and terminates in a SMA male (4x) connector. Ordinary thin coax would squander the panel's gain over 10 m; CS240's low loss is the reason this kit exists as a factory pairing.

Mount the panel high on the wall or mast facing the serving cell, then run the heavy CS240 loom down to the comms room. Directionality lifts SINR by rejecting off-axis interferers, which stabilizes band selection on congested corridors.

Cloud Care Networks stocks the Panorama WM-IN2582-10 alongside the gateways and routers it supports, so IT and field-service teams can consolidate antennas, spares, and replacement hardware on a single order.

Ideal for

  • Long cable runs from rooftop parapets to comms rooms
  • Fixed wireless primary WAN at fringe-signal sites
  • Warehouse and metal-building signal recovery
  • Branch failover with routers racked far from the antenna wall

Specifications

Package

UPC
5055416040114
Quantity
1 antenna kit per package
Shipping Weight
15.2 lb

Cellular

Antenna Gain
9 dBi peak (6 dBi at 617-960 MHz)
Frequency Range
617-960 / 1710-6000 MHz
Network Support
4x4 MIMO Cat18/20 4G LTE / 5G sub-6 GHz
Radiation Pattern
Directional

Physical

Cable
4 x 10 m low-loss CS240 coax
Color
White
Mounting
Wall or mast (brackets included)
Connector
SMA male (4x)

Questions buyers ask

Which hardware is the WM-IN2582-10 designed for?

Use it with 4x4-capable routers - Cradlepoint E3000/R1900, Sierra Wireless XR80/XR90, Peplink MAX BR2 Pro - connecting all four SMA-male leads for full MIMO. Adapters cover N-type or QMA-port hardware.

What connector does it use?

It uses a SMA male (4x) connector. Confirm your router or gateway exposes a matching port before ordering; most fixed wireless devices in this class do.

What is included in the box?

The 4x4 directional antenna, wall/mast mounting hardware, and four 10 m CS240 cables. The router is not included.

Is there a warranty?

It is covered under Panorama's standard accessory warranty. Cloud Care Networks can confirm the current term and handle RMAs on your behalf.
