Wilson (weBoost)Antennas & Signal

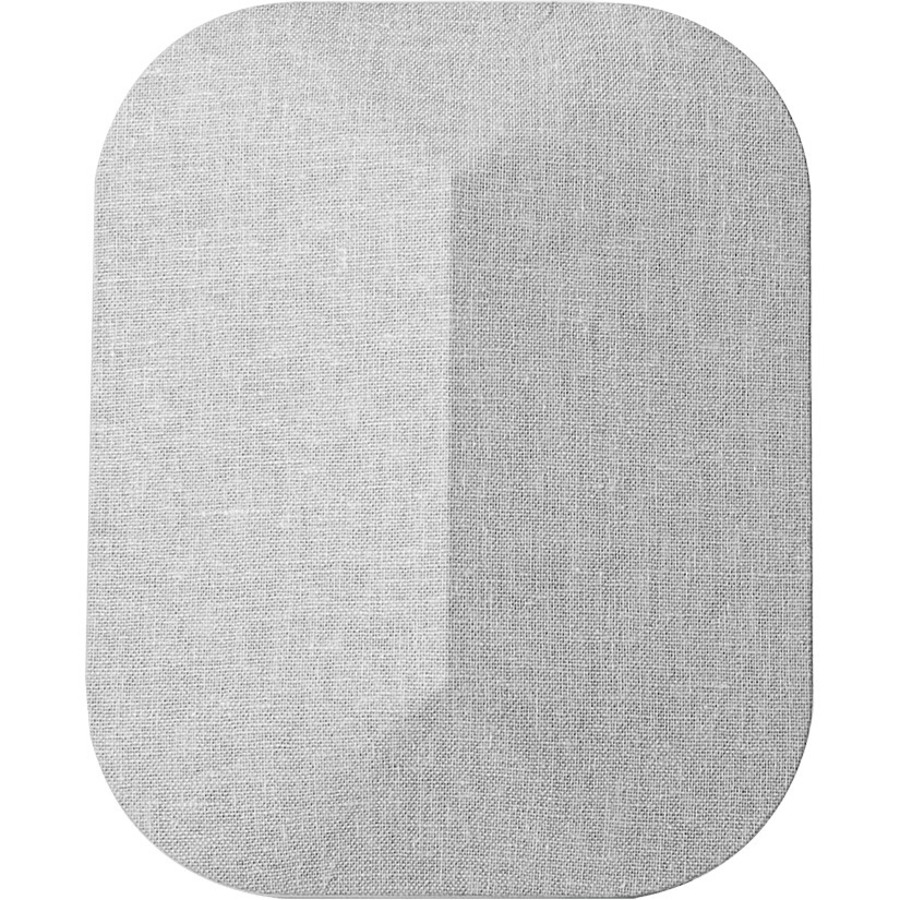

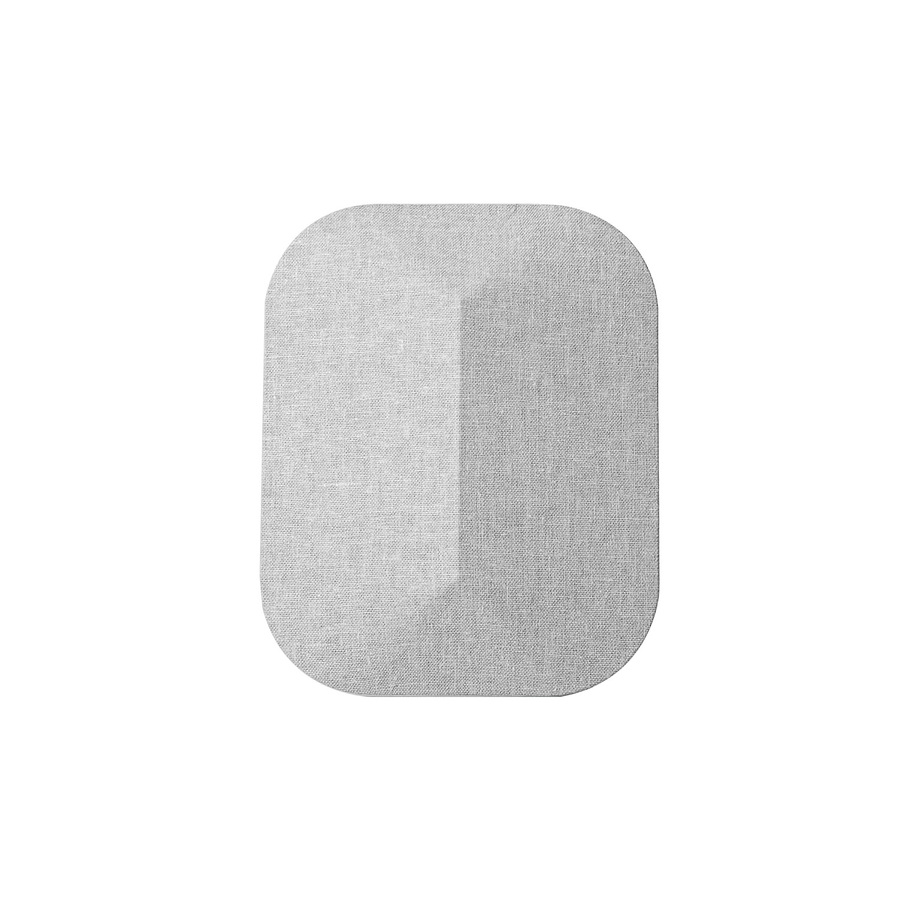

Wilson Electronics Home Inside Antenna Indoor Directional Antenna

MPN 314440
  • Single (SISO)
$49.22$99.99Save $50.77

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plansCall +1 (224) 636-8890 for Sales

Overview

Extend boosted cellular voice and 4G data coverage inside a residence with an 8 dB directional indoor antenna for compatible weBoost Home boosters. Its 75 Ohm F connector, wall-mount bracket, removable 3M Command Strips and built-in kickstand support wall or shelf placement where indoor signal is needed.

  • 8 dB directional antenna gain for indoor cellular coverage
  • 698 MHz to 2,700 MHz cellular frequency support
  • 75 Ohm F-connector connection
  • Wall-mount or stand placement options
  • Vertical or horizontal wall orientation
  • Distribute boosted cellular signal across 698 MHz to 2,700 MHz frequency ranges with 8 dB directional gain.
  • Connect to compatible 75 Ohm weBoost Home boosters through an F connector.
  • Mount vertically or horizontally on an interior wall with the supplied bracket and 3M Command Strips.

Extend the indoor coverage area of a compatible weBoost Home cellular signal booster with a directional antenna that radiates boosted voice and data signal into occupied rooms. The 75 Ohm F connector interfaces with the indoor antenna connection used by compatible residential weBoost Home systems. Its 8 dB antenna gain supports signal distribution across cellular frequency ranges from 698 MHz through 2,700 MHz, including LTE, CDMA, GSM, UMTS and AWS services.

Wilson Electronics 314440 mounts on an interior wall vertically or horizontally using the supplied wall-mount bracket and 3M Command Strips. A built-in kickstand also supports shelf or desktop placement. The fabric-covered antenna has a neutral residential appearance and measures 8.88 in high by 2.63 in deep, allowing it to fit in living areas, home offices and other finished indoor spaces without requiring a ceiling installation.

Use this directional indoor antenna as the coverage-side antenna in a 75 Ohm weBoost Home booster installation. It is intended for indoor cellular-network signal distribution rather than Wi-Fi connectivity, Ethernet networking or direct connection to a cellular modem. The combination of F-connector connectivity, directional pattern, wall or stand form factor, and 8 dB gain distinguishes it as a placement-focused indoor coverage antenna for residential booster systems.

Ideal for

  • Distributing amplified cellular voice and data coverage from a weBoost Home booster into a home office.
  • Adding an interior coverage antenna in a living area where a wall-mounted installation is preferred.
  • Positioning the coverage antenna on a shelf when wall placement is not practical.

Specifications

Support

Limited Warranty
2 years

Physical

Depth
2.63 in
Height
8.88 in
Form Factor
Wall/stand
Shipping Weight
1.65 lb

Performance

Directivity
Directional
Antenna Gain
8 dB
Frequency Range
698 MHz to 2,700 MHz
Supported Cellular Services
LTE, CDMA, GSM, UMTS and AWS

Connectivity

Impedance
75 Ohm
Connector Type
F connector

Installation

Mounting Type
Wall mount or stand
Wall Orientation
Vertical or horizontal
Installation Location
Indoor
Included Mounting Items
Wall-mount bracket and 3M Command Strips included

Compatibility

Compatible Booster Type
Compatible with weBoost Home boosters

Identification

UPC
811815029984

Questions buyers ask

What is the difference between Home Inside Antenna and 314440?

Home Inside Antenna is the product designation, while 314440 is the Wilson Electronics ordering part number. Both refer to the same 75 Ohm directional indoor antenna for compatible weBoost Home cellular signal boosters.

What is included with Wilson Electronics 314440?

The antenna includes a wall-mount bracket and 3M Command Strips for interior wall placement. Its integrated kickstand provides an additional shelf or desktop placement option, and the antenna connects through its F connector.

Which cellular frequencies does the Home Inside Antenna support?

The antenna supports cellular frequency ranges from 698 MHz to 2,700 MHz. This coverage includes bands used for LTE, CDMA, GSM, UMTS and AWS cellular voice and data services when installed with a compatible booster.

Can the 314440 antenna be mounted without drilling?

Yes. Included 3M Command Strips support mounting the antenna on an interior wall without a drilled wall attachment. The antenna can be installed vertically or horizontally, or placed on a shelf using its built-in kickstand.
