Cradlepoint5G & LTE Routers

Cradlepoint R2105 5G Ruggedized Router with Wi-Fi 6 and 5-Year NetCloud Mobile Performance Essentials Plan

5GMPN 590GBL001121
  • Wi-Fi 6
  • Dual SIM
  • 1 × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE powered
  • Rugged
$3,485.57

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

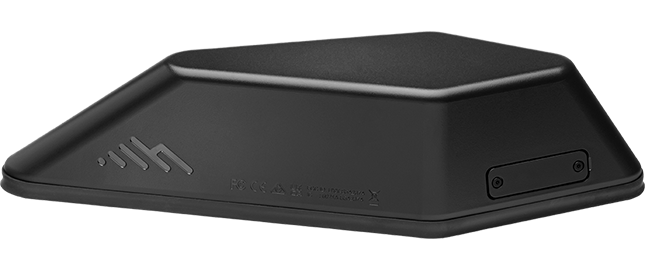

The Cradlepoint R2105 combines an embedded 5G NR and Cat 20 LTE modem, four internal cellular antennas and a Wi-Fi 6 router in one IP67, IK09 exterior-mount enclosure for vehicle roofs and IoT cabinets. This SKU (Cradlepoint MB05-2105-5GB-GA, Getac 590GBL001121) bundles the hardware with a 5-year NetCloud Mobile Performance Essentials plan covering cloud management, software updates, 24x7 support and a limited lifetime warranty for the term. SIM and AC power supply are not included.

  • Embedded 5G NR FR1 (NSA/SA) and LTE Advanced Pro Cat 20 modem with 4x4 MIMO, dual 4FF SIM slots and 4 internal cellular antennas
  • Dual-band, concurrent 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS and one 2.5 GbE RJ45 LAN port
  • IP67, IK09, MIL-STD-810G shock/vibration, E-Mark and SAE J1455 Category 2 exterior-mount enclosure
  • Powered by 9–36 VDC with ignition sensing or by 802.3at PoE
  • 900 Mbps stateful firewall, 300 Mbps IPsec VPN, 10 concurrent VPN tunnels
  • Passive GNSS and Docker container support on a quad-core ARMv8 CPU
  • 5-year NetCloud Mobile Performance Essentials plan with 24x7 support and limited lifetime warranty during the term
  • Simplify vehicle installs: modem, antennas and router live in one roof-mounted unit with no coax runs

The Ericsson Cradlepoint R2105 is the Wi-Fi 6 model of the R2100 5G ruggedized router, built for mass transit, public safety and other vehicle and IoT deployments. It mounts on the outside of a vehicle or IoT cabinet enclosure and integrates the modem, antennas and router in a single aerodynamic, ruggedized casing, so there are no coax cable runs to plan. Power comes from a 9–36 VDC input with ignition sensing or from 802.3at PoE, and a single 2.5 GbE RJ45 LAN port connects it to the vehicle network.

The embedded 5G FR1 NSA/SA and LTE Advanced Pro Category 20 modem uses 4x4 MIMO and dual 4FF SIM slots, with peak rates up to 4.14 Gbps downlink and 660 Mbps uplink. It carries AT&T, T-Mobile and Verizon network operator certifications, FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications, and supports private cellular networks including CBRS Band 48. Dual-band, concurrent 2x2 MU-MIMO Wi-Fi 6 serves around 100 typical clients, and passive GNSS feeds Automatic Vehicle Location systems.

The R2105 can run as a self-contained router or as a captive 5G modem for a supported Cradlepoint controlling router, managed in NetCloud Manager as a single entity without a separate licence. Performance reaches 900 Mbps stateful firewall, 650 Mbps with IPS and application-aware services, and 300 Mbps IPsec VPN across up to 10 tunnels. A quad-core ARMv8 CPU hosts Docker containerized applications at the edge.

The enclosure is rated IP67 and IK09, tested to MIL-STD-810G shock and vibration, salt-mist corrosion resistant, and certified for vehicles under E-Mark and SAE J1455 Category 2. The 5-year Essentials plan includes NetCloud Manager device management and software updates, 24x7 support, Enterprise Wireless University access, and a limited lifetime warranty while the subscription is active. NetCloud Advanced can be added at any time.

Ideal for

  • Roof-mounted 5G connectivity for police, fire and EMS vehicles on FirstNet and other public safety networks
  • Passenger Wi-Fi and operational data for buses and mass transit fleets
  • Adding 5G as a captive modem to an existing Cradlepoint in-vehicle router
  • Ruggedized connectivity for outdoor IoT cabinets and enclosures
  • Fleet location tracking and AVL integration using built-in GNSS

Specifications

Power

Fusing
3 A fuse (9–24 VDC); 2.5 A fuse (> 24 VDC)
Features
Ignition sensing (automatic ON & time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
Input Options

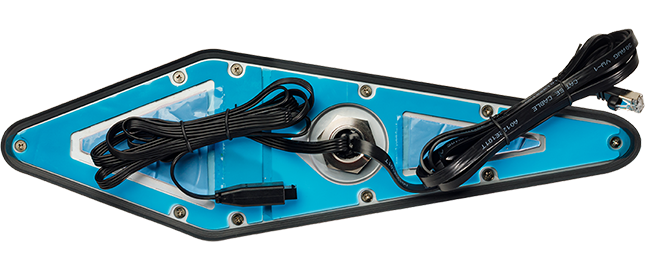

9–36 VDC (380 mm non-removable cable, 4-pin 2x2 Molex Micro-Fit) or 802.3at PoE Type 2 (30 W)
AC Power Supply
No AC power supply included
Consumption R2105
Sleep 50 mW; Idle 8 W; Typical 14.5 W; Heavy 17 W

General

MPN
590GBL001121
Brand
Ericsson Cradlepoint
Model
Cradlepoint R2105 (R2100 Series, Wi-Fi model)
Region
All Regions
Package Plan
5-Year NetCloud Mobile Performance Essentials Plan
Product Status
Active
Subscription Term
5 years
Hardware Configuration
R2105 with Wi-Fi, integrated antennas; SIM and AC power supply not included
Manufacturer Part Number
Cradlepoint MB05-2105-5GB-GA

Cellular

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 x internal cellular antennas
GNSS GPS
Passive GNSS
LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation
FR1 DL/UL up to 256 QAM (enabled on particular carrier equipment)
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA and LTE Advanced Pro Cat 20; dual 4FF SIM slots; 3GPP Release 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps
Peak Downlink
Up to 4.14 Gbps
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only), typical conducted
Carrier Aggregation
LTE: DL up to 7 CA, UL up to 2 CA; LTE + 5G NR ENDC: DL 1 CA, UL 1 CA
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Weight
1.46 kg (3 lb 4 oz)
Enclosure
Polycarbonate, exterior-mount

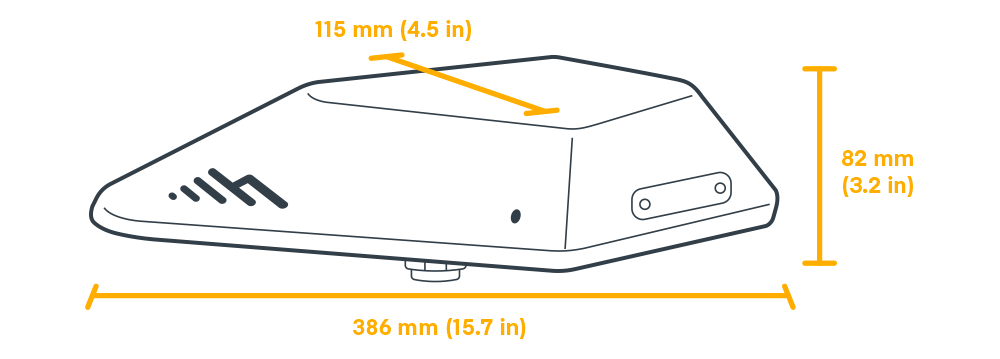

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

Wi-Fi
Dual-band concurrent 2.4/5 GHz 2x2 MU-MIMO Wi-Fi 6 with DFS; Global Optimized Wi-Fi & International SDR; EU 5 GHz limited to client mode
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only) on 380 mm (14.96 in) non-removable shielded CAT5e flat cable with male RJ45
GNSS GPS
Passive GNSS (multiplexed with internal cellular antennas)

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Stateful Firewall
900 Mbps
Typical Client Count
100
Concurrent VPN Tunnels
10
Concurrent Sessions Tcp
32,000
Ipsec VPN Point TO Point
300 Mbps
Ips App Aware Client Analytics
650 Mbps

Reliability

MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Vlans
Up to 64 Layer 2/Layer 3 VLANs
Shock Vibration
MIL-STD-810G 2.2.2 Procedure 1 (Shock, Vibration) and Procedure 5 (Shock)

Environmental

Humidity
5%–95% operating and storage
Corrosion
IEC60068-2-11 corrosion resistance (salt mist)
Impact Protection
IK09 (10 joules impact)
Ingress Protection
IP67 (dust tight, water immersion up to 1 m)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (FIPS models only; this SKU is non-FIPS)
Shock Vibration
MIL-STD-810G 2.2.2 Procedures 1 and 5
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
phone 24h weekdays + weekend emergency, web 24x7, chat 24x5
Training
Enterprise Wireless University access
Warranty
Limited lifetime warranty with active NetCloud subscription
Service Plans
NetCloud Mobile Performance; NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager for full term
Device Management
NetCloud Manager for full term

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Product Summary

PoE
802.3at
Wi-Fi
Dual-radio, dual-band, concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS
GPS GNSS
Passive
5G Status
5G Embedded
Throughput
900 Mbps (Firewall)
Form Factor
Polycarbonate
VPN Tunnels
10
Ethernet Ports
1 x 2.5 GbE RJ45
Cloud Management
Yes
Special Features
External mounting for best reception with no signal loss
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Wireless Connectivity
Dual Connectivity; 5G & Cat 20 LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S. & Canada), GCF (worldwide)
Subscription Terms Available
1, 3 & 5 years

Questions buyers ask

What is included with this SKU?

The Cradlepoint R2105 5G router with Wi-Fi and integrated antennas plus a 5-year NetCloud Mobile Performance Essentials plan. A SIM card and AC power supply are not included.

How is the R2105 powered?

It accepts 9–36 VDC through a non-removable DC cable with a 4-pin Molex Micro-Fit connector and ignition sensing, or 802.3at PoE (30 W).

Can it work with an existing Cradlepoint router?

Yes. It can act as a captive 5G modem for supported Cradlepoint controlling routers and is managed in NetCloud Manager as a single entity without a separate licence.

Which carriers and public safety networks is it certified for?

It carries AT&T, T-Mobile and Verizon network operator certifications and FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety certifications.

What does the Essentials plan cover?

NetCloud Manager device management and software updates, 24x7 support, Enterprise Wireless University access, and a limited lifetime hardware warranty for as long as the subscription is active.
