Cradlepoint5G & LTE Routers

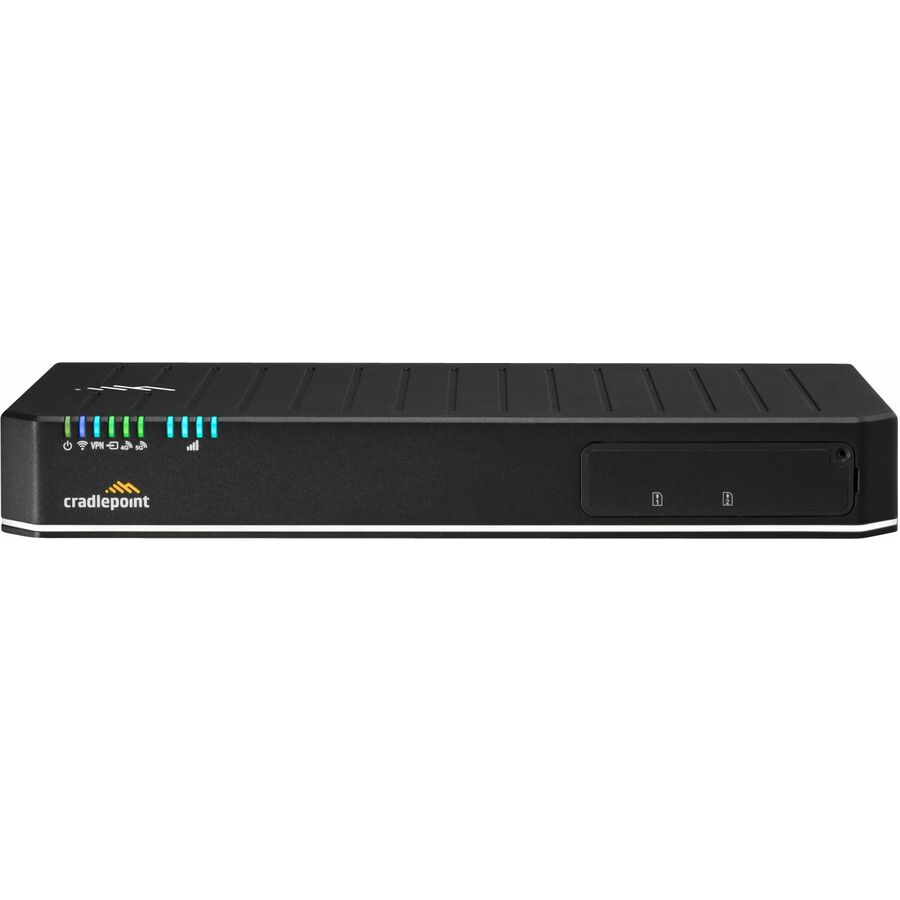

Cradlepoint E3000 5G Enterprise Branch Router with Wi-Fi 6, PoE and 1-Year NetCloud Essentials (TAA)

5GMPN TAA-BF01-30005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE out
  • FirstNet Ready
$2,399.00$2,609.00Save $210

In stockShips from the US

Included subscription · 1 year
1 year3 years+$8924 years+$1,470.785 years+$1,4706 years+$1,160
Compliance · TAA compliant
Standard−$11.62TAA compliant
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

The Cradlepoint E3000 is an all-in-one enterprise branch router that combines an embedded 5G modem, 4x4 Wi-Fi 6 and full switching. It offers nine GbE ports, a 2.5GbE port, a 10GbE SFP+ port and four 802.3bt PoE ports. This part number bundles the E3000 in its 5GB with Wi-Fi configuration with a 1-Year Ericsson NetCloud Enterprise Branch Essentials Plan. It is the TAA-compliant U.S. Federal Government ordering option, built for larger branches, healthcare, financial and retail sites that need security services at scale.

  • Embedded 5G FR1 NSA/SA modem with LTE Advanced Pro Cat 20, dual 2FF SIM slots and 4x4 MIMO
  • 9 x GbE, 1 x 2.5GbE and 1 x 10GbE SFP+, all LAN/WAN switchable, plus RJ45 console
  • 4 x 802.3bt PoE Type 3/4 ports, up to 90 W per port, 140 W total budget
  • 4x4 MU-MIMO Wi-Fi 6 with external antennas, 1,148 Mbps (2.4 GHz) and 2,400 Mbps (5 GHz)
  • 2 Gbps stateful firewall, 1.5 Gbps IPS/application-aware services, 20 concurrent VPN tunnels
  • MC400 slot for dual modem and VRRP for mirrored-router redundancy
  • 1-Year NetCloud Enterprise Branch Essentials Plan, TAA-compliant U.S. Federal Government SKU
  • Bring a medium branch online on 5G from day one, then keep cellular as failover once wired broadband arrives

The Cradlepoint E3000 (part number TAA-BF01-30005GB-GN) pairs an E3000 enterprise router in its 5GB with Wi-Fi configuration with a 1-Year Ericsson NetCloud Enterprise Branch Essentials Plan. It is the TAA-compliant SKU for U.S. Federal Government ordering. Ericsson positions the E3000 for fixed offices, healthcare, financial services and retail locations that need security services with performance. Routing, security, PoE switching and Wi-Fi share one metal enclosure, so a branch can connect without extra hardware.

The embedded 5G modem supports 5G FR1 in NSA and SA modes, with LTE Advanced Pro Category 20. Peak rates reach up to 4.14 Gbps downlink and 660 Mbps uplink. It has dual 2FF SIM slots, 4x4 MIMO and four included 600 MHz to 6 GHz paddle antennas. The modem supports FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified public safety networks, plus private cellular on CBRS Band 48. An MC400 slot (up to 1 Gbps) adds a second modem, and VRRP pairing with a mirrored router adds hardware redundancy.

The wired side offers 9 x GbE, 1 x 2.5GbE and 1 x 10GbE SFP+, all LAN/WAN switchable, with an RJ45 console port. Four 802.3bt PoE Type 3/4 ports deliver up to 90 W each from a 140 W budget, enough to power access points, cameras and phones. The 4x4 MU-MIMO Wi-Fi 6 radio runs 2,400 Mbps at 5 GHz with external antennas and WPA3. Rated performance includes a 2 Gbps stateful firewall, 1.5 Gbps IPS and application-aware services, 400 Mbps IPsec VPN, 20 VPN tunnels and 64 VLANs, sized for about 100 typical clients.

The Essentials package covers NetCloud Manager zero-touch deployment, group policy, software updates and 24x7 support for the full term. Support runs 24 hours on weekdays by phone with weekend emergency response, 24x7 web and 24x5 chat. The hardware carries a limited lifetime warranty while the subscription is active, and NetCloud Enterprise Branch Advanced can be added at any time. The Cradlepoint E3000 datasheet is available for full technical detail.

Ideal for

  • Medium federal branch offices needing 5G primary or failover WAN with integrated security
  • Healthcare, financial services and retail sites powering access points and cameras over PoE
  • Locations requiring dual-modem or VRRP-paired redundancy
  • Public safety sites on FirstNet, T-Mobile Connecting Heroes or Verizon Frontline networks
  • Private LTE/5G deployments on CBRS Band 48

Specifications

Power

Input
100–240 VAC, 2.3 A
Output
54 VDC, 3.34 A
Power Supply
External power supply (included)
Consumption Idle
17 W
Consumption Heavy
24 W
Consumption Typical
19 W

General

MPN
TAA-BF01-30005GB-GN
UPC
840292705012
Brand
Cradlepoint (Ericsson)
Model
Cradlepoint E3000
Manufacturer
Ericsson Enterprise Wireless (Ericsson Cradlepoint)
Product Status
Active

Package

Documentation
Cradlepoint E3000 Datasheet
Shipping Weight
7.70 lb
Included Antennas
4 x external 600 MHz–6 GHz cellular paddle antennas
Included Power Supply
External power supply included

Physical

Weight
1.98 kg (4 lb 6 oz)
Dimensions
160 x 320 x 44 mm (6.3 x 12.6 x 1.7 in)

Interfaces

PoE
4 x 802.3bt PoE Type 3/4, up to 90 W per port, 140 W total budget
Wi-Fi
Wi-Fi 6 4x4 MU-MIMO, dual-band concurrent, 1,148 Mbps (2.4 GHz) / 2,400 Mbps (5 GHz), external antennas, WPA3
Modem
This SKU: embedded 5GB low/mid-band modem with 4 x SMA cellular antenna connectors; optional dual modem via modular MC400
Ethernet
9 x GbE RJ45, 1 x 2.5GbE RJ45, 1 x 10GbE SFP+ (all LAN/WAN switchable)
GNSS GPS
1 x SMA GNSS antenna connector (C18B modem only; the 5GB modem uses passive GNSS on the cellular ports)
Expansion Console
1 x MC400 modem slot (1 Gbps peak); 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x expansion slot; MC20BT Bluetooth LE module; 1 x RJ45 console
Supported SFP Modules
Finisar FTLF8519P3BNL, FTLF1318P3BTL
Supported SFP Plus Modules
Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi Power

IC
2.4 GHz 26.22; 5150–5250 MHz 21.70; 5725–5850 MHz 28.65 dBm conducted
Fcc
2.4 GHz 26.22; 5150–5250 MHz 28.63; 5725–5850 MHz 28.65 dBm conducted

Performance

L2 L3 Vlans
Up to 64
Stateful Firewall
2 Gbps
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Tcp Sessions
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec 400 Mbps; Microtunnel 600 Mbps
Ips Application Aware Client Analytics
1.5 Gbps

Reliability

Calculated MTBF
E3000-5GB: 997,468 hours (Telcordia SR332 at 25 °C)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-20 °C to 85 °C (-4 °F to 185 °F)
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Security
FIPS 140-3 Level 1 in process for E3000 FIPS models only (this SKU is not a FIPS model)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty while an active NetCloud Service Plan is licensed
Service Plans
NetCloud Service for Enterprise Branch
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term
Essentials Support Channels
Phone 24h weekdays + weekend emergency; web 24x7; chat 24x5

Product Summary

PoE
Yes
Wi-Fi
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Branch
GPS GNSS
Passive
5G Status
5G embedded or LTE options
USB Ports
1
Throughput
2 Gbps (firewall)
Form Factor
Metal
VPN Tunnels
20
Ethernet Ports
9 x GbE, 1 x 2.5 GbE, 1 x SFP+ (LAN/WAN switchable)
Cloud Management
Yes
Special Features
5G embedded or paired with W-Series Adapters, dual modem, FirstNet Ready™, private cellular, NetCloud Exchange, PoE+, 2.5 GbE, SFP+, WPA3
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Sku Configuration

Tier
TAA Compliant NC — Essentials
Region
U.S. Federal Government
FIPS Model
No
Plan Family
NetCloud Enterprise Branch
Package Plan
1-Year NetCloud Enterprise Branch Essentials Plan
TAA Compliant
TAA-compliant SKU
Upgrade Option
NetCloud Enterprise Branch Advanced add-on available
Subscription Term
1 year
Hardware Configuration
5GB with Wi-Fi

Cellular Modem 5gb

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 antenna ports)
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Antennas
4 x external 600 MHz–6 GHz paddle antennas included (SMA female)
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
Up to 256 QAM downlink and uplink (uplink 256 QAM only on particular carrier equipment)
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; dual 2FF SIM slots; 3GPP Rel. 15
5G NR Bands
NSA/SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
Peak Uplink
Up to 660 Mbps (2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
Peak Downlink
Up to 4.14 Gbps (20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only)
Carrier Aggregation
LTE: up to 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; EE; T-Mobile; Verizon

Questions buyers ask

What does the 1-Year NetCloud Enterprise Branch Essentials Plan include?

It covers NetCloud Manager zero-touch deployment, device management and software updates for the full term. It also includes 24x7 support: 24-hour phone support on weekdays with weekend emergency response, 24x7 web and 24x5 chat. The router is covered by a limited lifetime warranty while an active NetCloud Service Plan is licensed.

Is this E3000 TAA compliant, and is it a FIPS model?

It is the TAA-compliant U.S. Federal Government ordering option for the E3000 in its 5GB with Wi-Fi configuration. It is not a FIPS model. FIPS 140-3 Level 1 applies only to the separate E3000 FIPS models.

How much PoE power does the E3000 provide?

Four 802.3bt PoE Type 3/4 ports deliver up to 90 W per port, with a 140 W total PoE power budget.

Does the E3000 support redundancy?

Yes. An MC400 modular modem slot adds a second cellular modem, and two mirrored E3000 routers can be paired with VRRP for hardware redundancy. Wired broadband can also run with 5G as failover.

Which public safety networks does the 5G modem support?

The embedded 5G modem carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified certifications. It is also certified on AT&T, EE, T-Mobile and Verizon.
