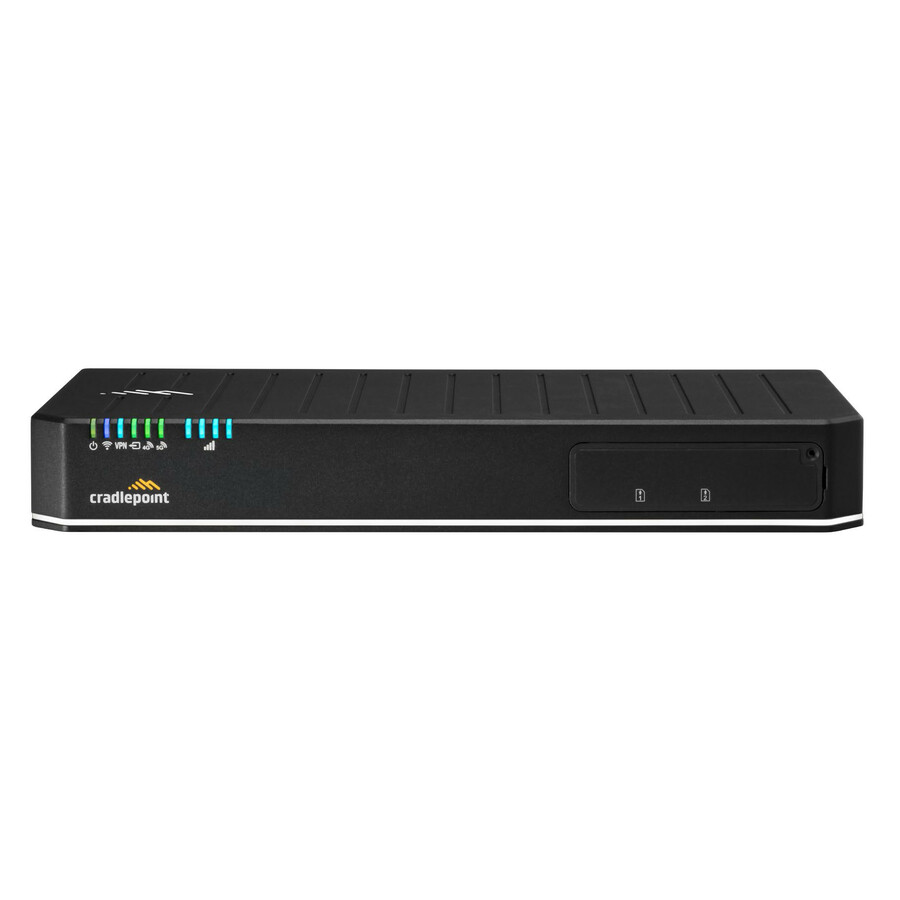

Cradlepoint E3000 5G Branch Router with Wi-Fi 6, PoE and 1-Year NetCloud Essentials + Advanced Plans

5GMPN BFA1-30005GB-GN
  • Wi-Fi 6
  • Dual SIM
  • 5+ × 2.5 Gb+ Ethernet
  • GPS/GNSS
  • PoE out
  • FirstNet Ready
$2,607.00$2,849.00Save $242

In stockShips from the US

Included subscription · 1 year
1 year3 years+$591.624 years+$1,482.405 years+$1,061.476 years+$1,171.62
Compliance · Standard
StandardTAA compliant+$11.62
Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 19 configurations

Datasheets & documents

Overview

The Ericsson Cradlepoint E3000 is an enterprise branch router with an embedded 5G modem, 4x4 Wi-Fi 6, nine GbE ports, a 2.5GbE port, 10GbE SFP+ and four 802.3bt PoE ports in a metal chassis. This U.S. & Canada package, part number BFA1-30005GB-GN, combines the E3000 5GB with Wi-Fi hardware with 1-year NetCloud Enterprise Branch Essentials + Advanced plans for fixed offices, healthcare, financial services and retail sites that need security services at scale.

  • Embedded 5GB modem: 5G FR1 NSA/SA with LTE Advanced Pro Cat 20, 4x4 MIMO, dual 2FF SIM slots
  • 9 x GbE, 1 x 2.5GbE and 1 x 10GbE SFP+, all LAN/WAN switchable
  • 4 x 802.3bt PoE Type 3/4 ports, up to 90 W per port, 140 W total budget
  • 4x4 MU-MIMO Wi-Fi 6 with external antennas, up to 2,400 Mbps on 5 GHz
  • 2 Gbps stateful firewall and 1.5 Gbps IPS throughput
  • MC400 slot for dual-modem connectivity and VRRP for router redundancy
  • 1-year NetCloud Enterprise Branch Essentials + Advanced plans
  • Bring a larger branch online on day one with embedded 5G, then use it as failover once wired broadband arrives

The Ericsson Cradlepoint E3000 is designed for larger branch locations such as fixed offices, healthcare facilities, financial services and retail, where security and analytics performance matter as much as connectivity. It combines routing, security, PoE switching and Wi-Fi in one metal chassis, and its embedded 5GB modem provides 5G FR1 NSA/SA with LTE Advanced Pro Category 20, 4x4 MIMO, dual 2FF SIM slots and peak rates up to 4.14 Gbps downlink and 660 Mbps uplink. Four external paddle antennas are included, and 5G NR coverage includes n2, n5, n41, n66, n71, n77 and CBRS n48.

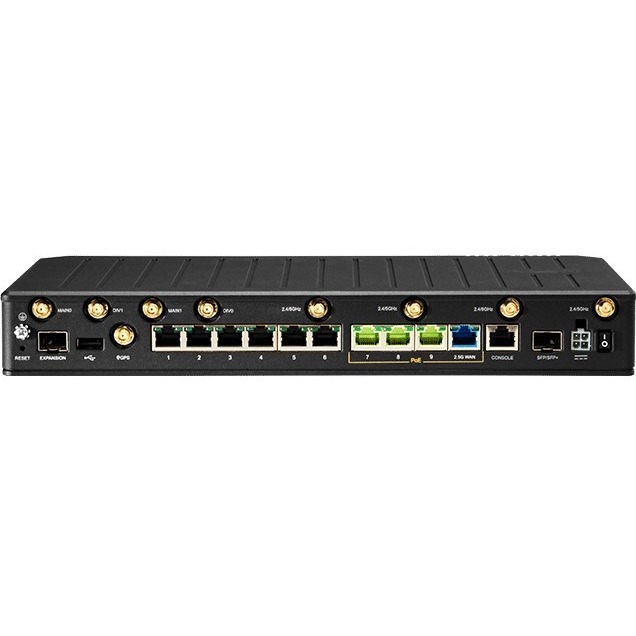

Wired connectivity includes 9 x GbE, 1 x 2.5GbE and 1 x 10GbE SFP+, all LAN/WAN switchable, with four 802.3bt PoE Type 3/4 ports delivering up to 90 W each from a 140 W budget to power access points, cameras or phones. Wi-Fi 6 uses 4x4 MU-MIMO with external antennas, reaching 2,400 Mbps on 5 GHz with WPA3 support. An MC400 slot adds a second modem, VRRP pairing enables hardware redundancy, and an RJ45 console port is provided.

Rated performance includes 2 Gbps stateful firewall, 1.5 Gbps IPS and application-aware services, 400 Mbps IPsec VPN, 20 concurrent VPN tunnels, 130,000 TCP sessions and a typical client count of 100.

The included 1-year Essentials + Advanced plans add dynamic routing, application-aware traffic steering, zone-based firewall, intrusion prevention and threat protection, managed through NetCloud Manager with zero-touch deployment. Support runs for the full term, and hardware carries a limited lifetime warranty while a NetCloud subscription is active.

Ideal for

  • Fixed branch offices needing 5G primary or failover connectivity with security services
  • Healthcare and financial services locations with IPS and zone-based firewall requirements
  • Retail sites powering access points, cameras and IP phones from router PoE ports
  • Larger branches with fiber or multi-gigabit uplinks via SFP+ and 2.5GbE
  • High-availability sites using dual modems and VRRP router pairing

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
MIMO
4x4 MIMO
Power
5G NR bands: 23 dBm ± 1.5; LTE + 5G NR ENDC: 20 dBm ± 1; LTE bands: 23 dBm ± 1; LTE HPUE: 25 dBm ± 1 (B41 standalone mode only) (typical conducted)
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Antennas
SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included)
GNSS GPS
Passive GNSS (multiplex with DIV/MIMO2 antenna ports)
LTE Bands
FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Modulation
5GB FR1: downlink up to 256 QAM; uplink up to 256 QAM (only enabled on particular carrier equipment)
Regulatory
FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Category 20; Dual SIM slots, 2FF form factor; 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink Rates
Up to 660 Mbps (based on 2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
Carrier Aggregation
LTE only: downlink up to 7 CA, uplink up to 2 CA; LTE + 5G NR ENDC: downlink 1 CA, uplink 1 CA
Peak Downlink Rates
Up to 4.14 Gbps (based on 20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications
AT&T; EE; T-Mobile; Verizon
Public Safety Network Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified

Power

Required
External power supply (included); Input: 100-240 VAC 2.3 A; Output: 54 VDC 3.34 A
Consumption
Idle: 17 W; Typical: 19 W; Heavy: 24 W

General

MPN
BFA1-30005GB-GN
UPC
UPC 810007806075
Brand
Cradlepoint (Ericsson Enterprise Wireless)
Model
Cradlepoint E3000 (5GB with Wi-Fi)
Region
The Americas (U.S. & Canada)
Mounting
Desktop, wall mountable, rack-mountable
Package Plan
1-Year NetCloud Enterprise Branch Essentials + Advanced Plans
Shipping Weight
8.00 lb shipping weight
Subscription Term
1 year
Hardware Configuration
5GB with Wi-Fi

Physical

Size
160 x 320 x 44 mm (6.3 x 12.6 x 1.7 in)
Weight
1.98 kg (4 lb 6 oz)

Interfaces

PoE
4 x 802.3bt PoE Type 3/4 (up to 90 W per port); 140 W total PoE power budget
Modem
Embedded 5GB low/mid-band modem with 4 x SMA cellular antenna connectors; optional dual modem: modular MC400 modem
WI FI
Dual-radio, dual-band, concurrent (2.4 GHz and 5 GHz); 4x4 MU-MIMO 802.11ax Wi-Fi 6 with DFS; 1,148 Mbps (2.4 GHz) and 2,400 Mbps (5 GHz); external 4x4 antennas; Global Optimized Wi-Fi; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k, 802.11v
Ethernet
9 x GbE RJ45 (LAN/WAN switchable); 1 x 2.5GbE RJ45 (LAN/WAN switchable); 1 x 10GbE SFP+ (LAN/WAN switchable); SFP: Finisar FTLF8519P3BNL, FTLF1318P3BTL; SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx
GNSS GPS
1 x SMA GNSS antenna connector (C18B modem only)
Expansion Console
1 x MC400 Modular Modem Slot (peak throughput: 1 Gbps); 1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W); 1 x Expansion Slot (MC20BT Bluetooth Low Energy module); 1 x RJ45 Console

Performance

Stateful Firewall
2 Gbps
Layer2 Layer3 Vlans
Up to 64
Typical Client Count
100
Concurrent VPN Tunnels
20
Concurrent Sessions Tcp
130,000
Point TO Point Ipsec VPN
400 Mbps
Sase Secure Connect SD WAN
IPsec: 400 Mbps; Microtunnel: 600 Mbps
Ips Application Aware Client Analytics
1.5 Gbps

Reliability

Calculated MTBF
E3000-5GB: 997,468 hours (Telcordia SR332 at 25 °C)

WI FI Power

IC
2.4 GHz: 26.22 dBm conducted; 5150–5250 MHz: 21.70 dBm conducted; 5725–5850 MHz: 28.65 dBm conducted
Fcc
2.4 GHz: 26.22 dBm conducted; 5150–5250 MHz: 28.63 dBm conducted; 5725–5850 MHz: 28.65 dBm conducted

Environmental

Humidity
Operating: 10% to 90%; Storage: 5% to 95%
Temperature
Operating: 0 °C to 50 °C (32 °F to 122 °F); Storage: -20 °C to 85 °C (-4 °F to 185 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Security
FIPS 140-3 Level 1 Module in Process (E3000 FIPS models only; this SKU is a non-FIPS model)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
NetCloud packages include support for the full subscription term
Warranty
Limited lifetime warranty for as long as an active NetCloud Service plan subscription is in place
Service Plans
NetCloud Service for Enterprise Branch
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
NetCloud Manager for the full subscription term
Device Management
NetCloud Manager for the full subscription term

Product Summary

PoE
Yes
WI FI
Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)
Category
Branch
GPS GNSS
Passive
5G Status
5G embedded or LTE options
USB Ports
1
Throughput
2 Gbps (firewall)
Form Factor
Metal
VPN Tunnels
20
Ethernet Ports
9 x GbE, 1 x 2.5 GbE, 1 x SFP+ (LAN/WAN switchable)
Cloud Management
Yes
Special Features
5G embedded or paired with W-Series Adapters, dual modem, FirstNet Ready™, private cellular, NetCloud Exchange, PoE+, 2.5 GbE, SFP+, WPA3
Dual Modem Support
Yes
Subscription Terms
1, 3 & 5 years
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Wireless Connectivity
5G or LTE
Private Cellular Network
Yes — CBRS, 4G LTE, 5G
Network Operator Standards
PTCRB (U.S.), GCF (global)

Questions buyers ask

Which cellular modem is in this E3000 configuration?

This SKU uses the embedded 5GB modem: 5G FR1 NSA/SA with LTE Advanced Pro Category 20, 4x4 MIMO and dual 2FF SIM slots, with peak rates up to 4.14 Gbps downlink and 660 Mbps uplink.

How much PoE power can the E3000 supply?

It has four 802.3bt PoE Type 3/4 ports, each delivering up to 90 W, with a 140 W total PoE power budget.

What does the Advanced plan add?

Essentials + Advanced packages support demanding router services such as dynamic routing and application-aware traffic steering, along with security features including a stateful zone-based firewall, intrusion prevention and threat protection.

Is this a FIPS model?

No. This part number is a standard, non-FIPS configuration. FIPS 140-3 applies to separate E3000 FIPS models.

What support and warranty come with this package?

Support is included for the full subscription term, and the hardware carries a limited lifetime warranty for as long as an active NetCloud subscription is in place.
