Vertiv Avocent ACS8008 8-Port Cellular Serial Console Server with 4G LTE, Dual AC Power, TAA

4G LTEMPN ACS8008-NA-DAC-400
  • 1 Gb Ethernet
$3,588.97$5,177.00Save $1,588.03

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

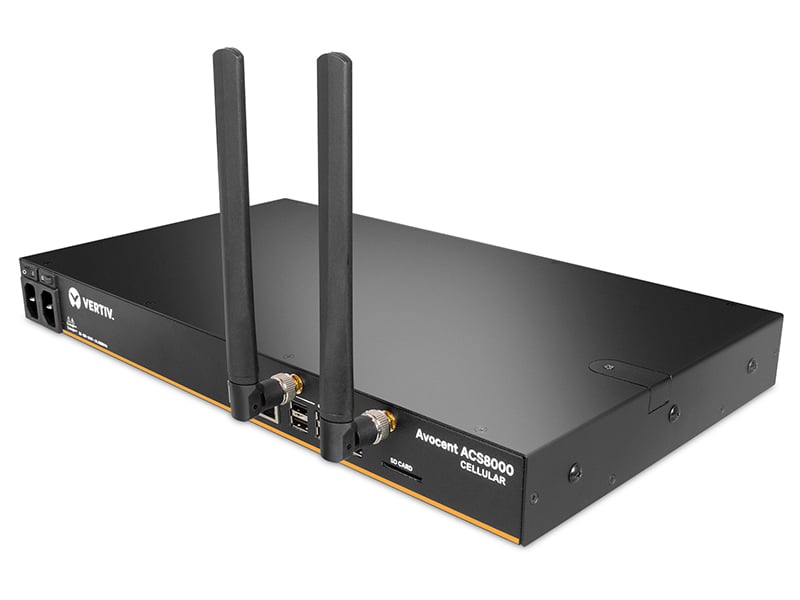

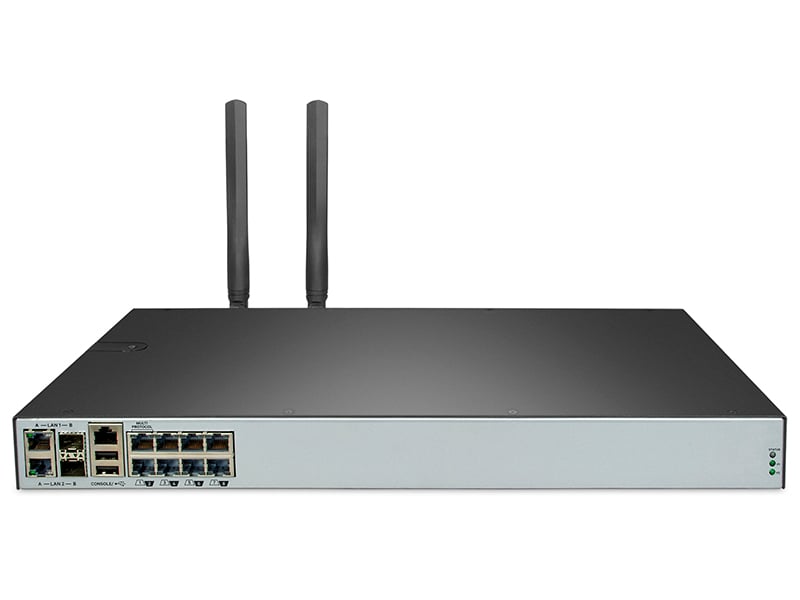

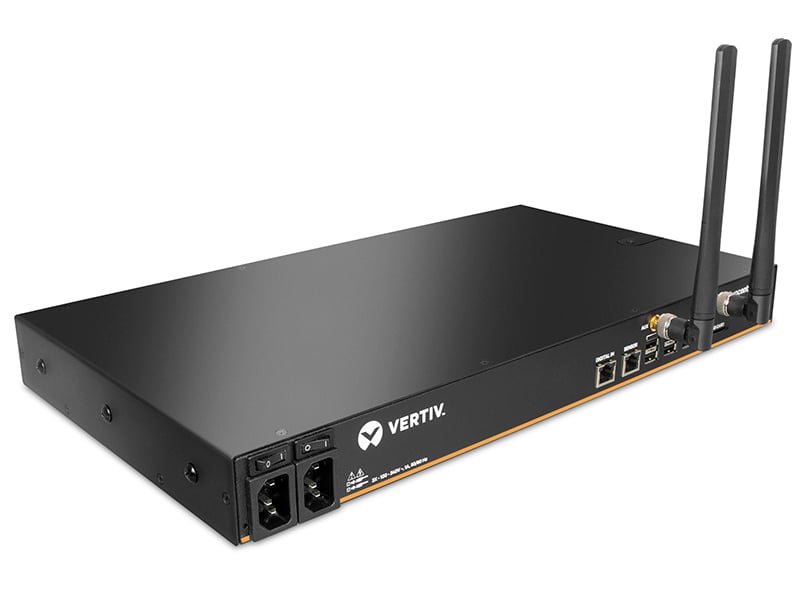

The Vertiv Avocent ACS8008-NA-DAC-400 is an 8-port advanced serial console server with an integrated 4G LTE Cat 4 modem for AT&T and Verizon. It gives IT teams secure in-band and out-of-band access to downstream network, server and power equipment. It fails over automatically between Gigabit Ethernet and cellular and runs on dual-entry redundant AC power supplies. Two SFP fiber ports, eight USB 2.0 ports and environmental sensor inputs are built into the 1.75 in high, TAA-compliant rack chassis.

  • 8 RS-232 serial ports on RJ45; first 2 selectable RS-232/RS-422/RS-485, with automatic Cyclades and Cisco pin-out conversion
  • Integrated 4G LTE Cat 4 modem with 3G fallback for AT&T and Verizon, 2FF mini SIM slot
  • Automatic failover between Gigabit Ethernet and cellular; 2 Gigabit RJ45 Ethernet plus 2 Gigabit SFP fiber ports
  • Environmental sensor port (1-wire) and 4 digital inputs for smoke, leak, pressure and dry-contact sensors
  • Internal dual-entry, redundant 100–240 VAC power supplies, 35 W maximum input
  • Zero-Touch Provisioning, customizable security profiles, FIPS 140-2-based cryptographic module and Avocent DSView integration
  • TAA compliant (-400 model)
  • Reach console ports on remote equipment over LTE when the production network is down or unavailable at the site

The Vertiv Avocent ACS8008-NA-DAC-400 is the 8-port, North American cellular model in the Avocent ACS8000 advanced serial console family. It is built for IT managers and network operations teams who need a secure management gateway and single point of entry to critical equipment at edge sites, enterprise data centers and colocation facilities. It keeps that access available during partial or total outages of the production network.

Eight RS-232 ports on RJ45 connect to downstream console ports. The first two ports are selectable between RS-232, RS-422 and RS-485, and automatic Cyclades and Cisco pin-out conversion removes the need for adapters. The integrated 4G LTE Cat 4 modem has 3G fallback and a 2FF mini SIM slot. It is built for AT&T and Verizon and covers bands B2, B4, B5, B12, B13, B14, B66 and B71. Cellular can serve as the primary out-of-band path or as automatic failover from the two Gigabit RJ45 Ethernet and two Gigabit SFP fiber interfaces.

A 1-wire environmental sensor port and four digital inputs accept smoke, leak, pressure and dry-contact sensors, so the unit acts as a single-IP IoT gateway for site conditions. Auto-discovery and native command settings support Vertiv equipment. The unit also supports rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton, plus Vertiv GXT4 and GXT5 UPS systems. Eight USB 2.0 ports and a full-size SD card slot provide room for peripherals and storage.

Security features include customizable and preset security profiles, multiple access levels and an embedded cryptographic module based on a FIPS 140-2 validated module. Operations tools include time-stamped online and offline data logging, Zero-Touch Provisioning and integration with Avocent DSView software. Internal dual-entry, redundant 100–240 VAC supplies draw 35 W maximum, and the -400 suffix marks a TAA-compliant model. Vertiv publishes a data sheet, installer/user guide, quick installation guide and rack mounting guide for this series.

Ideal for

  • Out-of-band console access to switches, routers and firewalls at branch and edge sites over AT&T or Verizon LTE
  • Cellular failover management path for a colocation cage or small data center rack
  • Remote monitoring of unstaffed IT closets with smoke, leak and pressure sensors
  • Centralized management of Vertiv, APC, Raritan, Eaton and ServerTech rack PDUs and Vertiv GXT4/GXT5 UPS units
  • TAA-compliant deployments in government and public-sector environments

Specifications

General

MPN
ACS8008-NA-DAC-400
Brand
Vertiv
Model
ACS 8008-NA-DAC Cellular Dual AC Serial Console
Device Type
Serial Console Server
Product Line
Avocent ACS8000 Cellular Advanced Serial Console

Package

Shipping Weight
12.50 lbs

Support

Warranty
2-year full coverage factory warranty (optional extended warranty available)

Cellular

Carriers
AT&T, Verizon
SIM Slot
2FF (mini SIM) card slot
LTE Bands
LTE B2, B4, B5, B12, B13, B14, B66, B71
Cellular Type
4G LTE Cat 4 with 3G fallback
Att Bands Used
B2, B4, B5, B12, B14
Fallback 3g Bands
3G B2, B4, B5
Verizon Bands Used
B4, B13

Ordering

Order Code
ACS8008-NA-DAC-400
Description
ACS8000 8-port cellular AT&T/Verizon 4G/LTE dual AC
TAA Compliance
TAA compliant

Graphic Mode

Internal Modem
0
Cellular Support
4G/LTE
Service Processor Support
No

Compatibility

Rack Pdus
Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton
Ups Systems
Vertiv GXT4 and GXT5 UPS systems
Management Software
Avocent DSView integration

Miscellaneous

Other Supported Accessories
1 full-size SD card slot

Certifications

Safety
UL, cUL, EN-60950, CB, CU, UL/cUL/IEC 60950-1 2nd Ed (cellular related)
Network Cellular
PTCRB
Emissions And Immunity
FCC Class A, CE (EU), UKCA (UK), ICES-003 (Canada), VCCI (Japan), RCM (Australia), CU, KCC (Korea)
Emc Radio Compliance Cellular
FCC Part 15 Class B, FCC Part 22, 24, 27

Interfaces Ports

USB Ports
8 x USB 2.0
USB Hub Support
Yes
Network Interfaces
2 x Gigabit Fiber SFP, 2 x 10/100/1000BASE-T Ethernet

Product Overview

Type
Serial
Input Ports
8 RS-232 serial, 8 USB 2.0, 4 digital

Power Description

Power Supplies
Internal dual-entry, redundant 100–240 VAC, 50/60 Hz
Input Power Maximum
35 W

Hardware Specifications

CPU
Dual-core ARM Cortex-A9 MPCore with CoreSight
Power
Series: internal 100–240 VAC, 50/60 Hz; optional –48 VDC; optional dual-entry redundant AC and DC supplies (this model: dual AC)
Memory
1 GB DDR3L RAM; 16 GB eMMC Flash
Weight
6.4–7.2 lbs
Dimensions
17.25 W x 9.5 D x 1.75 H in (43.82 x 24.13 x 4.45 cm)
Interfaces
2 Gigabit SFP; 2 Gigabit RJ45 Ethernet; 1 RS-232 console port (RJ45); up to 48 RS-232 ports on RJ45 across the series (8 on this model); first 2 ports RS-232/RS-422/RS-485 selectable; 8 USB 2.0 Type A; 1 full-size SD slot; 1-wire environmental sensor port (RJ45); 4 digital inputs
Power Usage
120 VAC: typ. 0.13 A / 6.2 W, max 0.47 A / 28 W; 240 VAC: typ. 0.10 A / 7 W, max 0.29 A / 28 W; 48 VDC (±20%): typ. 0.22 A / 11 W, max 0.67 A / 33 W
Storage Humidity
5% to 95% RH, non-condensing
Operating Humidity
20% to 80% RH, non-condensing
Storage Temperature
-4°F to 158°F (-20°C to 70°C)
Operating Temperature
14°F to 140°F (-10°C to 60°C)

Physical Characteristics

Depth
9.5 in
Width
17.25 in
Height
1.75 in
Weight
7.5 lbs
Depth Metric
241 mm
Width Metric
438 mm
Height Metric
44.5 mm
Weight Metric
3.4 kg

Questions buyers ask

Which cellular networks does the ACS8008-NA-DAC-400 support?

It has a 4G LTE Cat 4 modem with 3G fallback for AT&T and Verizon. It supports LTE bands B2, B4, B5, B12, B13, B14, B66 and B71 and uses a 2FF mini SIM.

Is this a 5G console server?

No. The cellular modem is 4G LTE Cat 4 with 3G fallback.

Does it include an analog dial-up modem?

No. Vertiv lists the internal modem count for this model as 0. Out-of-band access is provided over the built-in LTE modem.

What does the part number ACS8008-NA-DAC-400 indicate?

8008 is the 8-port model and NA is the North American cellular version for AT&T and Verizon. DAC means dual AC power, and -400 designates a TAA-compliant model.

What warranty does Vertiv provide?

Vertiv lists a 2-year full coverage factory warranty, with optional extended warranty available.
