Vertiv Avocent ACS8016 16-Port Cellular Serial Console Server with 4G LTE, Dual AC Power, TAA

4G LTEMPN ACS8016-NA-DAC-400
  • 1 Gb Ethernet
$4,328.39$6,415.00Save $2,086.61

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

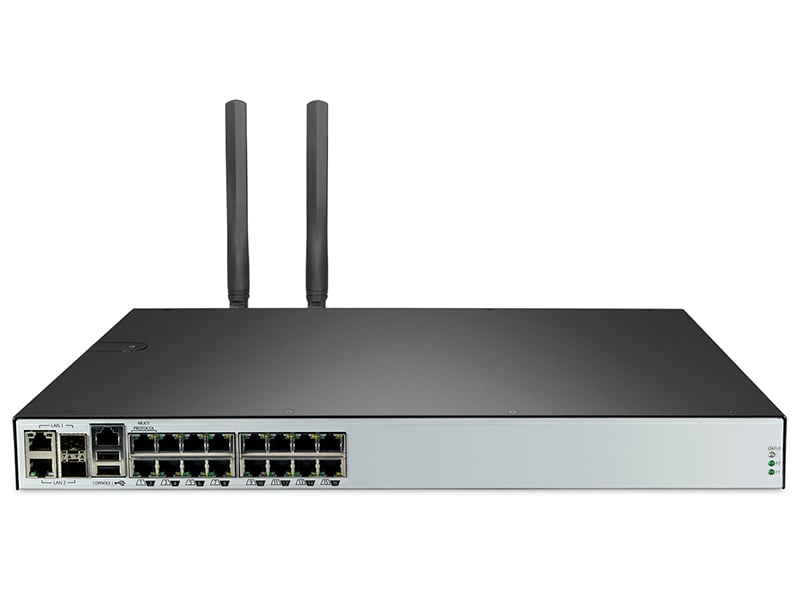

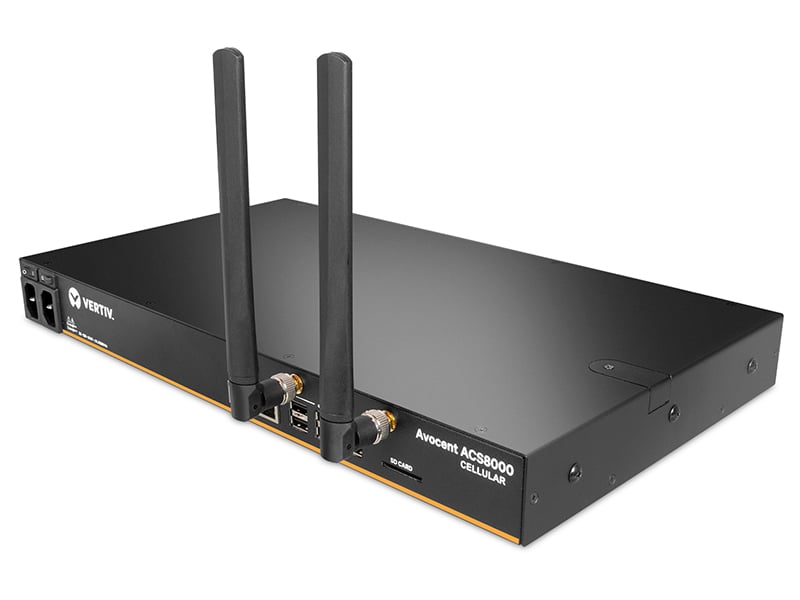

The Vertiv Avocent ACS8016-NA-DAC-400 is a 16-port advanced serial console server with a built-in 4G LTE Cat 4 modem for AT&T and Verizon. It provides secure in-band and out-of-band access to a full rack of network, server and power equipment. The unit fails over automatically from Gigabit Ethernet to cellular and runs on dual-entry redundant AC supplies. Two SFP fiber ports, eight USB 2.0 ports and environmental sensor inputs come in a 1.75 in high, TAA-compliant rack chassis.

  • 16 RS-232 serial ports on RJ45; first 2 selectable RS-232/RS-422/RS-485, with automatic Cyclades and Cisco pin-out conversion
  • Integrated 4G LTE Cat 4 modem with 3G fallback for AT&T and Verizon, 2FF mini SIM slot
  • Automatic Gigabit Ethernet or cellular failover; 2 Gigabit RJ45 Ethernet plus 2 Gigabit SFP fiber ports
  • 1-wire environmental sensor port and 4 digital inputs for smoke, leak, pressure and dry-contact sensors
  • Internal dual-entry, redundant 100–240 VAC power supplies, 35 W maximum input
  • Zero-Touch Provisioning, preset and custom security profiles, FIPS 140-2-based cryptographic module, DSView integration
  • TAA compliant (-400 model)
  • Manage up to 16 console-port devices from one appliance, over LTE when the wired network fails

The Vertiv Avocent ACS8016-NA-DAC-400 is the 16-port, North American cellular model in the Avocent ACS8000 advanced serial console family. It suits IT managers and NOC teams who manage a full rack or a busy edge site and need one secure gateway to every console port. That access stays available even when the production network is partly or fully down.

Sixteen RS-232 ports on RJ45 connect to downstream devices. The first two ports are selectable between RS-232, RS-422 and RS-485, and automatic Cyclades and Cisco pin-out conversion eliminates adapters. The integrated 4G LTE Cat 4 modem includes 3G fallback and a 2FF mini SIM slot. It covers LTE bands B2, B4, B5, B12, B13, B14, B66 and B71 for AT&T and Verizon. LTE can serve as the primary out-of-band link or as automatic failover from the two Gigabit RJ45 Ethernet and two Gigabit SFP fiber interfaces.

The unit also works as a single-IP IoT gateway for the site. A 1-wire environmental sensor port and four digital inputs accept smoke, leak, pressure and dry-contact sensors. Auto-discovery and native command settings support Vertiv equipment. Support also extends to rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton and to Vertiv GXT4 and GXT5 UPS systems. Eight USB 2.0 ports and a full-size SD card slot are included.

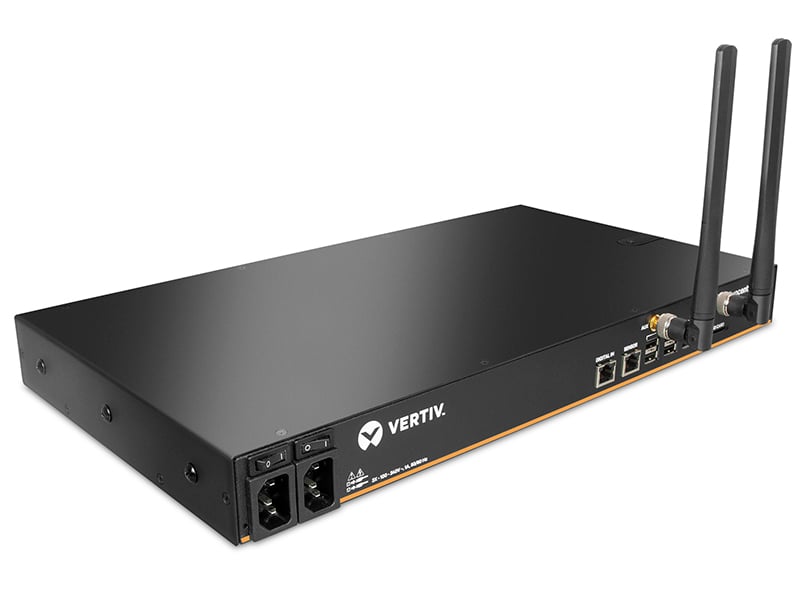

Access control uses customizable and preset security profiles, multiple access levels and an embedded cryptographic module based on a FIPS 140-2 validated module. Time-stamped online and offline logging supports compliance and troubleshooting. Zero-Touch Provisioning and Avocent DSView integration simplify rollout and central management. Power comes from internal dual-entry, redundant 100–240 VAC supplies at 35 W maximum input, and the -400 suffix designates TAA compliance. Vertiv provides a data sheet, installer/user guide, quick installation guide and rack mounting guide.

Ideal for

  • Out-of-band management for a full rack of switches, routers, firewalls and servers
  • LTE failover console access at regional edge sites and branch data rooms
  • Colocation deployments where a separate wired management circuit is impractical
  • Environmental monitoring of remote IT rooms using smoke, leak and pressure sensors
  • TAA-compliant infrastructure projects for government customers

Specifications

General

MPN
ACS8016-NA-DAC-400
UPC
636430090566
Brand
Vertiv
Model
ACS 8016-NA-DAC Cellular Dual AC Serial Console
Device Type
Serial Console Server
Product Line
Avocent ACS8000 Cellular Advanced Serial Console

Package

Shipping Weight
12.50 lbs

Support

Warranty
2-year full coverage factory warranty (optional extended warranty available)

Cellular

Carriers
AT&T, Verizon
SIM Slot
2FF (mini SIM) card slot
LTE Bands
LTE B2, B4, B5, B12, B13, B14, B66, B71
Cellular Type
4G LTE Cat 4 with 3G fallback
Att Bands Used
B2, B4, B5, B12, B14
Fallback 3g Bands
3G B2, B4, B5
Verizon Bands Used
B4, B13

Ordering

Order Code
ACS8016-NA-DAC-400
Description
ACS8000 16-port cellular AT&T/Verizon 4G/LTE dual AC
TAA Compliance
TAA compliant

Graphic Mode

Internal Modem
0
Cellular Support
4G/LTE
Service Processor Support
No

Compatibility

Rack Pdus
Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton
Ups Systems
Vertiv GXT4 and GXT5 UPS systems
Management Software
Avocent DSView integration

Miscellaneous

Other Supported Accessories
1 full-size SD card slot

Certifications

Safety
UL, cUL, EN-60950, CB, CU, UL/cUL/IEC 60950-1 2nd Ed (cellular related)
Network Cellular
PTCRB
Emissions And Immunity
FCC Class A, CE (EU), UKCA (UK), ICES-003 (Canada), VCCI (Japan), RCM (Australia), CU, KCC (Korea)
Emc Radio Compliance Cellular
FCC Part 15 Class B, FCC Part 22, 24, 27

Interfaces Ports

USB Ports
8 x USB 2.0
USB Hub Support
Yes
Network Interfaces
2 x Gigabit Fiber SFP, 2 x 10/100/1000BASE-T Ethernet

Product Overview

Type
Serial
Input Ports
16 RS-232 serial, 8 USB 2.0, 4 digital

Power Description

Power Supplies
Internal dual-entry, redundant 100–240 VAC, 50/60 Hz
Input Power Maximum
35 W

Hardware Specifications

CPU
Dual-core ARM Cortex-A9 MPCore with CoreSight
Power
Series: internal 100–240 VAC, 50/60 Hz; optional –48 VDC; optional dual-entry redundant AC and DC supplies (this model: dual AC)
Memory
1 GB DDR3L RAM; 16 GB eMMC Flash
Weight
6.4–7.2 lbs
Dimensions
17.25 W x 9.5 D x 1.75 H in (43.82 x 24.13 x 4.45 cm)
Interfaces
2 Gigabit SFP; 2 Gigabit RJ45 Ethernet; 1 RS-232 console port (RJ45); up to 48 RS-232 ports on RJ45 across the series (16 on this model); first 2 ports RS-232/RS-422/RS-485 selectable; 8 USB 2.0 Type A; 1 full-size SD slot; 1-wire environmental sensor port (RJ45); 4 digital inputs
Power Usage
120 VAC: typ. 0.13 A / 6.2 W, max 0.47 A / 28 W; 240 VAC: typ. 0.10 A / 7 W, max 0.29 A / 28 W; 48 VDC (±20%): typ. 0.22 A / 11 W, max 0.67 A / 33 W
Storage Humidity
5% to 95% RH, non-condensing
Operating Humidity
20% to 80% RH, non-condensing
Storage Temperature
-4°F to 158°F (-20°C to 70°C)
Operating Temperature
14°F to 140°F (-10°C to 60°C)

Physical Characteristics

Depth
9.5 in
Width
17.25 in
Height
1.75 in
Weight
7.5 lbs
Depth Metric
241 mm
Width Metric
438 mm
Height Metric
44.5 mm
Weight Metric
3.4 kg

Questions buyers ask

Which carriers and bands does the ACS8016-NA-DAC-400 support?

The 4G LTE Cat 4 modem is built for AT&T and Verizon. It supports LTE bands B2, B4, B5, B12, B13, B14, B66 and B71, with 3G fallback on B2, B4 and B5, and uses a 2FF mini SIM.

How many devices can it manage?

It has 16 RS-232 serial ports on RJ45, and the first two can be set to RS-422 or RS-485. It also provides 8 USB 2.0 ports and 4 digital inputs.

Does it support 5G?

No. It uses a 4G LTE Cat 4 modem with 3G fallback.

Can it manage PDUs and UPS systems?

Yes. Vertiv lists support for rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton, plus Vertiv GXT4 and GXT5 UPS systems. Vertiv equipment is auto-discovered.

What power options does this model have?

The -DAC model has internal dual-entry, redundant 100–240 VAC, 50/60 Hz power supplies with a 35 W maximum input.
