Vertiv Avocent ACS8032 32-Port Cellular Serial Console Server with 4G LTE, Dual AC Power, TAA

4G LTEMPN ACS8032-NA-DAC-400
  • 1 Gb Ethernet
$5,163.71$7,653.00Save $2,489.29

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

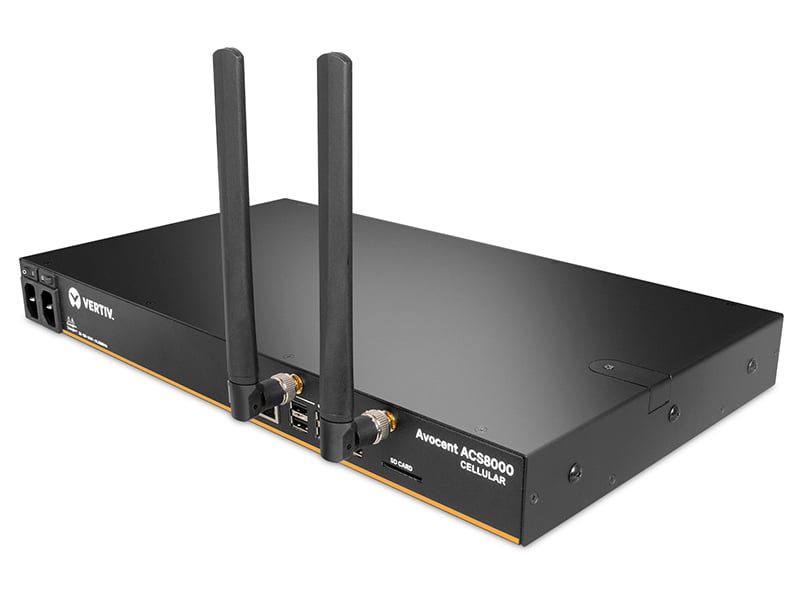

The Vertiv Avocent ACS8032-NA-DAC-400 is a 32-port advanced serial console server with an integrated 4G LTE Cat 4 modem for AT&T and Verizon. It consolidates secure in-band and out-of-band access to dense racks of network, server and power equipment. It fails over automatically from Gigabit Ethernet to cellular and uses dual-entry redundant AC supplies. Two SFP fiber ports, eight USB 2.0 ports and environmental sensor inputs are housed in a 1.75 in high, TAA-compliant rack chassis.

  • 32 RS-232 serial ports on RJ45; first 2 selectable RS-232/RS-422/RS-485, with automatic Cyclades and Cisco pin-out conversion
  • Integrated 4G LTE Cat 4 modem with 3G fallback for AT&T and Verizon, 2FF mini SIM slot
  • Automatic Gigabit Ethernet or cellular failover; 2 Gigabit RJ45 Ethernet plus 2 Gigabit SFP fiber ports
  • 1-wire environmental sensor port and 4 digital inputs for smoke, leak, pressure and dry-contact sensors
  • Internal dual-entry, redundant 100–240 VAC power supplies, 35 W maximum input
  • Zero-Touch Provisioning, security profiles, FIPS 140-2-based cryptographic module and Avocent DSView integration
  • TAA compliant (-400 model)
  • Consolidate console access for up to 32 devices behind one secure point of entry

The Vertiv Avocent ACS8032-NA-DAC-400 is the 32-port, North American cellular model in the Avocent ACS8000 advanced serial console family. It is aimed at data center, colocation and NOC teams consolidating console access for multiple racks behind one secure management gateway. That access stays up through partial or total outages of the production network.

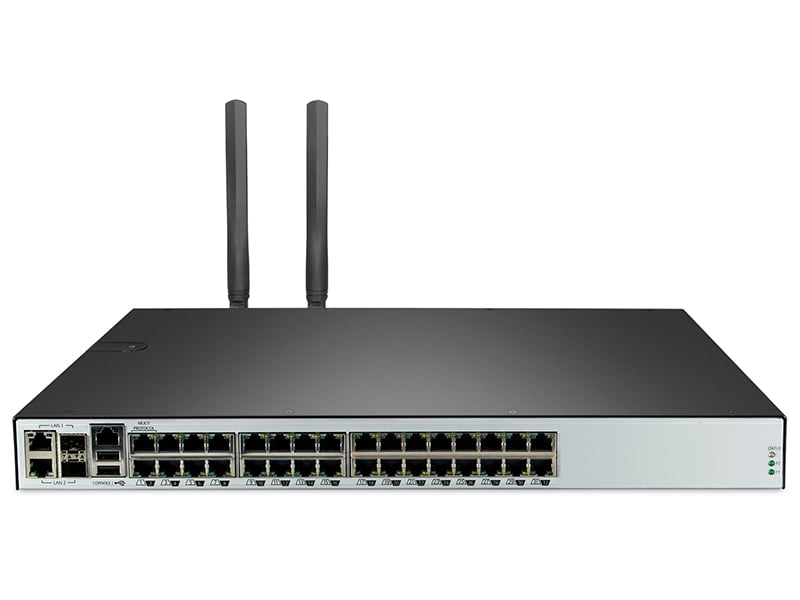

Thirty-two RS-232 ports on RJ45 connect to downstream console ports. The first two ports are selectable between RS-232, RS-422 and RS-485, and automatic Cyclades and Cisco pin-out conversion means no adapters. The integrated 4G LTE Cat 4 modem, with 3G fallback and a 2FF mini SIM slot, supports LTE bands B2, B4, B5, B12, B13, B14, B66 and B71 for AT&T and Verizon. The cellular link can be the primary out-of-band connection or automatic failover from the two Gigabit RJ45 Ethernet and two Gigabit SFP fiber interfaces.

A 1-wire environmental sensor port and four digital inputs for smoke, leak, pressure and dry-contact sensors let the unit act as a single-IP IoT gateway. Auto-discovery and native command settings streamline management of Vertiv equipment. The unit also supports rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton and Vertiv GXT4 and GXT5 UPS systems. Eight USB 2.0 ports and a full-size SD card slot round out the I/O.

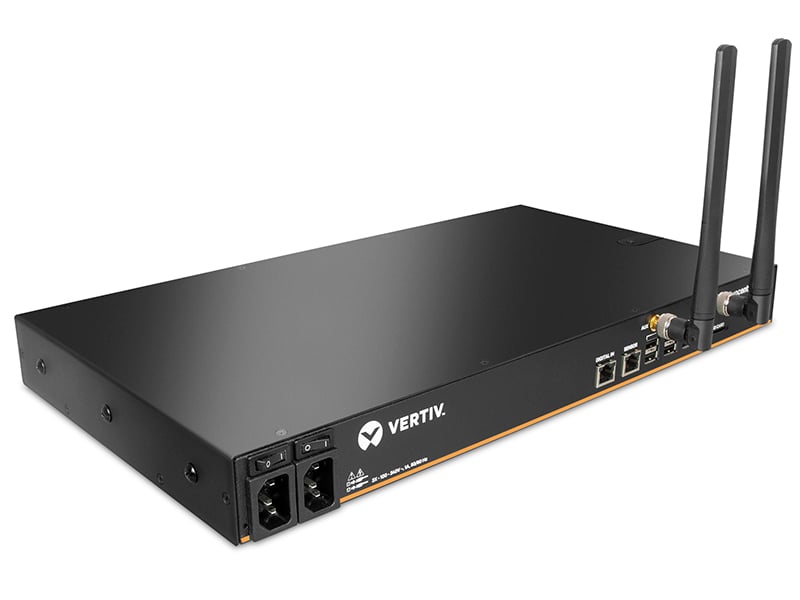

Customizable and preset security profiles and multiple access levels help align with data center access policies. An embedded cryptographic module based on a FIPS 140-2 validated module protects management sessions. Time-stamped online and offline logging aids compliance and troubleshooting. Zero-Touch Provisioning and Avocent DSView integration support fleet-scale rollout. Internal dual-entry, redundant 100–240 VAC supplies draw 35 W maximum, and the -400 suffix designates TAA compliance. Vertiv documentation includes a data sheet, installer/user guide, quick installation guide and rack mounting guide.

Ideal for

  • Consolidated out-of-band console access across several data center racks
  • LTE-backed management path for colocation suites during carrier or core network outages
  • NOC access to network and server consoles at regional hubs
  • Monitoring of power distribution and UPS equipment alongside device consoles
  • TAA-compliant deployments for public-sector data centers

Specifications

General

MPN
ACS8032-NA-DAC-400
Brand
Vertiv
Model
ACS 8032-NA-DAC Cellular Dual AC Serial Console
Device Type
Serial Console Server
Product Line
Avocent ACS8000 Cellular Advanced Serial Console

Package

Shipping Weight
12.50 lbs

Support

Warranty
2-year full coverage factory warranty (optional extended warranty available)

Cellular

Carriers
AT&T, Verizon
SIM Slot
2FF (mini SIM) card slot
LTE Bands
LTE B2, B4, B5, B12, B13, B14, B66, B71
Cellular Type
4G LTE Cat 4 with 3G fallback
Att Bands Used
B2, B4, B5, B12, B14
Fallback 3g Bands
3G B2, B4, B5
Verizon Bands Used
B4, B13

Ordering

Order Code
ACS8032-NA-DAC-400
Description
ACS8000 32-port cellular AT&T/Verizon 4G/LTE dual AC
TAA Compliance
TAA compliant

Graphic Mode

Internal Modem
0
Cellular Support
4G/LTE
Service Processor Support
No

Compatibility

Rack Pdus
Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton
Ups Systems
Vertiv GXT4 and GXT5 UPS systems
Management Software
Avocent DSView integration

Miscellaneous

Other Supported Accessories
1 full-size SD card slot

Certifications

Safety
UL, cUL, EN-60950, CB, CU, UL/cUL/IEC 60950-1 2nd Ed (cellular related)
Network Cellular
PTCRB
Emissions And Immunity
FCC Class A, CE (EU), UKCA (UK), ICES-003 (Canada), VCCI (Japan), RCM (Australia), CU, KCC (Korea)
Emc Radio Compliance Cellular
FCC Part 15 Class B, FCC Part 22, 24, 27

Interfaces Ports

USB Ports
8 x USB 2.0
USB Hub Support
Yes
Network Interfaces
2 x Gigabit Fiber SFP, 2 x 10/100/1000BASE-T Ethernet

Product Overview

Type
Serial
Input Ports
32 RS-232 serial, 8 USB 2.0, 4 digital

Power Description

Power Supplies
Internal dual-entry, redundant 100–240 VAC, 50/60 Hz
Input Power Maximum
35 W

Hardware Specifications

CPU
Dual-core ARM Cortex-A9 MPCore with CoreSight
Power
Series: internal 100–240 VAC, 50/60 Hz; optional –48 VDC; optional dual-entry redundant AC and DC supplies (this model: dual AC)
Memory
1 GB DDR3L RAM; 16 GB eMMC Flash
Weight
6.4–7.2 lbs
Dimensions
17.25 W x 9.5 D x 1.75 H in (43.82 x 24.13 x 4.45 cm)
Interfaces
2 Gigabit SFP; 2 Gigabit RJ45 Ethernet; 1 RS-232 console port (RJ45); up to 48 RS-232 ports on RJ45 across the series (32 on this model); first 2 ports RS-232/RS-422/RS-485 selectable; 8 USB 2.0 Type A; 1 full-size SD slot; 1-wire environmental sensor port (RJ45); 4 digital inputs
Power Usage
120 VAC: typ. 0.13 A / 6.2 W, max 0.47 A / 28 W; 240 VAC: typ. 0.10 A / 7 W, max 0.29 A / 28 W; 48 VDC (±20%): typ. 0.22 A / 11 W, max 0.67 A / 33 W
Storage Humidity
5% to 95% RH, non-condensing
Operating Humidity
20% to 80% RH, non-condensing
Storage Temperature
-4°F to 158°F (-20°C to 70°C)
Operating Temperature
14°F to 140°F (-10°C to 60°C)

Physical Characteristics

Depth
9.5 in
Width
17.25 in
Height
1.75 in
Weight
7.5 lbs
Depth Metric
241 mm
Width Metric
438 mm
Height Metric
44.5 mm
Weight Metric
3.4 kg

Questions buyers ask

What cellular connectivity does the ACS8032-NA-DAC-400 have?

It has a 4G LTE Cat 4 modem with 3G fallback for AT&T and Verizon. It supports LTE bands B2, B4, B5, B12, B13, B14, B66 and B71 and uses a 2FF mini SIM slot.

What network interfaces are included?

It has two Gigabit 10/100/1000BASE-T Ethernet ports on RJ45 and two Gigabit fiber SFP ports. Failover between Gigabit Ethernet and cellular is automatic.

Does it need rollover adapters for Cisco equipment?

No. The ACS8000 performs automatic Cyclades and Cisco pin-out conversion on its RJ45 serial ports.

Is it TAA compliant?

Yes. Vertiv designates -400 models as TAA compliant.

What are the operating temperature limits?

It operates from 14°F to 140°F (-10°C to 60°C) at 20% to 80% non-condensing humidity.
