Eaton Tripp Lite B093-008-2E4U-V 8-Port Console Server with 4G LTE Cellular Gateway and Dual SIM

4G LTEMPN B093-008-2E4U-V
  • Dual SIM
  • 2–4 × 1 Gb Ethernet
$1,935.66$3,168.34Save $1,232.68

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Eaton Tripp Lite series B093-008-2E4U-V is an 8-port serial console server with a built-in 4G LTE cellular gateway and two SIM slots. It gives IT teams secure in-band and out-of-band access to routers, switches, firewalls, PBX systems, UPS systems and PDUs. Dual Gigabit Ethernet ports provide automatic failover, the embedded encryption module is FIPS 140-2 validated, and the fanless steel housing fits in a 1U rack space or on a desktop.

  • Eight serial console ports designed for standard Cat5e/6 patch cable to Cisco devices
  • Built-in 4G LTE cellular modem with two SIM card slots for out-of-band access
  • Dual Gigabit Ethernet ports for primary connection and automatic failover
  • FIPS 140-2 validated OpenSSL module (Certificate #2473), PCI DSS 3.2, SSL/SSH, OpenVPN and IPSec VPN
  • TACACS+, RADIUS, LDAP and Kerberos authentication with 4Gb flash for logs and files
  • USB 2.0 console ports plus PowerMan and Network UPS Tools for power management
  • Fanless steel housing for 1U 19-inch rack or desktop use, 11.5 W power consumption
  • Manage up to eight serial devices from one compact unit at a branch or closet

The Eaton Tripp Lite series B093-008-2E4U-V is an 8-port serial console server with a built-in 4G LTE cellular gateway. It is built for wiring closets, branch offices, kiosks, point-of-sale and other remote sites where network issues must be found and resolved quickly. It provides secure in-band and out-of-band access to routers, network switches, firewalls, PBX systems, UPS systems and PDUs.

The eight console ports use standard Cat5e/6 patch cable to connect to Cisco devices. Dual Gigabit Ethernet ports provide a primary network connection with automatic failover. The 4G LTE modem with two SIM card slots keeps an out-of-band path open when the site network is unavailable. USB 2.0 console ports connect to newer PDUs and UPS systems, including those fitted with WEBCARDLX or other LX Platform cards. Authentication integrates with TACACS+, RADIUS, LDAP and Kerberos, and 4Gb of flash stores logs and files.

Security support includes PCI DSS 3.2, an embedded FIPS 140-2 validated OpenSSL module (Certificate #2473), SSL and SSH, a stateful firewall, and OpenVPN and IPSec VPN. An embedded DHCP server can host a separate management LAN, and each gateway can port forward to an unlimited number of local hosts. PowerMan provides PDU and RPC management, and Network UPS Tools provides UPS monitoring and control.

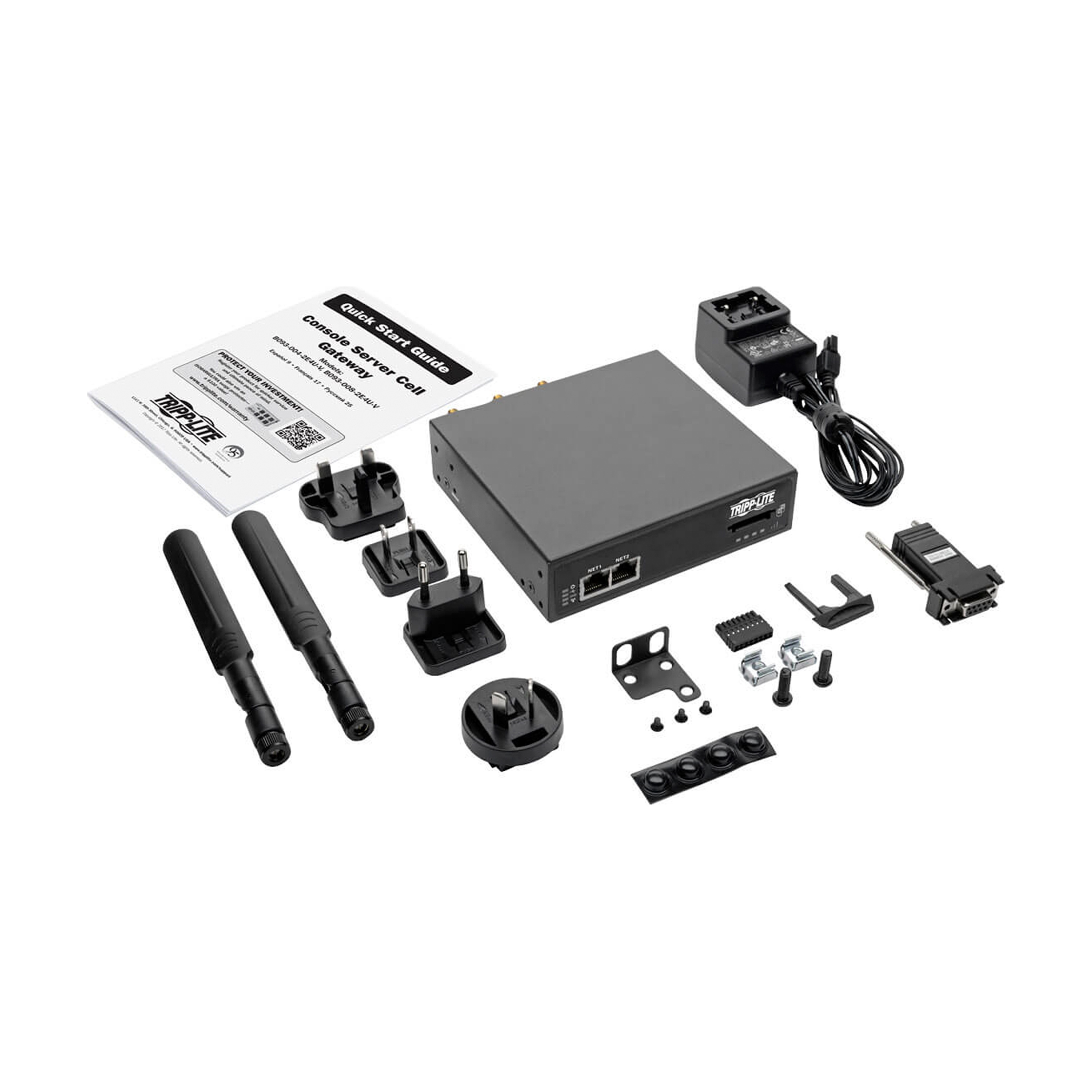

The fanless, heavy-duty steel housing measures 5.1 x 4.7 x 1.4 in and weighs 1.3 lb. It is rated to operate from -25° to 60°C and draws 11.5 W from the included 12V external supply. Rack-mounting hardware, rubber feet, two antenna blades, a dual-SIM cradle, four international plug adapters, a DB9F to RJ45 crossover adapter and a Quick Start Guide are in the box. The unit carries a 2-year limited warranty.

Ideal for

  • Out-of-band management of multiple routers, switches and firewalls at a branch office
  • LTE-backed console access for kiosk and point-of-sale networks
  • Central remote access to PBX, PDU and UPS consoles in a wiring closet
  • Remote power cycling and UPS monitoring at unattended sites

Specifications

General

UPC
037332206237
Brand
Eaton (Tripp Lite series)
Warranty
2-year limited
Compliances
RoHS, CE Marked, REACH, FCC Compliant
Product Name
Eaton Tripp Lite series serial console server
Product Type
Serial console server
Product Width
5.1 in
Catalog Number
MPN: B093-008-2E4U-V
Certifications
UL Listed, C-Tick
Product Height
1.4 in
Product Weight
1.3 lb
Product Length Depth
4.7 in

Network

Flash Storage
4Gb flash
Ethernet Ports
Dual Gigabit Ethernet (primary and failover)

Product

Color
Black
Features
Flex Center
Btu Rating
39.2 BTU/Hr
Network Speed
1 Gbps (Gigabit)
LED Indicators
12 LEDs: power, heartbeat, serial, cellular, network ports, RSSI signal strength
Packaging Type
Box
Port Selection
GUI
Voltage Rating
100-240 VAC
Number OF Ports
8 ports
Package Contents
Console server, terminal block, DB9F-RJ45 crossover adapter, 12V power supply with 4 ft cord, 4 international plug adapters, Quick Start Guide, dual-SIM cradle, 2 antenna blades, rack hardware, 4 rubber feet
Product Features
Rackmountable, multi-user, IP remote access
Sidea Connector1
RJ45 (female)
Sideb Connector1
USB A (female), RJ45 (female)
Sideb Connector3
RJ45 (female), USB A (female)
Power Consumption
11.5 W
Power Source Type
AC adapter
Relative Humidity
5% to 90% RH, non-condensing
USB Specification
USB 2.0 (up to 480 Mbps)
Product Highlights
Cat5e/6 to Cisco; 4G LTE with 2 SIM slots; dual GbE failover; desktop or 19 in rack; 2-year limited warranty (worldwide); 24/7 remote management
Storage Temperature
-40° to 167°F (-40° to 75°C)
AC Power Adapter Plugs
CEE 7/16 Schuko, BS 1363, AS/NZS 3112, NEMA 1-15P
Authentication Supported
RADIUS, TACACS, LDAP
Ieee Standards Supported
IEEE 802.3
Material OF Construction
Metal
Voltage Compatibility Vac
100, 110, 120, 125, 127, 200, 208, 220, 230, 240 VAC
Voltage Compatibility Vdc
12 VDC
Operating Temperature Range
-13° to 140°F (-25° to 60°C)
AC Power Adapter Cord Length
4 ft
AC Power Adapter Input Specs
100-240V, 50/60Hz, 0.4A
AC Power Adapter Output Specs
12V, 1.25A
External Power Supply Certifications
FCC, TUV, C-Tick, CE, CB, UL, GS, RoHS, PSE, cUL

Cellular

SIM Slots
2 SIM card slots
Cellular Technology
Built-in 4G LTE cellular modem

Questions buyers ask

How many devices can the B093-008-2E4U-V connect to?

It has eight console ports, designed for standard Cat5e/6 patch cable when connecting to Cisco devices. USB 2.0 console ports also support devices with USB consoles, such as PDUs and UPS systems.

What provides the out-of-band connection?

A built-in 4G LTE cellular modem with two SIM card slots provides out-of-band remote access alongside the dual Gigabit Ethernet ports.

What security features does it support?

It supports PCI DSS 3.2, FIPS 140-2 (embedded OpenSSL module, Certificate #2473), SSL and SSH, a stateful firewall, and OpenVPN and IPSec VPN.

What mounting options are included?

Brackets for 1U installation in an EIA-standard 19-inch rack are included, along with rubber feet for desktop use.
