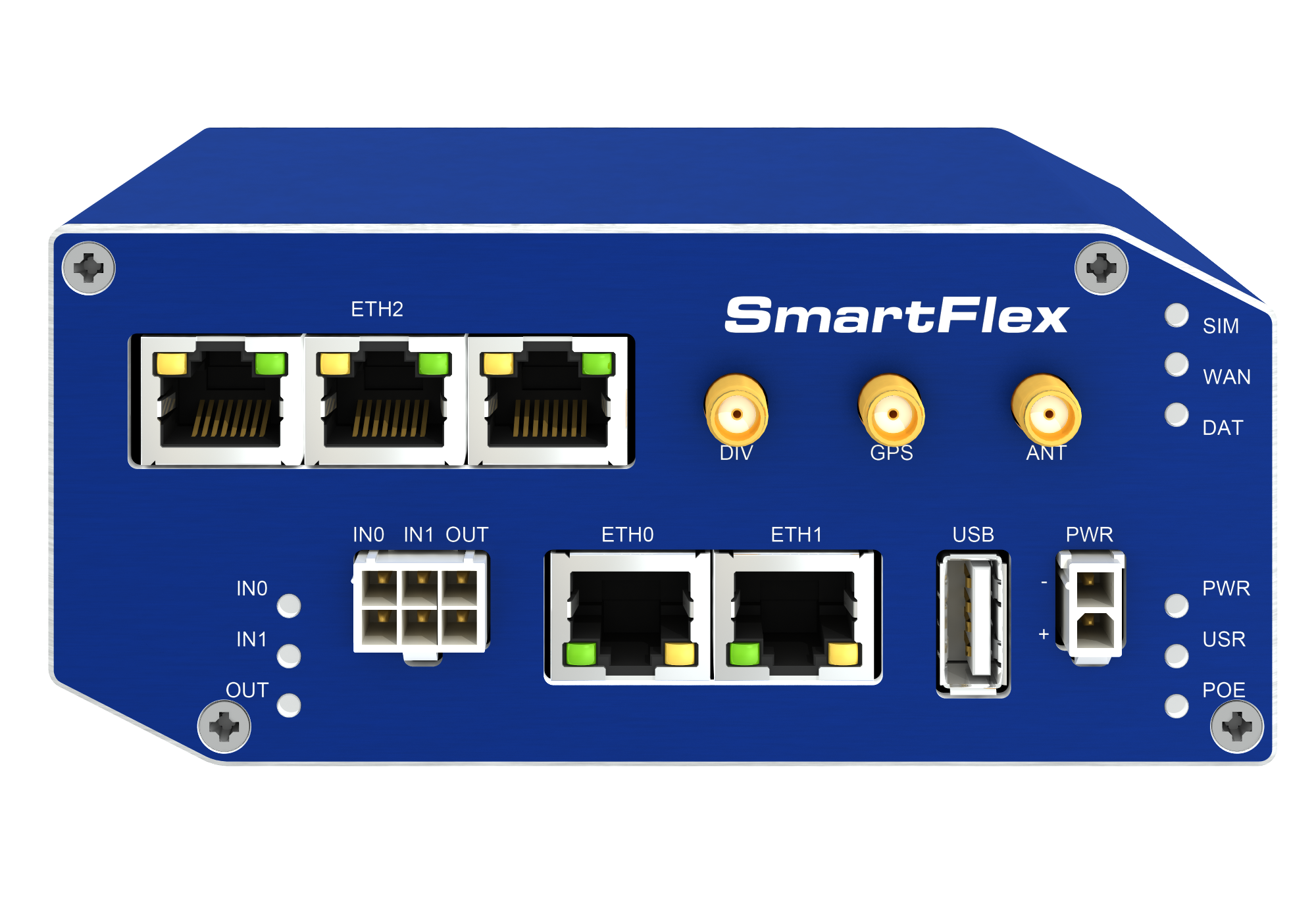

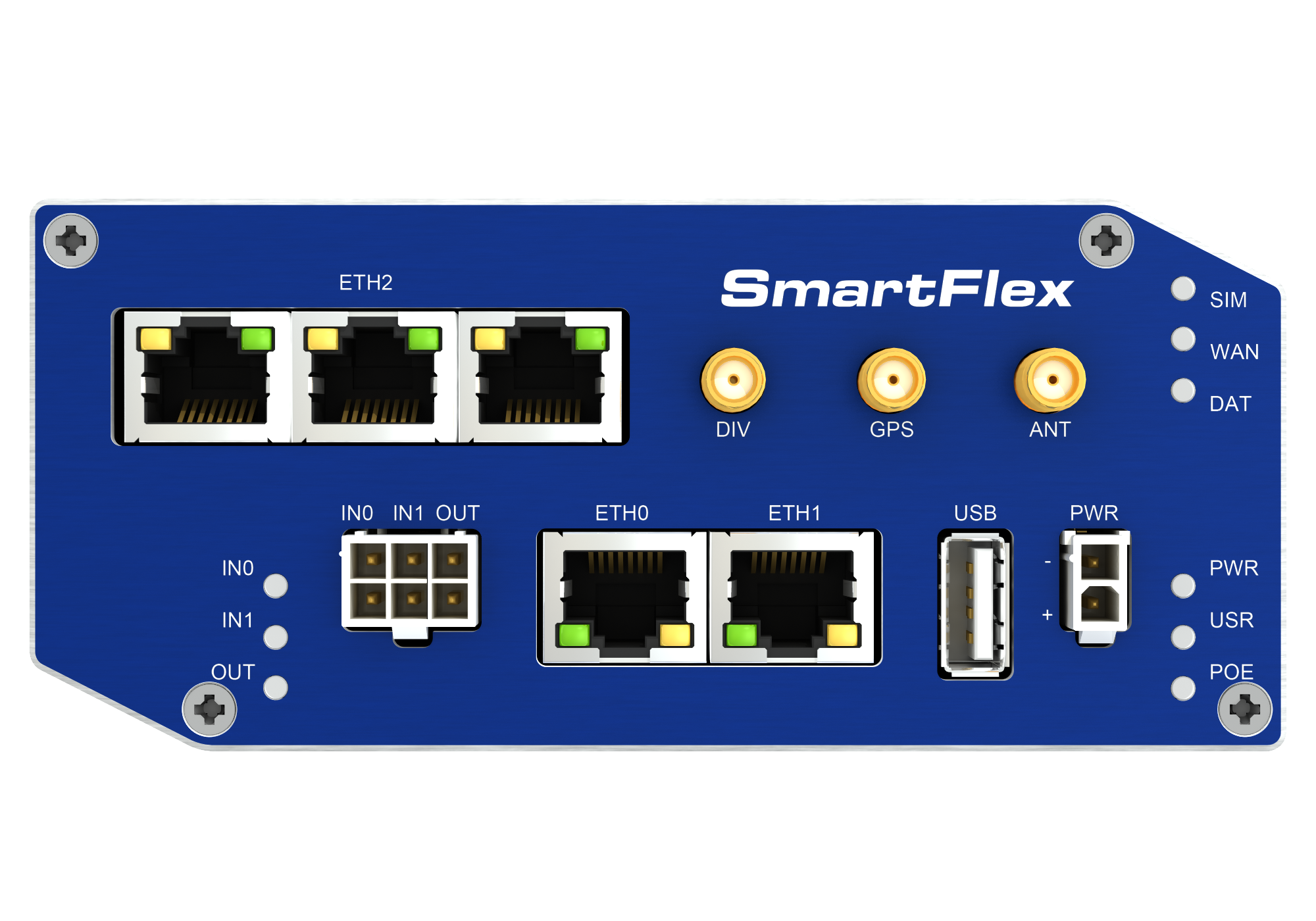

Advantech SmartFlex SR310 BB-SR31000120 LTE Cat 4 Industrial Cellular Router with 5 Ethernet Ports

4G LTEMPN BB-SR31000120
$734.55

In stock · only 5 leftFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Advantech SmartFlex SR310 (BB-SR31000120) is an industrial LTE Cat 4 cellular router that connects remote devices and LANs, or provides automatic cellular failover for wired networks. This configuration has two independent 10/100 Ethernet ports plus a 3-port Ethernet switch, for five RJ45 ports in total. It also has dual SIM slots, GNSS, digital I/O and a metal DIN-rail enclosure rated from -40 to +75 °C. The radio carries AT&T, T-Mobile and Verizon carrier approvals.

  • LTE Cat 4 up to 150 Mbps DL / 50 Mbps UL with HSPA+/UMTS and EDGE/GPRS fallback
  • Dual Mini SIM (2FF) slots for failover to an alternate provider; AT&T, T-Mobile and Verizon carrier approval
  • 2× isolated 10/100 Ethernet ports plus a 3-port Ethernet switch (5 RJ45 ports total)
  • Onboard GNSS receiver: GPS, GLONASS, BeiDou, Galileo
  • 2 digital inputs, 1 digital output, USB 2.0 host and microSD slot
  • Metal DIN-rail enclosure, -40 to +75 °C operation, 10–60 V DC input
  • Linux-based ICR-OS with Python, C/C++, Node-RED, Router Apps and WebAccess/DMP management
  • Keeps remote equipment online with dual-SIM failover and automatic cellular backup for wired links

The Advantech SmartFlex SR310 is a DIN-rail cellular router for industrial and remote sites. It suits industrial PCs, HMIs, traffic controllers, kiosks, meters and cameras, and it can act as an automatic wireless failover for a wired WAN. LTE Cat 4 delivers up to 150 Mbps down and 50 Mbps up, which is enough for video transmission. The router falls back to HSPA+/UMTS and EDGE/GPRS. Two Mini SIM (2FF) slots allow failover to an alternate provider, and the unit carries AT&T, T-Mobile and Verizon carrier approvals.

Order code BB-SR31000120 is the no-Wi-Fi, no-PoE build in a metal enclosure. It has 2× Ethernet 10/100 ports and an additional 3-port 10/100 Ethernet switch, all with 1.5 kV isolation. Other built-in interfaces include: • 1× USB 2.0 host port and a microSD slot • 2 digital inputs and 1 digital output • A battery-backed RTC and a hardware watchdog • An onboard GNSS receiver (GPS, GLONASS, BeiDou, Galileo)

The router accepts 10–60 V DC, draws 4 W on average and offers a 10 mW sleep mode.

An ARM Cortex-A8 at 1 GHz with 512 MB RAM runs ICR-OS, a Linux-based operating system. You can build applications in Python, C/C++, BASH or Node-RED, and Router Apps add Modbus, DNP3, IEC 60870-5-101/104, MQTT and cloud IoT platform support. Networking and security features include: • VPN: WireGuard, OpenVPN, IPsec (IKEv1/IKEv2), GRE and L2TP • Routing: BGP and OSPF via Router App, plus VRRP • Authentication: RADIUS, TACACS+ and 2FA

Fleets can be deployed and monitored with WebAccess/DMP.

The package includes a metal DIN rail clip (BB-SBD40) and a 3 m 2-wire power cable (BB-KN-v3-MO2-3). Antennas and a power supply are sold separately. The Advantech SR310 datasheet is available for this model.

Ideal for

  • Cellular primary or failover WAN for industrial PCs, HMIs and control cabinets
  • Remote connectivity for traffic controllers, kiosks, meters and roadside equipment
  • Video transmission from cameras at sites without wired broadband
  • Edge IoT gateway converting Modbus/DNP3 data to MQTT or cloud platforms
  • Mass-deployed remote sites managed centrally with WebAccess/DMP

Specifications

GNSS

Antenna
1× SMA connector, active (50 mA)
Systems
GPS, GLONASS, BeiDou, Galileo
Protocol
NMEA 0183 v3.0
Time TO First Fix
Hot start 1 s, warm start 29 s, cold start 32 s

System

CPU
ARM Cortex-A8, 1000 MHz
Rtc
Battery backup RTC
Memory
RAM 512 MB; NOR Flash 256 MB; MRAM 128 KB (128 MB for Router Apps, 128 kB for customer data)
Watchdog
Hardware watchdog

General

MPN
BB-SR31000120
Brand
Advantech
Life Cycle
Production
Product Family
SmartFlex SR310 industrial cellular router

Cellular

Antennas
2× SMA connector (1× main, 1× diversity)
SIM Slots
2× SIM (Mini SIM – 2FF)
Technology
4G LTE Cat 4 with 3G/2G fallback
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B18 (800), B19 (800), B20 (800), B25 (850), B26 (850), B28 (700) MHz
LTE Tdd Bands
B38 (2600), B39 (1900), B40 (2300), B41 (2500) MHz
Edge Gprs Bands
B2 (1900), B3 (1800), B5 (850), B8 (900) MHz
Hspa Umts Bands
B1 (2100), B2 (1900), B4 (1700), B5 (850), B6 (800), B8 (900), B19 (800) MHz
LTE Transfer Rate
Up to 150 Mbps DL / 50 Mbps UL
Edge Gprs Transfer Rate
296 kbps DL / 236.8 kbps UL
Hspa Umts Transfer Rate
42 Mbps DL / 5.76 Mbps UL

Physical

Weight
375 g (metal version)
Mounting
DIN rail
Enclosure
Robust metal case (this order code)
Dimensions
55 × 97 × 125 mm
Shipping Weight
1.43 lbs

Software

Note
*Functionality is available with installed Router App
Security
HTTPS, SSH, SFTP, DMZ, firewall (IP, MAC, inbound/outbound port filtering); VPN: WireGuard, OpenVPN, IPsec (IKEv1/IKEv2), GRE, L2TP, PPTP; Authentication: RADIUS, TACACS+, 2FA, *SCEP; Encryption: DES, 3DES, AES, RSA up to 4096, Ed25519, MD5, SHA
Networking
DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, Dynamic DNS client, DNS proxy, VLAN, QoS, *DMVPN, NTP client/server, *RIP, BGP, OSPF, IS-IS, NHRP, backup routes, port forwarding, host port routing, Ethernet bridging, load balancing, IPv6 dual stack
Event Engine
StartUp and Up/Down scripts (rules on digital inputs, network parameters, data usage, timer, power, device temperature); reports via SMS, email, SNMP trap
Configuration
Web server, SSH, four switchable configuration profiles, automatic configuration update from server, backup & restore
Diagnostics Log
Status (signal strength, data usage, detailed long-term statistics); One CLICK report (configuration, factory identification, routing table); system, reboot and kernel logs; remote diagnostics via SSH
Management Tools
WebAccess/DMP – remote monitoring, management & VPN platform
Operating System
ICR-OS (Linux based)
SW Customization
Router App*
Firmware Management
Automatic firmware updates – server, locally via LAN or remotely via WAN; over-the-air cellular module firmware updates
Application Development
Open Linux, *Python, BASH, C/C++, *Node-RED
Industrial Protocols Iot
*Modbus RTU/TCP gateway, *IEC 60870-5-101 to 104 gateway, *DF1, *DNP3, *MQTT, *LWM2M

Standards

Emc
ETSI EN 301 489-1/-17/-19/-52, EN 55032, EN 61000-4-2/-3/-4/-5/-6, IEC 61000-6-2, IEC 61000-6-3, FCC Part 15 Subpart B, ICES-003 Issue 6
Radio
EN 301 511, EN 301 908-1/-2/-13, EN 303 413, EN 301 893, EN 300 328, FCC part 22H, 24E, 27, 90R, PTCRB
Safety
EN IEC 62368-1, UL E487720
Climatic
EN 60068-2-1, -2-2, -2-14, -2-30, NEMA TS2
National
CE, TELEC (Japan), UKCA, FCC, IC
Mechanical
EN 60068-2-64, EN 60068-2-27
Cybersecurity
EN 18031-1
Environmental
RoHS3, REACH, WEEE
Carrier Approval
AT&T, T-Mobile, Verizon

Interfaces

I/O
2× digital input (60 V AC/DC, 7 mA); 1× digital output (60 V AC/DC, 300 mA), 6-way Molex connector
USB
1× USB 2.0 host connector
Microsd
1× microSD card slot (SDHC, SDXC)
Ethernet
2× Ethernet, RJ45, 10/100 Mbps, isolation 1.5 kV
Reset Button
Factory reset
LED Indicators
System-power, data activity, 3-level signal strength, SIM1/SIM2 status, PoE status, Input 0/1 status, output state, User, ETH
Ethernet Switch
3-port Ethernet switch, RJ45, 10/100 Mbps, isolation 1.5 kV

Order Code

PoE
0 = No PoE
Wi-Fi
0 = No Wi-Fi
Enclosure
2 = Metal enclosure
Interfaces
1 = 2× ETH, 3× ETH switch
Accessories
0 = BB-SBD40 DIN rail clip (metal) and BB-KN-v3-MO2-3 PS cable 2-wire, 3 m

Accessories

BB Cpd3
DIN rail clip – plastic (for plastic models; sold separately)
Included
BB-SBD40 DIN rail clip (metal); BB-KN-v3-MO2-3 PS cable 2-wire, MO 2 pins, 3 m
BB KD Eth
Ethernet cross cable (sold separately)
Power Cords
US, EU, UK and AU power supply power cords (sold separately)
BB Rps V3 Pse
SmartFlex power supply, 48V/1.35A, power cord required (sold separately)
BB Kio V3 Mo6 3
IO cable 6-wire, 3 m (sold separately)
BB Rps V3 Mo2 M
SmartFlex power supply, 12V/1A, EU/US/UK/AU (sold separately)
Opt1 Ant Wft 06
Antenna Wi-Fi 2.4/5/6 GHz (for Wi-Fi models; sold separately)
BB Rps V3 Mo2 EU
SmartFlex power supply, 12V/1A, EU plug (sold separately)
BB 2jw0124z C868b
Antenna LTE, terminal (sold separately)

Environmental

Humidity
5 to 95 %
IP Rating
IP30
Sleep Mode
Yes, 10 mW
Consumption
Idle 2.5 W / Average 4 W / Peak 11 W
Power Supply
10 – 60 V DC (2-way Molex connector)
Storage Temperature
-40 to +85 °C
Operating Temperature
-40 to +75 °C

Questions buyers ask

Does the BB-SR31000120 work on US carrier networks?

Yes. The SR310 radio supports US bands including B2, B4, B5, B12, B13, B25 and B26, and the datasheet lists carrier approval for AT&T, T-Mobile and Verizon.

How many Ethernet ports does this model have?

Five. It has two independent 10/100 Ethernet ports plus a 3-port 10/100 Ethernet switch, all RJ45 with 1.5 kV isolation.

Does this configuration include Wi-Fi or PoE?

No. Order code BB-SR31000120 is the no-Wi-Fi, no-PoE build in a metal enclosure.

What is included in the box?

A metal DIN rail clip (BB-SBD40) and a 3 m 2-wire power cable (BB-KN-v3-MO2-3). Antennas and a power supply are sold separately.

Can I run my own applications on the router?

Yes. ICR-OS is Linux based and supports custom applications in Python, BASH, C/C++ and Node-RED. Advantech Router Apps add industrial protocols and IoT platform support.
