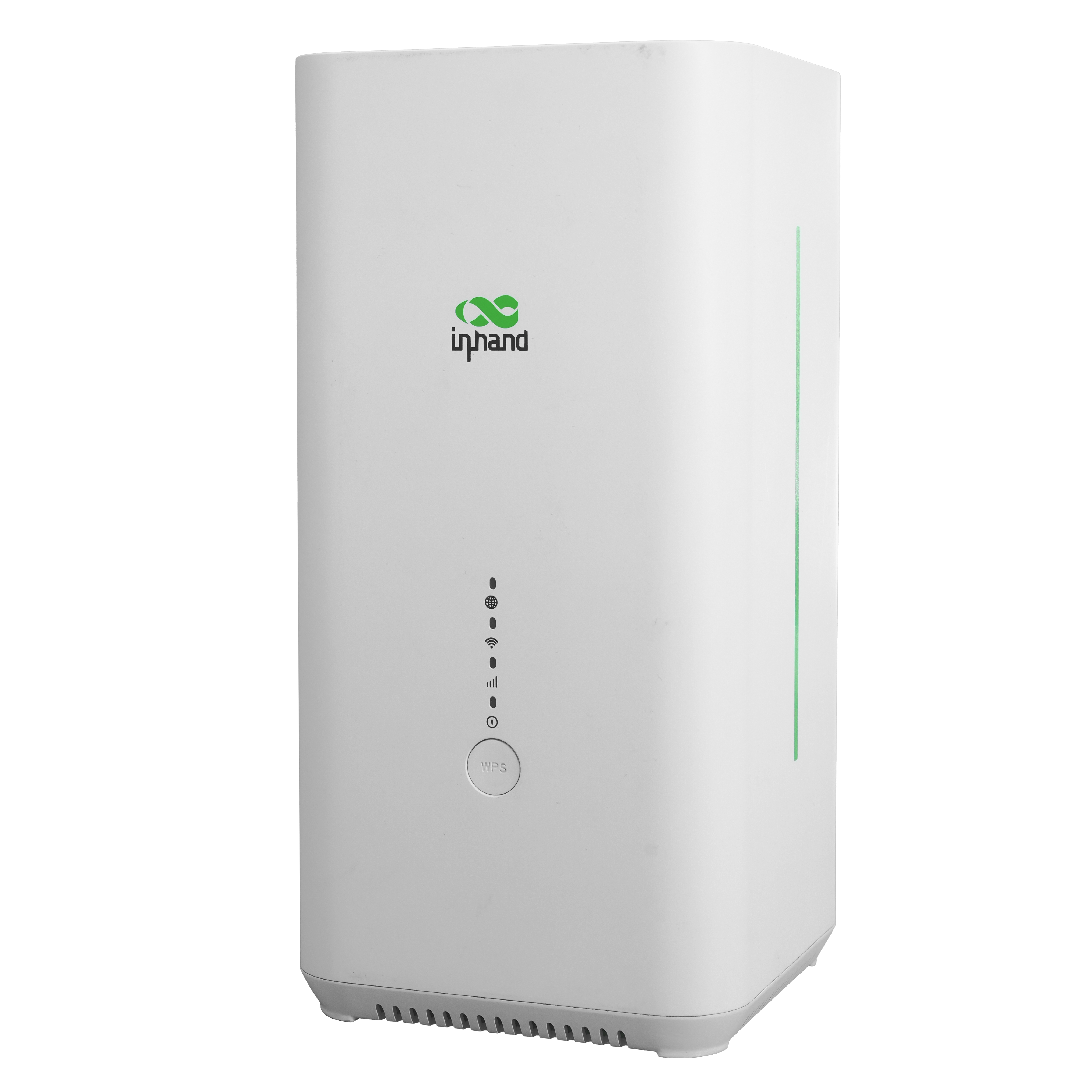

InHand Networks CPE02 Indoor 5G Wi-Fi 6 Router (North America, CPE02-NANR)

5GMPN CPE02-NANR
$343.78$399.00Save $55.22

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

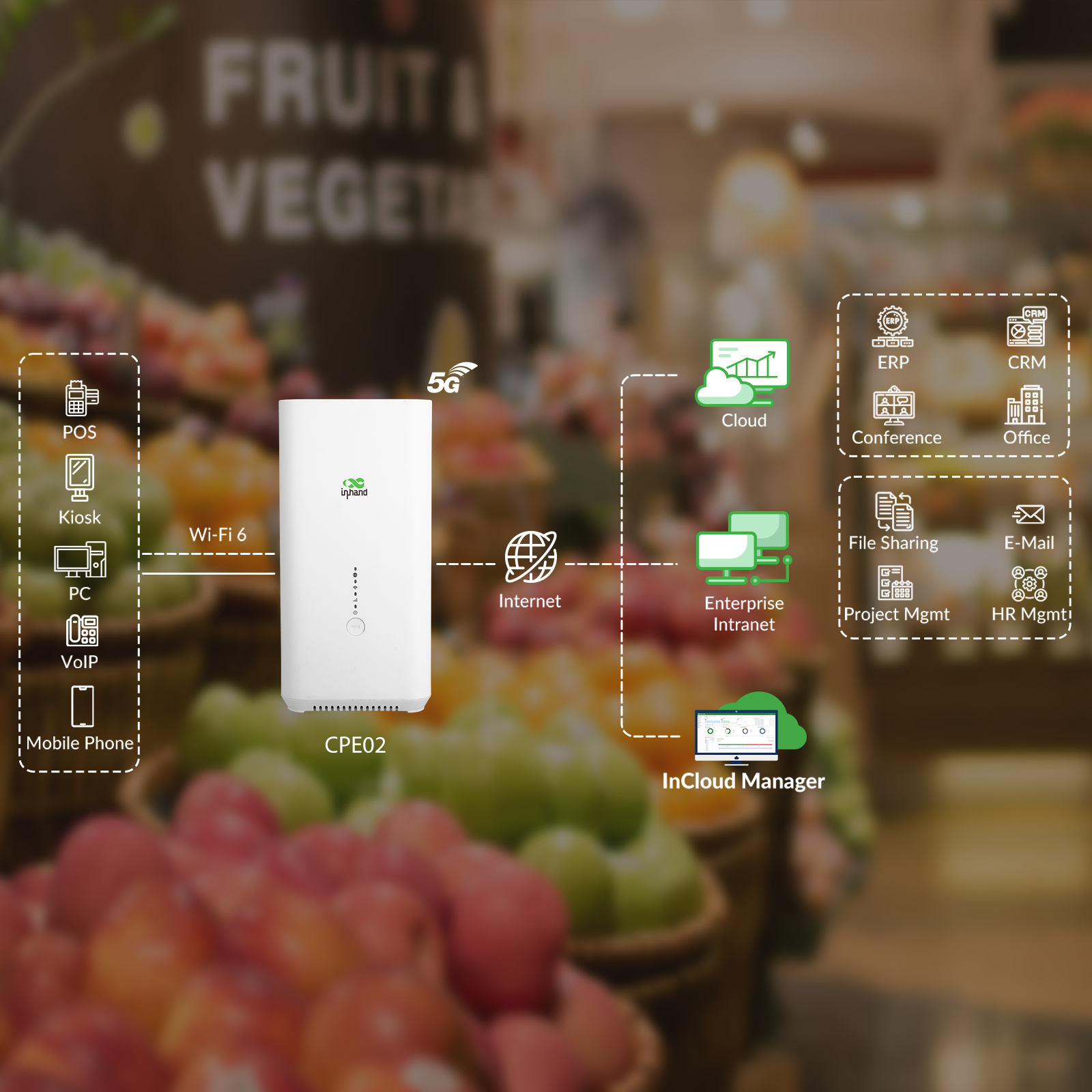

The InHand Networks CPE02-NANR is the North American model of the CPE02 indoor 5G router. It is built on a Qualcomm X62 5G module and turns 5G SA/NSA or 4G LTE service into AX5400 Wi-Fi 6 and wired Ethernet through one 2.5GbE port and one 1GbE port. It supports up to 200 users, including 128 on Wi-Fi, and is managed from InCloud Manager. It suits retail stores, restaurants, clinics and hybrid offices that need fast broadband without a fixed ISP line.

  • Qualcomm X62 5G module with 5G SA/NSA and 4G LTE: up to 2.6 Gbps DL on 5G NSA, 4×4 MIMO Sub-6 GHz
  • Dual-band Wi-Fi 6 AX5400 (802.11ax) with multi-SSID, SSID VLAN and WPA3
  • US Ethernet configuration: 1 × 2.5GbE + 1 × 1GbE with WAN/LAN switching and dual LAN
  • 1 × Nano 4FF SIM plus embedded Verizon eSIM with dual-SIM switching policy
  • 1 Gbps firewall throughput; up to 200 users (128 Wi-Fi)
  • IPsec, L2TP and OpenVPN with 5G failover and wired WAN backup
  • InCloud Manager zero-touch deployment, bulk upgrades and centralized monitoring
  • Bring multi-gigabit 5G broadband to a store or office where a fixed line is unavailable or slow

The CPE02 is InHand Networks' indoor 5G customer premises equipment for businesses that want high-speed broadband over cellular. The CPE02-NANR is the US variant. It uses a Qualcomm X62 5G module with 4×4 MIMO Sub-6 GHz and 256QAM. Peak rates are 2.6 Gbps down and 650 Mbps up on 5G NSA, 2.0 Gbps down and 1.0 Gbps up on 5G SA, and 600 Mbps down and 150 Mbps up on 4G LTE. It covers North American 5G bands including n2, n5, n25, n41, n66, n71, n77 and n78. SIM options are one Nano 4FF slot plus an embedded Verizon eSIM, with SIM1-only, eSIM-only or dual-SIM policies.

On the LAN side, the US model has one 2.5GbE and one 1GbE port with WAN/LAN switching and dual LAN support. Dual-band AX5400 Wi-Fi 6 provides multiple SSIDs, SSID VLANs and WPA/WPA2/WPA3 encryption. An IPQ5018 processor delivers 1 Gbps firewall throughput and is rated for 200 recommended users, with 128 of them on Wi-Fi.

For business continuity, the CPE02 supports dual WAN using cellular and wired links, real-time link detection and automatic failover. Built-in tools include IPsec, L2TP and OpenVPN, URL filtering, IP Passthrough, DDNS and static routing. InCloud Manager adds zero-touch deployment, bulk remote upgrades, configuration deployment, connector remote maintenance and two-factor authentication. Its dashboard shows traffic, cellular signal and client statistics.

The unit measures 105 × 105 × 217 mm, weighs 800 g and mounts on a desktop or wall. It draws 12 V / 2 A at ≤ 15 W and is certified CE, FCC, IC and PTCRB, with AT&T, Verizon and T-Mobile certifications. The box includes the router, Ethernet cable, power adaptor, mounting kit and user guide.

Ideal for

  • Primary 5G broadband for retail stores and restaurants without a fixed ISP line
  • Wired-WAN backup with automatic cellular failover for clinics and offices
  • Rapid connectivity for new or temporary branch locations
  • Centrally managed multi-site rollouts through InCloud Manager
  • Hybrid and home offices needing Wi-Fi 6 coverage over cellular

Specifications

Leds

LED
5G, Wi-Fi, Signal, Power

Wi-Fi

Bands
Dual-band 2.4 GHz / 5 GHz
Features
Multiple SSID, SSID VLAN, hidden SSID
Max Rate
5400 Mbps (AX5400)
Standard
Wi-Fi 6, 802.11 a/b/g/n/ac/ax
TX Power
2.4 GHz: 17 dBm; 5 GHz: 17 dBm
Encryption
WPA, WPA2, WPA3
Antenna Gain
≤ 5 dBi

Power

Input
12 V / 2 A
Power Consumption
≤ 15 W

General

MPN
CPE02-NANR
Brand
InHand Networks
Model
CPE02 Indoor 5G Wi-Fi 6 Router
Region
North American (US) model

Package

Contents
CPE02 router, Ethernet cable, power adaptor, mounting kit, user guide

Cellular

MIMO
4×4 MIMO 5G Sub-6 GHz, 256QAM
Module
Qualcomm X62 5G module
LTE Rate
4G LTE: 600 Mbps DL / 150 Mbps UL
5G SA Rate
2.0 Gbps DL / 1.0 Gbps UL
Technology
5G SA/NSA + 4G LTE
5G Nsa Rate
2.6 Gbps DL / 650 Mbps UL
5G SA Bands
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
5G Nsa Bands
same bands as SA
LTE Fdd Bands
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE Tdd Bands
B34/B38/B39/B40/B41/B42/B43/B48

Interfaces

Wps
WPS one-touch Wi-Fi connection

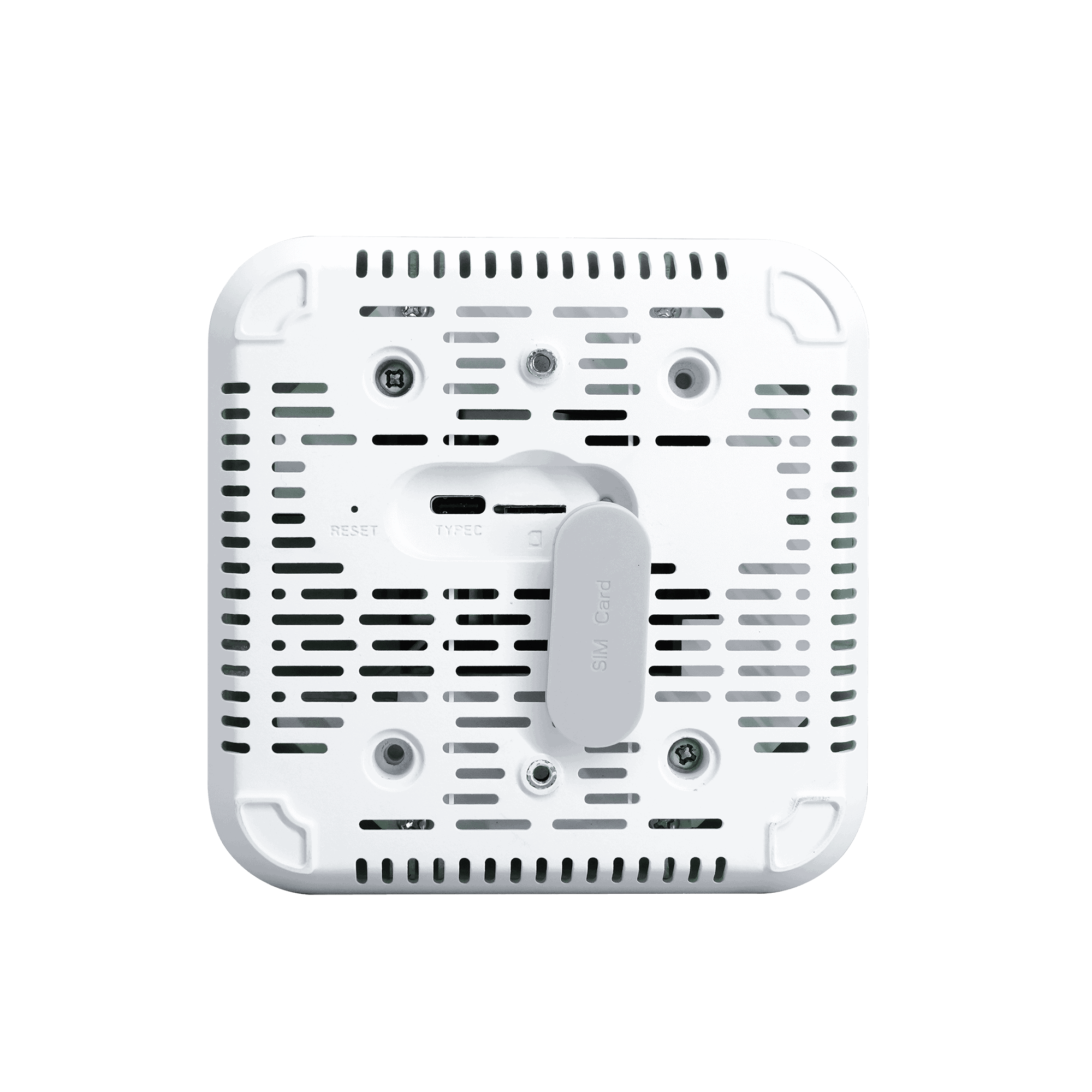

Reset
Hardware factory reset button
Type C
debug only

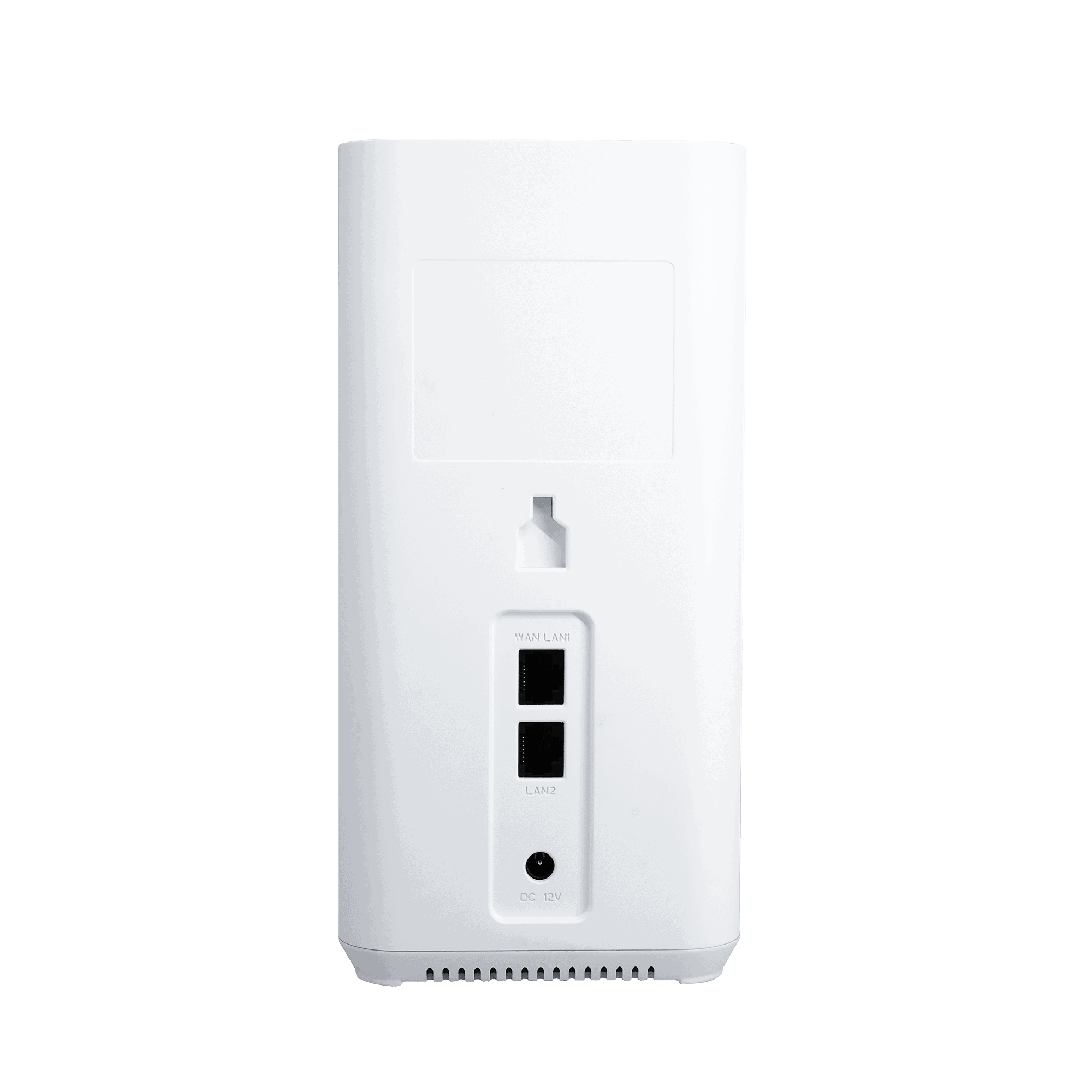

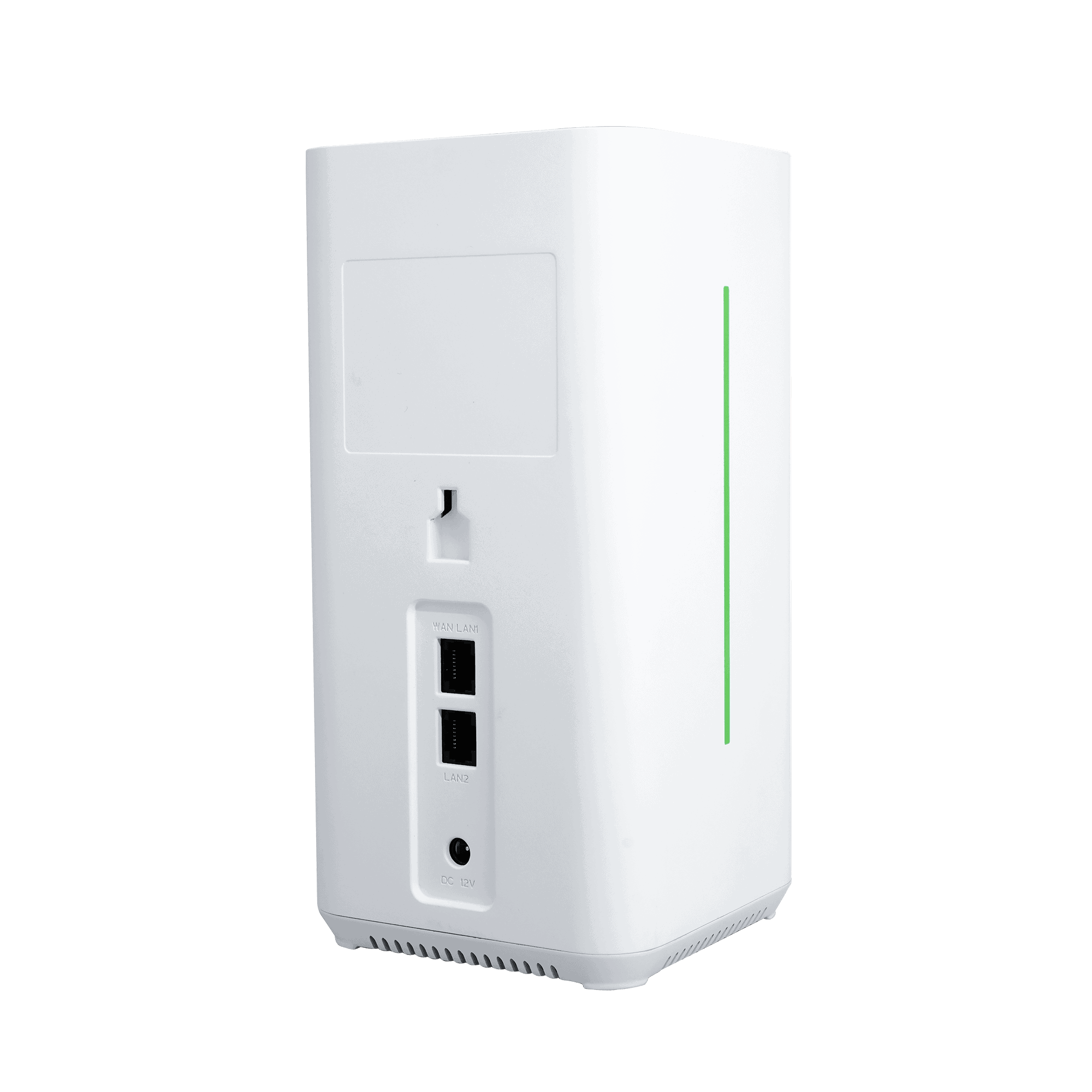

Ethernet
1 × 2.5GbE WAN + 1 × GbE LAN; WAN/LAN and dual LAN support
SIM Card
1 × Nano 4FF SIM + embedded Verizon eSIM

Mechanical

Weight
800 g (1.76 lb)
Dimensions
105 × 105 × 217 mm (4.13 × 4.13 × 8.54 in), L × W × H
Protection
IP20
Installation
Desktop or wall-mount

Environment

Humidity
5% to 95% RH, non-condensing
Storage Temperature
-40 °C to +85 °C (-40 °F to 185 °F)
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)

Reliability

Logs
Runtime and diagnostic logs
Alerts
Local email; platform SMS and email
Events
User login, connection disconnect, device reboot
Upgrade
Scheduled upgrade
Diagnostics
ICMP, packet capture, tracert

Certification

Emc
EMC Level 2
Certification
CE, FCC, IC, PTCRB, AT&T, Verizon, T-Mobile

Cloud Management

Features
Unified device access, zero-touch remote deployment, bulk remote upgrades, configuration deployment, connector remote maintenance, two-factor authentication
Platform
InCloud Manager
Dashboard
Connectivity status, traffic, cellular signal, interface status, client statistics and analysis, uplink management

Network Features

Nat
NAT
VPN
IPsec, L2TP, OpenVPN
Access
5G/4G, wired
Dialing
PPPoE, cellular auto redial, dual-SIM switching policy, APN configuration
Routing
Static routing
Speed Test
Device speed test
IP Protocols
IPv4, IPv6
Intelligent Links
Real-time link detection
Network Protocols
VLAN, DHCP, DNS, URL filtering, DDNS, fixed address allocation, IP Passthrough, STP, ARP, ICMP

Performance Metrics

CPU
IPQ5018
Recommended Users
200 users (128 Wi-Fi)
Firewall Throughput
1 Gbps

Questions buyers ask

Does the CPE02-NANR include an eSIM?

Yes. The NANR model has an embedded Verizon eSIM and a Nano 4FF SIM slot. You can run SIM1 only, eSIM only or a dual-SIM policy.

What Ethernet ports does the US model have?

The CPE02-NANR has one 2.5GbE port and one 1GbE port. It supports WAN/LAN switching and dual LAN.

How fast is the cellular connection?

The Qualcomm X62 module supports up to 2.6 Gbps down and 650 Mbps up on 5G NSA, and 2.0 Gbps down and 1.0 Gbps up on 5G SA. On 4G LTE it supports 600 Mbps down and 150 Mbps up.

Can it back up a wired internet connection?

Yes. The CPE02 supports dual WAN with cellular and wired links. Real-time link detection triggers automatic failover to keep the site online.

Can I pass the public cellular IP to my own firewall?

Yes. IP Passthrough hands the public cellular IP to a chosen downstream device by MAC binding, and that device receives it via DHCP.
