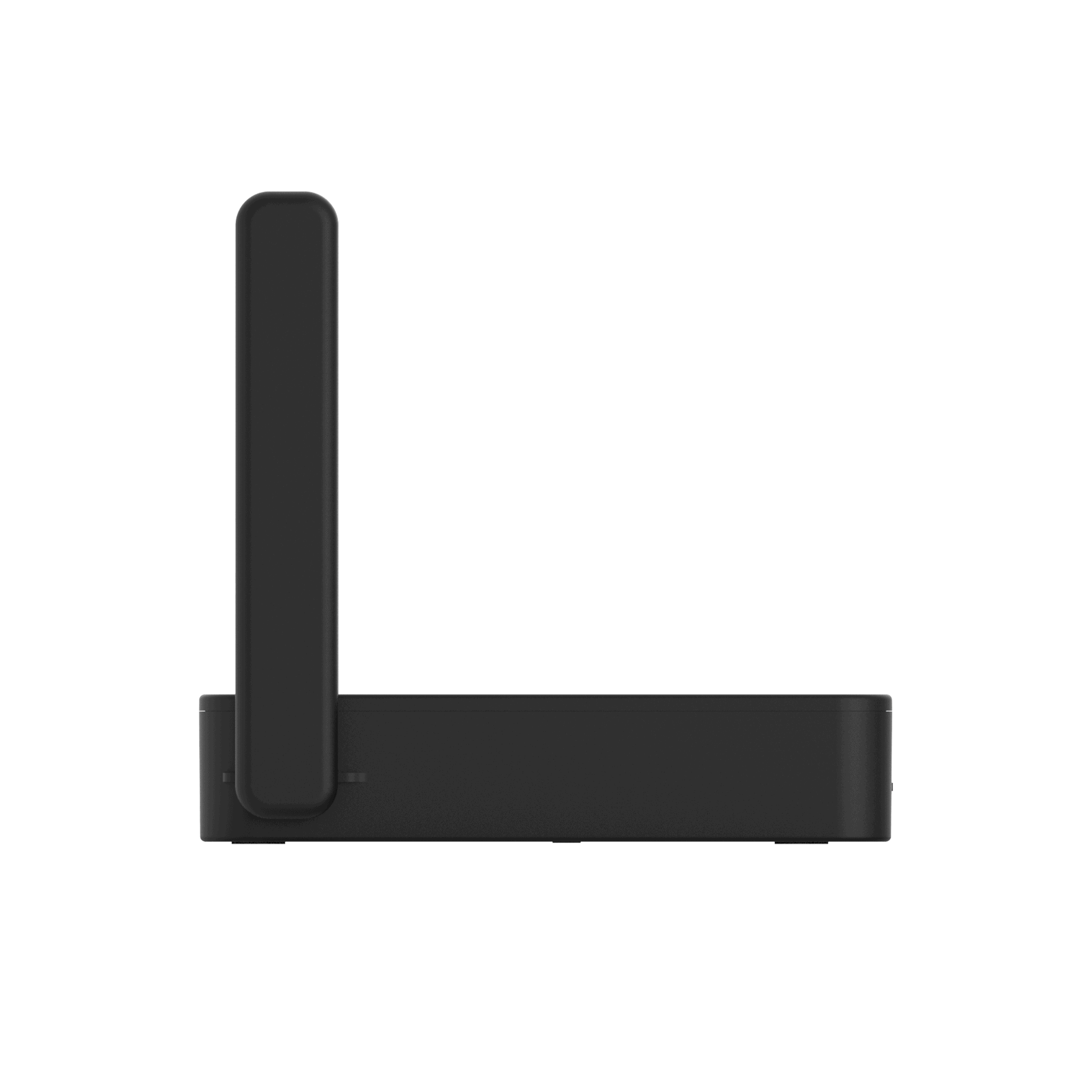

InHand Networks CR202-Lite Portable 4G LTE Cat 6 Router with 3000mAh Battery (North America)

4G LTEMPN CR202-NAC6-WLAN-B-LITE
$175.74$209.00Save $33.26

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

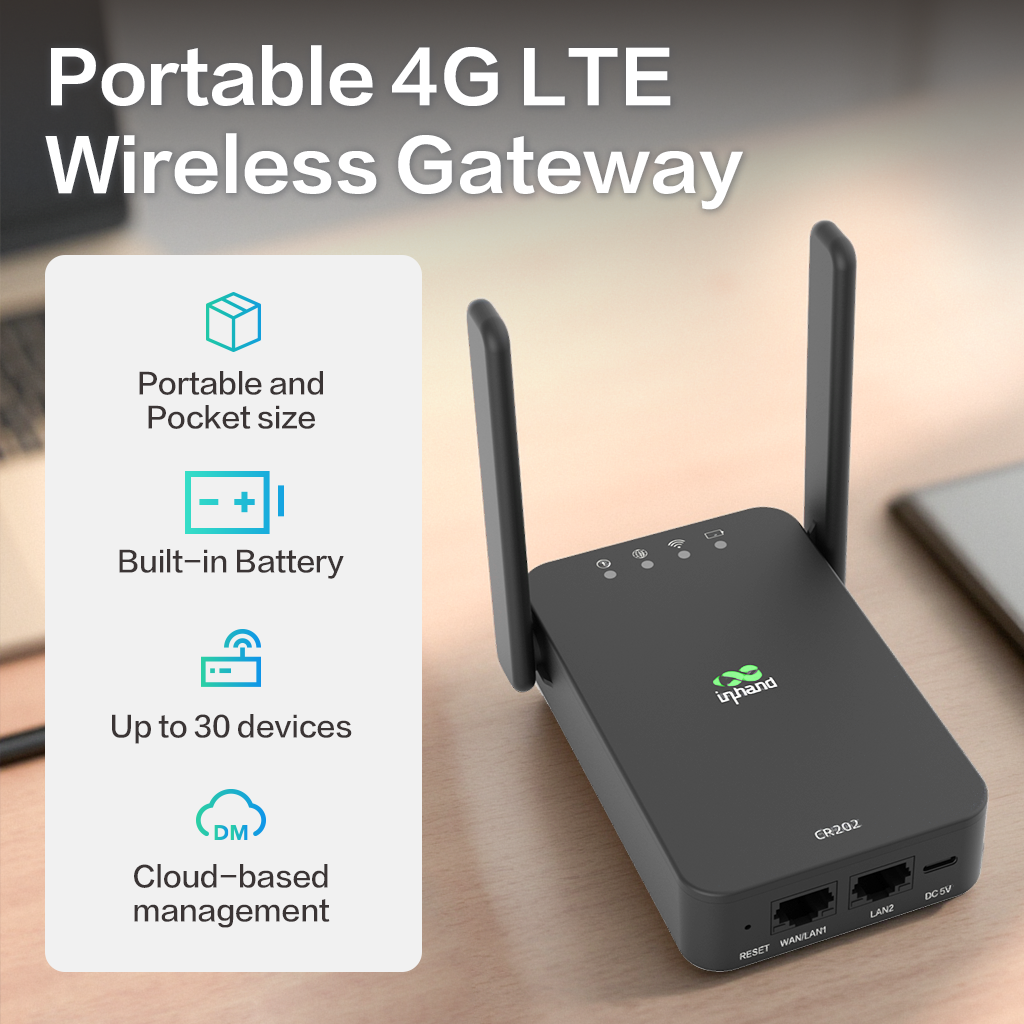

The InHand Networks CR202-NAC6-WLAN-B-Lite is the North American LTE Cat 6 version of the CR202-Lite portable router, with Wi-Fi and a detachable 3000mAh battery. It provides 4G LTE at up to 300 Mbps down, 2.4 GHz Wi-Fi and two 10/100 Ethernet ports for up to 32 devices. The battery runs up to 8 hours, and the router can also run continuously from its USB-C supply. It suits travel, pop-up and small-site connectivity.

  • 4G LTE Cat 6, up to 300 Mbps DL / 50 Mbps UL, North American LTE bands

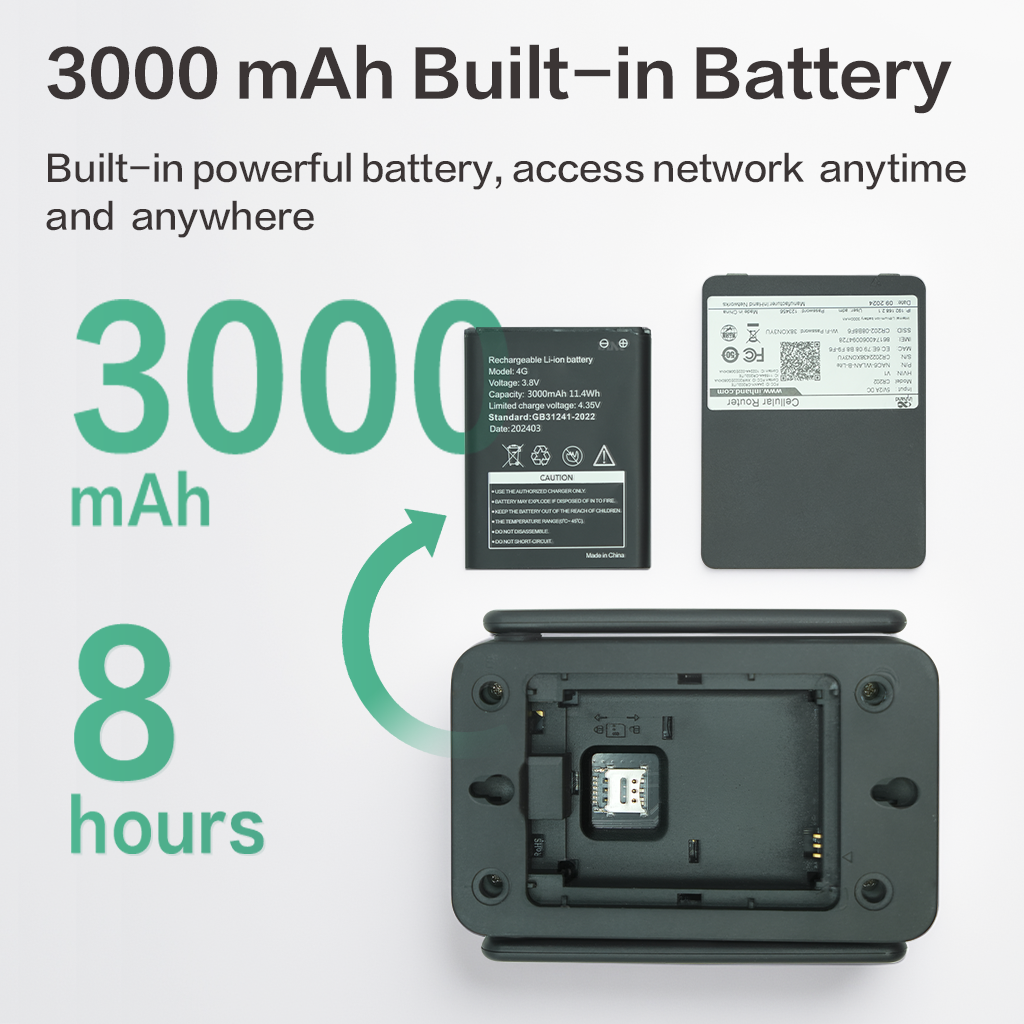

  • Detachable 3000mAh lithium battery with up to 8 hours runtime; USB-C 5 V / 2 A input
  • 2.4 GHz 802.11b/g/n Wi-Fi up to 300 Mbps, AP/STA modes
  • 2 × 10/100 Mbps Ethernet, WAN/LAN switchable, dual LAN
  • Nano-SIM plus embedded Verizon eSIM with dual-SIM failover
  • Up to 32 users, 100 Mbps data throughput
  • InHand Device Manager cloud management for bulk control
  • Carry a full router in a pocket or bag and get a site online anywhere there is LTE coverage

The CR202-Lite is a compact cellular router that combines 4G LTE, Wi-Fi and wired access in a 122 × 75 × 26.4 mm body weighing 235 g. This part number is the North American Cat 6 model. WLAN means Wi-Fi is included, and B means it ships with the detachable 3000mAh lithium battery. It covers LTE-FDD bands B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 and LTE-TDD B41/B48, at up to 300 Mbps down and 50 Mbps up.

The router has a Nano-SIM slot and an embedded Verizon eSIM. Dual-SIM failover is supported only on the North American model, and ICMP-based link detection can switch to the backup SIM when the active link stops passing traffic. Link backup options include hot backup, cold backup and load balancing, plus heartbeat detection, auto-reconnect and a watchdog for fault recovery.

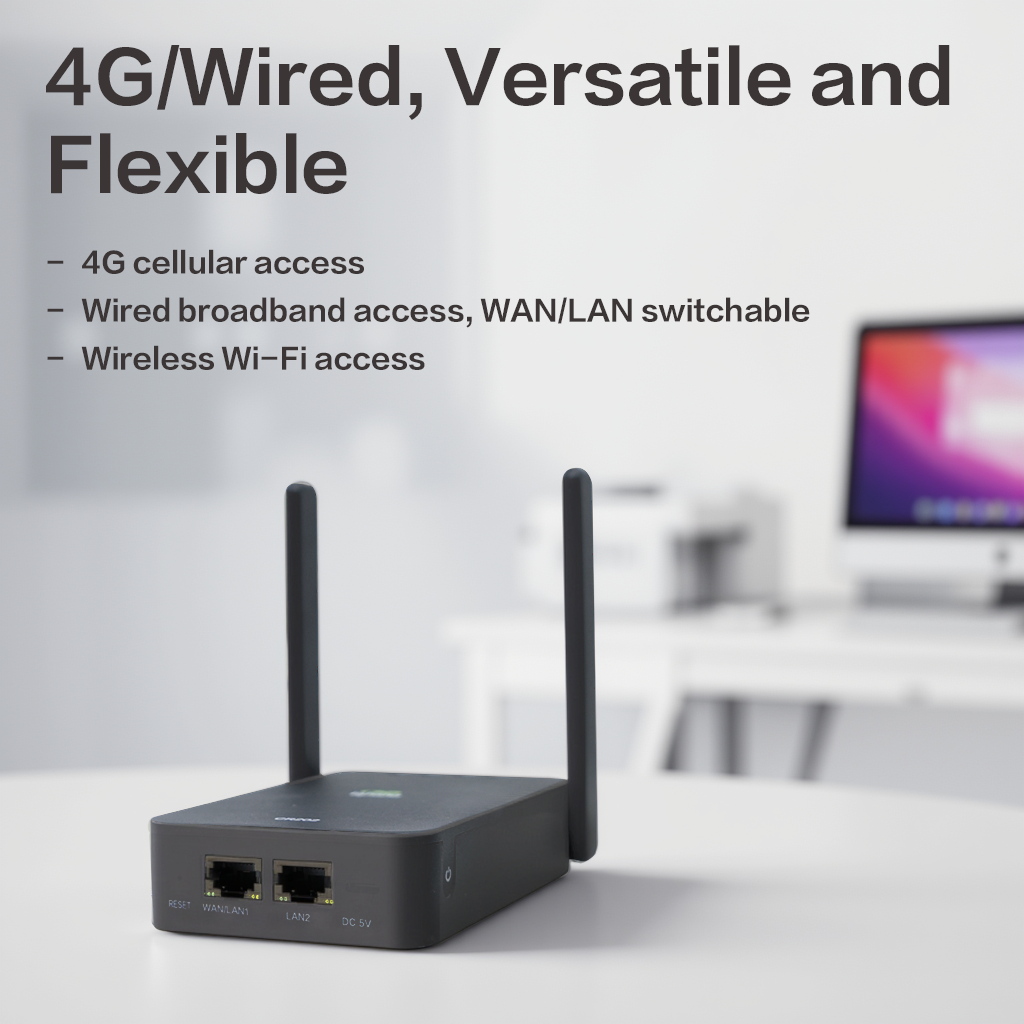

Local access comes from 2.4 GHz 802.11b/g/n Wi-Fi at up to 300 Mbps in AP or STA mode. Two 10/100 Mbps Ethernet ports offer WAN/LAN switching and dual LAN. Data throughput is rated at 100 Mbps for up to 32 users. Security features include an SPI firewall, DoS protection, ACL, URL filtering, DMZ and port mapping.

The router is managed through Web, SSH or Telnet, and fleets can use InHand Device Manager for bulk upgrades, traffic thresholds and alarms. It is certified FCC, IC, PTCRB, CE and UN38.3, with Verizon, AT&T, T-Mobile and FirstNet certifications. The warranty is 3 years, with 1 year on the battery. The box includes the router, 3000mAh battery, power supply, Ethernet cable and user guide.

Ideal for

  • Portable Wi-Fi for business travel and field teams
  • Pop-up retail, events and mobile vendors
  • Temporary connectivity for construction sites and remote work
  • Backup internet for a small office with wired-WAN failover
  • Distributed kiosks and terminals managed from Device Manager

Specifications

Leds

LED
System, Cellular, Wi-Fi, Battery

Wi-Fi

Mode
AP / STA
Protocol
802.11 b/g/n
Frequency
Single-band 2.4 GHz
Max Bandwidth
300 Mbps

Power

Input
USB Type-C, 5 V / 2 A
Battery
3000mAh detachable lithium battery, up to 8 hours

General

MPN
CR202-NAC6-WLAN-B-Lite
Brand
InHand Networks
Model
CR202-Lite Portable 4G Router
Configuration
North America, LTE Cat 6, Wi-Fi, with battery

Package

Contents

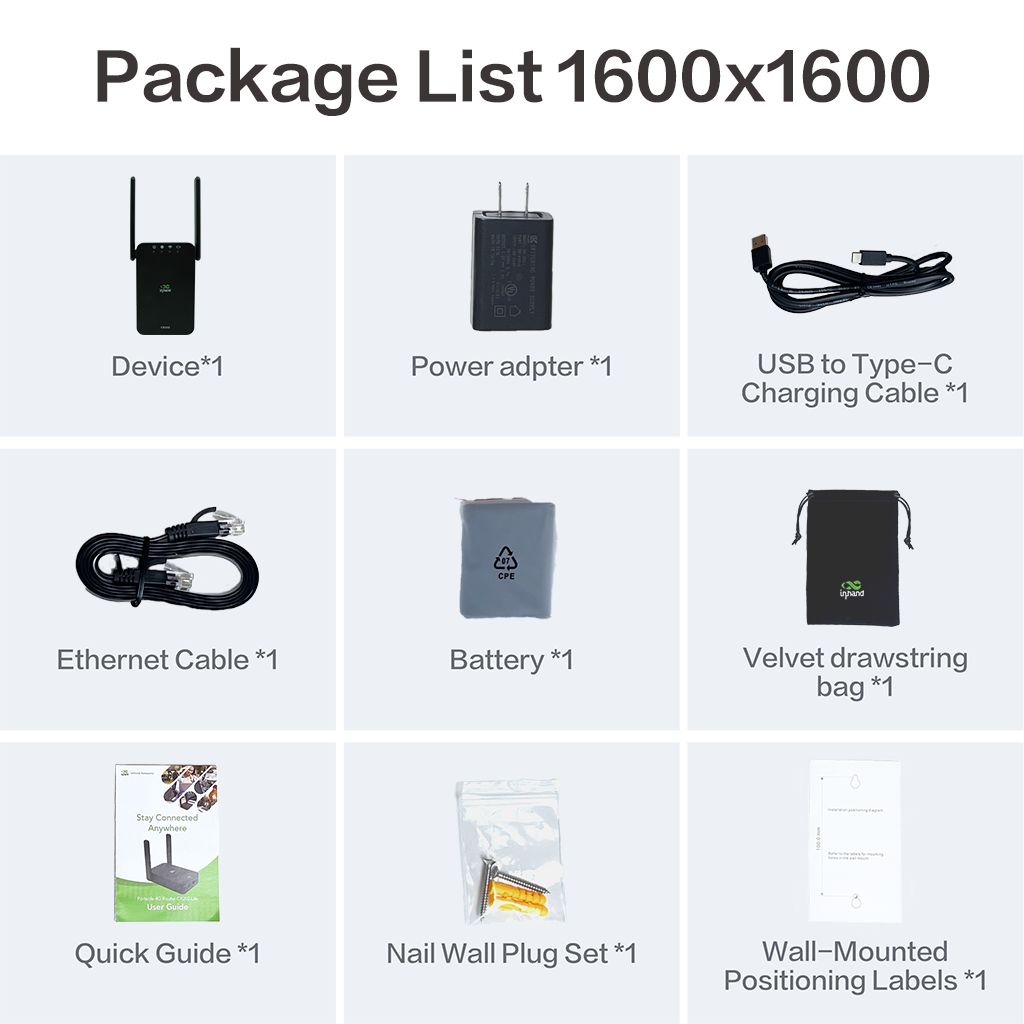

Router, 3000mAh battery, power supply, Ethernet cable, user guide

Cellular

Peak Rate
300 Mbps DL / 50 Mbps UL
Technology
4G LTE Cat 6
LTE Fdd Bands
B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
LTE Tdd Bands
B41/B48

Security

Other
NAT, DMZ, port mapping
Firewall
SPI firewall, DoS protection
Access Control
ACL, URL filtering

Interfaces

SIM
1 × Nano-SIM + embedded Verizon eSIM
Reset
Reset button
ON Off
ON/OFF button
Antenna
2 × external (foldable) 4G antennas, 2 × internal Wi-Fi antennas
Ethernet
2 × 10/100 Mbps, WAN/LAN switchable, dual LAN

Management

Alarm
System restart, LAN port online/offline, data traffic and SIM failure alarms
Upgrade
Web and Device Manager upgrade
Status Query
System, modem, network connection and routing status
Configuration
Telnet, Web, SSH
SMS Functions
SMS status query and restart
Device Manager
InHand Device Manager bulk management
Dial ON Demand
Dial-on-demand, data/SMS activation
Maintenance Tools
Ping, Traceroute
Traffic Management
Traffic threshold, statistics and alarm

Mechanical

Weight
235 g (0.52 lb)
Cooling
Fanless
Housing
Plastic
Dimensions

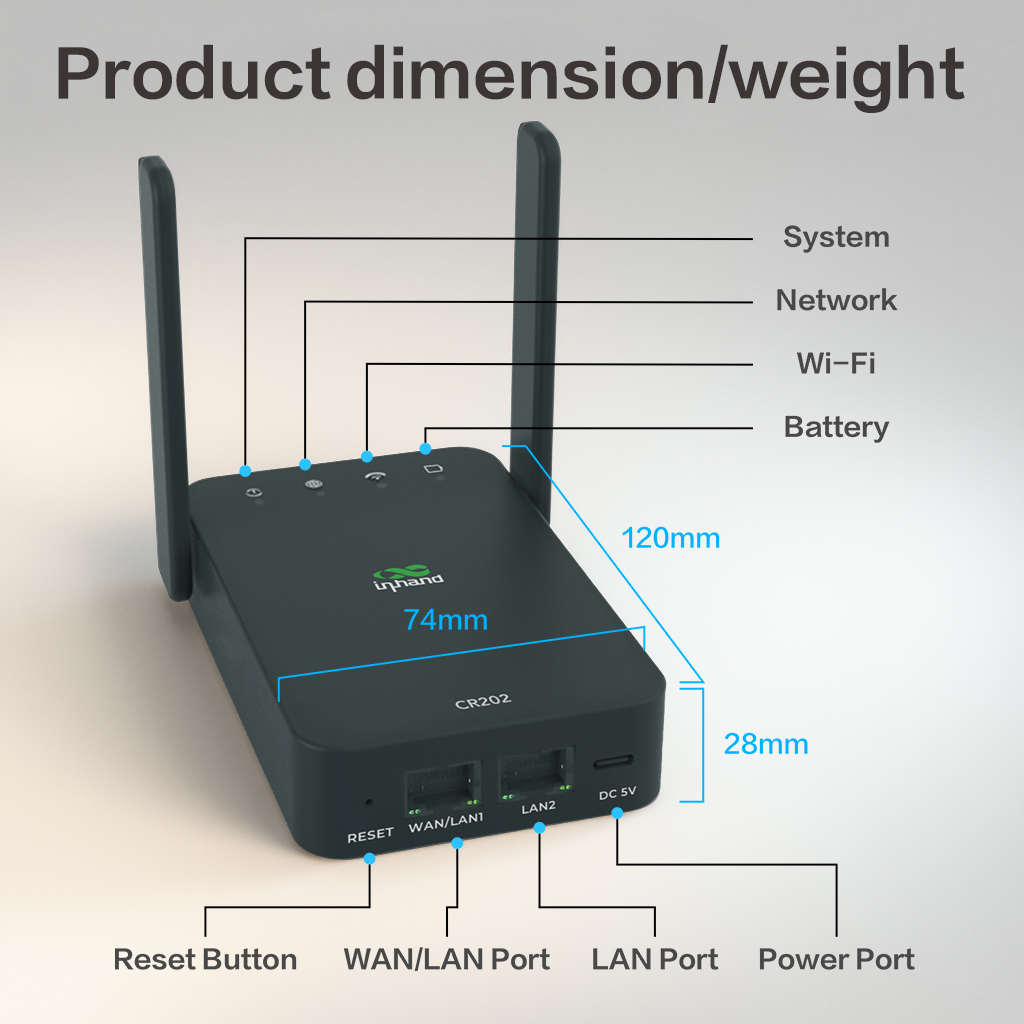

122 × 75 × 26.4 mm (4.80 × 2.95 × 1.04 in), excluding antenna
Installation
Desktop or wall mounting

Environment

Protection
IP30
Storage Temperature
-20 °C to +60 °C (-4 °F to 140 °F)
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)

Reliability

Watchdog
Self-check, fault self-recovery
Link Backup
Hot backup, cold backup, load balancing
Link Detection
Heartbeat detection, auto-reconnect
Dual SIM Failover
Dual-SIM failover (North American model)

Certification

Warranty
3 years; battery 1 year
Certification
FCC, IC, PTCRB, Verizon, AT&T, FirstNet, T-Mobile, CE, UN38.3

Network Features

Nat
NAT supported
Access
APN authentication
Routing
Static routing
LAN Protocol
ARP
WAN Protocol
Static IP, PPPoE, DHCP
Authentication
CHAP/PAP
IP Application
Ping, DHCP server/client, DNS relay, Telnet, IP Passthrough
Network Standard
GSM/EDGE, WCDMA, TDD LTE/FDD LTE

Performance Metrics

Data Throughput
100 Mbps
Recommended Users
32 users

Questions buyers ask

How long does the CR202-Lite run on battery?

The included 3000mAh detachable lithium battery lasts up to 8 hours. The router also runs continuously from its USB-C 5 V / 2 A supply.

Does it support eSIM and SIM failover?

Yes. The North American model has a Nano-SIM slot and an embedded Verizon eSIM, with dual-SIM failover. ICMP link detection can trigger a switch when the active link stops passing traffic.

How many devices can connect?

The CR202-Lite is rated for up to 32 users across 2.4 GHz Wi-Fi and its two 10/100 Ethernet ports.

Which carriers is it certified with?

The North American Cat 6 model holds Verizon, AT&T, T-Mobile and FirstNet certifications, plus FCC, IC and PTCRB.
