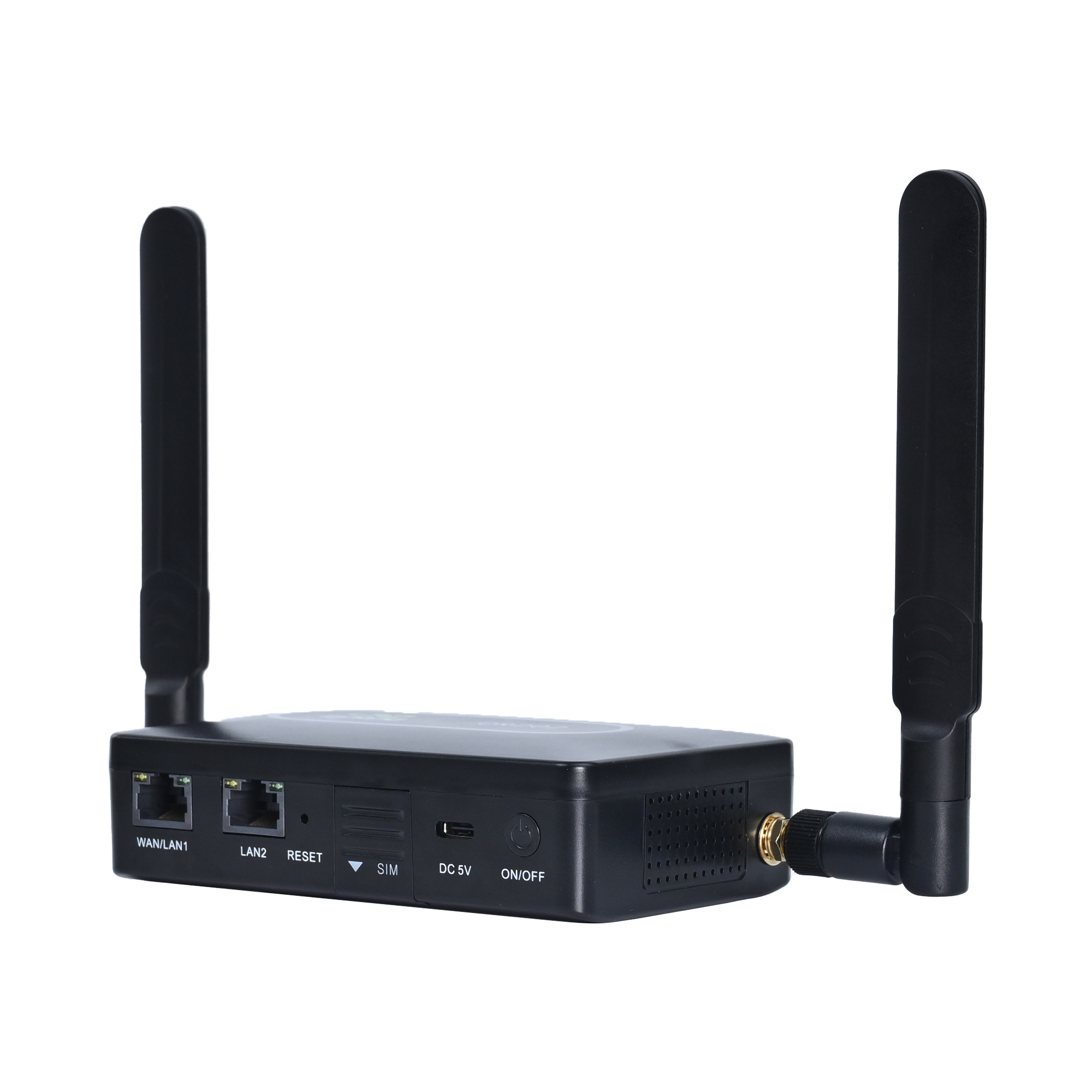

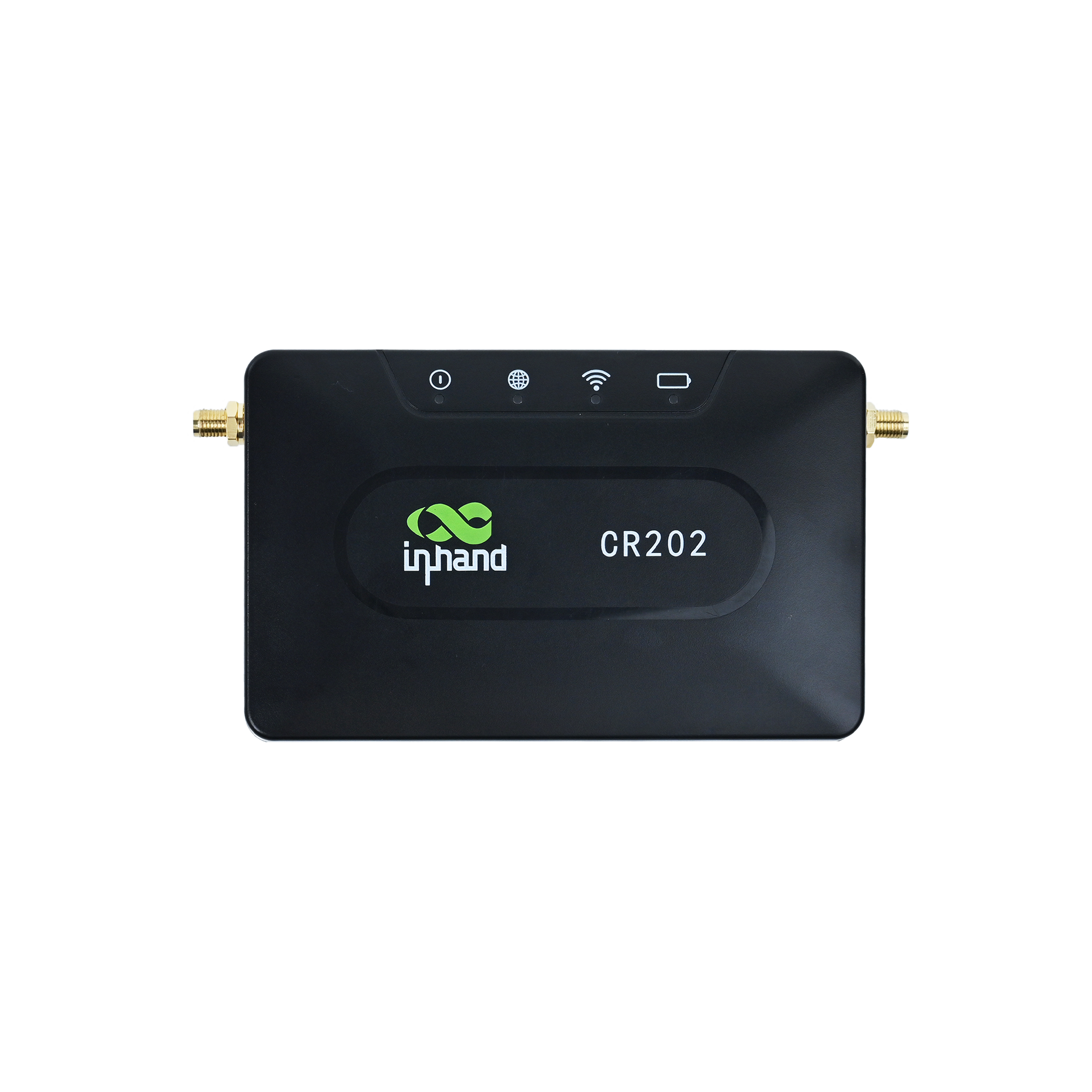

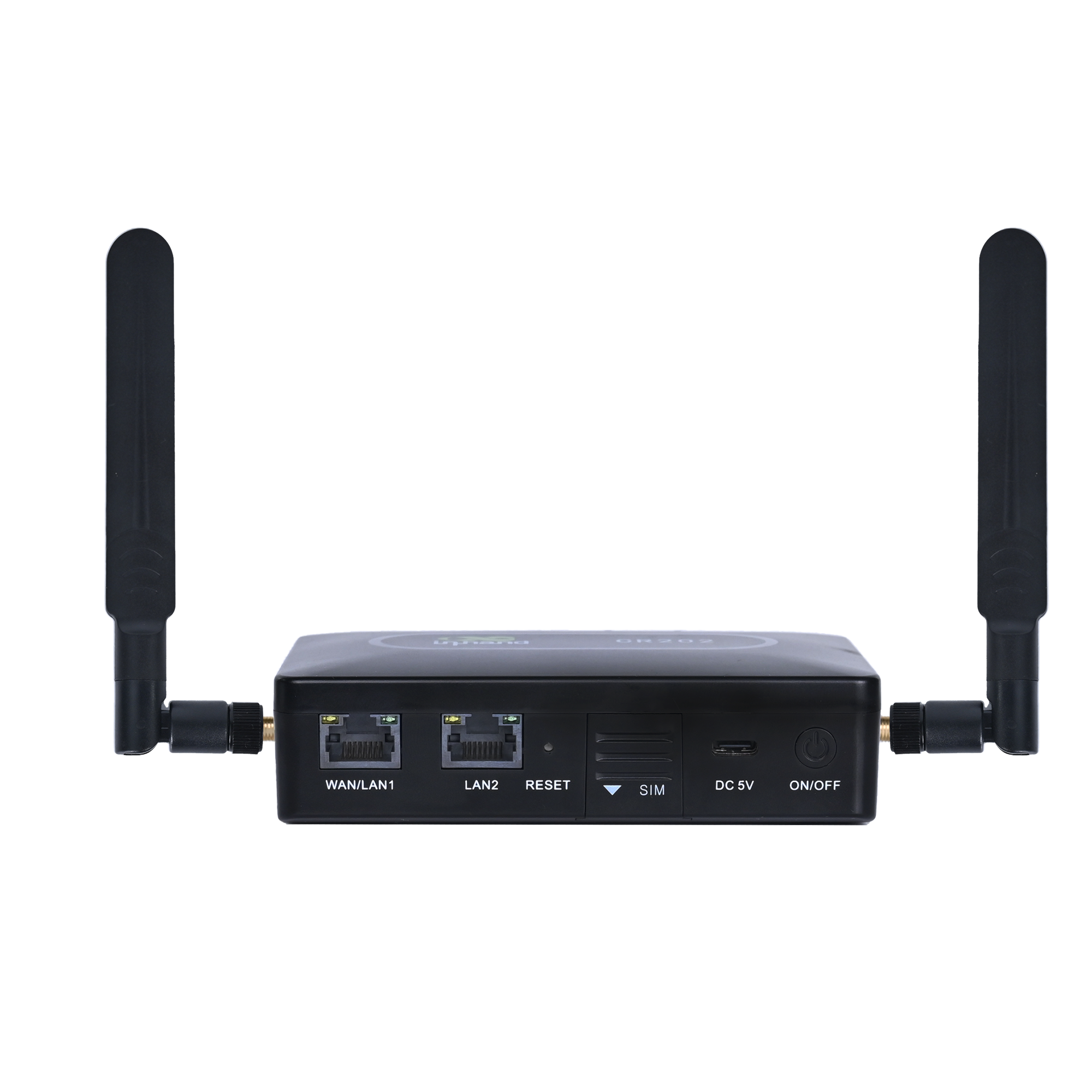

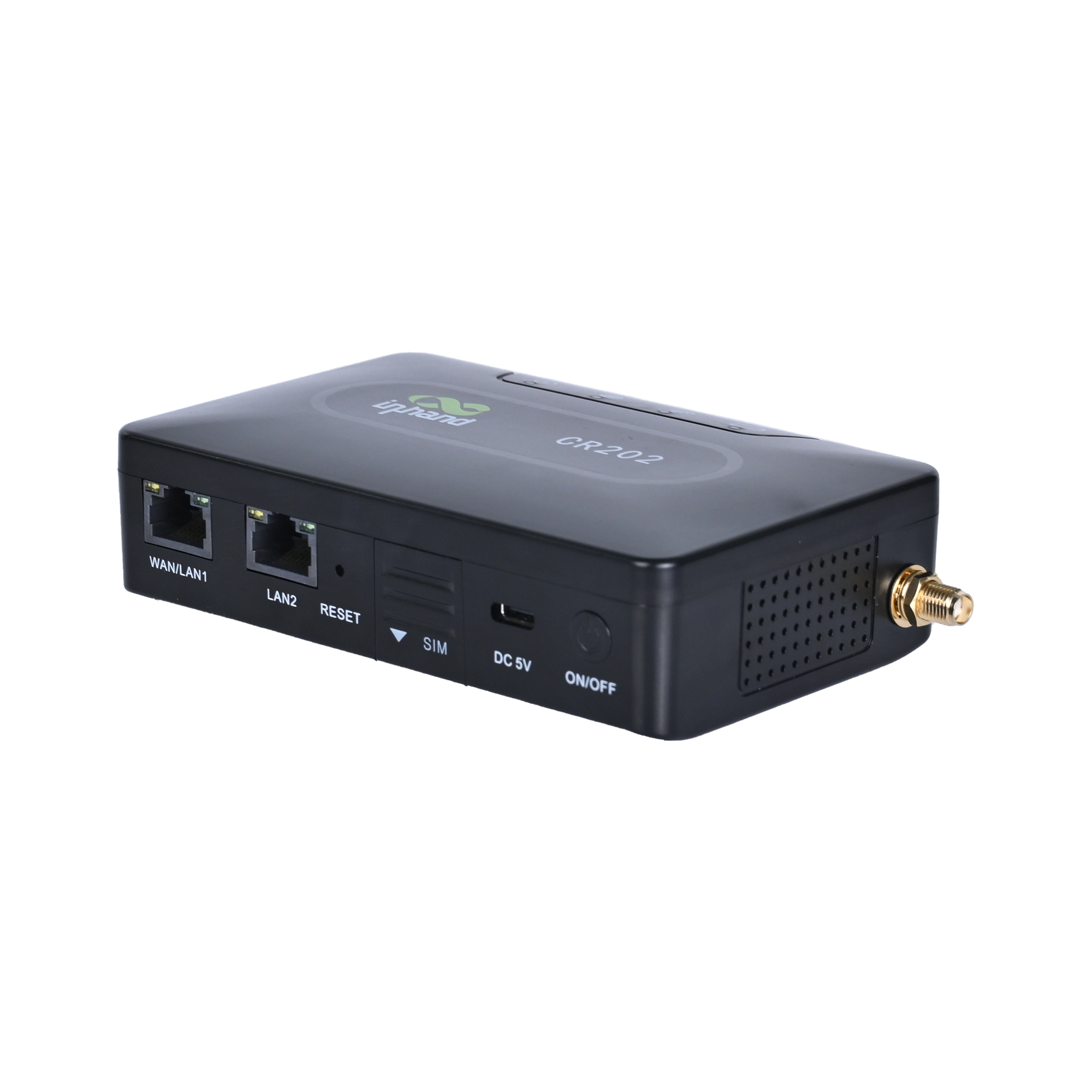

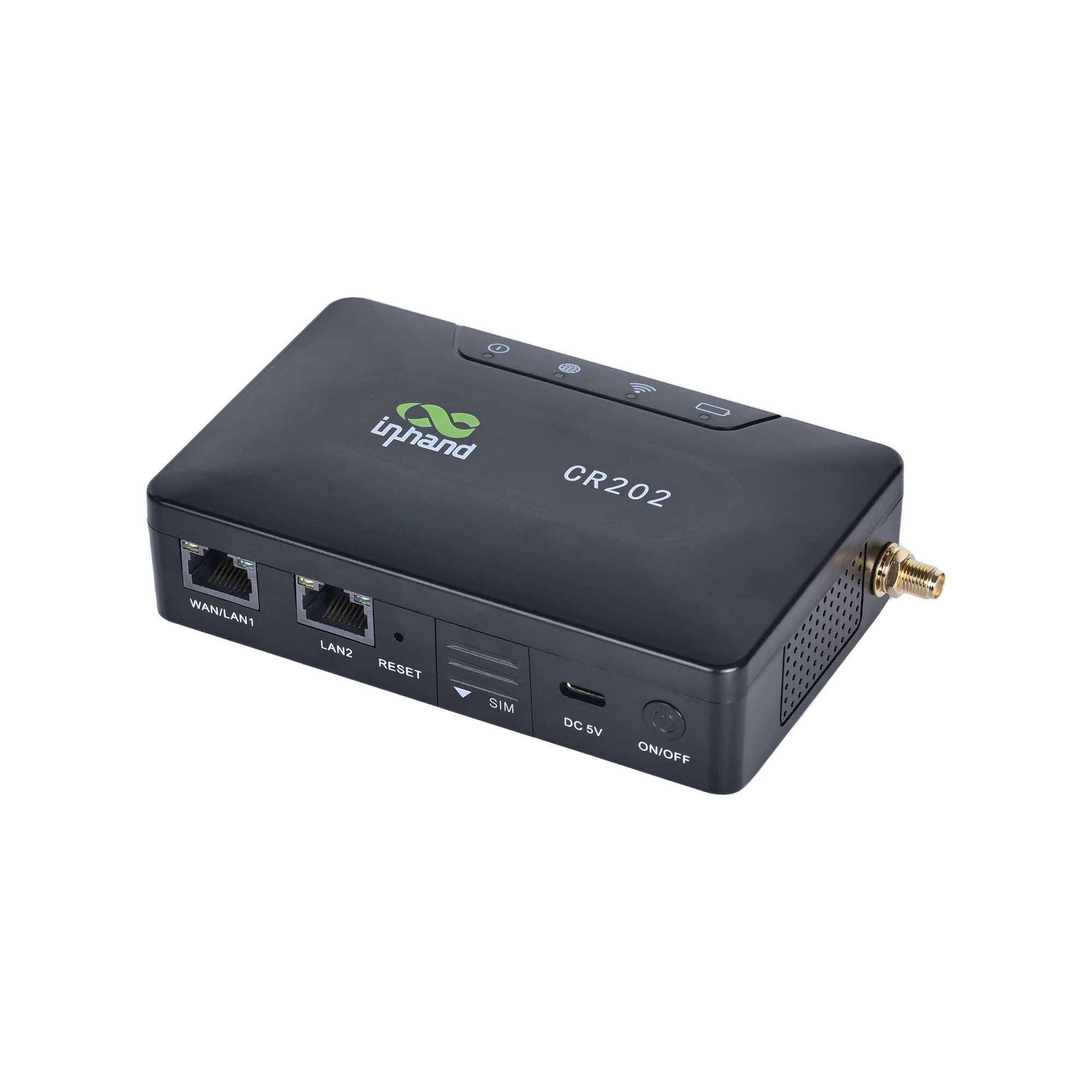

InHand Networks CR202-Pro Portable 4G LTE Cat 6 Router with 5000mAh Battery (North America)

4G LTEMPN CR202-NAC6-WLAN-B-PRO
$192.21$229.00Save $36.79

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks CR202-NAC6-WLAN-B-Pro is the North American LTE Cat 6 version of the CR202-Pro portable router, with Wi-Fi and a built-in 5000mAh battery. It combines 4G LTE at up to 300 Mbps down, 2.4 GHz Wi-Fi and two Ethernet ports. It adds dual-SIM failover with an eSIM, VPN options including IPsec, OpenVPN, WireGuard and ZeroTier, and SNMP. It suits travel, remote work, retail and field sites.

  • 4G LTE Cat 6, up to 300 Mbps DL / 50 Mbps UL, North American LTE bands
  • Built-in 5000mAh lithium battery rated up to 12 hours; USB Type-C 5 V / 2 A
  • Nano 4FF SIM plus eSIM with dual-SIM failover
  • IPsec VPN, OpenVPN client and server, WireGuard, ZeroTier and CA certificates
  • 2.4 GHz 802.11b/g/n Wi-Fi up to 300 Mbps, AP/STA modes
  • 2 × 10/100 Mbps Ethernet, WAN/LAN switchable, dual LAN
  • SNMP v1/v2c/v3, QoS and InHand Device Manager cloud management
  • Work a full day away from power with a 5000mAh battery rated for up to 12 hours

The CR202-Pro is InHand Networks' feature-rich portable 4G router. It combines cellular, wired and Wi-Fi access in a 119 × 75 × 33 mm body that weighs 265 g. In this part number, NAC6 is the North American LTE Cat 6 modem, WLAN means Wi-Fi is included, and B means battery. It covers LTE-FDD bands B2/4/5/7/12/13/14/25/26/29/30/66/71 and LTE-TDD B41/48, at up to 300 Mbps down and 50 Mbps up.

A built-in 5000mAh lithium battery is rated for up to 12 hours, and the router also runs from a USB Type-C 5 V / 2 A supply. For reliability, a Nano 4FF SIM slot and an eSIM support dual-SIM failover. Link backup, heartbeat link detection with auto-redial, and an embedded watchdog keep the connection up.

The Pro adds security and management tools for business use. These include IPsec VPN, OpenVPN client and server, WireGuard and ZeroTier, CA digital certificates, an SPI firewall, DoS defense, ACL, URL filtering and IP-MAC binding. QoS bandwidth limits, SNMP v1/v2c/v3 with traps, and local and remote logging round out the feature set. Configuration is via web, SSH or Telnet, and fleets can use InHand Device Manager for batch upgrades, traffic thresholds and alarms.

Local access is 2.4 GHz 802.11b/g/n Wi-Fi at up to 300 Mbps in AP or STA mode, plus two 10/100 Mbps Ethernet ports with WAN/LAN switching and dual LAN. It is rated for 30 users and 100 Mbps data throughput. The router is IP30 rated, fanless and panel or wall mountable. It is certified FCC, PTCRB, IC and UN38.3, with Verizon, AT&T and T-Mobile certifications. The warranty is 3 years, with 1 year on the battery.

Ideal for

  • Business travel and remote work hotspot with VPN back to the office
  • Mobile retail, kiosks and pop-up stores
  • RV travel, camping and outdoor live streaming
  • Construction sites, rural schools and mobile medical care
  • Small branch primary or backup connectivity

Specifications

Wi-Fi

Operating Mode
AP / STA mode
Radio Frequency
Single band 2.4 GHz
Transfer Protocol
802.11 b/g/n
Max Transmission Bandwidth
300 Mbps

Power

Power Input
USB Type-C
Battery Runtime
Up to 12 hours
Battery Capacity
5000mAh built-in lithium battery
Power Consumption
5 V / 2 A

General

MPN
CR202-NAC6-WLAN-B-Pro
Brand
InHand Networks
Model
CR202-Pro Portable 4G Router
Configuration
North America, LTE Cat 6, Wi-Fi, battery

Cellular

Peak Rate
300 Mbps DL / 50 Mbps UL
Technology
4G LTE Cat 6
LTE Fdd Bands
B2/4/5/7/12/13/14/25/26/29/30/66/71
LTE Tdd Bands
B41/48
Network Standard
GSM/EDGE, WCDMA, TDD LTE/FDD LTE

Security

Data Security
IPsec VPN, OpenVPN client and server, WireGuard, ZeroTier; CA digital certificates
Network Security
SPI firewall, DoS defense, multicast/ping filtering, ACL, URL filter, port mapping, virtual IP mapping, IP-MAC binding

Interfaces

SIM
1 × Nano 4FF SIM slot + 1 × eSIM
Reset
Reset button
Lights
Power, Cellular, Wi-Fi, Battery
ON Off
ON/OFF button
Antenna
2 × external + 2 × internal 4G cellular antennas
Ethernet
2 × 10/100 Mbps, WAN/LAN switchable, dual LAN

Mechanical

Weight
265 g
Cooling
Fanless
Housing
ABS + PC
Dimensions
119 × 75 × 33 mm
Installation
Panel or wall mounting

Environment

Protection Level
IP30
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Working Temperature
-10 °C to 50 °C (14 °F to 122 °F)

Reliability

Link Backup
Link backup
Link Detection
Heartbeat detection with auto redial
Dual SIM Failover
Dual-SIM failover
Embedded Watchdog
Self-detection and auto recovery

Certification

Warranty
3 years; battery 1 year
Certificates
FCC, PTCRB, UN38.3, IC, Verizon, AT&T, T-Mobile

Network Protocol

Nat
NAT supported
Routing
Static routing
IP Application
Ping, Trace, DHCP server/relay/client, DNS relay, DDNS, Telnet, IP Passthrough

Hardware Platform

Data Throughput
100 Mbps
Recommended Users
30 users

Network Connection

LAN Protocol
ARP
WAN Protocol
Static IP, PPPoE, DHCP
Network Access
APN
Access Authentication
CHAP/PAP

Network Management

Log
Local, remote and serial log export; power-down log saving
Qos
Bandwidth limit, IP speed limit
Snmp
SNMP v1/v2c/v3 and traps
Alarm
System restart, LAN port, data traffic and SIM failure alarms
Update
Web or Device Manager update
Status Query
System, modem, network connection and routing status
Configuration
Telnet, web, SSH
SMS Functions
SMS status query and restart
Device Manager
InHand Device Manager batch management
Dial ON Demand
Dial-on-demand, data/SMS activation
Maintenance Tools
Ping, route tracking, speed test, TCPDUMP
Traffic Management
Traffic threshold, statistics and alarm

Questions buyers ask

How long does the CR202-Pro battery last?

The built-in 5000mAh lithium battery is rated for up to 12 hours. The router also runs from a USB Type-C 5 V / 2 A supply.

Which VPNs does the CR202-Pro support?

It supports IPsec VPN, OpenVPN client and server, WireGuard and ZeroTier, along with CA digital certificates.

Does it support two SIMs?

Yes. It has a Nano 4FF SIM slot and an eSIM, with dual-SIM failover.

Can it be monitored by my existing NMS?

Yes. The CR202-Pro supports SNMP v1/v2c/v3 and SNMP traps, and it also works with InHand Device Manager.
