D-Link DWM-311-B1 4G LTE M2M Router with Gigabit Ethernet

4G LTEMPN DWM-311-B1
  • 1 × 1 Gb Ethernet
$174.99$227.99Save $53

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The D-Link DWM-311-B1 is a compact, pre-configured 4G LTE Cat 4 M2M router that brings cellular connectivity to a single Ethernet device such as a kiosk, vending machine, ATM, parking meter or NVR. It downloads at up to 150 Mbps over LTE and has one 10/100/1000 Ethernet LAN port, one Micro SIM slot and two SMA antenna connectors. It supports OpenVPN, SMS reboot and D-ECS cloud management, and it is built in an aluminum and zinc-plated steel enclosure rated from -30 to 60 °C.

  • 4G LTE Cat 4 connectivity up to 150 Mbps download and 50 Mbps upload (LTE FDD)
  • One 10/100/1000 Mbps Ethernet LAN port and one Micro SIM (3FF) slot

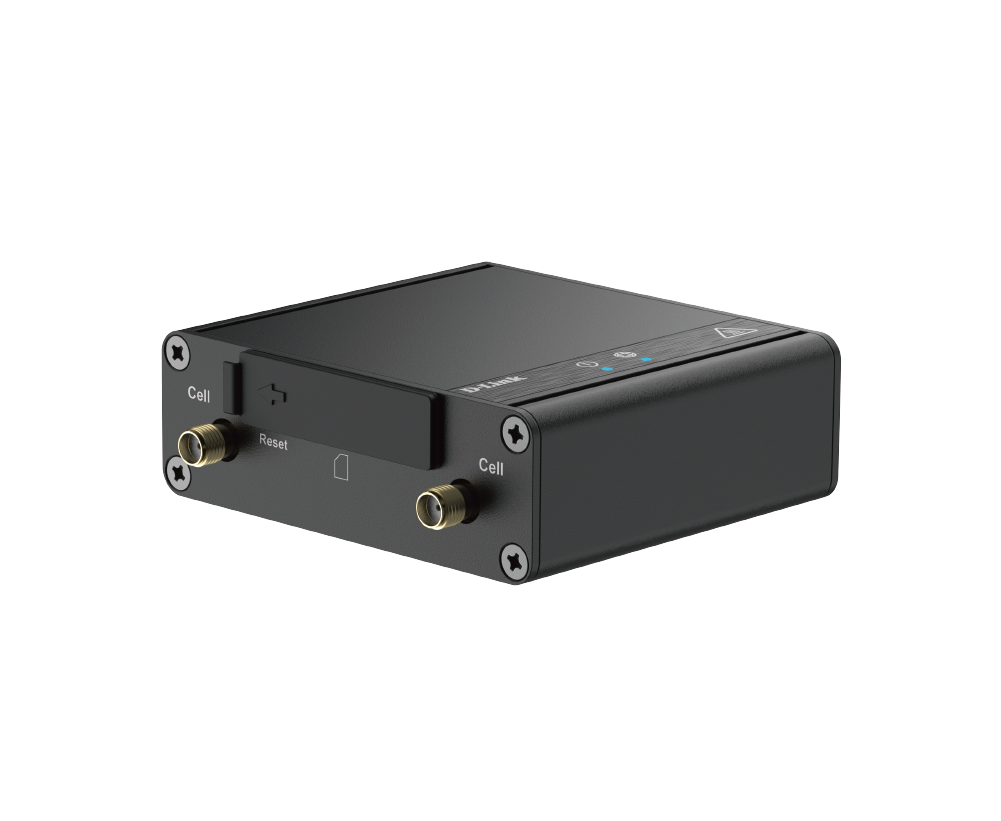

  • Two SMA connectors for external LTE antennas
  • Pre-configured plug-and-play operation with web-based UI for advanced settings
  • OpenVPN (1 tunnel), SMS reboot and D-ECS remote device management
  • Aluminum and zinc-plated steel enclosure rated -30 to 60 °C operating
  • CE, FCC and PTCRB certified, with AT&T and Verizon certification; TAA/NDAA compliant
  • Adds cellular WAN to any Ethernet-enabled device without drivers or special software

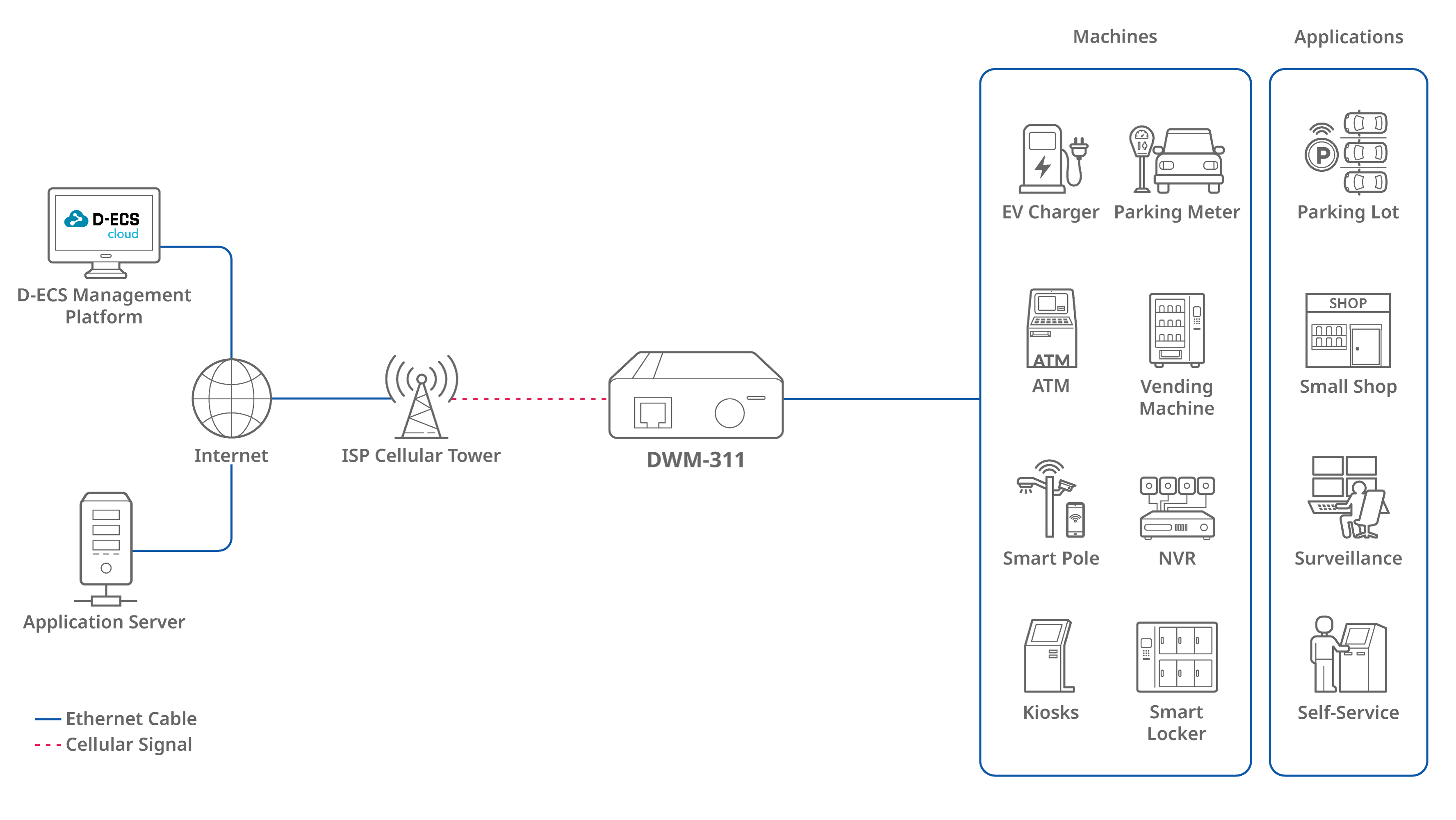

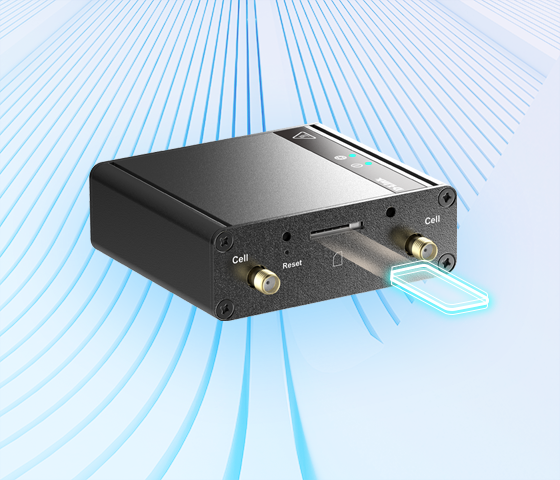

The DWM-311-B1 is hardware revision B of D-Link's DWM-311 4G M2M router. It is built for machine-to-machine and IoT deployments where one wired device needs a dependable cellular uplink. Insert a Micro SIM, connect an Ethernet-enabled device and power it up. The router is pre-configured, so the connected device gets driverless access without special software. That makes it practical for mass rollouts as well as one-off installs. If you need custom settings, you can adjust them through the web interface in any browser.

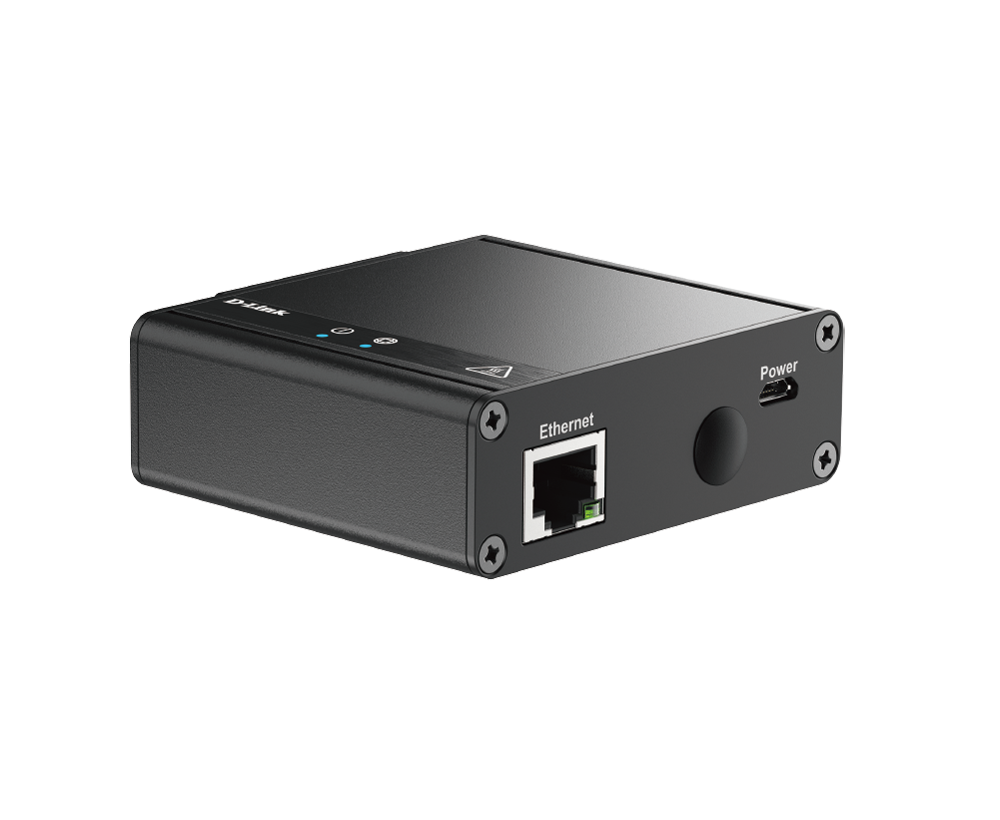

The cellular side is a single-mode Cat 4 LTE modem rated up to 150 Mbps down and 50 Mbps up on LTE FDD, and 130/30 Mbps on LTE TDD. It falls back to DC-HSDPA/HSUPA, WCDMA, EDGE and GPRS. Two SMA connectors accept external LTE antennas, so you can position antennas for better signal. The single Gigabit Ethernet LAN port hands the connection to the local device. The router supports IPv4/v6, DHCP server, NAT, bridge mode and port forwarding.

For remote sites, one OpenVPN tunnel protects traffic back to headquarters. An SMS reboot function lets staff recover a unit without a site visit. The router is also compatible with D-Link Edge Cloud Solution (D-ECS) for centralized monitoring and management; D-ECS licence fees apply.

The enclosure combines aluminum with corrosion-resistant zinc-plated steel. It measures 77.4 x 68.5 x 26 mm and weighs 145 g. It operates from -30 to 60 °C and at 10% to 85% non-condensing humidity. Optional wall mounts allow flexible placement. The DWM-311 carries CE, FCC and PTCRB certification plus AT&T and Verizon certification, and D-Link lists it as TAA/NDAA compliant. A quick install guide, user manual and datasheet are available for this hardware revision.

Ideal for

  • Cellular uplink for vending machines, photo booths and self-service kiosks
  • Connectivity for ATMs and point-of-sale terminals at sites without wired broadband
  • Parking meters, EV chargers and smart lockers in lots and public spaces
  • Digital signage and billboards that need remote content updates
  • Waste management, laundry and solar power monitoring equipment

Specifications

Power

Power Input
DC 5 V
Power Adapter
Power adapter 5 V/2 A via Micro-USB

General

MPN
DWM-311-B1
UPC
790069458019
Brand
D-Link
Model
DWM-311
Compliance
TAA/NDAA Compliant
Product Type
4G M2M Router (4G LTE Modem)
Hardware Revision
Hardware revision B

Network

IP
IPv4/IPv6
VPN
OpenVPN, 1 tunnel
Features
Port forwarding, DHCP server, NAT, bridge

Cellular

SIM
1 x Micro SIM (3FF)
WAN
Cellular WAN
Band Note
Supported bands depend on hardware SKU
LTE Category
LTE Cat 4
Edge Throughput
296 Kbps DL / 236.8 Kbps UL
Gprs Throughput
107 Kbps DL / 85.6 Kbps UL
Wcdma Throughput
384 Kbps DL / 384 Kbps UL
LTE Bands Sku1 EU
LTE FDD 1/3/7/8/20/28A, LTE TDD 38/40/41, UMTS/HSPA B1/B8
LTE Bands Sku2 AF
LTE FDD B2/B4/B5/B12/B13/B14/B66, UMTS/HSPA B2/B4/B5
LTE Fdd Throughput
150 Mbps DL / 50 Mbps UL
LTE Tdd Throughput
130 Mbps DL / 30 Mbps UL
Cellular Technology
4G LTE (single mode)
DC Hsdpa Hsupa Throughput
42 Mbps DL / 5.76 Mbps UL

Physical

Weight
145 g (5.12 oz)
Mounting
Optional wall mounts
Enclosure
Aluminum and zinc-plated steel
Dimensions
77.4 x 68.5 x 26 mm (3.05 x 2.7 x 1.02 in)

Interfaces

Standards
IEEE 802.3i, IEEE 802.3u
Power Port
1 x Micro-USB (power input)
Reset Button
Reset button
Ethernet Ports
1 x 10/100/1000 Ethernet LAN port
Ethernet Speed
10/100/1000 Mbps
Antenna Connectors
2 x SMA for LTE

Management

Methods
Web UI, SMS, D-ECS
LED Indicators
Network connectivity and power LEDs
Advanced Features
D-ECS remote management (licence fees apply), SMS reboot, web-based UI

Environmental

Operating Humidity
10% to 85% non-condensing
Storage Temperature
-40 to 85 °C (-40 to 185 °F)
Operating Temperature
-30 to 60 °C (-22 to 140 °F)

Certifications

Certifications
CE, FCC, PTCRB, AT&T, Verizon

Questions buyers ask

Does the DWM-311-B1 need to be configured before use?

No. It ships pre-configured for plug-and-play operation. Insert a Micro SIM, connect your Ethernet device and power it on. The web UI is available if you need custom settings.

How fast is the DWM-311-B1?

It uses a Cat 4 LTE modem rated up to 150 Mbps download and 50 Mbps upload on LTE FDD. Actual speeds depend on network capacity and signal strength.

How is the DWM-311-B1 powered?

It takes DC 5 V through a Micro-USB port from a 5 V/2 A power adapter.

Can I manage the DWM-311-B1 remotely?

Yes. You can reboot it by SMS, and it is compatible with D-Link Edge Cloud Solution (D-ECS) for centralized remote management. D-ECS licence fees apply.

What operating temperatures does it handle?

The datasheet rates it for -30 to 60 °C (-22 to 140 °F) operating and 10% to 85% non-condensing humidity.
