D-LinkGateways & Modems

D-Link DWM-311-G 5G Rugged Compact M2M Modem/Gateway with 2.5GbE

5GMPN DWM-311-G
  • 1 × 2.5 Gb+ Ethernet
$439.99$571.99Save $132

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The D-Link DWM-311-G is a rugged, compact 5G M2M modem/gateway for IoT and industrial equipment. Its 3GPP Release 16 sub-6 GHz modem supports 5G SA and NSA at up to 3.4 Gbps, with automatic 4G LTE fallback. It has a single 2.5 Gigabit Ethernet LAN port, one Micro SIM slot, four SMA antenna connectors and a 5-32 V DC terminal-block input. OpenVPN, SMS and e-mail event alerts and D-ECS cloud management come built in.

  • 5G SA and NSA (3GPP Rel. 16, sub-6 GHz) with automatic 4G LTE fallback
  • Up to 3.4 Gbps DL (5G NSA), 2.4 Gbps DL (5G SA), 1.6 Gbps DL (LTE Cat 19)

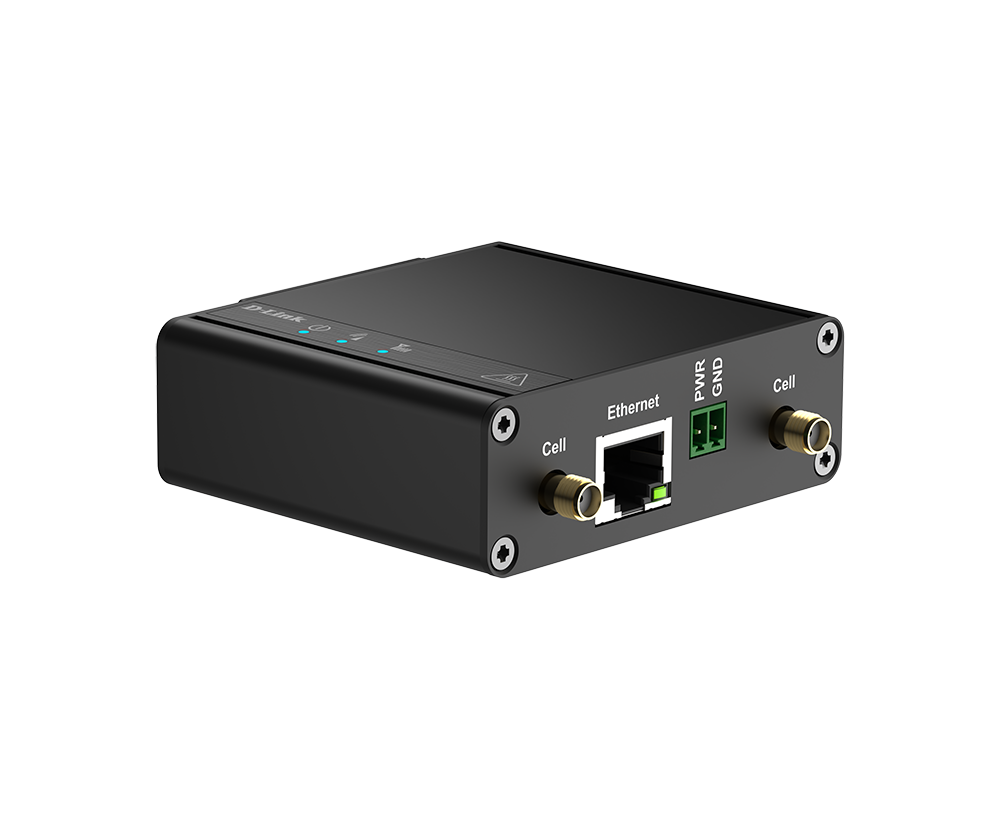

  • 1 x 10/100/1000/2500 Mbps Ethernet LAN port and 1 x Micro SIM slot
  • Wide DC 5-32 V terminal-block power input, 2.9 W maximum consumption
  • OpenVPN, SMS and e-mail event management, and D-ECS centralized management
  • Zinc-plated steel case, DIN-rail mounting, -30 to 70 °C operating range
  • AT&T, Verizon and T-Mobile approvals; CE, UKCA, FCC, PTCRB, VCCI, JATE, TELEC certified
  • Gives EV chargers, kiosks and signage a 5G uplink in a palm-sized, DIN-rail package

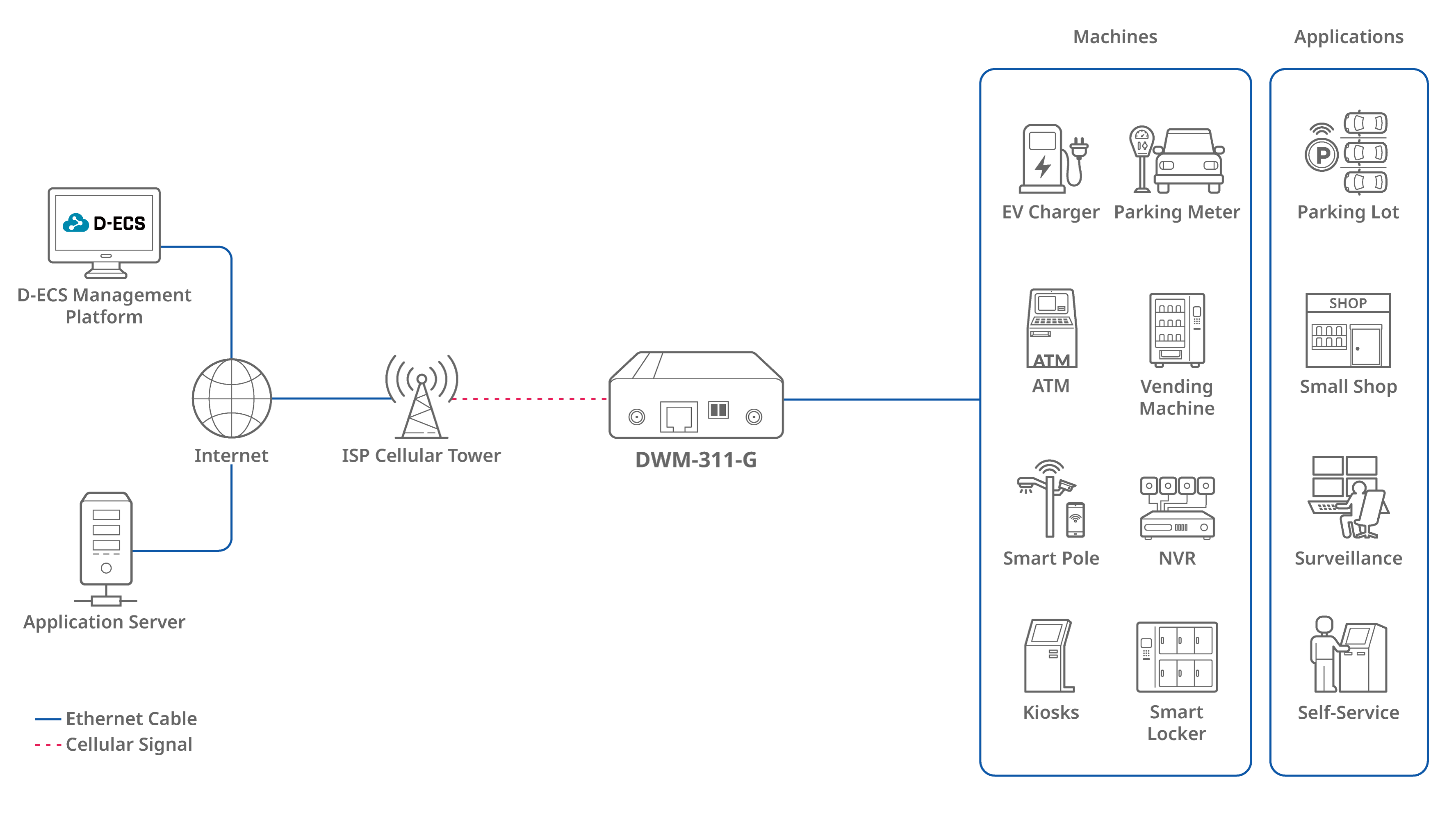

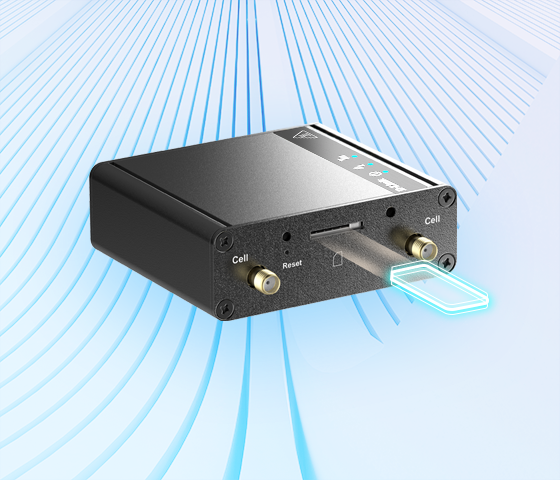

The DWM-311-G brings 5G to space-constrained M2M installations such as EV chargers, digital signage, kiosks, sensors, smart lockers and automation systems. Insert a Micro SIM and apply power, and the gateway connects Ethernet devices to the cellular network with minimal configuration. Because it uses a standard Ethernet interface, attached equipment needs no drivers or extra software. A web UI covers custom deployments.

The cellular module is a 3GPP Release 16, sub-6 GHz 5G design with 4G LTE DL Cat 19/UL Cat 18. Rated peaks are 3.4 Gbps down and 550 Mbps up in 5G NSA, 2.4 Gbps down and 900 Mbps up in 5G SA, and 1.6 Gbps down and 200 Mbps up on LTE. The gateway switches automatically between 4G and 5G as conditions change. A 2.5 Gigabit Ethernet LAN port keeps the wired handoff from becoming the bottleneck. Four SMA (F) connectors support the included cellular antennas.

Networking covers IPv4/v6, NAT, bridge mode, DHCP server, port forwarding and DDNS (DynDNS, No-IP, dynamic DO). An OpenVPN tunnel protects remote traffic, and ping-query reboot restores a dropped connection. SMS and e-mail event management keep staff informed. You can manage units through the web UI or fleet-wide through D-Link D-ECS, which requires an M2M device licence.

The corrosion-resistant zinc-plated steel case measures 77.4 x 82.6 x 26 mm and mounts on DIN rail. It operates from -30 to 70 °C and draws 2.9 W maximum. The wide 5-32 V DC input simplifies power sourcing. Certifications include CE, UKCA, FCC, PTCRB, VCCI, JATE and TELEC, with AT&T, Verizon and T-Mobile approvals and EN 18031-1/-2 and EN 303645 cyber-security compliance.

Ideal for

  • 5G uplink for EV charging stations with real-time monitoring
  • Digital signage and kiosks that need high-bandwidth content delivery
  • Connecting NVRs and surveillance systems at parking lots and retail sites
  • Vending machines, smart lockers and self-service stations
  • Solar power management and industrial automation sensors

Specifications

WAN

WAN Interface
Cellular
Cellular Modes
NAT, bridge
Connection Monitoring
Ping query reboot

General

MPN
DWM-311-G
UPC
790069801310
Brand
D-Link
Model
DWM-311-G
Product Type
5G Rugged Compact M2M Modem/Gateway

Network

IP
IPv4/IPv6
Ddns
DynDNS, No-IP, dynamic DO
LAN Vlan
DHCP server
Port Forwarding
Port forwarding (firewall)

Package

Contents
4 SMA cellular antennas, RJ-45 cable, power adapter, 2-pin terminal block

Physical

Mounting
DIN-rail mounting
Enclosure
Corrosion-resistant zinc-plated steel
Dimensions
77.4 x 82.6 x 26 mm

Services

VPN Tunnel
OpenVPN
Event Management
SMS and e-mail event management

Monitoring

Security
VPN status
Device Status
Connection information
Cellular Status
Cellular status and signal quality

Performance

LTE Throughput
1.6 Gbps DL / 200 Mbps UL
5G SA Throughput
2.4 Gbps DL / 900 Mbps UL
5G Nsa Throughput
3.4 Gbps DL / 550 Mbps UL

Administration

System
Firmware upgrade, reboot and reset
Management
D-Link D-ECS (licence fee applies)
Maintenance
Web UI
SMS Management
SMS

Certifications

Approvals
AT&T, Verizon, T-Mobile
Certifications
CE, UKCA, FCC, PTCRB, VCCI, JATE, TELEC
Cyber Security
EN 18031-1, EN 18031-2, EN 303645

Device Interface

5G Modes
5G SA and NSA
Cellular
3GPP Rel. 16 5G NR sub-6 GHz; 4G LTE DL Cat 19/UL Cat 18
Ethernet
1 x 10/100/1000/2500 Mbps LAN port
SIM Slot
1 x Micro SIM
Power Input
DC 5-32 V terminal block
Antenna Connectors
4 x SMA (F) cellular
Max Power Consumption
2.9 W maximum

Available Versions

EU Sku HW A2 LTE
EU SKU (HW A2) LTE FDD B1/B3/B5/B7/B8/B20/B28/B32/B71; TDD B38/B40/B41/B42/B43
EU Sku HW A2 5G NR
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78
Global Japan Sku HW A3 A4 LTE
Global SKU (HW A3) / Japan SKU (HW A4) LTE FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; TDD B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48
Global Japan Sku HW A3 A4 5G NR
Global SKU (HW A3) / Japan SKU (HW A4) 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79

Operating Environment

Storage Humidity
0% to 95% non-condensing
Operating Humidity
10% to 95% non-condensing
Storage Temperature
-40 to 85 °C (-40 to 185 °F)
Operating Temperature
-30 to 70 °C (-22 to 158 °F)

Questions buyers ask

Does the DWM-311-G fall back to 4G?

Yes. It supports 5G SA and NSA and switches automatically to 4G LTE (DL Cat 19/UL Cat 18) when network conditions change.

What power sources can it use?

It accepts DC 5-32 V through a 2-pin terminal block and draws a maximum of 2.9 W. A power adapter and terminal block are included.

Are antennas included?

Yes. The standard package includes four cellular SMA antennas, an RJ-45 cable, a power adapter and a 2-pin terminal block.

Which carrier approvals does it have?

D-Link lists AT&T, Verizon and T-Mobile approvals, along with CE, UKCA, FCC, PTCRB, VCCI, JATE and TELEC certifications.

How is the DWM-311-G managed?

Locally through the web UI, by SMS, or centrally through D-Link D-ECS. D-ECS requires an M2M device licence fee.
