Datasheets & documents
Overview

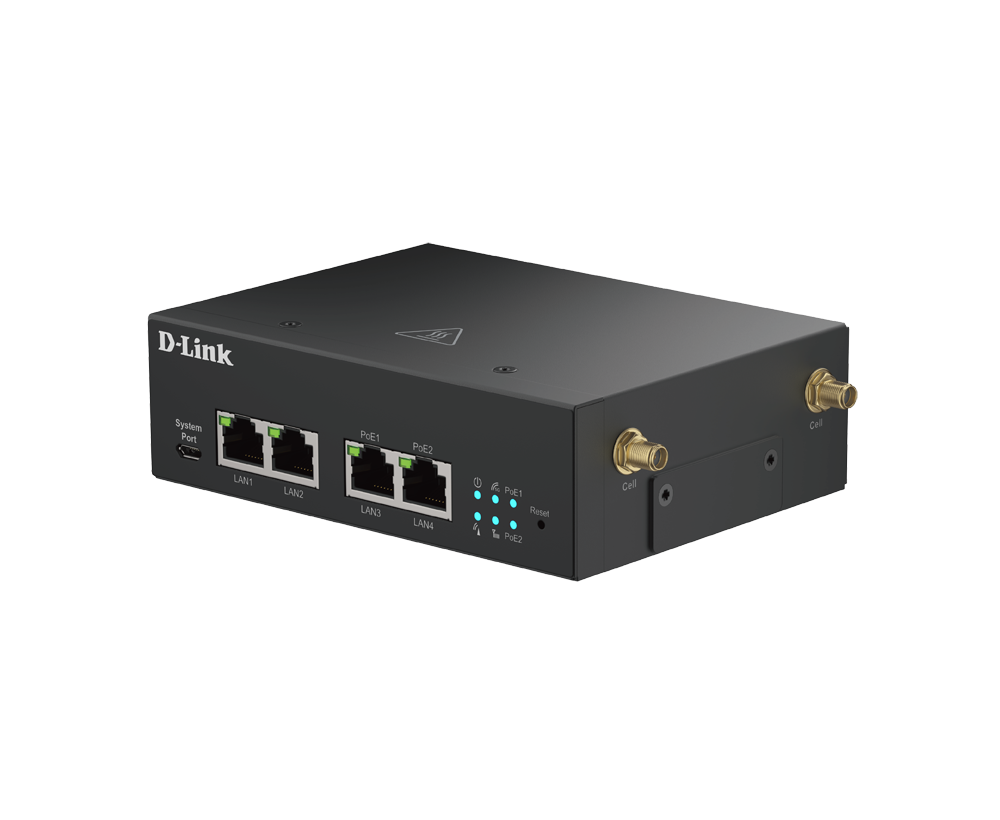

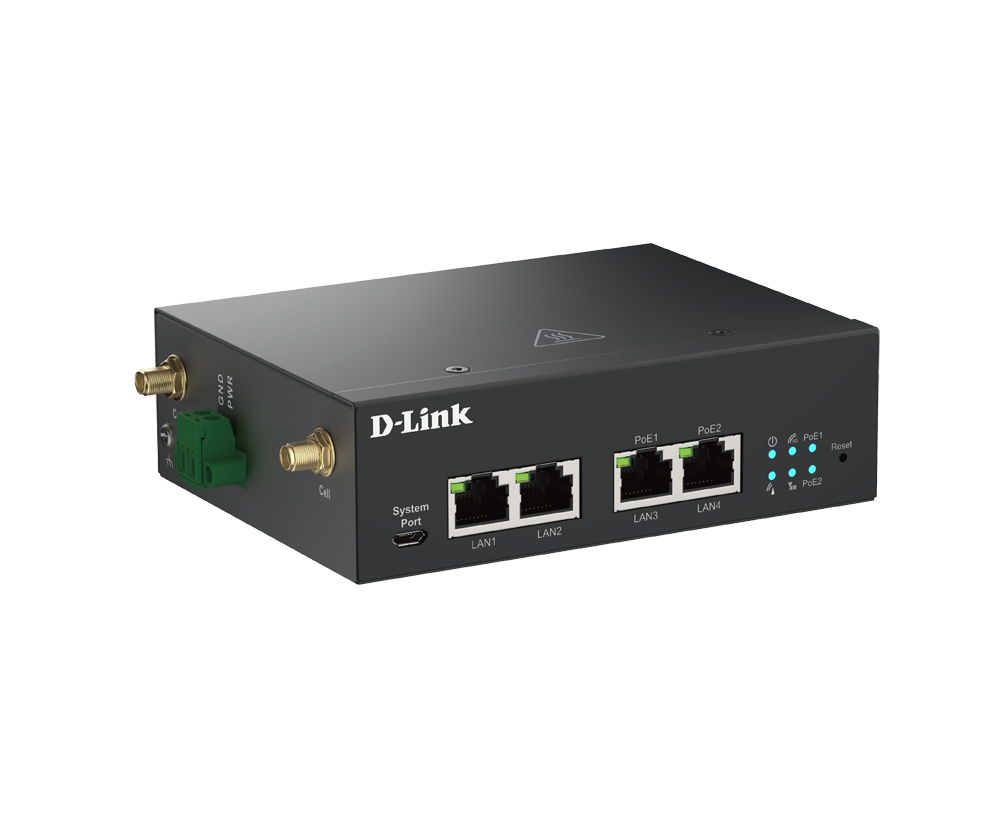

The D-Link DWM-314-GP is a rugged 5G PoE modem/gateway for smart-city and M2M deployments. It combines 5G SA/NSA at up to 3.4 Gbps with dual Micro SIM auto-failover, and eSIM is available as a factory option. A built-in 4-port Gigabit switch includes two 802.3at PoE+ PSE ports with a 60 W budget. It supports OpenVPN and WireGuard, IPS and MAC/IP filtering, and D-ECS management, all in a zinc-plated steel case rated -30 to 70 °C.
- 5G SA and NSA (3GPP Rel. 16, sub-6 GHz) up to 3.4 Gbps DL, with 4G LTE Cat 19/18 fallback
- Dual Micro SIM with auto failover; eSIM available as a factory-installed option
- 4 x Gigabit LAN, including 2 x 802.3at PoE+ PSE ports (30 W per port, 60 W budget)
- PD failure check (PD-Alive) and PoE scheduling
- OpenVPN and WireGuard VPN, IPS firewall and MAC/IP filtering
- DC 48-57 V terminal-block input, wall or DIN-rail mounting, -30 to 70 °C operation
- AT&T, Verizon and T-Mobile approvals; CE, UKCA, FCC, PTCRB, VCCI, JATE, TELEC certified
- Powers and connects two PoE cameras, APs or sensors without a separate PoE switch

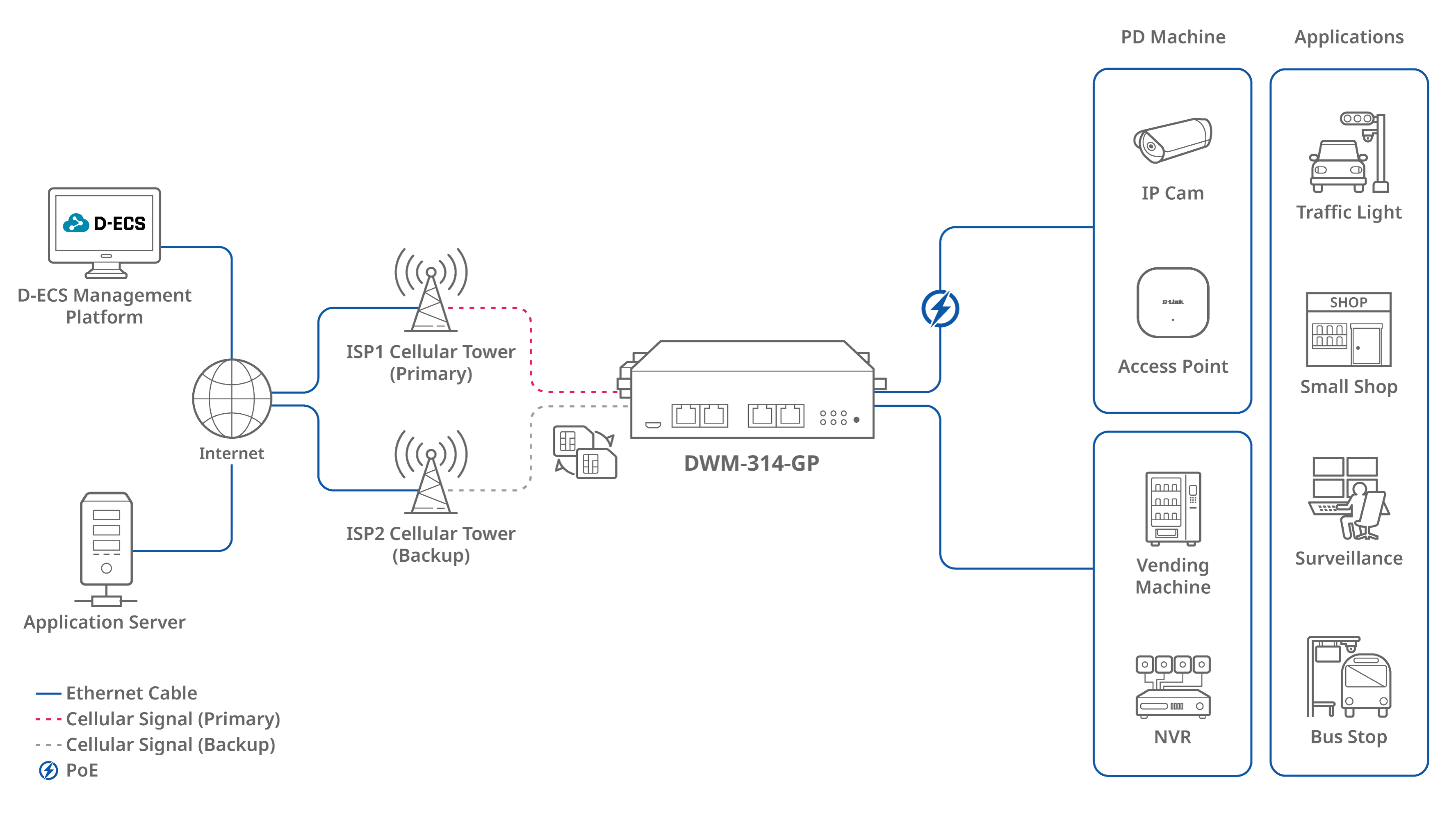

The DWM-314-GP connects and powers field equipment over a single 5G link. It suits smart poles, traffic monitoring, surveillance cameras, digital signage, bus stops and environmental sensors. Two Micro SIM slots with automatic failover keep the site online if one network goes down, and eSIM can be installed at the factory on request. The gateway also switches automatically between 4G and 5G as conditions change.

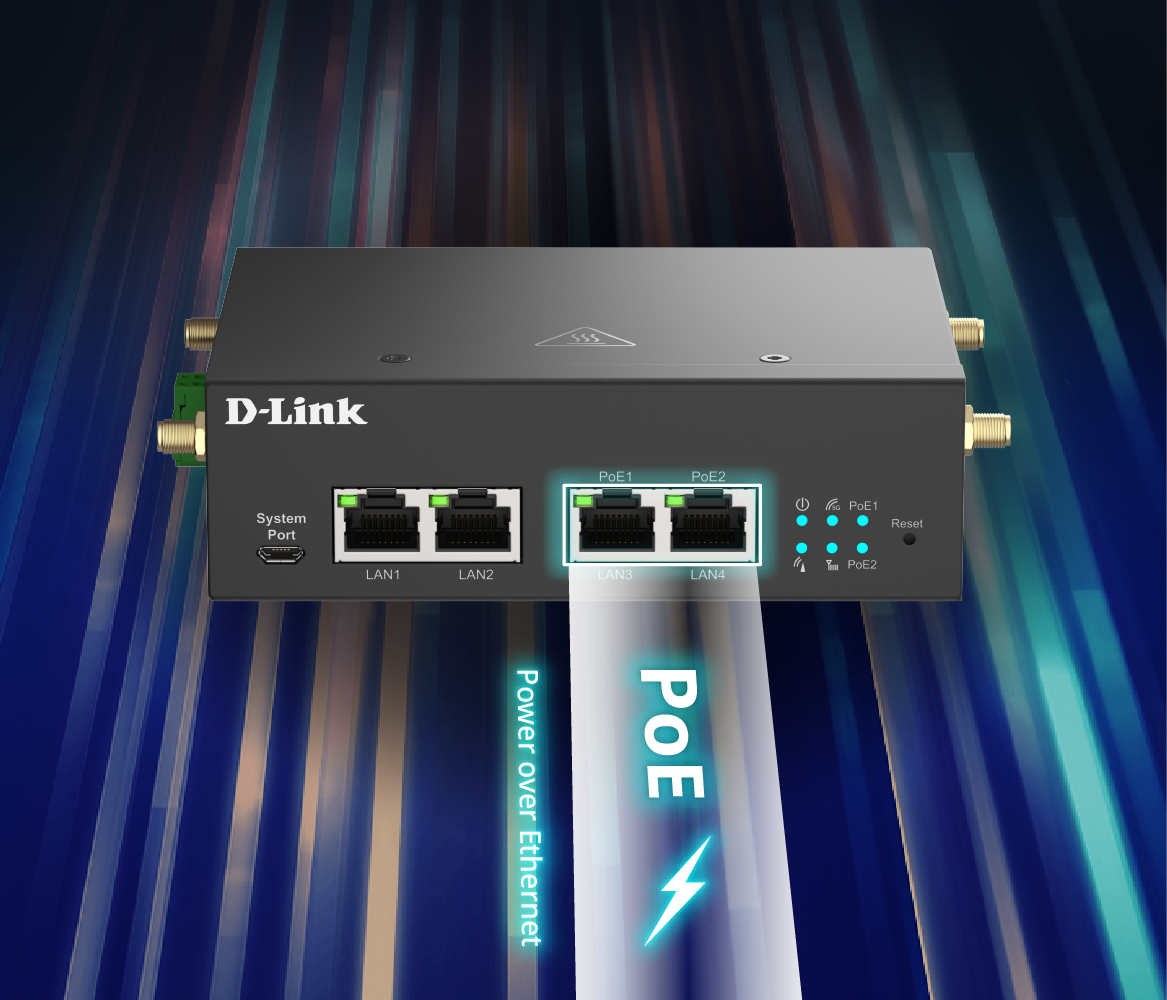

The 3GPP Release 16 sub-6 GHz modem is rated up to 3.4 Gbps down and 550 Mbps up in 5G NSA, 2.4 Gbps down and 900 Mbps up in 5G SA, and 1.6 Gbps down and 200 Mbps up on LTE (DL Cat 19/UL Cat 18). Four SMA (F) connectors support the included antennas. The built-in 4-port Gigabit switch has two standard LAN ports and two PoE LAN ports that act as 802.3af/at PSE. Each PoE port delivers up to 30 W from a 60 W total budget, which is enough for IP cameras, access points and sensors without a separate PoE switch. PD failure check detects and recovers unresponsive powered devices, and PoE scheduling manages energy use.
Security covers OpenVPN and WireGuard tunnels, IPS, port forwarding and MAC/IP filtering. Networking includes NAT, static routing, DHCP server and DDNS. Ping-query reboot, SMS event management, the web UI and D-Link D-ECS centralized management (M2M device licence required) support remote operations.
The corrosion-resistant zinc-plated steel case measures 149 x 99 x 40 mm and mounts on a wall or DIN rail; a DIN-rail kit is included. It runs from -30 to 70 °C on a 48-57 V DC terminal-block input. Certifications include CE, UKCA, FCC, PTCRB, VCCI, JATE and TELEC, with AT&T, Verizon and T-Mobile approvals.
Ideal for
- City surveillance with PoE IP cameras on poles and intersections
- Smart poles, traffic lights and traffic monitoring
- Digital signage and bus-stop information displays
- EV charging sites needing resilient dual-SIM connectivity
- Retail and small shops powering access points and NVRs over PoE
Specifications
WAN
- Cellular Mode
- NAT
- WAN Interface
- Cellular
- Connection Monitoring
- Ping query reboot
General
- MPN
- DWM-314-GP
- UPC
- 790069801327
- Brand
- D-Link
- Model
- DWM-314-GP
- Product Type
- 5G PoE Rugged Modem/Gateway (5G Multi-Connect PoE Router)
Network
- IP
- IPv4/IPv6
- Ddns
- DynDNS, No-IP, dynamic DO
- Routing
- Static routing
- LAN Vlan
- DHCP server
- PoE Functions
- PD failure check, PoE scheduling
Package
- Contents
- 4 SMA cellular antennas, RJ-45 cable, power adapter, 2-pin terminal block, DIN-rail kit
Physical
- Mounting
- Wall or DIN-rail mounting
- Enclosure
- Corrosion-resistant zinc-plated steel
- Dimensions
- 149 x 99 x 40 mm
Security
- Firewall
- IPS, port forwarding
- Access Control
- MAC/IP filtering
Services
- VPN Tunnel
- OpenVPN, WireGuard
- Event Management
- SMS event management
Monitoring
- Security
- VPN status
- Device Status
- Connection information
- Cellular Status
- Cellular status and signal quality
Performance
- LTE Throughput
- 1.6 Gbps DL / 200 Mbps UL
- 5G SA Throughput
- 2.4 Gbps DL / 900 Mbps UL
- 5G Nsa Throughput
- 3.4 Gbps DL / 550 Mbps UL
Administration
- System
- Firmware upgrade, reboot and reset
- Management
- D-Link D-ECS (licence fee applies)
- Maintenance
- Web UI
- SMS Management
- SMS
Certifications
- Approvals
- AT&T, Verizon, T-Mobile
- Certifications
- CE, UKCA, FCC, PTCRB, VCCI, JATE, TELEC
- Cyber Security
- EN 18031-1, EN 18031-2, EN 303645
Device Interface
- 5G Modes
- 5G SA and NSA
- Cellular
- 3GPP Rel. 16 5G NR sub-6 GHz; 4G LTE DL Cat 19/UL Cat 18
- Ethernet
- 4 x 10/100/1000 Mbps LAN (2 standard, 2 PoE+ PSE)
- SIM Slot
- 2 x Micro SIM with auto failover (optional factory-installed eSIM)
- PoE Ports
- 2 PoE ports
- Power Input
- DC 48-57 V terminal block
- PoE Standard
- 802.3af/at PoE out (PSE)
- PoE Power Budget
- 60 W total PoE budget
- Antenna Connectors
- 4 x SMA (F) cellular
- Max Power Consumption
- 63.5 W maximum
- PoE Max Power Per Port
- 30 W max per port
Available Versions
- EU Sku HW A1 LTE
- EU SKU (HW A1) LTE FDD B1/B3/B5/B7/B8/B20/B28/B32/B71; TDD B38/B40/B41/B42/B43
- EU Sku HW A1 5G NR
- n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78
- Global Japan Sku HW A2 A3 LTE
- Global SKU (HW A2) / Japan SKU (HW A3) LTE FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; TDD B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48
- Global Japan Sku HW A2 A3 5G NR
- Global SKU (HW A2) / Japan SKU (HW A3) 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
Operating Environment
- Storage Humidity
- 0% to 95% non-condensing
- Operating Humidity
- 10% to 95% non-condensing
- Storage Temperature
- -40 to 85 °C (-40 to 185 °F)
- Operating Temperature
- -30 to 70 °C (-22 to 158 °F)
Questions buyers ask
How much PoE power can the DWM-314-GP supply?
Two of its four Gigabit LAN ports are 802.3at PoE+ PSE ports. Each delivers up to 30 W, from a total PoE budget of 60 W.
Does it support SIM failover?
Yes. It has two Micro SIM slots with automatic failover. eSIM is also available as an option, but it must be requested at order time and is installed at the factory.
What VPN options are supported?
OpenVPN and WireGuard tunnels, alongside an IPS firewall, port forwarding and MAC/IP filtering.
What power input does it require?
DC 48-57 V through a 2-pin terminal block. A power adapter and terminal block are included in the box.
Can it be DIN-rail mounted?
Yes. It supports wall or DIN-rail mounting, and a DIN-rail kit is included.
