Lantronix E213 Global LTE-M Industrial IoT Router with Dual SIM, Wi-Fi 4 and RS-232 (E213F102S)

LTE-M / NB-IoTMPN E213F102S
  • Dual SIM
  • 2–4 × 100 Mb Ethernet
$120.51

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

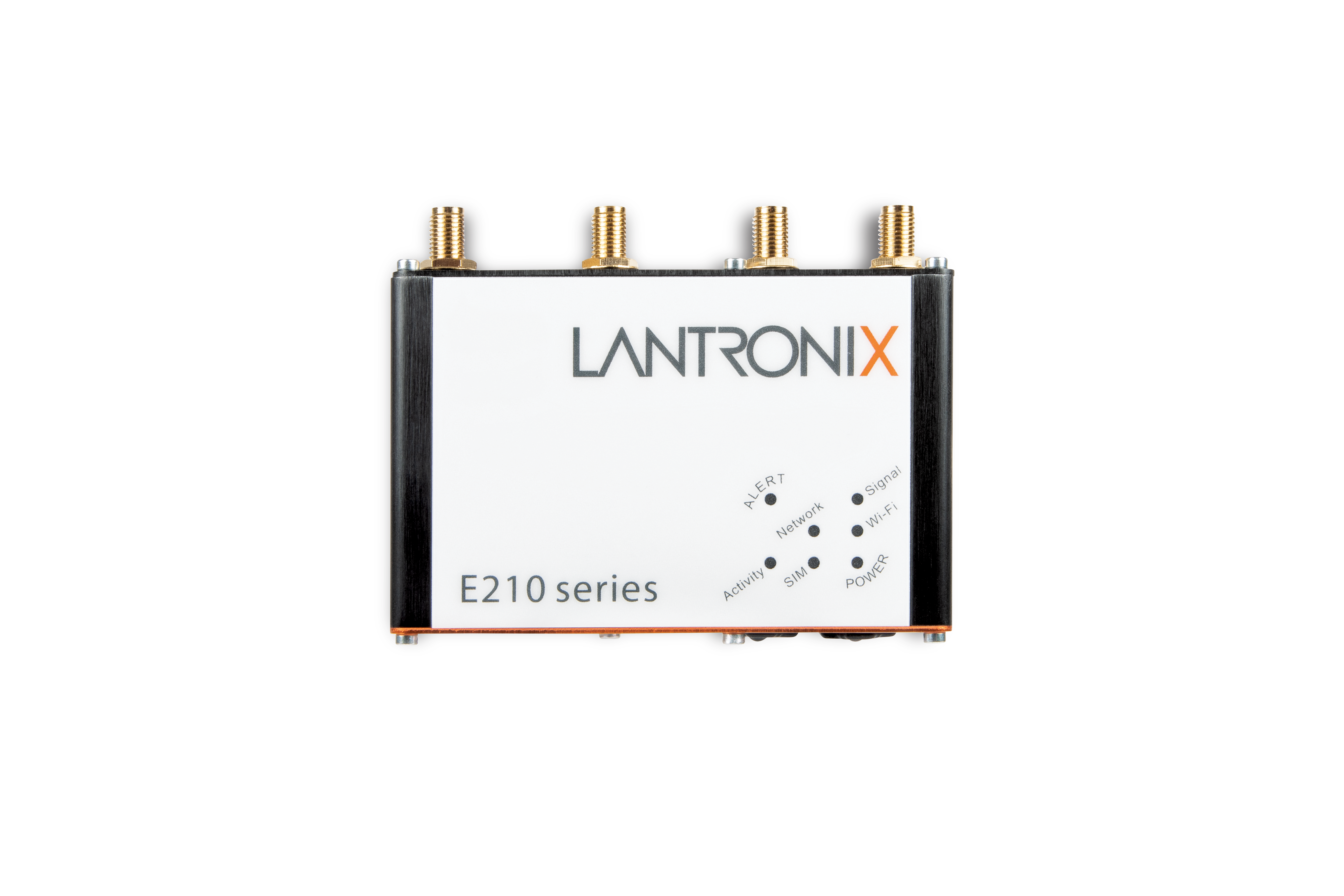

The Lantronix E213 (E213F102S) is the global LTE-M model of the E210 Series, a compact industrial-grade cellular router for IoT and enterprise sites. It covers 19 LTE-M bands with 2G fallback and adds dual SIM failover, two 10/100 Ethernet ports, Wi-Fi 4, RS-232 serial and two configurable I/Os. The Linux-based software adds VPN, fieldbus protocol conversion, edge processing and cloud management through Lantronix Percepxion or TR-069.

  • Global 4G LTE-M on bands B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66 with 2G fallback
  • Dual SIM (single standby) with failover or load balancing across cellular, Ethernet and Wi-Fi
  • Two 10/100 Ethernet ports, 1T1R Wi-Fi 4 client/AP, full RS-232 port and two configurable digital I/Os
  • Fieldbus protocol conversion: Modbus, DNP3, IEC 60870-5-104/101, plus Modbus to MQTT, Azure and Cumulocity
  • OpenVPN, IPsec (up to 4 channels), WireGuard, L2TP, GRE and zone-based firewall

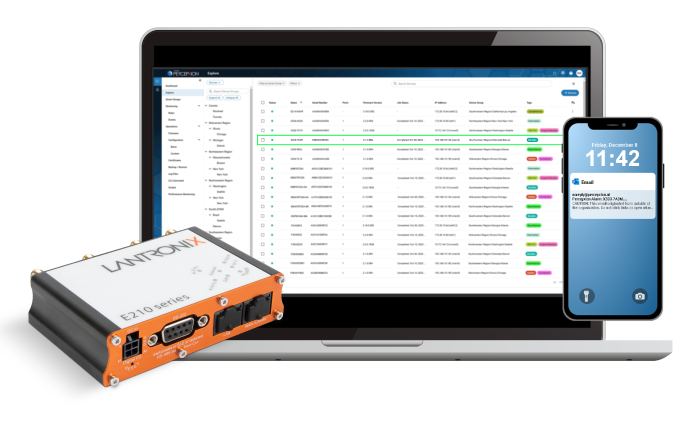

  • Cloud-ready with TR-069, MQTT/s, TLS 1.3 and Lantronix Percepxion device management
  • Linux edge platform with G520 SDK (Python, C/C++) and microSD data logging
  • Deploy one SKU across regions: a 19-band global LTE-M radio avoids stocking separate regional variants

The Lantronix E213F102S is the global LTE-M version of the E210 Series industrial router. It is built for low-bandwidth, always-on connections such as remote monitoring, smart building controllers, payment terminals and industrial automation, where long-term reliability matters more than raw throughput. A single SKU covers LTE-M bands B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28 and B66, with 2G fallback, so one part number can be used for multi-country rollouts.

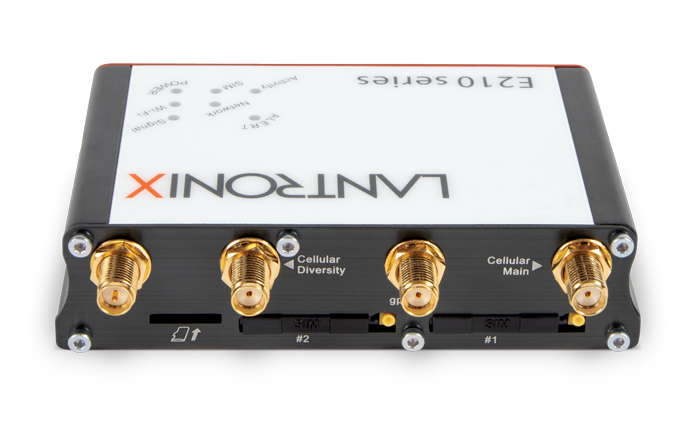

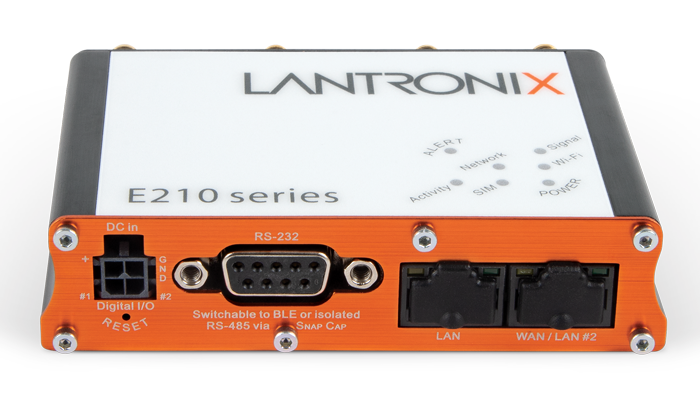

The router pairs dual SIM (single standby, two mini-SIM trays) with configurable failover or load balancing across cellular, Ethernet WAN and Wi-Fi. SIM switching can be based on quality of service, and you can script your own switching conditions. Local connections include two 10/100 Ethernet ports (one WAN, reconfigurable as a second LAN), 1T1R Wi-Fi 4 as client or access point, a full RS-232 port on a 9-pin sub-D, and two user-configurable digital I/Os. An optional SC485 Snap Cap converts the serial port to isolated RS-485 for cable runs up to 1.5 km.

On the software side, the E213 runs Lantronix's Linux-based ePack suite. It supports OpenVPN client/server, IPsec (up to 4 channels), WireGuard, L2TP, GRE and PPTP client, plus a zone-based firewall, VLAN and DMZ. Built-in converters translate Modbus RTU/TCP to IEC 60870-5-104, DNP3, MQTT, Azure and Cumulocity. You can build custom packages with the G520 SDK in Python or C/C++, and log data to microSD so the router only sends processed results upstream.

The unit has a brushed aluminum housing of 92.5 x 57.2 x 22.5 mm and weighs about 150 g. It accepts 8–32 V DC input and operates from -20 °C to +70 °C. Lantronix publishes a product brief, a quick start guide and user guides for the series.

Ideal for

  • Remote asset and utility monitoring over LTE-M with Modbus or DNP3 field devices
  • ATM, kiosk and point-of-sale connectivity with dual SIM failover
  • Smart building and smart city controllers needing Ethernet, serial and Wi-Fi in one enclosure
  • Multi-country IoT rollouts standardized on a single global part number
  • Industrial automation cells requiring edge data logging and protocol conversion

Specifications

I/O

Digital Input
0–1 V DC = 0; 1.4–36 V DC = 1
Digital Output
Open-collector digital output, 100 mA max, 36 V DC max
User Configurable I/O
2 user-configurable I/Os via the 4-pin Micro-Fit power connector (lower row)

Power

Input Voltage
8–32 V DC, with slow start
Power Off Timekeeping
Dedicated RTC, 100-day retention, approx. 15 mWh lithium manganese battery (not functional below -20 °C)

Serial

Rs232
Full RS-232 on 9-pin sub-D
Rs485
Isolated half/full-duplex RS-485 via SC485 Snap Cap (sold separately), 5-pin 3.5 mm COMBICON

General

MPN
E213F102S
UPC
783384244368
Brand
Lantronix
Model
E213 – Global
Region
Global variant
Series
E210 Series

Package

Shipping Weight
0.42 lbs

Cellular

SIM
Dual SIM, single standby (2x mini-SIM trays)
Fallback
2G fallback
Technology
4G LTE-M (Cat-M1)
LTE M Bands
LTE-M bands B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66

Ethernet

Ports
2 Ethernet ports
Speed
10/100 Base Ethernet
Configuration
1x LAN + 1x WAN (reconfigurable as second LAN), RJ-45 with two LEDs

Physical

Weight
Approx. 150 g
Material
Brushed aluminum alloy
Mounting
DIN rail mountable
Dimensions
92.5 x 57.2 x 22.5 mm (without connectors)
Status Leds
7 LEDs: Power, SIM, Wi-Fi, Activity, Network, Signal, Alert

Software

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, port forwarding, DDNS, DNS proxy, NAT, STP
Security
HTTPS UI, zone-based firewall, VLAN, DMZ, SIM PIN
Redundancy
Ethernet/cellular/Wi-Fi failover or load balancing
Resilience
Configurable network watchdog, internal application watchdog
VPN Tunneling
PPTP client, L2TP, OpenVPN, GRE, IPsec (4 channels), WireGuard
Wi-Fi Security
Client or AP (approx. 12 users); WEP, WPA, WPA2-PSK, WPA3-PSK
Administration
Web UI, setup wizard, console log viewer, config save/load, NTP, SMS/OTA config, TR-069
Device Management
Lantronix Percepxion or third-party platforms
Industrial Protocols
Modbus, DNP3, IEC 60870-5-101/104, MQTT, Azure, Cumulocity converters; I/O via SMS
Performance Fault Management
Real-time CPU/interface load, traffic analysis, ICMP, traceroute, NS lookup

CPU Memory

CPU
MIPS32 24KEc CPU at 580 MHz
RAM
128 MB DDR SDRAM
Flash
32 MB SPI flash
User Storage
microSD slot (card not provided)

Positioning

GPS
GPS available on G variants only

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-20 °C to +70 °C, up to 95% RH

Wi-Fi Bluetooth

Wi-Fi
1T1R Wi-Fi 4 via RP-SMA antenna connector
Wi-Fi Modes
Client or access point (approx. 25 users); WEP, WPA, WPA-PSK/WPA2-PSK

Questions buyers ask

Which LTE bands does the E213F102S support?

LTE-M on B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28 and B66, with 2G fallback.

Does the E213 include GPS?

No. In the E210 Series, GPS is available only on the G variants. The E213F102S is not a G variant.

Can I connect RS-485 devices?

Yes. The built-in port is full RS-232 on a 9-pin sub-D. The SC485 Snap Cap, sold separately, converts it to an isolated half- or full-duplex RS-485 port and supports cable runs up to 1.5 km.

What power input does it need?

It accepts 8–32 V DC with slow start. Lantronix offers the P24E2 12 V 1.25 A adapter with a 4-pin connector and US plug, and the MF11 accessory bundle for the E213 with a KDC44 power cord, A31M0 and A21H0 antennas and a BR551 DIN rail clip.

Which VPN protocols are supported?

OpenVPN client/server/passthrough, IPsec with up to 4 channels, WireGuard, L2TP, GRE and PPTP client.
