Lantronix E228G LTE Cat-4 Industrial IoT Router, Asia Pacific Bands (E228G004S)

4G LTEMPN E228G004S
  • Dual SIM
  • 1 × 100 Mb Ethernet

Pricing on request

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

Request a quote

or email info@cloudcarenetworks.com

Datasheets & documents

Overview

The Lantronix E228G004S is the Asia Pacific variant of the E220 Series industrial router. It connects on LTE Cat-4 bands 1, 3, 5, 7, 8 and 28, with 3G fallback on bands 1, 5 and 8 and 2G fallback on bands 3 and 8. This band set targets Asia Pacific networks rather than US carriers. It pairs 2T2R Wi-Fi 4 with WAN/LAN Ethernet, isolated RS-485 and two digital I/Os, and runs on a wide 10.8–60 V DC supply.

  • LTE Cat-4 on Asia Pacific bands B1, B3, B5, B7, B8 and B28, with 3G (B1, B5, B8) and 2G (B3, B8) fallback
  • 2T2R 802.11b/g/n Wi-Fi 4 at 2.4 GHz, up to 300 Mbps, with multiple SSIDs and approx. 40 users
  • One LAN and one WAN 10/100 Ethernet port, with WAN switchable to LAN
  • Isolated RS-485 (full/half duplex) and two digital I/Os
  • Roadworthy 10.8–60 V DC input compliant with ISO 7637-2 and ISO 21848
  • VPN, zone-based firewall, failover and load balancing, and OTA/SMS/TR-069 management
  • Keep Asia Pacific sites connected with cellular as the primary link or as automatic failover behind a wired line
  • Prioritize bandwidth for critical equipment with configurable load balancing

The Lantronix E228G004S is an Asia Pacific market router from the E220 Series, built for mission-critical M2M and enterprise applications. Its LTE Cat-4 radio covers bands B1, B3, B5, B7, B8 and B28, with 3G fallback on bands 1, 5 and 8 and 2G fallback on bands 3 and 8. These bands suit Asia Pacific deployments, and the unit is not intended for US carrier networks. Lantronix currently lists the E220 Series under Last Time Buy, which matters when planning long-term rollouts.

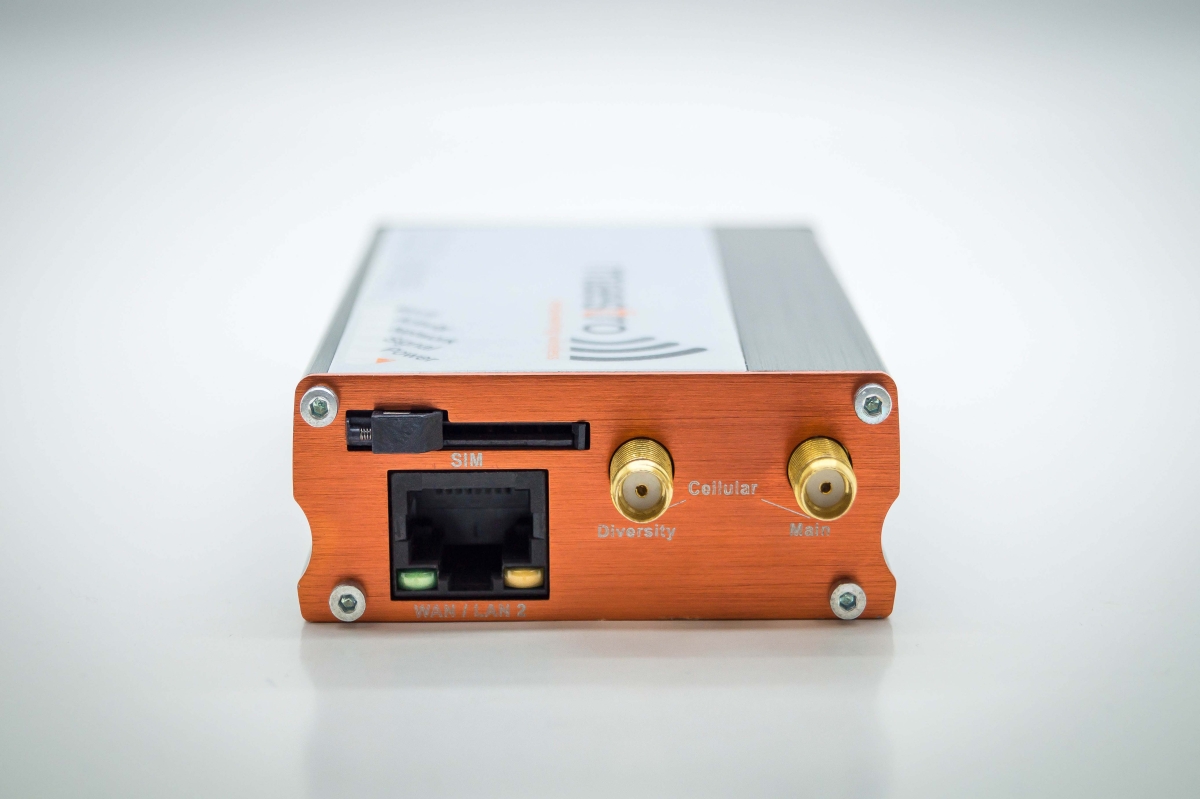

Cellular can serve as the primary link or as automatic failover behind a wired connection. Lantronix quotes failover speeds of up to 150 Mbps on LTE Cat-4. There are two SMA cellular antenna connectors, one LAN port and one WAN port (10/100, RJ-45), and the WAN port can switch to a second LAN. The 2T2R 802.11b/g/n Wi-Fi radio on 2.4 GHz uses two RP-SMA connectors, delivers up to 300 Mbps, and supports client or access point mode with multiple SSIDs for about 40 users. Load balancing lets you allocate bandwidth to critical equipment. An isolated RS-485 port with full- and half-duplex modes and two digital I/Os connect sensors and third-party devices.

The OpenWrt-based ePack software provides OpenVPN client/server, IPsec, L2TP, GRE and PPTP client. It also includes a zone-based firewall, VLAN, DMZ, HTTPS management, SIM PIN, and Modbus RTU-to-TCP with Modbus master. Units can be updated and configured over the air or by SMS, managed via TR-069, and monitored with real-time CPU and interface analysis.

The brushed-aluminum, DIN-rail-mountable housing measures 61.25 x 85.75 x 24.5 mm and operates from -30 °C to +70 °C. Its roadworthy 10.8–60 V DC input complies with ISO 7637-2 and ISO 21848. Lantronix publishes an E220 Series User Guide and product brief.

Ideal for

  • Asia Pacific industrial sites needing LTE as primary or failover WAN
  • Remote telemetry with RS-485 Modbus sensors and meters
  • Vehicle and transport installations on 12/24 V power
  • Branch and kiosk connectivity with Wi-Fi access for local devices

Specifications

Power

Compliance
Compliant with ISO 7637-2:2011 and 2004, ISO 21848:2005
Main Source
Roadworthy 10.8 V ~ 60 V DC on a 2-pin Micro-Fit 3.0 connector
Consumption Idle
1.10 W (worst case)
Consumption TX Max
Communication (Tx max.): 6.18 W (worst case)
Consumption Standby
2.63 W (worst case)

General

MPN
E228G004S
Brand
Lantronix
Model
E228
Series
E220 Series (Last Time Buy)
Regional Variant
Asia Pacific

Cellular

SIM
Mini SIM 1.8 V / 3.0 V; optional dual SIM operation via a factory-fitted MFF SIM
Uplink
Up to 50 Mbps (LTE Cat 4)
Downlink
Up to 150 Mbps (LTE Cat 4)
LTE Bands
LTE Cat 4: bands 1, 3, 5, 7, 8, 28
Technology
4G LTE Cat 4
2g Fallback
bands 3, 8
3g Fallback
bands 1, 5, 8
Antenna Connectors
SMA antenna connector x 2 (E228 models)

Hardware

Weight
Approx. 152 g
Material
Brushed aluminium alloy, DIN rail mountable
Dimensions
61.25 x 85.75 x 24.5 mm without connectors
Status Leds
6 LEDs: Alert / Power / Cellular signal, network and activity / Wi-Fi
Storage Temperature
-40 °C ~ +85 °C; up to 95% RH
Operating Temperature
-30 °C ~ +70 °C; up to 95% RH

Software

VPN
PPTP client, L2TP, OpenVPN client/server/pass-through, GRE, IPsec
Routing
DHCP, static routing, port forwarding, traffic routing, static/dynamic DNS, DNS proxy, NAT, STP
Security
Zone-based firewall, VLAN, DMZ, HTTPS local and remote connection, SIM PIN
Redundancy
Ethernet, cellular, Wi-Fi – configurable as failover or load balancing
Resilience
Configurable network connectivity watchdog, internal application watchdog
Wi-Fi Modes
Client or Access Point (approx. 40 users), multiple SSID, WEP, WPA, WPA-PSK / WPA2-PSK
M2m Services
ConsoleFlow secure cloud platform for remote IoT gateway management
Administration
Web-based UI, set-up wizard, console log viewer, save/load configuration, NTP, SMS/OTA remote configuration, TR-069 capable
Industrial Protocols
Modbus RTU to TCP support, Modbus master
Performance Fault Management
Real-time processor load and interface (WAN/LAN/Wi-Fi) traffic analysis, ICMP, trace-route, NS lookup

CPU Memory

RAM
128 MB (1 Gbit SDRAM)
Processor
MIPS32 24KEc CPU at 580 MHz
Operating System
OpenWrt

Interfaces

LAN
RJ45 connector with Tx/Rx LEDs (10/100BASE-T)
WAN
RJ45 connector with Tx/Rx LEDs; switchable to LAN 2
Wi-Fi
IEEE 802.11b/g/n 2T2R 2.4 GHz (max. 300 Mbps); RP-SMA antenna connector (50 Ω) x 2
Rs232
No RS-232
Rs485
RS-485 full- and half-duplex, 6 kV contact / 8 kV air discharge protection, 5-pin 2.5 mm pitch COMBICON
SD Card
No SD card
Digital I/O
input detection 5 V ~ 48 V DC; open-collector output max 200 mA; 3-pin 2.5 mm COMBICON with common ground
Reset Button
Short / long (≥10 s) press for soft / hard reset

Questions buyers ask

Can I use the E228G004S on US carrier networks?

This is the Asia Pacific variant, with LTE bands 1, 3, 5, 7, 8 and 28 and 3G/2G fallback. It is designed for Asia Pacific networks, not US carriers.

What cellular speeds does it support?

It uses LTE Cat-4, which provides up to 150 Mbps downlink and 50 Mbps uplink.

Does it have a serial port?

Yes. It has an isolated RS-485 port supporting full- and half-duplex operation, and it supports Modbus RTU to TCP and Modbus master. It does not have RS-232.

What power input does it accept?

A roadworthy 10.8 to 60 V DC input on a 2-pin Micro-Fit 3.0 connector, compliant with ISO 7637-2 and ISO 21848.

Is the E220 Series still in production?

Lantronix lists the E220 Series under Last Time Buy, so plan long-term deployments accordingly.
