Honeywell ScanPal EDA10A 5G Rugged Tablet with S0703 Standard-Range Imager, 8GB/128GB

5GMPN EDA10A-11BE94N21UK
  • 128 GB
  • 8 GB
  • Rugged
$1,332.62$1,467.97Save $135.35

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

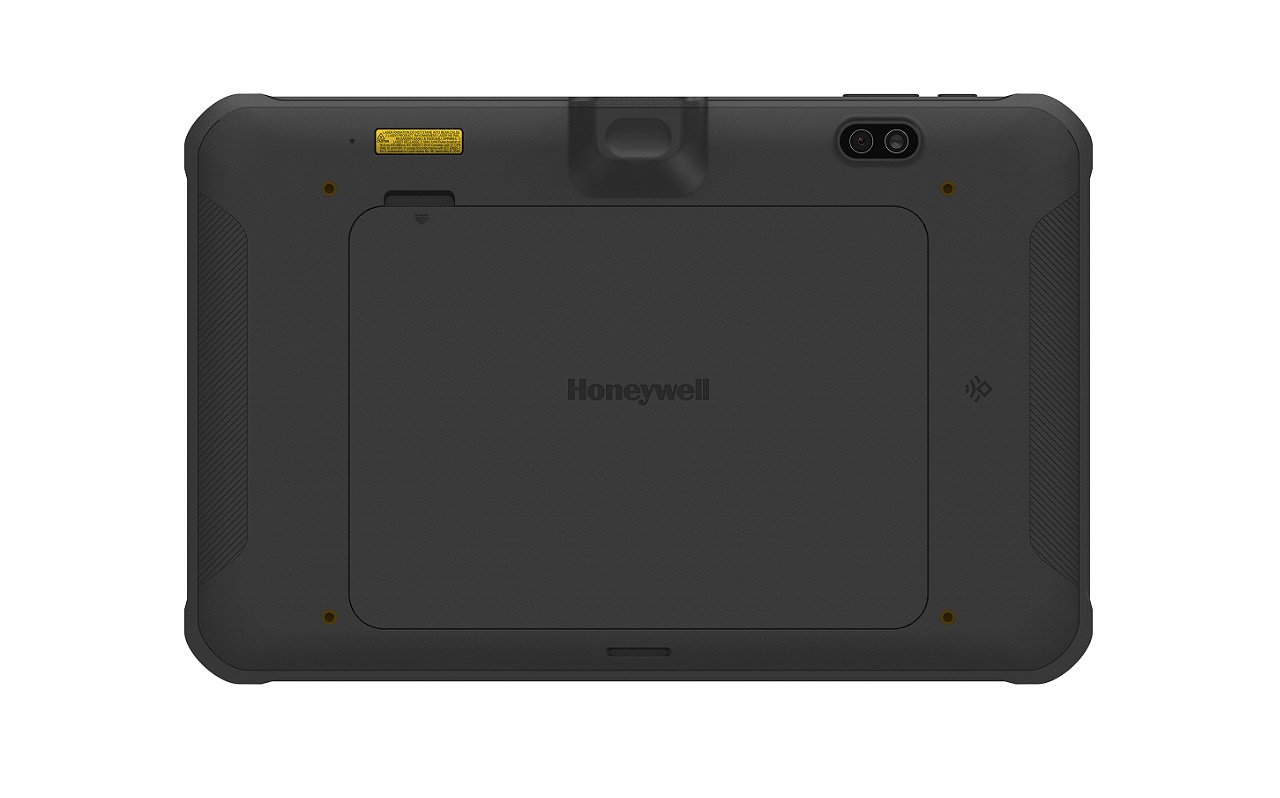

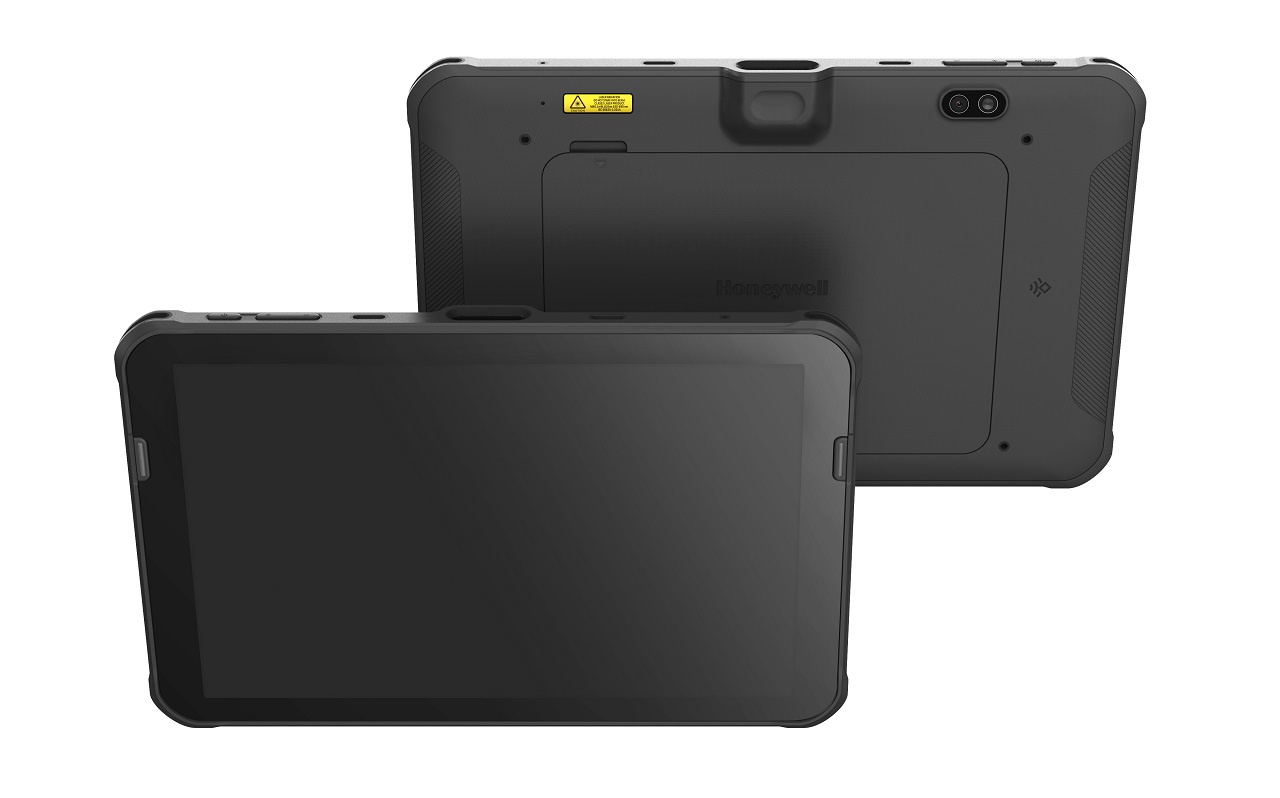

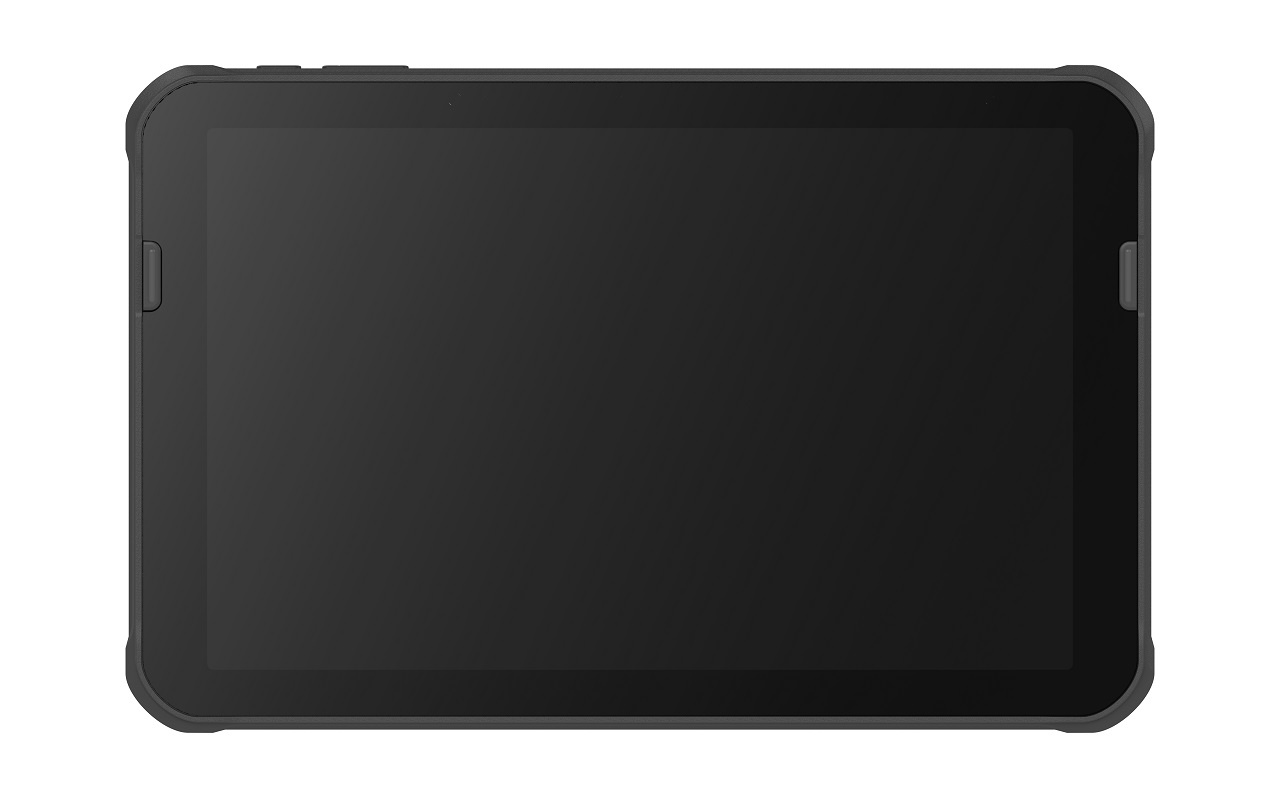

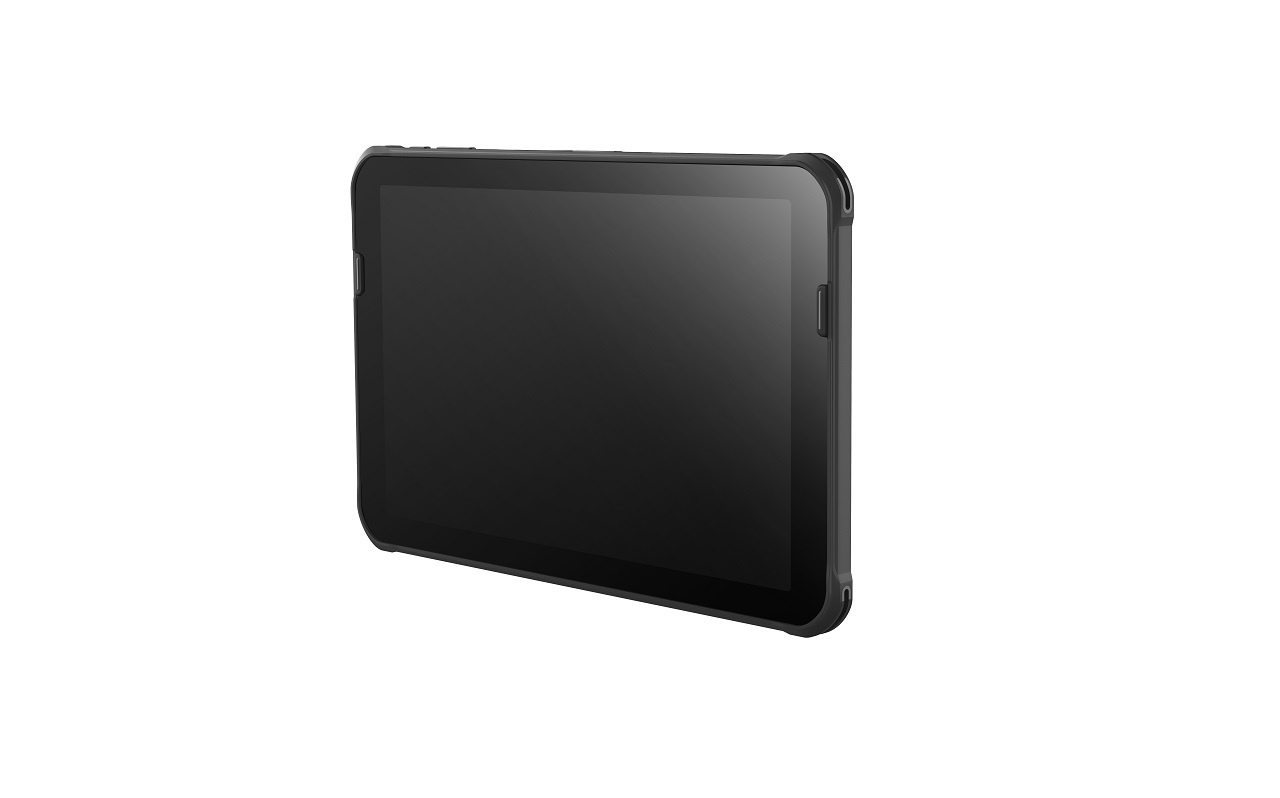

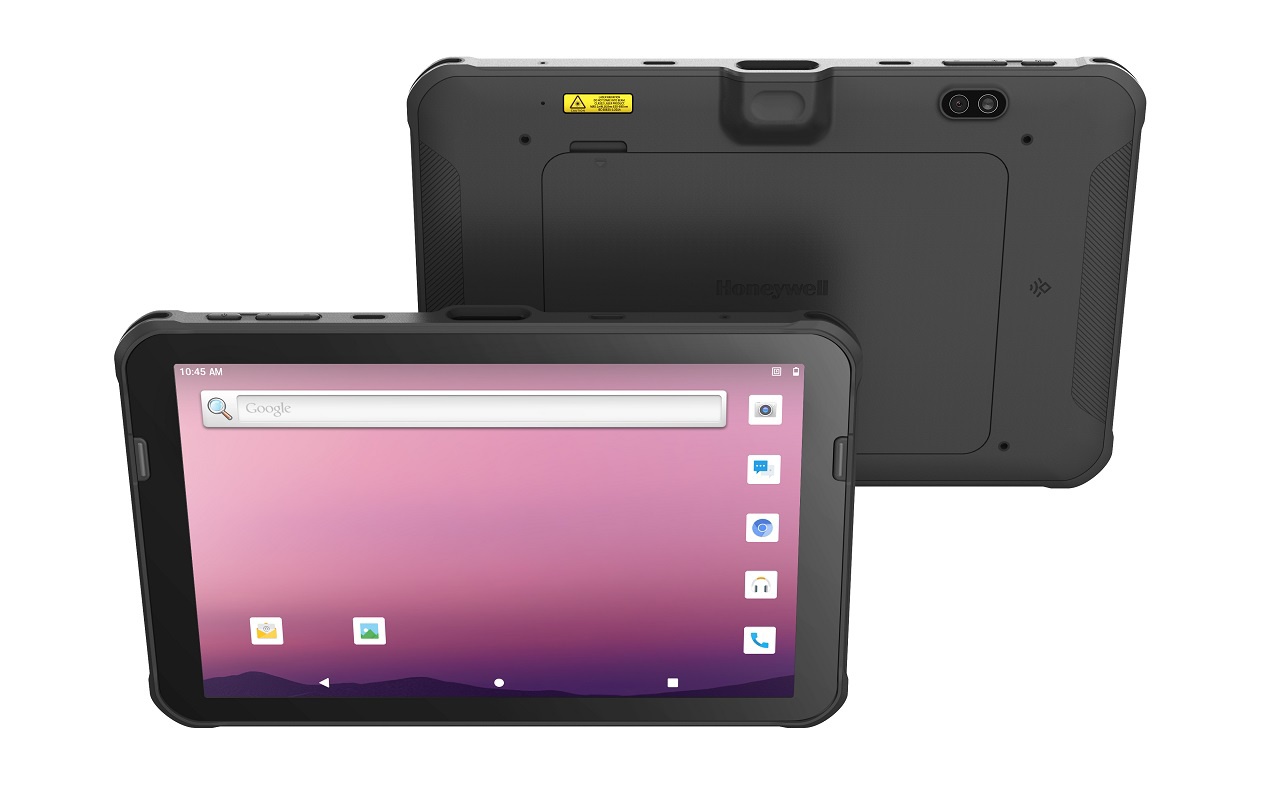

The Honeywell ScanPal EDA10A (EDA10A-11BE94N21UK) is a lightweight 10.1-inch rugged Android tablet with 5G, Wi-Fi 6 and a built-in Honeywell S0703 standard-range imager for 1D and 2D barcodes. With 8 GB RAM, 128 GB flash, a Snapdragon octa-core processor, IP65 sealing, MIL-STD-810H drop ratings and a hot-swappable 8,000 mAh battery, it serves as a full-screen scanning terminal for retail, warehouse, manufacturing and field service.

  • Integrated Honeywell S0703 Slim Imager, standard range (0-1 m), 1D/2D barcode symbologies
  • 5G cellular plus Wi-Fi 6 (802.11ax, 2x2 MU-MIMO), Bluetooth 5.1 and NFC
  • Qualcomm Snapdragon SM4350-AC octa-core up to 2.2 GHz with 8 GB RAM and 128 GB flash
  • 10.1-inch 1920 x 1200 Full HD display, 550 nits, Gorilla Glass 5
  • IP65 sealing, multiple 1.3 m drops per MIL-STD-810H (2.0 m with protective boot)
  • Removable, hot-swappable 8,000 mAh Li-Ion battery rated for more than 12 hours
  • 16 MP autofocus rear camera and 8 MP front camera
  • Scan and act on one screen: read 1D and 2D barcodes, even damaged ones, and work with the results on a 10.1-inch Full HD display

The Honeywell ScanPal EDA10A is a rugged yet lightweight 10.1-inch Android tablet for mobile business users in retail, warehouse, manufacturing and field service. This configuration, EDA10A-11BE94N21UK, combines 5G and Wi-Fi 6 with 8 GB RAM, 128 GB flash and the Honeywell S0703 Slim Imager, a standard-range (0-1 m) engine that reads 1D and 2D barcode symbologies, including damaged codes. Dedicated left and right scan keys on the side and a touch scan key on the bottom edge put scanning under either thumb, with red/green scan indication.

A Qualcomm Snapdragon SM4350-AC octa-core processor running at up to 2.2 GHz powers a 1920 x 1200 Full HD display rated at 550 nits and protected by Gorilla Glass 5. The multi-touch capacitive screen supports glove, wet-hand and oily-hand modes. Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with 2x2 MU-MIMO and WPA3, Bluetooth 5.1 and NFC round out connectivity. There is a 16 MP autofocus rear camera for documenting work and an 8 MP front camera for video calls.

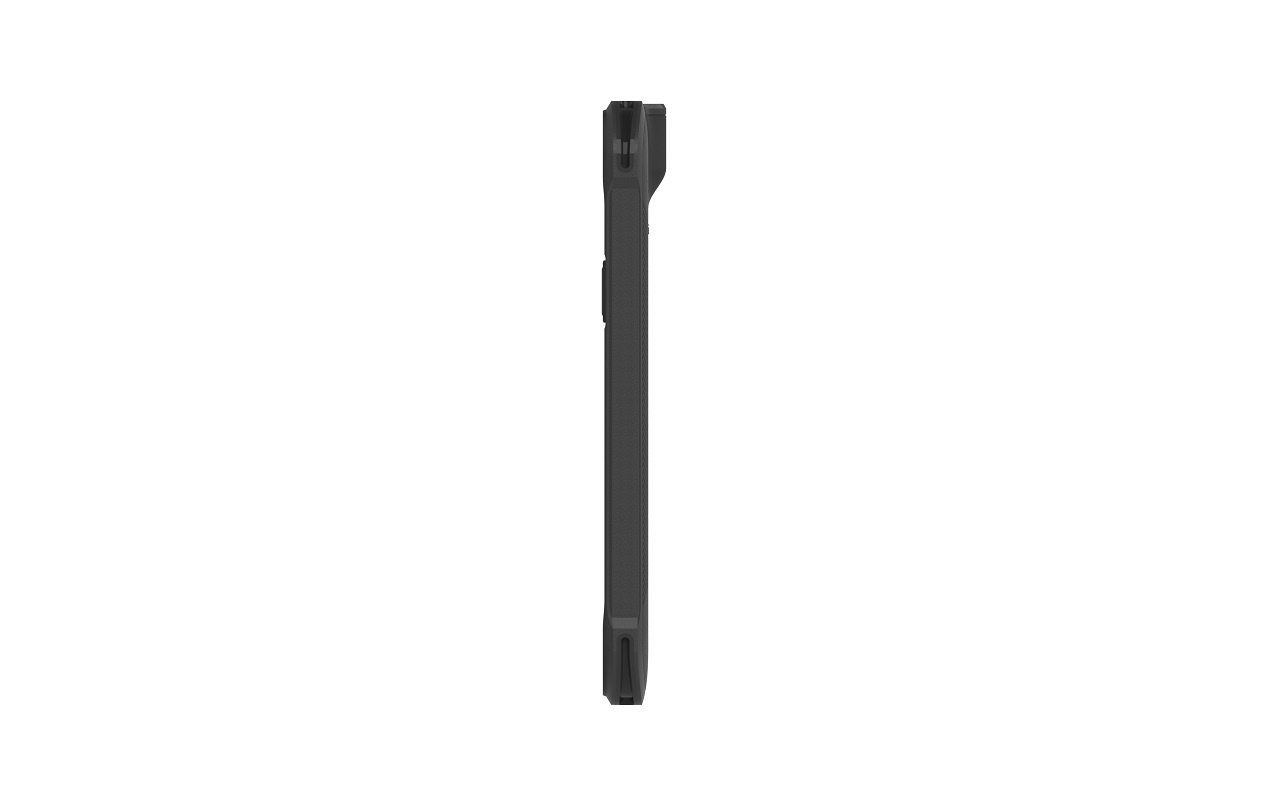

The tablet weighs 674 g (1.49 lb) and measures 11.7 mm thick. It is IP65 sealed and rated for multiple 1.3 m (4.3 ft) drops to concrete per MIL-STD-810H, or 2.0 m (6.6 ft) with the optional protective boot. It also meets MIL-STD-810H vibration requirements for vehicle mounting. The removable, hot-swappable 8,000 mAh Li-Ion battery is rated for more than 12 hours of runtime.

Honeywell includes Device Client Pack software, Smart Talk unified communications with push-to-talk, and certification with third-party MDM solutions. The display dock and split-screen mode turn the EDA10A into a desktop workstation with keyboard and mouse for guiding production lines. It is backed by a one-year factory warranty.

Ideal for

  • Retail inventory counts, price checks and line-busting with barcode scanning
  • Warehouse receiving, picking and cycle counting on a large-screen scanner
  • Manufacturing work-in-progress tracking and docked split-screen production guidance
  • Field service parts and asset scanning over 5G
  • Vehicle-mounted logistics terminal with scanning and dispatch apps

Specifications

Power

Battery
8,000 mAh hot-swappable Li-Ion
Runtime
More than 12 hours
Charging Time
<5.5 h (10W), 2.5 h (QC/PD)

Camera

Rear Camera
16 MP autofocus rear camera
Front Camera
8 MP front camera

Display

Size
10.1 in (25.7 cm), Gorilla Glass 5
Keypad
Full touchscreen, no keyboard
Backlight
LED backlight
Brightness
550 nits
Resolution
1920 x 1200 Full HD
Touchscreen
Multi-touch capacitive, glove/wet/oily hand modes

General

MPN
EDA10A-11BE94N21UK
Brand
Honeywell
Model
ScanPal EDA10A Tablet
Industry
Aerospace, healthcare, logistics and warehouses, manufacturing, retail
Platform
ScanPal platform
Application
Field service, retail, warehouse
Environment
Standard environment

Network

NFC
NFC
Wlan
Wi-Fi 6, 802.11 a/b/g/n/ac/ax
Wlan Eap
TLS, PEAP, TTLS, PWD, LEAP; CCX compliant
Bluetooth
Bluetooth 5.1 with LE
Wlan Security
WEP, WPA/WPA2, WPA3
Additional Wlan Features
802.11 d/e/h/i/k/r/v/w/mc, 2x2 MU-MIMO

Package

IN Box
Tablet, battery, USB cable

Cellular

Generation
5G cellular
Connectivity
Wi-Fi and cellular

Hardware

Sensors
Accelerometer, gyroscope, compass, light, proximity
Hard Keys
5 side keys plus 1 bottom scan touch key
Real Time Clock
RTC with 5 min super-cap backup
Battery Indicator
RGB battery status LED
Connection Interface
6-pin bottom connector; USB 3.0 Type-C

Physical

Weight
674 g (1.49 lb)
Dimensions
257 x 166.5 x 11.7 mm (10.12 x 6.56 x 0.46 in)

Scanning

Scan Distance
Standard range (0-1 m)
Scan Indication
Red/green scan LED
Scan Engine Type
Imager
Decode Capability
1D and 2D barcodes
Scan Engine Model
Honeywell S0703 Slim Imager
Scan Engine Range
Standard range

Software

OS
Android 12, upgradeable to Android 14
Localization
Worldwide English

Warranty

Duration
One-year factory warranty

Performance

RAM
8 GB RAM
Storage
128 GB flash
Processor
Snapdragon SM4350-AC octa-core, up to 2.2 GHz

Environmental

Esd
±8 kV ESD
Drop
1.3 m drops; 2.0 m with boot (MIL-STD-810H)
Humidity
5% to 95% non-condensing
IP Rating
IP65
Vibration
MIL-STD-810H vibration
Storage Temperature
-30°C to +70°C (-22°F to 158°F)
Operating Temperature
-20°C to +50°C (-4°F to +122°F)

Questions buyers ask

What barcodes can the EDA10A-11BE94N21UK read?

It uses the Honeywell S0703 Slim Imager, a standard-range engine (0-1 m) that decodes 1D and 2D barcode symbologies, including damaged codes.

How is scanning triggered?

Dedicated left and right scan keys sit on the side of the tablet, and a touch key on the bottom edge also triggers scanning. A red/green LED confirms scan status.

Does this model have 5G?

Yes. This configuration includes 5G cellular alongside Wi-Fi 6 (802.11ax with 2x2 MU-MIMO), Bluetooth 5.1 and NFC.

Can the battery be changed during a shift?

Yes. The 8,000 mAh Li-Ion battery is removable and hot-swappable. Honeywell rates it for more than 12 hours of runtime, depending on usage.

Which Android version does it run?

The EDA10A ships with Android 12 and is listed by Honeywell as upgradeable to Android 14, pending confirmation from Qualcomm and Google.
