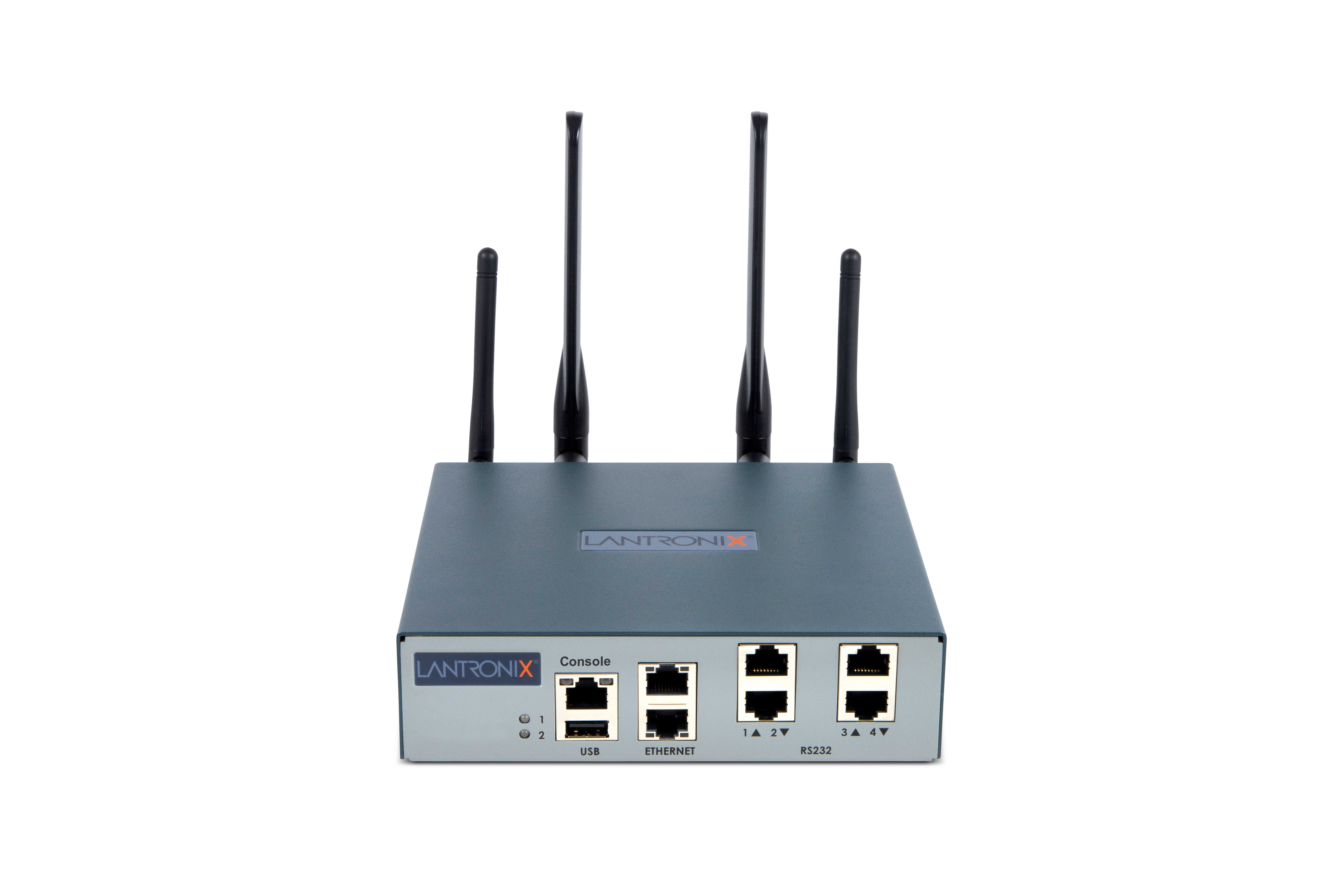

Lantronix EMG 7500 Edge Management Gateway with 4 RS-232 Serial Ports and LTE Cellular (EMG751001S)

4G LTEMPN EMG751001S
  • 2–4 × 1 Gb Ethernet
$876.92$1,000.00Save $123.08

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Lantronix EMG 7500 (EMG751001S) is a compact edge management gateway and console server for branch offices, retail stores and unmanned sites. This configuration has 4 RJ45 RS-232 serial device ports, 2 Gigabit Ethernet ports and an internal LTE cellular radio with a microSIM slot. When the primary network is congested or down, the gateway fails over to LTE so you can still reach routers, switches and firewalls, and it fails back when the primary link returns. It is managed with Lantronix Percepxion for Networking and carries a 3-year warranty.

  • 4 RJ45 RS-232 serial device ports (300 to 921600 bps) with software-programmable reversible pinouts
  • 2 Gigabit Ethernet RJ45 ports for in-band access
  • Internal LTE cellular radio with microSIM slot for automatic out-of-band failover and failback
  • FIPS 140-2 compliant cryptography (Certificate #2398) and TLS v1 to v1.3
  • Remote authentication through LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS
  • Compatible with Lantronix Percepxion for Networking central management and zero-touch provisioning
  • Secure REST APIs, Python scripting and Cisco-compatible IP SLA performance monitoring
  • Reach console ports on routers, switches and firewalls over LTE when the primary WAN is down, so fewer outages need a truck roll

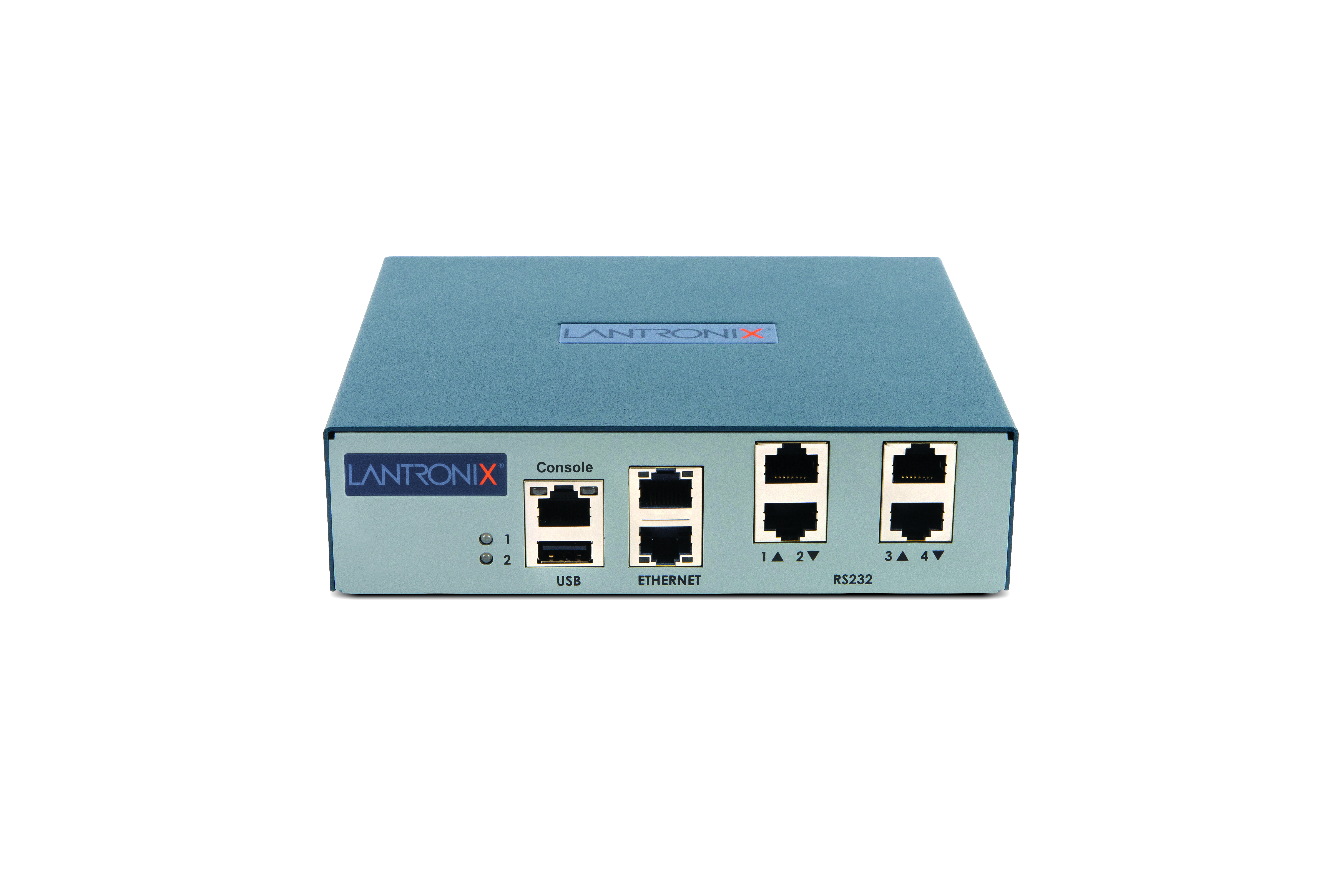

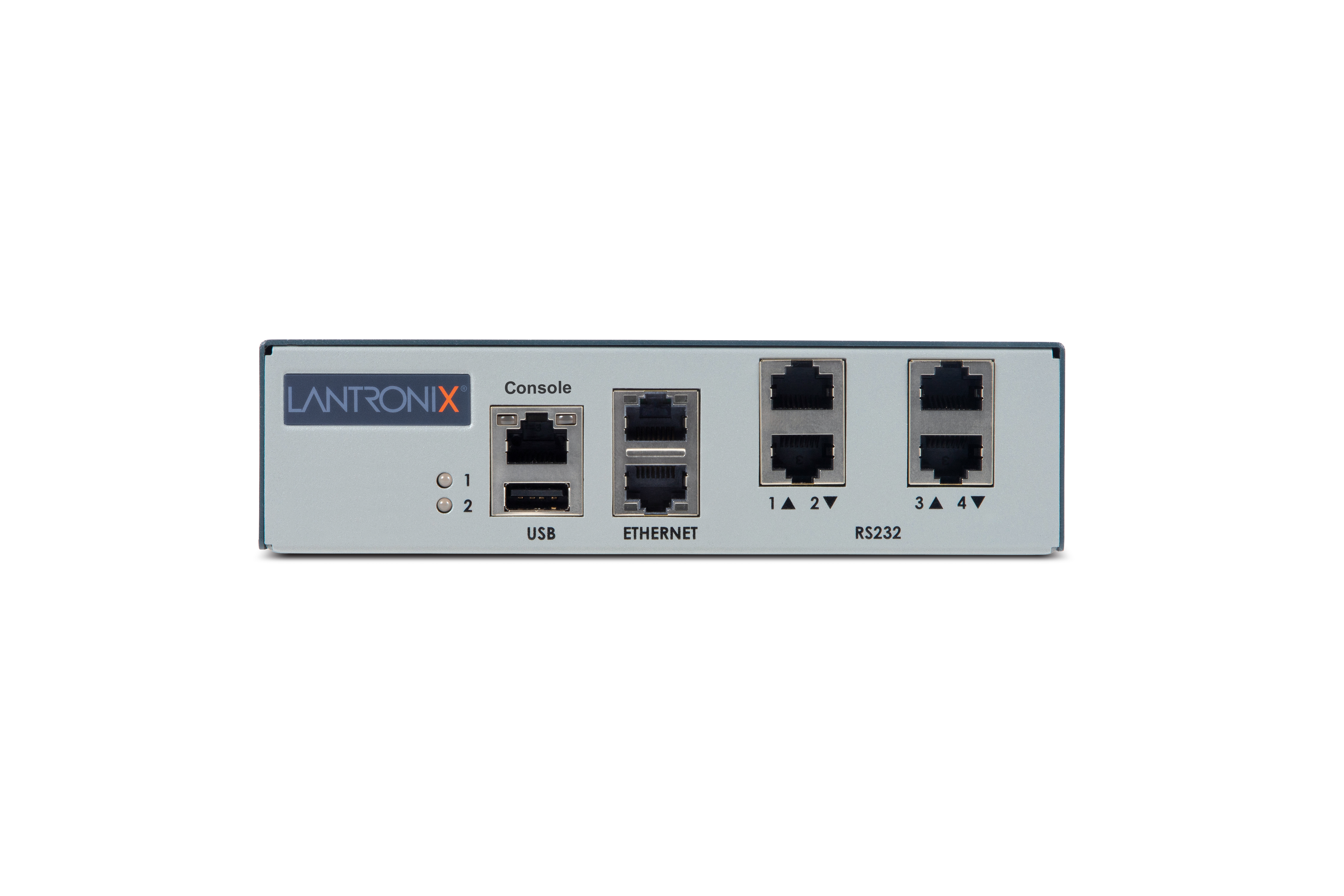

The Lantronix EMG 7500 is the compact member of the EMG family of edge management gateways. It is built for branch offices, retail stores and unmanned locations such as ATMs and cell towers, where space and cost matter and only a few devices need console access. The EMG751001S configuration provides 4 RJ45 RS-232 serial device ports running at 300 to 921600 bps, 2 Gigabit Ethernet RJ45 ports, an RJ45 console port, a USB Type A host port and a microSD slot, in a 163 x 145 x 43 mm chassis.

Out-of-band access runs over the internal LTE cellular radio. An automatic failover and failback mechanism keeps your network equipment reachable when the primary connection is congested or unresponsive. Lantronix states that all global carriers are supported, with Private APN, VPN access and public or private IP addressing. Cisco-compatible IP SLA simulation traffic monitors network performance so problems are caught before a site goes dark.

Security covers TLS 1.0 through 1.3, a packet-filtering firewall, per-port user permissions, and remote authentication through LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS. Cryptography is FIPS 140-2 compliant (Certificate #2398). Each port buffers 256 KB and can log to local files, syslog, USB, SD card or an NFS share, and character-string recognition can trigger email, SNMP or syslog alerts.

For fleet operations, the gateway works with Lantronix Percepxion for Networking, which provides centralized monitoring, zero-touch provisioning and iOS and Android app access. Secure REST APIs and Python scripting support automation. The unit ships with a desktop power supply, also accepts an external 9-30 VDC feed, and draws 20 W. The product brief, quick start guide and user guide are available.

Ideal for

  • Out-of-band console access to routers, switches and firewalls in retail stores
  • LTE backup management path for small branch office network closets
  • Remote recovery of equipment at unmanned sites such as ATMs and cell towers
  • Centralized monitoring of distributed edge sites through Percepxion for Networking
  • Environmental and power monitoring of small equipment rooms with supported sensors

Specifications

Power

Power Input
Desktop power supply included, or external 9-30 VDC
Power Usage
20 W

Memory

Dram
1/2 GB internal DRAM
Flash
1/2 GB internal NAND flash

General

MPN
EMG751001S
UPC
783384243422
Brand
Lantronix
Model
Lantronix EMG 7500 Edge Management Gateway
Product Type
Out-of-Band Console Management Server
Configuration
RS-232 Serial 4-Port, LTE Cellular

Cellular

SIM
microSIM slot
Failover
Automatic failover and failback to 4G/LTE
Technology
4G LTE
Carrier Services
Global carriers; Private APN, VPN, public/private IP

Physical

Mounting
Front-mid-rear mounting brackets
Dimensions
163 x 145 x 43 mm (6.42 x 5.71 x 1.7 in) L x W x H
Shipping Weight
4.80 lb shipping weight

Warranty

Warranty
3-year limited warranty

Protocols

Dns
DNS name resolution
VPN
StrongSwan IPsec VPN client
Ipv6
IPv6 addressing
Routing
RIP and RIPv2
Time Sync
NTP time synchronization
File Transfer
FTP, TFTP, SFTP, SCP client
IP Assignment
DHCP and BOOTP
Connection Protocols
SSH, TLS, SSL, Telnet, TCP, UDP, PPP (PAP/CHAP), NFS, CIFS

Interfaces

Front Ios
4 RJ45 RS-232 serial ports, 300 to 921600 bps
Back Logging
1 microSD slot
Back Connectivity

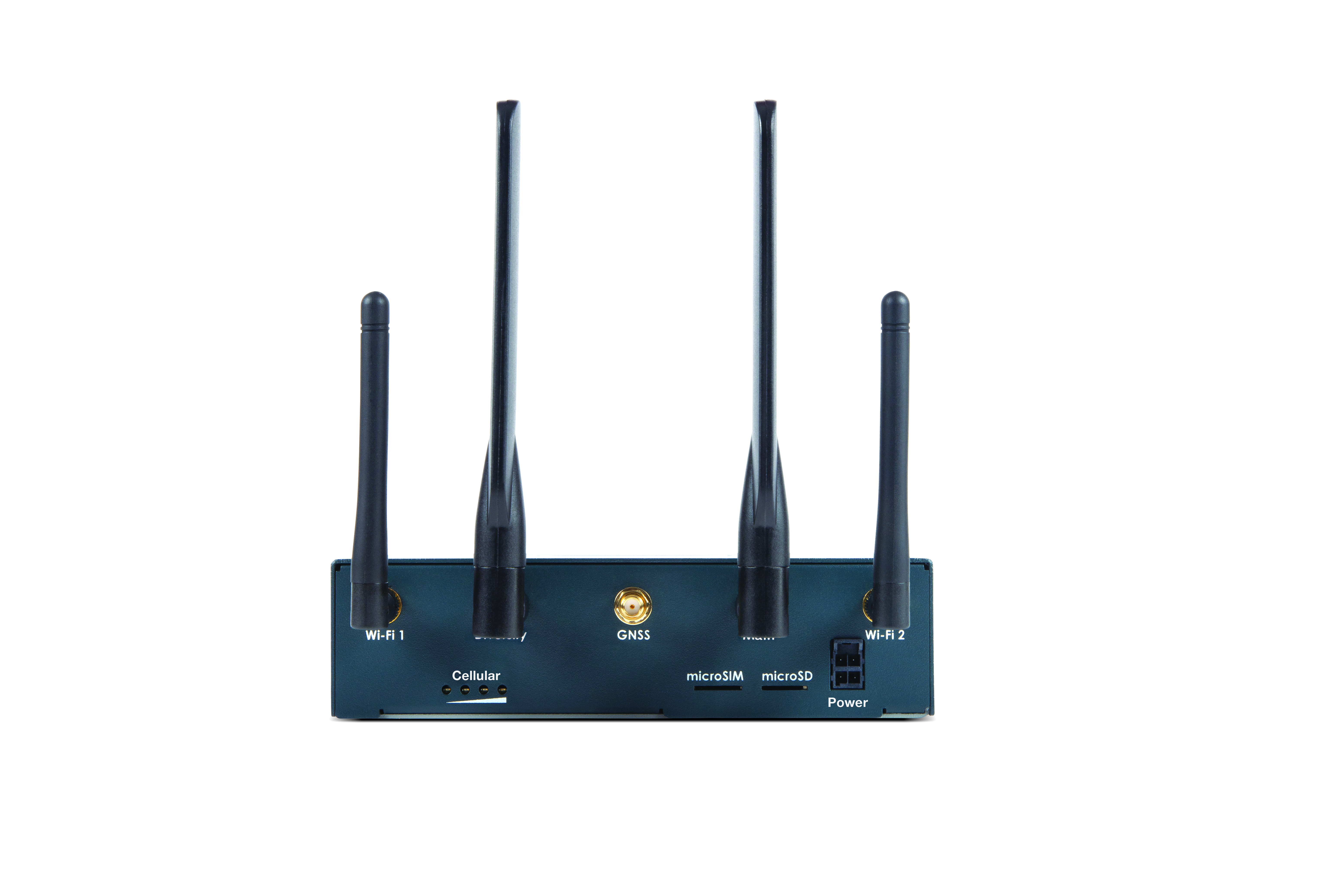

LTE/4G cellular radio with antennas and microSIM slot
Front Connectivity
2 RJ45 Gigabit Ethernet ports
Front Console And Logging
1 RJ45 RS-232 console port, 1 USB Type A host port

Management

Cli
CLI via Telnet, SSH, WebTerminal or console port
Snmp
SNMP v1/v2/v3, v3 over TLS, custom MIBs
Diagnostics
Diagnostics and port status counters
Setup Script
CLI setup script
Network Trace
Network trace utility
Subnet Search
Local subnet search for Lantronix console managers
Web Interface
Web setup and configuration (TLS)
User Monitoring
Active user list, port monitoring and timeout
Packet Generation
Packet generation utility
Digital I/O Sensors
Optional digital I/O, Sensorsoft sensor integration
Max Users Per Port
Maximum 15 users per device port
Performance Monitoring
Performance monitoring utility
Remote Power Management
Remote power management for PDU and UPS devices

Device Access

IN Band
2 Ethernet RJ45 ports (10/100/1000 Mbps)
Out OF Band
Internal LTE cellular radio

Environmental

Storage Conditions
-20 to 80°C (-4 to 176°F), 10-90% RH non-condensing
Operating Conditions
0 to 50°C (32 to 122°F), 30-90% RH non-condensing

Certifications

Completed
FIPS 140-2, PTCRB, UL/CB
IN Progress
FCC, IC, CE, AT&T, RCM, Verizon

Central Management

Software
Compatible with Lantronix Percepxion for Networking

Environmental Sensors

Sensor Support
Temperature, humidity, power availability and dry-contact sensors

Security Authentication

Aes
NIST-certified AES (FIPS-197)
Tls
Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
FIPS
FIPS 140-2 compliant cryptography (Cert. #2398)
Firewall
Packet filtering firewall
Security Level
Enterprise-grade security
User Group Rights
Configurable user/group rights
Local Authentication
Local username/password
Per Port Permissions
Per-port user permissions
Remote Authentication
LDAP/AD, RADIUS, Kerberos, TACACS+, NIS

Data Capture Notification

Log Types
System, audit and port logging
Port Logging
Port logging to local files, syslog, USB, SD card, NFS
Port Buffering
256 KB per port
Event Notification
Event notification via email, SNMP or syslog
String Recognition
Character string recognition

Serial Device Port Access

Cli Access
Telnet/SSH to EMG CLI
User Menus
Customizable multi-level user menus
Direct Access
Telnet/SSH/RAW-TCP direct to an IP address
Html5 Terminal
Java-free HTML5 web terminal SSH access
Multiple Sessions
Multiple Telnet/SSH sessions
Port Logging Media
SD card and USB port logging
Reversible Pinouts
Software-programmable reversible RS-232 pinouts
Simultaneous Access
Simultaneous users on the same console port
Cli Logins From Ports
CLI terminal logins from any device port
Port Initiated Connections
Port-initiated connections and outbound SSH

Questions buyers ask

How many devices can the EMG751001S manage?

This configuration has 4 RJ45 RS-232 serial device ports running at 300 to 921600 bps, plus a dedicated RJ45 console port and a USB Type A host port on the front panel.

What happens when the site's primary network goes down?

The EMG 7500 automatically fails over to its internal 4G/LTE cellular radio so you can still reach connected equipment, then fails back when the primary connection recovers.

What SIM does the gateway use?

The LTE radio uses a microSIM slot on the back panel. Lantronix states all global carriers are supported, with Private APN, VPN access and public or private IP addressing.

How is the EMG 7500 powered?

It ships with a desktop power supply and can also run from an external 9-30 VDC source. Power usage is 20 W.

Can I manage many EMG gateways centrally?

Yes. The EMG 7500 is compatible with Lantronix Percepxion for Networking, which offers centralized monitoring, zero-touch provisioning, real-time notifications and iOS and Android app access.
