Lantronix EMG 7500 Edge Management Gateway with 8 RS-232 Serial Ports and LTE Cellular (EMG751101S)

4G LTEMPN EMG751101S
  • 2–4 × 1 Gb Ethernet
$1,188.41$1,350.00Save $161.59

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

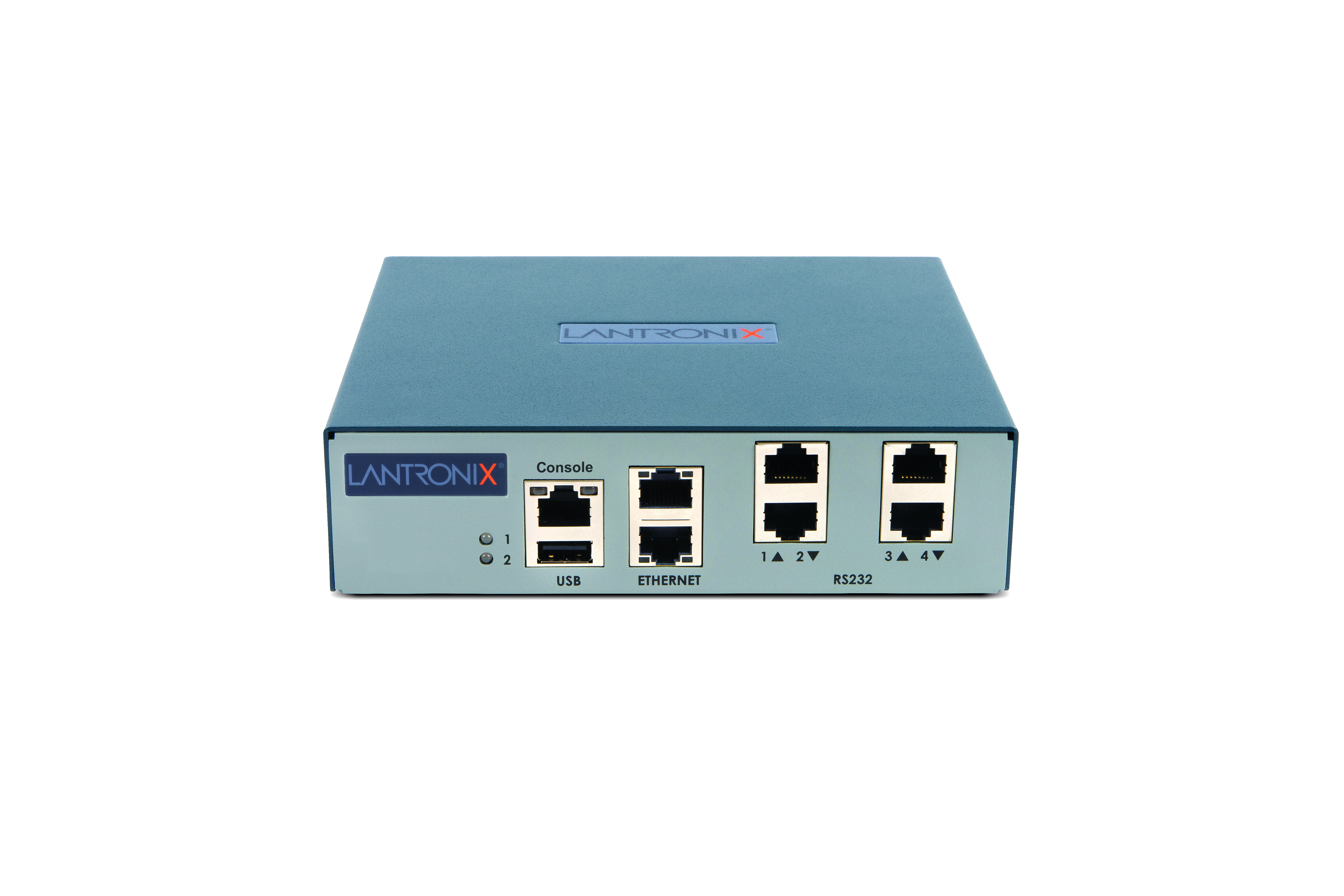

The Lantronix EMG 7500 (EMG751101S) is the 8-port RS-232 configuration of Lantronix's compact edge management gateway. It has 4 RJ45 serial ports on the front, 4 on the back, 2 Gigabit Ethernet ports and an internal LTE radio with a microSIM slot. When the primary network fails, the gateway switches to cellular so you keep console access to network and IT equipment at branch, retail and unmanned sites. It is managed with Lantronix Percepxion for Networking and carries a 3-year warranty.

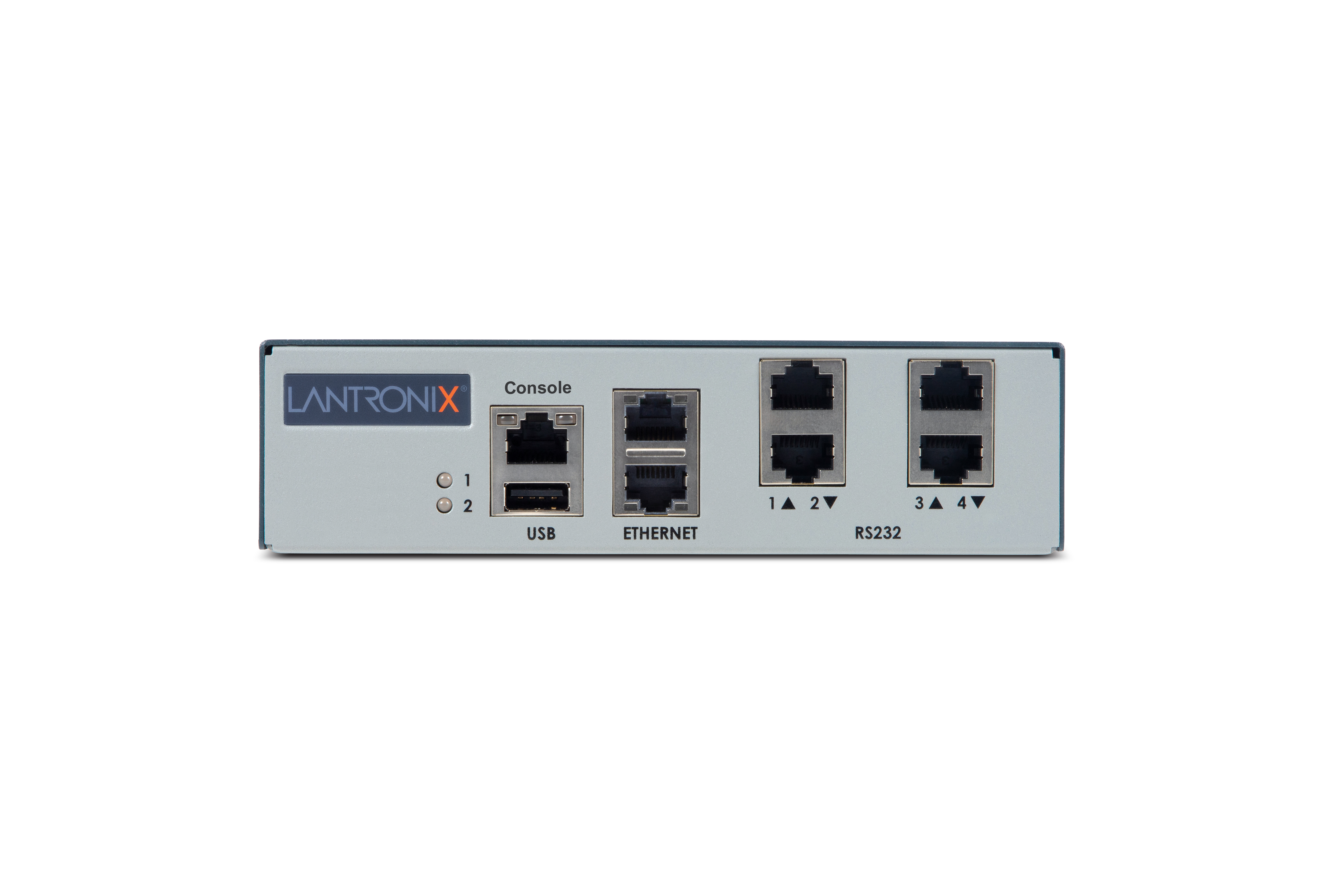

  • 8 RJ45 RS-232 serial device ports (4 front, 4 rear) at 300 to 921600 bps
  • 2 Gigabit Ethernet RJ45 ports for in-band access

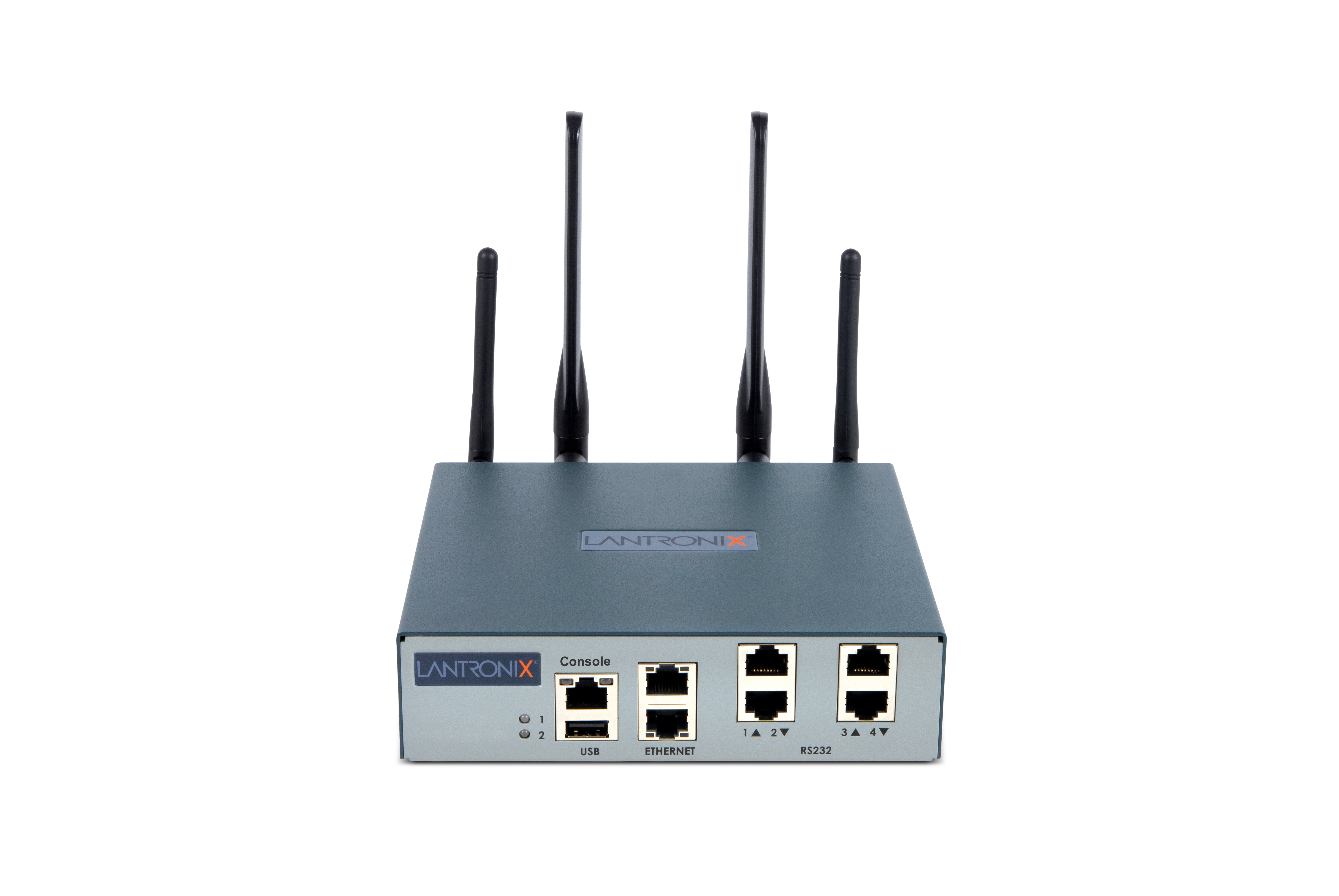

  • Internal LTE cellular radio with microSIM slot for automatic out-of-band failover and failback
  • FIPS 140-2 compliant cryptography (Certificate #2398) and TLS v1 to v1.3
  • Remote authentication through LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS
  • Compatible with Lantronix Percepxion for Networking central management and zero-touch provisioning
  • Secure REST APIs, Python scripting and Cisco-compatible IP SLA performance monitoring
  • Console access to up to 8 serial devices from one compact gateway, which covers a full branch or retail equipment stack

The Lantronix EMG 7500 is the small-form-factor member of the EMG family of edge management gateways. It is designed for branch offices, retail stores and unmanned locations such as ATMs and cell towers. The EMG751101S uses the maximum 8-port I/O configuration: 8 RJ45 RS-232 serial device ports at 300 to 921600 bps, split 4 on the front panel and 4 on the back. It also has 2 Gigabit Ethernet ports, an RJ45 console port, a USB Type A host port and a microSD slot, all in a 163 x 145 x 43 mm chassis. On this 8-port configuration, the optional Wi-Fi and POTS modem modules are not available. Out-of-band access runs over the internal LTE radio.

When the primary connection is congested or unresponsive, the gateway fails over automatically to 4G/LTE and fails back once the primary link recovers. Lantronix states all global carriers are supported, with Private APN, VPN access and public or private IP addressing. Cisco-compatible IP SLA traffic monitors link performance to help prevent lights-out events.

Security covers TLS v1 through v1.3, a packet-filtering firewall and per-port permissions. Remote authentication works through LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS, and cryptography is FIPS 140-2 compliant (Certificate #2398). Up to 15 users can share each device port. Every port buffers 256 KB and can log to local files, syslog, USB, SD card or NFS.

The gateway works with Lantronix Percepxion for Networking for centralized monitoring, zero-touch provisioning and mobile app access. Secure REST APIs and Python scripting support automation. It ships with a desktop power supply, also accepts an external 9-30 VDC feed, and uses 20 W. The product brief, quick start guide and user guide are available.

Ideal for

  • Out-of-band console access to a full branch network stack of routers, switches, firewalls and servers
  • LTE backup management path for retail store equipment rooms
  • Remote recovery of equipment at unmanned locations such as ATMs and cell towers
  • Centrally managed console access across many edge sites with Percepxion for Networking
  • Remote power control of PDU and UPS devices during incident recovery

Specifications

Power

Power Input
Desktop power supply included, or external 9-30 VDC
Power Usage
20 W

Memory

Dram
1/2 GB internal DRAM
Flash
1/2 GB internal NAND flash

General

MPN
EMG751101S
UPC
783384243439
Brand
Lantronix
Model
Lantronix EMG 7500 Edge Management Gateway
Product Type
Out-of-Band Console Management Server
Configuration
RS-232 Serial 8-Port, LTE Cellular

Cellular

SIM
microSIM slot
Failover
Automatic failover and failback to 4G/LTE
Technology
4G LTE
Carrier Services
Global carriers; Private APN, VPN, public/private IP

Physical

Mounting
Front-mid-rear mounting brackets
Dimensions
163 x 145 x 43 mm (6.42 x 5.71 x 1.7 in) L x W x H
Shipping Weight
14.70 lb shipping weight

Warranty

Warranty
3-year limited warranty

Protocols

Dns
DNS name resolution
VPN
StrongSwan IPsec VPN client
Ipv6
IPv6 addressing
Routing
RIP and RIPv2
Time Sync
NTP time synchronization
File Transfer
FTP, TFTP, SFTP, SCP client
IP Assignment
DHCP and BOOTP
Connection Protocols
SSH, TLS, SSL, Telnet, TCP, UDP, PPP (PAP/CHAP), NFS, CIFS

Interfaces

Back Ios

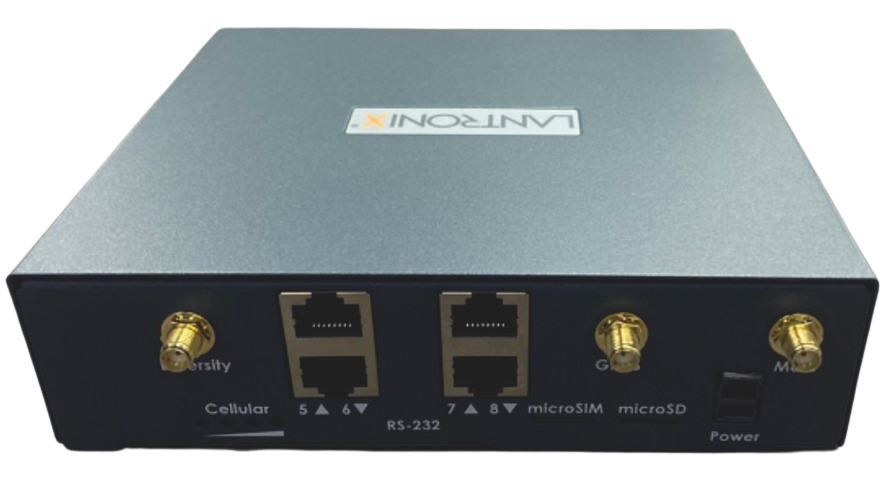

4 RJ45 RS-232 serial ports, 300 to 921600 bps
Front Ios
4 RJ45 RS-232 serial ports, 300 to 921600 bps
Back Logging
1 microSD slot
Back Connectivity
LTE/4G cellular radio with antennas and microSIM slot
Front Connectivity
2 RJ45 Gigabit Ethernet ports
Total Device Ports
8 RS-232 serial device ports
Front Console And Logging
1 RJ45 RS-232 console port, 1 USB Type A host port

Management

Cli
CLI via Telnet, SSH, WebTerminal or console port
Snmp
SNMP v1/v2/v3, v3 over TLS, custom MIBs
Diagnostics
Diagnostics and port status counters
Setup Script
CLI setup script
Network Trace
Network trace utility
Subnet Search
Local subnet search for Lantronix console managers
Web Interface
Web setup and configuration (TLS)
User Monitoring
Active user list, port monitoring and timeout
Packet Generation
Packet generation utility
Digital I/O Sensors
Optional digital I/O, Sensorsoft sensor integration
Max Users Per Port
Maximum 15 users per device port
Performance Monitoring
Performance monitoring utility
Remote Power Management
Remote power management for PDU and UPS devices

Device Access

IN Band
2 Ethernet RJ45 ports (10/100/1000 Mbps)
Out OF Band
Internal LTE cellular radio
Optional Modules
Wi-Fi/POTS modem not available on 8-port I/O configuration

Environmental

Storage Conditions
-20 to 80°C (-4 to 176°F), 10-90% RH non-condensing
Operating Conditions
0 to 50°C (32 to 122°F), 30-90% RH non-condensing

Certifications

Completed
FIPS 140-2, PTCRB, UL/CB
IN Progress
FCC, IC, CE, AT&T, RCM, Verizon

Central Management

Software
Compatible with Lantronix Percepxion for Networking

Environmental Sensors

Sensor Support
Temperature, humidity, power availability and dry-contact sensors

Security Authentication

Aes
NIST-certified AES (FIPS-197)
Tls
Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3)
FIPS
FIPS 140-2 compliant cryptography (Cert. #2398)
Firewall
Packet filtering firewall
Security Level
Enterprise-grade security
User Group Rights
Configurable user/group rights
Local Authentication
Local username/password
Per Port Permissions
Per-port user permissions
Remote Authentication
LDAP/AD, RADIUS, Kerberos, TACACS+, NIS

Data Capture Notification

Log Types
System, audit and port logging
Port Logging
Port logging to local files, syslog, USB, SD card, NFS
Port Buffering
256 KB per port
Event Notification
Event notification via email, SNMP or syslog
String Recognition
Character string recognition

Serial Device Port Access

Cli Access
Telnet/SSH to EMG CLI
User Menus
Customizable multi-level user menus
Direct Access
Telnet/SSH/RAW-TCP direct to an IP address
Html5 Terminal
Java-free HTML5 web terminal SSH access
Multiple Sessions
Multiple Telnet/SSH sessions
Port Logging Media
SD card and USB port logging
Reversible Pinouts
Software-programmable reversible RS-232 pinouts
Simultaneous Access
Simultaneous users on the same console port
Cli Logins From Ports
CLI terminal logins from any device port
Port Initiated Connections
Port-initiated connections and outbound SSH

Questions buyers ask

Where are the 8 serial ports located?

With the 8-port I/O configuration, 4 RJ45 RS-232 ports are on the front panel and 4 are on the back panel. All run at 300 to 921600 bps with software-programmable reversible pinouts.

Does the 8-port model support Wi-Fi or a POTS modem?

No. According to Lantronix's ordering guide, the Wi-Fi and POTS modem options are not available when the 8-port I/O module is selected. Out-of-band access uses the internal LTE radio.

How does cellular failover work?

When the primary network connection is congested or unresponsive, the EMG 7500 automatically fails over to 4G/LTE and fails back once the primary link recovers. It uses a microSIM and supports Private APN, VPN and public or private IP addressing.

How many people can use one console port at a time?

The EMG 7500 supports simultaneous user access to the same console port, with a maximum of 15 users per device port.

What security standards does it support?

It supports TLS v1 through v1.3, a packet-filtering firewall, per-port permissions and LDAP/AD, RADIUS, Kerberos, TACACS+ and NIS authentication. Its cryptography is FIPS 140-2 compliant (Certificate #2398).
