TP-Link Omada ER706W-4G 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit VPN Router

4G LTEMPN ER706W-4G
  • Wi-Fi 6
  • 5+ × 1 Gb Ethernet
$309.56

In stockFree 2-day shipping

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

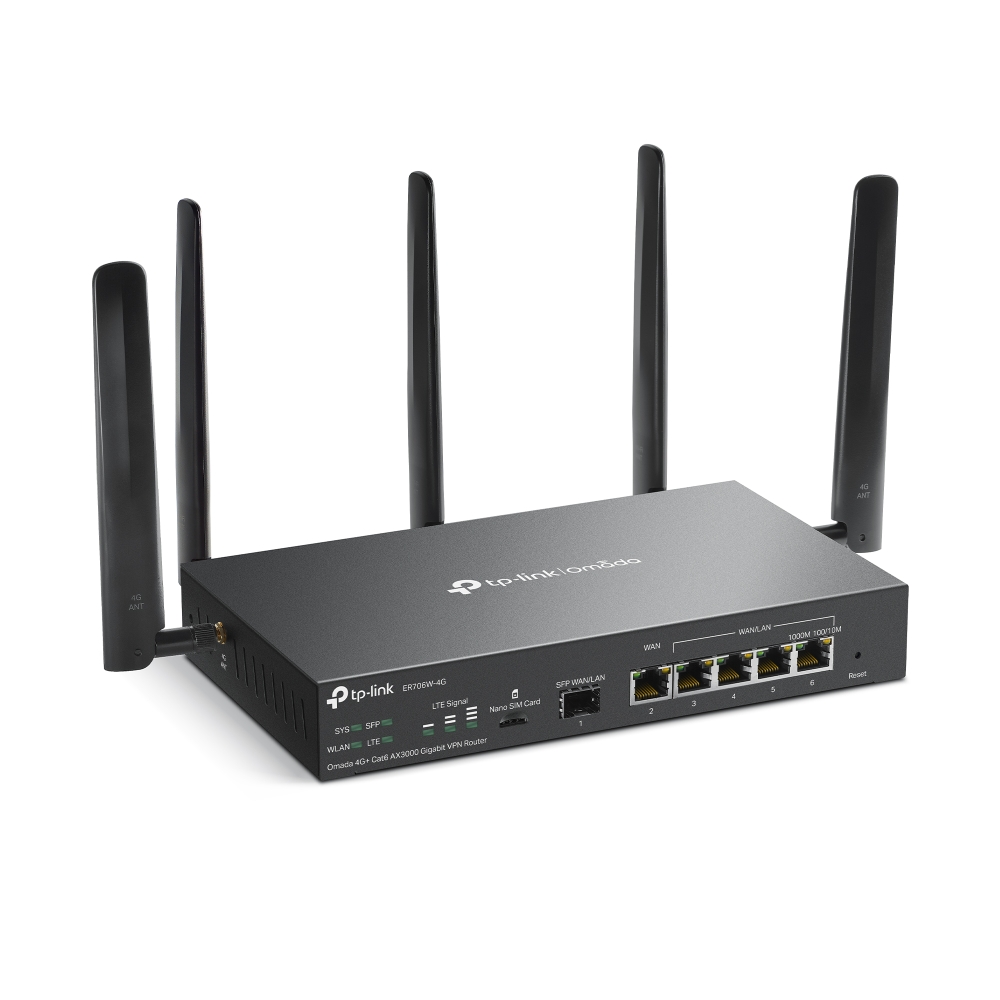

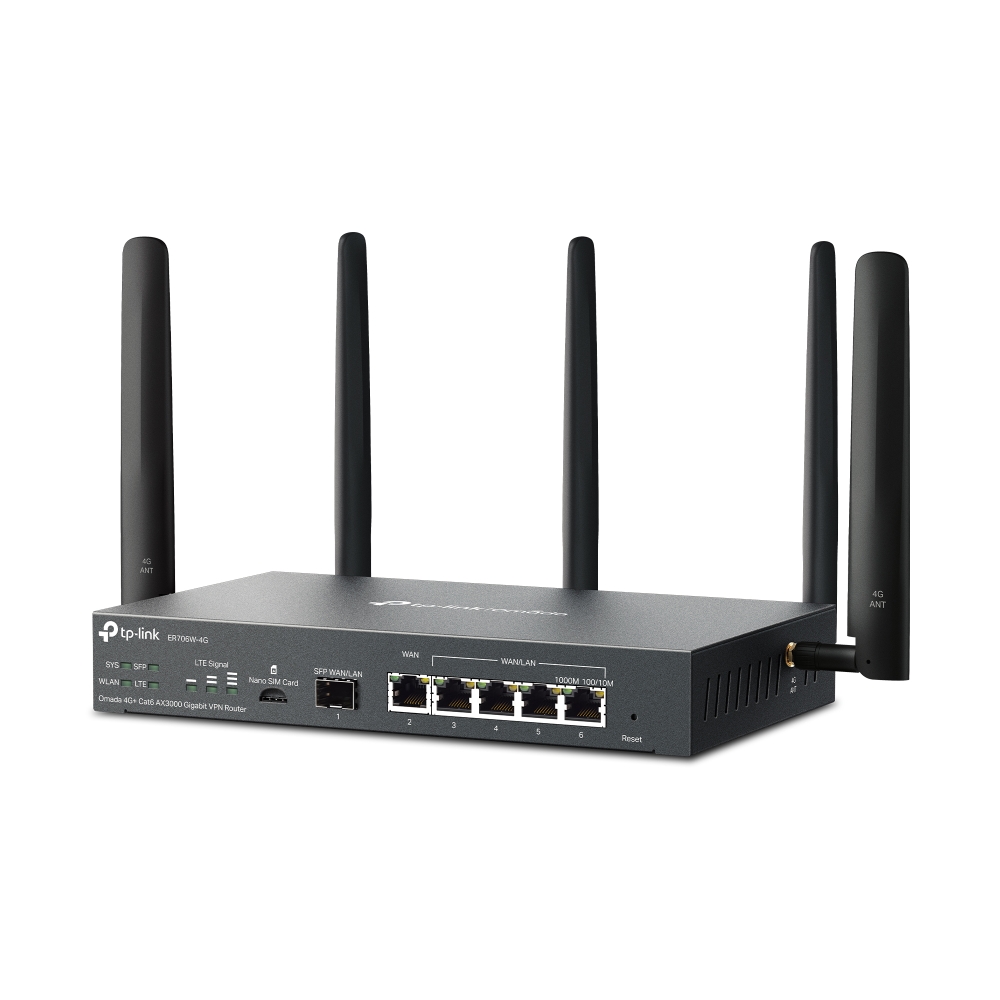

The TP-Link Omada ER706W-4G (hardware V1) is an all-in-one business gateway. It combines a 4G+ Cat6 LTE modem with a Nano SIM slot for up to 300 Mbps downlink, AX3000 dual-band Wi-Fi 6, and six Gigabit ports including an SFP WAN/LAN port. It supports IPsec, SSL, WireGuard, OpenVPN, PPTP and L2TP VPNs, load balancing and link backup. It can be managed standalone, through the Omada app or centrally through Omada SDN controllers.

  • 4G+ Cat6 LTE with 1 Nano SIM slot: up to 300 Mbps downlink and 50 Mbps uplink
  • AX3000 dual-band Wi-Fi 6: 2402 Mbps (5 GHz, HE160) and 574 Mbps (2.4 GHz)
  • 1 Gigabit SFP WAN/LAN, 1 Gigabit WAN and 4 Gigabit LAN/WAN ports
  • IPsec, SSL, WireGuard, OpenVPN, GRE, PPTP and L2TP VPN support
  • Omada SDN integration with cloud, hardware and software controllers plus the Omada app
  • Signature-based IPS/IDS, DPI application control and URL filtering
  • Load balancing and link backup across wired WAN and LTE
  • Bring a site online over LTE, or keep it online when fixed broadband drops, with load balancing and link backup

The TP-Link Omada ER706W-4G is a 4G+ Cat6 VPN router for small offices, retail sites and branches that want LTE, Wi-Fi 6 and wired routing in one desktop or wall-mount unit. Insert a Nano SIM for LTE at up to 300 Mbps down and 50 Mbps up. The V1 hardware supports US LTE bands B2/4/5/7/12/13/14/25/26/29/30/66/71 and TDD B41/B48, plus EU bands, with carrier aggregation. TP-Link notes it is not compatible with AT&T's Text & Data plans in the US.

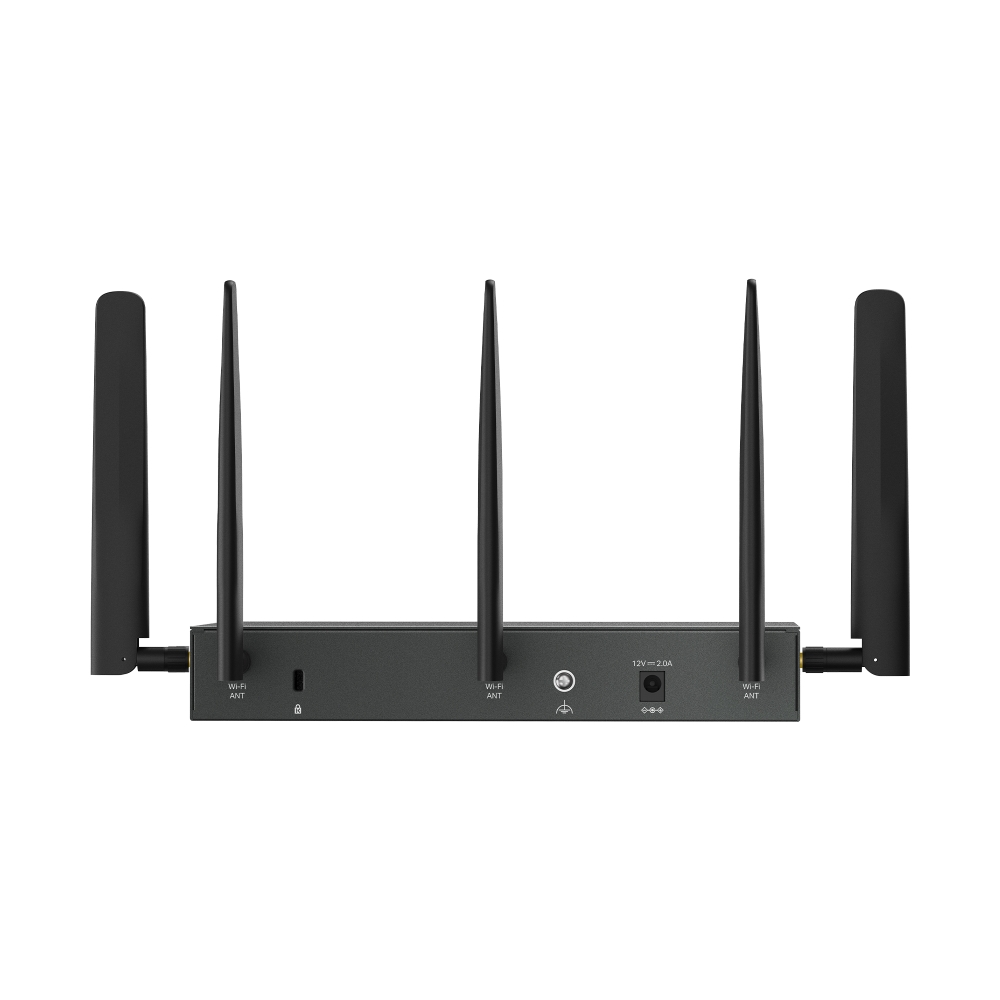

The router's AX3000 dual-band Wi-Fi 6 delivers 2402 Mbps on 5 GHz with HE160 and 574 Mbps on 2.4 GHz. It supports OFDMA, MU-MIMO, beamforming, WPA3 and up to 16 SSIDs, broadcast through three detachable dual-band antennas. Two detachable 4.0dBi LTE antennas handle the cellular side. Wired connectivity comes from 1 Gigabit SFP WAN/LAN port, 1 Gigabit WAN port and 4 Gigabit LAN/WAN ports. Intelligent load balancing and link backup let fixed broadband and LTE work together.

A dual-core ARM Cortex-A53 with 512 MB DDR4 handles 150,000 concurrent sessions. It delivers up to 670.5 Mbps IPsec throughput and 387.7 Mbps WireGuard. VPN capacity includes 100 IPsec tunnels, 55 OpenVPN tunnels, 50 SSL VPN tunnels and 20 WireGuard tunnels. Security features include signature-based IPS/IDS, DPI application control, URL filtering, flood defense and IP-MAC binding. The unit also has 4 kV lightning protection.

The router integrates with Omada SDN for centralized management through the Omada Cloud-Based Controller (subscription required), OC200/OC300 hardware controllers or Omada Software Controller. Management options also include the Omada app, zero-touch provisioning with the cloud controller, SD-WAN in Controller Mode, captive portal and SNMP. The package includes the router, a power adapter and a Quick Installation Guide, and TP-Link publishes a datasheet for the V1 model.

Ideal for

  • Primary LTE internet for pop-up stores, construction offices and sites without wired broadband
  • LTE backup and load balancing alongside fiber or cable at small offices and retail branches
  • Site-to-site and remote-user VPN hub for small businesses
  • Guest Wi-Fi with captive portal for hospitality and retail
  • Multi-site networks managed centrally through Omada SDN

Specifications

VPN

Gre
GRE (Standalone Mode only)
SD WAN
SD-WAN (Controller Mode only)
Openvpn
OpenVPN server/client, 55 tunnels
Ssl VPN
50 SSL VPN tunnels
L2tp VPN
L2TP server/client, 50 tunnels, L2TP over IPsec
Pptp VPN
PPTP server/client, 50 tunnels, MPPE
Ipsec VPN
100 IPsec tunnels, IKEv1/v2, AES256, NAT-T, DPD, PFS, IPsec failover
Wireguard VPN
20 WireGuard tunnels

Power

Power Supply
12V DC / 2A power adapter
Max Power Consumption
EU 15.4 W; US 17.3 W

General

MPN
ER706W-4G
Brand
TP-Link (Omada)
Processor
Dual-core ARM Cortex-A53
Hardware Version
V1 (US + EU LTE bands)
Product Description
Omada 4G+ Cat6 AX3000 Gigabit VPN Router
Standards Protocols
IEEE 802.3/u/ab/z/x, 802.1q, 802.11a/b/g/n/ac/ax and routing/VPN protocols

Package

Package Content
ER706W-4G, power adapter, Quick Installation Guide

Routing

Nat
1:1 NAT, Multi-Net NAT, virtual server, DMZ, ALGs, UPnP
Dhcp
DHCP server, DHCPv6 PD, reservations, Multi-Net DHCP
Iptv
IGMP v2/v3 proxy, custom and bridge modes
Ipv6
Static, SLAAC, DHCPv6, PPPoE, 6to4, passthrough
Vlan
802.1Q VLAN
Mac Clone
MAC clone
Load Balance
Load balance, app-optimized routing, link backup, online detection
Session Limit
IP-based session limit
Advanced Routing
Static, policy, RIP, OSPF
Bandwidth Control
IP-based bandwidth control
WAN Connection Type
Static, Dynamic, PPPoE, PPTP, L2TP

Cellular

SMS
Receive and send SMS
SIM Type
1 x Nano SIM card slot
LTE Speed
Downlink 300 Mbps / Uplink 50 Mbps
EU 3g Bands
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
Carrier Note
Not compatible with AT&T Text & Data plans (US)
LTE Category
4G+ Cat6
EU LTE Fdd Bands
B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
EU LTE Tdd Bands
B38/B40/B41 (2600/2300/2500 MHz)
US LTE Fdd Bands
B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz)
US LTE Tdd Bands
B41/B48 (2500/3600 MHz)
EU Carrier Aggregation
EU carrier aggregation combinations per TP-Link datasheet
US Carrier Aggregation
US carrier aggregation combinations per TP-Link datasheet

Hardware

LED
SYS, WLAN, SFP, LTE Signal, WAN, WAN/LAN
Dram
512 MB DDR4
Flash
128 MB NAND
Button
Reset button
Antennas
3 detachable dual-band Wi-Fi antennas + 2 detachable 4.0dBi LTE antennas
Mounting
Desktop or wall mount
Interface
1 x Gigabit SFP WAN/LAN, 1 x Gigabit WAN, 4 x Gigabit LAN/WAN
Dimensions
8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm), antennas not included
Network Media
10BASE-T / 100BASE-TX / 1000BASE-T up to 100 m
Shipping Weight
3.465 lb
Lightning Protection
4 kV lightning protection

Security

Dpi
DPI application control
Ids Ips
Signature-based IPS/IDS
Filtering
Web group filtering, URL filtering, web security
Access Control
IP-based access control; IP/port/protocol/domain filtering
Arp Inspection
GARP, ARP scanning, IP-MAC binding
Attack Defense
Flood defense, TCP scan blocking, block WAN ping

Wireless

Guest Network
Guest network supported
Wi-Fi Standard
AX3000 dual-band Wi-Fi 6
Multiple Ssids
16 SSIDs (8 per radio)
Wi-Fi Speed 5ghz
2402 Mbps (HE160)
Advanced Features
Roaming, Omada Mesh, OFDMA, beamforming, MU-MIMO, rate limit, airtime fairness
Wi-Fi Speed 2 4ghz
574 Mbps
Wireless Encryption
WPA/WPA2/WPA3 Personal and Enterprise

Management

Omada App
Omada app
Dynamic Dns
Dynamic DNS
Maintenance
Web UI, remote management, SNMP v1/v2c/v3, port mirroring, CLI, syslog
Cloud Access
Cloud access
Web Authentication
Captive portal: password, voucher, SMS, RADIUS, external portal, LDAP
Management Features
Discovery, monitoring, alerts, unified config, reboot schedule, captive portal
System Requirements
Windows, macOS, NetWare, UNIX or Linux
Centralized Management
Omada Cloud (subscription), OC300, OC200, Software Controller
Zero Touch Provisioning
ZTP via Omada Cloud-Based Controller
Default Network Services
HTTP/HTTPS 80/443, discovery UDP 20003, DHCP 67, DNS 53

Environment

Certification
CE, FCC, RoHS
Storage Humidity
5% to 90% non-condensing
Operating Humidity
10% to 90% non-condensing
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Temperature
0°C to 40°C (32°F to 104°F)

Performance

Nat Dhcp
949.2 / 941.1 Mbps
Nat L2tp
875.4 / 892.0 Mbps
Nat Pptp
881.2 / 895.8 Mbps
Nat Pppoe
942.6 / 941.1 Mbps
Nat Static IP
947.1 / 940.1 Mbps
Dpi Throughput
TCP 933 / UDP 927 Mbps
Gre Throughput
545.3 Mbps unencrypted / 282.6 Mbps encrypted
Ips Throughput
TCP 229 / UDP 188 Mbps
Openvpn Throughput
115.5 Mbps
Ssl VPN Throughput
122.5 Mbps
Concurrent Sessions
150,000
L2tp VPN Throughput
990.0 Mbps unencrypted / 475.0 Mbps encrypted
Pptp VPN Throughput
1177.9 Mbps unencrypted / 177.4 Mbps encrypted
Ipsec VPN Throughput
646.5-670.5 Mbps (AES256)
Wireguard Throughput
387.7 Mbps
New Sessions Per Second
5,100
Packet Forwarding 66 Byte
1,453,489 / 1,453,488 pps
Packet Forwarding 1518 Byte
81,274 / 91,275 pps

Questions buyers ask

Does the ER706W-4G support US LTE bands?

Yes. The V1 hardware supports US LTE-FDD bands B2/4/5/7/12/13/14/25/26/29/30/66/71 and LTE-TDD B41/B48, plus EU bands, with carrier aggregation.

Is it compatible with all US carrier plans?

TP-Link states it is not compatible with AT&T's Text & Data plans in the US.

How fast is the LTE connection?

The 4G+ Cat6 modem is rated up to 300 Mbps downlink and 50 Mbps uplink.

Which VPN protocols are supported?

IPsec (100 tunnels), SSL VPN (50), OpenVPN (55), WireGuard (20), PPTP and L2TP (50 each), L2TP over IPsec, and GRE in Standalone Mode.

Do I need an Omada controller?

No. It can run standalone with a web interface. Centralized management is available through Omada hardware or software controllers or the Omada Cloud-Based Controller, which requires a subscription.
