InHand Networks ER805 5G SD-WAN Edge Router with Dual-Band Wi-Fi (ER805-NRQ3-WLAN)

5GMPN ER805-NRQ3-WLAN
$665.79$999.00Save $333.21

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

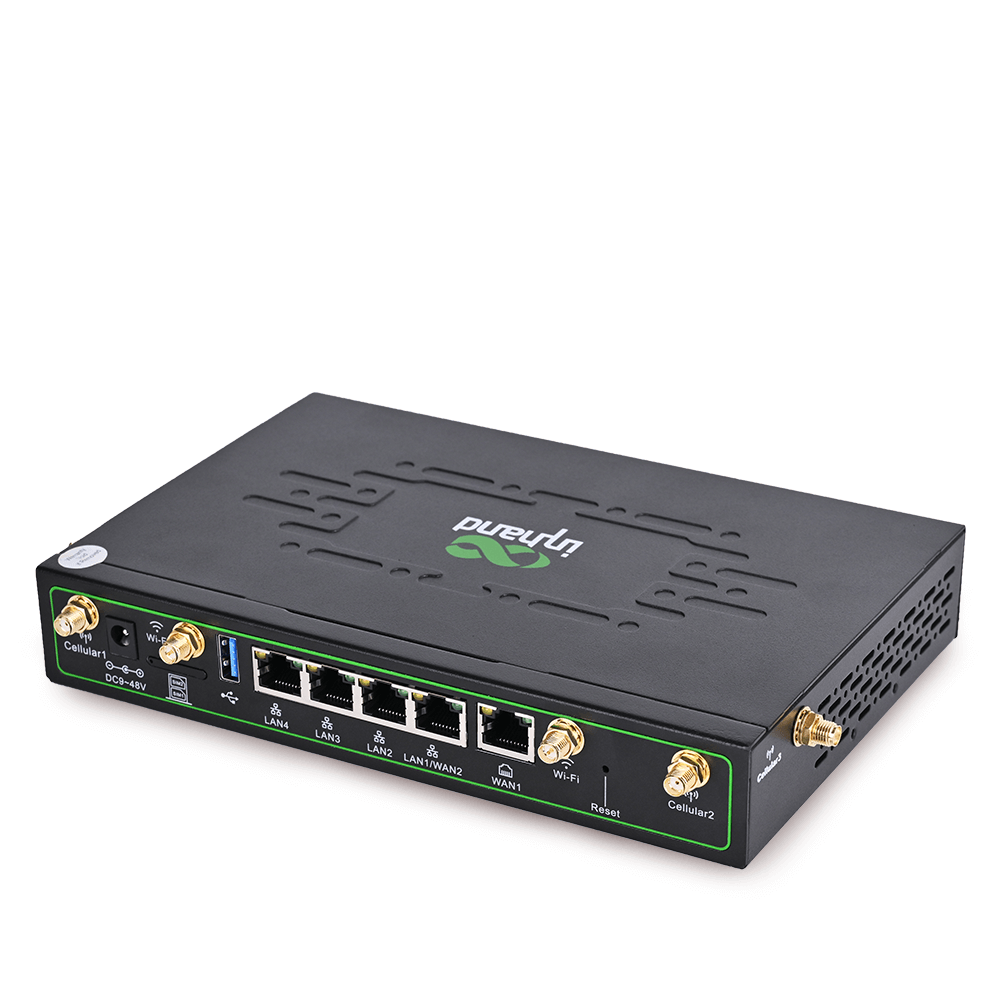

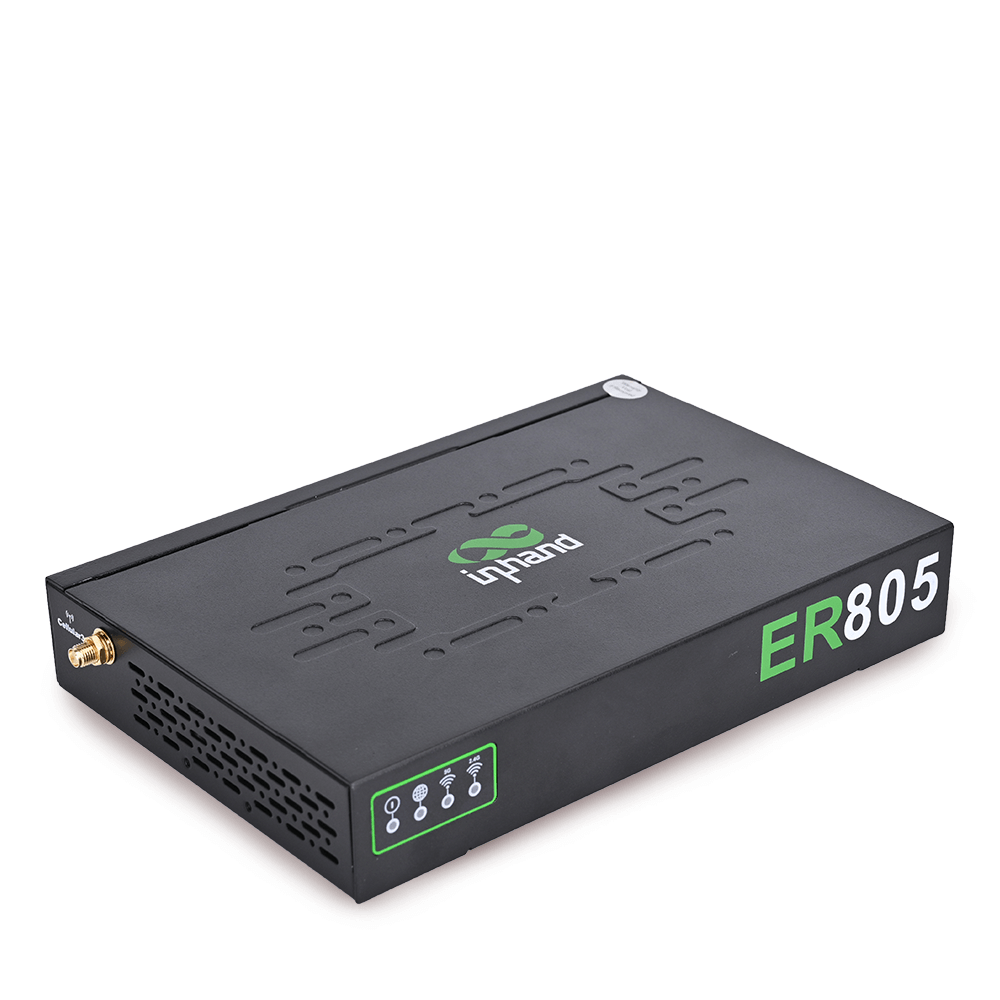

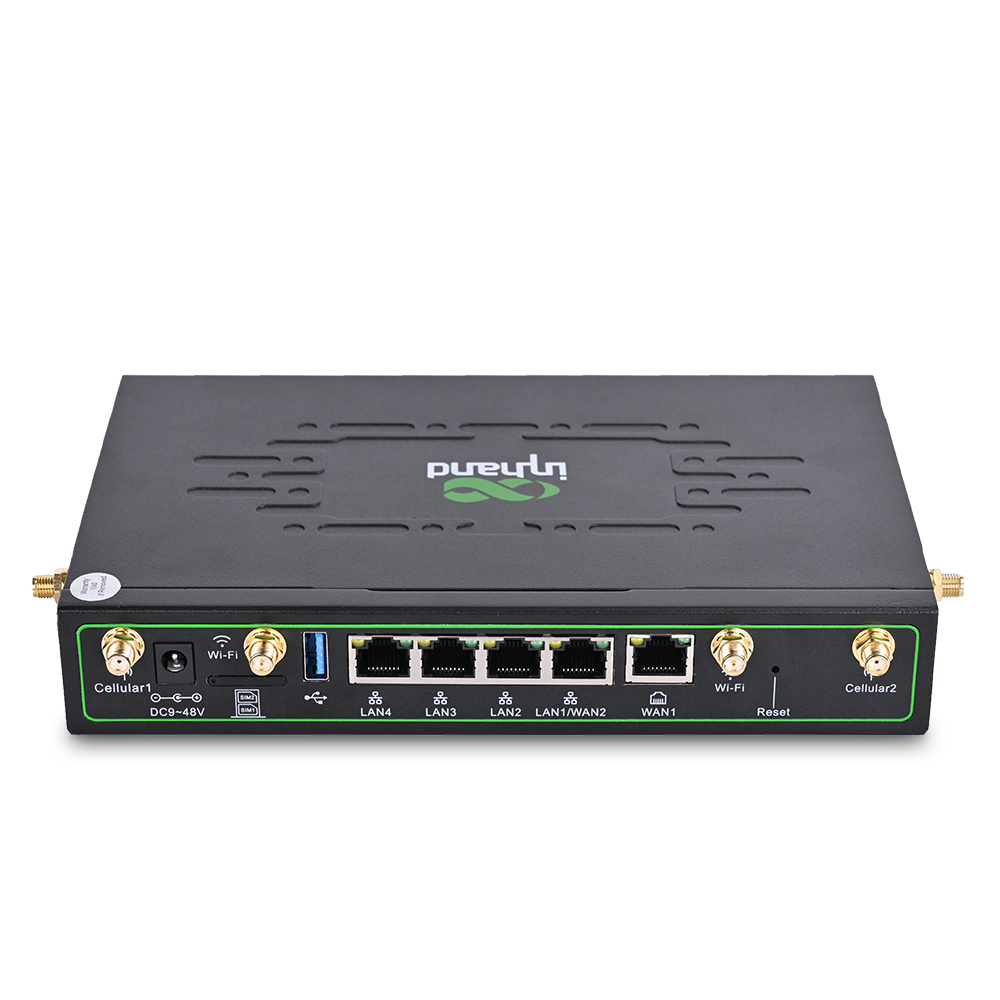

The InHand Networks ER805-NRQ3-WLAN is a cloud-managed 5G edge router with Wi-Fi. It connects stores and offices through 5G/4G cellular or wired broadband. The NRQ3 global 5G module supports SA and NSA, with peak rates up to 5.0 Gbps downlink. The router adds five Gigabit Ethernet ports with dual WAN, dual Nano-SIM, 802.11ac dual-band Wi-Fi at 1200 Mbps, and SD-WAN and VPN through InCloud Manager. The metal, fanless IP30 chassis mounts on a desk, bracket or wall.

  • NRQ3 global 5G module (all regions except China): 5G SA/NSA Sub-6, up to 5.0 Gbps DL (NSA) / 4.2 Gbps DL (SA), LTE Cat 20/18
  • 5 × Gigabit Ethernet ports with WAN/LAN switching and dual WAN
  • Dual Nano-SIM with dual-SIM switching, auto redial and real-time link detection
  • 802.11ac Wave2 MU-MIMO dual-band Wi-Fi (2.4/5 GHz), up to 1200 Mbps, multi-SSID and guest portal
  • SD-WAN and zero-touch deployment through InCloud Manager
  • 600 Mbps firewall throughput, 100 Mbps IPsec VPN, 100–150 recommended users
  • Metal fanless IP30 housing, 9–36 V DC input, -20 °C to +70 °C operation
  • Opens new stores or branches on 5G the same day, with no wait for a wired circuit

The InHand Networks ER805 is an edge router that keeps retail stores, branch offices and small businesses online over 5G/4G cellular or wired broadband. This part number, ER805-NRQ3-WLAN, pairs the NRQ3 5G module with built-in Wi-Fi. InHand lists the NRQ3 as a global model for all regions except China and sells it for North America, EMEA/APAC and Oceania/South America. The module is certified with AT&T, Verizon and T-Mobile, alongside CE, FCC, IC and PTCRB.

The NRQ3 module supports 5G SA and NSA on Sub-6 bands, including n2, n5, n12, n25, n41, n66, n71 and n77. Peak rates reach 5.0 Gbps DL / 650 Mbps UL in NSA and 4.2 Gbps DL / 450 Mbps UL in SA. LTE Cat 20/18 fallback delivers up to 2.0 Gbps down. Dual Nano-SIM slots, four SMA 5G antenna connectors and real-time link detection let the router switch between cellular and wired uplinks. It also supports packet-by-packet load balancing.

For the LAN, five 10/100/1000 Ethernet ports support WAN/LAN switching and dual WAN. Wi-Fi is 802.11ac Wave2 MU-MIMO on 2.4 and 5 GHz, rated up to 1200 Mbps. It supports multi-SSID, SSID VLAN, guest mode and a custom splash portal. Firewall throughput is 600 Mbps and IPsec VPN throughput is 100 Mbps, with 100–150 recommended users.

InCloud Manager provides zero-touch deployment, bulk remote upgrades, configuration deployment, SD-WAN networking, Connector remote maintenance and two-factor authentication. Security features include inbound/outbound firewall rules, domain filtering, 802.1X and portal authentication, plus IPsec, L2TP and VXLAN VPN. The metal, fanless housing is rated IP30 and operates from -20 °C to +70 °C on 9–36 V DC.

Ideal for

  • Primary 5G internet for new retail stores and branch offices before wired service arrives
  • Dual-WAN failover for POS, kiosks and business-critical traffic
  • SD-WAN interconnection of distributed branches managed from InCloud Manager
  • Guest and staff Wi-Fi with a custom splash portal in retail and hospitality
  • Disaster recovery connectivity for small and mid-size offices

Specifications

Wi-Fi

Features
Multi-SSID, SSID VLAN, hidden SSID, guest mode, splash portal
Max Rate
1200 Mbps
Standard
802.11a/b/g/n/ac Wave2 MU-MIMO
TX Power
17 dBm (2.4 GHz) / 17 dBm (5 GHz)
Frequency
Dual-band 2.4 / 5 GHz
Encryption
WPA, WPA2, WPA-PSK, WPA2-PSK
Antenna Gain
≤ 5 dBi
Operating Mode
AP / Client

Power

Input
9–36 V DC (2 A @ 12 V)
Peak Power
≤ 24 W peak

General

MPN
ER805-NRQ3-WLAN
Brand
InHand Networks
Model
ER805 Edge Router
Region
Global except China; sold for North America, EMEA/APAC, Oceania/S. America
Model Code
NRQ3 5G module with Wi-Fi (WLAN)

Cellular

SIM
Dual Nano-SIM
Laa Band
B46
LTE Rate
2.0 Gbps DL / 200 Mbps UL
Technology
5G SA/NSA Sub-6 with LTE
Wcdma Bands
B1/B2/B3/B4/B5/B6/B8/B19
LTE Category
LTE DL Cat 20 / UL Cat 18
LTE Fdd Bands
B1/B2/B3/B4/B5/B7/B8/B9/B12(B17)/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE Tdd Bands
B34/B38/B39/B40/B41/B42/B43/B48
Five G SA Rate
5G SA: 4.2 Gbps DL / 450 Mbps UL
Five G Nsa Rate
5G NSA: 5.0 Gbps DL / 650 Mbps UL
Five G NR SA Bands
5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
Five G NR Nsa Bands
5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79

Physical

Weight
1.06 kg (2.34 lb)
Housing
Metal shell, fanless
Dimensions
210 × 140 × 35 mm (8.27 × 5.51 × 1.38 in)
Protection
IP30
Installation
Desktop, bracket or wall mount

Security

Firewall
Inbound/outbound rules, port forwarding, SNAT, DNAT
Access Control
Black/white list, domain filtering, portal auth, 802.1X
Authentication
Wi-Fi portal

Interfaces

USB
USB 3.0 (debug)
Leds
Power, Network, Signal, Wi-Fi
Reset
Pinhole reset button
Antenna
4 × SMA (5G), 2 × RP-SMA (Wi-Fi)
Ethernet
5 × Gigabit Ethernet, WAN/LAN switching, dual WAN

Environment

Humidity
5–95% RH, non-condensing
Storage Temperature
-40 °C to +85 °C (-40 °F to 185 °F)
Operating Temperature
-20 °C to +70 °C (-4 °F to 158 °F)

Performance

RAM
512 MB
Flash
8 GB eMMC
Recommended Users
100–150 users
Firewall Throughput
600 Mbps
Ipsec VPN Throughput
100 Mbps

Reliability

Logs
Runtime and diagnostic logs
Alarms
Local email; platform SMS and email
Events
Logins, disconnects, reboots
Upgrades
Scheduled upgrades
Self Recovery
Software and hardware watchdog
Traffic Shaping
QoS by link, IP and protocol
Diagnostic Tools
ICMP, packet capture, traceroute, Iperf

Certification

Emc
EMC Level 2
Certifications
CE, FCC, IC, PTCRB, AT&T, Verizon, T-Mobile

Cloud Management

Features
Zero-touch deployment, bulk upgrades, config deployment, SD-WAN, Connector, 2FA
Platform
InCloud Manager
Dashboard
Connectivity, traffic, signal, interfaces, clients, uplinks

Network Features

VPN
IPsec, L2TP, VXLAN, GRE*, OpenVPN*
Access
5G/4G, wired, Wi-Fi
SD WAN
SD-WAN networking
Dialing
PPPoE, auto redial, dual-SIM switching, APN config
Routing
Static routing
Protocols
VLAN, DHCP, DHCP Snooping, DNS, URL filtering, DDNS, IP passthrough, STP, ARP, ICMP
IP Protocols
IPv4, IPv6
Intelligent Links
Link backup, load balancing, real-time link detection

Remote Maintenance

Remote Access
Web / CLI
Cloud Connection
Remote maintenance of PCs, cameras, servers, PLCs
Configuration Backup
Config import/export

Questions buyers ask

Which regions does the ER805-NRQ3-WLAN cover?

InHand lists the NRQ3 module as global, excluding China. It is sold for North America, EMEA/APAC and Oceania/South America, and supports 5G NR bands including n2, n5, n12, n25, n41, n66, n71, n77 and n78.

What does the WLAN suffix mean?

WLAN means the router includes Wi-Fi. This unit has 802.11ac Wave2 dual-band Wi-Fi on 2.4 and 5 GHz, rated up to 1200 Mbps.

Is the ER805 carrier certified?

InHand lists CE, FCC, IC, PTCRB, AT&T, Verizon and T-Mobile certifications for the ER805.

Does the ER805 support failover between cellular and wired internet?

Yes. It supports wired, cellular and Wi-Fi access with dual-SIM switching, real-time link detection, link backup and packet-by-packet load balancing, and it offers dual WAN on its Gigabit ports.

How is the ER805 managed?

The ER805 is managed through InCloud Manager, which provides zero-touch deployment, bulk remote upgrades, SD-WAN networking, dashboards and two-factor authentication. Local Web and CLI access are also supported.
