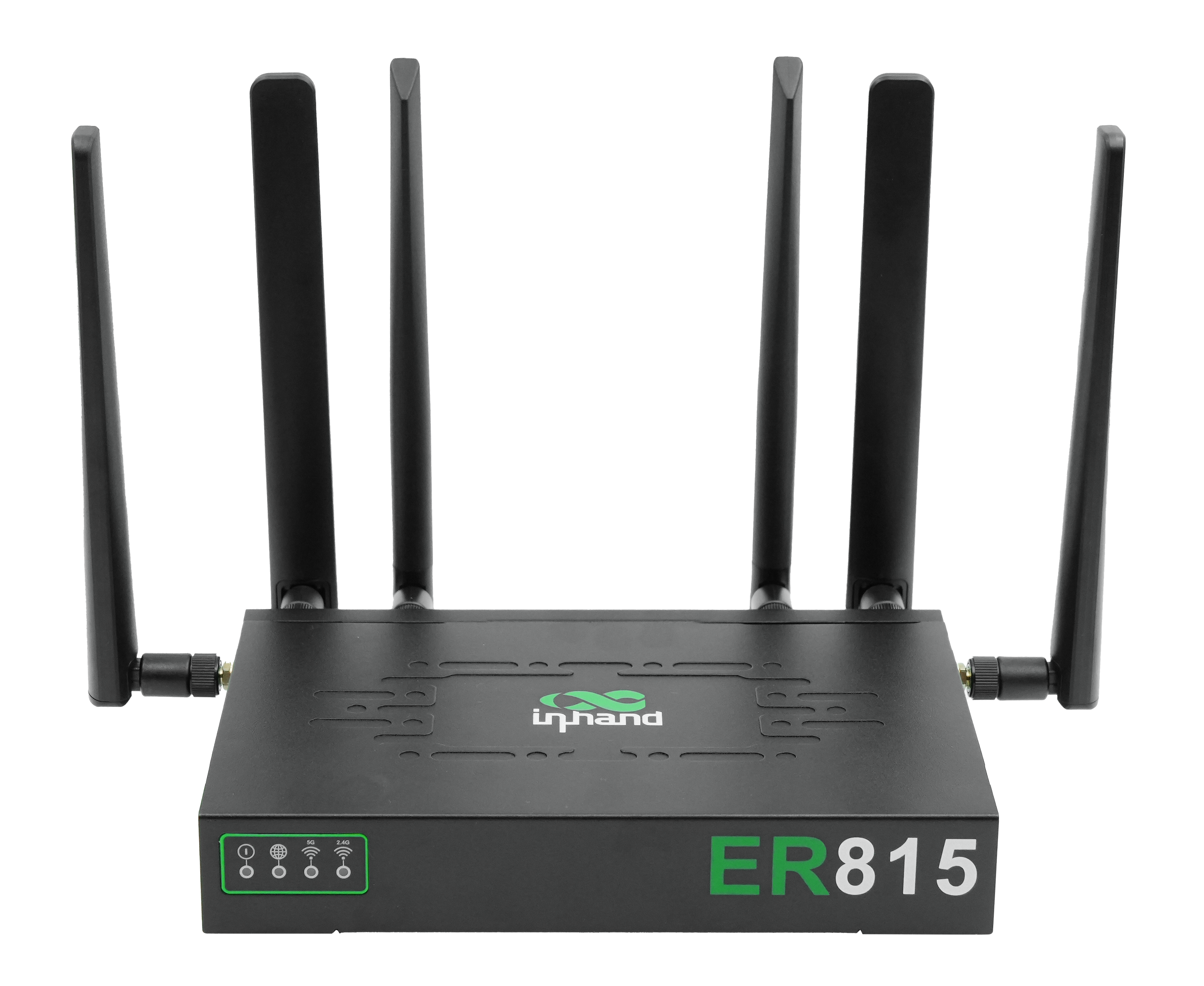

InHand Networks ER815 5G Enterprise Router with Wi-Fi 6 AX3000 and 2.5GbE WAN

5GMPN ER815-NRQ3-WLAN
$716.63$999.00Save $282.37

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

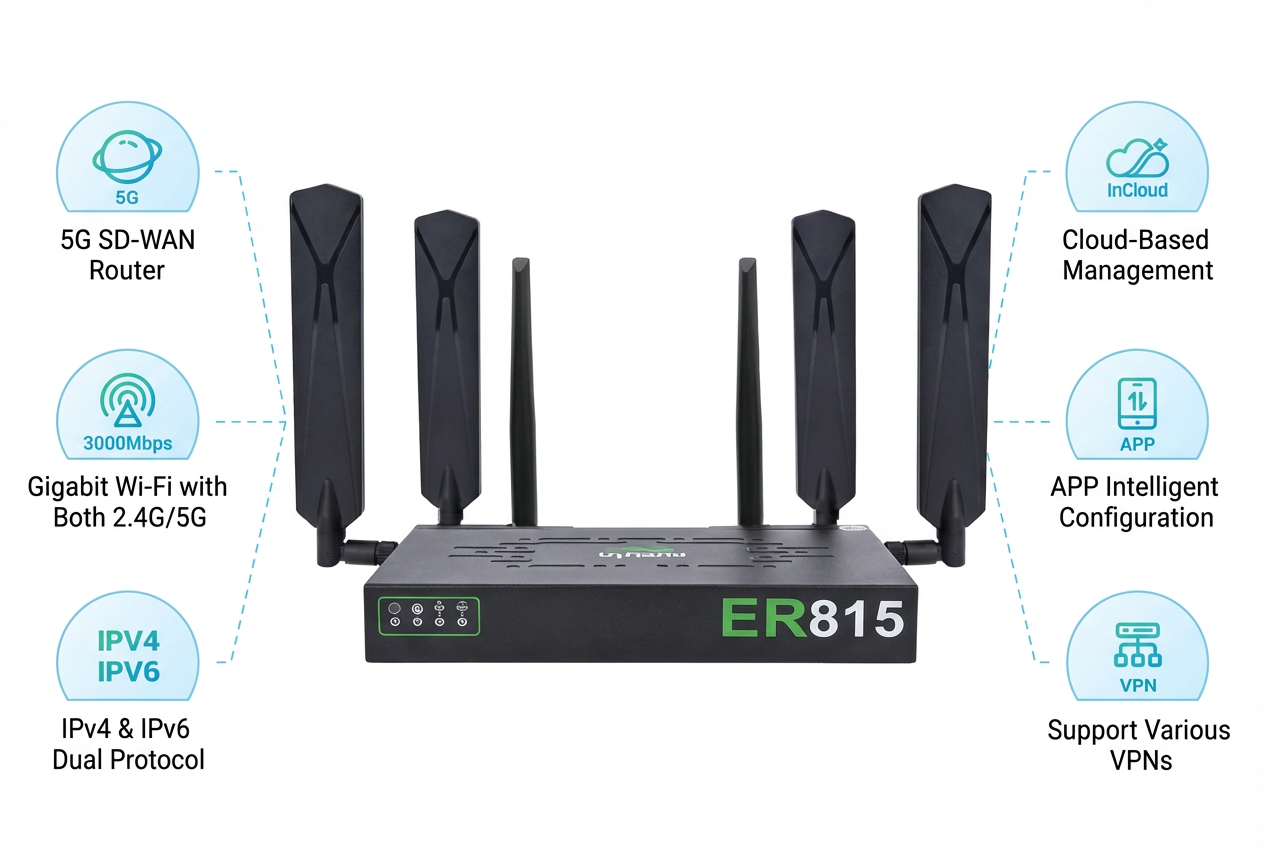

The InHand Networks ER815-NRQ3-WLAN is a high-performance 5G branch router for stores and business sites that need more capacity. The global 5G module supports SA and NSA. It adds Wi-Fi 6 AX3000, a 2.5GbE WAN port, dual Nano-SIM with optional eSIM, 1 Gbps throughput and 300 Mbps IPsec VPN for 150–200 users. InCloud Manager handles SD-WAN, bulk configuration and out-of-band maintenance of POS terminals, cameras and phones.

  • Global 5G module (NRQ3), SA up to 2.4 Gbps DL / 900 Mbps UL and NSA up to 3.4 Gbps DL / 550 Mbps UL
  • Wi-Fi 6 (802.11ax) AX3000 dual-band, up to 3000 Mbps, 21 dBm transmit power on both bands

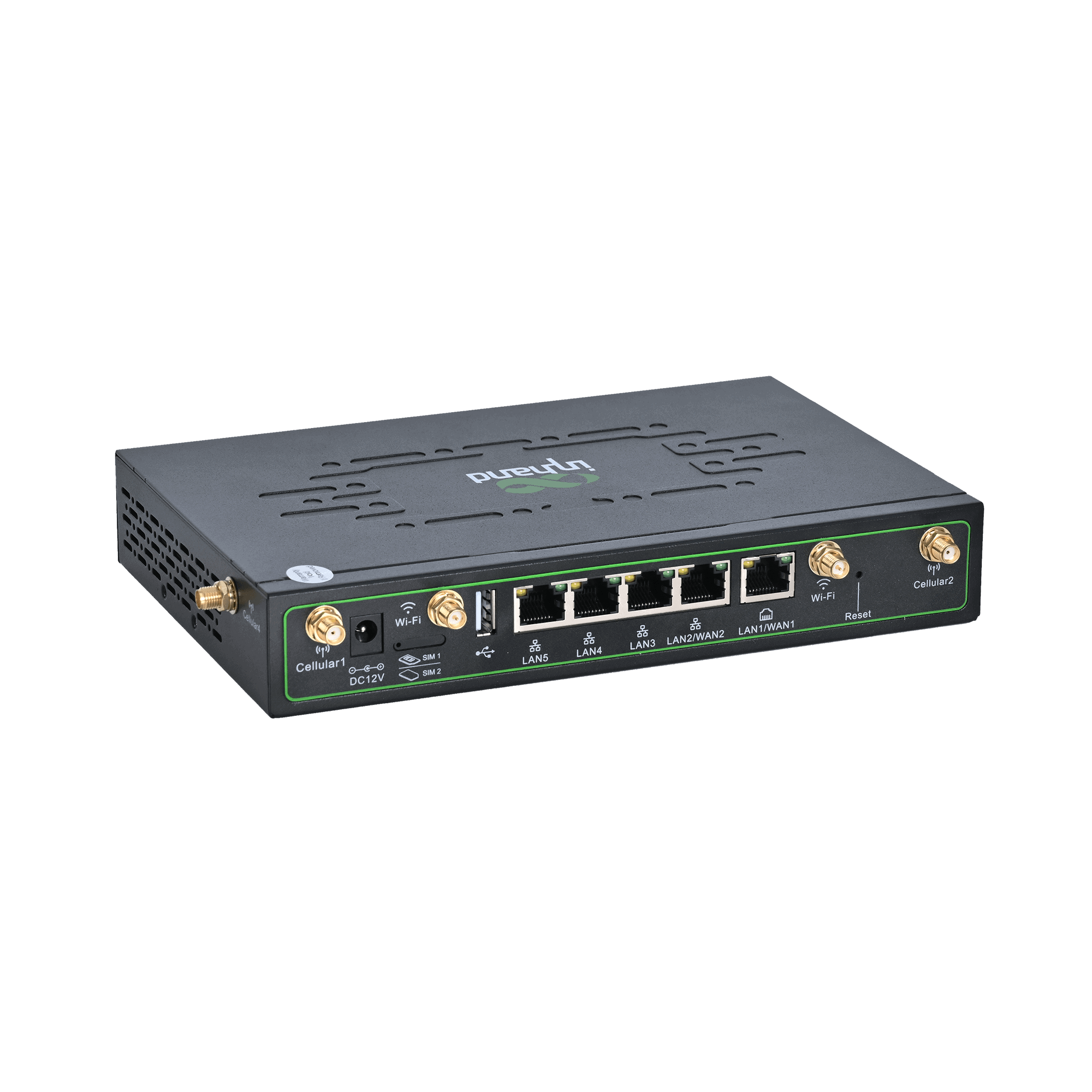

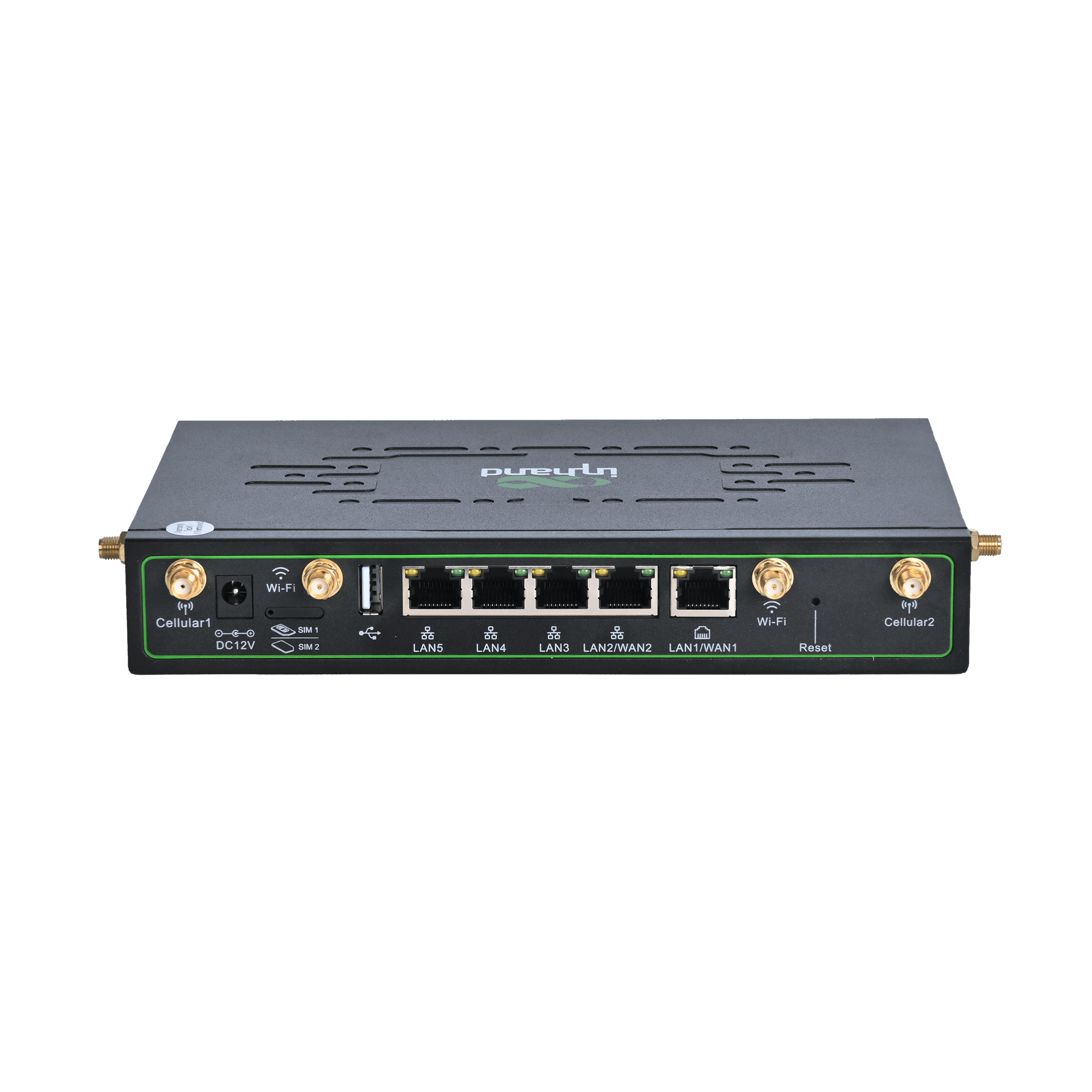

  • 2.5GbE WAN plus Gigabit LAN: 1 × 2.5G WAN + 4 × GbE LAN, or 1 × 2.5G + 1 × GbE dual WAN + 3 × GbE LAN
  • Dual Nano-SIM with optional eSIM, dual-SIM switching and real-time link detection
  • 1 Gbps throughput, 300 Mbps IPsec VPN, 150–200 recommended users, 512 MB RAM and 8 GB flash
  • InCloud Manager SD-WAN, bulk configuration and upgrades, and out-of-band terminal management

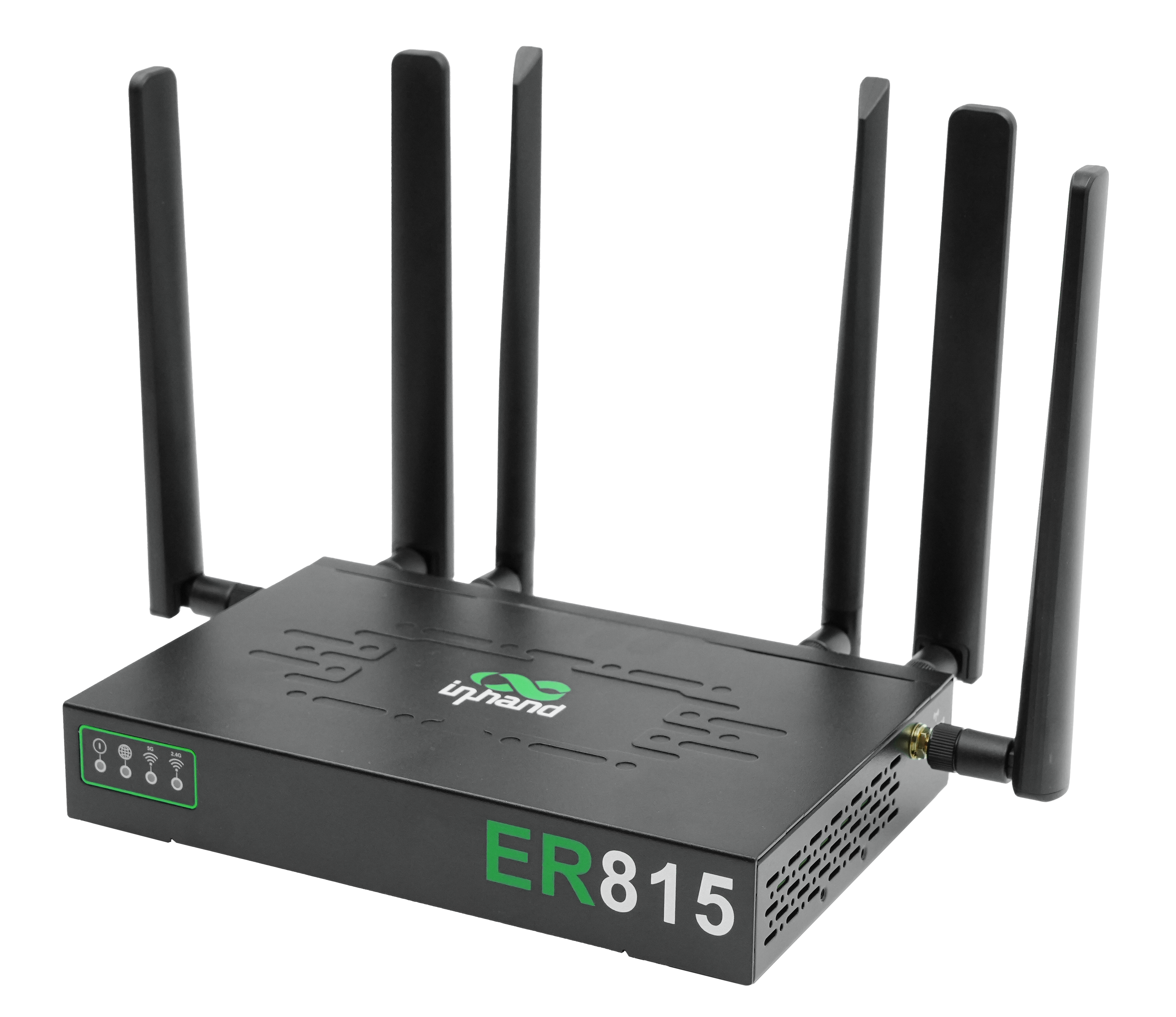

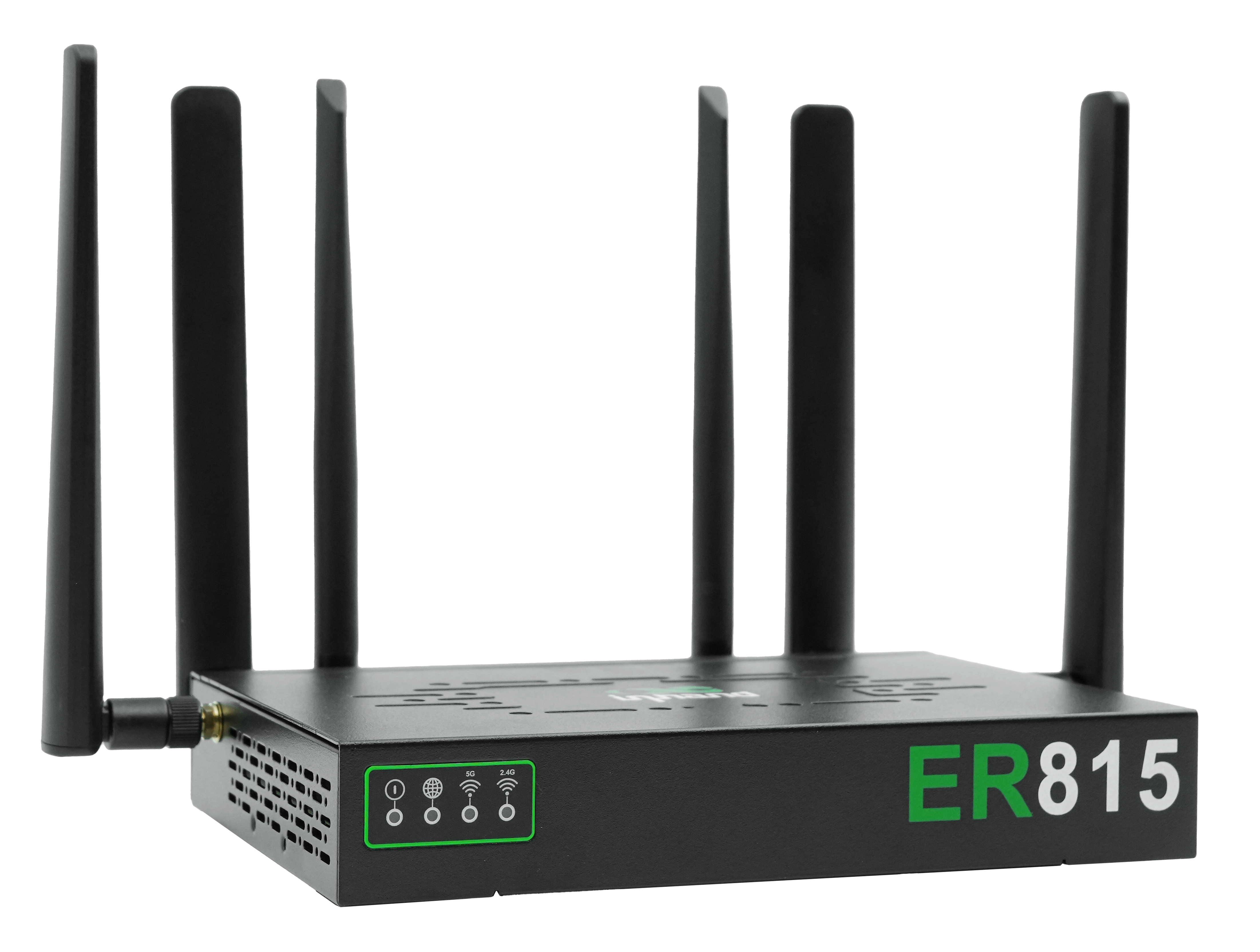

  • Package includes 2 Wi-Fi, 2 4G and 4 5G antennas, an Ethernet cable and a power supply
  • Handles busy branch sites with POS, cameras, phones and office terminals on one router rated for 150–200 users

The InHand Networks ER815 is an upgraded branch router for sites with higher concurrency and stability requirements, such as busy stores, premium SMB offices and hybrid workplaces. The ER815-NRQ3-WLAN combines InHand's global 5G module with dual-band Wi-Fi 6. The module covers 5G NR bands n1 through n79, including n41, n71, n77 and n78, plus broad LTE-FDD, LTE-TDD and WCDMA coverage. Rated speeds are up to 2.4 Gbps down / 900 Mbps up on 5G SA, 3.4 Gbps down / 550 Mbps up on NSA, and 1.6 Gbps down / 200 Mbps up on LTE.

Wired connectivity starts with a 2.5GbE WAN port. The ports can run as 1 × 2.5G WAN with 4 × GbE LAN, or 1 × 2.5G plus 1 × GbE dual WAN with 3 × GbE LAN. Wi-Fi 6 (802.11ax) reaches up to 3000 Mbps across 2.4 and 5 GHz at 21 dBm transmit power. It supports multi-SSID, SSID VLAN, guest mode and a custom splash portal. Dual Nano-SIM slots and optional eSIM work with the dual WAN ports and Wi-Fi client uplink for failover and load balancing. InHand rates the router at 1 Gbps throughput, 300 Mbps IPsec VPN and 150–200 users, with 512 MB RAM and 8 GB flash.

InCloud Manager provides zero-touch deployment, bulk upgrades, SD-WAN networking and Connector remote maintenance. The full SD-WAN feature set requires a Branch Professional license. An independent out-of-band channel lets IT monitor and maintain POS terminals, cameras and phones. VPN options include IPsec, L2TP, VXLAN, GRE and OpenVPN, backed by a 3L firewall and 802.1X.

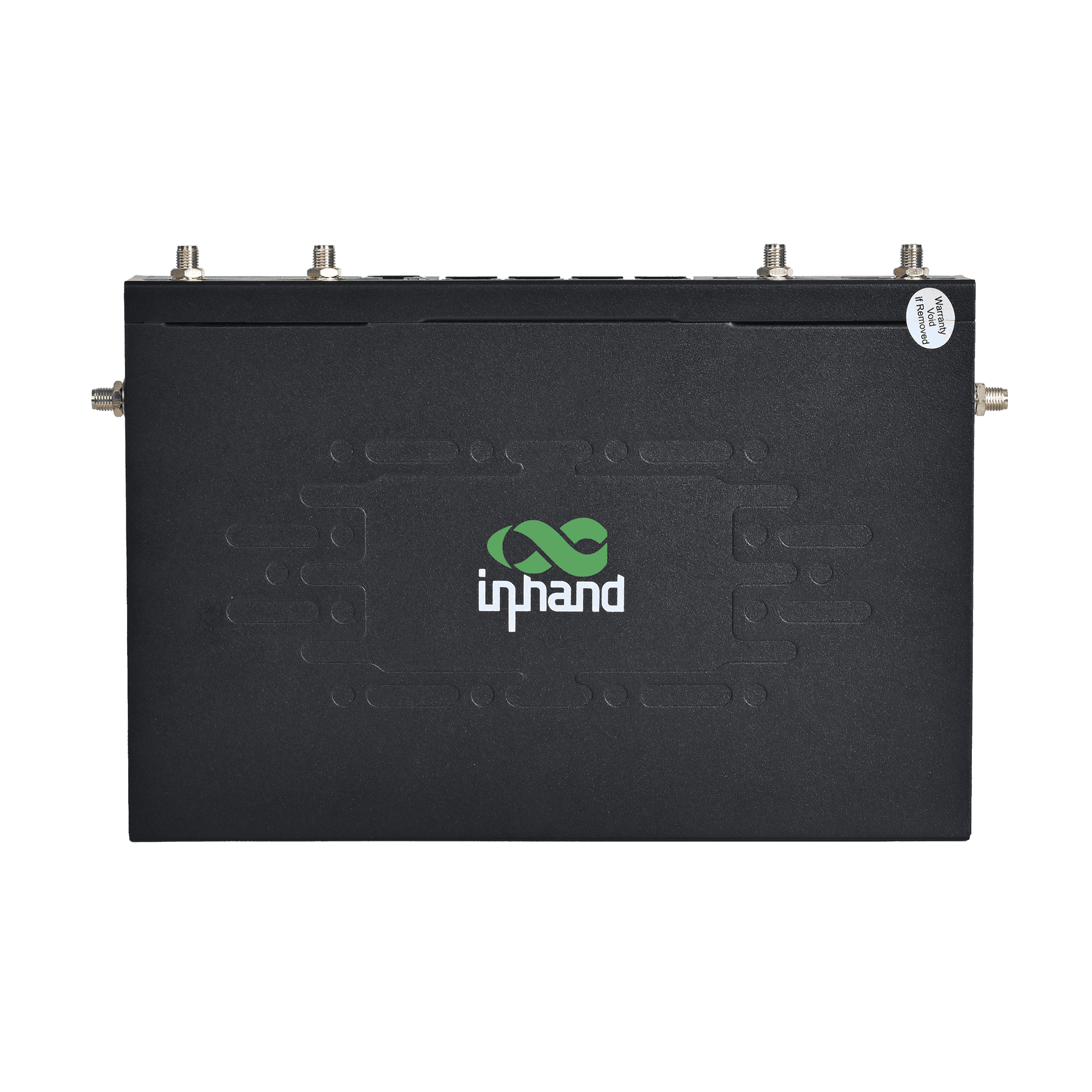

The 210 × 140 × 35 mm, 1.25 kg IP20 chassis mounts on a bracket or wall. It runs on 12 V / 3 A with peak draw of 18 W or less. The standard package includes two Wi-Fi, two 4G and four 5G antennas, an Ethernet cable and a power supply.

Ideal for

  • High-traffic retail stores running POS, cameras and guest Wi-Fi on one network
  • Premium SMB and branch offices with 150–200 users
  • Hybrid workplaces pairing multi-gigabit fiber with 5G failover
  • Multi-site SD-WAN deployments with centralized cloud management
  • Sites needing out-of-band maintenance of POS terminals, cameras and IP phones

Specifications

Leds

Indicators

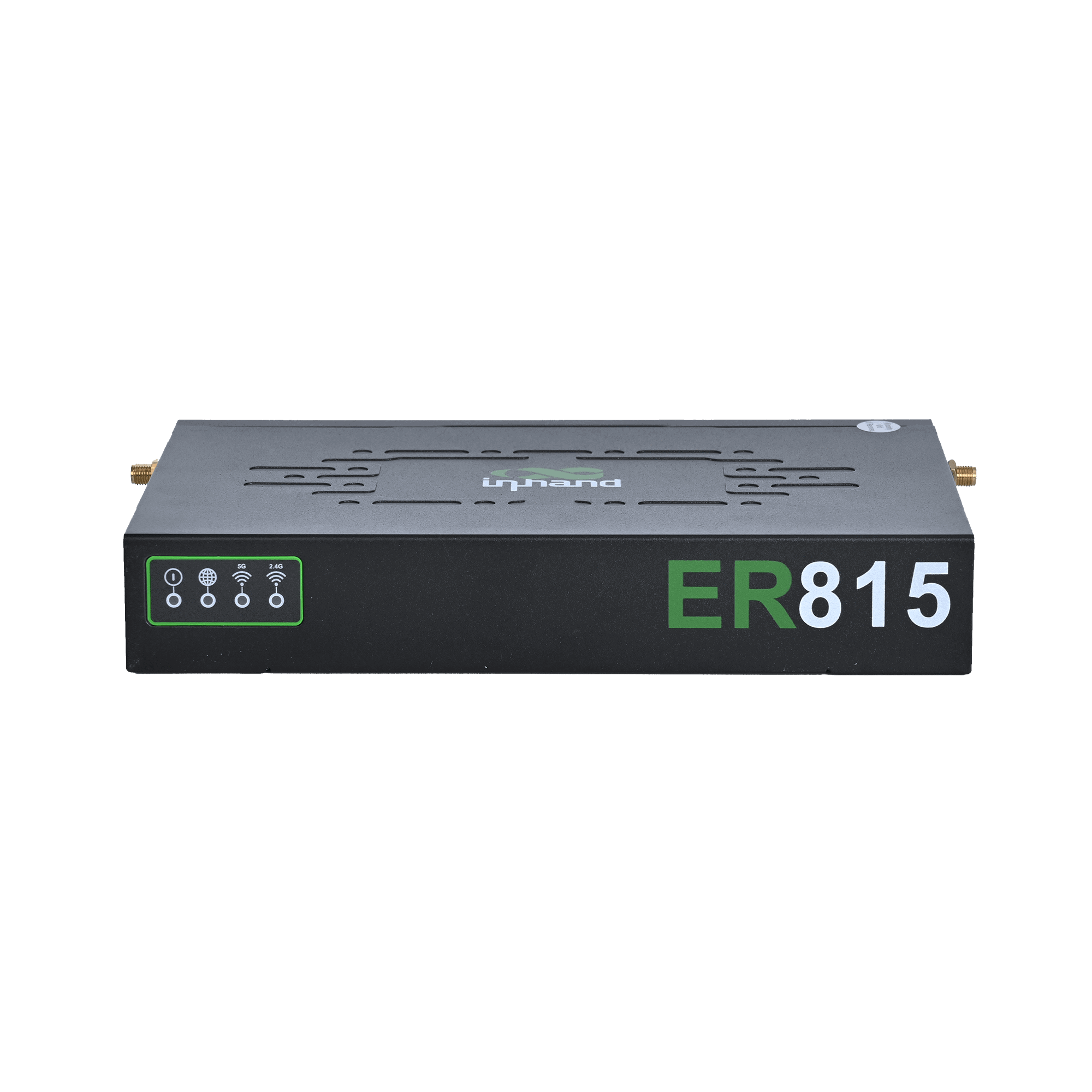

Power, Network, 5G Wi-Fi, 2.4G Wi-Fi

Wi-Fi

Features
Multi-SSID, SSID VLAN, hidden SSID, guest mode, custom splash portal
Max Rate
3000 Mbps (AX3000)
Standard
802.11 a/b/g/n/ac/ax (Wi-Fi 6)
TX Power
2.4 GHz: 21 dBm; 5 GHz: 21 dBm
Encryption
WPA, WPA2, WPA-PSK, WPA2-PSK
Antenna Gain
≤ 5 dBi

Power

Input
12 V / 3 A
Peak Power
≤ 18 W

General

MPN
ER815-NRQ3-WLAN
Brand
InHand Networks
Model
ER815 Enterprise Router
Region
Global 5G
Wlan Option
Wi-Fi 6 included
Cellular Variant
NRQ3: Global 5G

Package

Contents
Router, 2 Wi-Fi antennas, 2 4G antennas, 4 5G antennas, Ethernet cable, power supply (varies by order code)

Security

Firewall
3L inbound/outbound rules, port forwarding, SNAT, DNAT
Access Control
Black/white list, domain filtering, portal authentication, 802.1X
Remote Access Control
Supported

Diagnostic

Tools
ICMP, packet capture, tracert

Interfaces

Reset
Pinhole reset button
Antenna
5G: SMA × 4; 4G: SMA × 2; Wi-Fi: RP-SMA × 2
Cellular
5G SA 2.4 Gbps / 900 Mbps; 5G NSA 3.4 Gbps / 550 Mbps; LTE 1.6 Gbps / 200 Mbps
Ethernet
2.5G WAN (+ optional GbE WAN), 4 or 3 × GbE LAN, WAN/LAN switching, dual WAN
SIM Card
Dual Nano-SIM (eSIM optional)

Mechanical

Weight
1.25 kg (2.76 lb)
Dimensions
210 × 140 × 35 mm (8.27 × 5.51 × 1.38 in)
Protection
IP20
Installation
Bracket mount, wall mount

Environment

Humidity
5–95% RH (non-condensing)
Storage Temperature
-40 °C ~ +85 °C (-40 °F ~ 185 °F)
Operating Temperature
-10 °C ~ +50 °C (14 °F ~ 122 °F)

Reliability

Logs
Runtime logs, diagnostic logs
Alarms
Local email; platform SMS and email
Events
User logins, connection disconnects, device reboots
Upgrades
Scheduled upgrades
Traffic Shaping
QoS by link, IP and protocol

Certification

Emc
EMC Level 2
Certification
In plan: CE, FCC, IC, PTCRB, AT&T, Verizon, T-Mobile

Cellular Bands

NR Bands
5G NR n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
Wcdma Bands
WCDMA B1/B2/B4/B5/B8/B19
LTE Fdd Bands
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE Tdd Bands
LTE-TDD B34/B38/B39/B40/B41/B42/B43/B48

Cloud Management

Features
Zero-touch deployment, bulk upgrades, SD-WAN, Connector remote maintenance, 2FA
Platform
InCloud Manager
Dashboard
Connectivity, traffic, cellular signal, interfaces, clients, uplinks
SD WAN Licensing
Full SD-WAN feature set requires a Branch Professional license

Network Features

VPN
IPsec, L2TP, VXLAN, GRE, OpenVPN
Access
5G/4G, wired, Wi-Fi
SD WAN
SD-WAN networking
Dialing
PPPoE, cellular auto redial, dual-SIM switching, APN configuration
Routing
Static routing
Protocols
VLAN, DHCP, DHCP Snooping, DNS, URL Filtering, DDNS, IP Passthrough, STP, ARP, ICMP
IP Protocols
IPv4, IPv6
Intelligent Links
Real-time link detection

Performance Metrics

RAM
512 MB
Flash
8 GB
Throughput
1 Gbps
Recommended Users
150–200 users
Ipsec VPN Throughput
300 Mbps

Core Technical Specifications

Emc
EMC Level 2
SIM
Dual Nano-SIM; eSIM optional
Wi-Fi
Wi-Fi 6 (802.11ax), 2.4/5 GHz, 3000 Mbps; multi-SSID
Power
12 V / 3 A; peak ≤ 18 W
Network
IPv4/IPv6
Antennas
4G: SMA × 2; 5G: SMA × 4; Wi-Fi: RP-SMA × 2; ≤ 5 dBi
Cellular
5G/4G; SA 2.4 Gbps DL / 900 Mbps UL; NSA 3.4 Gbps DL / 550 Mbps UL; LTE 1.6 Gbps DL / 200 Mbps UL
Ethernet
WAN: 1 × 2.5G or 1 × 2.5G + 1 × GbE; LAN: 4 × GbE or 3 × GbE
Dimensions
210 × 140 × 35 mm (8.27 × 5.51 × 1.38 in); 1.25 kg (2.76 lb)
SD WAN VPN
SD-WAN; IPsec, L2TP, VXLAN, GRE, OpenVPN
Throughput Users
1 Gbps; IPsec 300 Mbps; 150–200 users

Questions buyers ask

Which 5G modes and speeds does the ER815-NRQ3-WLAN support?

It supports 5G SA at up to 2.4 Gbps down / 900 Mbps up and NSA at up to 3.4 Gbps down / 550 Mbps up. LTE fallback reaches up to 1.6 Gbps down / 200 Mbps up.

How do I log in for the first time?

Install the antennas, insert the SIM, connect power, then connect a computer to a LAN port using DHCP or a 192.168.2.x address. Browse to http://192.168.2.1 and sign in with the credentials printed on the device label.

Do I need to set the APN manually?

Usually not. The ER815 auto-detects the carrier and applies the matching APN in most cases. If the cellular link does not come up, set the APN for each SIM under Internet > Cellular.

Is a license needed for SD-WAN?

InHand states that the full SD-WAN feature set in InCloud Manager requires a Branch Professional license.
