ZebraTablets & Laptops

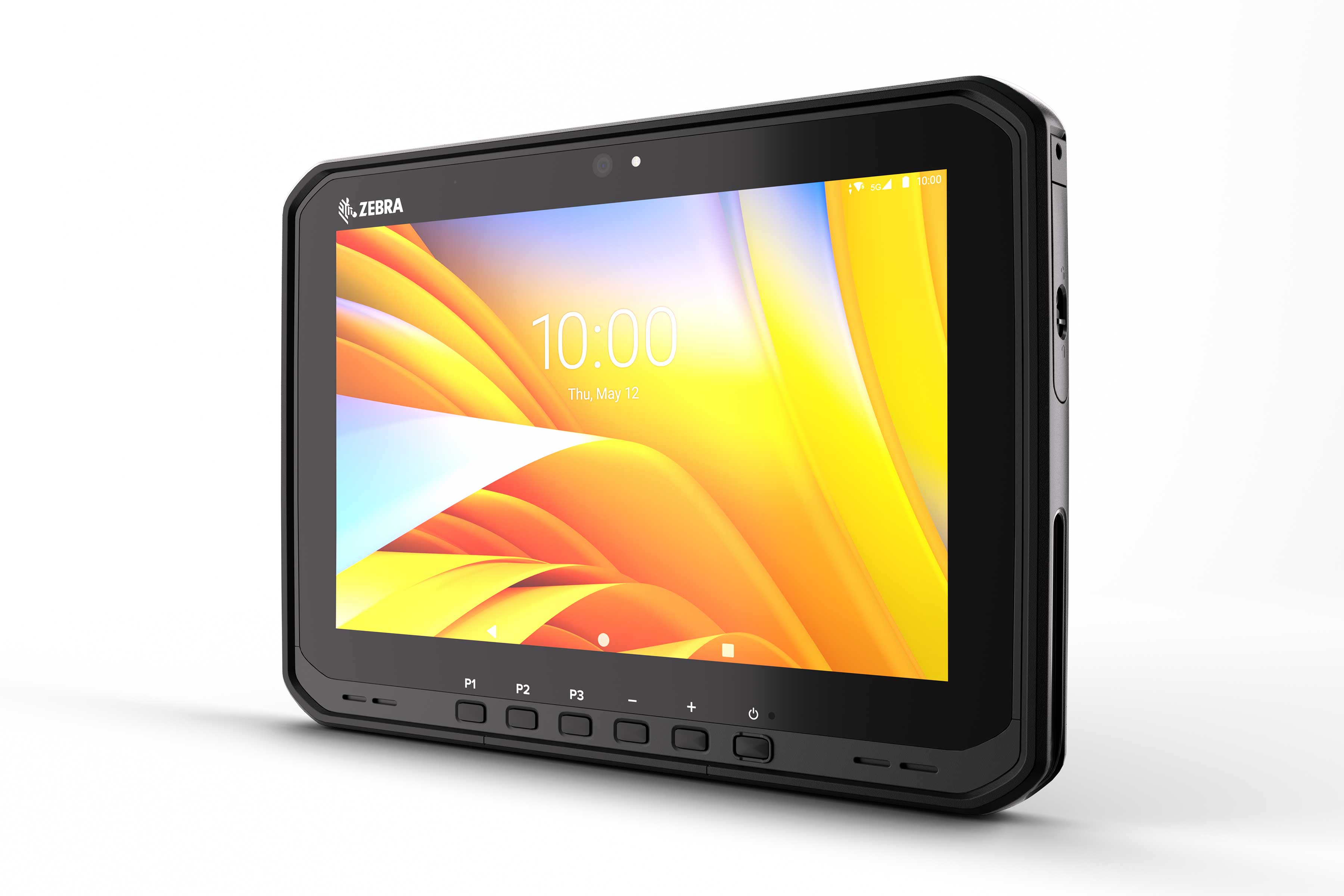

Zebra ET65 Rugged 5G Android Tablet, 10.1-Inch, 8GB RAM, 128GB, Wi-Fi 6E (ET65AW-ESQAGE00A0-NA)

5GMPN ET65AW-ESQAGE00A0-NA
  • 128 GB
  • 8 GB
  • 9–11.9 in
  • Rugged
$2,933.32

In stock · only 2 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Zebra ET65AW-ESQAGE00A0-NA is a North American configuration of Zebra's rugged ET65 Android enterprise tablet, built for warehouses, freezers, ports, yards and field service. It pairs 5G and Wi-Fi 6E radios with a Qualcomm 6490 octa-core 2.7 GHz platform, 8 GB RAM and 128 GB UFS flash. The 10.1-inch 1,000-nit display stays readable in direct sunlight. The tablet is IP66 sealed, rated for 5 ft drops to concrete and Class 1 Division 2 hazardous locations. Its hot-swappable batteries keep it running across shifts.

  • 5G FR1 and LTE WWAN with private LTE/5G and CBRS (US only) support; 1 x nano SIM plus 1 x eSIM
  • Wi-Fi 6E 2x2 MU-MIMO, Bluetooth 5.2 Class 1, NFC and dual-band multi-constellation GNSS
  • Qualcomm 6490 octa-core 2.7 GHz platform with 8 GB RAM, 128 GB UFS flash and microSD up to 2 TB
  • 10.1-inch WUXGA 1,000-nit display, optically bonded, with Corning Gorilla Glass and glove/wet touch
  • IP66 sealing, 5 ft/1.5 m drop to concrete exceeding MIL-STD-810H, and Class 1 Division 2 certification
  • Hot-swappable PowerPrecision+ batteries (8,920 mAh standard or 17,840 mAh extended) with super capacitor
  • 16 MP autofocus rear camera for barcode scanning, 8 MP front camera with privacy shade, optional SE55 scan engine
  • Stay connected across the site and on the road by pairing a private 5G or CBRS network with a public carrier through the nano SIM and eSIM

The Zebra ET65 is a rugged Android business tablet for teams that work indoors and out: forklift operators, yard and dock crews, cold-storage staff and field technicians. This SKU, ET65AW-ESQAGE00A0-NA, is the North American configuration with WLAN plus 5G WWAN, Android with Google Mobile Services, and 8 GB RAM with 128 GB UFS flash. A user-accessible microSD slot adds up to 2 TB.

Connectivity is the main reason to choose the ET65 over the Wi-Fi-only ET60. The 5G FR1 modem covers a broad set of bands, including n71, n77 and n78, with LTE fallback. It also supports private LTE/5G networks and CBRS, which is available in the US only. One nano SIM and one eSIM let a single device use a private 5G or CBRS network on site and a public carrier network off site. Inside the facility, 2x2 MU-MIMO Wi-Fi 6E supports fast roaming with 802.11r, OKC and PMKID caching. Bluetooth 5.2 Class 1 and NFC are also built in.

The ET65 is built for harsh conditions. It is IP66 sealed and rated for 5 ft drops to concrete, exceeding MIL-STD-810H. Zebra also tests it for vibration, thermal shock, salt fog and solar radiation. The 1,000-nit WUXGA display is optically bonded and covered in Corning Gorilla Glass, and it works with gloves. It is listed with the 17,840 mAh extended battery, rated up to 20 hours indoors. Batteries are hot-swappable, with a super capacitor bridging each swap.

The 16 MP rear camera scans 1D/2D barcodes out of the box, and an SE55 advanced-range scan engine is available as an option. Accessories include a vehicle dock with heated touchpanel and keyboard, and a friction-hinge keyboard that turns the tablet into a 2-in-1. Zebra DNA tools and LifeGuard for Android handle deployment, management and security updates. The box contains the tablet and a Quick Start Guide.

Ideal for

  • Forklift and vehicle-mount computing in warehouses and cold storage
  • Yard management, container loading and cross-docking at ports and distribution centers
  • Field service work orders, meter reading and proof of service
  • Manufacturing plant-floor management, quality assurance and mobile HMI
  • Public safety incident reporting, dispatch and in-vehicle inventory

Specifications

Notes

Footnotes
CBRS is available in the US only; OCR Wedge license required for each data type; battery and super capacitor performance vary with usage conditions

Power

Battery
Standard capacity 8,920 mAh; extended capacity 17,840 mAh; hot swap battery mode
Charging
Through USB Type-C (USB PD3.0 compatible) port or optional dock
Battery Type
Hot-swappable PowerPrecision+
Super Capacitor
No-battery configurations: 5 minutes of operation
Battery Run Time
Standard battery: 10 hours indoor; extended battery: 20 hours indoor (WLAN on, 50% backlight)
Battery Charge Time
Standard battery: 2.5 hrs from 4% to 80%; extended battery: 5.5 hrs from 4% to 80% (45 W power supply)
Battery Listed With Sku
17,840 mAh

General

MPN
ET65AW-ESQAGE00A0-NA
Brand
Zebra Technologies
Model
Zebra ET65 Enterprise Tablet (Android)
Radios
WLAN + 5G WWAN
Region
North America
Replaces
Replaces XSLATE L10 Android and XPAD L10 Android
Form Factor

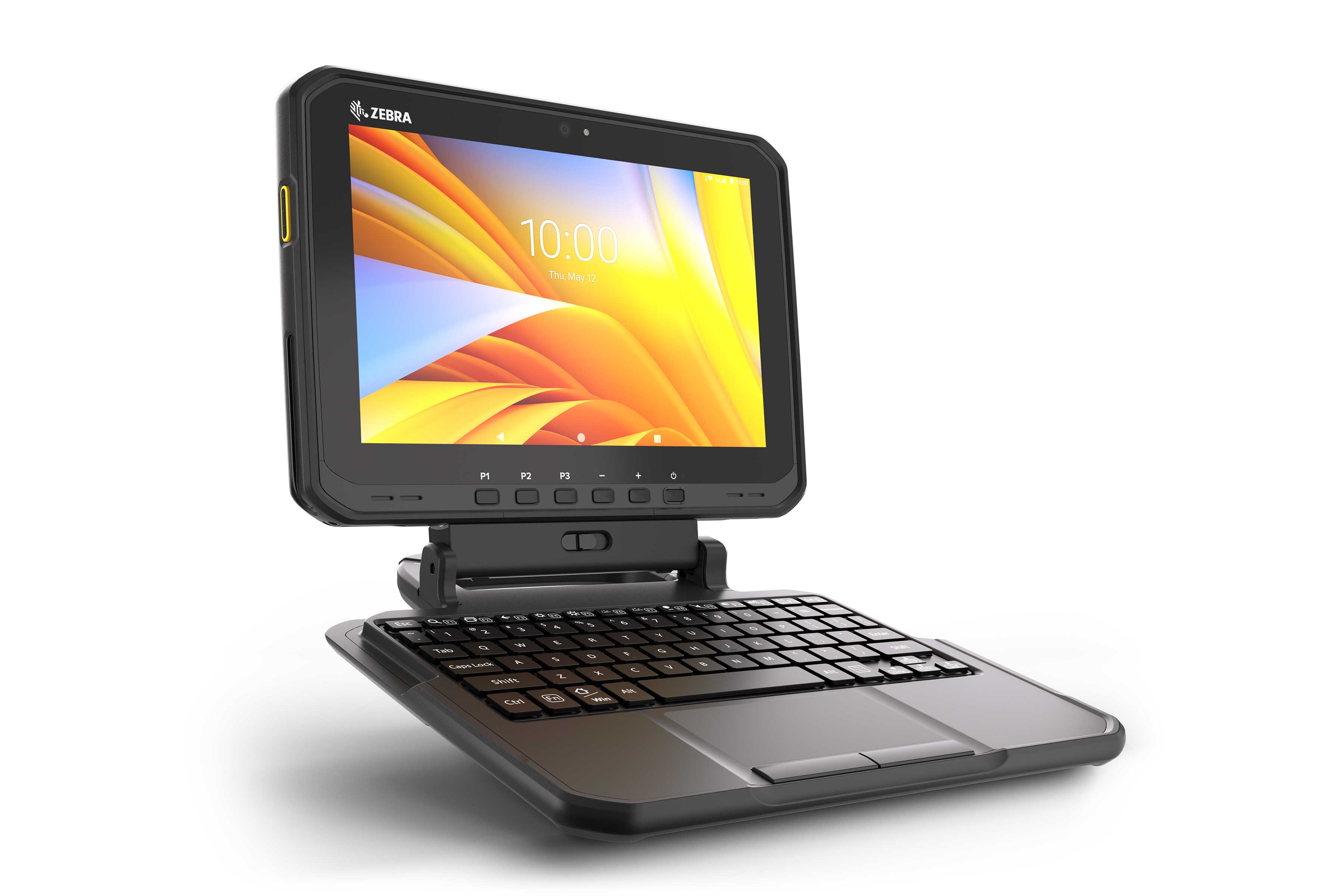

Tablet; 2-in-1 with optional keyboard
Operating System Configuration
Android with Google Mobile Services

Package

IN The Box
Tablet; Quick Start Guide
Shipping Weight
5.00 lb

Sensors

Magnetometer
eCompass
Motion Sensor
3-axis gyroscope; 3-axis accelerometer
Humidity Sensor
Control input for display heating
Ambient Light Sensor
Automatically adjusts display brightness

Security

Cac Support
Common Access Card (CAC) support
Security Features
FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408); FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; supports Secure Boot and Verified Boot
OS Security Updates
LifeGuard for Android OS patches and security updates

Software

Zebra Dna
Zebra DNA software suite for performance, setup and security (Android only; features vary by model; a Support Contract may be required)

Warranty

Manufacturer Warranty
3 years against defects in workmanship and materials from date of shipment, per Zebra's hardware warranty statement

Data Capture

Rear Camera
16 MP autofocus; flash LED generates balanced white light
Front Camera
8 MP; mechanical privacy shade
Camera Scanning
1D/2D barcodes; optional OCR for documents, license plates, VINs and more
Optional Scanner
SE55 1D/2D Advanced Range Scan Engine with IntelliFocus technology

Wireless LAN

Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6E (802.11ax); Wi-Fi certified; Wi-Fi 6E Certified; Dual Band Simultaneous; IPv4, IPv6
Fast Roam
PMKID caching; 802.11r (Over-the-Air); OKC
Data Rates
6 GHz 802.11ax 20/40/80/160 MHz up to 2402 Mbps; 5 GHz 802.11a/n/ac/ax 20/40/80/160 MHz up to 2402 Mbps; 2.4 GHz 802.11b/g/n/ax 20 MHz up to 286.8 Mbps
Certifications
Wi-Fi CERTIFIED n, ac and 6; Wi-Fi Enhanced Open; WPA2-Personal/Enterprise; WPA3-Personal/Enterprise (incl. 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; Wi-Fi Direct
Operating Channels
Channel 1-13 (2401-2483 MHz); Channel 36-165 (5150-5850 MHz): 36-64, 100-144, 149-165; Channel 1-233 (5925-7125 MHz); channel bandwidth 20/40/80/160 MHz; actual channels depend on regulatory rules
Security And Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP, AES); WPA3 Enterprise (AES) with EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) EAP-TLS; Enhanced Open (OWE)

Wireless Pan

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2, 3, 4, 5; Host Card Emulation; contactless payment, VAS and wallet support; Apple ECP 1.0/2.0, Apple VAS and Google Smart Tap certified; VAS Library/SDK
Bluetooth
Bluetooth v5.2 Class 1, Bluetooth Low Energy (BLE)

Wireless WAN

GNSS
GPS, GLONASS, Galileo, BeiDou, QZSS dual-band GNSS: concurrent L1/G1/E1/B1 + L5/E5a/BDS B2a; A-GPS; supports XTRA
Band Note
Actual band support may vary by country or carrier
SIM Slots
1 x eSIM, 1 x Nano SIM
Wwan Type
ET65 WWAN, data only
Frequency Bands 3g
B1, B2, B4, B5, B8
Frequency Bands 4G
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Frequency Bands 5G
5G FR1: n1, n2, n3, n5, n7, n8, n12, n13, n14, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77, n78
Private Networking
LTE/5G private networking supported; CBRS (US only)

User Environment

Drop
5 ft (1.5 m) drop to concrete, exceeds MIL-STD-810H
Impact
Steel ball (130 g) dropped from 75 cm height
Sealing
IP66 per IEC 60529
Humidity
5% to 95% non-condensing (standard); 5% to 95% condensing (freezer version with heated touch screen)
Salt Fog
48 hours of 5% solution at 95° F (35° C)
Vibration
MIL-STD-810H Method 514.8 Operating; MIL-STD-810H Method 514.8 E-1 Minimum Integrity 7.7 Grms non-operating
Thermal Shock
-40° F to 158° F (-40° C to 70° C)
Solar Radiation
EN/IEC 60068-2-5 spectral energy distribution; 1120 W/m2 at display surface; 104° F (40° C) ambient; 24-hour irradiation
Storage Temperature
-40° F to 158° F (-40° C to 70° C)
Operating Temperature
Standard battery: -4° F to 131° F (-20° C to 55° C); Extended battery: -22° F to 131° F (-30° C to 55° C); No-battery configurations: -22° F to 140° F (-30° C to 60° C)
Electrostatic Discharge
±15 kV air discharge; ±8 kV contact; ±8 kV indirect
Hazardous Location Certification
Class 1 Division 2

Accessories And Services

Lifecycle
Available for sale 4 years from initial release; up to 8 total years of service and support
Recommended Services
Zebra OneCare Essential and Select support services; Zebra Visibility Services (VisibilityIQ Foresight); Learning Services
Peripherals And Accessories

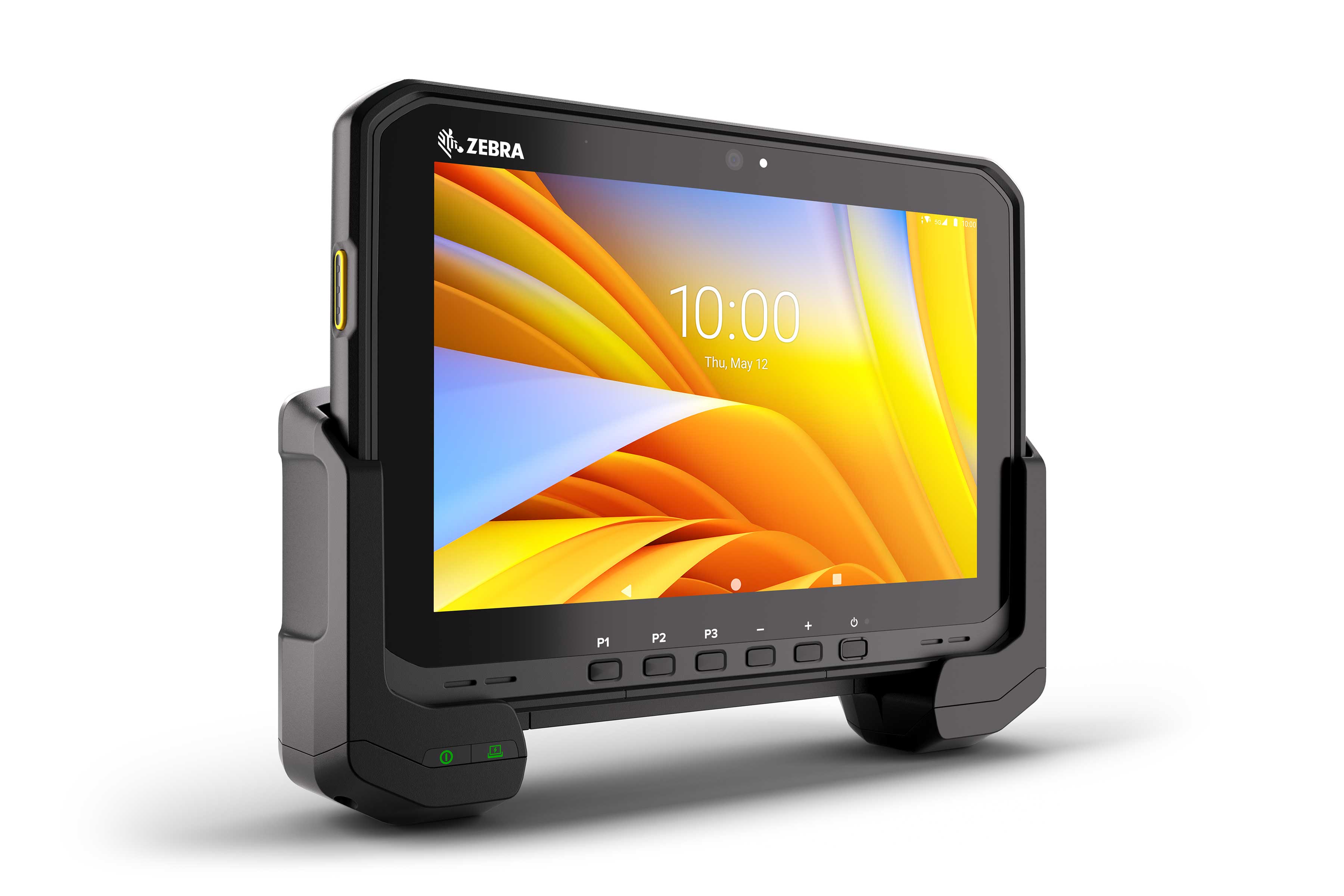

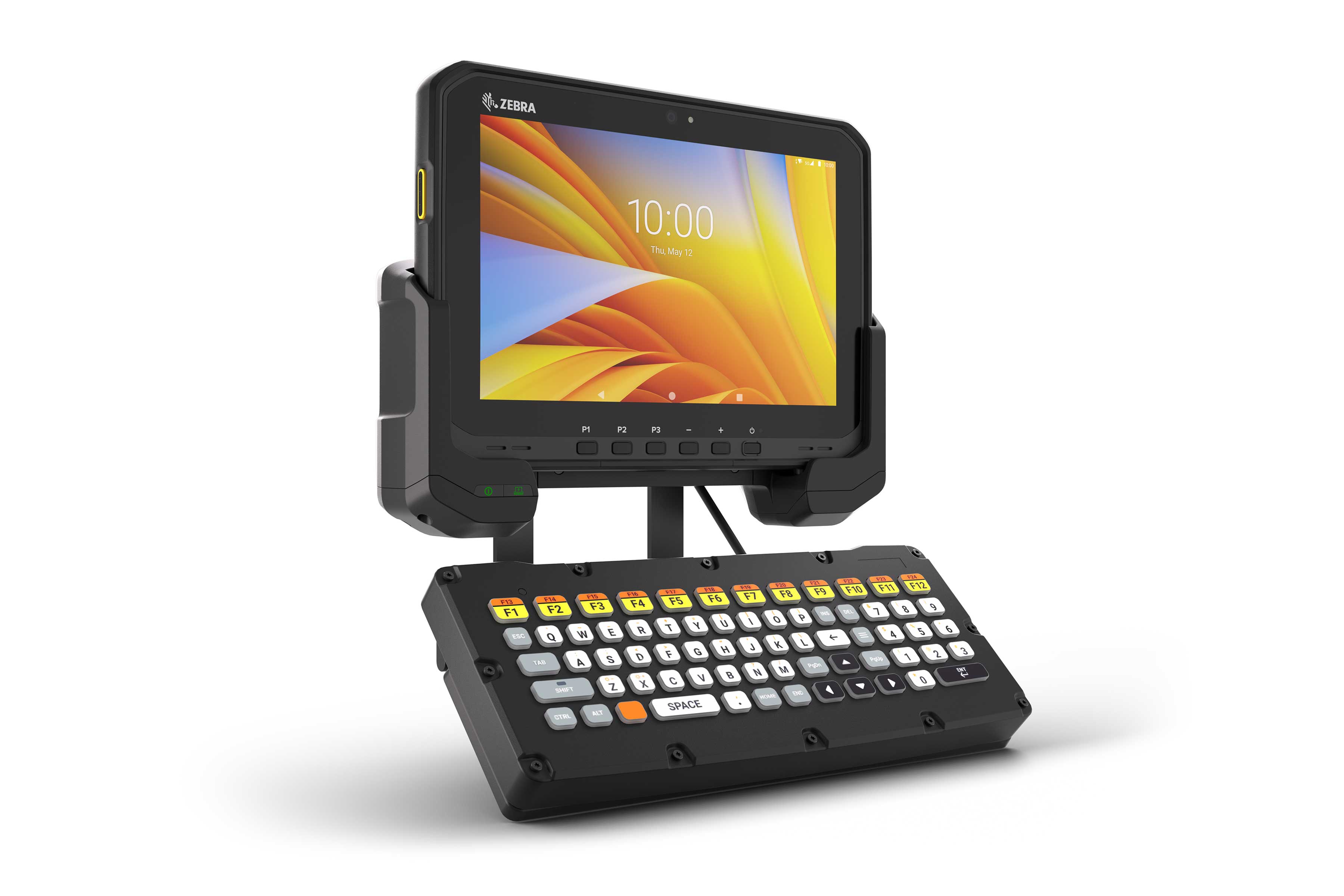

Vehicle dock; keyboard; CAC reader; RFID reader; 2-slot battery charger; stylus; handstrap, kickstand, shoulder strap and handle (sold separately)

Physical Characteristics

Audio
Stereo speakers and two microphones; headset via USB or Bluetooth; speaker/microphone support
Weight
2.44 lb (1108 g) with standard battery; 2.74 lb (1247 g) with extended battery
Buttons
Power; Scan; Up/Down (volume or brightness); three programmable keys
Display
10.1 in WUXGA (1920 x 1200), 1,000 nits, optically bonded to touchpanel
Dimensions
10.8 in W x 7.8 in L x 0.7 in H (275 mm W x 199 mm L x 18.3 mm H)
Touchpanel
Multi-mode capacitive touch with bare or gloved fingertip or conductive stylus (sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint-resistant anti-smudge coating
Connectivity
2 x USB 3.1 Type-A ports; 1 x USB 3.1 Type-C port (with DisplayPort 1.2 support)
Notifications
Audible tone; 2 x multi-color LEDs
Expansion Slot
User-accessible microSD card slot, supports up to 2 TB
External Scanner Support
HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX, RS5100 and RS6100
Interface Ports And Expansion
Docking connector (charge and data); keyboard connector; 1 x USB 2.0 (back I/O, host only)

Performance Characteristics

CPU
Qualcomm 6490 octa-core, 2.7 GHz
Memory
8 GB RAM / 128 GB UFS Flash
Operating System
Android (support up to Android 16 per Zebra)

Questions buyers ask

Is this ET65 configured for North America?

Yes. The -NA suffix on ET65AW-ESQAGE00A0-NA marks the North American configuration. It runs Android with Google Mobile Services and has WLAN plus 5G WWAN radios.

Does the ET65 support private 5G and CBRS networks?

Yes. The ET65 supports LTE/5G private networking and CBRS, which is available in the US only. With one nano SIM and one eSIM, it can use a private network on site and a public carrier network elsewhere.

How long does the battery last?

Zebra rates the standard 8,920 mAh battery at 10 hours and the extended 17,840 mAh battery at 20 hours. Both figures are indoor, with WLAN on and 50% backlight. This SKU is listed with the 17,840 mAh battery. Batteries are hot-swappable.

Can it scan barcodes without an add-on scanner?

Yes. The 16 MP autofocus rear camera captures 1D/2D barcodes out of the box. For heavier scanning, the optional SE55 advanced-range engine reads barcodes from near contact up to 40 ft.

How rugged is the ET65?

It is IP66 sealed and rated for 5 ft (1.5 m) drops to concrete, exceeding MIL-STD-810H. It is also tested for vibration, thermal shock, salt fog and solar radiation, and it is certified for Class 1 Division 2 hazardous locations.
