Zebra ET65 5G Rugged Android Tablet, 10.1-Inch, WLAN + 5G WWAN, 8GB/128GB (ET65AW-ESQAGSK0C0-NA)

5GMPN ET65AW-ESQAGSK0C0-NA
  • 128 GB
  • 8 GB
  • 9–11.9 in
  • Rugged
$3,523.92$4,130.43Save $606.51

In stock · only 1 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans
Compare all 2 configurations

Datasheets & documents

Overview

The Zebra ET65AW-ESQAGSK0C0-NA is a North American WLAN + 5G WWAN configuration of the ET65, Zebra's rugged Android enterprise tablet. It runs a Qualcomm 6490 octa-core 2.7 GHz platform with 8 GB RAM and 128 GB UFS flash. The 10.1-inch 1,000-nit display is readable in sunlight. The tablet carries an IP66 rating and a 5 ft drop rating, and its hot-swappable batteries support multi-shift work. It is designed for warehouses, cold storage, ports, yards, field service and public safety.

  • WLAN + 5G WWAN: 5G FR1 and LTE bands, private LTE/5G and CBRS (US only), nano SIM plus eSIM
  • Wi-Fi 6E 2x2 MU-MIMO with 802.11r fast roaming, Bluetooth 5.2 Class 1 and NFC
  • Qualcomm 6490 octa-core 2.7 GHz, 8 GB RAM, 128 GB UFS flash, microSD up to 2 TB
  • 10.1-inch WUXGA 1,000-nit optically bonded display with Corning Gorilla Glass
  • IP66, 5 ft/1.5 m drop to concrete exceeding MIL-STD-810H, Class 1 Division 2
  • Hot-swappable 8,920 mAh or 17,840 mAh PowerPrecision+ batteries with super capacitor
  • 16 MP autofocus rear camera for barcode scanning; optional SE55 advanced-range scan engine
  • Keep field and yard workers online on public 5G/LTE or a private 5G or CBRS network from one device

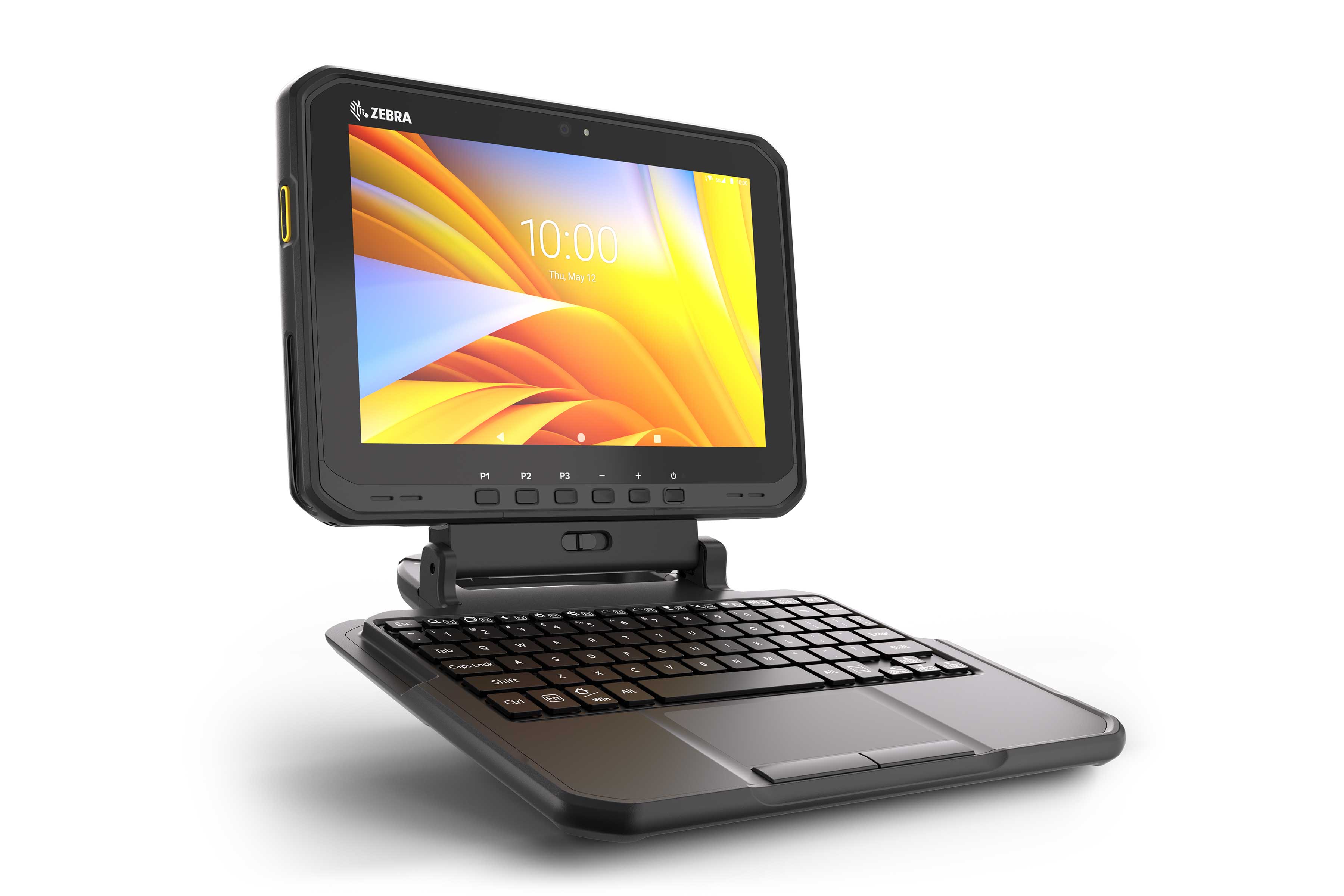

The Zebra ET65 is a rugged Android business tablet that can serve as a handheld tablet, a vehicle-mount computer or a 2-in-1 laptop. The ET65AW-ESQAGSK0C0-NA is the North American configuration with WLAN plus 5G WWAN, Android with Google Mobile Services, 8 GB RAM and 128 GB UFS flash. Storage expands through a user-accessible microSD slot supporting up to 2 TB.

The cellular side covers 5G FR1 bands n1 through n78, including n71 and n77, with broad LTE and 3G fallback. Private LTE/5G networking and CBRS (US only) are supported. A nano SIM and an eSIM let workers move between an on-site private network and a public carrier. Wi-Fi 6E with 2x2 MU-MIMO covers indoor work, and 802.11r, OKC and PMKID caching support fast roaming. Bluetooth 5.2 Class 1, NFC and dual-band GNSS round out the radios.

Zebra rates the ET65 IP66 and for 5 ft drops to concrete, exceeding MIL-STD-810H. It is also tested for vibration, thermal shock, salt fog and solar radiation, and it is certified Class 1 Division 2. The 1,000-nit WUXGA display is optically bonded under Corning Gorilla Glass. It accepts bare-finger, gloved or stylus input and rejects water droplets. Standard (8,920 mAh) and extended (17,840 mAh) PowerPrecision+ batteries are hot-swappable, with a super capacitor maintaining power during each swap. In a vehicle dock, the tablet can also run on vehicle power without a battery.

For data capture, the 16 MP autofocus rear camera reads 1D/2D barcodes, and an SE55 advanced-range scan engine is optional. OCR Wedge can capture license plates, VINs and meter readings, with a license required per data type. Zebra DNA tools, LifeGuard for Android and FIPS 140-2 validation support managed, secure fleets. The box contains the tablet and a Quick Start Guide.

Ideal for

  • Vehicle-mount data entry on forklifts and material-handling equipment, including freezer environments
  • Inventory management, picking and cross-docking in distribution centers
  • Port and yard operations on private 5G or CBRS networks
  • Field service dispatch, mobile work orders and inspection compliance
  • Plant-floor maintenance, repair and quality assurance

Specifications

Notes

Footnotes
CBRS is available in the US only; OCR Wedge license required for each data type; battery and super capacitor performance vary with usage conditions

Power

Battery
Standard capacity 8,920 mAh; extended capacity 17,840 mAh; hot swap battery mode
Charging
Through USB Type-C (USB PD3.0 compatible) port or optional dock
Battery Type
Hot-swappable PowerPrecision+
Super Capacitor
No-battery configurations: 5 minutes of operation
Battery Run Time
Standard battery: 10 hours indoor; extended battery: 20 hours indoor (WLAN on, 50% backlight)
Battery Charge Time
Standard battery: 2.5 hrs from 4% to 80%; extended battery: 5.5 hrs from 4% to 80% (45 W power supply)

General

MPN
ET65AW-ESQAGSK0C0-NA
Brand
Zebra Technologies
Model
Zebra ET65 Enterprise Tablet (Android)
Radios
WLAN + 5G WWAN
Region
North America
Replaces
Replaces XSLATE L10 Android and XPAD L10 Android
Form Factor
Tablet; 2-in-1 with optional keyboard
Operating System Configuration
Android with Google Mobile Services

Package

IN The Box
Tablet; Quick Start Guide
Shipping Weight
7.00 lb

Sensors

Magnetometer
eCompass
Motion Sensor
3-axis gyroscope; 3-axis accelerometer
Humidity Sensor
Control input for display heating
Ambient Light Sensor
Automatically adjusts display brightness

Security

Cac Support
Common Access Card (CAC) support
Security Features
FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408); FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; supports Secure Boot and Verified Boot
OS Security Updates
LifeGuard for Android OS patches and security updates

Software

Zebra Dna
Zebra DNA software suite for performance, setup and security (Android only; features vary by model; a Support Contract may be required)

Warranty

Manufacturer Warranty
3 years against defects in workmanship and materials from date of shipment, per Zebra's hardware warranty statement

Data Capture

Rear Camera
16 MP autofocus; flash LED generates balanced white light
Front Camera
8 MP; mechanical privacy shade
Camera Scanning
1D/2D barcodes; optional OCR for documents, license plates, VINs and more
Optional Scanner
SE55 1D/2D Advanced Range Scan Engine with IntelliFocus technology

Wireless LAN

Radio
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6E (802.11ax); Wi-Fi certified; Wi-Fi 6E Certified; Dual Band Simultaneous; IPv4, IPv6
Fast Roam
PMKID caching; 802.11r (Over-the-Air); OKC
Data Rates
6 GHz 802.11ax 20/40/80/160 MHz up to 2402 Mbps; 5 GHz 802.11a/n/ac/ax 20/40/80/160 MHz up to 2402 Mbps; 2.4 GHz 802.11b/g/n/ax 20 MHz up to 286.8 Mbps
Certifications
Wi-Fi CERTIFIED n, ac and 6; Wi-Fi Enhanced Open; WPA2-Personal/Enterprise; WPA3-Personal/Enterprise (incl. 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; Wi-Fi Direct
Operating Channels
Channel 1-13 (2401-2483 MHz); Channel 36-165 (5150-5850 MHz): 36-64, 100-144, 149-165; Channel 1-233 (5925-7125 MHz); channel bandwidth 20/40/80/160 MHz; actual channels depend on regulatory rules
Security And Encryption
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP, AES); WPA3 Enterprise (AES) with EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) EAP-TLS; Enhanced Open (OWE)

Wireless Pan

NFC
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2, 3, 4, 5; Host Card Emulation; contactless payment, VAS and wallet support; Apple ECP 1.0/2.0, Apple VAS and Google Smart Tap certified; VAS Library/SDK
Bluetooth
Bluetooth v5.2 Class 1, Bluetooth Low Energy (BLE)

Wireless WAN

GNSS
GPS, GLONASS, Galileo, BeiDou, QZSS dual-band GNSS: concurrent L1/G1/E1/B1 + L5/E5a/BDS B2a; A-GPS; supports XTRA
Band Note
Actual band support may vary by country or carrier
SIM Slots
1 x eSIM, 1 x Nano SIM
Wwan Type
ET65 WWAN, data only
Frequency Bands 3g
B1, B2, B4, B5, B8
Frequency Bands 4G
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Frequency Bands 5G
5G FR1: n1, n2, n3, n5, n7, n8, n12, n13, n14, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77, n78
Private Networking
LTE/5G private networking supported; CBRS (US only)

User Environment

Drop
5 ft (1.5 m) drop to concrete, exceeds MIL-STD-810H
Impact
Steel ball (130 g) dropped from 75 cm height
Sealing
IP66 per IEC 60529
Humidity
5% to 95% non-condensing (standard); 5% to 95% condensing (freezer version with heated touch screen)
Salt Fog
48 hours of 5% solution at 95° F (35° C)
Vibration
MIL-STD-810H Method 514.8 Operating; MIL-STD-810H Method 514.8 E-1 Minimum Integrity 7.7 Grms non-operating
Thermal Shock
-40° F to 158° F (-40° C to 70° C)
Solar Radiation
EN/IEC 60068-2-5 spectral energy distribution; 1120 W/m2 at display surface; 104° F (40° C) ambient; 24-hour irradiation
Storage Temperature
-40° F to 158° F (-40° C to 70° C)
Operating Temperature
Standard battery: -4° F to 131° F (-20° C to 55° C); Extended battery: -22° F to 131° F (-30° C to 55° C); No-battery configurations: -22° F to 140° F (-30° C to 60° C)
Electrostatic Discharge
±15 kV air discharge; ±8 kV contact; ±8 kV indirect
Hazardous Location Certification
Class 1 Division 2

Accessories And Services

Lifecycle
Available for sale 4 years from initial release; up to 8 total years of service and support
Recommended Services
Zebra OneCare Essential and Select support services; Zebra Visibility Services (VisibilityIQ Foresight); Learning Services
Peripherals And Accessories
Vehicle dock; keyboard; CAC reader; RFID reader; 2-slot battery charger; stylus; handstrap, kickstand, shoulder strap and handle (sold separately)

Physical Characteristics

Audio
Stereo speakers and two microphones; headset via USB or Bluetooth; speaker/microphone support
Weight
2.44 lb (1108 g) with standard battery; 2.74 lb (1247 g) with extended battery
Buttons
Power; Scan; Up/Down (volume or brightness); three programmable keys
Display
10.1 in WUXGA (1920 x 1200), 1,000 nits, optically bonded to touchpanel
Dimensions
10.8 in W x 7.8 in L x 0.7 in H (275 mm W x 199 mm L x 18.3 mm H)
Touchpanel
Multi-mode capacitive touch with bare or gloved fingertip or conductive stylus (sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint-resistant anti-smudge coating
Connectivity
2 x USB 3.1 Type-A ports; 1 x USB 3.1 Type-C port (with DisplayPort 1.2 support)
Notifications
Audible tone; 2 x multi-color LEDs
Expansion Slot
User-accessible microSD card slot, supports up to 2 TB
External Scanner Support
HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX, RS5100 and RS6100
Interface Ports And Expansion
Docking connector (charge and data); keyboard connector; 1 x USB 2.0 (back I/O, host only)

Performance Characteristics

CPU
Qualcomm 6490 octa-core, 2.7 GHz
Memory
8 GB RAM / 128 GB UFS Flash
Operating System
Android (support up to Android 16 per Zebra)

Questions buyers ask

What does the ET65AW-ESQAGSK0C0-NA configuration include?

This SKU is the North American ET65 with Android (GMS), WLAN plus 5G WWAN radios, a 10.1-inch display, 8 GB RAM and 128 GB UFS flash. The box contains the tablet and a Quick Start Guide.

Which 5G bands does the ET65 support?

5G FR1 bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77 and n78. It also supports a wide set of LTE bands and 3G B1/2/4/5/8. Actual band support may vary by country or carrier.

Can the ET65 be mounted in a forklift?

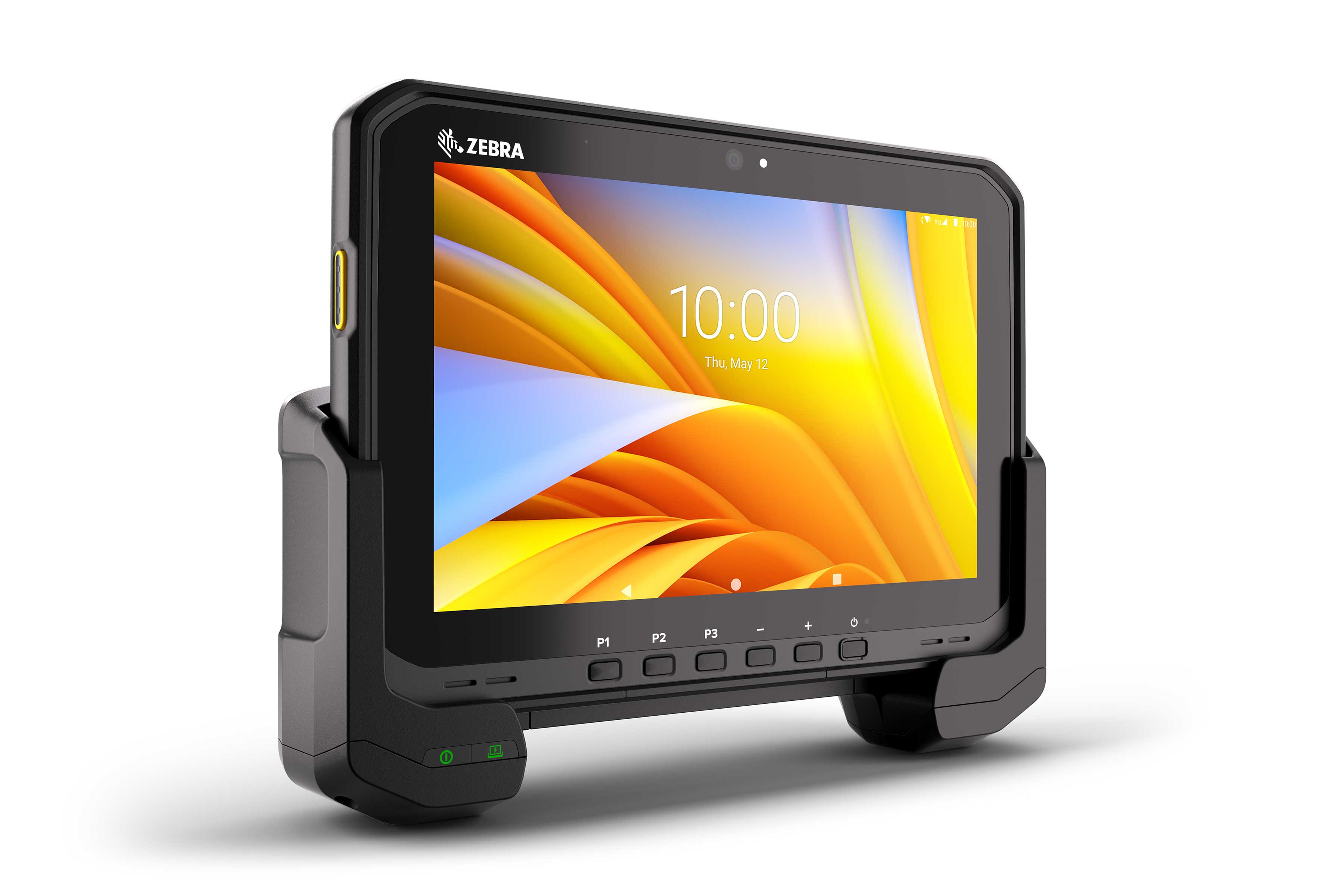

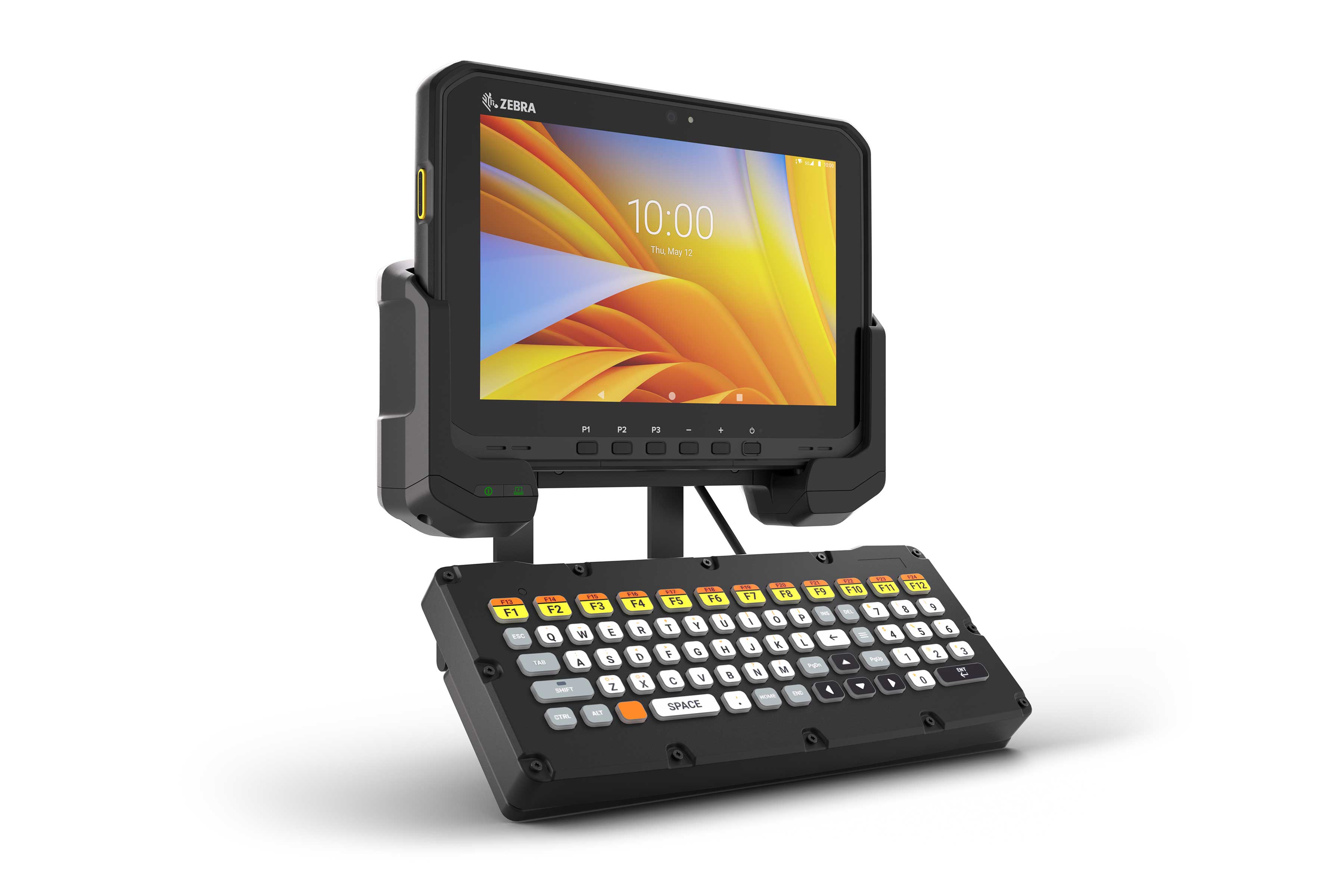

Yes. It locks into the optional Zebra vehicle dock, which heats the touchpanel and warehouse keyboard for freezer and condensing environments. When docked, it can also run on vehicle power without a battery.

What operating temperatures is it rated for?

The rating depends on the battery. With the standard battery it operates from -4° F to 131° F (-20° C to 55° C). With the extended battery the range is -22° F to 131° F (-30° C to 55° C). No-battery configurations run from -22° F to 140° F (-30° C to 60° C).

How is the ET65 kept secure over its life?

LifeGuard for Android delivers regular OS patches and security updates. The tablet is FIPS 140-2 validated and Common Criteria certified, and it supports Secure Boot, Verified Boot and Common Access Card (CAC) authentication.
