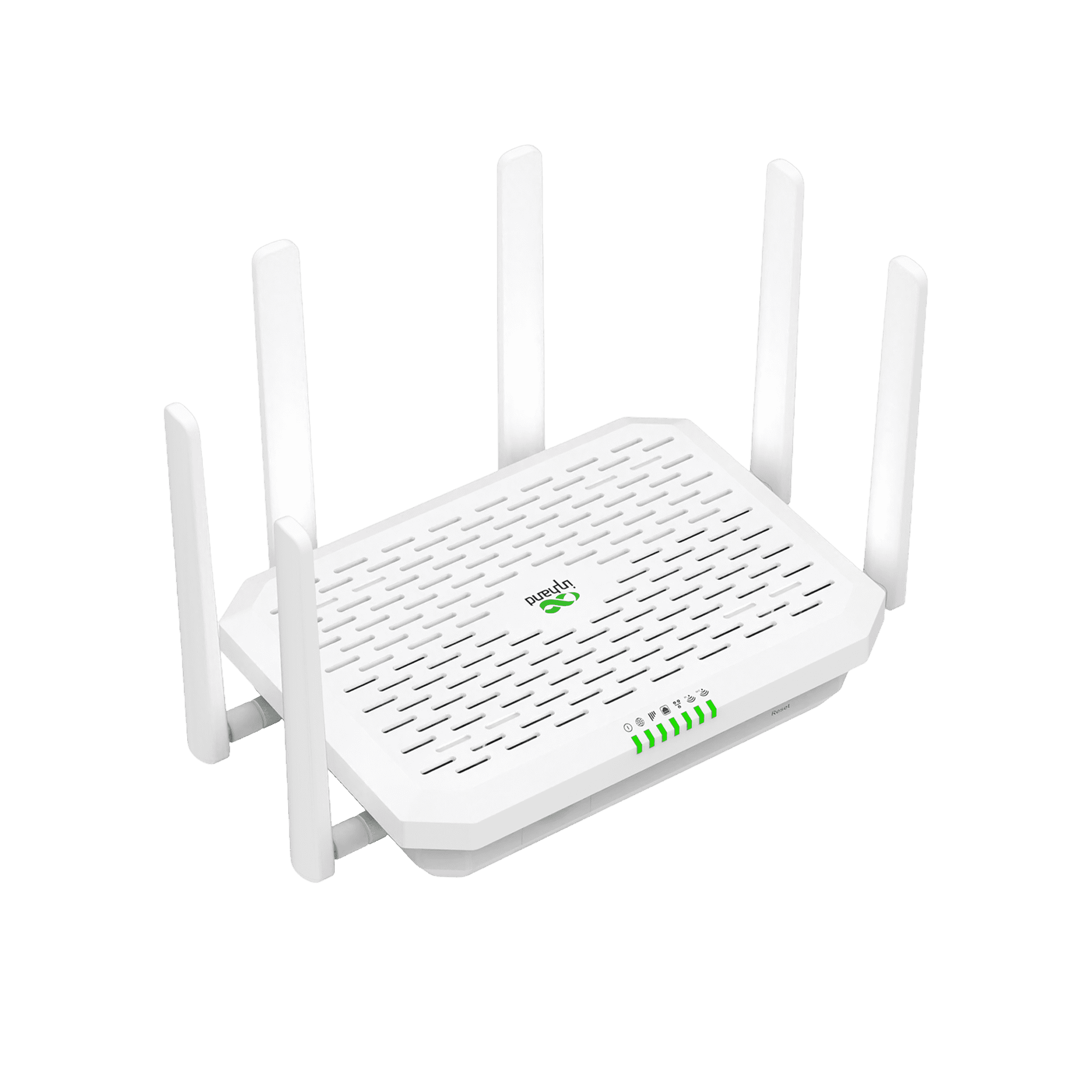

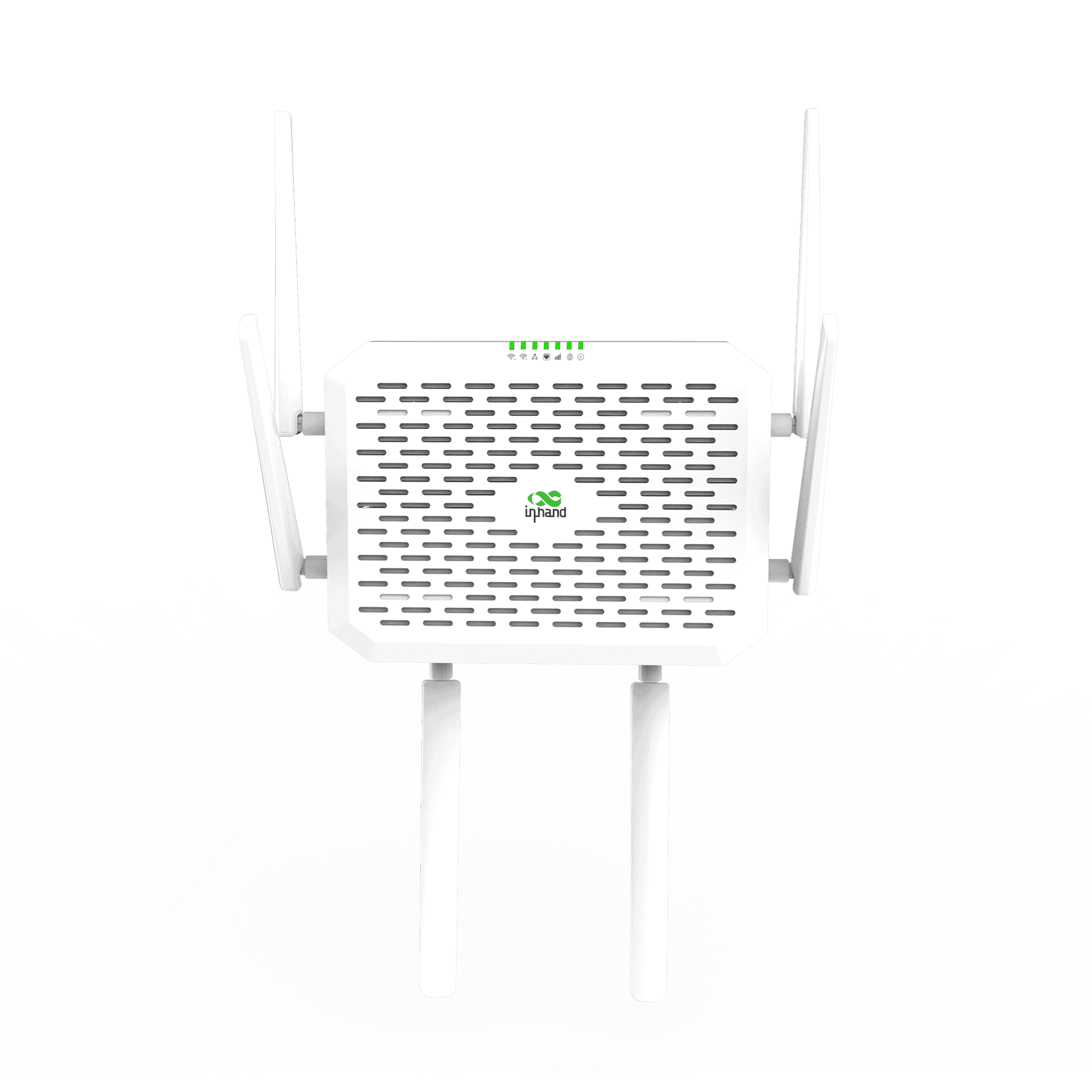

InHand Networks FWA12 Indoor 5G Wi-Fi 7 Router (North America, FWA12-NANR)

5GMPN FWA12-NANR
  • Dual SIM
$429.02$499.00Save $69.98

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks FWA12-NANR is the North America version of the FWA12 indoor 5G fixed wireless access router. It uses 5G R16 SA/NSA with 4DL/2UL carrier aggregation, reaching up to 7.01 Gbps down and 2.5 Gbps up. Wi-Fi 7 delivers up to 5000 Mbps for 128 wireless devices. The router adds two 2.5GbE ports, an eSIM plus two hot-swap Nano-SIMs, a 2 Gbps stateful firewall and one-click POS Ready traffic priority. It is certified with Verizon, AT&T and T-Mobile and managed through InCloud Manager.

  • 5G R16 SA/NSA with 4 DL / 2 UL carrier aggregation and 300 MHz bandwidth: up to 7.01 Gbps DL / 2.5 Gbps UL
  • LTE Cat 19 fallback up to 1.6 Gbps DL / 200 Mbps UL
  • Wi-Fi 7 (802.11be) dual-band 2.4/5.8 GHz, up to 5000 Mbps and 128 Wi-Fi devices
  • 2 × 2.5GbE RJ45 ports, WAN/LAN switchable, dual-LAN
  • 1 × eSIM + 2 × hot-swap Nano-SIM with dual-SIM switching
  • One-click POS Ready traffic optimization and 2 Gbps stateful firewall
  • InCloud Manager with zero-touch provisioning and a 7×24 AI assistant
  • Brings multi-gigabit 5G to sites where fiber is unavailable, slow to install or too costly

The InHand Networks FWA12 is an indoor 5G router for businesses that need fiber-class throughput without a wired circuit. FWA12-NANR is the North America ordering code. It covers 5G Sub-6 bands n2/5/7/12/13/14/25/26/29/30/38/41/48/66/70/71/77/78 and LTE bands including B2/4/5/12/13/14/66/71. It carries FCC, IC and PTCRB certification, and InHand lists carrier certification with Verizon (NSA), AT&T, T-Mobile and FirstNet (5G).

A quad-core A55 platform drives a 5G R16 modem with SA and NSA support, 300 MHz bandwidth, 4 DL / 2 UL carrier aggregation and peak rates of 7.01 Gbps downlink and 2.5 Gbps uplink. LTE Cat 19 fallback reaches 1.6 Gbps down. Six external 5G antennas come in the box, and the unit adds two internal cellular antennas that cover 617–5925 MHz. SIM options are one eSIM and two hot-swap Nano-SIMs with dual-SIM switching.

Wi-Fi 7 runs dual-band 2.4/5.8 GHz at up to 5000 Mbps. InHand rates coverage to 323 ft and 600 Mbps at 100 ft, for up to 128 Wi-Fi devices and 220 users in total. Two 2.5GbE RJ45 ports switch between WAN and LAN. One-click POS Ready optimization gives payment traffic bandwidth priority, and the stateful firewall is rated at 2 Gbps.

For IT teams, InCloud Manager adds zero-touch provisioning, centralized management, visualized monitoring and a 7×24 AI assistant. The router provides IPsec and L2TP VPN, policy routing and traffic shaping, and link monitoring for delay, jitter and packet loss. Failover uses ICMP, DNS or HTTP link detection. The router mounts on a desk or wall, runs from a 12 V / 3 A adapter at ≤24 W, and carries a 3-year warranty.

Ideal for

  • Primary fixed wireless internet for retail stores, restaurants and offices without fiber
  • POS-heavy sites that need payment traffic prioritized
  • Wired-plus-cellular failover in front of an existing firewall or SD-WAN edge
  • High-density Wi-Fi 7 coverage for small business floors
  • Rapid branch openings managed centrally from InCloud Manager

Specifications

Wi-Fi

Mode
AP mode
Coverage
Up to 323 ft; 600 Mbps at 100 ft
Standard
Wi-Fi 7 (802.11be/ax/ac/b/g/n)
Frequency
2.4 / 5.8 GHz dual-band
Antenna Gain
4.17 dBi (2.4 GHz); 4.56 dBi (5 GHz)
Max Bandwidth
5000 Mbps
Max Wi-Fi Devices
128 Wi-Fi devices
Antenna Frequency
2400–2500 MHz; 5000–5800 MHz

Power

Input
12 V / 3 A, circular connector
Power Consumption
≤ 24 W

General

MPN
FWA12-NANR
Brand
InHand Networks
Model
FWA12 Indoor 5G Wi-Fi 7 Router
Region
North America
Processor
Quad-core A55

Package

Contents
Router, 6 × 5G antennas, Ethernet cable, power adapter, screw kit, user guide

Cellular

Technology
5G R16 SA/NSA with LTE Cat 19
Antenna Gain
2 dBi (617–894 MHz); 4.11 dBi (1700–5000 MHz)
Five G Bands
5G Sub-6: n2/5/7/12/13/14/25/26/29/30/38/41/48/66/70/71/77/78
LTE Data Rate
4G Cat 19: 1.6 Gbps DL / 200 Mbps UL
LTE Fdd Bands
B2/4/5/7/12/13/14/17/25/26/29/30/66/71
LTE Tdd Bands
B38/41/42/43/48
Five G Data Rate
5G SA/NSA: 7.01 Gbps DL / 2.5 Gbps UL
Antenna Frequency
617–5925 MHz
Carrier Aggregation
4 DL CA / 2 UL CA, 300 MHz

Physical

Shock
IEC 60068-2-27
Weight
2.2 lbs
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Dimensions
236 × 172.5 × 58.5 mm (9.29 × 6.79 × 2.3 in)
Installation

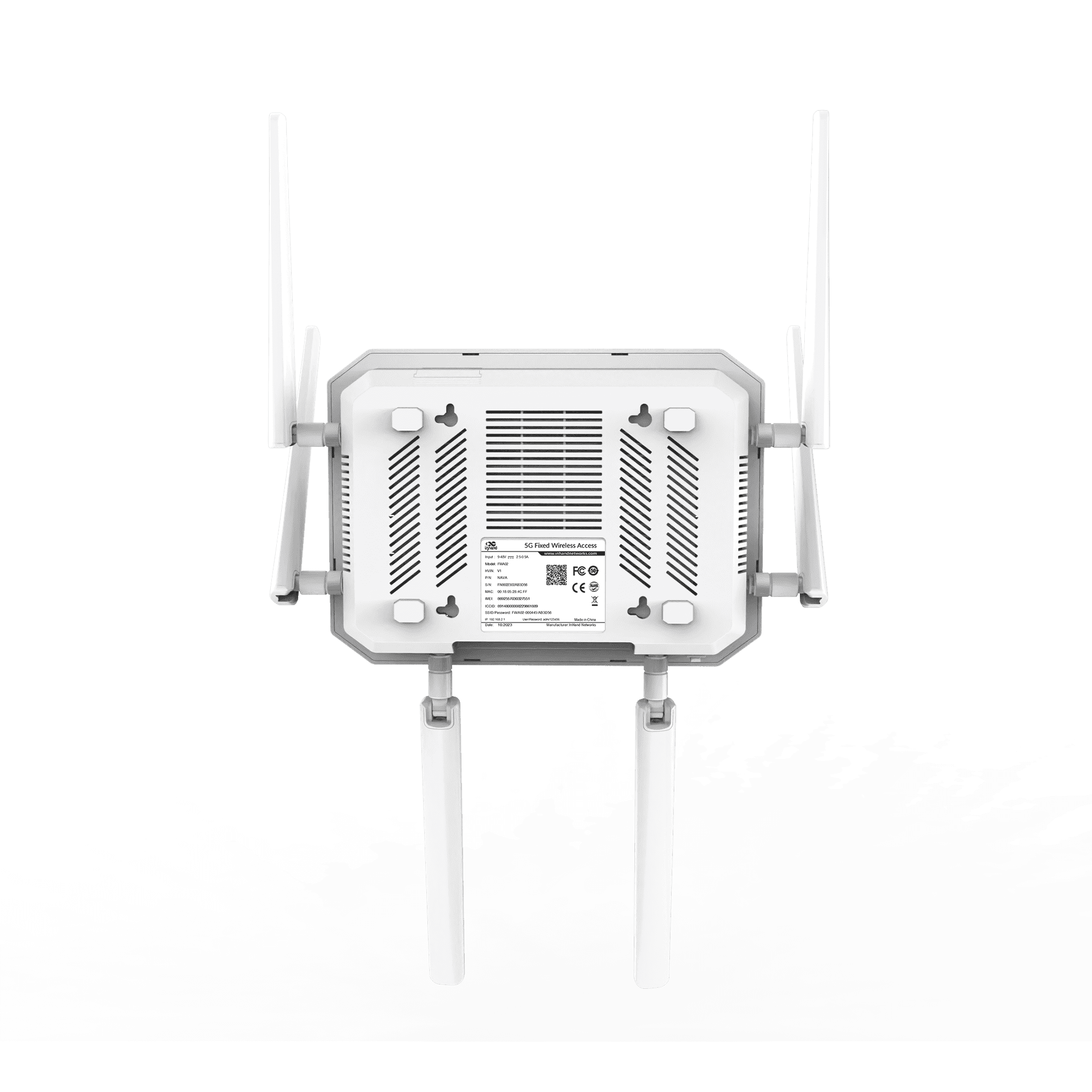

Wall or desktop mount

Security

VPN
IPsec, L2TP
Policy
Policy routing, traffic shaping
Firewall
Access control, port mapping/forwarding, MAC/IP/port/protocol filtering
Watchdog
Software/hardware watchdog

Interfaces

LED
System, Cellular, Signal, WAN, LAN, Wi-Fi
SIM
1 × eSIM + 2 × hot-swap Nano-SIM
USB
1 × USB-C 2.0 (host/slave)
Reset
Reset button
Antenna
6 external + 2 built-in cellular; 3 built-in Wi-Fi
Ethernet

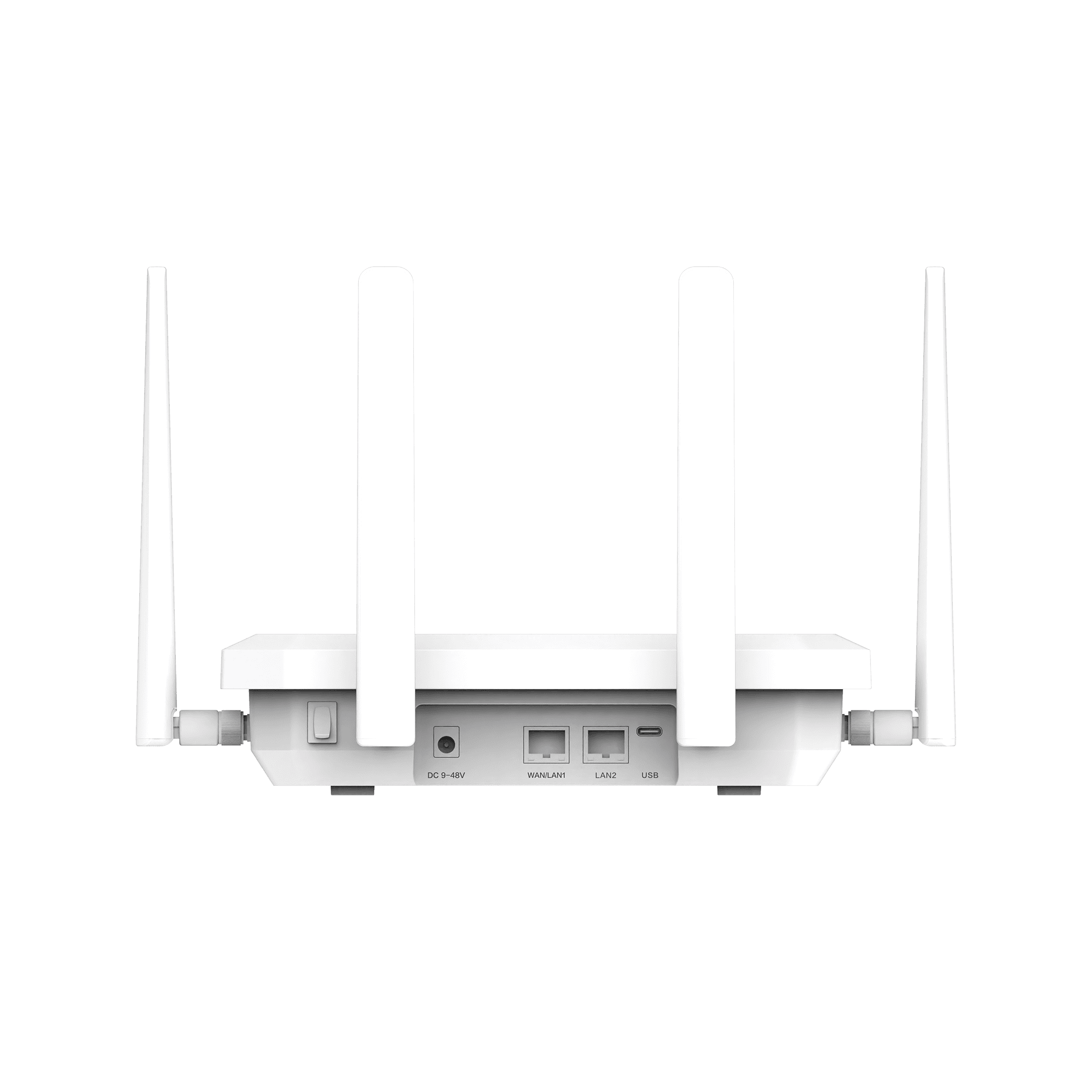

2 × 2.5GbE RJ45, WAN/LAN switchable, dual-LAN
Power Switch
1 × power button

Monitoring

Logs
System/diagnostic logs, events, email alerts
Dashboard
Device info, interfaces, traffic
Cellular Signal
RSSI, RSRP, RSRQ, SINR

Environment

Humidity
5–95% RH, non-condensing
Protection
IP20
Storage Temperature
-40 °C to +85 °C (-40 °F to 185 °F)
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)

Performance

Recommended Users
220 users (128 Wi-Fi devices)
Stateful Firewall Throughput
2 Gbps

Certification

Warranty
3 years
Carrier Notes
Verizon (NSA), AT&T, T-Mobile, FirstNet (5G)
Certifications
FCC, IC, PTCRB, Verizon, T-Mobile, AT&T

Cloud Management

Features
Zero-touch provisioning, centralized management, visualized monitoring
Platform
InCloud Manager
AI Assistant
7×24 AI assistant

Network Features

Access
5G/4G cellular, Ethernet
Dialing
PPPoE, auto redial, dual-SIM switching, APN config
Interface
Duplex, link negotiation, interface enable
Pos Ready
One-click POS Ready traffic priority
IP Protocol
IPv4 / IPv6
Link Backup
Load balancing, link priority
Applications
VLAN, DHCP, DNS, DDNS, fixed address, IP passthrough
Link Monitoring
Delay, jitter, loss, throughput monitoring

Remote Maintenance

Cloud
Remote maintenance of connected equipment
Access
Web UI, CLI
Config
Config import/export
Diagnostics
Ping, traceroute, packet capture

Questions buyers ask

Which carriers is the FWA12-NANR certified with?

InHand lists the FWA12-NANR as certified with Verizon (NSA), AT&T, T-Mobile and FirstNet (5G). It also carries FCC, IC and PTCRB certification.

What speeds does the FWA12 support?

On 5G SA/NSA, peak rates reach 7.01 Gbps downlink and 2.5 Gbps uplink. On LTE Cat 19, they reach 1.6 Gbps down and 200 Mbps up. Wi-Fi 7 is rated up to 5000 Mbps.

How do I configure failover on the FWA12?

Under Internet, set the uplink order in the Uplink Table. Then enable Link Detection (ICMP, DNS or HTTP) with thresholds such as latency, jitter, loss or signal strength, and set Failover Mode under Link Backup. Failback happens automatically when the primary link recovers.

What comes in the box?

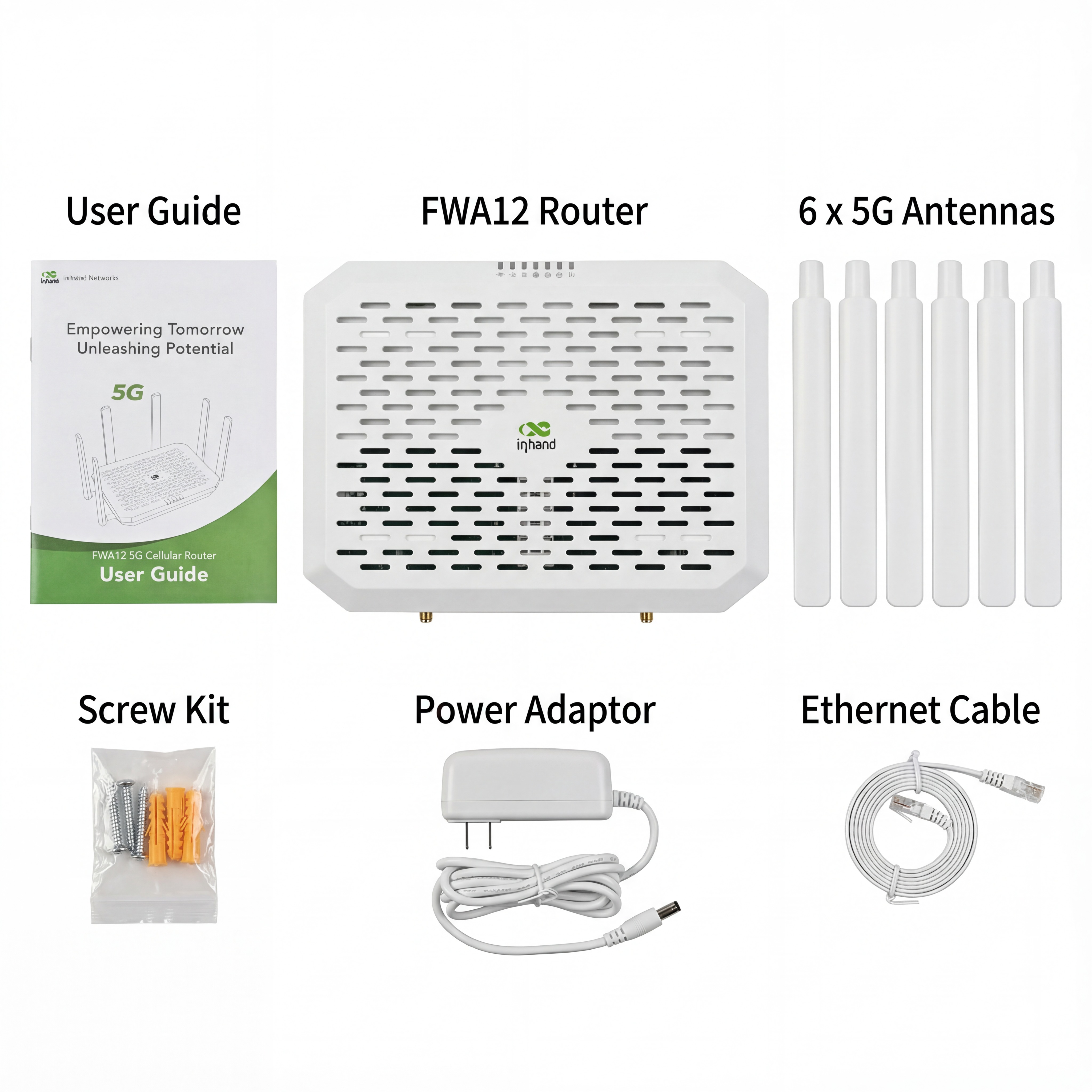

The package includes the FWA12 indoor router, six 5G antennas, an Ethernet cable, a power adapter, a screw kit and a user guide.

What warranty does the FWA12 carry?

InHand specifies a 3-year warranty for the FWA12.
