Lantronix G526GP12SB01 G520 LTE Connectivity Kit for SLC 8000 with G526 LTE Cat 4 Router (EMEA)

4G LTEMPN G526GP12SB01
$353.54

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Lantronix G526GP12SB01 is the G520 LTE Connectivity Kit for EMEA. Lantronix lists it as a secondary connectivity accessory for the SLC 8000 console manager. The kit is built around the G526GP12S, an industrial LTE Cat-4 router with dual SIM, two Ethernet ports, Wi-Fi 5 and a 10.8-60 V DC input. It gives SLC 8000 deployments a cellular out-of-band path, so console access stays available when the primary network fails. This is an EMEA regional kit and is not intended for North American networks.

  • Lantronix G520 LTE Connectivity Kit for EMEA, listed as a secondary connectivity accessory for the SLC 8000
  • Includes the G526GP12S industrial LTE Cat-4 router
  • EMEA LTE bands B1, B3, B7, B8, B20, B28 with 3G/2G fallback on B1, B3, B8
  • Dual SIM (single standby) and 2x 10/100 Ethernet ports
  • IPsec, OpenVPN, WireGuard, zone-based firewall and VLAN support
  • 10.8-60 V DC input, Last Gasp backup, -30 °C to +70 °C operation
  • Reach SLC 8000 console ports over LTE when the primary network is down
  • Keep out-of-band links private with IPsec, OpenVPN or WireGuard tunnels

The G526GP12SB01 is Lantronix's G520 LTE Connectivity Kit for EMEA. Lantronix lists it among the Secondary Connectivity Accessories for the SLC 8000 console manager. The kit provides a cellular out-of-band path for SLC 8000 installations. If the production network goes down, administrators still have a separate LTE route to reach console ports on routers, switches and servers.

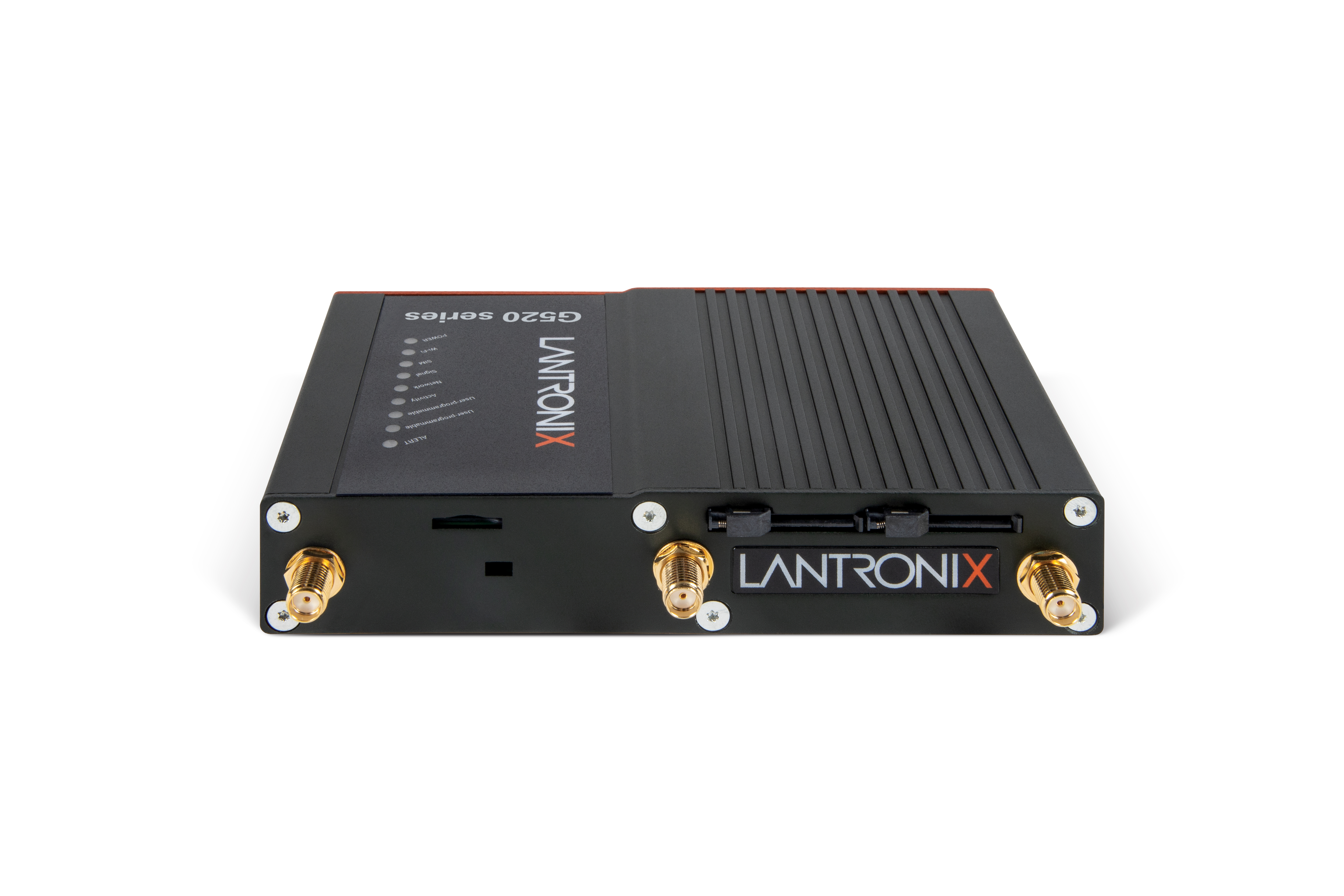

The router in the kit is the G526GP12S, the Industrial model of the G520 Series. It runs 4G LTE Cat-4 on EMEA bands B1, B3, B7, B8, B20 and B28, with 3G/2G fallback on B1, B3 and B8. Dual SIM with single standby lets you keep a second carrier ready. Two 10/100 Ethernet ports are provided: one LAN, and one WAN that can be reconfigured as a second LAN. Ethernet, cellular and Wi-Fi can be set up for failover or load balancing, and configurable watchdogs help keep the link up.

Security features on the router include a zone-based firewall, VLAN, DMZ, HTTPS management, SIM PIN and VPN options including IPsec (up to 4 channels), OpenVPN, WireGuard, L2TP, GRE and PPTP client. A Last Gasp function gives roughly 100 seconds of backup power to signal an outage. The router also offers 2T2R Wi-Fi 5, Bluetooth/BLE 5.1, RS-232, RS-485, USB, GPS and a TR-069-capable web interface. It can be managed through the Lantronix Percepxion platform or third-party tools.

The G526 accepts 10.8-60 V DC and operates from -30 °C to +70 °C in a brushed aluminum housing measuring 131.5 x 81.27 x 25 mm. The G520 user guide, the G526/G527 quick start guide and the product brief are available from Lantronix.

Ideal for

  • Cellular out-of-band access for SLC 8000 console managers in European data centers
  • Emergency access to network equipment during WAN or ISP outages
  • Secondary management path for remote branch and colocation racks in EMEA
  • Carrier-diverse backup using dual SIM for critical infrastructure sites

Specifications

I/O

Ignition
On power header
Configurable I/O
User I/O: 2x (analogue in, 4-20 mA in, or digital out)

USB

Host Port
USB: 1x Type-A host

Power

Last Gasp
approx. 100 s (not functional below -10 °C)
Input Voltage
10.8-60 V DC
Power Off Timekeeping
RTC: 100-day retention (not functional below -20 °C)

Serial

Rs232
Full, DB9
Rs485
5-pin COMBICON (sold separately)

General

MPN
G526GP12SB01
UPC
783384254626
Brand
Lantronix
Region
EMEA
Product Name
G520 LTE Connectivity Kit - EMEA
Included Router
G526GP12S
Associated Part Number
Associated Part No.: 520-0165-00

Cellular

SIM
Dual SIM, single standby, 2x mini-SIM holders
LTE Bands
B1, B3, B7, B8, B20, B28
Technology
Cellular: 4G LTE Cat-4
Fallback 3g 2g Bands
3G/2G Fallback: B1, B3, B8

Ethernet

PoE
Not on G526 (security variants only)
Ports
2x 10/100 RJ-45
Speed
10/100 Mbps
Configuration
1 LAN + 1 WAN (reconfigurable as LAN)

Physical

Weight
approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
Router Size: 131.5 x 81.27 x 25 mm (without connectors)
Status Leds
9
Shipping Weight
3.70 lbs

Software

Sdk
G520 SDK (Python, C/C++)
VPN
IPsec (4 ch), OpenVPN, WireGuard, L2TP, GRE, PPTP
Routing
DHCP, static routes, NAT, DDNS, STP
Security
Zone firewall, VLAN, DMZ, HTTPS, SIM PIN
Redundancy
Failover or load balancing
Resilience
Connectivity and application watchdogs
Administration
Web UI, wizard, NTP, SMS/OTA config, TR-069
Fault Management
Diagnostics: Traffic analysis, ICMP, traceroute, NS lookup
Device Management
Percepxion or third-party
Industrial Protocols
Modbus, DNP3, IEC 104/101, EtherCAT, DLMS

CPU Memory

CPU
ARM926EJ-S, 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB
Secure Element
Security variants only
External Storage
microSD (not provided)
Internal Storage
User Storage: 256 MB NAND Flash

Positioning

GPS
Dedicated SMA connector

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-30 °C to +70 °C, up to 95% RH

Compatibility

Host Platform
Lantronix SLC 8000

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5, 2x RP-SMA
Roaming
802.11r
Bluetooth
BT/BLE 5.1
Wi-Fi Modes
Client or AP (approx. 12 users)
Wi-Fi Security
WEP, WPA, WPA-PSK/WPA2-PSK, WPA3-PSK

Questions buyers ask

What is this kit for?

Lantronix lists it as a secondary connectivity accessory for the SLC 8000 console manager. It provides a cellular out-of-band path to reach the SLC 8000 when the primary network is unavailable.

Which router is included?

The kit contains the Lantronix G520 Series G526GP12S, an industrial LTE Cat-4 router.

Will it work on North American carriers?

This is the EMEA kit, with LTE bands B1, B3, B7, B8, B20 and B28 and 3G/2G fallback on B1, B3 and B8. It is not designed for North American networks.

Does the router support VPN?

Yes. It supports IPsec (up to 4 channels), OpenVPN client/server/passthrough, WireGuard, L2TP, GRE and PPTP client.
