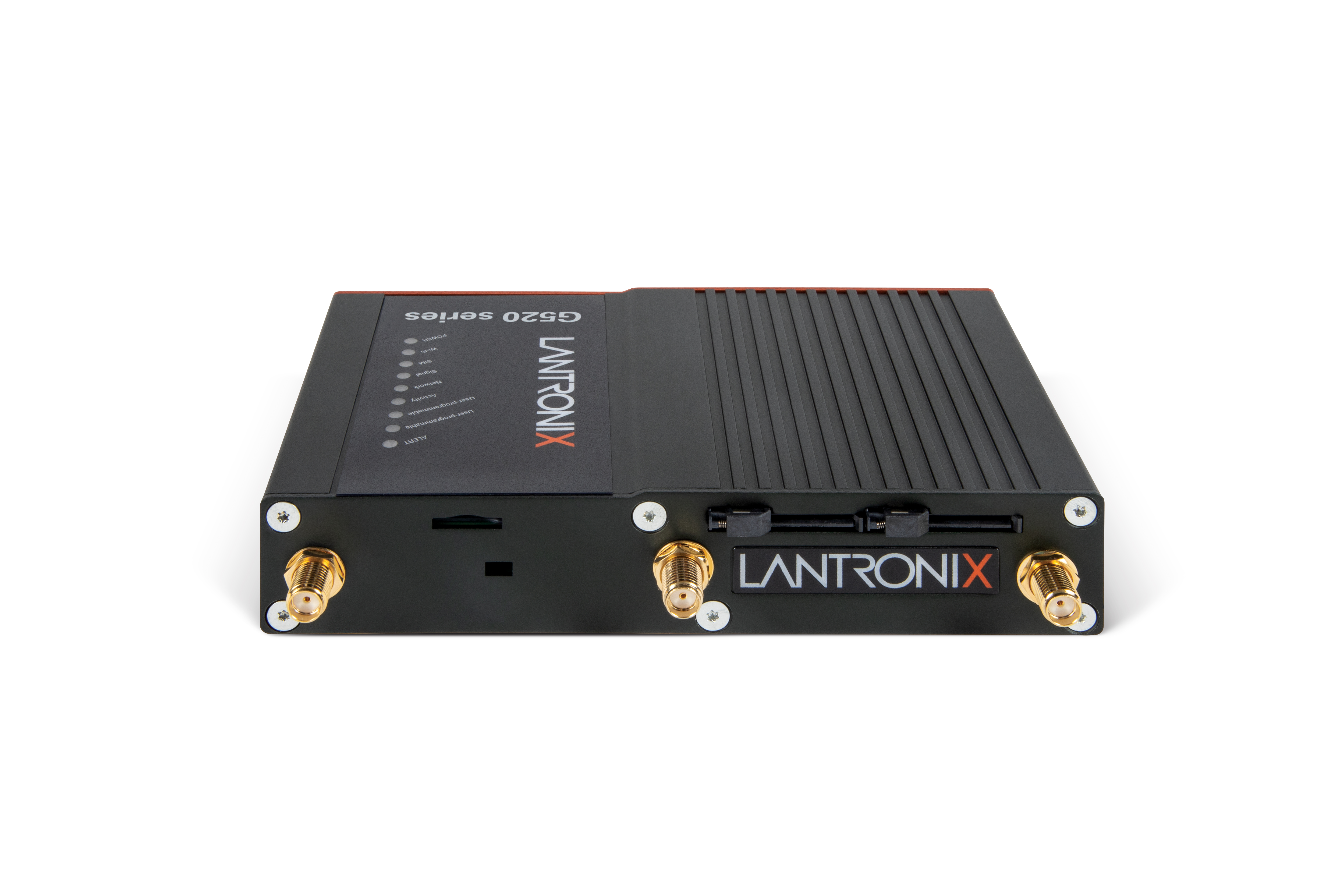

Lantronix G526GP17S G520 Industrial LTE Cat 4 Cellular Gateway (Japan, South Korea)

4G LTEMPN G526GP17S
$328.52

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Lantronix G526GP17S is the Japan and South Korea variant of the G520 Series G526 Industrial cellular gateway. It carries LTE Cat-4 on bands B1, B3, B5, B7, B8, B9, B18, B19 and B21. The gateway connects machinery, vehicles and remote assets through two 10/100 Ethernet ports, RS-232, RS-485, USB, configurable I/O and CAN bus. It adds dual SIM, Wi-Fi 5, Bluetooth 5.1, GPS and fieldbus protocol conversion in an aluminum housing rated from -30 °C to +70 °C. This is a non-US regional variant.

  • 4G LTE Cat-4 on Japan/Korea bands B1, B3, B5, B7, B8, B9, B18, B19, B21
  • Dual SIM (single standby) in two mechanically secured mini-SIM holders
  • 2x 10/100 Ethernet, RS-232, RS-485, USB host, configurable I/O, ignition sensing and CAN bus
  • Industrial protocols: Modbus master, DNP3 Outstation, IEC 104/101, EtherCAT, DLMS client
  • 2T2R Wi-Fi 5, Bluetooth/BLE 5.1 and GPS via dedicated SMA connector
  • 10.8-60 V DC input, Last Gasp backup, -30 °C to +70 °C operation
  • Percepxion-ready management, TR-069 support and G520 SDK (Python, C/C++)
  • Deploy on Japanese and Korean LTE networks with a band set matched to those markets

The Lantronix G526GP17S is the G526 Industrial model of the G520 Series, built for Japan and South Korea. It supports 4G LTE Cat-4 on bands B1, B3, B5, B7, B8, B9, B18, B19 and B21, which cover the key frequencies used in those markets. It is not intended for North American networks. Lantronix publishes a JATE certificate for this SKU.

The gateway is designed for industrial equipment. It has two 10/100 Ethernet ports: one LAN, and one WAN that can be reconfigured as a second LAN. It also has a full RS-232 port on a 9-pin sub-D header, RS-485 via a 5-pin COMBICON header, a USB Type-A host port, two user-configurable I/Os and an ignition input. Each I/O works as an analogue input, a 4-20 mA current-loop input or a digital output. The built-in protocol suite covers Modbus master, DNP3 Outstation, IEC 104 slave, IEC 101 master, EtherCAT and DLMS client, and Lantronix lists CAN bus among the G526 interfaces.

Dual SIM with single standby, failover or load balancing across Ethernet, cellular and Wi-Fi, and configurable watchdogs keep remote sites reachable. Last Gasp provides roughly 100 seconds of backup power to report an outage. Traffic is protected by a zone-based firewall, VLAN, DMZ, HTTPS management, SIM PIN and VPN options including IPsec (up to 4 channels), OpenVPN, WireGuard, L2TP, GRE and PPTP client.

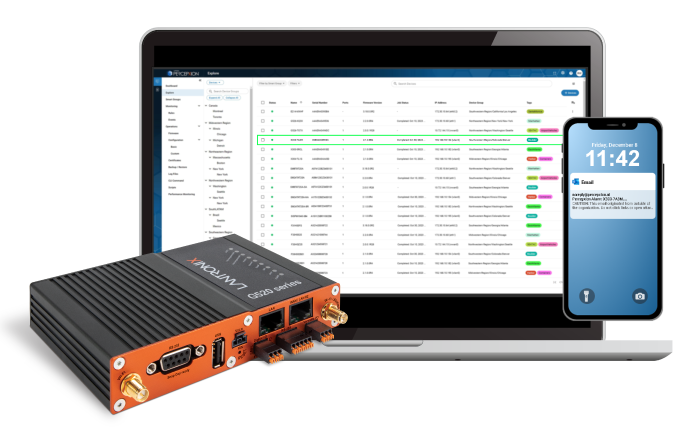

The G526GP17S runs on 10.8-60 V DC and operates from -30 °C to +70 °C at up to 95% RH. Its brushed aluminum housing measures 131.5 x 81.27 x 25 mm and weighs about 300 g. Fleets can be managed through Lantronix Percepxion or third-party platforms via TR-069, and the G520 SDK supports custom applications in Python or C/C++. The G520 user guide, quick start guide and product brief (including a Japanese edition) are available from Lantronix.

Ideal for

  • Factory and Industry 4.0 connectivity for sites in Japan or South Korea
  • Vehicle and transport telematics using ignition sensing, CAN bus and GPS
  • Remote SCADA and meter data collection over Modbus, DNP3 or IEC 104
  • Serial-to-cellular links for legacy RS-232/RS-485 equipment
  • Cellular backup WAN for unattended industrial cabinets

Specifications

I/O

Ignition
On power header
Configurable I/O
User I/O: 2x (analogue in, 4-20 mA in, or digital out)

USB

Host Port
USB: 1x Type-A host

Power

Last Gasp
approx. 100 s (not functional below -10 °C)
Input Voltage
10.8-60 V DC
Power Off Timekeeping
RTC: 100-day retention (not functional below -20 °C)

Serial

Rs232
Full, DB9
Rs485
5-pin COMBICON (sold separately)

General

MPN
G526GP17S
UPC
783384244436
Brand
Lantronix
Model
G526 Industrial
Region
Japan, South Korea
Series
G520
Features Summary
Dual SIM, microSD, Last Gasp, GNSS, Percepxion ready, SDK support
Interfaces Summary
2x Ethernet, Wi-Fi 5, BT/BLE 5.1, 2x Serial, USB 2.0, 4x I/O, ignition sensing, CAN bus

Cellular

SIM
Dual SIM, single standby, 2x mini-SIM holders
LTE Bands
B1, B3, B5, B7, B8, B9, B18, B19, B21
Technology
Cellular: 4G LTE Cat-4

Ethernet

PoE
Not on G526 (security variants only)
Ports
2x 10/100 RJ-45
Speed
10/100 Mbps
Configuration
1 LAN + 1 WAN (reconfigurable as LAN)

Physical

Weight
approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
Size: 131.5 x 81.27 x 25 mm (without connectors)
Status Leds
9
Shipping Weight
0.66 lbs

Software

Sdk
G520 SDK (Python, C/C++)
VPN
IPsec (4 ch), OpenVPN, WireGuard, L2TP, GRE, PPTP
Routing
DHCP, static routes, NAT, DDNS, STP
Security
Zone firewall, VLAN, DMZ, HTTPS, SIM PIN
Redundancy
Failover or load balancing
Resilience
Connectivity and application watchdogs
Administration
Web UI, wizard, NTP, SMS/OTA config, TR-069
Fault Management
Diagnostics: Traffic analysis, ICMP, traceroute, NS lookup
Device Management
Percepxion or third-party
Industrial Protocols
Modbus, DNP3, IEC 104/101, EtherCAT, DLMS

CPU Memory

CPU
ARM926EJ-S, 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB
Secure Element
Security variants only
External Storage
microSD (not provided)
Internal Storage
User Storage: 256 MB NAND Flash

Positioning

GPS
Dedicated SMA connector

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-30 °C to +70 °C, up to 95% RH

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5, 2x RP-SMA
Roaming
802.11r
Bluetooth
BT/BLE 5.1
Wi-Fi Modes
Client or AP (approx. 12 users)
Wi-Fi Security
WEP, WPA, WPA-PSK/WPA2-PSK, WPA3-PSK

Questions buyers ask

Which LTE bands does the G526GP17S support?

LTE Cat-4 on bands B1, B3, B5, B7, B8, B9, B18, B19 and B21, for use in Japan and South Korea.

Is this model suitable for the United States?

No. It is the Japan and South Korea variant. Lantronix offers the G526GP1AS for North American carriers.

Does it support 5G?

No. The G526 is an LTE Cat-4 gateway. 5G is available on the G528 model of the G520 Series.

What serial interfaces are included?

A fully implemented RS-232 port on a 9-pin sub-D header, plus RS-485 via a 5-pin COMBICON header. The COMBICON plug is sold separately.

How is the gateway managed?

Through its HTTPS web interface, SMS/OTA configuration, TR-069, or the Lantronix Percepxion platform. Third-party platforms are also supported.
