Lantronix G528 5G Sub-6 Security IoT Cellular Gateway with PoE+, Global

5GMPN G528GP2FS
  • 2–4 × 100 Mb Ethernet
$696.64$1,990.00Save $1,293.36

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

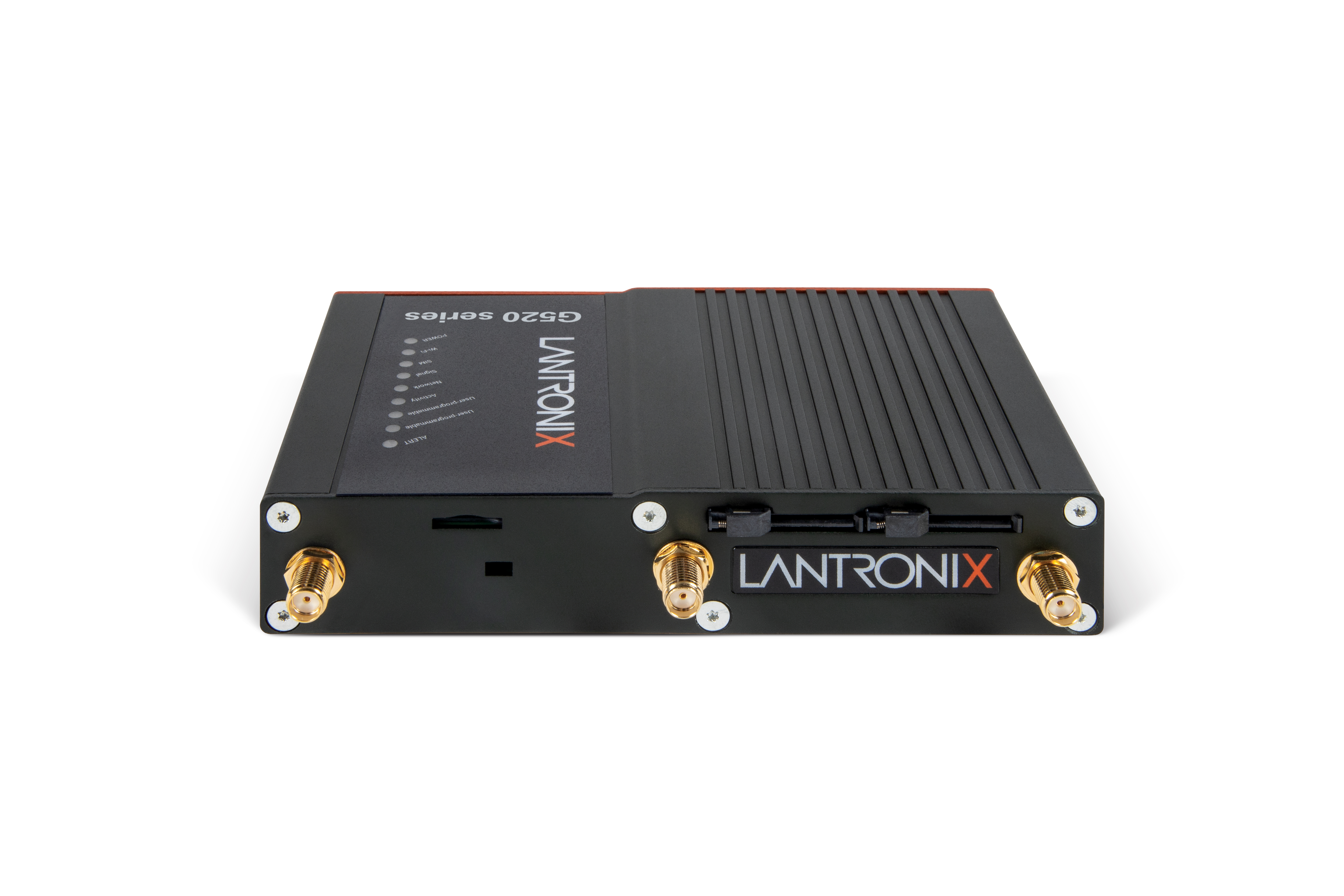

The Lantronix G528GP2FS is the global 5G version of the G528 security gateway in the G520 Series. It pairs 5G Release 15 sub-6 GHz with LTE Cat 20 downlink and Cat 13 uplink plus 3G fallback. It also carries two PSE-PoE+ Ethernet ports, a Microchip ATECC608 secure element, dual SIM, GPS, Wi-Fi 5 and a full set of serial, I/O and CAN bus interfaces. The rugged aluminum housing runs on 10.8-60 V DC.

  • 5G Release 15 sub-6 GHz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n78, n79
  • LTE Cat 20 downlink / Cat 13 uplink worldwide band set with 3G fallback
  • Two 10/100 Ethernet ports with PSE-PoE+ at 30 W per LAN port
  • Microchip ATECC608 secure element with Lantronix InfiniShield
  • Dual SIM, GPS, 2T2R Wi-Fi 5 and Bluetooth/BLE 5.1
  • RS-232, RS-485, USB host, configurable I/O, ignition sensing and CAN bus
  • 10.8-60 V DC input, Last Gasp, -30 °C to +70 °C aluminum housing
  • Lets one global SKU cover 5G and LTE deployments across regions, which simplifies stocking and rollout

The Lantronix G528GP2FS is the global variant of the G528, the 5G model in the Security line of the Lantronix G520 Series. Lantronix built it for long-term Industry 4.0, surveillance and remote deployments. It combines 5G sub-6 GHz, a Microchip ATECC608 secure element with Lantronix InfiniShield security, and PSE-PoE+ Ethernet in a compact, rugged gateway.

The radio supports 5G Release 15 sub-6 bands n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n78 and n79. It also supports LTE Cat 20 downlink and Cat 13 uplink on B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B40, B41, B42, B46, B48, B66 and B71, with 3G fallback. With one worldwide band set, a single SKU can serve sites in several regions. Available G528GP2FS certification documents include PTCRB, Verizon, EU and UKCA declarations.

Two mechanically secured mini-SIM holders provide dual SIM, and Ethernet, cellular and Wi-Fi uplinks can be set for failover or load balancing. The two 10/100 Ethernet ports deliver PSE-PoE+ at up to 30 W per LAN port. The gateway also offers: • 2T2R Wi-Fi 5 (client or access point for about 12 users) and Bluetooth/BLE 5.1 • GPS on a dedicated SMA connector • RS-232 and RS-485 serial, a USB host port, configurable analog, 4-20 mA or digital-output I/Os, ignition sensing and CAN bus

For protocols, it supports Modbus master, DNP3 outstation, IEC 101/104, EtherCAT and DLMS client. Security and VPN options include IPsec (up to 4 channels), OpenVPN, WireGuard, GRE and L2TP, plus a zone-based firewall, VLAN and DMZ. The gateway operates from -30 °C to +70 °C, and Last Gasp provides about 100 seconds of runtime after power loss. You can manage it through Percepxion, TR-069 or the web UI, and extend it with the G520 SDK. Lantronix provides a product brief, user guide and quick start guide.

Ideal for

  • 5G backhaul and PoE power for high-resolution surveillance cameras
  • Multi-region IoT rollouts standardized on a single global SKU
  • Utility, substation and SCADA connectivity with DNP3 and IEC 101/104
  • Fleet and mobile equipment telemetry with ignition sensing, CAN bus and GPS
  • Primary or failover WAN for remote industrial and branch sites

Specifications

I/O

Can Bus
Yes
User I/O
2 configurable (analog, 4-20 mA or digital out)
Ignition
Pin on power header
I/O Count
4x I/O

USB

USB Host
1 x USB 2.0 host, Type-A

Power

Last Gasp
Approx. 100 s, two 96 mWh Li-ion batteries
Input Voltage
10.8-60 V DC
Power Off Timekeeping
RTC, 100-day retention

Serial

Rs232
Full implementation, 9-pin sub-D
Rs485
5-pin COMBICON header (sold separately)

General

MPN
G528GP2FS
UPC
783384252714
Brand
Lantronix
Model
G528
Region
Global
Series
G520 Series (Security Gateways)
Product Type
5G IoT Cellular Gateway / Router
Security Framework
Lantronix InfiniShield

Package

Documentation
Product brief, user guide, quick start guide
Shipping Weight
1.10 lb

Cellular

SIM
Dual mini-SIM, single standby
5G Bands
5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n78, n79
Fallback
3G
LTE Bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B40, B41, B42, B46, B48, B66, B71
Technology
5G sub-6 GHz, LTE Cat 20 DL / Cat 13 UL

Ethernet

PoE
PSE-PoE+, 30 W per LAN port
Ports
2 x 10/100 Ethernet (RJ-45)
Port Configuration
1 LAN + 1 WAN (reconfigurable as LAN)

Physical

Weight
Approx. 300 g
Housing
Brushed aluminum alloy
Dimensions
131.5 x 81.27 x 25 mm (without connectors)
Status Leds
9 (Power, SIM, Wi-Fi, Activity, Network, Signal, 2 user, Alert)

Compliance

Certification Documents
PTCRB, Verizon, EU DoC, UKCA DoC, RoHS/REACH, MTBF

CPU Memory

CPU
ARM926EJ-S, 600 MHz
RAM
256 MB DDR2 SDRAM
Spi Flash
8 MB
Secure Element
Microchip ATECC608
External Storage
microSD (card not provided)
Internal Storage
256 MB NAND Flash

Positioning

GNSS
Positioning: GPS/GLONASS, dedicated SMA connector

Temperature

Storage
-40 °C to +85 °C, up to 95% RH
Operating
-30 °C to +70 °C, up to 95% RH

Software Suite

Sdk
G520 SDK (Python, C/C++)
Routing
DHCP, static routing, NAT, DDNS, STP
Security
HTTPS, zone-based firewall, VLAN, DMZ, SIM PIN
Redundancy
Failover or load balancing (Ethernet, cellular, Wi-Fi)
Resilience
Network and application watchdogs
VPN Tunneling
IPsec (4 ch), OpenVPN, WireGuard, GRE, L2TP, PPTP
Administration
Web UI, wizard, NTP, SMS/OTA, TR-069
Device Management
Percepxion or third-party
Wi-Fi Security Modes
Wi-Fi (Software): WEP, WPA, WPA2-PSK, WPA3-PSK
Industrial Protocols
EtherCAT, DLMS, DNP3, Modbus, IEC 101/104
Performance Fault Management
Diagnostics: Load/traffic analysis, ICMP, trace-route, NS lookup

Wi-Fi Bluetooth

Wi-Fi
2T2R Wi-Fi 5, two RP-SMA connectors
Roaming
802.11r support
Bluetooth
Bluetooth/BLE 5.1
Wi-Fi Modes
Client or Access Point (approx. 12 users)
Wi-Fi Security
WEP, WPA, WPA-PSK / WPA2-PSK

Questions buyers ask

Which 5G bands does the G528GP2FS support?

It supports 5G Release 15 sub-6 GHz bands n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n78 and n79. It falls back to LTE Cat 20 downlink / Cat 13 uplink and to 3G.

Is this a global or regional model?

It is the Global G528 variant, with one worldwide 5G and LTE band set. Lantronix lists PTCRB, Verizon, EU and UKCA certification documents for the G528GP2FS.

Can the Ethernet ports power cameras?

Yes. The ports support PSE-PoE+ at up to 30 W per LAN port when the gateway is fed from a power supply with enough capacity.

What operating conditions can it handle?

It operates from -30 °C to +70 °C at up to 95% relative humidity in a brushed aluminum housing. It runs on 10.8 to 60 V DC input.

Can I run custom applications on it?

Yes. The G520 SDK lets you build custom packages and firmware images in Python or standard C/C++. The gateway also works with the Lantronix Percepxion platform or third-party device management platforms.
