Advantech ICR-3232W LTE Cat 4 Industrial Cellular Router with 802.11ac Wi-Fi, GNSS and Serial (ANZ/LATAM)

4G LTEMPN ICR-3232W
  • 2–4 Ethernet ports
$556.27

In stock · only 5 leftShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

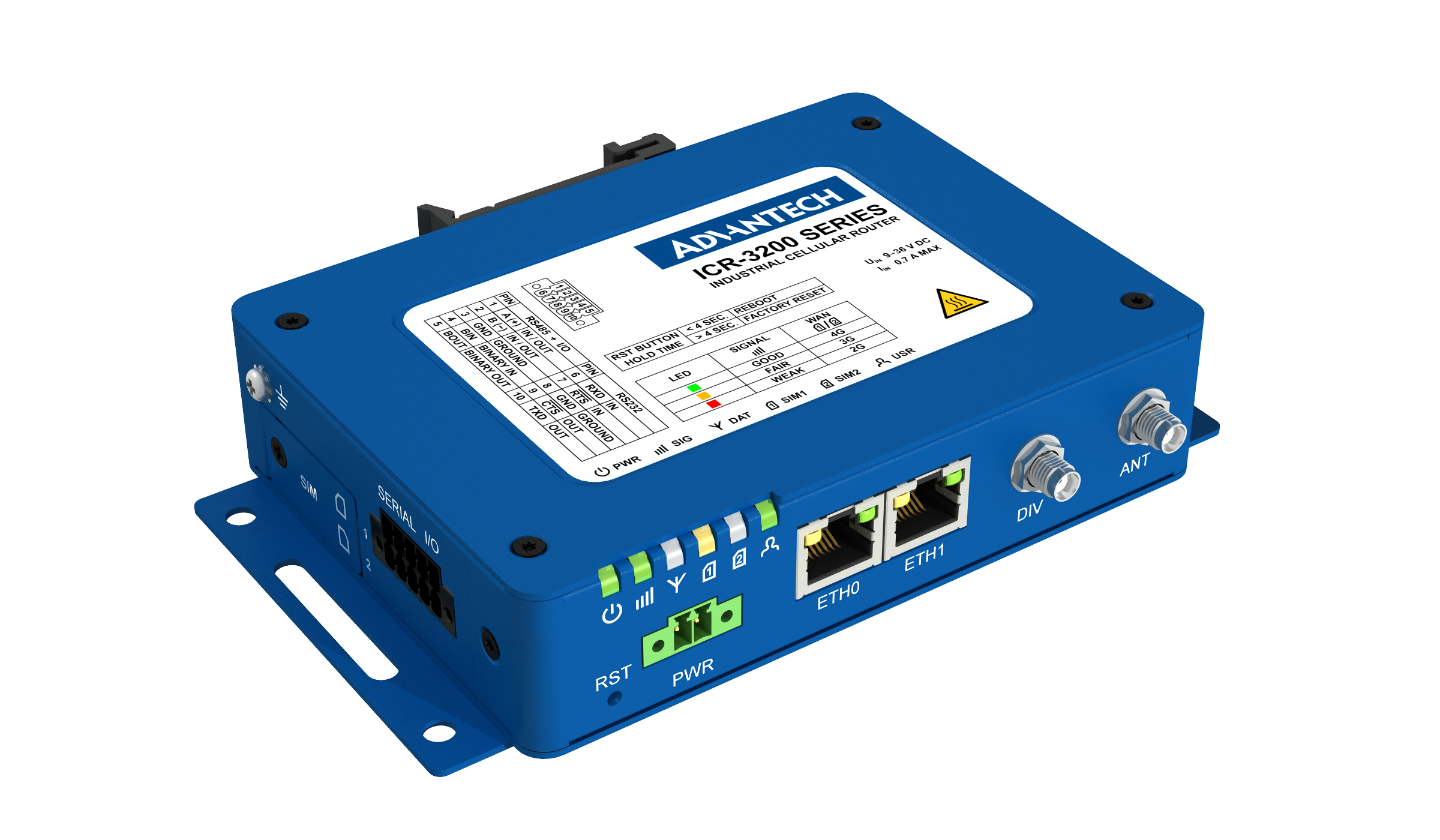

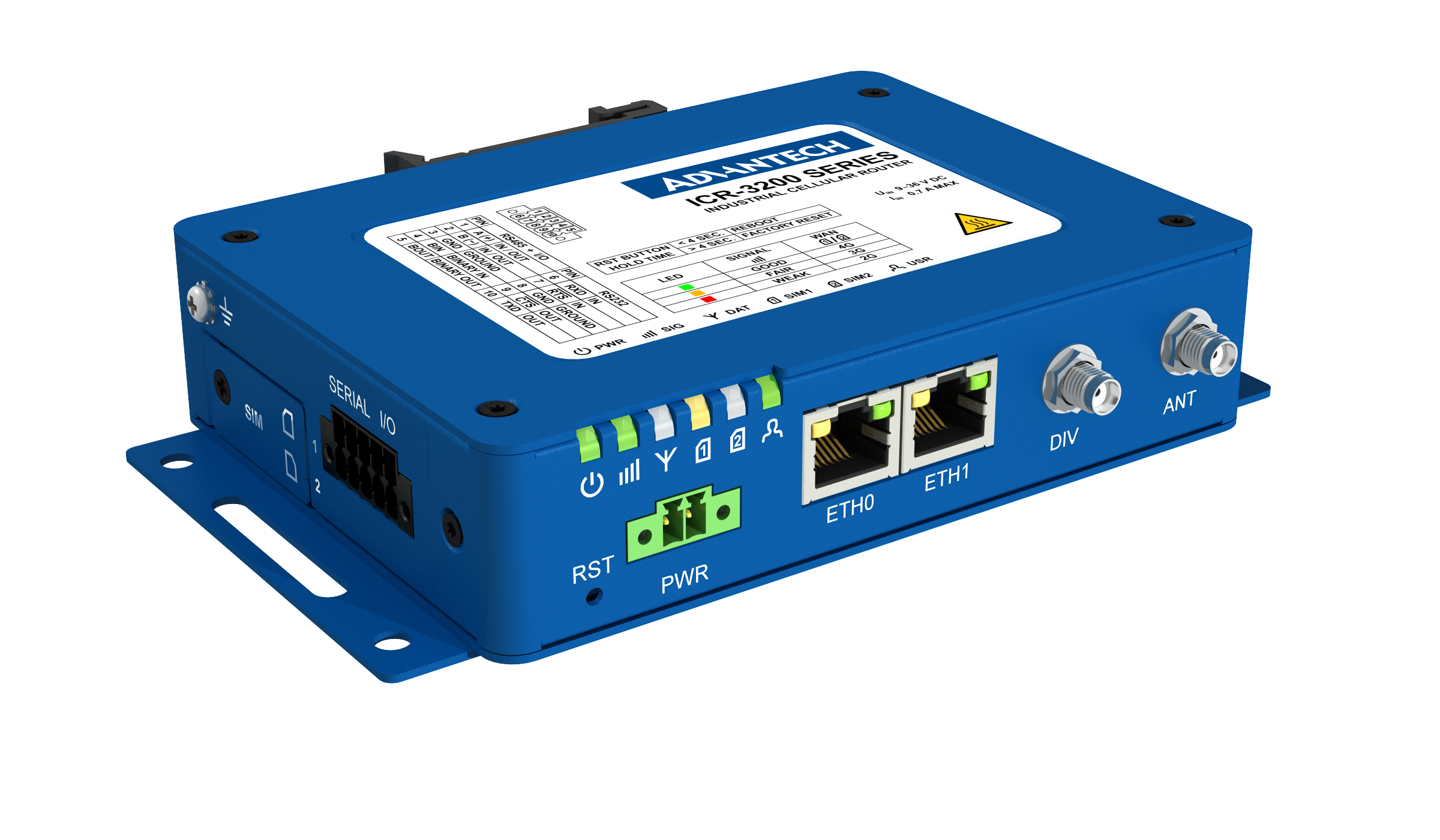

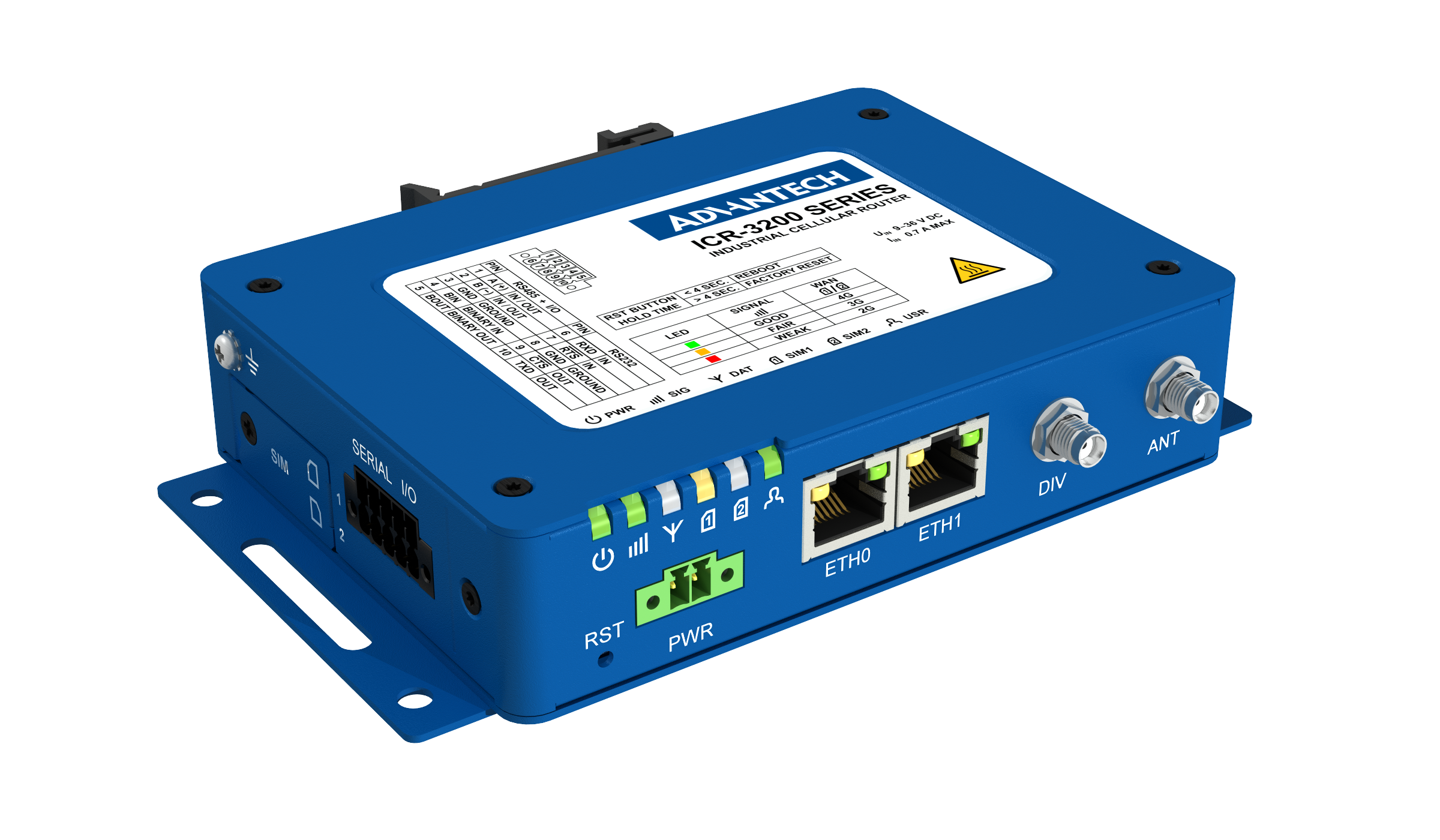

The Advantech ICR-3232W is an industrial LTE Cat 4 router from the ICR-3200 family, built for cellular networks in Australia/New Zealand and Latin America. It connects IP and serial devices over cellular. The router has two SIM slots, two 10/100 Ethernet ports, RS232 and RS485 serial, digital I/O, 802.11ac 2×2 MIMO Wi-Fi and a GNSS receiver. Its metal enclosure is rated from -40 to +75 °C and is EN 50155 railway compliant.

  • LTE Cat 4 (150 Mbps DL / 50 Mbps UL FDD) with 3G/2G fallback, ANZ/LATAM band set

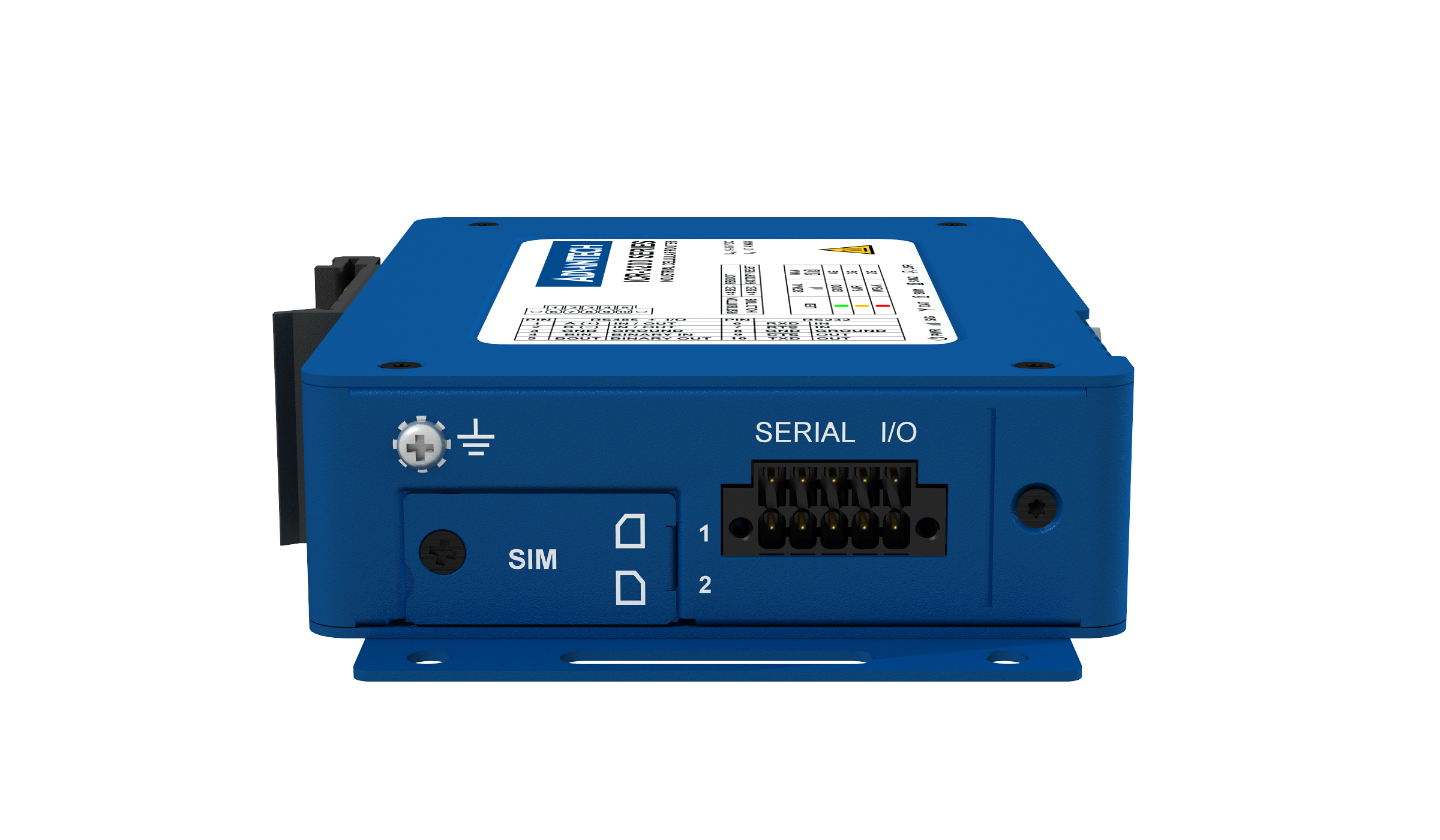

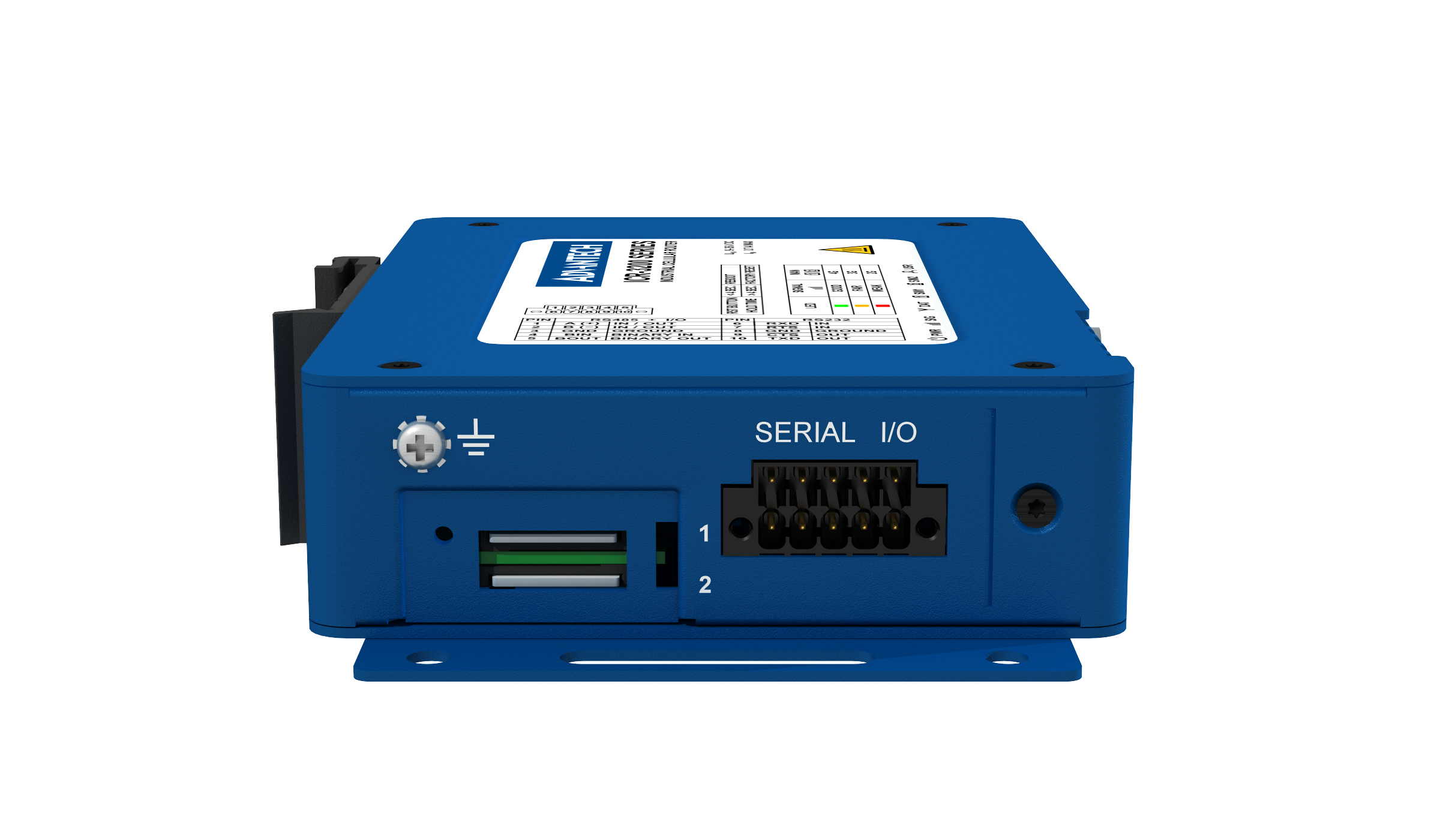

  • 2× covered Mini SIM (2FF) slots for carrier failover
  • 2× isolated 10/100 Ethernet, 1× RS232, 1× RS485 and digital I/O
  • 802.11ac 2.4/5 GHz Wi-Fi with 2×2 MIMO and WPA3
  • GNSS receiver: GPS, GLONASS, BeiDou, Galileo, QZSS
  • Metal case, DIN rail and wall mount, -40 to +75 °C, EN 50155 railway compliance
  • Linux-based ICR-OS with Python, C/C++, Node-RED and Docker support
  • Connects both IP and legacy serial equipment through one gateway, using RS232 and RS485 alongside Ethernet

The Advantech ICR-3232W is a 4G LTE gateway for connecting IP or serial equipment over a cellular network. Typical deployments include SCADA, industrial PCs, HMIs, traffic controllers, CCTV, meters, kiosks and UPS systems. LTE Cat 4 delivers up to 150 Mbps down and 50 Mbps up on FDD, with 3G and 2G fallback. Two covered Mini SIM (2FF) slots provide carrier failover. This order code is the ANZ/LATAM variant. It supports LTE bands B1, B2, B3, B4, B5, B7, B8, B28 and B40, its cellular module is Telstra approved, and it is not the North American configuration.

The ICR-3232W adds 802.11ac Wi-Fi with 2×2 MIMO and a GNSS receiver to the standard ICR-3232 interface set: • Wi-Fi: 2.4/5 GHz, WPA3 support, access point, station and multirole modes • GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS • Wired: two isolated 10/100 Ethernet ports, one RS232 and one RS485 serial port, plus digital input and output on a 10-pin terminal block • Resilience: a battery-backed RTC, sleep mode with power ignition, and a hardware watchdog

The router runs on 9–36 V DC. Its approvals include E-Mark, EN 45545-2, MIL-STD-810G and SAE J1455, alongside EN 50155 railway compliance, which suits vehicles and rolling stock.

A Cortex-A8 at 1 GHz with 512 MB RAM and 4 GB eMMC in pSLC mode runs the Linux-based ICR-OS. Custom applications can be written in Python, C/C++ or Node-RED, or deployed as Docker containers. Router Apps add Modbus, DNP3, IEC 60870-5-101/104 and MQTT support. VPN options include WireGuard, OpenVPN and IPsec. Fleets are managed with WebAccess/DMP.

The package includes a wall mount kit, a DIN clip, and the serial/IO and power connectors. Antennas and a power supply are optional accessories. The Advantech ICR-3232W datasheet is available for this model.

Ideal for

  • Cellular connectivity for SCADA, RTUs and serial field equipment in Australia, New Zealand and Latin America
  • Onboard gateway for buses, rail vehicles and fleet assets with GNSS positioning
  • Remote CCTV, metering, kiosk and UPS monitoring sites
  • Edge computing with Docker or Python applications bridging Modbus and DNP3 to MQTT
  • Local Wi-Fi access point for maintenance crews at remote installations

Specifications

GNSS

Antenna
Active, 1× SMA connector
Systems
GPS, GLONASS, BeiDou, Galileo, QZSS
Protocol
NMEA
Time TO First Fix
Cold 35 s, warm 26 s

Wi-Fi

Modes
Access point (unlimited clients), station, multirole STA & AP
Antenna
2× R-SMA connectors, 2×2 MIMO
Security
WEP, WPA, WPA2, WPA3, 802.1X
Standards
IEEE 802.11ac/a/b/g/n, 2.4 GHz / 5 GHz

System

CPU
Cortex-A8, 1000 MHz
Rtc
Battery backup RTC
Memory
RAM 512 MB; eMMC 4096 MB (838 MB for Router Apps, 512 MB for customer data)
Watchdog
Hardware watchdog

General

MPN
ICR-3232W
Brand
Advantech
Life Cycle
Production
Product Family
ICR-3200 industrial cellular router (ICR-3232)

Cellular

Antennas
2× SMA connector (1× main, 1× diversity)
SIM Slots
2× SIM (Mini SIM – 2FF) with cover; 1× chip SIM (MFF2) as project-based customization
Technology
LTE Cat 4, 3GPP E-UTRA Release 11, 3G/2G fallback
LTE Fdd Rate
LTE FDD 150 Mbps DL / 50 Mbps UL
LTE Tdd Rate
LTE TDD 130 Mbps DL / 35 Mbps UL
LTE Fdd Bands
B28 (700), B5 (850), B8 (900), B4 (1700), B3 (1800), B2 (1900), B1 (2100), B7 (2600) MHz
LTE Tdd Bands
B40 (2300 MHz)
Edge Gprs Rate
236.8 kbps DL / 236.8 kbps UL
Hspa Umts Rate
42 Mbps DL / 5.76 Mbps UL
Edge Gprs Bands
B2 (1900), B3 (1800), B5 (850), B8 (900) MHz
Hspa Umts Bands
B1 (2100), B2 (1900), B5 (850), B8 (900) MHz

Physical

Weight
477 g (ICR-3232W)
Mounting
Wall mount kit, DIN rail
Enclosure
Metal case with grounding screw
Dimensions
31.2 × 94 × 129 mm
Shipping Weight
1.21 lbs

Software

Note
*Functionality is available with installed Router App
Security
HTTPS, SSH, SFTP, DMZ, firewall (IP, MAC, inbound/outbound port filtering); VPN: WireGuard, OpenVPN, IPsec (IKEv1/IKEv2), GRE, L2TP, PPTP; Authentication: RADIUS, TACACS+, 2FA, *SCEP; Encryption: DES, 3DES, AES, RSA up to 4096, Ed25519, MD5, SHA
Networking
DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, Dynamic DNS client, DNS proxy, VLAN, QoS, *DMVPN, NTP client/server, *RIP, BGP, OSPF, IS-IS, NHRP, backup routes, port forwarding, host port routing, Ethernet bridging, load balancing, IPv6 dual stack
Event Engine
StartUp and Up/Down scripts (rules on digital inputs, network parameters, data usage, timer, power, device temperature); reports via SMS, email, SNMP trap
Configuration
Web server, SSH, four switchable configuration profiles, automatic configuration update from server, backup & restore
Diagnostics Log
Status (signal strength, data usage, detailed long-term statistics); One CLICK report (configuration, factory identification, routing table); system, reboot and kernel logs; remote diagnostics via SSH
Management Tools
WebAccess/DMP – remote monitoring, management & VPN platform
Operating System
ICR-OS (Linux based)
SW Customization
Router App
Firmware Management
Automatic firmware updates – server, locally via LAN or remotely via WAN; over-the-air cellular module firmware updates
Application Development
Open Linux, *Python, BASH, C/C++, *Node-RED, *Docker
Industrial Protocols Iot
*Modbus RTU/TCP gateway, *IEC 60870-5-101 to 104 gateway, *DF1, *DNP3, *MQTT, *LWM2M

Standards

Emc
AS/NZC CISPR 32, IEC 61000-6-2
Radio
AS/CA S042, AS/NZC 4268
Safety
UL/EN/AS/NZS 62368-1
Railway
EN 50155 railway compliance
Climatic
EN 60068-2-2, -2-1, -2-14, -2-78, MIL-STD-810G, SAE J1455
National
RCM, Brazil – Anatel
Mechanical
EN 60068-2-27, EN 60068-2-64
Environmental
REACH, RoHS3 and WEEE compliant
Transportation
E-Mark certified, EN 45545-2
Cellular Module Approvals
Regulatory: GFC, FCC, Anatel, NCC, RCM; Carrier: Telstra (valid for the integrated cellular module only)

Interfaces

I/O
1× digital input; 1× digital output (10-pin terminal block)
Serial
1× RS232 (Tx, Rx, RTS, CTS, GND); 1× RS485 (A(-), B(+), GND), 10-pin terminal block
Ethernet
2× Ethernet, RJ45, 10/100 Mbps, isolation 1.5 kV
Reset Button
Reboot / factory reset
LED Indicators
System, 3-level signal strength, data activity, SIM1/SIM2 status, 2G/3G/4G technology, User, ETH

Order Code

I/O
Yes
GNSS
Yes
Region
ANZ (Australia/New Zealand), LATAM (Latin America)
SIM 2x
2× SIM: Yes
Ethernet 2x
2× Ethernet: Yes
LTE Ant Div
Yes
Region Note
Router is compatible with cellular networks in the indicated region; importer/operator must check local legislation and national telecom approvals
Rs232 Rs485
Yes
Wi-Fi 80211ac
Yes

Accessories

BB Con Wr2
BB-CON-WR2 power connector – included
BB Din Icr32
BB-DIN-ICR32 DIN clip – included
Ant Lte5g 025
ANT-LTE5G-025 antenna 5G/LTE, terminal (2 pcs recommended) – optional
Opt1 Rps 1212
OPT1-RPS-1212 power supply 12V/1A, open wires, EU / UK / US / AUS plug – optional
Wall Mount Kit
Wall mount kit – included
BB Con Icr32 10
BB-CON-ICR32-10 serial/IO connector – included
Opt1 Ant Gns 20
OPT1-ANT-GNS-20 antenna GPS/GLONASS, magnetic, 2 m cable, SMA-M – optional
Opt1 Ant Wft 06
OPT1-ANT-WFT-06 antenna Wi-Fi 2.4/5/6 GHz (2 pcs recommended for 2×2 MIMO) – optional

Environmental

Humidity
5 to 95 %
IP Rating
IP30
Sleep Mode
Yes, 100 mW (HW Rev 1.0), 20 mW (HW Rev 2.0)
Consumption
With Wi-Fi: idle 2.5 W / average 4 W / max 11 W (HW Rev 1.0); idle 2.6 W / average 4.3 W / max 5.8 W (HW Rev 2.0)
Power Supply
9 – 36 V DC (2-pin terminal block)
Storage Temperature
-40 to +85 °C
Operating Temperature
-40 to +75 °C

Bluetooth Optional

Antenna
Optional module: shared R-SMA Wi-Fi antenna connector
Version
Optional module: Bluetooth 5.1, class 1 (Bluetooth Low Energy), Bluetooth SIG qualification
Data Rate
Optional module: 1 Mbps (GFSK), 2 Mbps (π/4-DQPSK), 3 Mbps (8-DPSK)

Questions buyers ask

Which regions is the ICR-3232W intended for?

This order code is the ANZ (Australia/New Zealand) and LATAM (Latin America) variant. Its LTE band set is B1, B2, B3, B4, B5, B7, B8, B28 and B40, and its cellular module carries Telstra carrier approval. It is not the North American configuration.

Does the ICR-3232W include Wi-Fi and GPS?

Yes. The W order code includes 802.11ac 2.4/5 GHz Wi-Fi with 2×2 MIMO and a GNSS receiver supporting GPS, GLONASS, BeiDou, Galileo and QZSS.

What serial and I/O interfaces does it have?

It has one RS232 port, one RS485 port, one digital input and one digital output on a 10-pin terminal block, plus two isolated 10/100 Ethernet ports.

Is it suitable for vehicle and rail installations?

Yes. It runs on 9–36 V DC, supports sleep mode and power ignition, and is E-Mark certified. It also meets EN 50155 railway, EN 45545-2, MIL-STD-810G and SAE J1455 standards.

What comes in the package?

A wall mount kit, a DIN clip, the serial/IO connector and the power connector. Cellular, Wi-Fi and GNSS antennas and a power supply are optional accessories.
