Advantech ICR-3241 Industrial 4G LTE Cat 4 Router with Dual SIM, RS232/RS485 and Digital I/O

4G LTEMPN ICR-3241
  • Dual SIM
  • eSIM
  • 2–4 × 100 Mb Ethernet
  • FirstNet Ready
$509.12

In stockShips from the US

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

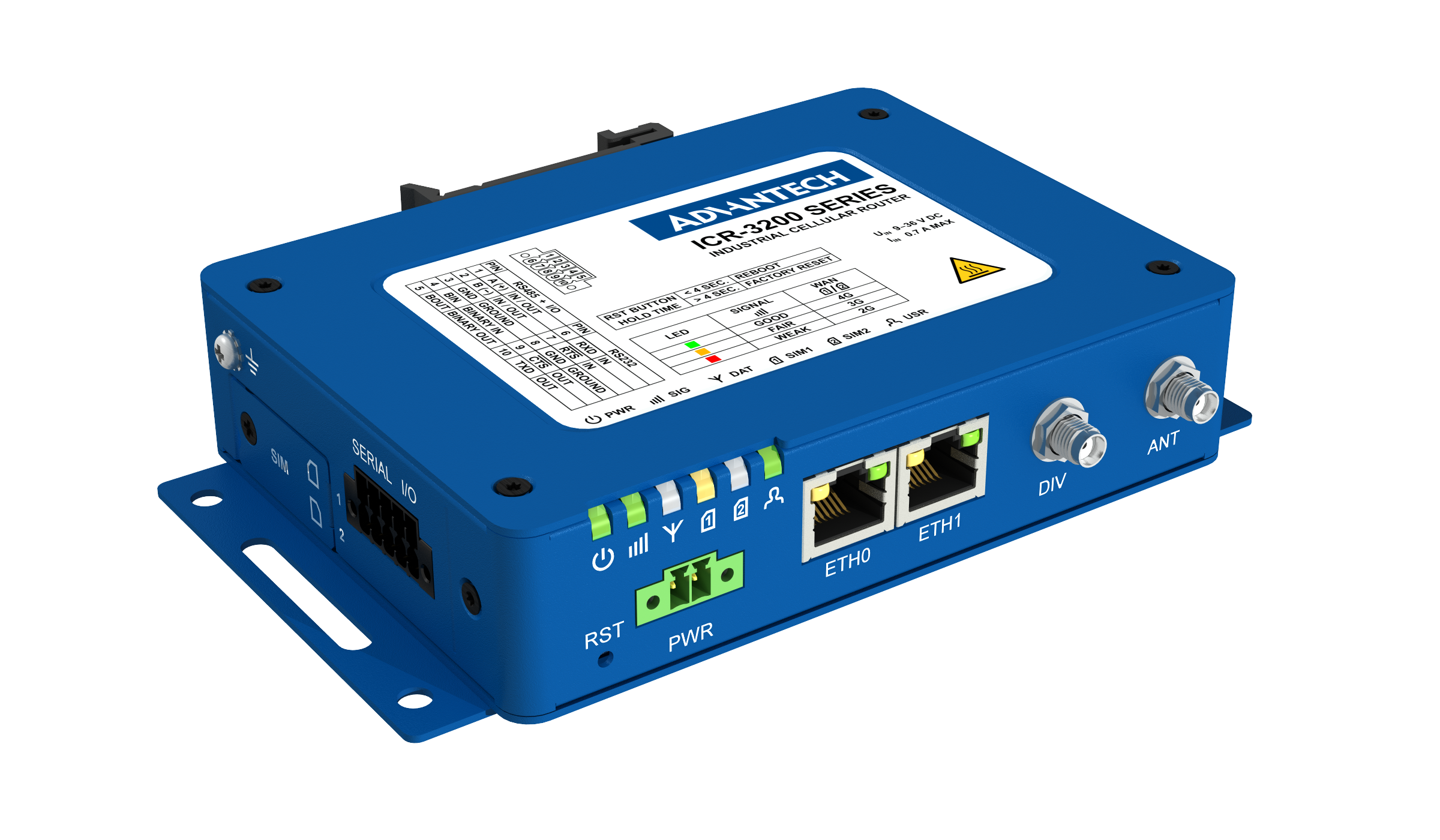

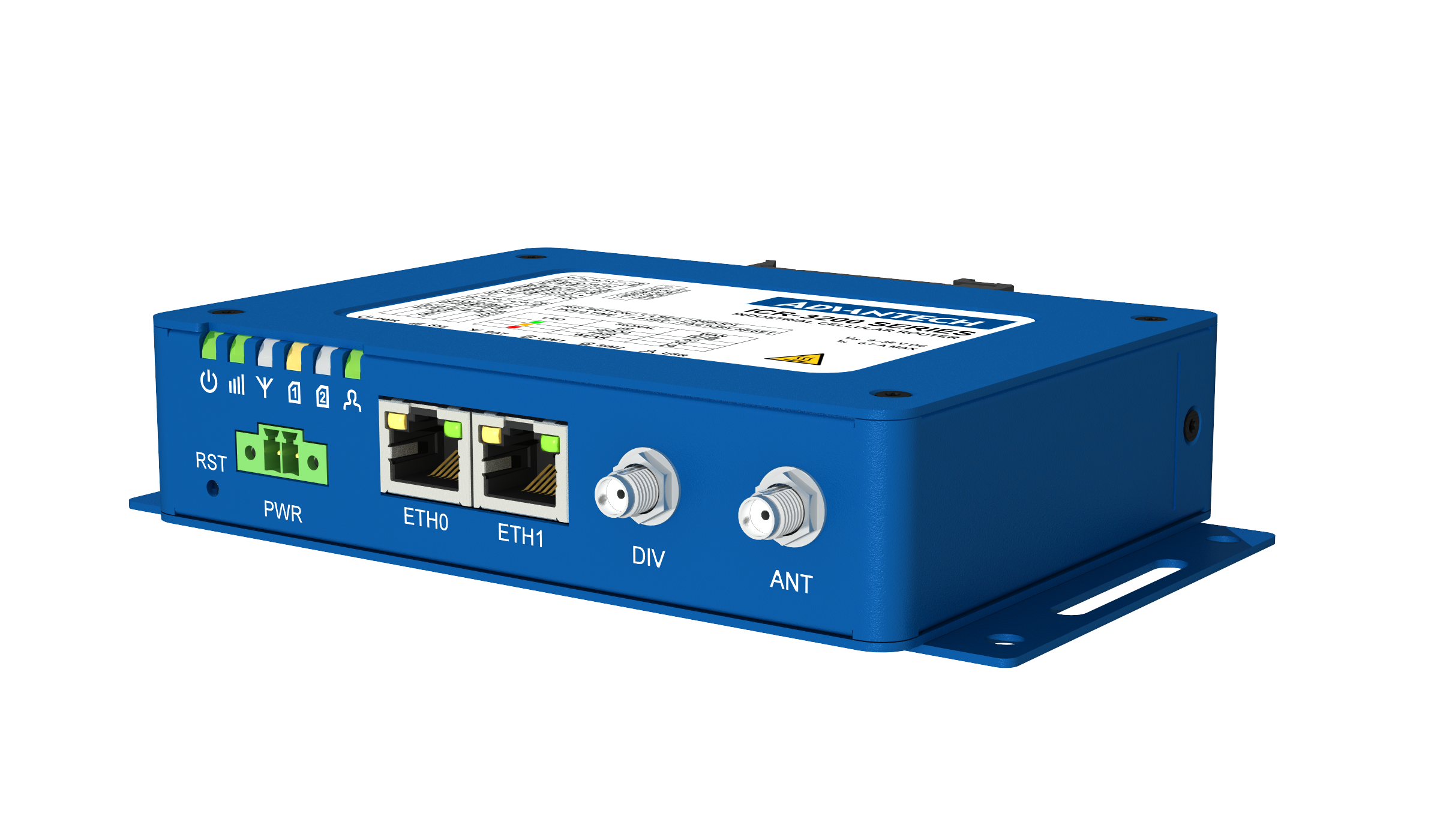

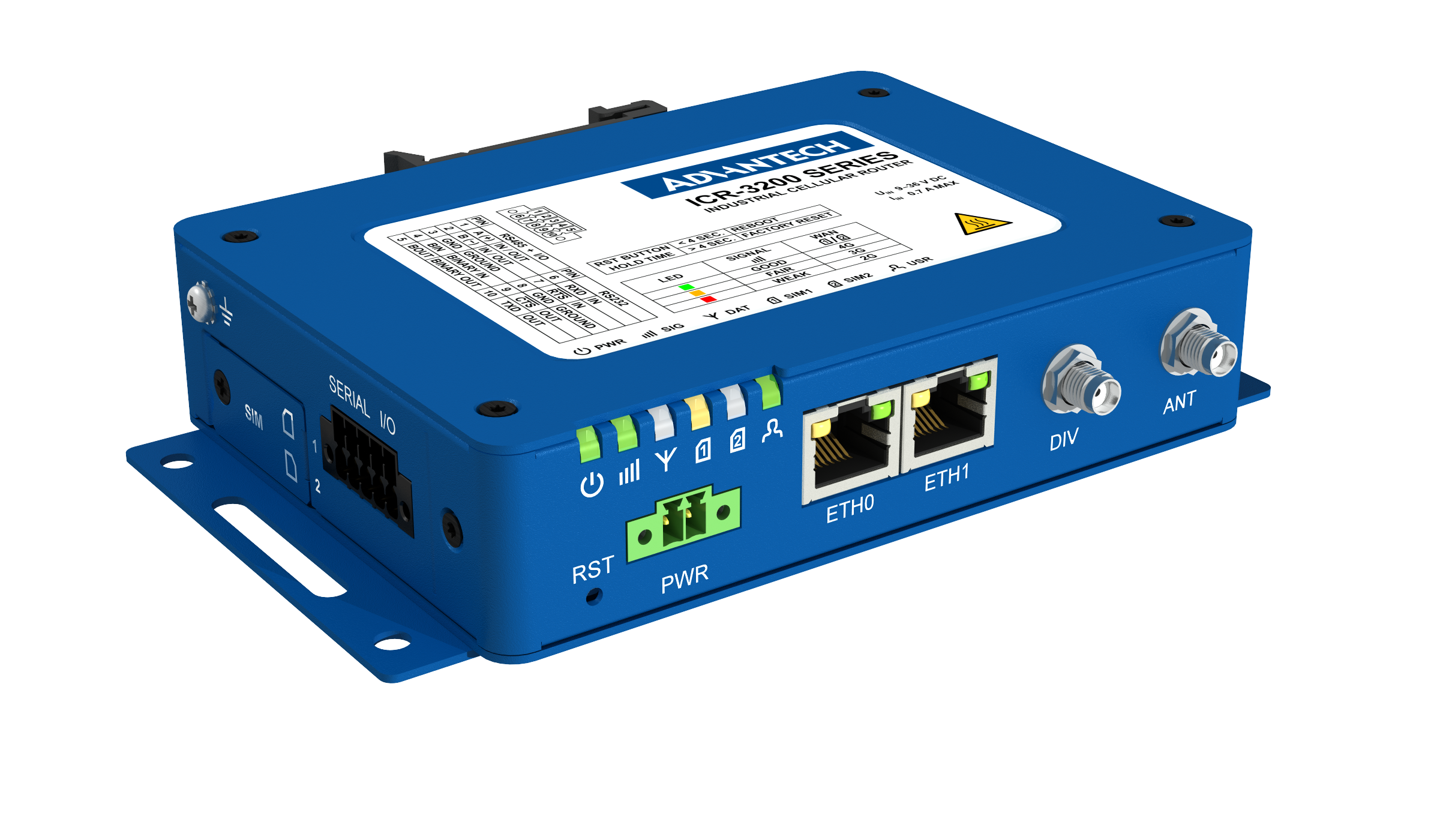

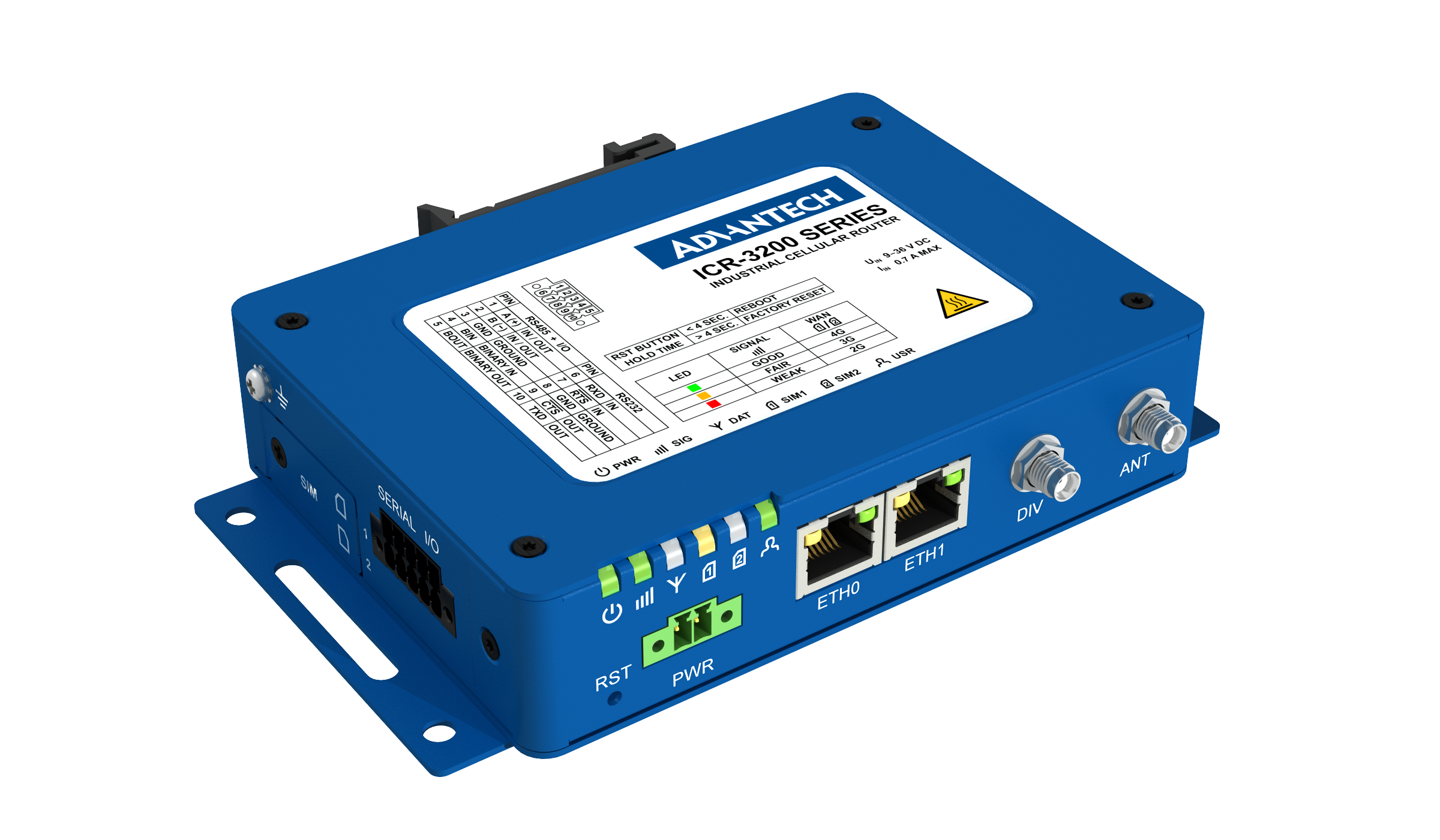

The Advantech ICR-3241 is an industrial 4G LTE Cat 4 router from the ICR-3200 family, built for North American networks. It links IP and serial equipment such as SCADA, meters, HMIs, CCTV, kiosks and traffic controllers over cellular. Two SIM slots provide carrier failover. It has two isolated Ethernet ports, RS232, RS485 and digital I/O, all in a metal DIN-rail or wall-mount case rated from -40 to +75 °C. The open Linux-based ICR-OS can host Python, C/C++, Node-RED or Docker applications at the edge.

  • LTE Cat 4 (150 Mbps DL / 50 Mbps UL) on bands B2, B4, B5, B12, B13, B14, B66 and B71, with HSPA+/UMTS fallback
  • Dual Mini SIM slots with cover for carrier failover; carrier approvals for Verizon, AT&T and T-Mobile
  • 2x isolated 10/100 Ethernet, 1x RS232, 1x RS485, 1x digital input and 1x digital output
  • Cortex-A8 1 GHz CPU, 512 MB RAM, 4 GB pSLC eMMC with 1.3 GB for customer applications
  • Open Linux ICR-OS with Python, C/C++, Node-RED and Docker support via Router Apps
  • Metal IP30 case, DIN rail or wall mount, -40 to +75 °C operation, 9–36 V DC input
  • E-Mark, EN 50155 railway and MIL-STD-810G compliance
  • Keep remote sites online with dual-SIM failover between carriers

The Advantech ICR-3241 is a 4G LTE Cat 4 gateway for industrial M2M and IoT deployments where IP and serial devices need a dependable cellular uplink. It covers LTE bands B2, B4, B5, B12, B13, B14, B66 and B71, with HSPA+/UMTS fallback. Rated speeds reach 150 Mbps down and 50 Mbps up. Two Mini SIM (2FF) slots under a cover allow failover between carriers. Carrier approvals cover Verizon, AT&T and T-Mobile, and the order code is specified for the North American (NAM) region. In Advantech's order-code table, FirstNet certification is marked for the ICR-3241-1ND, ICR-3241W-1ND and ICR-3241-EL variants rather than this standard ICR-3241.

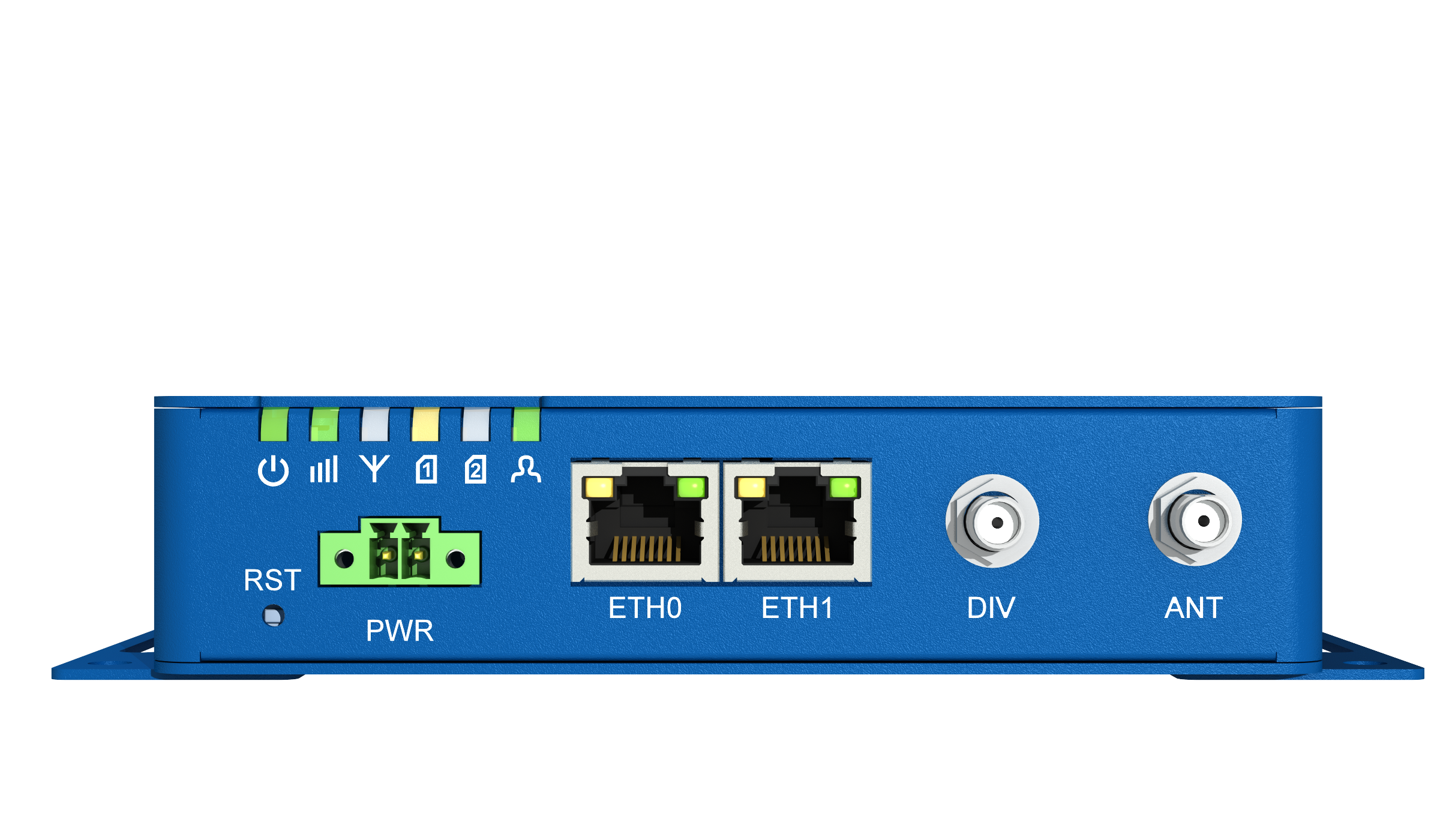

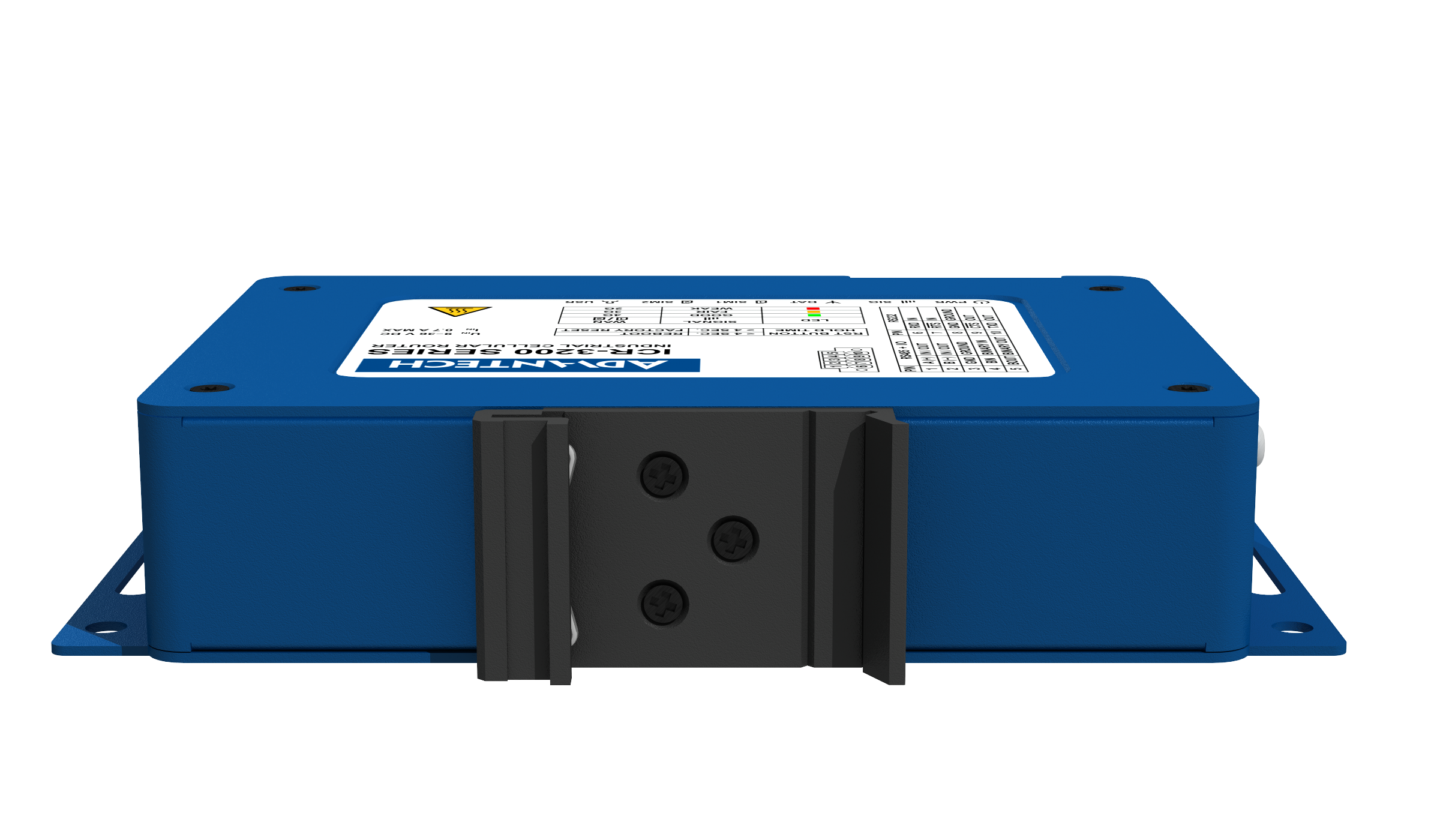

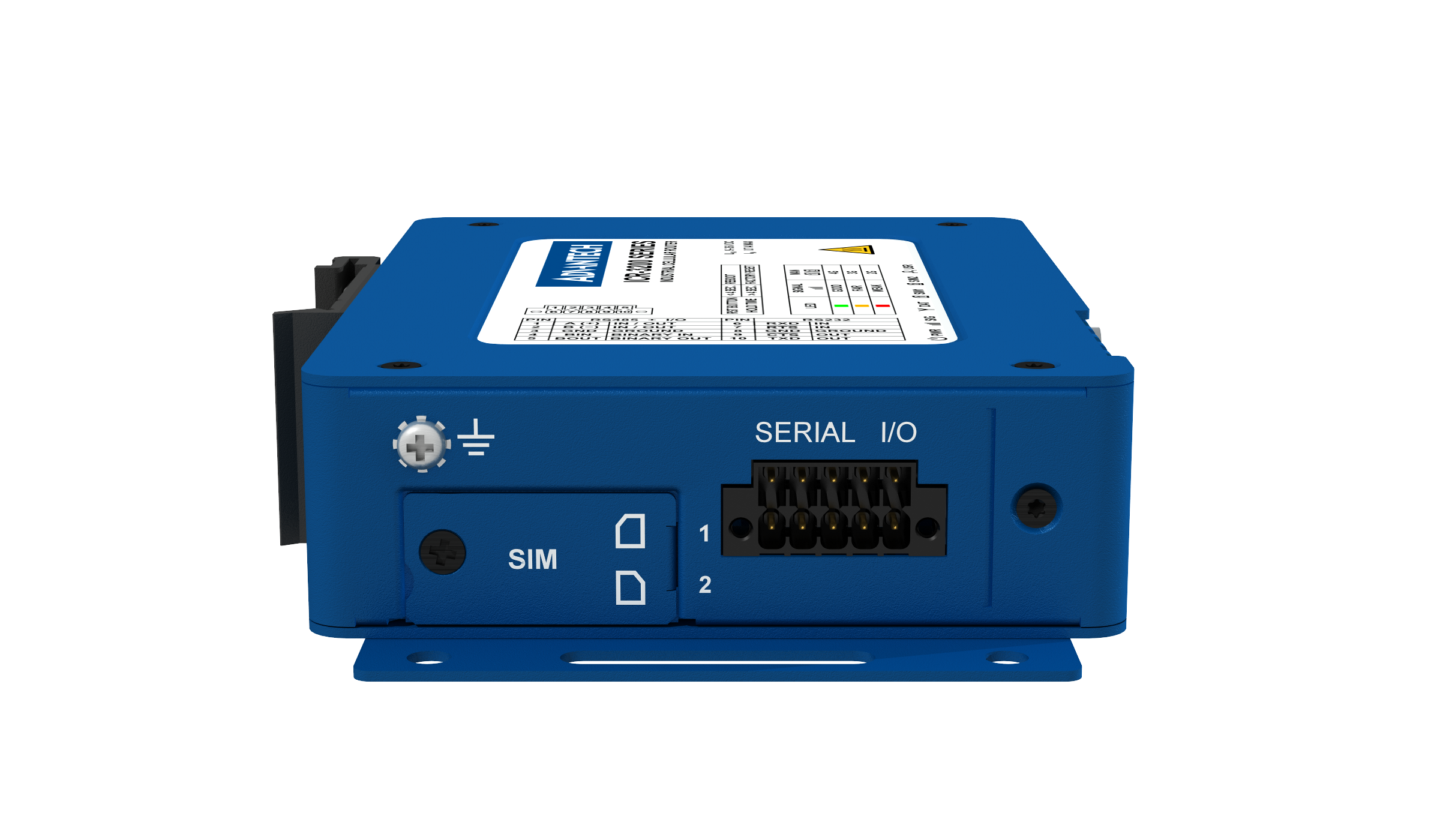

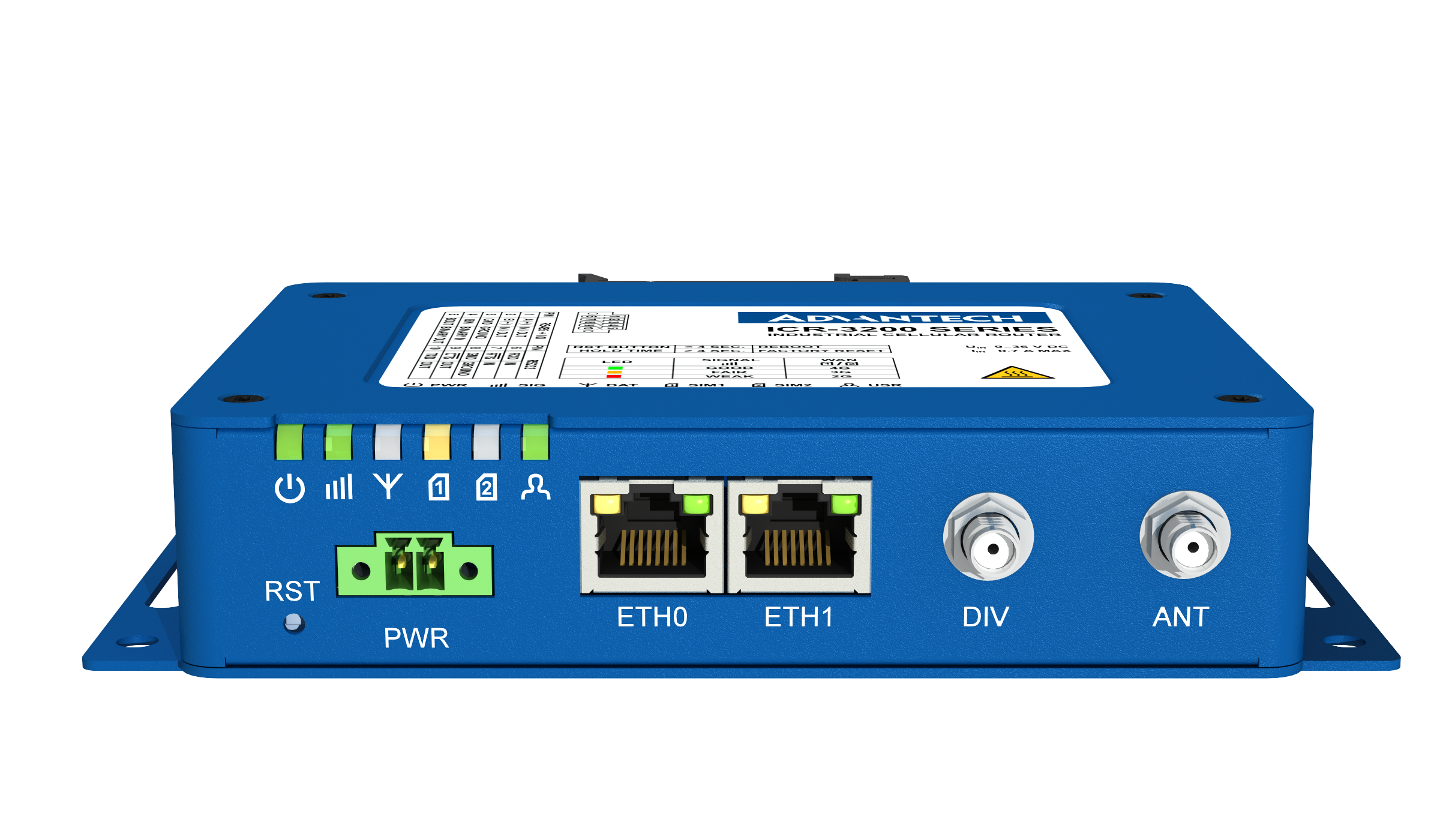

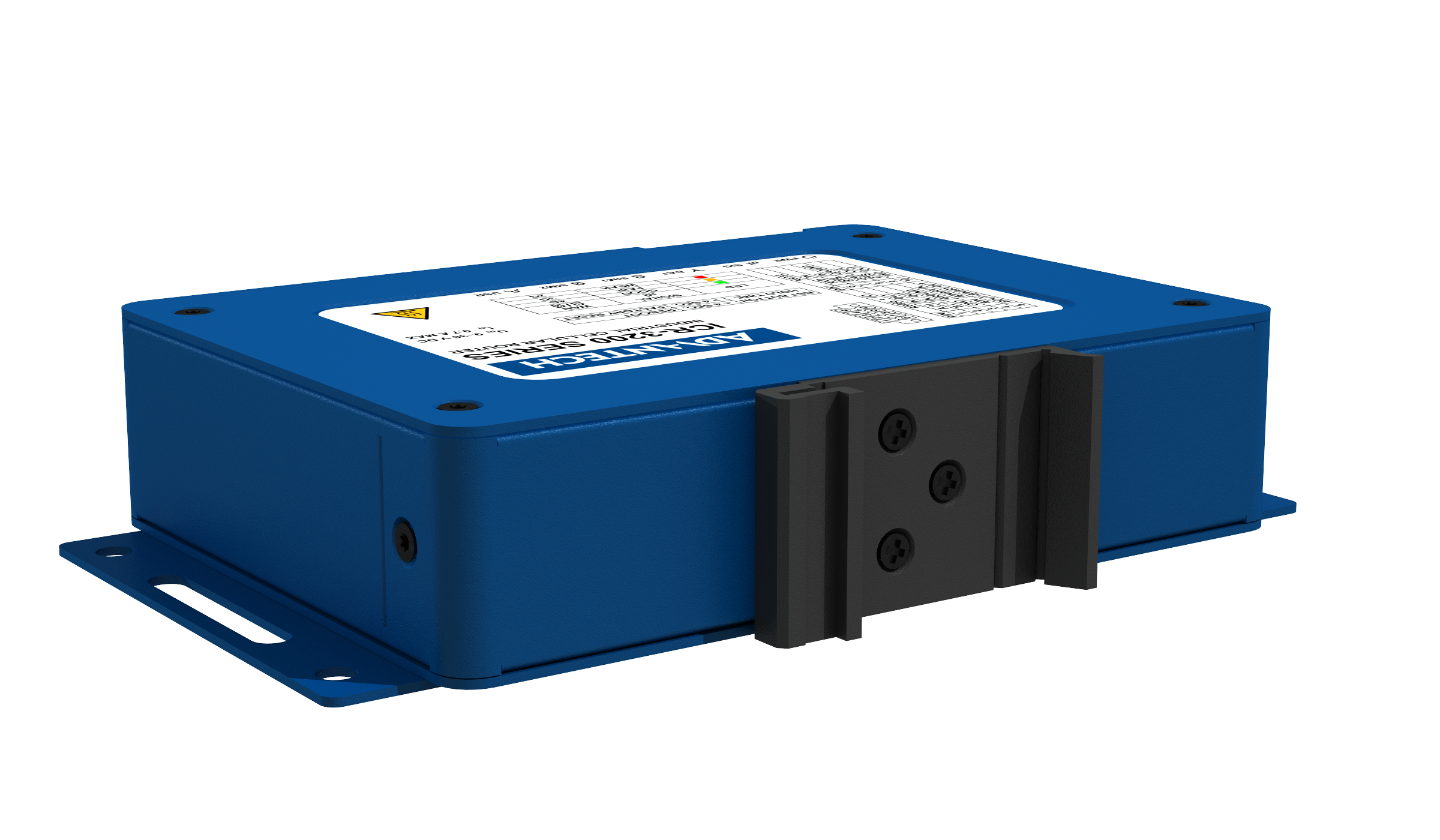

For wired connections, the router has two RJ45 10/100 Ethernet ports with 1.5 kV isolation. A 10-pin terminal block carries RS232, RS485, one digital input and one digital output. Other hardware includes a battery-backed real-time clock, a hardware watchdog, sleep mode and power-ignition support. It takes 9–36 V DC through a 2-pin terminal block. The IP30 metal case has a grounding screw, and the wall-mount kit and DIN clip are both included. The unit meets E-Mark, EN 50155 railway, EN 45545-2 and MIL-STD-810G requirements.

At the edge, a 1 GHz Cortex-A8 CPU runs with 512 MB RAM and 4 GB of pSLC eMMC, and 1.3 GB of that storage is allocated to customer applications and data. ICR-OS is Linux-based and supports development in Python, BASH, C/C++, Node-RED and Docker through Router Apps. Advantech's Router App library adds Modbus, DNP3, IEC 60870-5 and MQTT gateways. Security covers WireGuard, OpenVPN, IPsec, GRE and L2TP VPNs, a firewall, RADIUS/TACACS+ and 2FA. Fleets can be managed at scale through WebAccess/DMP. The Advantech datasheet is available for full specifications.

Ideal for

  • SCADA and remote telemetry for utilities, water and oil and gas sites
  • Serial-to-cellular conversion for meters, PLCs and UPS systems via RS232/RS485
  • Connectivity for traffic controllers, CCTV and roadside cabinets
  • Kiosk, digital signage and vending uplinks with dual-SIM failover
  • Edge computing with custom Python, Node-RED or Docker applications on the router

Specifications

System

CPU
Cortex-A8, 1000 MHz
Rtc
Battery Backup RTC
Memory
RAM – 512 MB; eMMC – 4096 MB (838 MB for Router Apps, 512 MB for customer data)
Watchdog
Hardware Watchdog

General

MPN
ICR-3241
Brand
Advantech
Life Cycle
Production
Product Family
ICR-3200 Industrial Cellular Router Family
Country OF Origin
Made in Czech Republic

Package

Din Clip
Included
Wall Mount Kit
Included
Power Connector
Included
Serial I/O Connector
Included
Optional LTE Antenna
ANT-LTE5G-025 5G/LTE Terminal Antenna (2 recommended)
Optional GNSS Antenna
OPT1-ANT-GNS-20 GPS/GLONASS Antenna
Optional Power Supply
OPT1-RPS-1212 12 V/1 A Power Supply (US, EU or UK plug)
Optional Wi-Fi Antenna
OPT1-ANT-WFT-06 Wi-Fi Antenna

Physical

Weight
457 g (ICR-3241); 477 g (ICR-3241W)
Mounting
Wall Mount Kit, DIN Rail
Enclosure
Metal Case with Grounding Screw
Dimensions
31.2 × 94 × 129 mm

Software

Note
*Functionality available with installed Router App
Security
HTTPS, SSH, SFTP, DMZ, Firewall; VPN: WireGuard, OpenVPN, IPsec (IKEv1/IKEv2), GRE, L2TP, PPTP; Auth: RADIUS, TACACS+, 2FA, SCEP*; Encryption: DES, 3DES, AES, RSA up to 4096, Ed25519, MD5, SHA
Event Engine
StartUp and Up/Down scripts with rules on inputs, network, data usage, timer, power, temperature; reports via SMS, email, SNMP Trap
Configuration
Web server, SSH, 4 switchable profiles, automatic config update from server, Backup & Restore
Diagnostic Log
Signal/Data Usage/Long-Term Statistics; One-Click Report; System, Reboot and Kernel Logs; Remote Diagnostics via SSH
Operating System
ICR-OS (Linux based)
SW Customization
Router App
Firmware Management
Automatic firmware updates (server, LAN or WAN); OTA cellular module firmware updates
Networking Features
DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, DDNS, DNS proxy, VLAN, QoS, DMVPN*, NTP, RIP/BGP/OSPF/IS-IS/NHRP*, Backup Routes, Port Forwarding, Host Port Routing, Ethernet Bridging, Load Balancing, IPv6 Dual Stack
Advanced Software Tools
WebAccess/DMP; EdgeLink*
Application Development
Open Linux, Python*, BASH, C/C++, Node-RED*, Docker*
Industrial Protocols Iot
Modbus RTU/TCP*, IEC 60870-5-101 to 104*, DF1*, DNP3*, MQTT*, LWM2M*

Interfaces

I/O
1× Digital Input; 1× Digital Output, 10-pin terminal block
Ethernet
2× Ethernet, RJ45, 10/100 Mbps, Isolation 1.5 kV
Reset Button
Reboot / Factory reset
Serial Lines
1× RS232 (Tx, Rx, RTS, CTS, GND); 1× RS485 (A(-), B(+), GND), 10-pin terminal block
LED Indicators
System, 3-level signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, User, ETH

Order Code

I/O
Yes
GNSS
No
Wi-Fi
No
Region
North America (NAM)
Dual SIM
2× SIM: Yes
Bluetooth
No
LTE Ant Div
Yes
Region Note
Compatible with cellular networks in the indicated region
Rs232 Rs485
Yes
Dual Ethernet
2× Ethernet: Yes
Edgelink Support
No
Firstnet Certification
No (marked for ICR-3241-1ND, ICR-3241W-1ND, ICR-3241-EL)

Environmental

Humidity
5 to 95 %
IP Rating
IP30
Sleep Mode
100 mW (HW Rev 1.0), 20 mW (HW Rev 2.0)
Consumption
With WiFi: Idle 2.5 W / Avg 4 W / Max 11 W (HW Rev 1.0); Idle 2.6 W / Avg 4.3 W / Max 5.8 W (HW Rev 2.0)
Power Supply
9 – 36 V DC (2-pin terminal block)
Storage Temperature
-40 to +85 °C
Operating Temperature
-40 to +75 °C

GNSS Optional

Antenna
Active, 1× SMA
Systems
GPS, GLONASS, BeiDou, Galileo, QZSS
Protocol
NMEA
Availability
Optional (not fitted on ICR-3241)
Time TO First Fix
Cold 35 s, Warm 26 s

Wi-Fi Optional

Modes
Access Point (unlimited clients), Station, Multirole STA & AP
Antenna
2× R-SMA, 2×2 MIMO
Security
WEP, WPA, WPA2, WPA3, 802.1X
Standards
IEEE 802.11 ac/a/b/g/n, 2.4 GHz / 5 GHz
Availability
Optional (not fitted on ICR-3241)

Bluetooth Optional

Antenna
Shared R-SMA Wi-Fi antenna connector
Version
Bluetooth 5.1, Class 1 (BLE), Bluetooth SIG Qualified
Data Rate
1 Mbps (GFSK), 2 Mbps (π/4-DQPSK), 3 Mbps (8-DPSK)
Availability
Optional (not fitted on ICR-3241)

Cellular Interface

Antennas
2× SMA (1× Main, 1× Diversity)
LTE Bands
LTE FDD: B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz), B12, B13, B14 (700 MHz), B66 (1700 MHz), B71 (600 MHz)
SIM Slots

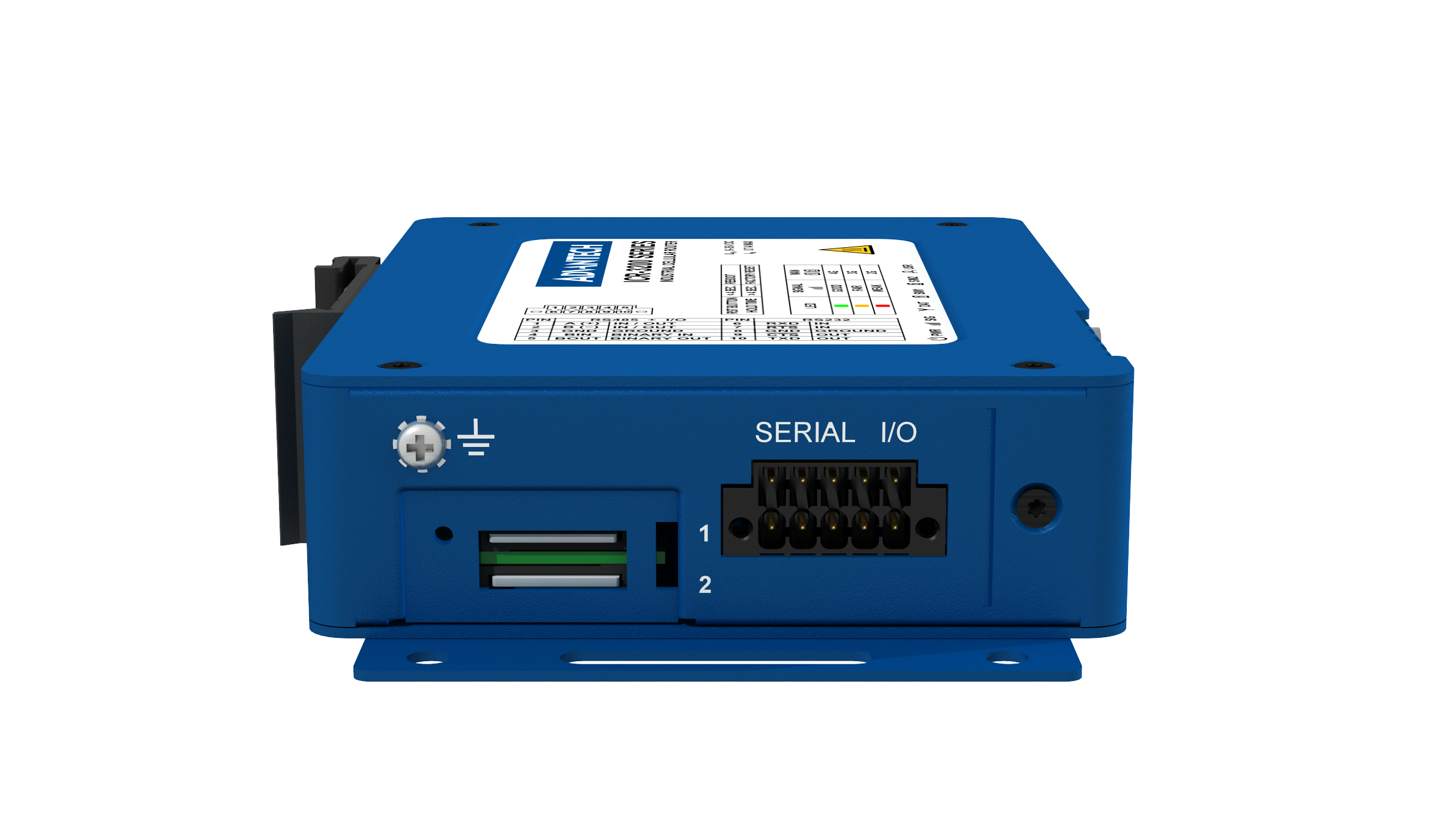

2× SIM (Mini SIM – 2FF) with cover, 1× Chip SIM (MFF2) (project-based customization)
LTE Category
LTE Cat.4, 3GPP E-UTRA Release 11
Hspa Umts Bands
B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz)
LTE Transfer Rate
150 Mbps (DL), 50 Mbps (UL)
Hspa Umts Transfer Rate
4.2 Mbps (DL) / 2.2 Mbps (UL)

Standards Regulations

Emc
EN 61000-6-2, FCC Part 15.B, ICES-003 Issue 6
Note
Module approvals apply to the integrated cellular module only, not necessarily the whole router
Radio
FCC Part 22H, 24E, 27; PTCRB
Safety
UL/EN/AS/NZS 62368-1
Railway
EN 50155 Compliant
Climatic
EN 60068-2-2/-1/-14/-78, MIL-STD-810G, SAE J1455
National
FCC, IC
Mechanical
EN 60068-2-27, EN 60068-2-64
Environmental
REACH, RoHS3, WEEE Compliant
Transportation
E-Mark, EN 45545-2
Carrier Approval
Verizon, AT&T, FirstNet, T-Mobile
Cellular Module Approvals
Module – Regulatory: GCF, FCC, PTCRB, IC; Carrier: Verizon, AT&T, FirstNet, T-Mobile, U.S. Cellular, Rogers, Telus

Questions buyers ask

Is the ICR-3241 FirstNet certified?

In Advantech's order-code table, FirstNet certification is marked for the ICR-3241-1ND, ICR-3241W-1ND and ICR-3241-EL. It is not marked for this standard ICR-3241. This router carries carrier approvals for Verizon, AT&T and T-Mobile.

Does the ICR-3241 have Wi-Fi?

No. The standard ICR-3241 order code has no Wi-Fi, Bluetooth or GNSS. The ICR-3241W variant adds 802.11ac Wi-Fi.

What power input does it need?

It accepts 9–36 V DC through a 2-pin terminal block. Advantech offers optional 12 V/1 A power supplies with US, EU or UK plugs.

Are antennas included?

The package includes the wall-mount kit, DIN clip, serial/IO connector and power connector. Antennas are optional. Advantech recommends two ANT-LTE5G-025 antennas, one each on the main and diversity SMA ports, for full cellular performance.

Can I run my own software on the router?

Yes. ICR-OS is Linux-based and sets aside 1.3 GB of storage for customer applications and data. It supports BASH and C/C++, plus Python, Node-RED and Docker through Router Apps.
