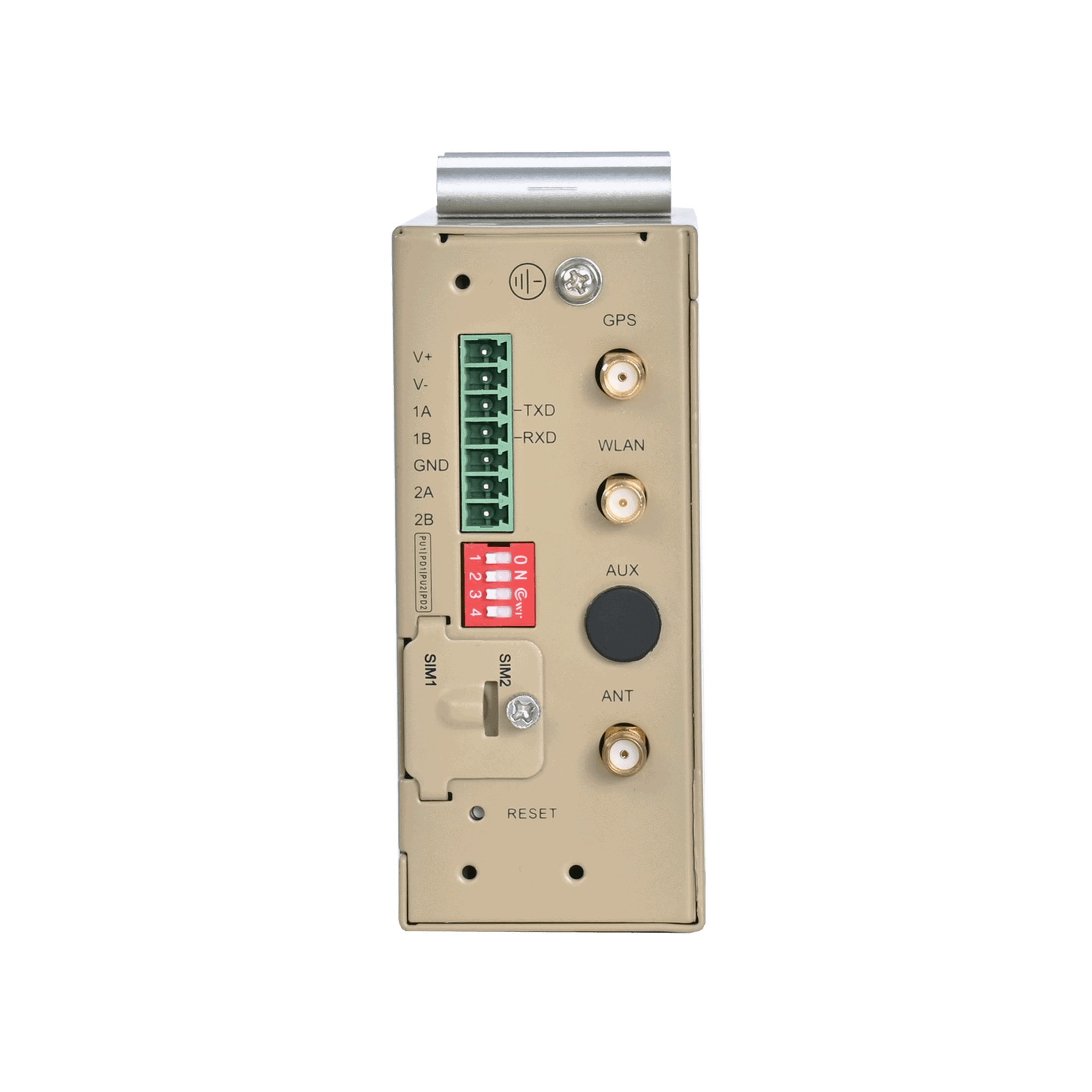

InHand Networks IG502-FQ33-IO Programmable LTE Cat 1 Edge Gateway with Isolated I/O, North America

4G LTEMPN IG502-FQ33-IO
$229.26$274.00Save $44.74

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IG502-FQ33-IO is a compact, programmable industrial edge gateway for North America. It uses the FQ33 module for 4G LTE Cat 1 on bands B2/B4/B5/B12/B13/B25/B26 and adds dual Micro SIM failover. The -IO option adds 4 isolated digital inputs and 4 digital outputs. It also has two 10/100 Ethernet ports, RS-232 and RS-485 serial, USB and microSD. The gateway supports a Python development environment and optional DeviceSupervisor (DSA) with more than 80 industrial protocols. It is built for unattended cabinets and remote assets and operates from -40 °C to 70 °C.

  • 4G LTE Cat 1 via the FQ33 North America module, bands B2/B4/B5/B12/B13/B25/B26
  • Dual Micro SIM with failover, heartbeat link detection and auto-redial

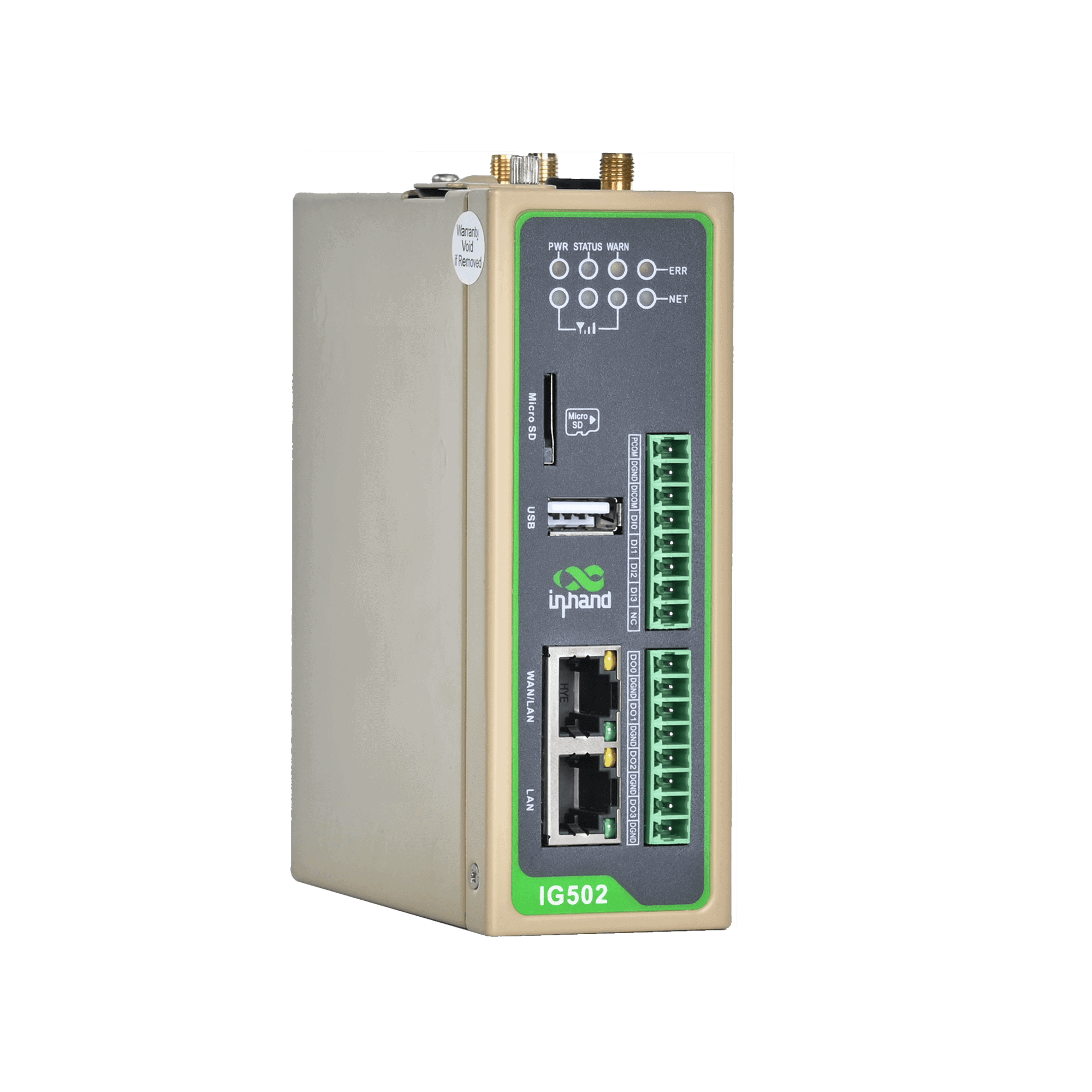

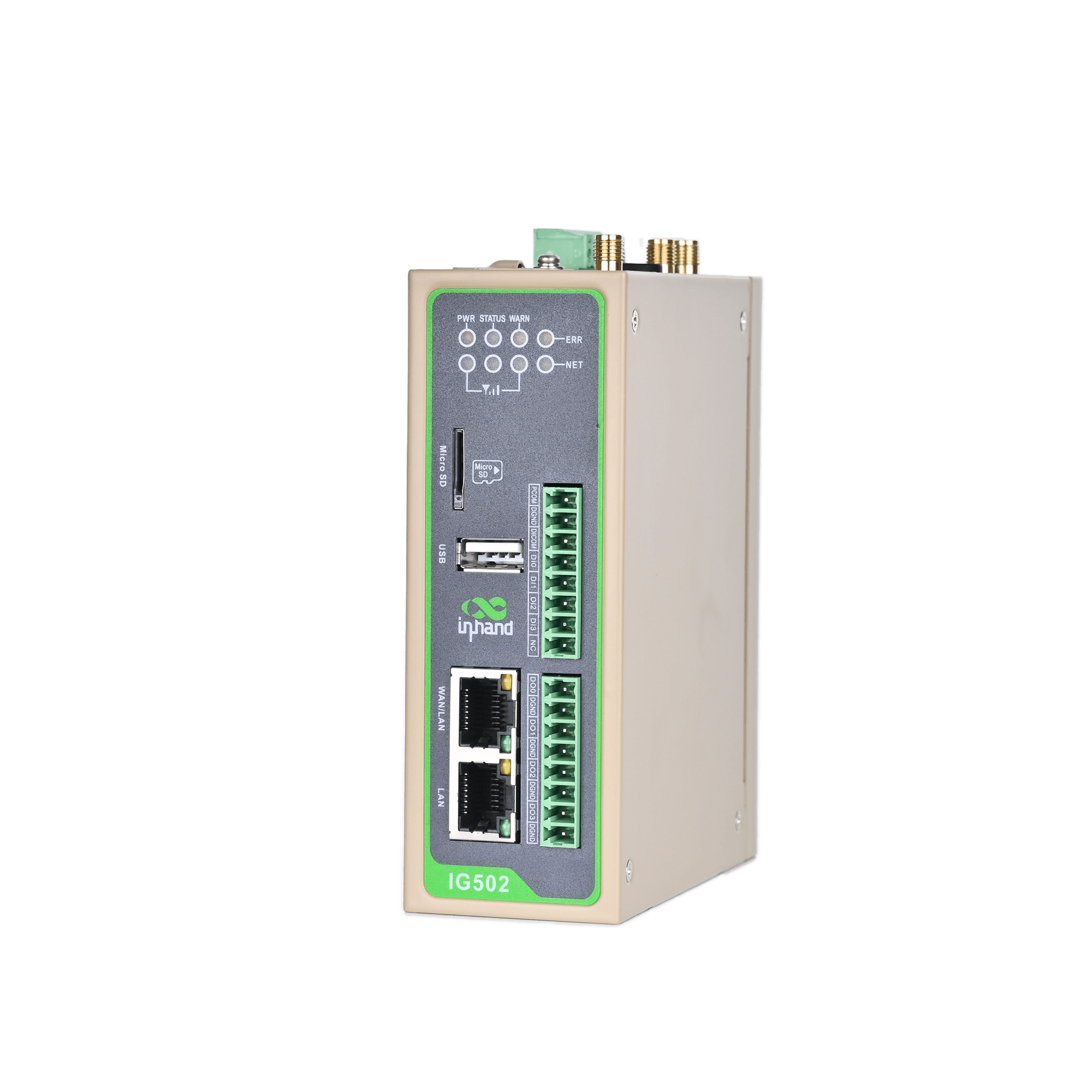

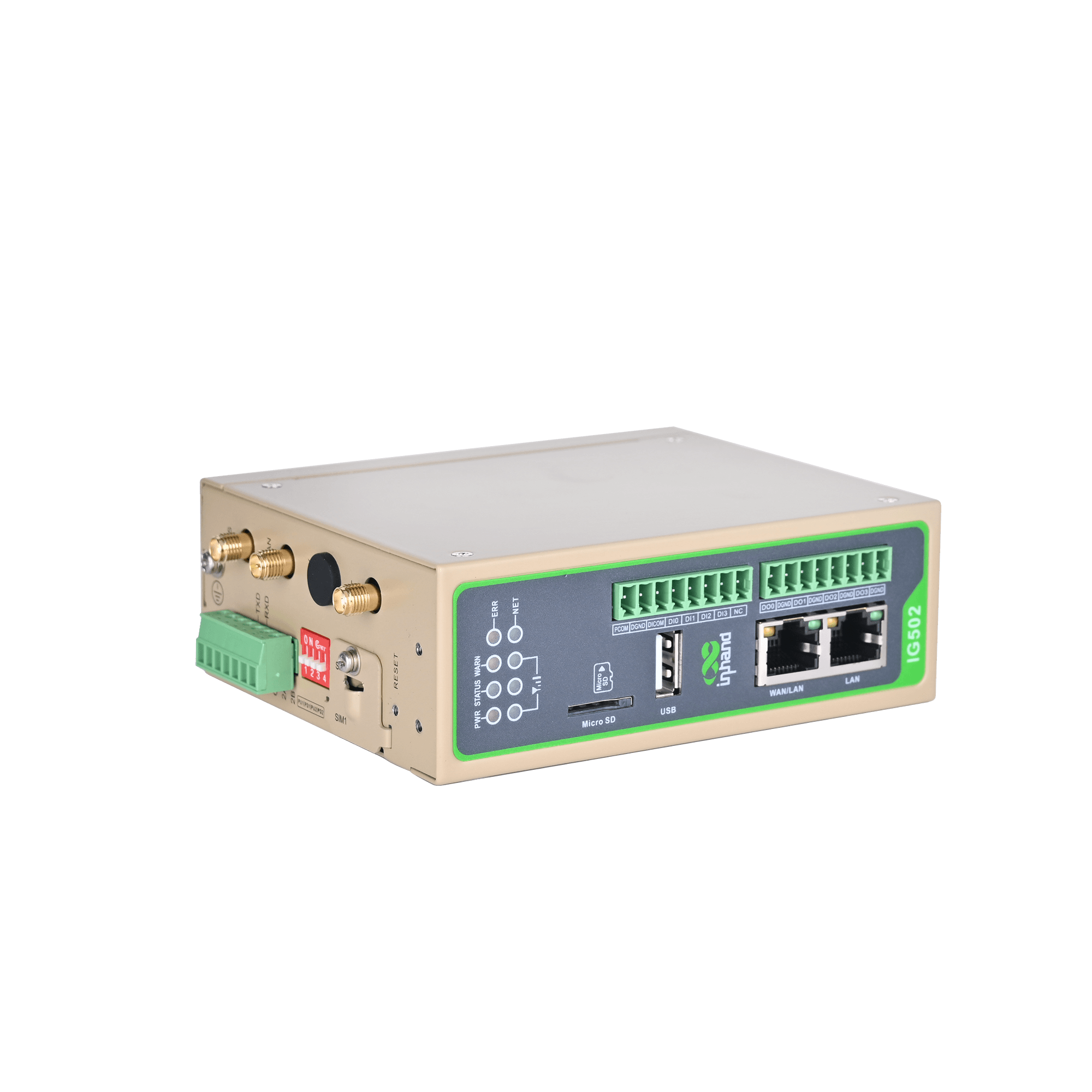

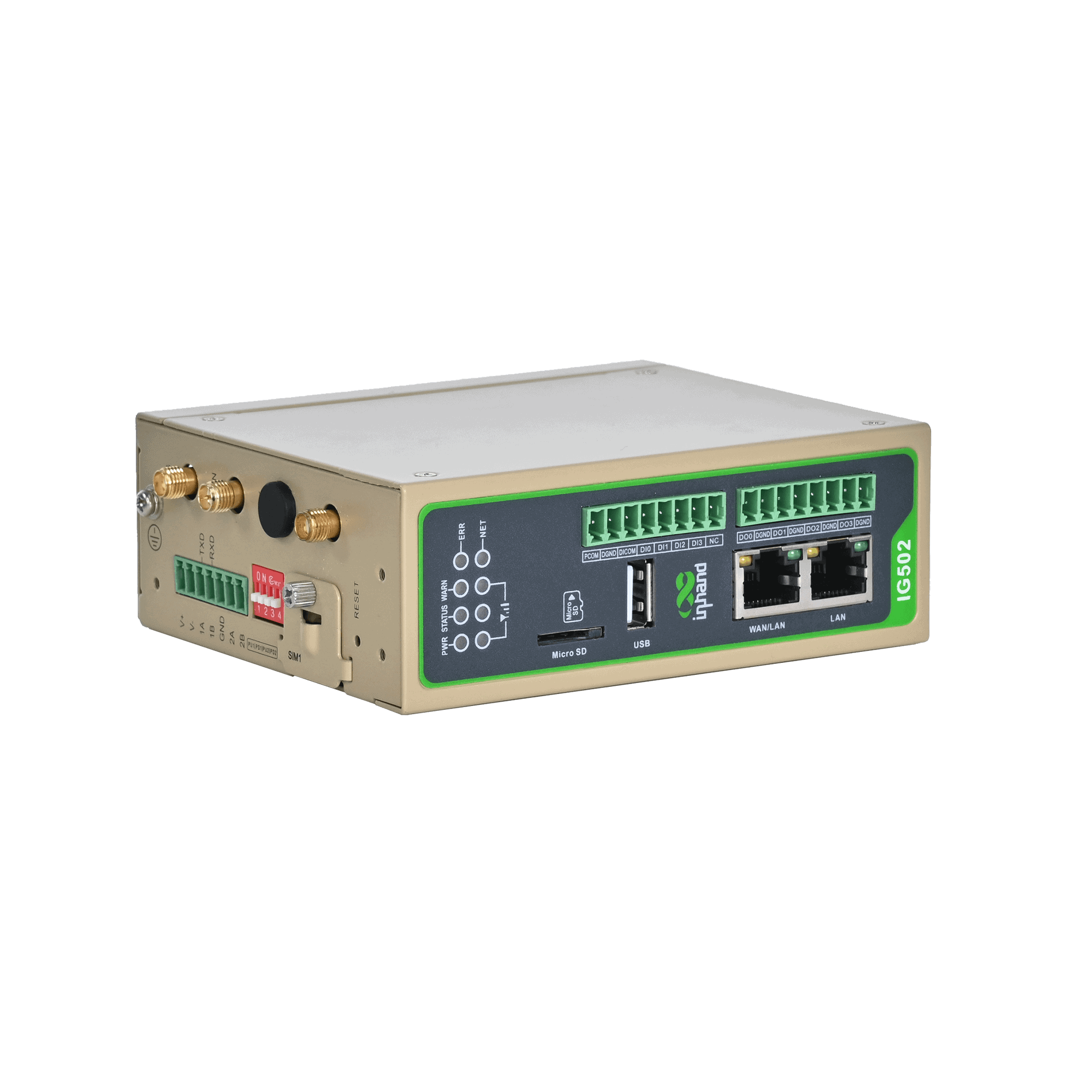

  • 4 DI + 4 DO isolated I/O (3000 VDC isolation) plus 1× RS-232 and 1× RS-485 serial

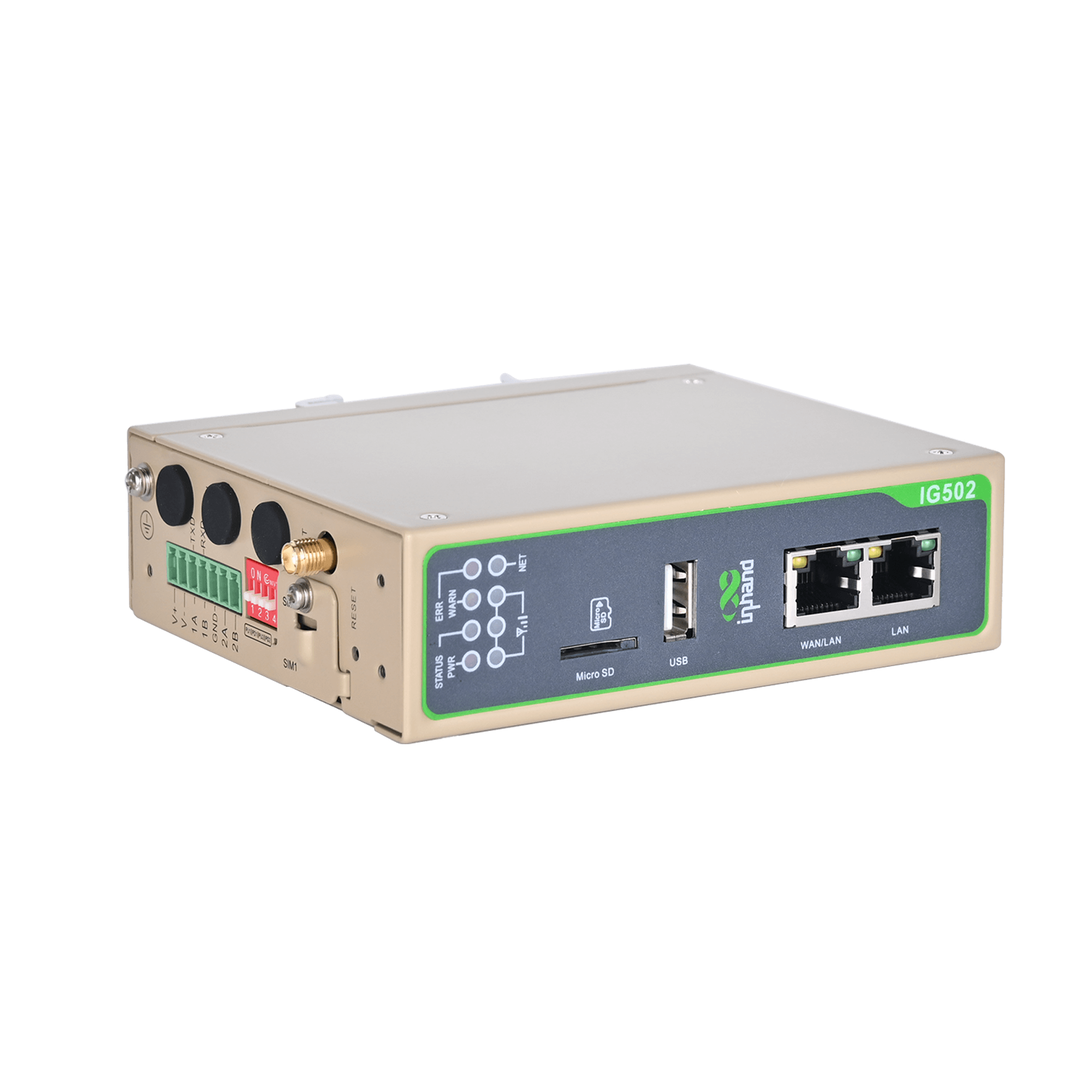

  • 2× 10/100 Mbps Ethernet, USB 2.0 Type-A and microSD up to 32GB
  • Python development environment and optional DeviceSupervisor (DSA) with 80+ industrial protocols
  • ARM Cortex-A8 @ 600MHz, 512MB RAM, 8GB eMMC, custom Linux
  • Fanless IP30 metal housing, 12-48V DC input, -40 °C to 70 °C operation
  • Read PLCs, meters and discrete signals at the same site through serial, Ethernet and isolated I/O

The IG502-FQ33-IO is the North America LTE Cat 1 version of InHand Networks' IG502, a cost-effective industrial IoT edge gateway. It is built for system integrators, OEMs and operations teams who need to collect data from PLCs, meters and sensors at remote sites. The gateway filters and processes that data locally, then sends it to AWS, Azure or another cloud platform over cellular. The FQ33 module covers LTE bands B2/B4/B5/B12/B13/B25/B26. Dual Micro SIM slots with failover keep the link up if one carrier drops.

This configuration adds the -IO option: 4 digital inputs and 4 digital outputs with 3000 VDC isolation. It can read dry contacts and discrete signals and handle simple control directly. It keeps the standard 1× RS-232 plus 1× RS-485 serial ports on an industrial terminal block, alongside two 10/100 Mbps Ethernet ports, USB 2.0 Type-A and microSD storage up to 32GB. An ARM Cortex-A8 at 600MHz with 512MB RAM and 8GB eMMC runs a custom Linux OS. Python secondary development and optional DSA support protocols including Modbus RTU/TCP, OPC UA, EtherNet/IP, IEC101/104, DNP3.0, BACnet and IEC61850-MMS.

The gateway is designed for sites where no one is on hand. A hardware watchdog, heartbeat link detection with auto-redial, and logs that are preserved through power loss help with remote maintenance. DeviceLive provides remote access, batch operations and remote upgrades. Security includes a firewall, OpenVPN, IPsec VPN and multi-level user permissions.

The fanless metal housing is rated IP30 and measures 110 × 127 × 35 mm. It mounts on a DIN rail or panel and takes 12-48V DC through a terminal block. This model has no Wi-Fi, so it is rated for the wider -40 °C to 70 °C operating range.

Ideal for

  • Remote PLC and Modbus data collection from pump stations, tanks and skids
  • Discrete alarm monitoring and simple relay control through isolated DI/DO
  • Utility and energy telemetry using DNP3.0, IEC101/104 or IEC61850-MMS
  • Cellular backhaul of machine data to AWS or Azure for OEM equipment fleets
  • Unattended cabinets in cold outdoor environments down to -40 °C

Specifications

Power

Input Voltage
12~48V DC input
Power Interface
Industrial terminal block
Power Consumption
250mA @ 12V

General

MPN
IG502-FQ33-IO
Brand
InHand Networks
Model
IG502 Cost-effective Edge Gateway
Region
North America (FQ33 cellular module)
Product Type
Programmable Cellular Edge Gateway
Configuration
IO option (4 DI + 4 DO); no Wi-Fi/Bluetooth, no GNSS

Package

Shipping Weight
1.20 lb
Standard Package

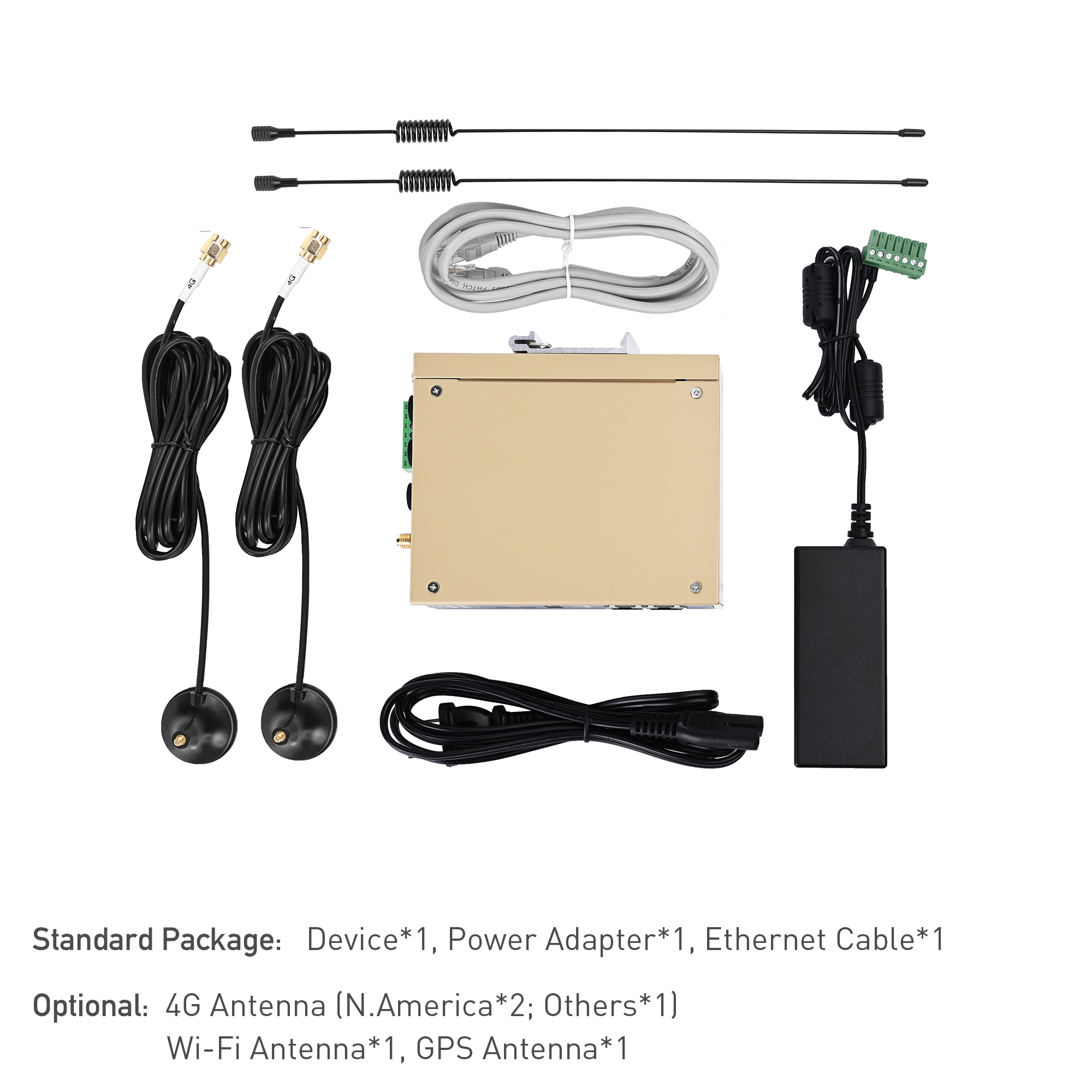

IG502 Edge Gateway, 4G antenna, Ethernet cable, power terminal (contents vary by order code)
Optional Accessories
power supply, panel mounting kit

Cellular

LTE Bands
LTE B2/B4/B5/B12/B13/B25/B26
SIM Slots
Dual Micro SIM
Technology
4G LTE Cat 1

Security

Data Security
OpenVPN, IPsec VPN
User Management
Multi-level user permissions
Network Security
Firewall

Software

Operating System
Custom Linux

Mechanical

Rtc
RTC with button battery backup
Weight
420 g (0.93 lb)
Mounting
Panel, DIN-rail mounting
Dimensions
110 × 127 × 35 mm (4.33 × 5 × 1.38 in)
Hardware Watchdog
Hardware watchdog supported
Protection Rating
IP30
Housing And Cooling
Fanless metal housing

Reliability

Link Detection
Sends heartbeat packets to detect link, auto redials when disconnected
Embedded Watchdog
Embedded watchdog auto-recovery
Dual SIM Switching
Dual-SIM failover

CPU And Storage

CPU
ARM Cortex-A8 @ 600MHz
RAM
512MB
Flash
8GB eMMC

Network Features

IP Routing
Static routing
LAN Protocols
ARP, Ethernet
WAN Protocols
Static IP, DHCP
Network Access
APN, VPDN
IP Applications
ICMP, DNS, TCP/UDP, TCP Server, DHCP
Access Authentication
CHAP/PAP
Network Types Standards
LTE Cat 1 (FQ33)

Open Platform Dsa

Other Protocols
BACnet, CNC
Cloud Integration
AWS, Azure, AliCloud and other cloud platforms
Industrial Protocols
Modbus RTU/TCP, EtherNet/IP, ISO on TCP, OPC UA, Mitsubishi MC/CPU Port, FINSUDP, HostLink, PPI
Electricity Protocols
DLT645-2007, IEC101/104, DNP3.0, IEC61850-MMS
Development Environment
Python development environment

Network Management

Log
Local system logs, remote logs, and important log power-off preservation
Upgrade
Web/DeviceLive upgrade
Configuration
Web/Telnet/SSH configuration
Remote Management
DeviceLive/HTTP/HTTPS/SSH remote management
Configuration Backup
Config import/export

Connectivity And Interfaces

USB
USB 2.0 Type-A
GNSS
Not included in this configuration (available on -G models)
Wi-Fi
Not included in this configuration (available on -W models)
Microsd
microSD up to 32GB
I/O Ports
4 × DI + 4 × DO, isolated (3000 VDC isolation)
Bluetooth
Not included in this configuration (available on -W models)
Serial Ports

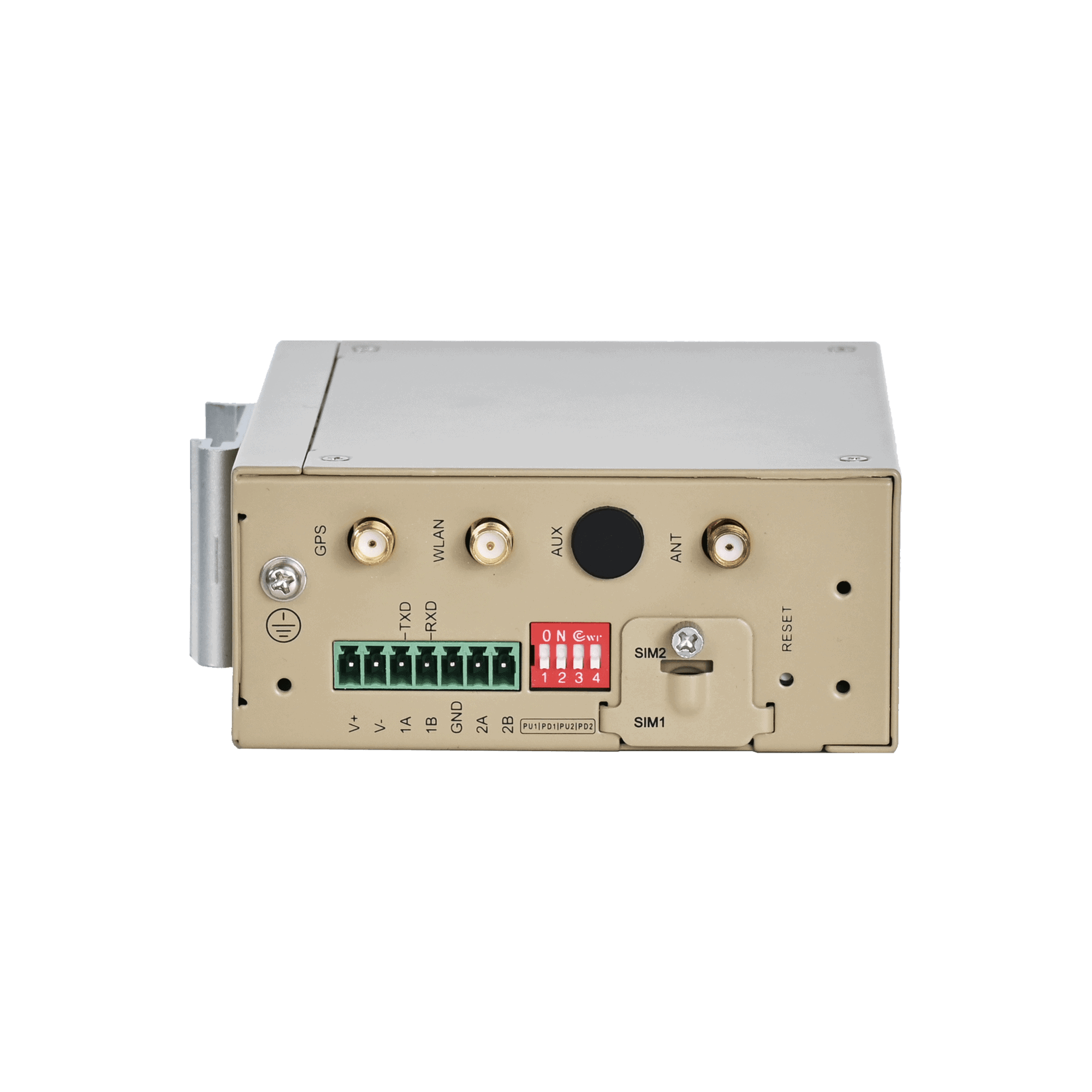

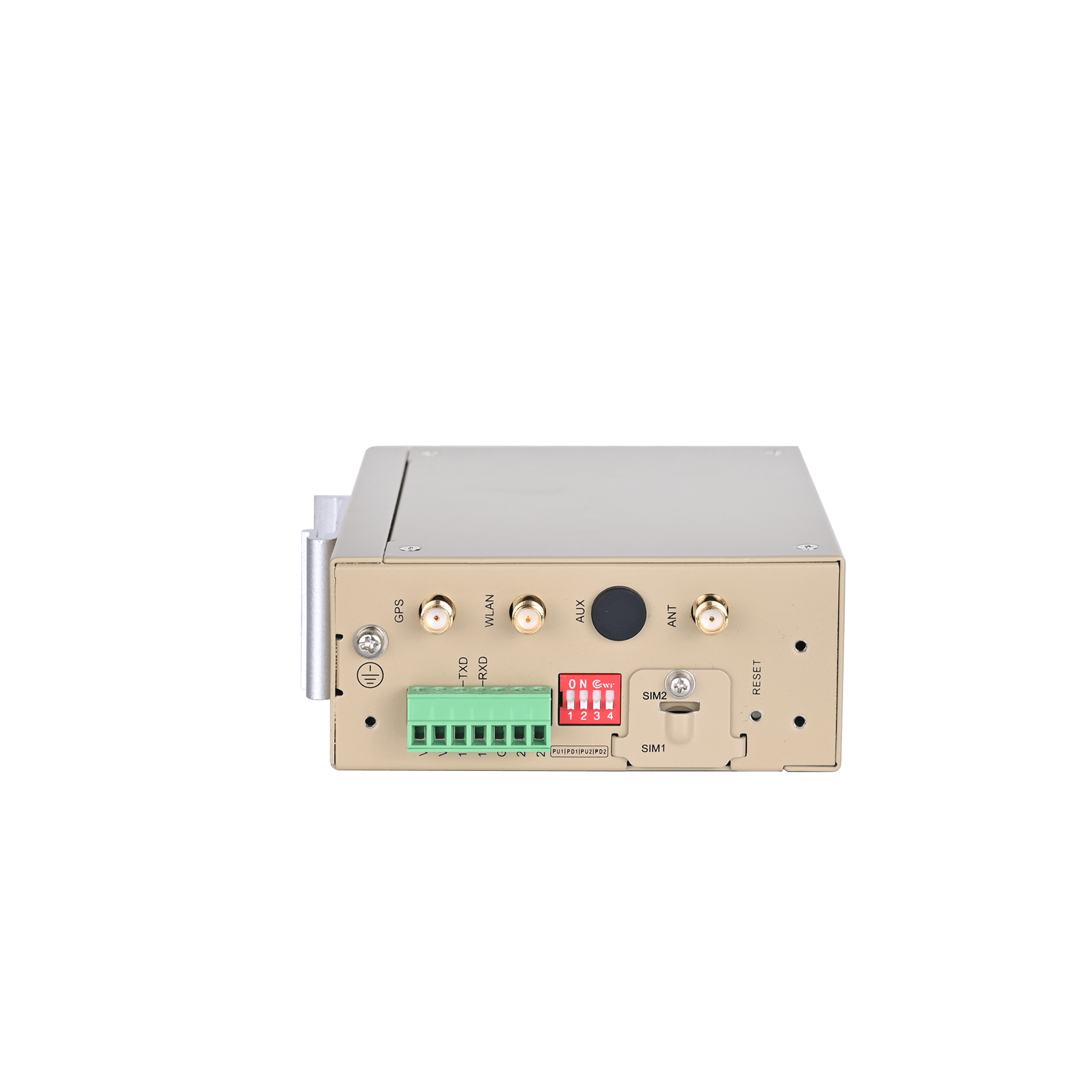

1 × RS-232 + 1 × RS-485, industrial terminal block
SIM Card Slot
Dual Micro SIM
Ethernet Ports
2 × 10/100 Mbps Ethernet
Antenna Connectors
2 × SMA 4G antenna connectors (North America models)

Core Technical Specifications

Weight
420 g (0.93 lb)
Security
Multi-level user permissions, firewall, OpenVPN, IPsec VPN
Dimensions
110 × 127 × 35 mm (4.33 × 5 × 1.38 in) W × D × H
Power Supply
12~48V DC, industrial terminal block
Ethernet Ports
2 × 10/100 Mbps
Cellular Network
LTE Cat 1 (FQ33, North America)
Cloud Management
DeviceLive remote access, batch operations, and remote upgrades
Network Features
APN, VPDN, CHAP/PAP; Static IP/DHCP; ICMP, DNS, TCP/UDP, TCP Server, static routing
Serial Interfaces
1 × RS-232 + 1 × RS-485
Industrial Protocols
Modbus RTU/TCP, OPC UA, EtherNet/IP, IEC101/104, DNP3.0, etc.
Secondary Development
Python development environment
Operating Temperature And Protection
-40 °C ~ 70 °C (-40 °F ~ 158 °F), IP30 (model without Wi-Fi)

Environment And Certifications

Emc Standard
EN61000-4-2 level 3 static; EN61000-4-3 level 3 radiated field; EN61000-4-4 level 3 pulsed field; EN61000-4-5 level 3 surge; EN61000-4-6 level 3 conducted disturbance immunity; EN61000-4-8 power frequency field, horizontal/vertical 400A/m (>level 2); EN61000-4-12 level 3 shock wave resistance
Certifications
CE, UKCA, FCC, PTCRB, UL, C1D2 (Class 1 Division 2), MIC&JATE, Verizon Wireless, AT&T, IC, RCM, NBTC, ANATEL, IEC62443-4-2, IEC61850-3
Ambient Humidity
5~95% RH non-condensing
Storage Temperature
-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Operating Temperature
-40 °C ~ 70 °C (-40 °F ~ 158 °F) (models without Wi-Fi)
Physical Characteristics
IEC60068-2-27 shock, IEC60068-2-6 vibration, IEC60068-2-32 drop resistance

Questions buyers ask

What does the IG502-FQ33-IO part number mean?

FQ33 is the North America LTE Cat 1 cellular module, covering bands B2/B4/B5/B12/B13/B25/B26. The -IO suffix adds 4 digital inputs and 4 digital outputs with 3000 VDC isolation. This configuration does not include the -W (Wi-Fi and Bluetooth) or -G (GNSS) options.

How do I log in to the IG502 for the first time?

Connect a computer by Ethernet and set its adapter to DHCP or a 192.168.2.x static IP. Browse to https://192.168.2.1 and accept the self-signed certificate. Log in with username adm and the password printed on the device nameplate. The WAN/LAN port defaults to 192.168.1.1.

Do I need to set the APN manually?

Usually not. Insert the SIM with the device powered off, then power on. The IG502 auto-detects the carrier and applies the matching APN in most cases. If the link does not come up, set the APN under Network > Cellular. A steady NET LED means the connection succeeded.

Which industrial protocols does it support?

With the optional DeviceSupervisor (DSA), the IG502 supports more than 80 protocols. These include Modbus RTU/TCP, EtherNet/IP, OPC UA, ISO on TCP, Mitsubishi MC, FINS UDP, HostLink, PPI, DLT645-2007, IEC101/104, DNP3.0, IEC61850-MMS, BACnet and CNC.

Where is VPN configured?

VPN settings are under Advanced > VPN. You can choose IPsec, OpenVPN or GRE and configure the tunnel to match your VPN policy.
