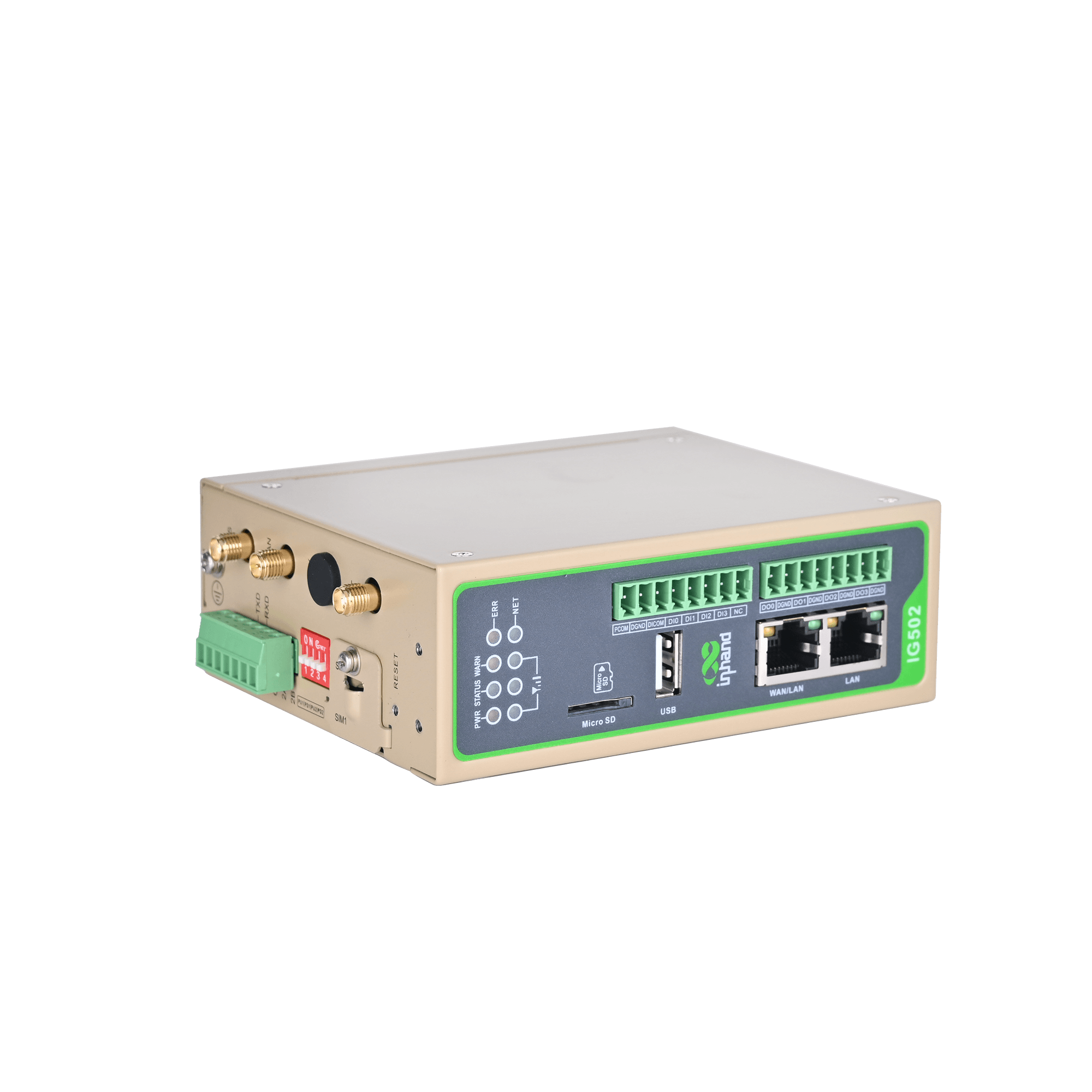

InHand Networks IG502-FQ33-IO-W-G Programmable LTE Cat 1 Edge Gateway with I/O, Wi-Fi and GPS

4G LTEMPN IG502-FQ33-IO-W-G
  • GPS/GNSS
$265.50$318.00Save $52.50

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IG502-FQ33-IO-W-G is the fully equipped North America configuration of the IG502 programmable edge gateway. It combines 4G LTE Cat 1 on bands B2/B4/B5/B12/B13/B25/B26 with dual SIM failover and 4 DI + 4 DO isolated I/O. It adds 2.4 GHz Wi-Fi (client mode) with Bluetooth 4.2 and GPS positioning. It also has two 10/100 Ethernet ports, RS-232 and RS-485 serial, USB and microSD. The gateway supports Python development and optional DSA with 80+ industrial protocols, so it can collect, process and forward data from remote assets.

  • 4G LTE Cat 1 via the FQ33 North America module, bands B2/B4/B5/B12/B13/B25/B26, with dual Micro SIM failover
  • 4 DI + 4 DO isolated I/O (3000 VDC isolation)
  • 2.4 GHz Wi-Fi (802.11 b/g/n, STA mode) and Bluetooth 4.2 (BLE)
  • GPS satellite positioning
  • 2× 10/100 Mbps Ethernet, 1× RS-232 + 1× RS-485, USB 2.0 Type-A, microSD up to 32GB
  • Python development environment and optional DSA with 80+ industrial protocols
  • Fanless IP30 metal housing, 12-48V DC input, DIN-rail or panel mount
  • Cover data acquisition, discrete I/O, location and backup Wi-Fi uplink with one device

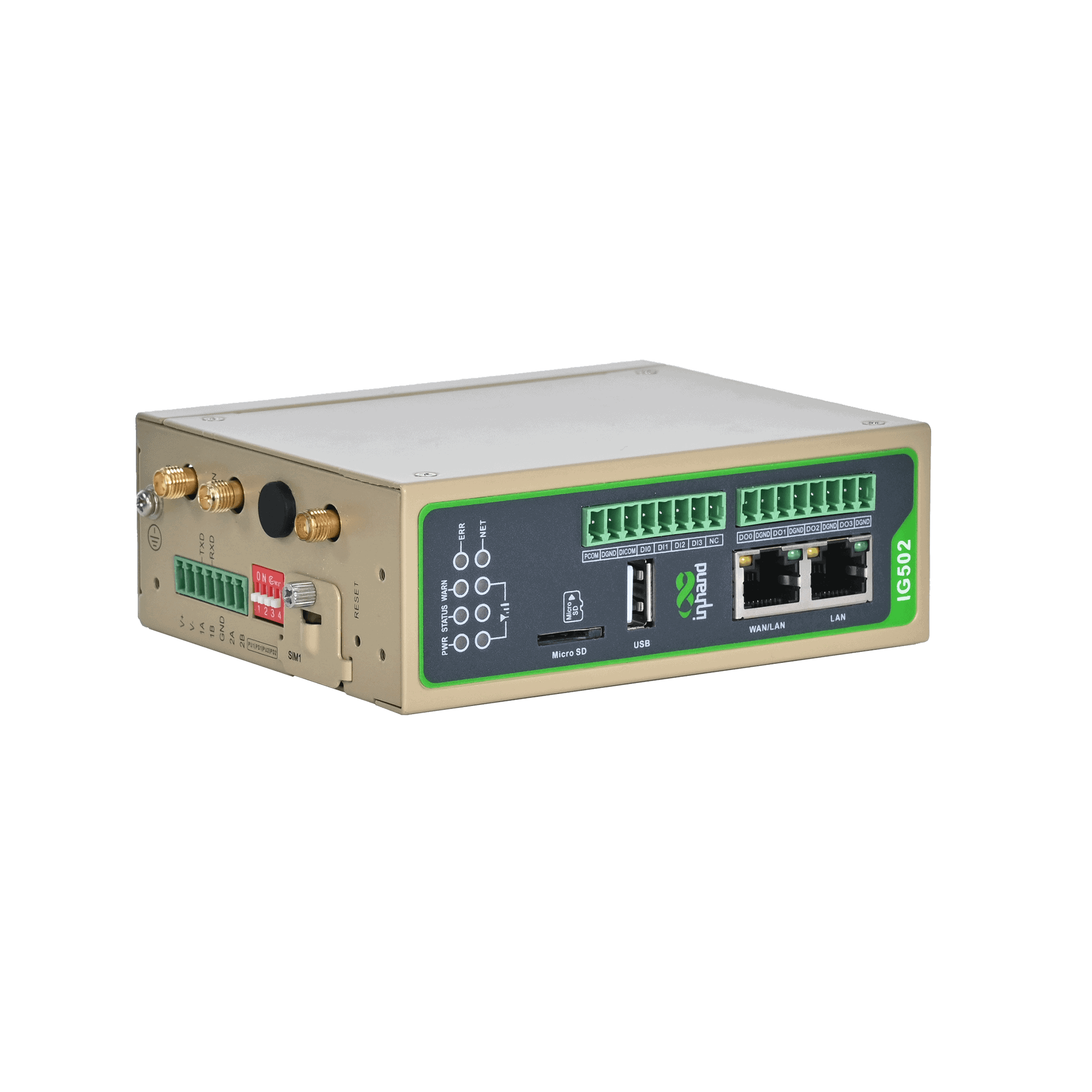

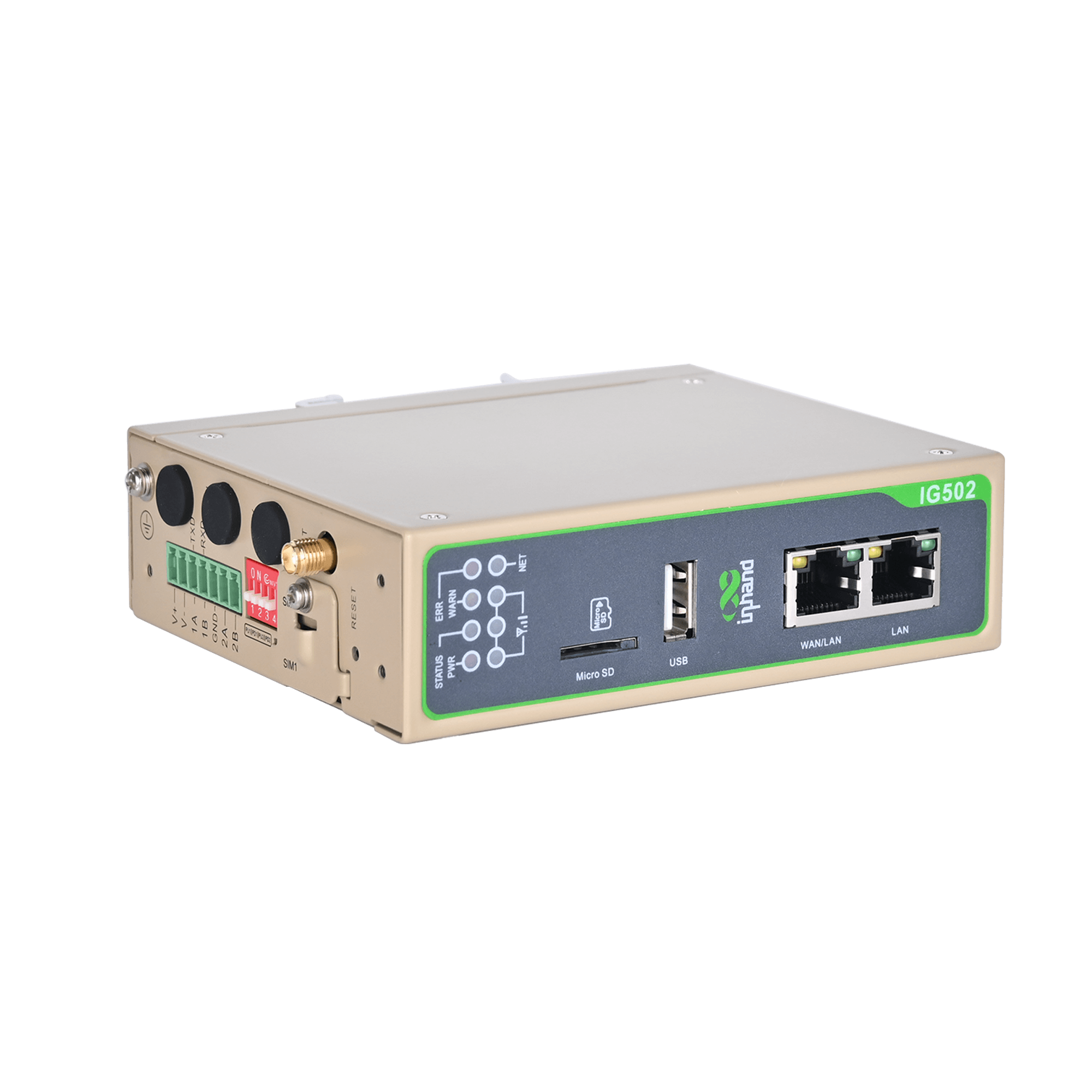

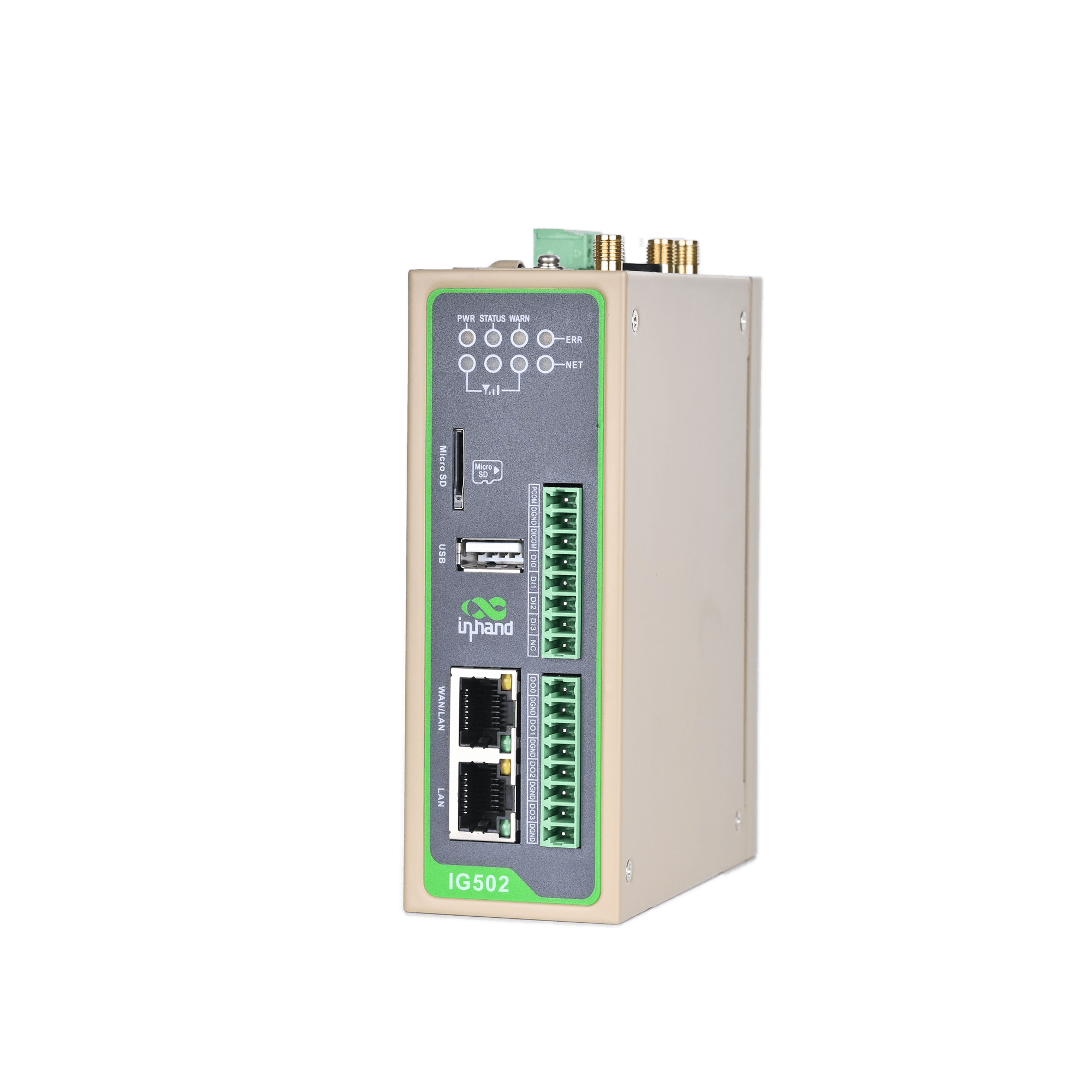

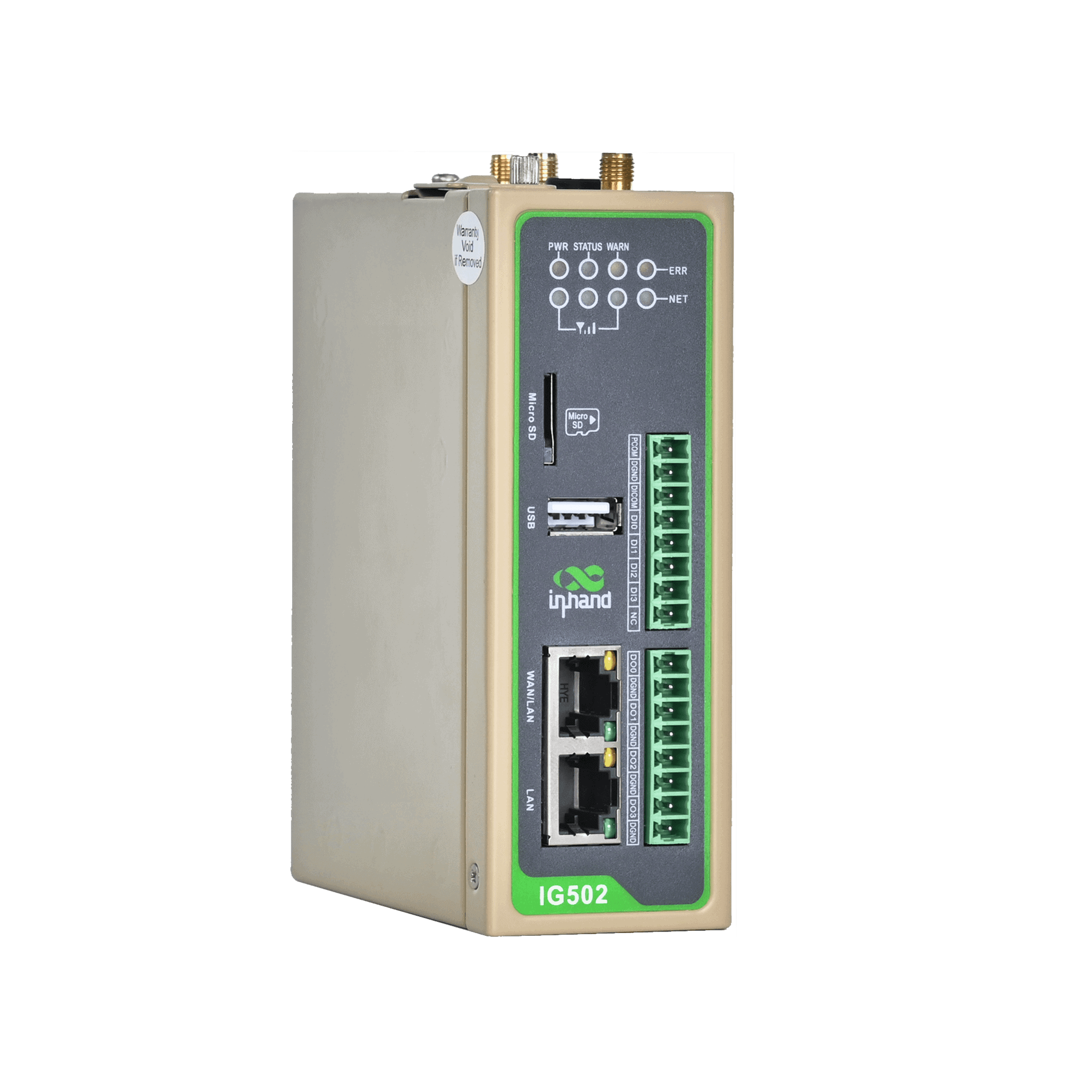

The IG502-FQ33-IO-W-G is InHand Networks' IG502 edge gateway with every option except the D485 serial variant. It uses the FQ33 North America LTE Cat 1 module on bands B2/B4/B5/B12/B13/B25/B26 with dual Micro SIM failover. It is aimed at integrators and OEMs who want one compact device for data acquisition, discrete I/O, location and backup connectivity.

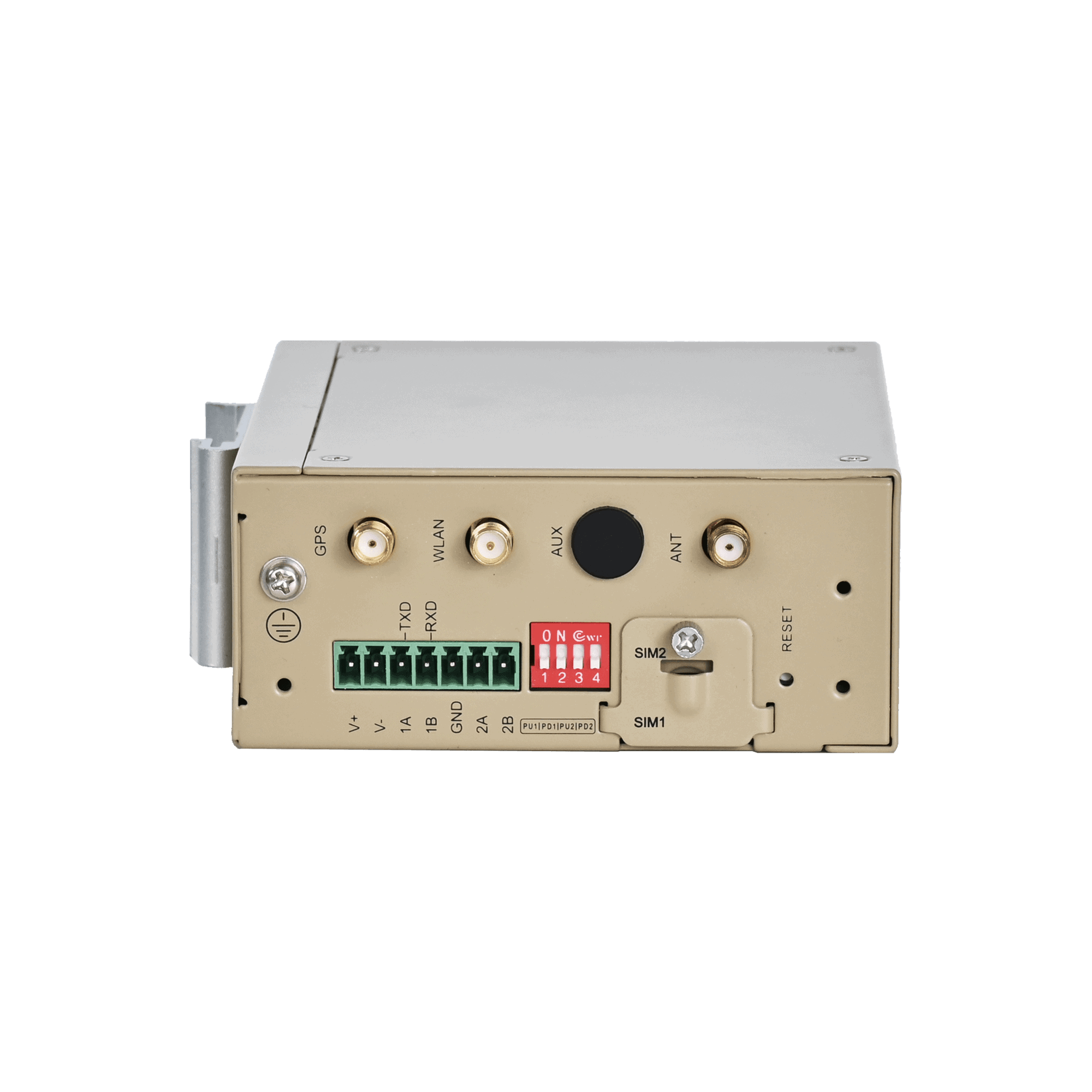

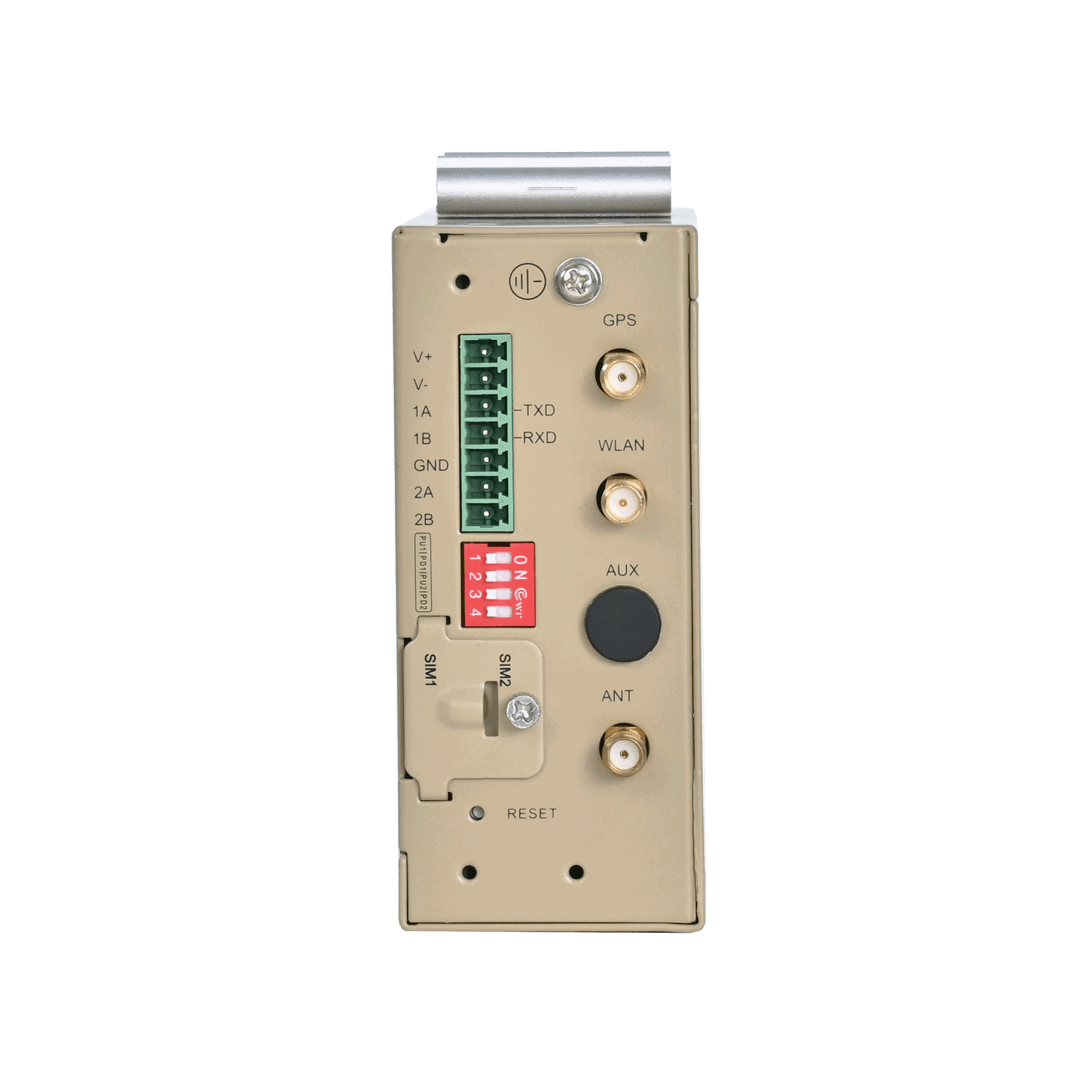

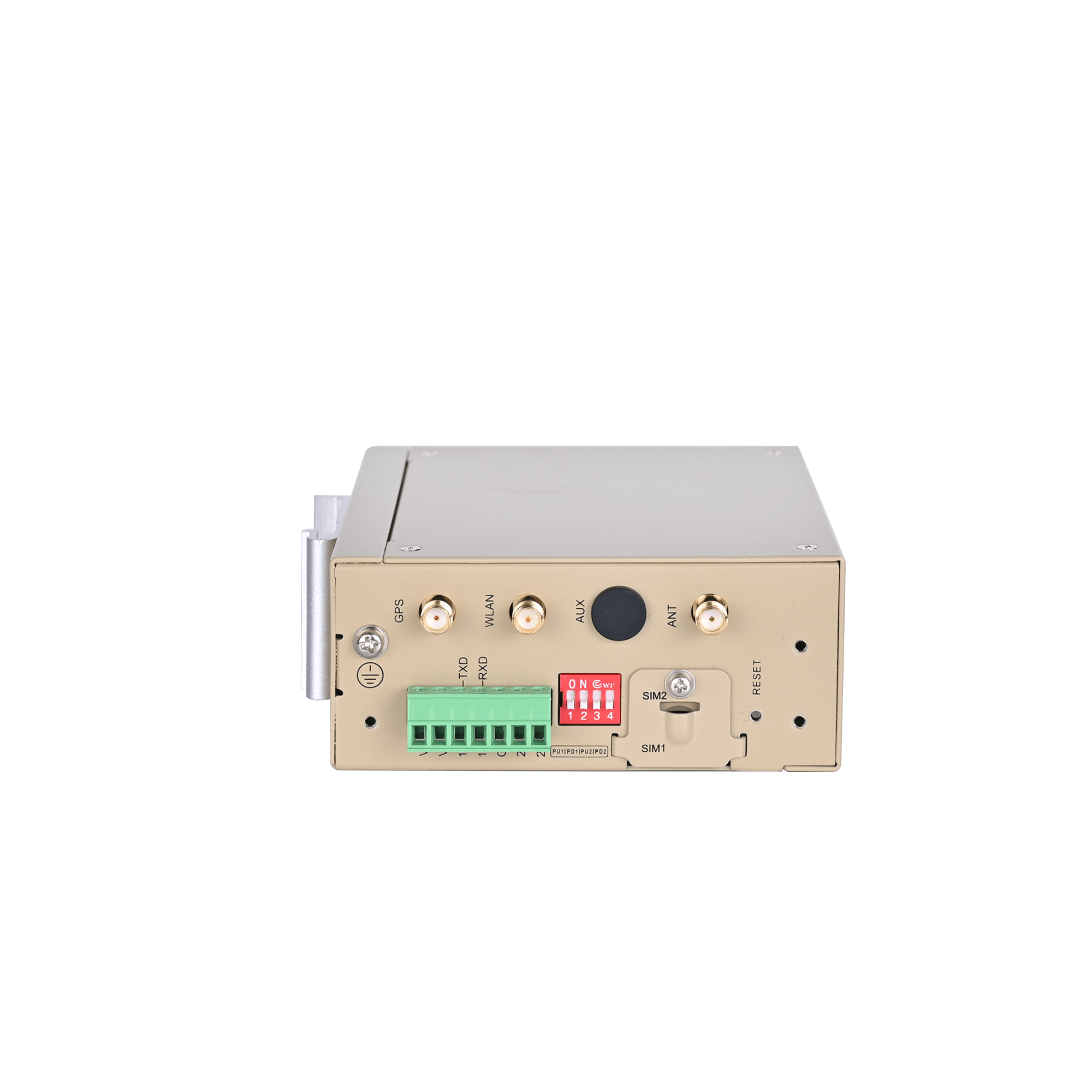

The -IO option provides 4 digital inputs and 4 digital outputs with 3000 VDC isolation for alarms, contacts and simple control. The -W option adds 802.11 b/g/n 2.4 GHz Wi-Fi in station (client) mode plus Bluetooth 4.2 (BLE). Wi-Fi gives the gateway a backup uplink when a site network is available. The -G option adds GPS satellite positioning for mobile or widely distributed assets. Standard interfaces include two 10/100 Mbps Ethernet ports, 1× RS-232 plus 1× RS-485 on a terminal block, USB 2.0 Type-A and microSD up to 32GB.

An ARM Cortex-A8 at 600MHz with 512MB RAM and 8GB eMMC runs custom Linux and a Python development environment. The optional DeviceSupervisor (DSA) normalizes data from Modbus, OPC UA, EtherNet/IP, IEC101/104, DNP3.0, BACnet and other protocols. It can forward that data to AWS, Azure and other cloud platforms. DeviceLive handles remote access, batch operations and upgrades. A firewall, OpenVPN, IPsec VPN, a hardware watchdog and heartbeat-based auto-redial support unattended operation.

The fanless IP30 metal housing measures 110 × 127 × 35 mm and weighs 420 g. It mounts on a DIN rail or panel and runs from 12-48V DC. Because this model includes Wi-Fi, its operating range is -20 °C to 70 °C.

Ideal for

  • Mobile or relocatable equipment that reports GPS position with telemetry
  • Remote substations and utility assets using DNP3.0, IEC101/104 or IEC61850-MMS with alarm inputs
  • Machine builders adding cloud connectivity, discrete I/O and location to OEM equipment
  • Sites with a local Wi-Fi network available as backup uplink alongside dual-SIM LTE
  • Building and facility monitoring over BACnet or Modbus

Specifications

Power

Input Voltage
12~48V DC input
Power Interface
Industrial terminal block
Power Consumption
250mA @ 12V

General

MPN
IG502-FQ33-IO-W-G
Brand
InHand Networks
Model
IG502 Cost-effective Edge Gateway
Region
North America (FQ33 cellular module)
Product Type
Programmable Cellular Edge Gateway
Configuration
IO (4 DI + 4 DO), W (Wi-Fi + Bluetooth 4.2), G (GNSS)

Package

Shipping Weight
1.20 lb
Standard Package

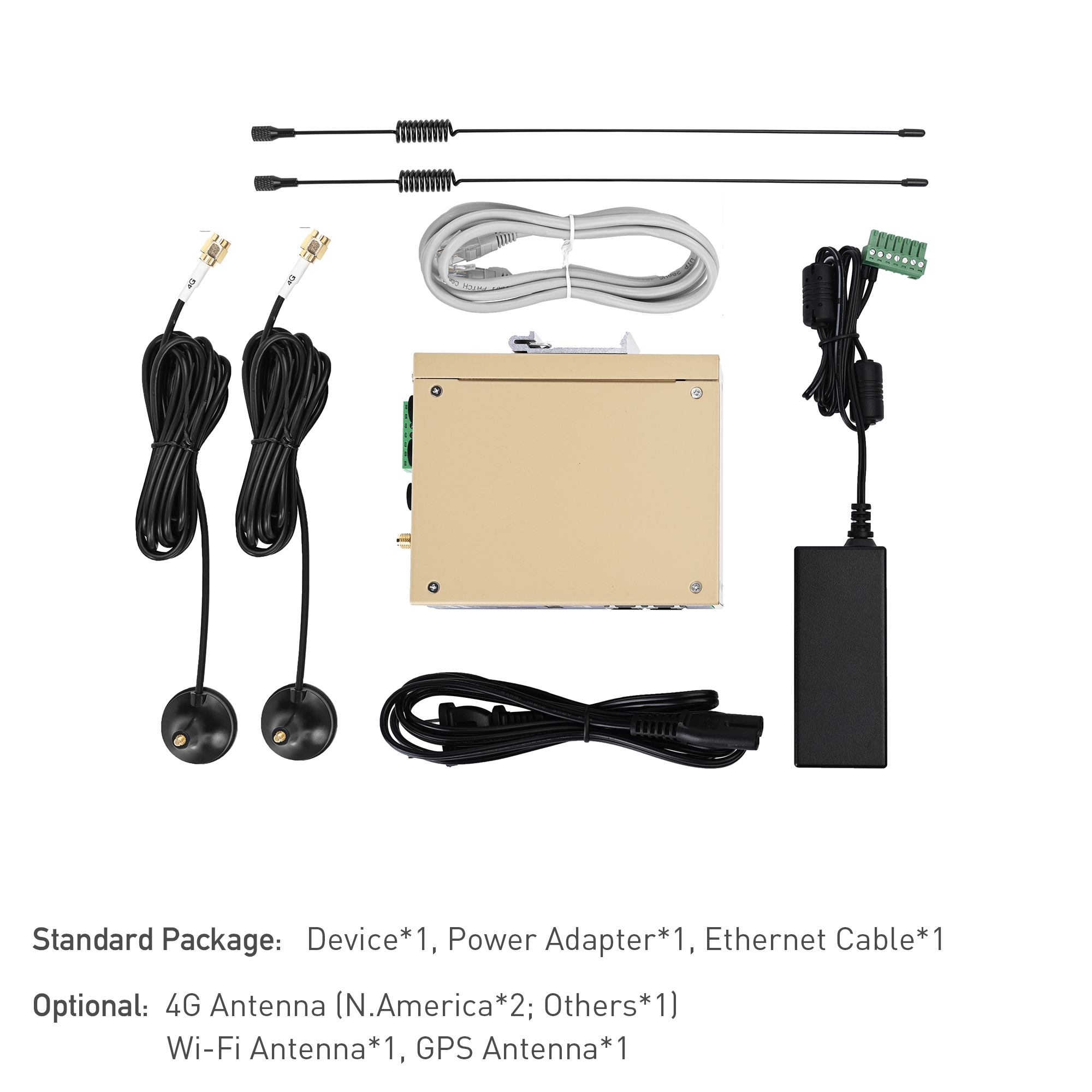

IG502 Edge Gateway, 4G antenna, Wi-Fi antenna, GNSS antenna, Ethernet cable, power terminal (contents vary by order code)
Optional Accessories
power supply, panel mounting kit

Cellular

LTE Bands
LTE B2/B4/B5/B12/B13/B25/B26
SIM Slots
Dual Micro SIM
Technology
4G LTE Cat 1

Security

Data Security
OpenVPN, IPsec VPN
User Management
Multi-level user permissions
Network Security
Firewall

Software

Operating System
Custom Linux

Mechanical

Rtc
RTC with button battery backup
Weight
420 g (0.93 lb)
Mounting
Panel, DIN-rail mounting
Dimensions
110 × 127 × 35 mm (4.33 × 5 × 1.38 in)
Hardware Watchdog
Hardware watchdog supported
Protection Rating
IP30
Housing And Cooling
Fanless metal housing

Reliability

Link Detection
Sends heartbeat packets to detect link, auto redials when disconnected
Embedded Watchdog
Embedded watchdog auto-recovery
Dual SIM Switching
Dual-SIM failover

CPU And Storage

CPU
ARM Cortex-A8 @ 600MHz
RAM
512MB
Flash
8GB eMMC

Network Features

IP Routing
Static routing
LAN Protocols
ARP, Ethernet
WAN Protocols
Static IP, DHCP
Network Access
APN, VPDN
IP Applications
ICMP, DNS, TCP/UDP, TCP Server, DHCP
Access Authentication
CHAP/PAP
Network Types Standards
LTE Cat 1 (FQ33)

Open Platform Dsa

Other Protocols
BACnet, CNC
Cloud Integration
AWS, Azure, AliCloud and other cloud platforms
Industrial Protocols
Modbus RTU/TCP, EtherNet/IP, ISO on TCP, OPC UA, Mitsubishi MC/CPU Port, FINSUDP, HostLink, PPI
Electricity Protocols
DLT645-2007, IEC101/104, DNP3.0, IEC61850-MMS
Development Environment
Python development environment

Network Management

Log
Local system logs, remote logs, and important log power-off preservation
Upgrade
Web/DeviceLive upgrade
Configuration
Web/Telnet/SSH configuration
Remote Management
DeviceLive/HTTP/HTTPS/SSH remote management
Configuration Backup
Config import/export

Connectivity And Interfaces

USB
USB 2.0 Type-A
GNSS
Satellite location GPS
Wi-Fi
Wi-Fi STA 802.11 b/g/n 2.4 GHz
Microsd
microSD up to 32GB
I/O Ports
4 × DI + 4 × DO, isolated (3000 VDC isolation)
Bluetooth
Bluetooth Low Energy 4.2
Serial Ports
1 × RS-232 + 1 × RS-485, industrial terminal block
SIM Card Slot
Dual Micro SIM
Ethernet Ports
2 × 10/100 Mbps Ethernet
Antenna Connectors
2 × SMA 4G (North America models), Wi-Fi SMA × 1, GNSS SMA × 1

Core Technical Specifications

Weight
420 g (0.93 lb)
Security
Multi-level user permissions, firewall, OpenVPN, IPsec VPN
Dimensions
110 × 127 × 35 mm (4.33 × 5 × 1.38 in) W × D × H
Power Supply
12~48V DC, industrial terminal block
Ethernet Ports
2 × 10/100 Mbps
Cellular Network
LTE Cat 1 (FQ33, North America)
Cloud Management
DeviceLive remote access, batch operations, and remote upgrades
Network Features
APN, VPDN, CHAP/PAP; Static IP/DHCP; ICMP, DNS, TCP/UDP, TCP Server, static routing
Serial Interfaces
1 × RS-232 + 1 × RS-485
Industrial Protocols
Modbus RTU/TCP, OPC UA, EtherNet/IP, IEC101/104, DNP3.0, etc.
Secondary Development
Python development environment
Operating Temperature And Protection
-20 °C ~ 70 °C (-4 °F ~ 158 °F), IP30 (model with Wi-Fi)

Environment And Certifications

Emc Standard
EN61000-4-2 level 3 static; EN61000-4-3 level 3 radiated field; EN61000-4-4 level 3 pulsed field; EN61000-4-5 level 3 surge; EN61000-4-6 level 3 conducted disturbance immunity; EN61000-4-8 power frequency field, horizontal/vertical 400A/m (>level 2); EN61000-4-12 level 3 shock wave resistance
Certifications
CE, UKCA, FCC, PTCRB, UL, C1D2 (Class 1 Division 2), MIC&JATE, Verizon Wireless, AT&T, IC, RCM, NBTC, ANATEL, IEC62443-4-2, IEC61850-3
Ambient Humidity
5~95% RH non-condensing
Storage Temperature
-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Operating Temperature
-20 °C ~ 70 °C (-4 °F ~ 158 °F) (models with Wi-Fi)
Physical Characteristics
IEC60068-2-27 shock, IEC60068-2-6 vibration, IEC60068-2-32 drop resistance

Questions buyers ask

What do the -IO, -W and -G suffixes add?

The -IO suffix adds 4 digital inputs and 4 digital outputs with 3000 VDC isolation. The -W suffix adds 2.4 GHz Wi-Fi and Bluetooth 4.2. The -G suffix adds GNSS (GPS) positioning. FQ33 is the North America LTE Cat 1 cellular module.

Can the Wi-Fi act as a hotspot for local devices?

The Wi-Fi is specified as STA (station) mode on 802.11 b/g/n 2.4 GHz. That means it joins an existing wireless network, for example as a backup uplink alongside cellular.

How do I log in for the first time?

Connect by Ethernet and set your computer to DHCP or a 192.168.2.x static IP. Browse to https://192.168.2.1 and accept the self-signed certificate. Log in as adm with the password printed on the device nameplate.

What operating temperature does this model support?

IG502 models with Wi-Fi operate from -20 °C to 70 °C (-4 °F to 158 °F). Storage is rated from -40 °C to 85 °C.

Where do I set up VPN?

VPN settings are under Advanced > VPN, where you can configure IPsec, OpenVPN or GRE tunnels.
