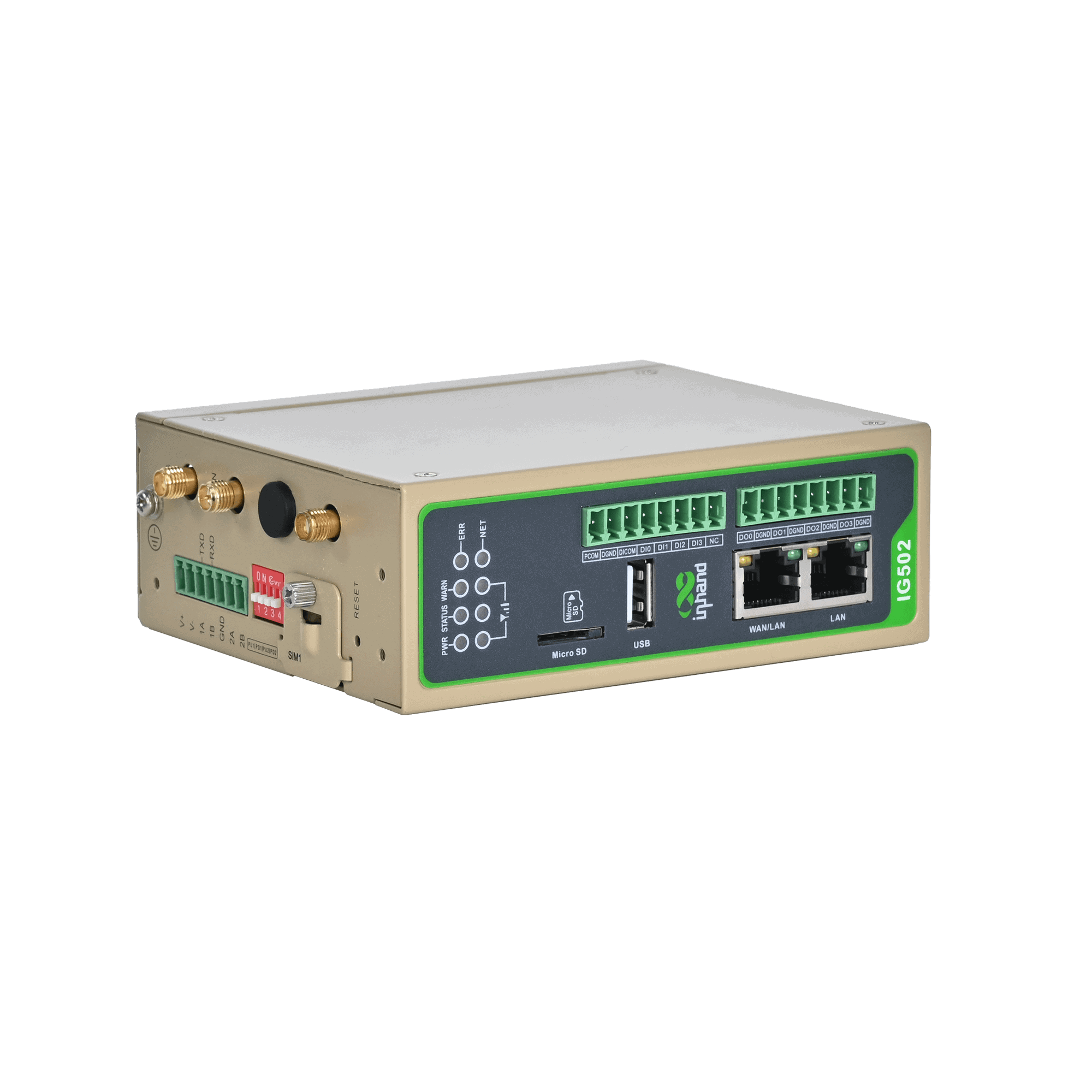

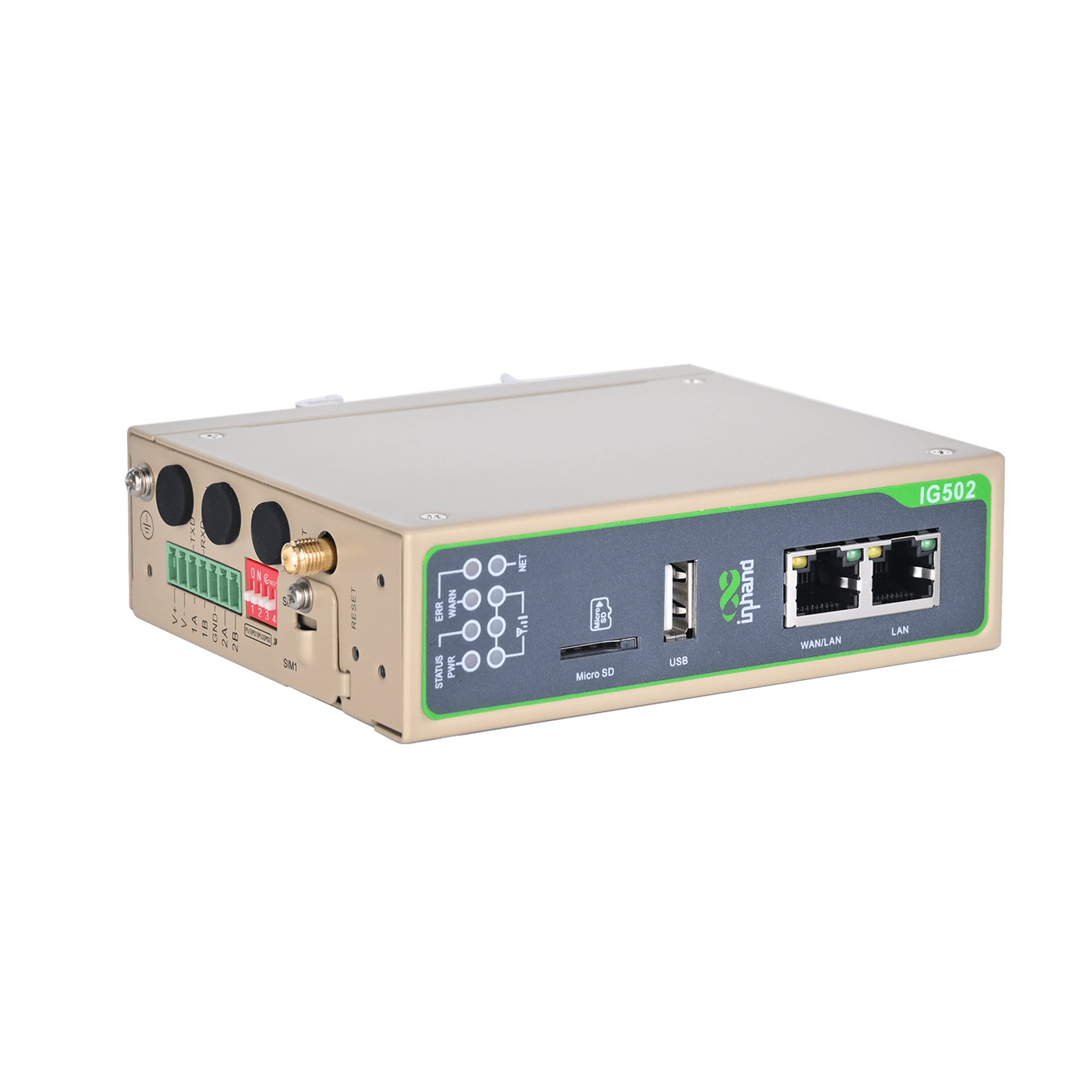

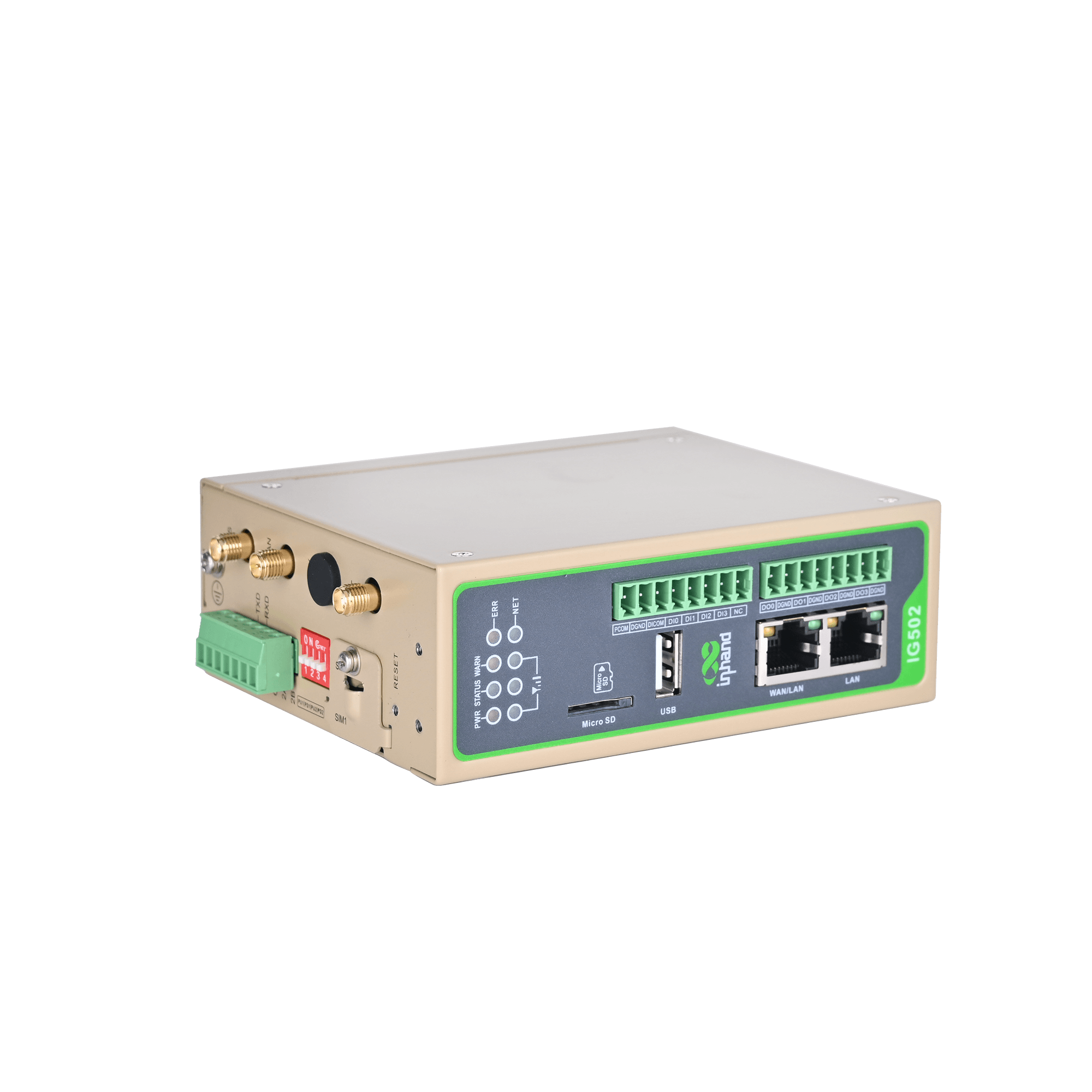

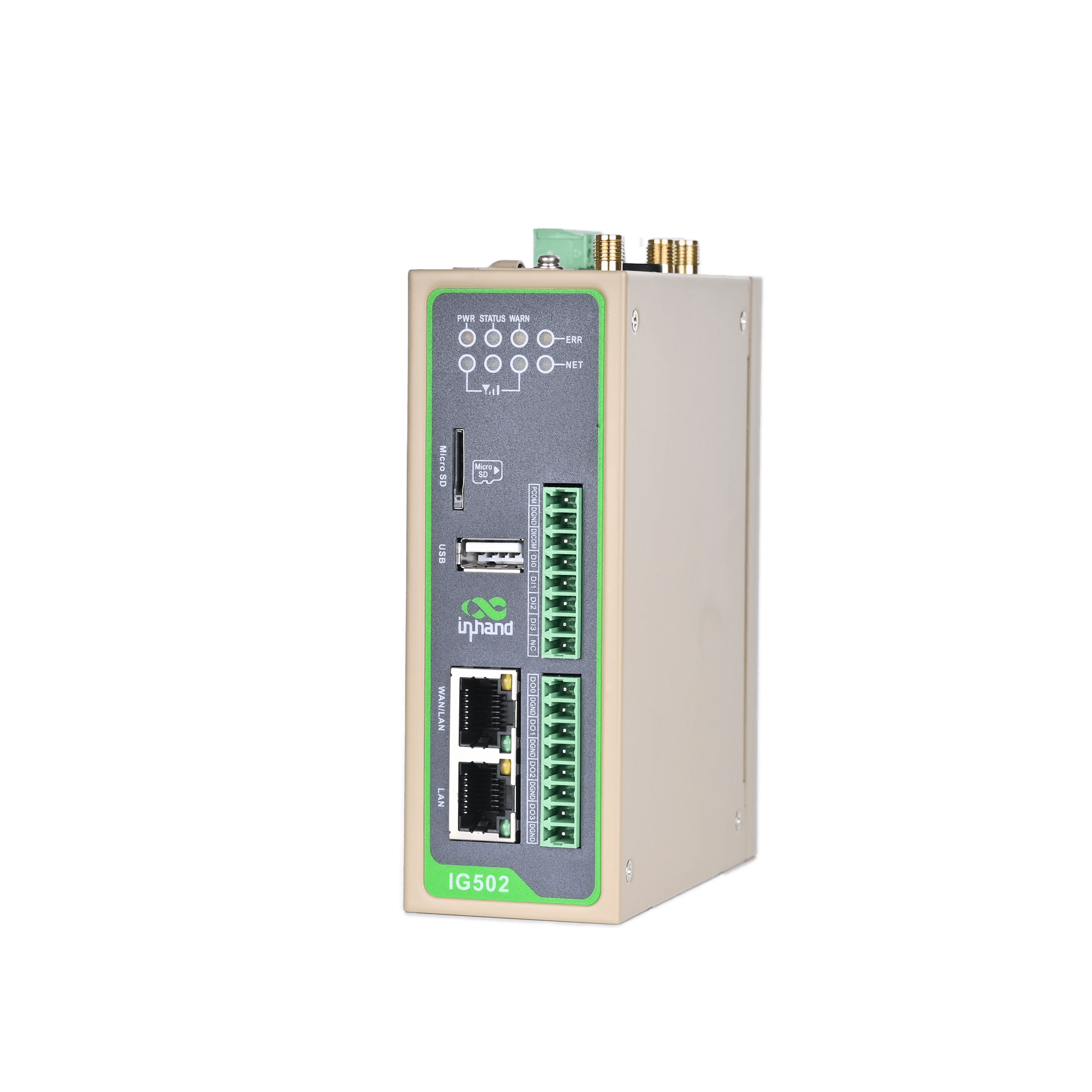

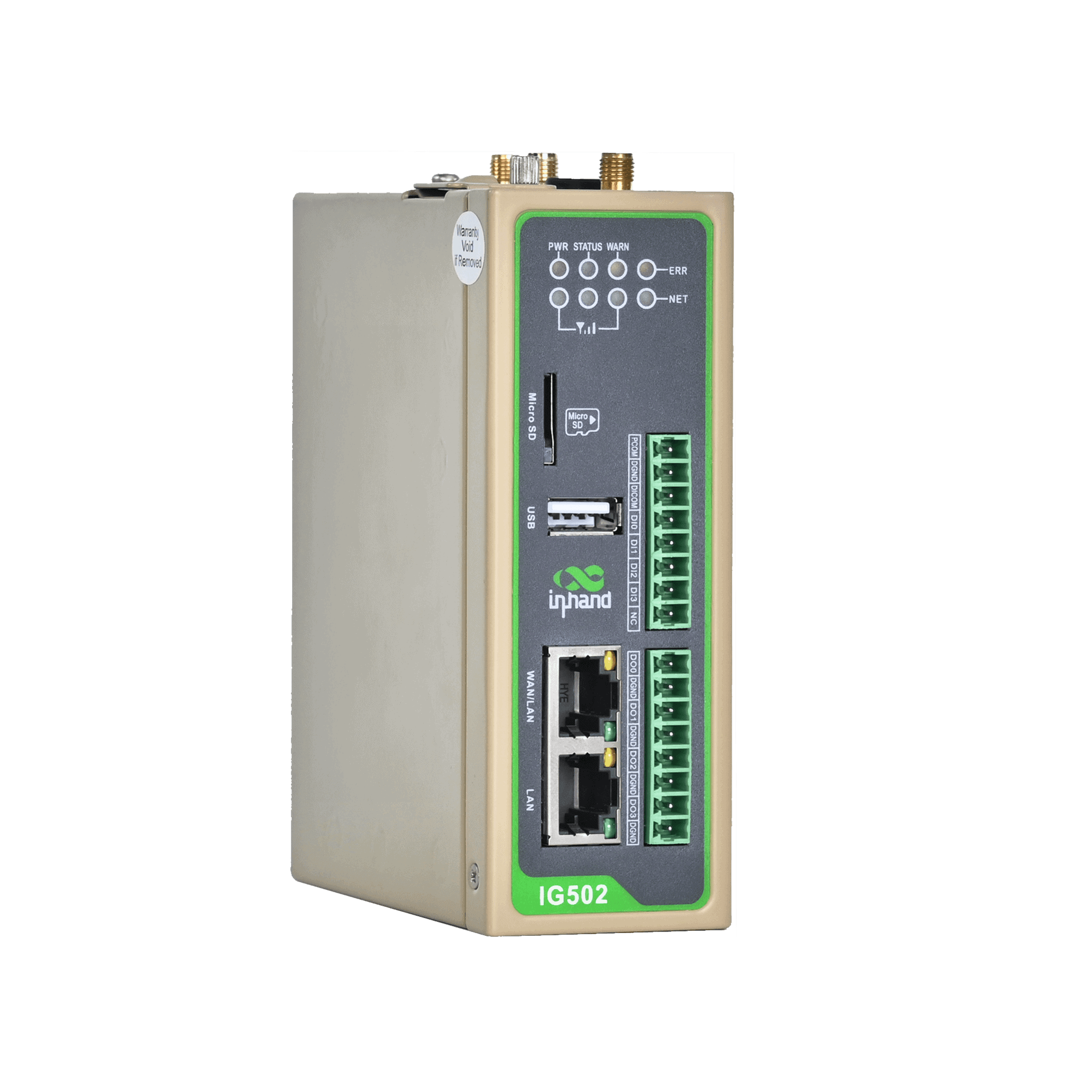

InHand Networks IG502-FQ33-W-G Programmable LTE Cat 1 Edge Gateway with Wi-Fi and GPS

4G LTEMPN IG502-FQ33-W-G
  • GPS/GNSS
$229.26$274.00Save $44.74

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IG502-FQ33-W-G is a programmable industrial edge gateway for North America. It combines 4G LTE Cat 1 on bands B2/B4/B5/B12/B13/B25/B26 with 2.4 GHz Wi-Fi (client mode), Bluetooth 4.2 and GPS. Dual SIM failover, two 10/100 Ethernet ports, RS-232 and RS-485 serial, USB and microSD cover typical field-device connections. A Python environment and optional DSA with 80+ industrial protocols let you process data at the edge and forward it to the cloud.

  • 4G LTE Cat 1 via the FQ33 North America module, bands B2/B4/B5/B12/B13/B25/B26
  • Dual Micro SIM failover with heartbeat link detection and auto-redial
  • 2.4 GHz Wi-Fi (802.11 b/g/n, STA mode) and Bluetooth 4.2 (BLE)
  • GPS satellite positioning
  • 2× 10/100 Mbps Ethernet, 1× RS-232 + 1× RS-485, USB 2.0 Type-A, microSD up to 32GB
  • Python development environment and optional DSA with 80+ industrial protocols
  • Fanless IP30 metal housing, 12-48V DC, DIN-rail or panel mount
  • Add location reporting to remote or mobile equipment with built-in GPS

The IG502-FQ33-W-G is the North America LTE Cat 1 version of InHand Networks' IG502 edge gateway with Wi-Fi, Bluetooth and GPS options. It suits projects that need location data and a wireless backup uplink but not discrete I/O. The FQ33 module covers LTE bands B2/B4/B5/B12/B13/B25/B26, and dual Micro SIM slots provide carrier failover.

The -W option adds 802.11 b/g/n 2.4 GHz Wi-Fi in station (client) mode and Bluetooth 4.2 (BLE). The Wi-Fi lets the gateway join a site network as an alternative path to cellular. The -G option adds GPS satellite positioning for mobile equipment or assets spread across a wide area. Wired connections include two 10/100 Mbps Ethernet ports and 1× RS-232 plus 1× RS-485 on an industrial terminal block. USB 2.0 Type-A and microSD up to 32GB are also provided for local storage.

The gateway runs custom Linux on an ARM Cortex-A8 at 600MHz with 512MB RAM and 8GB eMMC. It includes a Python development environment. The optional DeviceSupervisor (DSA) collects and normalizes data from Modbus RTU/TCP, OPC UA, EtherNet/IP, DNP3.0, IEC101/104, BACnet and more, and forwards it to AWS, Azure and other cloud platforms. DeviceLive provides remote access, batch operations and upgrades. A firewall, OpenVPN and IPsec VPN secure the link, while a hardware watchdog and heartbeat auto-redial keep unattended units recoverable.

The fanless IP30 metal housing measures 110 × 127 × 35 mm and weighs 420 g. It mounts on a DIN rail or panel and accepts 12-48V DC. As a Wi-Fi model, it operates from -20 °C to 70 °C.

Ideal for

  • Fleet and mobile equipment telemetry with GPS location
  • Distributed meters and remote terminal units reporting over LTE Cat 1
  • Serial-to-cloud conversion for legacy Modbus RTU devices
  • Sites where a local Wi-Fi network can back up the cellular uplink
  • Building automation data collection over BACnet

Specifications

Power

Input Voltage
12~48V DC input
Power Interface
Industrial terminal block
Power Consumption
250mA @ 12V

General

MPN
IG502-FQ33-W-G
Brand
InHand Networks
Model
IG502 Cost-effective Edge Gateway
Region
North America (FQ33 cellular module)
Product Type
Programmable Cellular Edge Gateway
Configuration
W (Wi-Fi + Bluetooth 4.2), G (GNSS); no I/O option

Package

Shipping Weight
1.20 lb

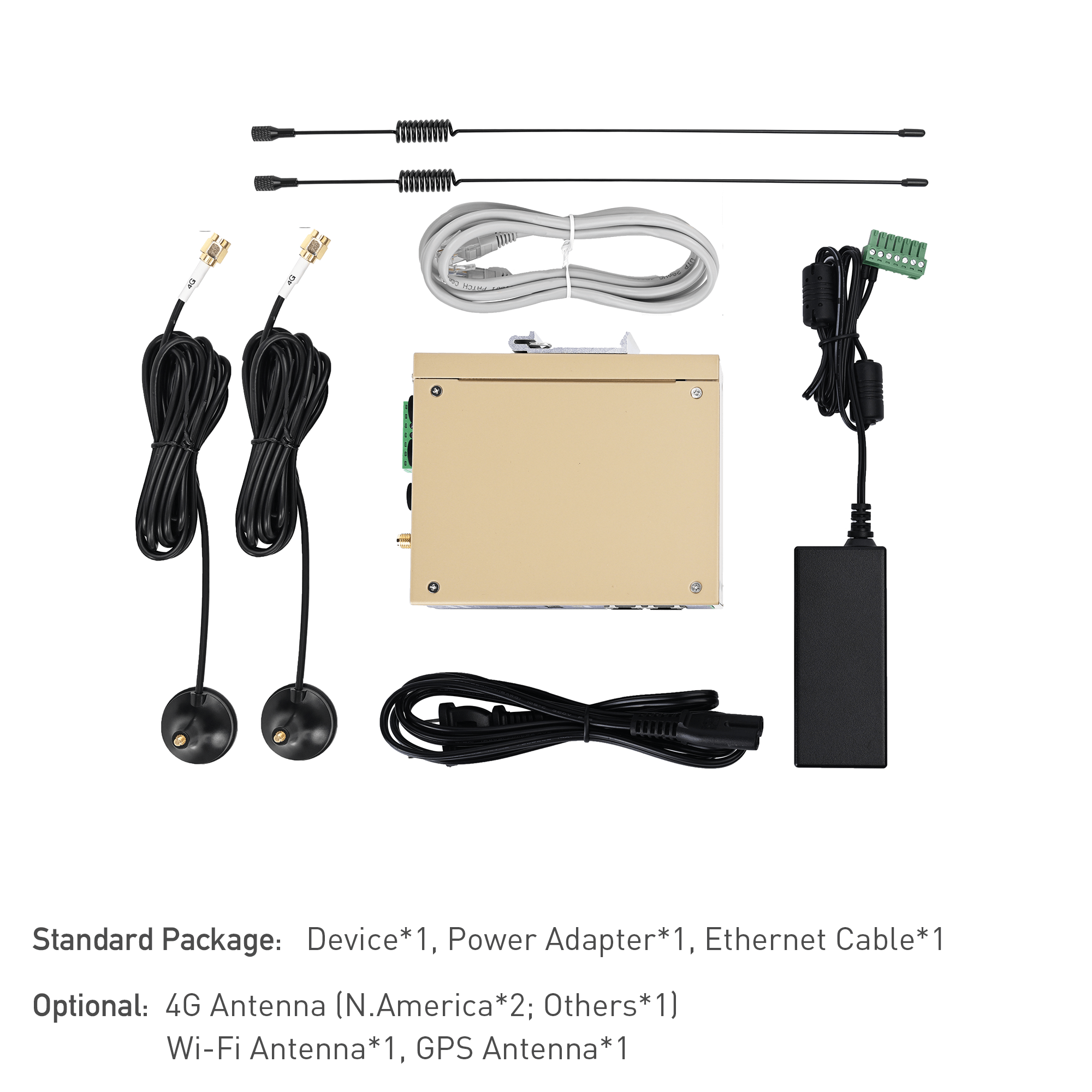

Standard Package
IG502 Edge Gateway, 4G antenna, Wi-Fi antenna, GNSS antenna, Ethernet cable, power terminal (contents vary by order code)
Optional Accessories
power supply, panel mounting kit

Cellular

LTE Bands
LTE B2/B4/B5/B12/B13/B25/B26
SIM Slots
Dual Micro SIM
Technology
4G LTE Cat 1

Security

Data Security
OpenVPN, IPsec VPN
User Management
Multi-level user permissions
Network Security
Firewall

Software

Operating System
Custom Linux

Mechanical

Rtc
RTC with button battery backup
Weight
420 g (0.93 lb)
Mounting
Panel, DIN-rail mounting
Dimensions
110 × 127 × 35 mm (4.33 × 5 × 1.38 in)
Hardware Watchdog
Hardware watchdog supported
Protection Rating
IP30
Housing And Cooling
Fanless metal housing

Reliability

Link Detection
Sends heartbeat packets to detect link, auto redials when disconnected
Embedded Watchdog
Embedded watchdog auto-recovery
Dual SIM Switching
Dual-SIM failover

CPU And Storage

CPU
ARM Cortex-A8 @ 600MHz
RAM
512MB
Flash
8GB eMMC

Network Features

IP Routing
Static routing
LAN Protocols
ARP, Ethernet
WAN Protocols
Static IP, DHCP
Network Access
APN, VPDN
IP Applications
ICMP, DNS, TCP/UDP, TCP Server, DHCP
Access Authentication
CHAP/PAP
Network Types Standards
LTE Cat 1 (FQ33)

Open Platform Dsa

Other Protocols
BACnet, CNC
Cloud Integration
AWS, Azure, AliCloud and other cloud platforms
Industrial Protocols
Modbus RTU/TCP, EtherNet/IP, ISO on TCP, OPC UA, Mitsubishi MC/CPU Port, FINSUDP, HostLink, PPI
Electricity Protocols
DLT645-2007, IEC101/104, DNP3.0, IEC61850-MMS
Development Environment
Python development environment

Network Management

Log
Local system logs, remote logs, and important log power-off preservation
Upgrade
Web/DeviceLive upgrade
Configuration
Web/Telnet/SSH configuration
Remote Management
DeviceLive/HTTP/HTTPS/SSH remote management
Configuration Backup
Config import/export

Connectivity And Interfaces

USB
USB 2.0 Type-A
GNSS
Satellite location GPS
Wi-Fi
Wi-Fi STA 802.11 b/g/n 2.4 GHz
Microsd
microSD up to 32GB
I/O Ports
Not included in this configuration (available on -IO models)
Bluetooth
Bluetooth Low Energy 4.2

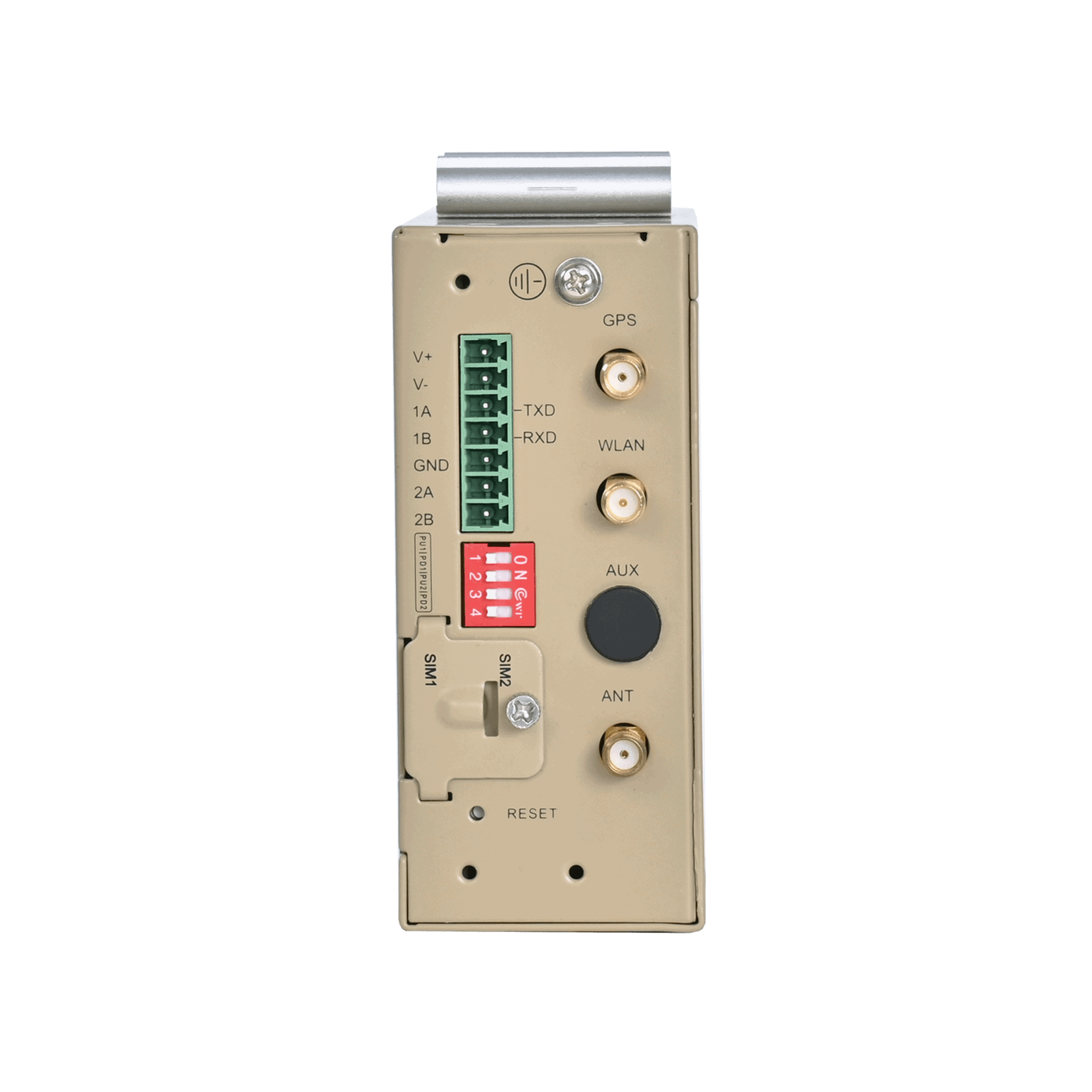

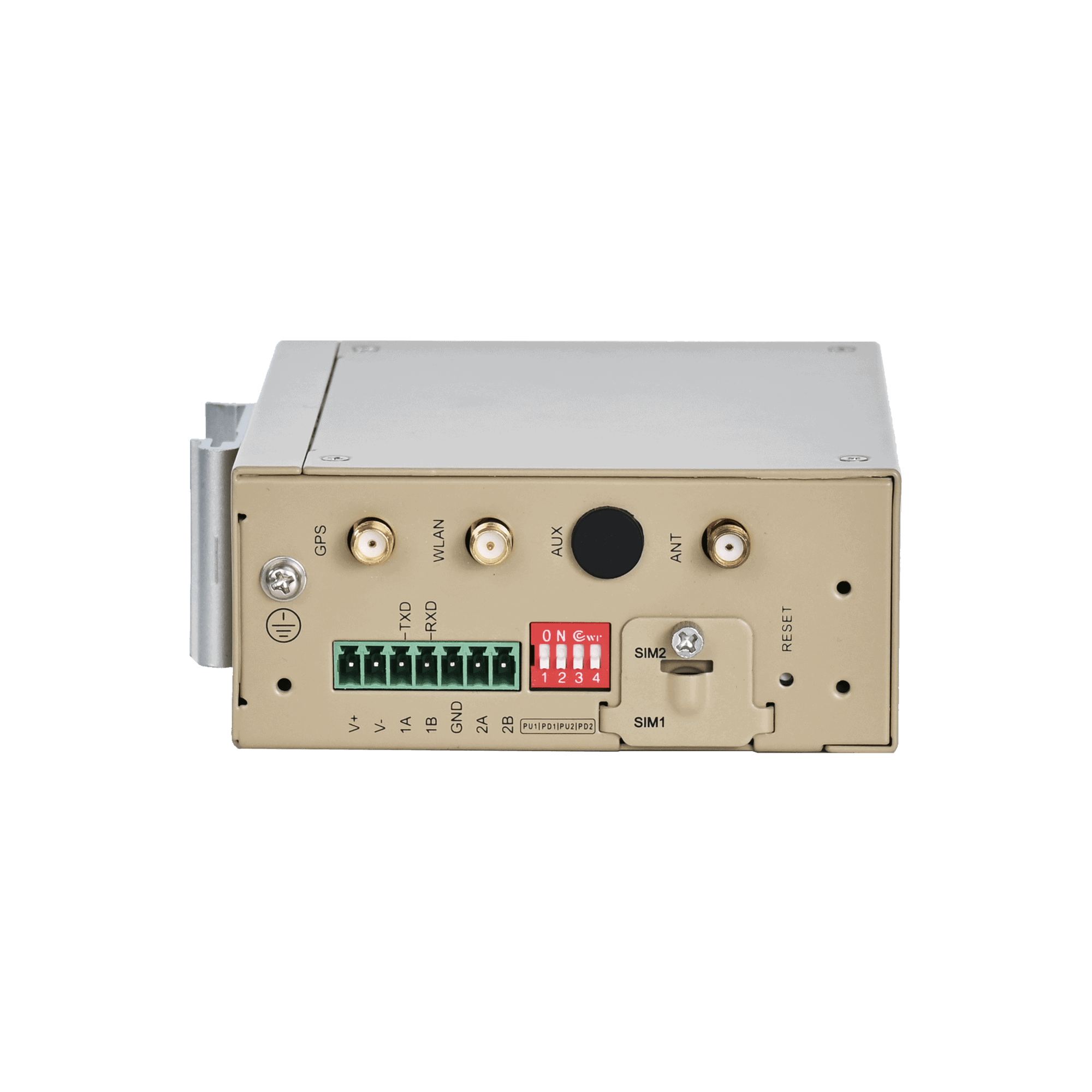

Serial Ports
1 × RS-232 + 1 × RS-485, industrial terminal block
SIM Card Slot
Dual Micro SIM
Ethernet Ports
2 × 10/100 Mbps Ethernet

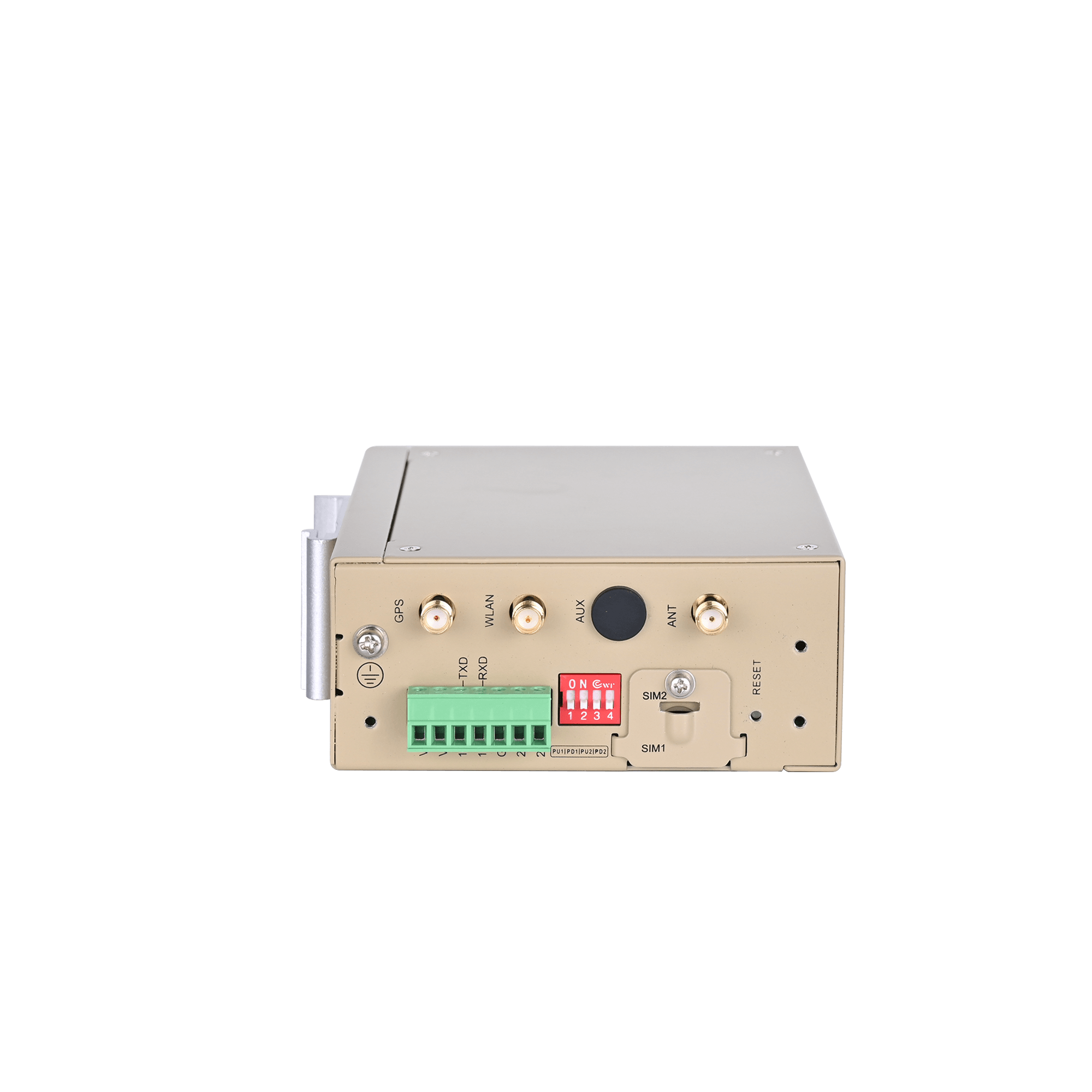

Antenna Connectors
2 × SMA 4G (North America models), Wi-Fi SMA × 1, GNSS SMA × 1

Core Technical Specifications

Weight
420 g (0.93 lb)
Security
Multi-level user permissions, firewall, OpenVPN, IPsec VPN
Dimensions
110 × 127 × 35 mm (4.33 × 5 × 1.38 in) W × D × H
Power Supply
12~48V DC, industrial terminal block
Ethernet Ports
2 × 10/100 Mbps
Cellular Network
LTE Cat 1 (FQ33, North America)
Cloud Management
DeviceLive remote access, batch operations, and remote upgrades
Network Features
APN, VPDN, CHAP/PAP; Static IP/DHCP; ICMP, DNS, TCP/UDP, TCP Server, static routing
Serial Interfaces
1 × RS-232 + 1 × RS-485
Industrial Protocols
Modbus RTU/TCP, OPC UA, EtherNet/IP, IEC101/104, DNP3.0, etc.
Secondary Development
Python development environment
Operating Temperature And Protection
-20 °C ~ 70 °C (-4 °F ~ 158 °F), IP30 (model with Wi-Fi)

Environment And Certifications

Emc Standard
EN61000-4-2 level 3 static; EN61000-4-3 level 3 radiated field; EN61000-4-4 level 3 pulsed field; EN61000-4-5 level 3 surge; EN61000-4-6 level 3 conducted disturbance immunity; EN61000-4-8 power frequency field, horizontal/vertical 400A/m (>level 2); EN61000-4-12 level 3 shock wave resistance
Certifications
CE, UKCA, FCC, PTCRB, UL, C1D2 (Class 1 Division 2), MIC&JATE, Verizon Wireless, AT&T, IC, RCM, NBTC, ANATEL, IEC62443-4-2, IEC61850-3
Ambient Humidity
5~95% RH non-condensing
Storage Temperature
-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Operating Temperature
-20 °C ~ 70 °C (-4 °F ~ 158 °F) (models with Wi-Fi)
Physical Characteristics
IEC60068-2-27 shock, IEC60068-2-6 vibration, IEC60068-2-32 drop resistance

Questions buyers ask

What is the difference between the IG502-FQ33-W-G and the IG502-FQ33-IO-W-G?

Both use the North America LTE Cat 1 FQ33 module and include Wi-Fi, Bluetooth 4.2 and GPS. The -IO-W-G version adds 4 digital inputs and 4 digital outputs with 3000 VDC isolation, which this model does not have.

Which LTE bands does it support?

The FQ33 module supports LTE Cat 1 on bands B2, B4, B5, B12, B13, B25 and B26.

How do I connect it to cellular?

Insert the SIM with the gateway powered off, then power on. In most cases the IG502 detects the carrier and applies the APN automatically. If it does not connect, set the APN under Network > Cellular. A steady NET LED indicates a successful connection.

How do I access the web interface?

Connect over Ethernet using DHCP or a 192.168.2.x static IP. Open https://192.168.2.1 and log in as adm with the password printed on the device nameplate.

Can I run my own applications on it?

Yes. The IG502 provides a Python development environment on its custom Linux OS. Local applications can filter, aggregate and threshold data or bridge protocols before sending results to the cloud.
