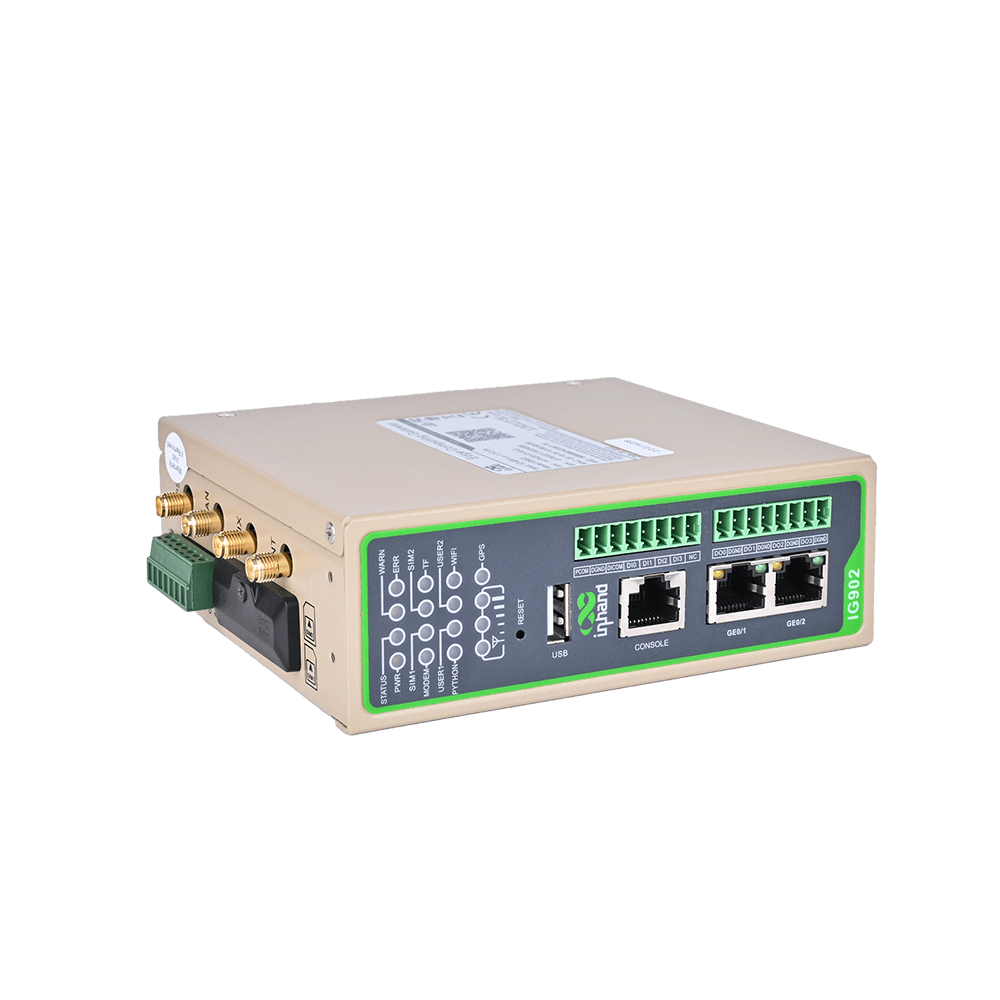

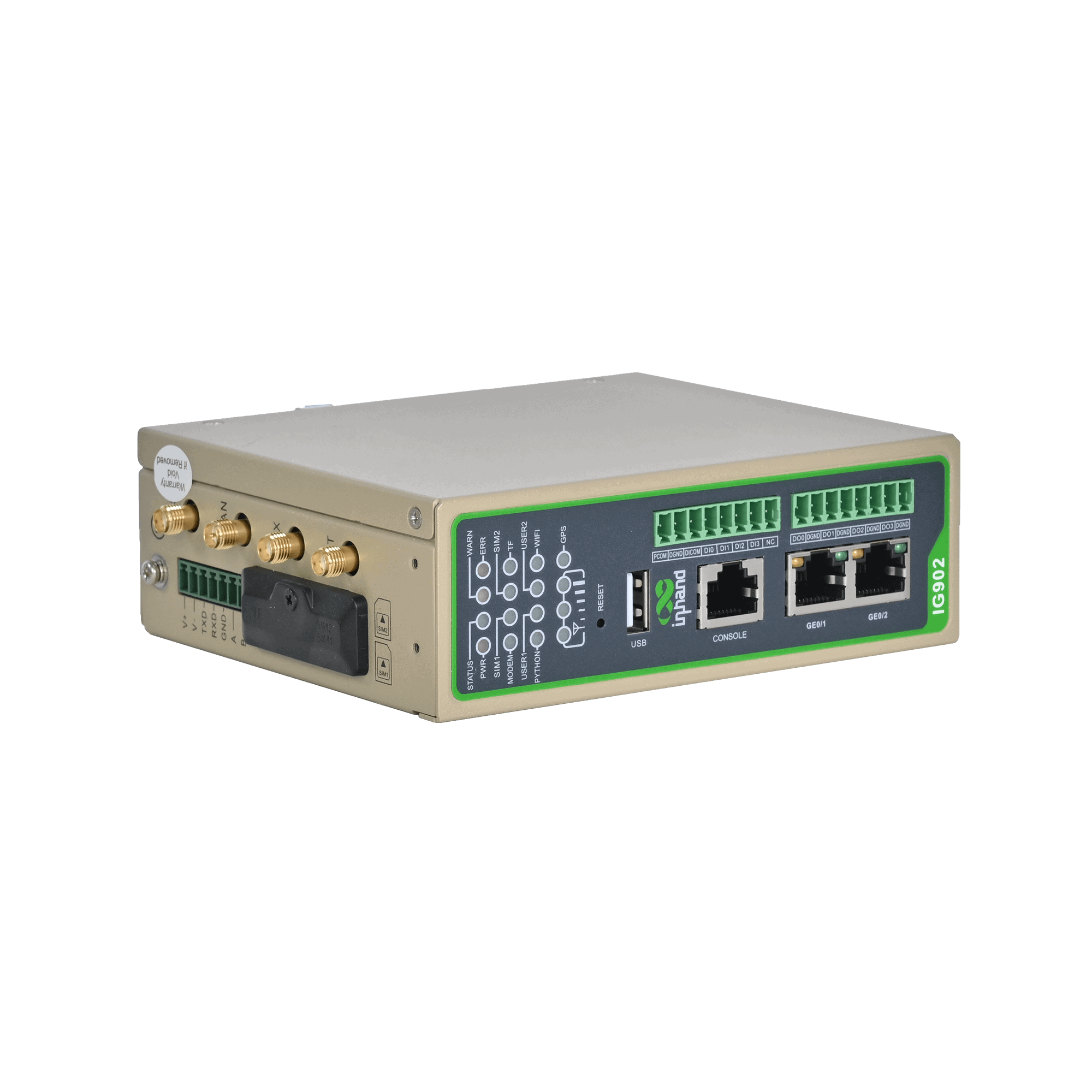

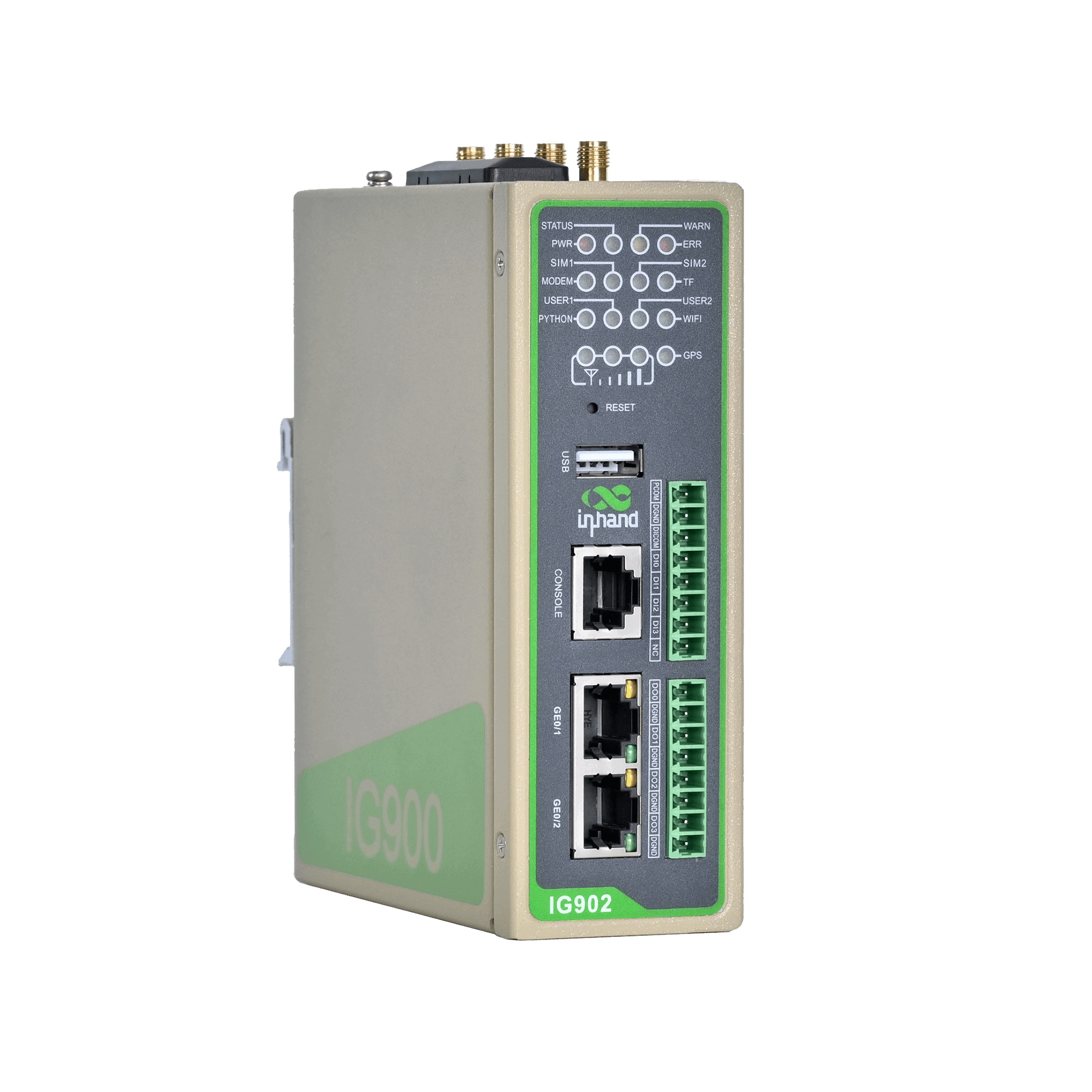

InHand Networks IG902 Industrial Edge Gateway, 4G LTE Cat 6 with Wi-Fi, GPS and I/O

4G LTEMPN IG902-H-FS39-IO-W-G
  • 1 Gb Ethernet
  • GPS/GNSS
$505.53$593.00Save $87.47

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IG902-H-FS39-IO-W-G is a programmable industrial edge gateway built for North American sites. It combines an LTE Cat 6 modem and dual-SIM backup with two Gigabit Ethernet ports, RS-232/RS-485 and RS-485 serial, isolated digital I/O, dual-band Wi-Fi and GPS/BeiDou. An ARM Cortex-A8 processor with 1GB DDR3 and 8GB eMMC runs Python and Docker workloads at the edge. Optional DSA data acquisition covers Modbus, OPC UA, EtherNet/IP, DNP3.0, BACnet and other industrial protocols.

  • North American LTE Cat 6 (FS39 module: LTE-FDD B2/B4/B5/B13/B17, UMTS B2/B5) with dual-SIM backup
  • ARM Cortex-A8 @1GHz, 1GB DDR3, 8GB eMMC and microSD up to 32GB
  • 2 × Gigabit Ethernet, 1 × RS-232/RS-485 + 1 × RS-485, 4 DI + 3 DO + 1 relay or digital/pulse output (isolated)
  • Dual-band 2.4 GHz/5 GHz 802.11ac Wi-Fi (AP/Client) and GPS/BeiDou GNSS
  • Python and Docker secondary development plus optional DSA with 80+ industrial protocols
  • Link redundancy with heartbeat detection, VRRP, interface backup and embedded watchdog
  • Fanless IP30 metal housing, 12-48 V DC input, -25 °C to 70 °C operation
  • Connect PLCs, meters and sensors over Ethernet, serial and discrete I/O through one gateway instead of several boxes

The IG902 is InHand Networks' high-performance edge gateway for complex industrial sites that need more than a cellular link. This configuration is the H (High) model with the FS39 module, which is North American LTE Cat 6 on LTE-FDD bands B2/B4/B5/B13/B17 with UMTS B2/B5. It adds isolated I/O, dual-band 802.11ac Wi-Fi and GNSS (GPS and BeiDou). Two drawer-type SIM slots provide dual-SIM backup. Wired, cellular and Wi-Fi links can back each other up, with heartbeat link detection, VRRP and an embedded watchdog for automatic recovery.

On the plant side, the gateway collects data from mixed equipment. It has 2 × 10/100/1000 Mbps Ethernet ports, 1 × RS-232/RS-485 plus 1 × RS-485 serial port, and 4 digital inputs, 3 digital outputs and 1 relay or digital/pulse output. The optional DSA supports Modbus RTU/TCP master and slave, EtherNet/IP, OPC UA client/server, Mitsubishi MC, FINS, IEC101/104, DNP3.0, DLT645-2007, BACnet and CNC. It can forward normalized data to Microsoft Azure, Amazon AWS and other IoT platforms.

The ARM Cortex-A8 @1GHz, 1GB DDR3 and 8GB eMMC (plus microSD up to 32GB) give you room for pre-processing, rule evaluation and lightweight analytics. Custom logic can be deployed as Python applications or Docker containers on InHand's custom Linux. DeviceLive handles remote configuration, batch management and firmware upgrades. Security features include an SPI firewall, ACLs, NAT, IPsec, OpenVPN, GRE, L2TP and AAA via Local, RADIUS, TACACS+ or LDAP.

The fanless metal housing is rated IP30 and mounts on a DIN rail or wall. It runs on 12-48 V DC with reverse-polarity and overcurrent protection and operates from -25 °C to 70 °C.

Ideal for

  • Factory and machine data collection from PLCs and CNC equipment over Modbus, EtherNet/IP and OPC UA
  • Utility and energy monitoring using IEC101/104, DNP3.0 and DLT645-2007
  • Building automation data aggregation via BACnet with cellular backhaul
  • Remote pump, tank and substation sites needing dual-SIM LTE failover and discrete I/O
  • Edge analytics and containerized applications forwarding data to Azure or AWS

Specifications

Wlan

Wlan Mode
AP and Client modes
Wlan Security
Open System, Shared Key, WPA/WPA2, WEP/TKIP/AES
Wlan Standard
IEEE 802.11ac/a/b/g/n

Power

Power Input
12-48 V DC input
Power Terminal
Unpluggable industrial terminal
Reverse Polarity Overcurrent Protection
Reverse polarity and overcurrent protection supported

General

MPN
IG902-H-FS39-IO-W-G
Brand
InHand Networks
Model
IG902 High-performance Edge Gateway
Configuration
High model with North American LTE Cat 6, I/O, Wi-Fi and GPS
Shipping Weight
1.12 lb (shipping)

Package

Standard Package
Gateway, 4G antenna, Wi-Fi antenna, GNSS antenna, Ethernet cable, power terminal, power supply (contents vary by order code)

Cellular

Module
FS39 cellular module
Region
North America
Umts Bands
UMTS B2/B5
LTE Category
LTE Cat 6
Network Type
LTE, WCDMA (HSPA+), EDGE, GPRS, CDMA
LTE Fdd Bands
LTE-FDD B2/B4/B5/B13/B17

Security

Aaa
Local/RADIUS/TACACS+/LDAP
Data Security
IPsec VPN, GRE, L2TP, OpenVPN, CA
CA Certificates
CA certificates supported (may auto apply)
User Management
Multi-level users
Network Security
SPI firewall, anti-DoS, multicast/ping filter, ACL, NAT, PAT, DMZ, port mapping, virtual server

Software

Operating System
Custom Linux

Mechanical

Rtc
Optional embedded RTC powered by super capacitor
Mounting Method
DIN-rail or wall mounting
Protection Rating
IP30
Housing And Cooling
Metal housing, fanless

Reliability

Link Detection
Heartbeat packet detection, auto-recovery of disconnection
Backup Mechanism
VRRP, interface backup
Embedded Watchdog
Device self-diagnosis, auto-recovery from operation faults
Dual SIM Switching
Dual-SIM backup

CPU And Storage

CPU
ARM Cortex-A8 @1GHz
RAM
1GB DDR3 (IG902-H)
Flash
8GB eMMC

Network Features

IP Routing
Static routing
Network Type
LTE, WCDMA (HSPA+), EDGE, GPRS, CDMA
LAN Protocols
ARP, Ethernet
Network Access
APN, VPDN
IP Applications
Ping, Traceroute, DHCP server/relay/client, DNS relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP
Access Authentication
CHAP/PAP/MS-CHAP/MS-CHAPv2

Open Platform Dsa

Iot Platform
Microsoft Azure, Amazon AWS, Alibaba Cloud and others
Other Protocols
BACnet, CNC
Industrial Protocols
Modbus RTU/TCP master/slave, EtherNet/IP, ISO on TCP, OPC UA client/server, Mitsubishi MC 3C/3E/3C over TCP, Mitsubishi CPU Port, FINS UDP, HostLink, PPI
Electricity Protocols
DLT645-2007, IEC101/104, DNP3.0
Python Secondary Development
Python and Docker secondary development platform

Network Management

Log
Local or remote log export, power-down log saving
Upgrade Methods
Web, DeviceLive, TFTP, FTP, SFTP upgrades
Remote Management
DeviceLive remote access and batch device management
Network Diagnostics
Ping, Traceroute, Sniffer (packet capture)
Configuration Methods
Local/remote HTTP, HTTPS, Telnet, SSH configuration

Connectivity And Interfaces

GNSS
GPS and BeiDou
Wi-Fi
Dual-band 2.4 GHz/5 GHz Wi-Fi (802.11ac/a/b/g/n)
Microsd
microSD expansion up to 32GB
I/O Ports
4 × DI + 3 × DO + 1 × relay or digital/pulse output (isolated)
USB Port
1 × USB 2.0
Console Port
1 × RS-232 console (RJ45)
Reset Button
Pinhole reset button
Serial Ports
1 × RS-232/RS-485 + 1 × RS-485
SIM Card Slot
2 × drawer-type SIM slots, 1.8 V/3 V
Ethernet Ports
2 × 10/100/1000 Mbps Ethernet (WAN/LAN or 2 × LAN)
LED Indicators
POWER, STATUS, WARN, ERROR, MODEM, SIM1, SIM2, microSD, PYTHON, USER1, USER2, Wi-Fi, GPS, SIGNAL

Core Technical Specifications

Storage
8GB eMMC, microSD up to 32GB
Security
SPI firewall, ACL, NAT/PAT/DMZ, AAA (Local/RADIUS/TACACS+/LDAP), IPsec/GRE/L2TP/OpenVPN/CA
Power Supply
12-48 V DC, reverse polarity and overcurrent protection
Serial And I/O
1 × RS-232/RS-485 + 1 × RS-485; 4 DI + 3 DO + 1 relay or digital/pulse output
Ethernet Ports
2 × 10/100/1000 Mbps
Cellular Network
LTE Cat.6 (this model)
Cloud Management
DeviceLive remote configuration, upgrades and operations
Network Features
APN, VPDN, CHAP/PAP/MS-CHAP/MS-CHAPv2; DHCP server/relay/client; DNS relay; DDNS; static routing
Processor And Memory
ARM Cortex-A8 @1GHz, 1GB DDR3
Secondary Development
Python and Docker secondary development
Data Acquisition Protocols
Modbus RTU/TCP, EtherNet/IP, OPC UA, IEC101/104, DNP3.0, BACnet, CNC
Operating Temperature And Protection
-25 °C to 70 °C (-13 °F to 158 °F), IP30

Environment And Certifications

Emc Standard
EN 61000-4-2/-3/-4/-5/-6/-12 level 3; EN 61000-4-8 400 A/m (>level 3)
Certifications
IG902 series: CE, FCC, PTCRB, RCM, IC, IMDA, AT&T, MIC & JATE, MSIP, EAC, ANATEL, UKCA
Ambient Humidity
5-95% RH non-condensing
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-25 °C to 70 °C (-13 °F to 158 °F)
Physical Characteristics
IEC 60068-2-27 shock, IEC 60068-2-6 vibration, IEC 60068-2-32 drop resistance

Questions buyers ask

What does the part number IG902-H-FS39-IO-W-G mean?

H is the High configuration with 1GB DDR3. FS39 is the North American LTE Cat 6 module (LTE-FDD B2/B4/B5/B13/B17, UMTS B2/B5). IO adds isolated digital I/O, W adds dual-band Wi-Fi and G adds GNSS (GPS and BeiDou).

What software can run on the IG902?

The IG902 runs a custom Linux and supports Python applications and Docker containers for custom logic. It also supports InHand Device Supervisor for industrial protocol data collection and device monitoring, and connects to IoT platforms such as Microsoft Azure and Amazon AWS.

How do I log in for the first time?

Install the antennas, insert the SIM with power off, then power on. Connect a computer to GE0/2, set it to DHCP or a 192.168.2.x address, and browse to https://192.168.2.1. Log in as adm with the password printed on the device nameplate. GE0/1 defaults to 192.168.1.1.

Do I need to configure the APN manually?

In most cases no. The IG902 auto-detects the carrier and applies the matching APN. If the link does not come up, set the APN under Network > Cellular. A steady MODEM LED means connected, and the three signal LEDs indicate poor, moderate or good signal.

What power and mounting does it need?

It accepts 12-48 V DC through an unpluggable industrial terminal, with reverse-polarity and overcurrent protection. It mounts on a DIN rail or wall and operates from -25 °C to 70 °C in a fanless IP30 metal housing.
