InHand Networks IR302 Industrial 4G LTE Cat 4 Router with Wi-Fi (IR302-FQ38-WLAN)

4G LTEMPN IR302-FQ38-WLAN
$141.62$167.56Save $25.94

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

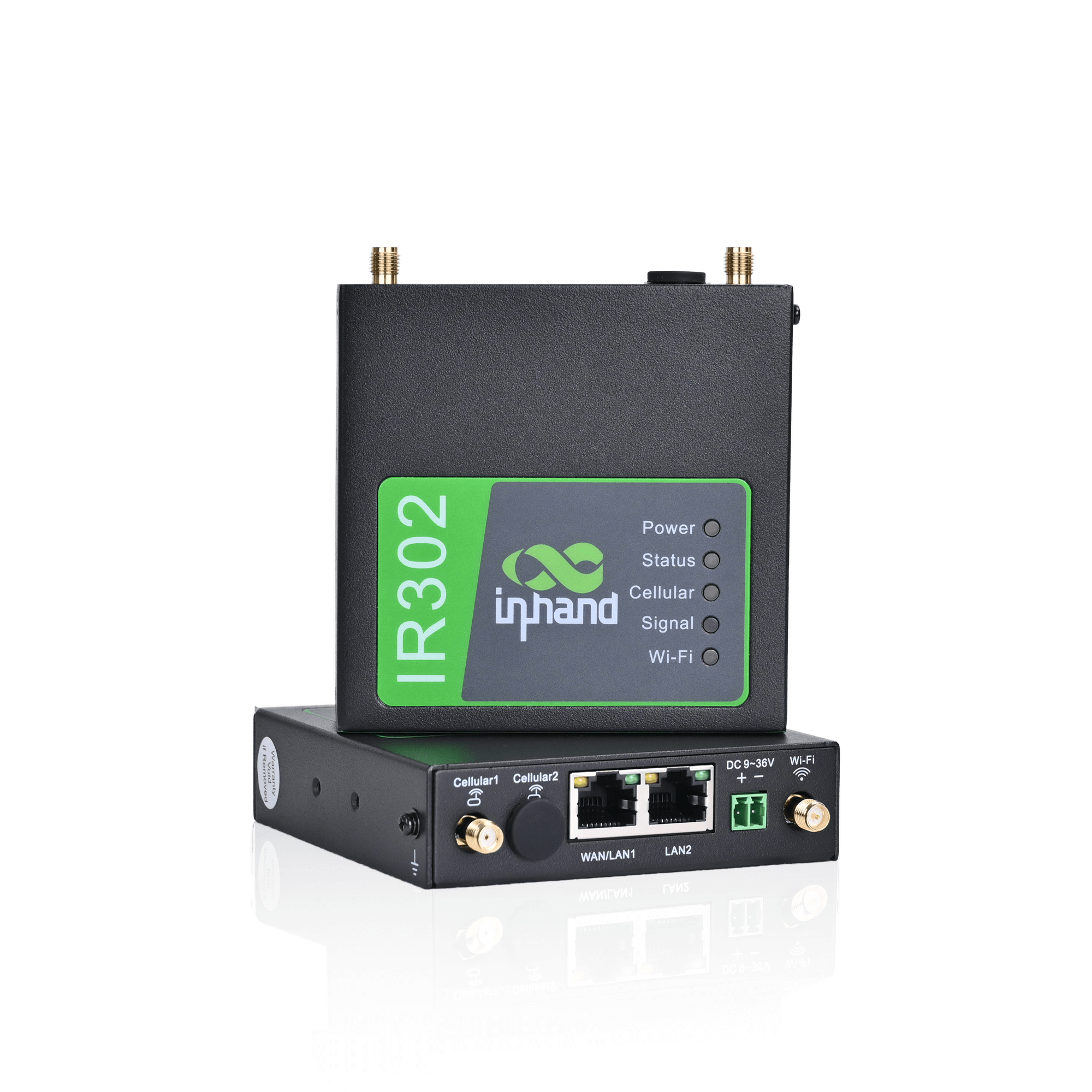

The InHand Networks IR302-FQ38-WLAN is a compact industrial LTE Cat 4 router with Wi-Fi for North American IoT and commercial sites. Its FQ38 module covers LTE B2/B4/B5/B12/B13/B14/B66/B71 and is certified with Verizon, AT&T, T-Mobile and FirstNet, plus FCC, IC and PTCRB. It provides dual Nano-SIM backup, two 10/100 Ethernet ports, 802.11 b/g/n Wi-Fi and IPsec, OpenVPN and WireGuard VPN. The router runs from 9–36V DC in a fanless IP30 metal enclosure.

  • North America LTE Cat 4 module: FDD B2/B4/B5/B12/B13/B14/B66/B71, WCDMA B2/B4/B5
  • Certified with Verizon, AT&T, T-Mobile and FirstNet, plus FCC, IC and PTCRB
  • 802.11 b/g/n Wi-Fi with a 72 Mbps negotiated rate
  • Dual Nano-SIM backup and 2× 10/100 Mbps Ethernet (one WAN/LAN switchable)
  • VPN: IPsec IKEv1/v2, OpenVPN, WireGuard, L2TP, GRE, PPTP and ZeroTier
  • Fanless full metal IP30 enclosure, -35°C to 70°C operation, 9–36V DC input
  • InHand Device Manager cloud, SNMP v1/v2c/v3, WebUI, CLI, SSH and HTTP/HTTPS API
  • Serves both wired devices and nearby Wi-Fi clients from a single compact unit

The IR302-FQ38-WLAN is the North America LTE Cat 4 build of InHand Networks' IR302 industrial router. It includes Wi-Fi and is designed for sites that need cellular WAN, Ethernet and local wireless access, without serial or I/O options. The FQ38 module covers LTE FDD B2/B4/B5/B12/B13/B14/B66/B71 with WCDMA B2/B4/B5 fallback. InHand lists the FQ38 as certified with Verizon, AT&T, T-Mobile and FirstNet, along with FCC, IC and PTCRB approvals. Two Nano-SIM drawers support carrier backup, with switching on ICCID binding, an RSRP threshold or packet loss.

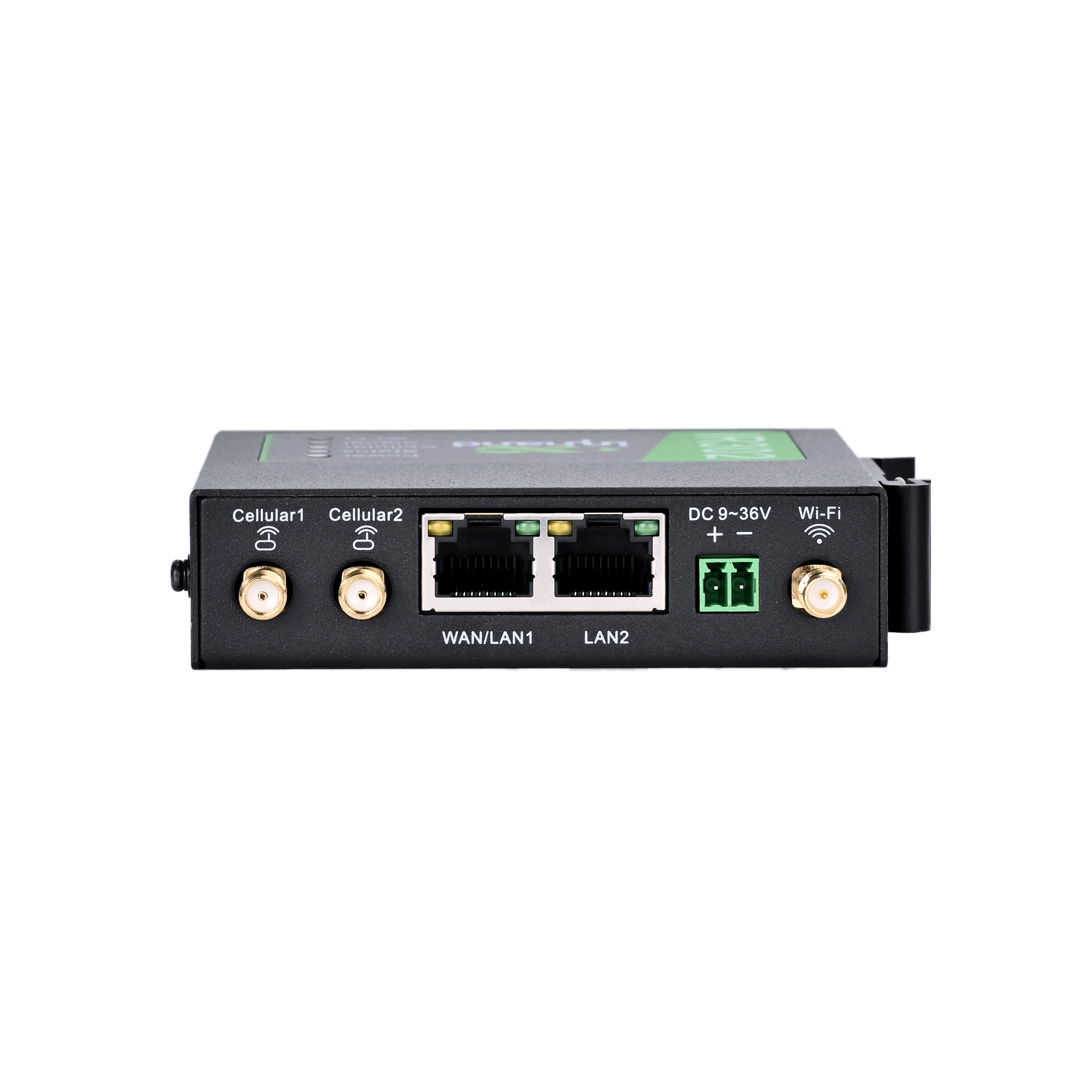

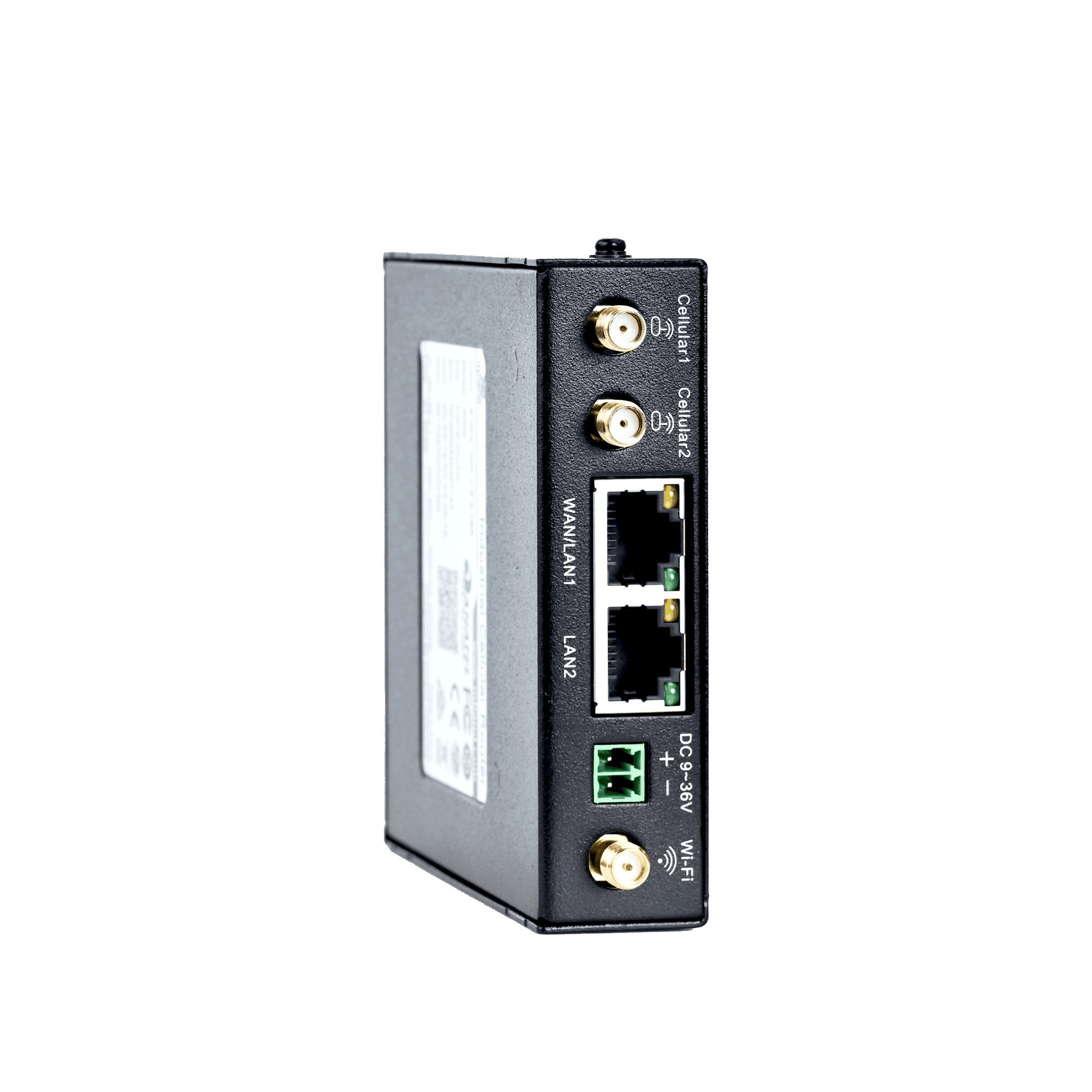

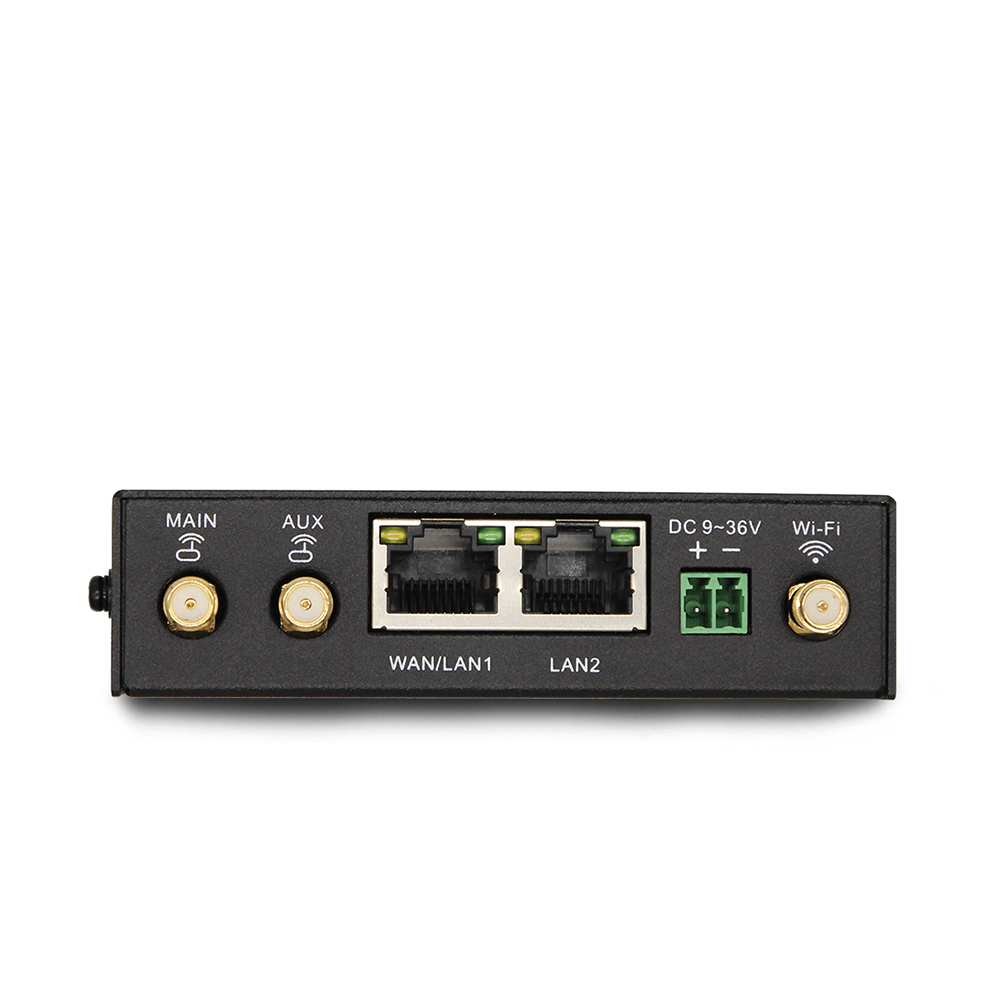

Local connectivity includes one 10/100 Mbps WAN/LAN switchable port and one 10/100 Mbps LAN port. The 802.11 b/g/n Wi-Fi has a 72 Mbps negotiated rate, with typical LAN-to-WLAN throughput of 54 Mbps at 1 m and 31 Mbps at 10 m. VPN options include IPsec (IKEv1/v2), OpenVPN, WireGuard, L2TP, GRE, PPTP and ZeroTier. The router also provides a firewall, ACLs, MAC-IP binding, content filtering and VRRP.

The full metal, fanless IP30 housing measures about 100 × 30 × 100 mm and weighs about 250 g. It operates from -35°C to 70°C, or from -40°C to 75°C in the extended range. The 9–36V DC input includes reverse polarity and surge protection, and the router mounts on a panel, wall or optional DIN rail kit.

The InHand Device Manager handles batch configuration, firmware upgrades and alarms across distributed fleets. SNMP v1/v2c/v3, a web UI, a CLI, SSH and an HTTP/HTTPS API are also available. The IR302 datasheet (V1.2) is available.

Ideal for

  • Cellular WAN with local Wi-Fi for kiosks, ATMs and digital signage
  • Connectivity for small unattended commercial sites, with SIM failover across carriers
  • Mobile command posts and public-safety sites that require FirstNet-certified LTE
  • Secure VPN backhaul for IP cameras and Ethernet-based controllers

Specifications

Power

Input Current
Typical 0.2 A @ 12V, peak 0.8 A @ 12V
Input Voltage
9–36V DC (typical 12V/24V)
Esd Protection
4 kV contact, 8 kV air (IEC 61000-4-2)
Surge Protection
Power port surge: IEC 61000-4-5, common mode 2 kV, differential mode 1 kV
Reverse Polarity Protection
Reverse polarity protection

General

MPN
IR302-FQ38-WLAN
Brand
InHand Networks
Model
IR302 Industrial Router
Region
North America
Configuration
LTE Cat 4 with Wi-Fi, no serial/IO option

Package

Contents
IR302 router, power supply, 2× 4G antennas, Wi-Fi antenna, Ethernet cable, panel mounting kit
Shipping Weight
0.70 lb
Optional Accessories
DIN rail mounting kit (optional)

Cellular

SIM Slots

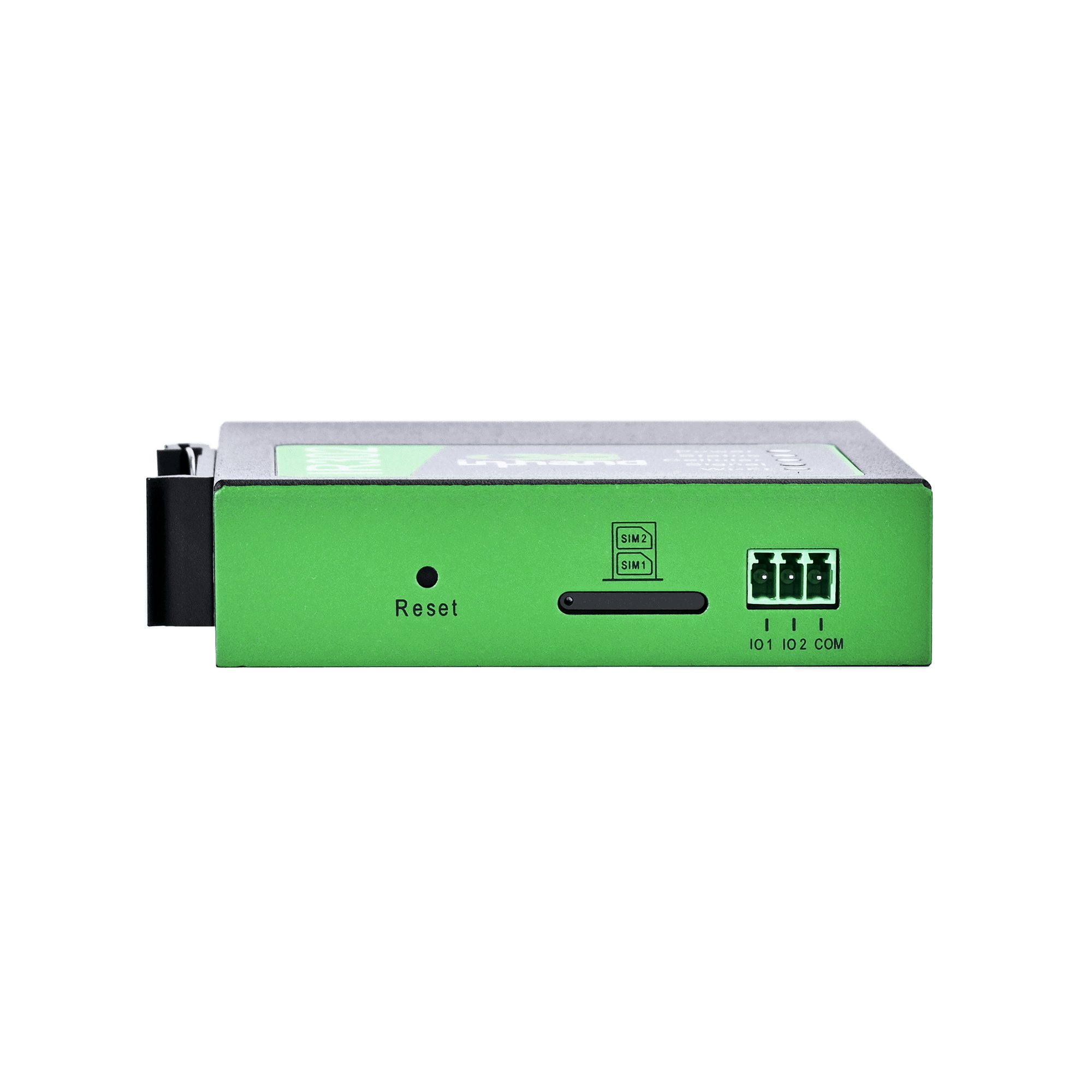

2 Nano-SIM drawer slots with dual-SIM network backup
Regulatory
FCC, IC, PTCRB
Module Code
FQ38 (North America, LTE Cat 4)
Wcdma Bands
WCDMA B2/B4/B5
LTE Category
4G LTE Cat 4
LTE Fdd Bands
LTE FDD B2/B4/B5/B12/B13/B14/B66/B71
Antenna Connectors
2× 4G main/diversity antenna, SMA female
Carrier Certification
Certified with Verizon, AT&T, T-Mobile and FirstNet (LTE/4G)

Security

Features
Firewall, ACL access control, MAC-IP binding (200 entries), content filtering, SIP ALG, attack protection

Reliability

MTBF
≥100,000 hours (Telcordia SR-332, 25°C)
Warranty
3 years

VPN Tunnels

Gre
Standard GRE tunnel, supports GRE over IPsec
L2tp
L2TP over IPsec with MS-CHAPv2 authentication
Pptp
PPTP client/server
Ipsec
IPsec IKEv1/IKEv2, pre-shared key or certificate, AES-256+SHA-512+ECP521 supported
Openvpn
OpenVPN TUN/TAP mode, UDP/TCP transport, TLS/SSL encryption
Zerotier
ZeroTier SD-WAN virtual networking
Wireguard
WireGuard

Environmental

Altitude
Up to 5000 m
Storage Humidity
5% to 95% RH, non-condensing
Protection Rating
IP30
Operating Humidity
5% to 95% RH, non-condensing
Storage Temperature
-40°C to 85°C
Operating Temperature
Normal -35°C to 70°C; extended -40°C to 75°C

Certifications

CE
EMC Directive 2014/30/EU, RED Directive 2014/53/EU
Emc
IEC 61000-4-2, -3, -4, -5, -6, -8
Fcc
FCC Part 15, 22, 24 and 27
Rohs
EU RoHS 2.0
Weee
EU WEEE
Safety
UL/cUL, CB (IEC 62368-1)
Sku Certificates
IR302-FQ38 PTCRB and IC certificates; UL 62368-1, E-mark, ECE R118, UKCA and IEC 62443-4-2 certificates

Network Services

Dns
DNS forwarding, domain name service, custom DNS servers
Nat
SNAT/DNAT, NAPT, port forwarding (100 rules), virtual IP mapping, DMZ
Ntp
Network time sync with custom NTP servers and calibration cycles
Ddns
PeanutShell, DynDNS, No-IP and other dynamic DNS providers
Dhcp
DHCP server/relay with dhcp-option customization, Option 43/60/82 and other extensions
Tcp Checksum
TCP checksum option configuration
SMS Management
SMS remote reboot/dial control, custom commands, access whitelist
Static Routing
Multiple static routes and policy routes with route priority
Dual SIM Management
Dual-SIM backup, ICCID binding, RSRP threshold switching, packet-loss triggered switching, max dial attempts, minimum connection time

Remote Management

Cli
Full command line: show, ping, telnet, traceroute, reboot, arping
Ssh
Secure remote CLI access; can act as SSH client
Snmp
SNMP v1/v2c/v3, MIB-II and private MIBs, Trap alarms, custom ports, extended OIDs (operator, ICCID, band)
Webui
Responsive web UI with wireless client display, tcpdump packet capture, status export
Http API
HTTP and HTTPS management interfaces for remote configuration and status queries
Device Manager
batch configuration, firmware upgrades, status monitoring, alarm management
Inconnect Service
InConnect Service (ICS) cloud management with OpenVPN configuration delivery

Wi-Fi Wireless LAN

Standard
802.11 b/g/n Wi-Fi
Throughput 1m
72 Mbps negotiated, 54 Mbps typical LAN→WLAN
Throughput 5m
72 Mbps negotiated, 41 Mbps typical LAN→WLAN
Throughput 10m
72 Mbps negotiated, 31 Mbps typical LAN→WLAN
Throughput 30m
72 Mbps negotiated, 14 Mbps typical LAN→WLAN (depending on obstacles)

Hardware Specifications

Memory
128 MB DDR
Weight
Approx. 250 g
Storage
32 MB SPI Flash
Mounting
DIN rail or wall mounting
Enclosure
Full metal enclosure, IP30, fanless natural convection cooling
Processor
580 MHz industrial-grade embedded processor
Dimensions
Approx. 100 × 30 × 100 mm (L × W × H, excluding mounting ears and antennas)
Reset Button
Supports hardware factory reset
LED Indicators

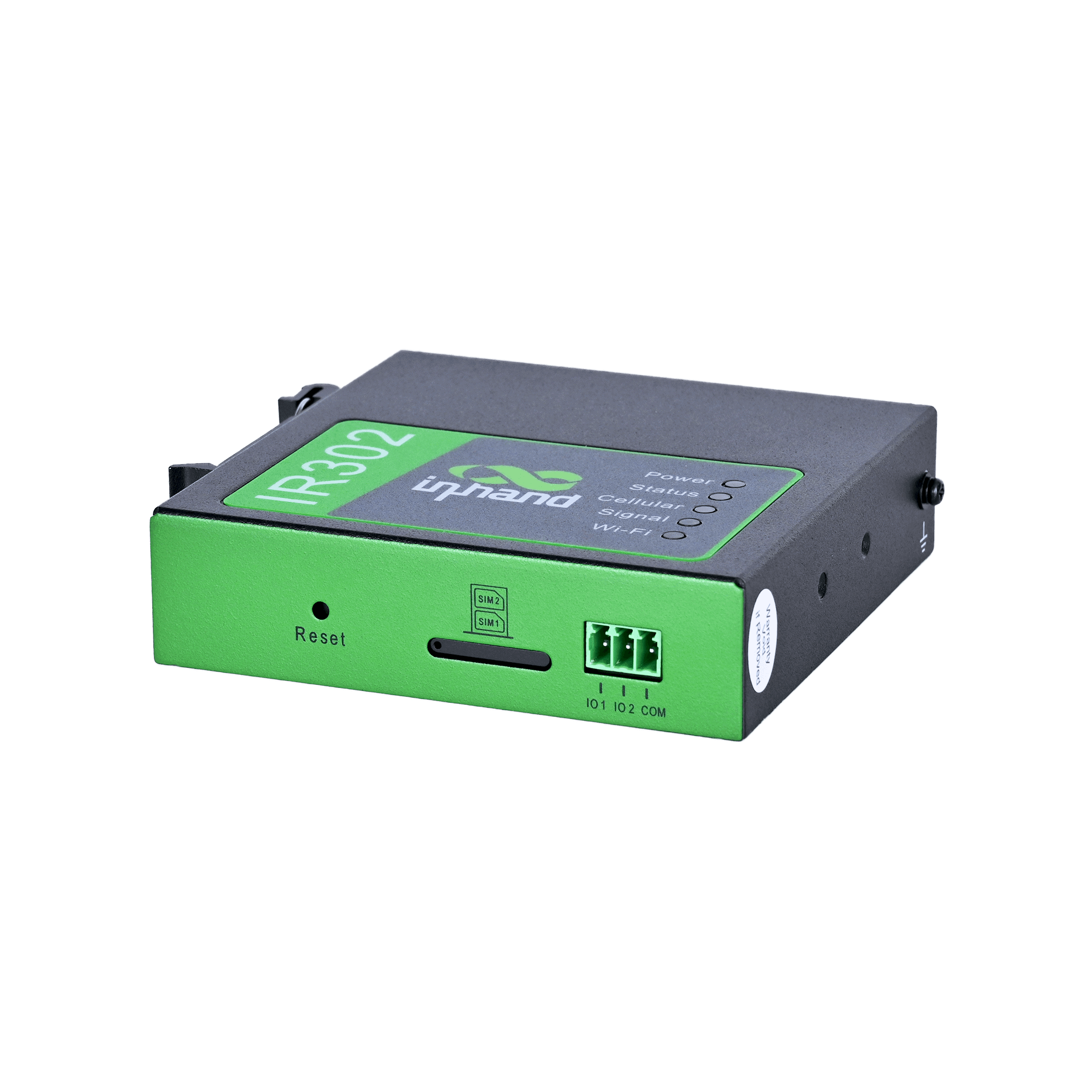

Power (red), Status (green), Cellular (yellow), Signal (red/yellow/green), Wi-Fi (green)
Power Interface
2-pin industrial terminal, 9–36V DC; optional 12V DC adapter
Power Consumption
Typical 2–5 W, peak <10 W
Ethernet Interfaces
1× 10/100 Mbps WAN/LAN switchable port, 1× 10/100 Mbps LAN port
Wi-Fi Antenna Connector
1× Wi-Fi antenna, SMA female (FQ38-WLAN configuration)

Industrial Communication

Ethernet Dtu
Transparent transmission of Ethernet port data to remote TCP/UDP servers

Questions buyers ask

Which carriers is the IR302-FQ38 certified with?

InHand lists the IR302-FQ38 (LTE Cat 4, North America) as certified with Verizon, AT&T, T-Mobile and FirstNet (LTE/4G), plus FCC, IC and PTCRB.

Does this version include serial or I/O ports?

No. The IR302-FQ38-WLAN has no serial/IO option. It provides cellular, two 10/100 Ethernet ports and 802.11 b/g/n Wi-Fi.

How fast is the Wi-Fi?

The 802.11 b/g/n radio negotiates at 72 Mbps. Typical LAN-to-WLAN throughput is 54 Mbps at 1 m, 41 Mbps at 5 m, 31 Mbps at 10 m and 14 Mbps at 30 m, depending on obstacles.

How do I enable Wi-Fi?

Wi-Fi is disabled by default. In the web GUI, set Network > Switch WLAN Mode to AP. Then enable Network > WLAN and configure the SSID, security type and password.

How do I log in for the first time?

Connect a computer to a LAN port and set it to DHCP or a 192.168.2.x address. Browse to http://192.168.2.1 and use the credentials printed on the device label.
