InHand Networks IR315 Industrial 4G LTE Cat 6 Router with GPS and Digital I/O (IR315-FF39-G)

4G LTEMPN IR315-FF39-G
  • GPS/GNSS
$208.68$249.00Save $40.32

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IR315-FF39-G is the North American LTE Cat 6 build of the IR315 industrial router. It adds GNSS positioning and 4 configurable digital I/O channels to a DIN-rail, fanless metal unit. It has five 10/100 Ethernet ports, dual Nano-SIM failover, 9-36 VDC input and a -35 °C to 70 °C standard operating range, which suits unattended IoT and remote sites managed from InHand Device Manager.

  • North American LTE Cat 6 cellular (FF39), with Band 66 and Band 71 support
  • Integrated GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS, ±2.5 m accuracy
  • 4 × digital I/O, each configurable as DI or DO, with edge-triggered status reporting
  • 5 × 10/100 Mbps RJ45 ports with flexible WAN/LAN/VLAN roles and 1.5 kV isolation
  • Dual Nano-SIM with policy-based switching, plus cellular/WAN backup and VRRP
  • IPsec, OpenVPN, WireGuard, ZeroTier, L2TP, GRE, DMVPN and PPTP VPN support
  • InHand Device Manager cloud management, SNMP v1/v2c/v3 and HTTP/HTTPS API
  • Track assets and timestamp data from one box: GNSS positioning and GPS-based NTP time sync are built in

The IR315-FF39-G is an industrial cellular router for sites that need reliable connectivity without a technician on hand. Typical sites include cabinets, kiosks, pump stations, substations and vehicles. This part number is the North American (FF39) LTE Cat 6 model, with LTE Band 66 and Band 71 support. It pairs GNSS with the IR315's default I/O block of 4 digital channels, each configurable as input or output.

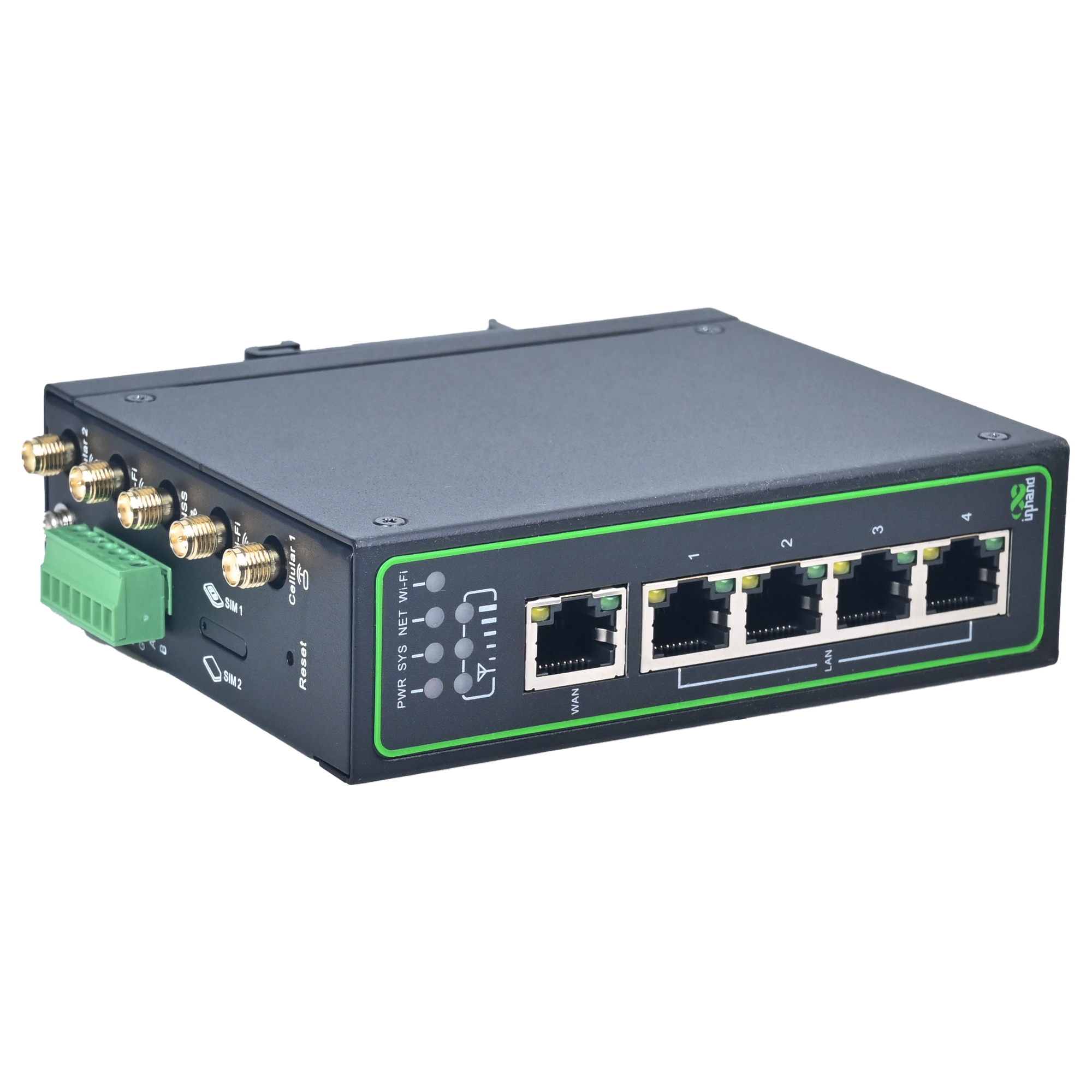

Five 10/100 Mbps RJ45 ports can each act as WAN, LAN or VLAN, and each port has 1.5 kV isolation protection. A drawer-type slot holds two Nano-SIMs. The router can switch SIMs based on signal threshold, packet loss or dial failures. Cellular and wired WAN can back each other up in hot backup, cold backup or load-balancing mode, and VRRP and an embedded watchdog add further redundancy. The GNSS receiver supports GPS, GLONASS, BeiDou, Galileo and QZSS with ±2.5 m accuracy, and it can also serve as a time source for the router's NTP server.

Security is built into the firmware. It includes an SPI firewall, DoS protection, ACLs, 802.1x and IP-MAC binding. VPN options are IPsec (up to 10 tunnels, AES256-SHA512), OpenVPN, WireGuard, ZeroTier, L2TP, GRE, DMVPN and PPTP. Firmware images carry signature verification. For fleet work, the router connects to InHand Device Manager for batch configuration and remote firmware upgrades, and it also supports SNMP v1/v2c/v3, an HTTP/HTTPS API, SSH and SMS status queries.

The enclosure is IP30-rated metal with fanless cooling, measuring 127 × 108.2 × 35 mm and weighing 454 g. It accepts 9-36 VDC through a 2-pin industrial terminal with overcurrent and reverse-polarity protection. The IR315 Datasheet V1.3 and a DIN-rail 2D drawing are available for this model.

Ideal for

  • Remote monitoring cabinets that report door, alarm or relay states through digital I/O
  • Vehicle and mobile asset connectivity with GNSS location reporting
  • Utility, pump station and substation telemetry needing dual-SIM uptime
  • Kiosks, digital signage and unattended retail sites managed from the cloud
  • Wired-WAN branch sites that need cellular failover

Specifications

GNSS

Systems
GPS, GLONASS, BeiDou, Galileo and QZSS
Accuracy
±2.5 m
Time Sync
NTP server function with GPS time synchronization

General

MPN
IR315-FF39-G
Wi-Fi
No Wi-Fi in this configuration (Wi-Fi models carry the -WLAN suffix)
Brand
InHand Networks
Model
IR315 Industrial Router
Region
North American model (FF39)
Configuration
North American LTE Cat 6 with GNSS and 4 × digital I/O

Documents

Drawing
IR315 DIN Rail 2D Drawing V1.0
Datasheet
IR315 Datasheet V1.3

Mechanical

Weight
454 g (1 lb)
Mounting
DIN rail
Dimensions
127 × 108.2 × 35 mm (5 × 4.26 × 1.38 in) (W × D × H)
Protection Rating
IP30
Enclosure And Cooling
Metal shell, fanless cooling

Device Power

Peak Power
320 mA@12V
Power Supply
DC 9~36 V, overcurrent/reverse polarity protection, 2-pin industrial terminal
Standby Power
120~200 mA@12V
Operating Power
150~320 mA@12V

Wired Network

Vlan
Supports Access/Trunk mode, VLAN IP address pool configuration
Port Roles
Supports flexible WAN/LAN/VLAN configuration
WAN Protocol
Static IP, DHCP, PPPoE
Ethernet Ports
5 × 10/100 Mbps RJ45
Gratuitous Arp
Supports GARP broadcast, configurable broadcast count (1-10) and timeout (1-60 seconds)
IP Passthrough
Supports IP Passthrough function, distributing WAN port address to LAN port devices
Isolation Protection
1.5KV network isolation transformer protection

CPU And Storage

CPU
580 MHz
RAM
128 MB DDR2
Flash
64 MB SPI

Logs And Alarms

SMS Alarm
Supports SMS query and configuration of APN/SIM/operator, remote status query and restart
Remote Log
Supports Syslog server (UDP 514 port)
System Log
Local/remote/serial log output, supports user-defined remote log prefix
System Alarm
System restart, LAN up/down, SIM failure, signal quality abnormal alarm
Traffic Alarm
Monthly/24-hour/hourly traffic threshold alarm, traffic overrun reporting to cloud platform
Status Reporting
Supports system, Modem, network connection, routing status, GPIO pin status reporting

Cellular Network

SIM Card
Dual Nano-SIM, drawer-type slot
Technology
4G LTE Cat 6 (FDD LTE/TDD LTE)
Dialing Mode
PPP, QMI, ECM (depending on model)
Network Access
APN, VPDN
Connection Mode
Always online, on-demand dialing, manual dialing
LTE Bands Noted
North America variant with LTE Band 66 and Band 71
Signal Reporting
Supports RSRP, RSRQ, SINR, RSSI, RSCP, Ec/Io, PCI, BAND and other parameter reporting
Pdp Configuration
Supports IPv4/IPv4V6
Dual SIM Switching
Supports SIM switching policies triggered by signal threshold, packet loss threshold, dial failure count, etc.
Access Authentication
CHAP/PAP
Operator Configuration
Built-in global mainstream operator APN configurations, supports T-Mobile, AT&T, Verizon, etc.

Network Services

Dns
DNS proxy, DNS forwarding, supports custom domain name server
Ntp
NTP server function, GPS time synchronization
Qos
Bandwidth limiting, IP rate limiting
Dhcp
Server/Client, supports static binding (up to 200 entries), address pool range automatic verification
Portal
Captive portal authentication
Sip Alg
SIP Application Layer Gateway
Packet Capture
Built-in TCPDUMP packet capture tool, supports interface, capture count, expert options configuration
Scheduled Tasks
Scheduled restart, supports advanced options to configure multiple rules
Maintenance Tools
Ping, traceroute, speed test, ARPING

Device Management

Snmp
SNMP v1/v2c/v3, supports custom communication port
Console
Local serial console management
Http API
Supports HTTP/HTTPS API, remote query and configuration
Inconnect
Supports device remote access and NAT rule issuance
Snmp Trap
Alarm information active reporting
Ssh Telnet
Remote command line management
Cloud Platform
Device Manager/ICS platform
Device Manager
InHand device cloud platform, supports batch management, remote configuration, firmware upgrade
System Upgrade
Supports Web upgrade and Device Manager remote upgrade
Firmware Signature
System firmware adds signature verification to prevent firmware tampering
Configuration Management
Supports configuration import/export, factory reset

Routing Capability

Nat
Network Address Translation, supports port mapping, virtual IP mapping
Ddns
DDNS, supports HTTPS update
Ospf
OSPF dynamic routing, supports router ID and network advertisement
Static Routing
Supports destination network, subnet mask, gateway, interface configuration, supports priority

Industrial Interfaces

Smart Ems
Supports cellular IP address reporting
I/O Control
4 × IO (DI/DO configurable), supports edge-triggered status reporting

VPN And Data Security

Gre
Generic Routing Encapsulation tunnel
L2tp
Supports L2TP over IPsec, supports NAT traversal
Pptp
Supports client/server mode
Dmvpn
Dynamic Multipoint VPN
Ipsec
Supports IKEv1/IKEv2, AES256-SHA512 encryption algorithm, up to 10 tunnels, supports peer domain name configuration
Openvpn
Supports TAP/TUN mode, TLS-auth/tls-crypt options, AES-256-GCM/SHA256 encryption
Zerotier
Supports virtual LAN networking, multiple tunnels configurable
Wireguard
WireGuard, supports connection status detection
Certificate Management
Supports CA certificate, PKCS12 certificate import/export

Link Backup And Redundancy

Vrrp
Virtual Router Redundancy Protocol, supports virtual MAC, priority election
Watchdog
Embedded watchdog
Link Backup
Supports cellular/WAN mutual backup, hot backup/cold backup/load balancing three modes
Icmp Detection
Supports detection server, interval, timeout, maximum retry count configuration
Load Balancing
After ICMP detection succeeds, data is transmitted through the corresponding link

Connectivity And Interfaces

GNSS
GNSS included (-G option)
I/O Port
4 × IO (DI/DO configurable)
Reset Button
Pinhole reset button
SIM Card Slot
Drawer-type slot ×1, supports 2 × Nano-SIM
Ethernet Ports
5 × 10/100 Mbps RJ45, supports WAN/LAN/VLAN, 1.5KV network isolation transformer protection
LED Indicators
Power, System, Network, Wi-Fi, Signal
Power Interface
DC 9~36V, overcurrent/reverse polarity protection, 2-pin industrial terminal
Grounding Terminal
Supported
Cellular Antenna Connectors
4G: SMA ×1

Firewall And Access Control

Acl
Access Control List, supports source/destination address, port, protocol configuration
Dmz
DMZ host configuration
Nat
Supports source address, destination address, port, interface configuration
Ieee 802 1x
802.1x port-level access authentication
Port Mapping
Supports protocol, source address, service port, internal port, external interface configuration
Spi Firewall
Stateful packet inspection
Dos Protection
Denial of Service attack protection
IP Mac Binding
Static binding of IP and MAC address
Content Filtering
Supports domain filtering, domain auto-refresh mechanism
Virtual IP Mapping
Supports source address range configuration
Device Access Control
Supports interface, protocol, source address, port configuration
Mac Address Filtering
Supports black/whitelist mode

Environment And Certifications

Emc
EN61000-4-2 level 3 ESD; EN61000-4-3 level 3 Radiated Electric Field; EN61000-4-4 level 3 Burst; EN61000-4-5 level 3 Surge; EN61000-4-6 level 3 Conducted Disturbance Immunity; EN61000-4-8 >level 2 Power Frequency Magnetic Field Immunity, horizontal/vertical 400A/m; EN61000-4-12 level 3 Oscillatory Wave Immunity
Ambient Humidity
5~95% (non-condensing)
Ff39 Certificates
IR315-FF39 PTCRB and IC certificates
Storage Temperature
-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Physical Characteristics
Shock IEC60068-2-27; Vibration IEC60068-2-6; Drop IEC60068-2-32
Certifications Ir315 Family
CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, T-Mobile, RCM, IMDA, MIC&JATE, SRRC, UL, C1D2, IEC 62443-4-2, EN18031
Operating Temperature Extended
-40 °C ~ 75 °C (-40 °F ~ 167 °F)
Operating Temperature Standard
-35 °C ~ 70 °C (-31 °F ~ 158 °F)

Questions buyers ask

What does the IR315-FF39-G part number include?

FF39 is the North American LTE Cat 6 radio. The -G suffix adds GNSS, and because there is no -S suffix, the unit has the default 4 × configurable digital I/O rather than serial ports. There is no -WLAN suffix, so Wi-Fi is not fitted.

Which satellite systems does the GNSS support?

The IR315 GNSS option supports GPS, GLONASS, BeiDou, Galileo and QZSS with ±2.5 m accuracy. It can also provide GPS time synchronization for the router's NTP server.

How do I log in for the first time?

Install the antennas, insert the SIM with the router powered off, then connect power. Connect a computer to a LAN port, set it to DHCP or a 192.168.2.x static address, and browse to http://192.168.2.1. Log in with the credentials printed on the device label.

Do I have to set the APN manually?

Usually not. The IR315 auto-detects the carrier and applies the matching APN in most cases, including built-in profiles for AT&T, Verizon and T-Mobile. If the link does not come up, set the APN under Network > Cellular.

Can it use a wired connection with cellular as backup?

Yes. Under Network > Link Backup, set WAN as the main link and cellular as the backup, then choose hot backup or cold backup and set an ICMP detection server. Load balancing across links is also supported.
