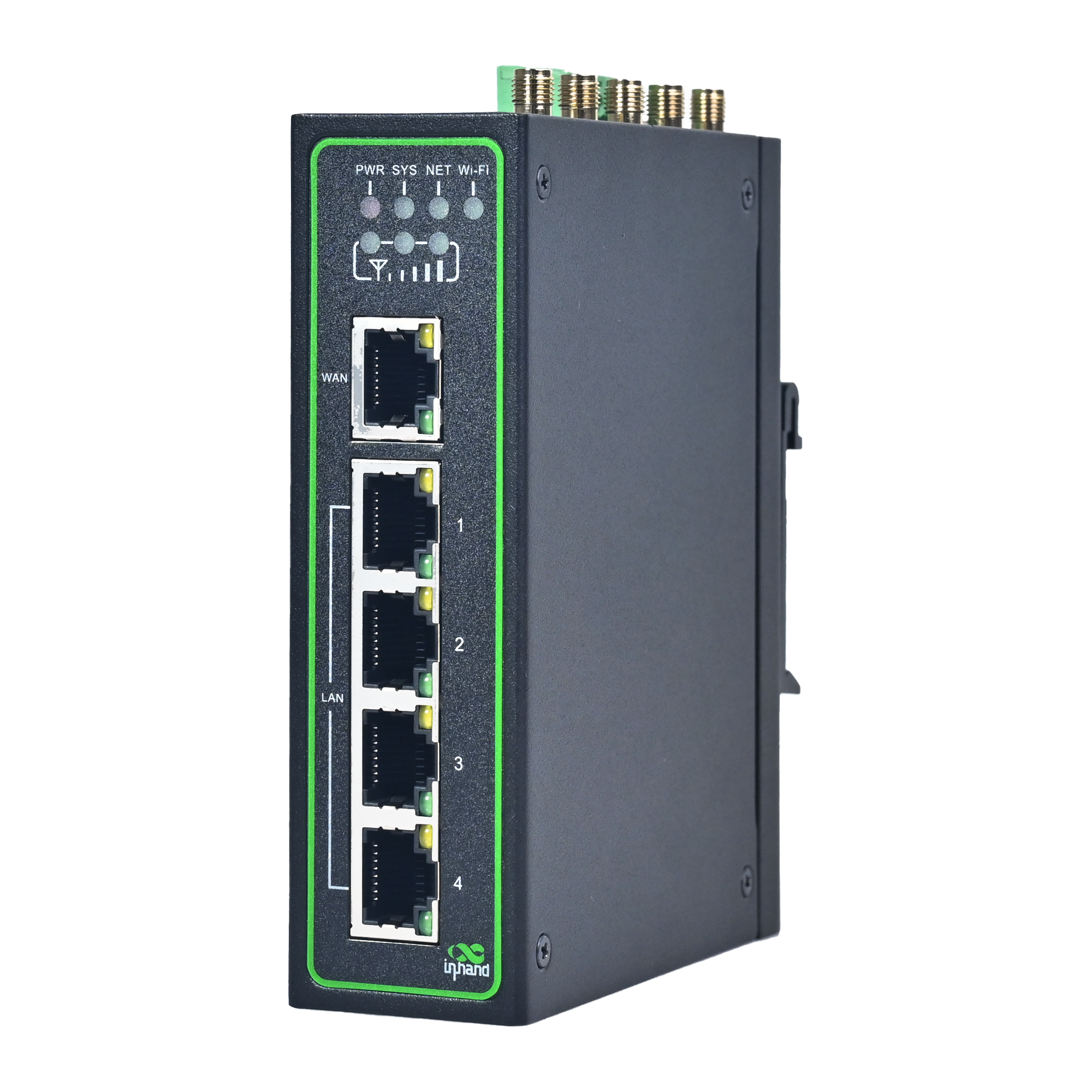

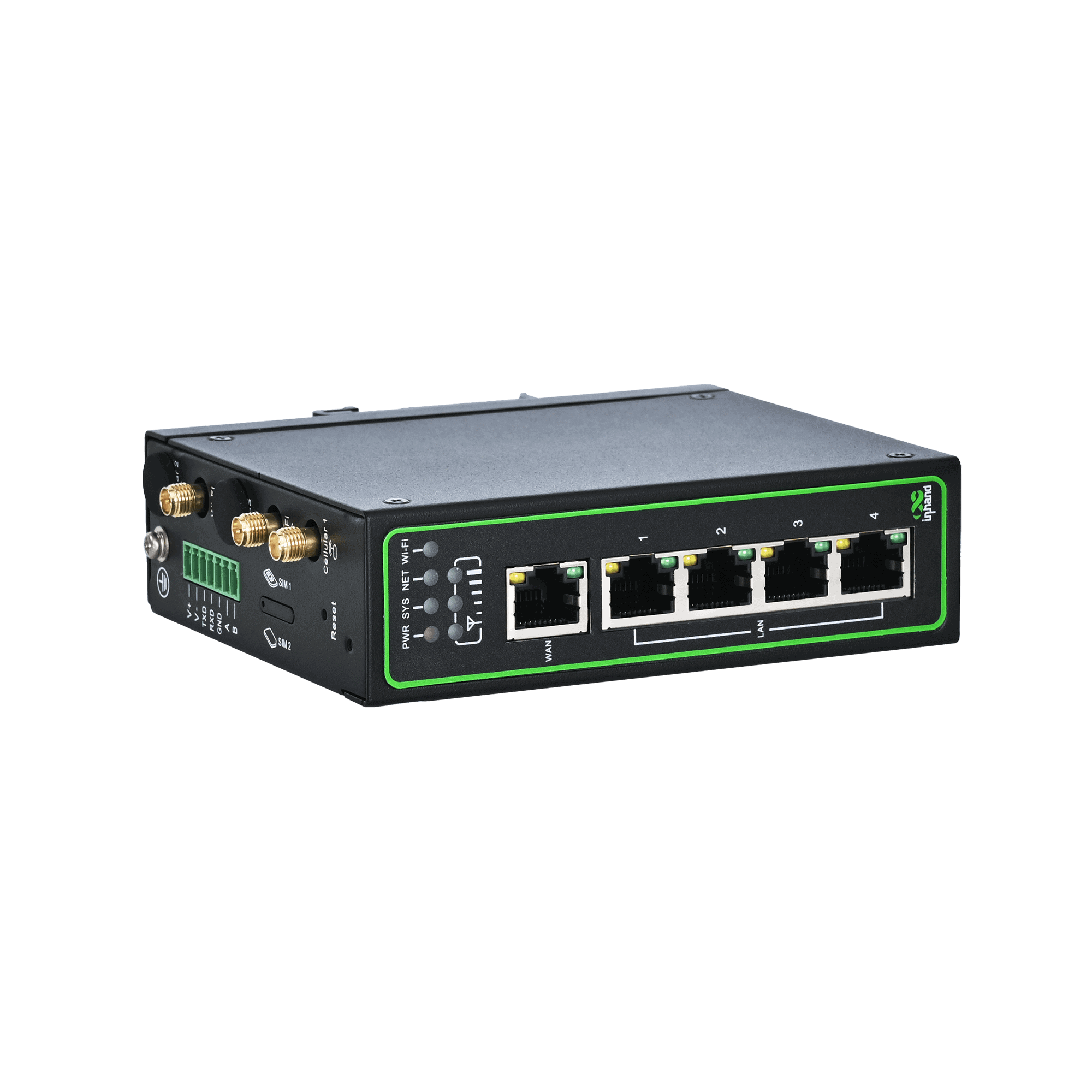

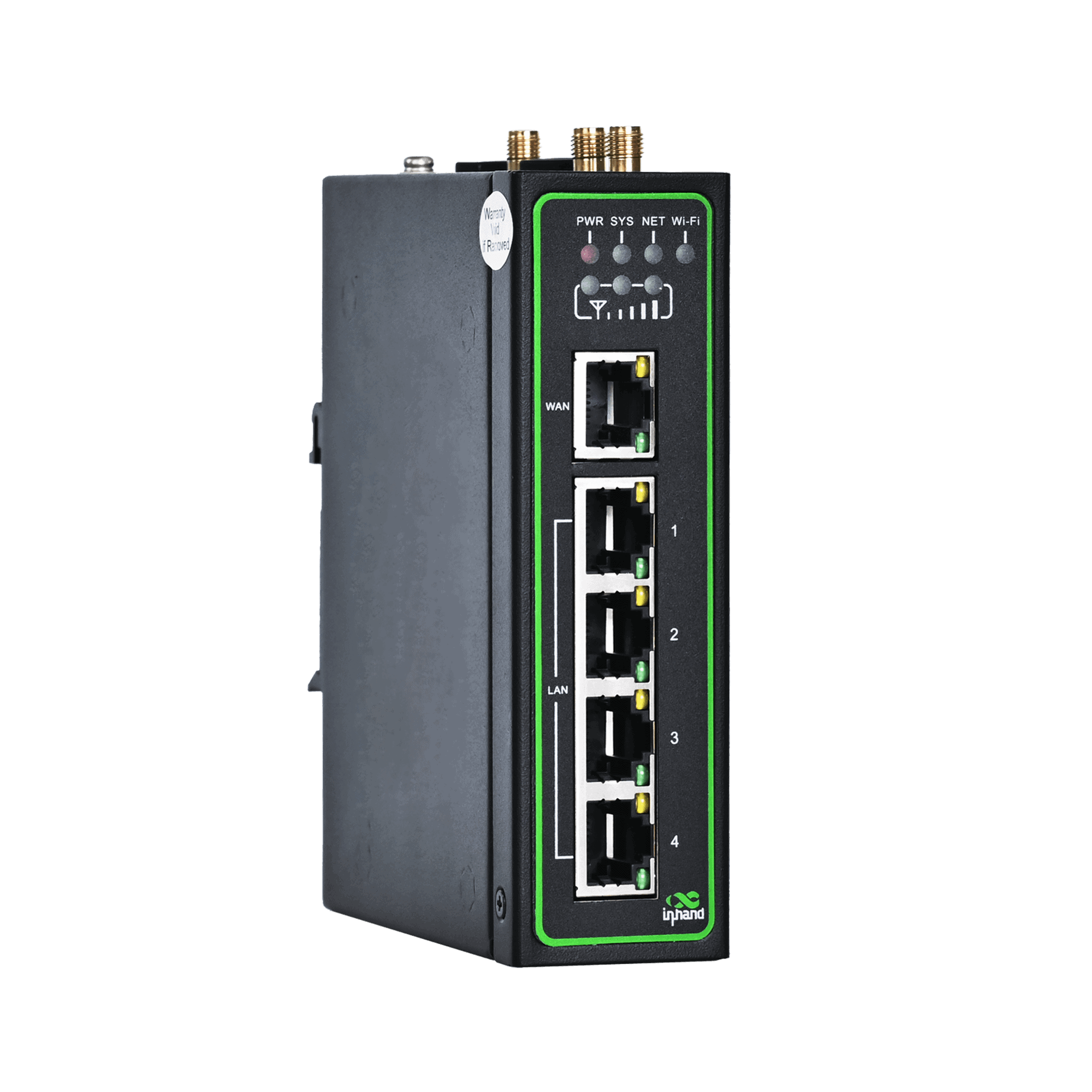

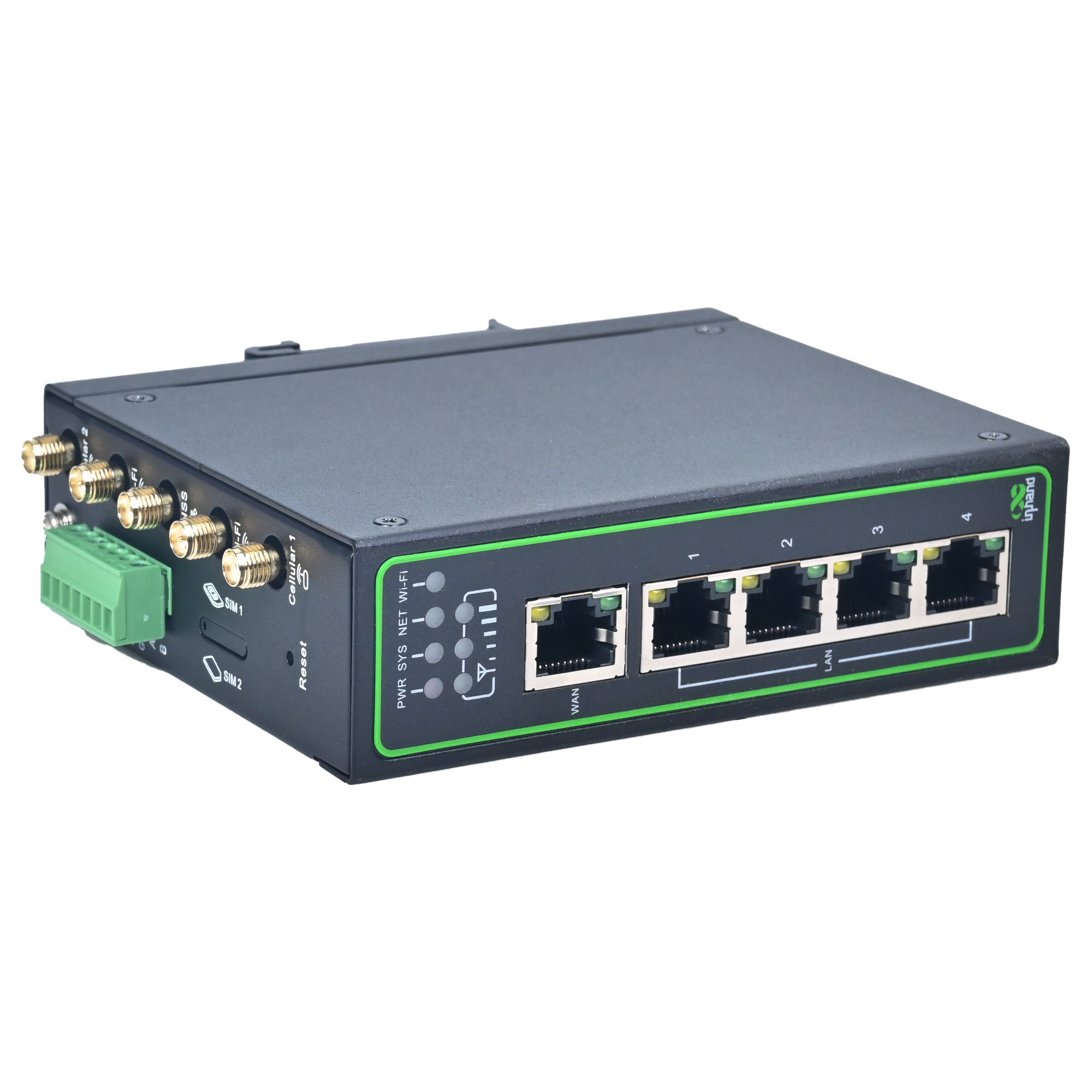

InHand Networks IR315 Industrial 4G LTE Cat 6 Router with RS-232/RS-485 Serial (IR315-FF39-S)

4G LTEMPN IR315-FF39-S
  • Rugged
$200.46$239.00Save $38.54

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IR315-FF39-S is the North American LTE Cat 6 serial build of the IR315 industrial router. It pairs one RS-232 and one RS-485 port with five 10/100 Ethernet ports, dual Nano-SIM failover and a fanless, DIN-rail metal enclosure. It brings meters, PLCs and legacy serial equipment onto cellular networks, with Modbus RTU-to-TCP bridging, DTU transparent transmission and InHand Device Manager cloud management.

  • North American LTE Cat 6 cellular (FF39), with Band 66 and Band 71 support
  • 1 × RS-232 + 1 × RS-485 serial ports
  • Modbus RTU to Modbus TCP bridge and DTU TCP/UDP transparent transmission
  • 5 × 10/100 Mbps RJ45 ports with WAN/LAN/VLAN roles and 1.5 kV isolation
  • Dual Nano-SIM with policy-based switching, plus cellular/WAN backup and VRRP
  • IPsec, OpenVPN, WireGuard, ZeroTier, L2TP, GRE, DMVPN and PPTP VPN support
  • InHand Device Manager cloud management, SNMP v1/v2c/v3 and HTTP/HTTPS API
  • Connect legacy RS-232 and RS-485 equipment to modern SCADA or cloud systems without extra gateways

The IR315-FF39-S is built for sites where the equipment still speaks serial: RTUs, PLCs, meters, sensors and older controllers that need a secure path back to a SCADA or cloud system. This part number is the North American (FF39) LTE Cat 6 model, with LTE Band 66 and Band 71 support. The -S option replaces the default I/O block with 1 × RS-232 and 1 × RS-485.

On the serial side, the router offers Modbus RTU to Modbus TCP bridging and DTU transparent transmission over TCP/UDP, with domain name support. It also keeps per-port traffic statistics and TCP connection status for both serial interfaces. Five 10/100 Mbps RJ45 ports, each with 1.5 kV isolation and configurable as WAN, LAN or VLAN, handle the IP devices in the same cabinet.

Uptime comes from dual Nano-SIM with switching on signal, packet-loss or dial-failure thresholds. Cellular and wired WAN can back each other up in hot backup, cold backup or load-balancing mode, and VRRP and an embedded watchdog add further redundancy. Security covers an SPI firewall, DoS protection, ACLs, 802.1x and signed firmware. VPN options are IPsec (up to 10 tunnels, AES256-SHA512), OpenVPN, WireGuard, ZeroTier, L2TP, GRE, DMVPN and PPTP.

The IP30 metal housing is fanless and measures 127 × 108.2 × 35 mm at 454 g. It runs on 9-36 VDC with overcurrent and reverse-polarity protection. Fleets are managed through InHand Device Manager, SNMP v1/v2c/v3, an HTTP/HTTPS API, SSH or SMS. The IR315 Datasheet V1.3 and DIN-rail drawing are available for this model.

Ideal for

  • Cellular backhaul for RS-485 Modbus RTU meters, RTUs and PLCs
  • Retrofitting legacy RS-232 equipment with remote cellular access
  • Oil and gas, water and wastewater SCADA telemetry
  • Energy and building-automation cabinets with mixed serial and Ethernet devices
  • Wired-WAN industrial sites that need cellular failover

Specifications

General

MPN
IR315-FF39-S
GNSS
No GNSS in this configuration (GNSS models carry the -G suffix)
Wi-Fi
No Wi-Fi in this configuration (Wi-Fi models carry the -WLAN suffix)
Brand
InHand Networks
Model
IR315 Industrial Router
Region
North American model (FF39)
Configuration
North American LTE Cat 6 with RS-232 + RS-485 serial

Documents

Drawing
IR315 DIN Rail 2D Drawing V1.0
Datasheet
IR315 Datasheet V1.3

Mechanical

Weight
454 g (1 lb)
Mounting
DIN rail
Dimensions
127 × 108.2 × 35 mm (5 × 4.26 × 1.38 in) (W × D × H)
Protection Rating
IP30
Enclosure And Cooling
Metal shell, fanless cooling

Device Power

Peak Power
320 mA@12V
Power Supply
DC 9~36 V, overcurrent/reverse polarity protection, 2-pin industrial terminal
Standby Power
120~200 mA@12V
Operating Power
150~320 mA@12V

Wired Network

Vlan
Supports Access/Trunk mode, VLAN IP address pool configuration
Port Roles
Supports flexible WAN/LAN/VLAN configuration
WAN Protocol
Static IP, DHCP, PPPoE
Ethernet Ports
5 × 10/100 Mbps RJ45
Gratuitous Arp
Supports GARP broadcast, configurable broadcast count (1-10) and timeout (1-60 seconds)
IP Passthrough
Supports IP Passthrough function, distributing WAN port address to LAN port devices
Isolation Protection
1.5KV network isolation transformer protection

CPU And Storage

CPU
580 MHz
RAM
128 MB DDR2
Flash
64 MB SPI

Logs And Alarms

SMS Alarm
Supports SMS query and configuration of APN/SIM/operator, remote status query and restart
Remote Log
Supports Syslog server (UDP 514 port)
System Log
Local/remote/serial log output, supports user-defined remote log prefix
System Alarm
System restart, LAN up/down, SIM failure, signal quality abnormal alarm
Traffic Alarm
Monthly/24-hour/hourly traffic threshold alarm, traffic overrun reporting to cloud platform
Status Reporting
Supports system, Modem, network connection, routing status reporting

Cellular Network

SIM Card
Dual Nano-SIM, drawer-type slot
Technology
4G LTE Cat 6 (FDD LTE/TDD LTE)
Dialing Mode
PPP, QMI, ECM (depending on model)
Network Access
APN, VPDN
Connection Mode
Always online, on-demand dialing, manual dialing
LTE Bands Noted
North America variant with LTE Band 66 and Band 71
Signal Reporting
Supports RSRP, RSRQ, SINR, RSSI, RSCP, Ec/Io, PCI, BAND and other parameter reporting
Pdp Configuration
Supports IPv4/IPv4V6
Dual SIM Switching
Supports SIM switching policies triggered by signal threshold, packet loss threshold, dial failure count, etc.
Access Authentication
CHAP/PAP
Operator Configuration
Built-in global mainstream operator APN configurations, supports T-Mobile, AT&T, Verizon, etc.

Network Services

Dns
DNS proxy, DNS forwarding, supports custom domain name server
Ntp
NTP server function
Qos
Bandwidth limiting, IP rate limiting
Dhcp
Server/Client, supports static binding (up to 200 entries), address pool range automatic verification
Portal
Captive portal authentication
Sip Alg
SIP Application Layer Gateway
Packet Capture
Built-in TCPDUMP packet capture tool, supports interface, capture count, expert options configuration
Scheduled Tasks
Scheduled restart, supports advanced options to configure multiple rules
Maintenance Tools
Ping, traceroute, speed test, ARPING

Device Management

Snmp
SNMP v1/v2c/v3, supports custom communication port
Console
Local serial console management
Http API
Supports HTTP/HTTPS API, remote query and configuration
Inconnect
Supports device remote access and NAT rule issuance
Snmp Trap
Alarm information active reporting
Ssh Telnet
Remote command line management
Cloud Platform
Device Manager/ICS platform
Device Manager
InHand device cloud platform, supports batch management, remote configuration, firmware upgrade
System Upgrade
Supports Web upgrade and Device Manager remote upgrade
Firmware Signature
System firmware adds signature verification to prevent firmware tampering
Configuration Management
Supports configuration import/export, factory reset

Routing Capability

Nat
Network Address Translation, supports port mapping, virtual IP mapping
Ddns
DDNS, supports HTTPS update
Ospf
OSPF dynamic routing, supports router ID and network advertisement
Static Routing
Supports destination network, subnet mask, gateway, interface configuration, supports priority

Industrial Protocols

Dtu
TCP/UDP transparent transmission, DCTCP/DCUDP mode, supports domain name configuration
Smart Ems
Supports cellular IP address reporting
Modbus Bridge
Modbus RTU to Modbus TCP
Serial Traffic Statistics
Supports RS-232/RS-485 serial port traffic statistics, TCP connection status display

VPN And Data Security

Gre
Generic Routing Encapsulation tunnel
L2tp
Supports L2TP over IPsec, supports NAT traversal
Pptp
Supports client/server mode
Dmvpn
Dynamic Multipoint VPN
Ipsec
Supports IKEv1/IKEv2, AES256-SHA512 encryption algorithm, up to 10 tunnels, supports peer domain name configuration
Openvpn
Supports TAP/TUN mode, TLS-auth/tls-crypt options, AES-256-GCM/SHA256 encryption
Zerotier
Supports virtual LAN networking, multiple tunnels configurable
Wireguard
WireGuard, supports connection status detection
Certificate Management
Supports CA certificate, PKCS12 certificate import/export

Link Backup And Redundancy

Vrrp
Virtual Router Redundancy Protocol, supports virtual MAC, priority election
Watchdog
Embedded watchdog
Link Backup
Supports cellular/WAN mutual backup, hot backup/cold backup/load balancing three modes
Icmp Detection
Supports detection server, interval, timeout, maximum retry count configuration
Load Balancing
After ICMP detection succeeds, data is transmitted through the corresponding link

Connectivity And Interfaces

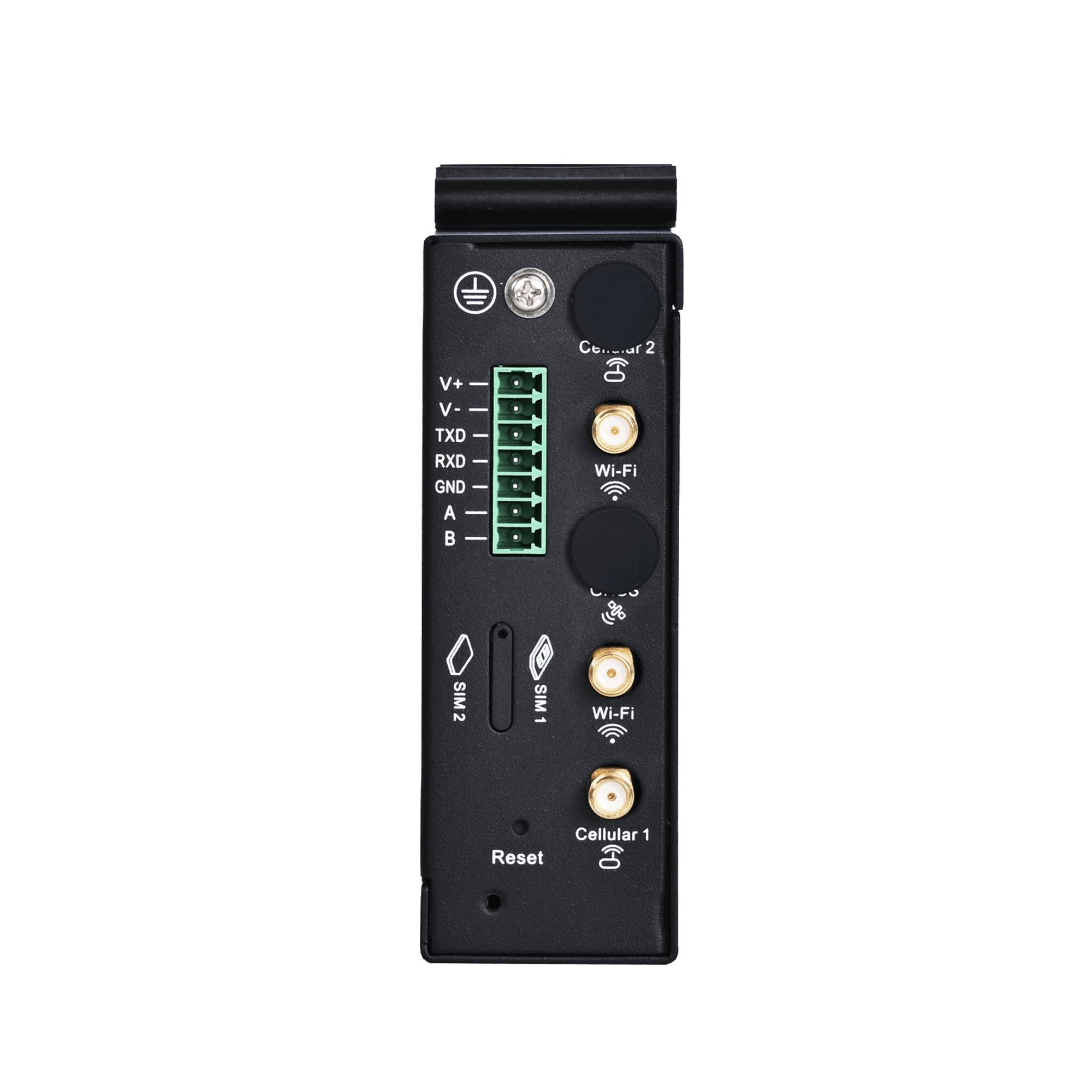

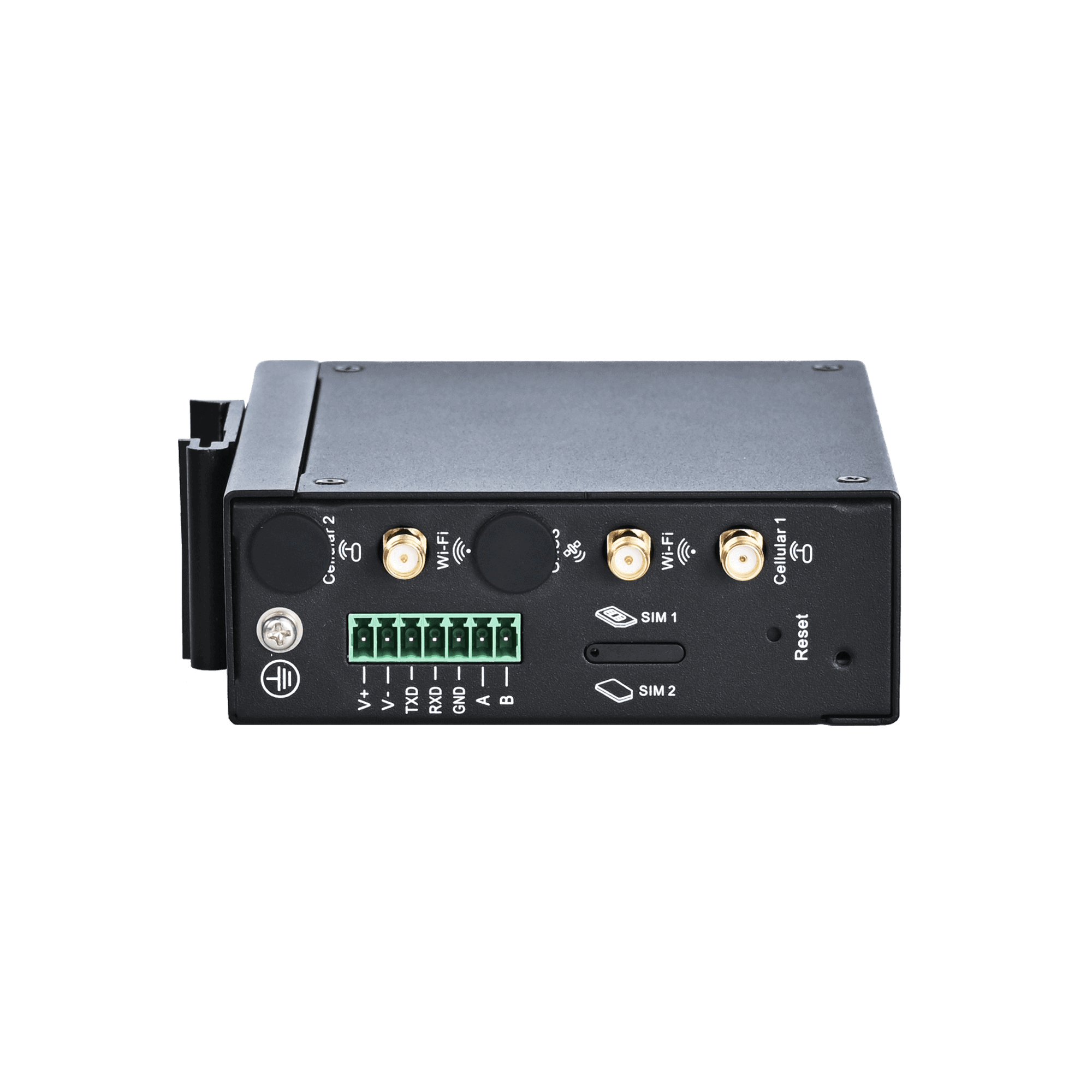

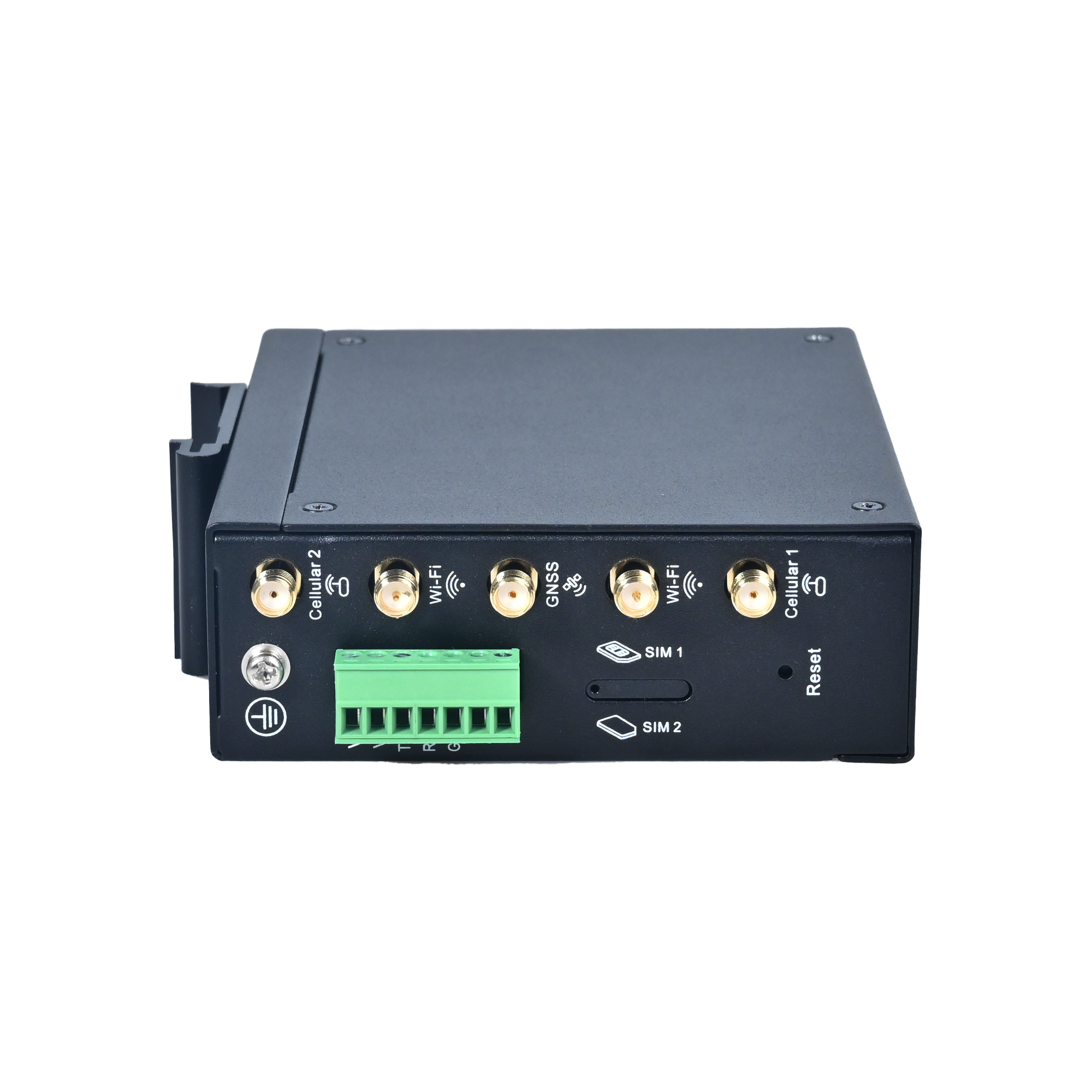

Serial Port
1 × RS-232 + 1 × RS-485
Reset Button
Pinhole reset button
SIM Card Slot
Drawer-type slot ×1, supports 2 × Nano-SIM
Ethernet Ports
5 × 10/100 Mbps RJ45, supports WAN/LAN/VLAN, 1.5KV network isolation transformer protection
LED Indicators
Power, System, Network, Wi-Fi, Signal
Power Interface
DC 9~36V, overcurrent/reverse polarity protection, 2-pin industrial terminal
Grounding Terminal
Supported
Cellular Antenna Connectors
4G: SMA ×1

Firewall And Access Control

Acl
Access Control List, supports source/destination address, port, protocol configuration
Dmz
DMZ host configuration
Nat
Supports source address, destination address, port, interface configuration
Ieee 802 1x
802.1x port-level access authentication
Port Mapping
Supports protocol, source address, service port, internal port, external interface configuration
Spi Firewall
Stateful packet inspection
Dos Protection
Denial of Service attack protection
IP Mac Binding
Static binding of IP and MAC address
Content Filtering
Supports domain filtering, domain auto-refresh mechanism
Virtual IP Mapping
Supports source address range configuration
Device Access Control
Supports interface, protocol, source address, port configuration
Mac Address Filtering
Supports black/whitelist mode

Environment And Certifications

Emc
EN61000-4-2 level 3 ESD; EN61000-4-3 level 3 Radiated Electric Field; EN61000-4-4 level 3 Burst; EN61000-4-5 level 3 Surge; EN61000-4-6 level 3 Conducted Disturbance Immunity; EN61000-4-8 >level 2 Power Frequency Magnetic Field Immunity, horizontal/vertical 400A/m; EN61000-4-12 level 3 Oscillatory Wave Immunity
Ambient Humidity
5~95% (non-condensing)
Ff39 Certificates
IR315-FF39 PTCRB and IC certificates
Storage Temperature
-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Physical Characteristics
Shock IEC60068-2-27; Vibration IEC60068-2-6; Drop IEC60068-2-32
Certifications Ir315 Family
CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, T-Mobile, RCM, IMDA, MIC&JATE, SRRC, UL, C1D2, IEC 62443-4-2, EN18031
Operating Temperature Extended
-40 °C ~ 75 °C (-40 °F ~ 167 °F)
Operating Temperature Standard
-35 °C ~ 70 °C (-31 °F ~ 158 °F)

Questions buyers ask

What does the -S in IR315-FF39-S mean?

The -S option fits 1 × RS-232 and 1 × RS-485 serial ports. Serial and the 4 × digital I/O block are mutually exclusive on the IR315, so this unit has serial instead of I/O. FF39 is the North American LTE Cat 6 radio.

Can it connect Modbus RTU devices to a Modbus TCP system?

Yes. The IR315 includes a Modbus RTU to Modbus TCP bridge. It also includes DTU transparent transmission over TCP or UDP for other serial protocols.

Does this model have GPS or Wi-Fi?

No. GNSS comes with the -G suffix (IR315-FF39-S-G), and Wi-Fi models carry a -WLAN suffix. This part number has neither.

How do I log in for the first time?

Insert the SIM with the power off, fit the antenna and power up. Connect a computer to a LAN port on DHCP or a 192.168.2.x address, browse to http://192.168.2.1 and log in with the credentials on the device label.

What happens if one SIM loses service?

The router can switch to the second Nano-SIM based on signal threshold, packet loss or dial failure count. It can also fail over between cellular and a wired WAN link.
