InHand Networks5G & LTE Routers

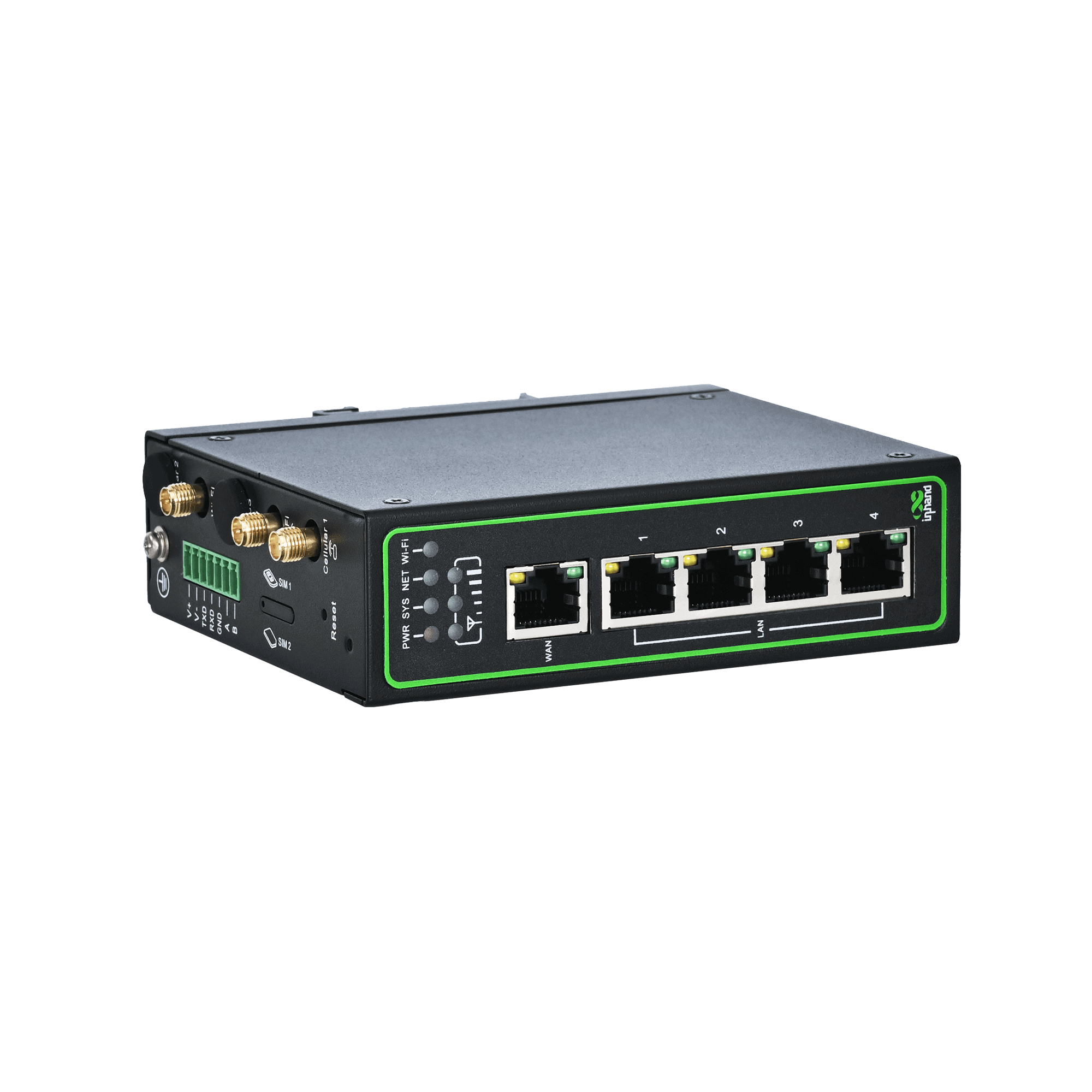

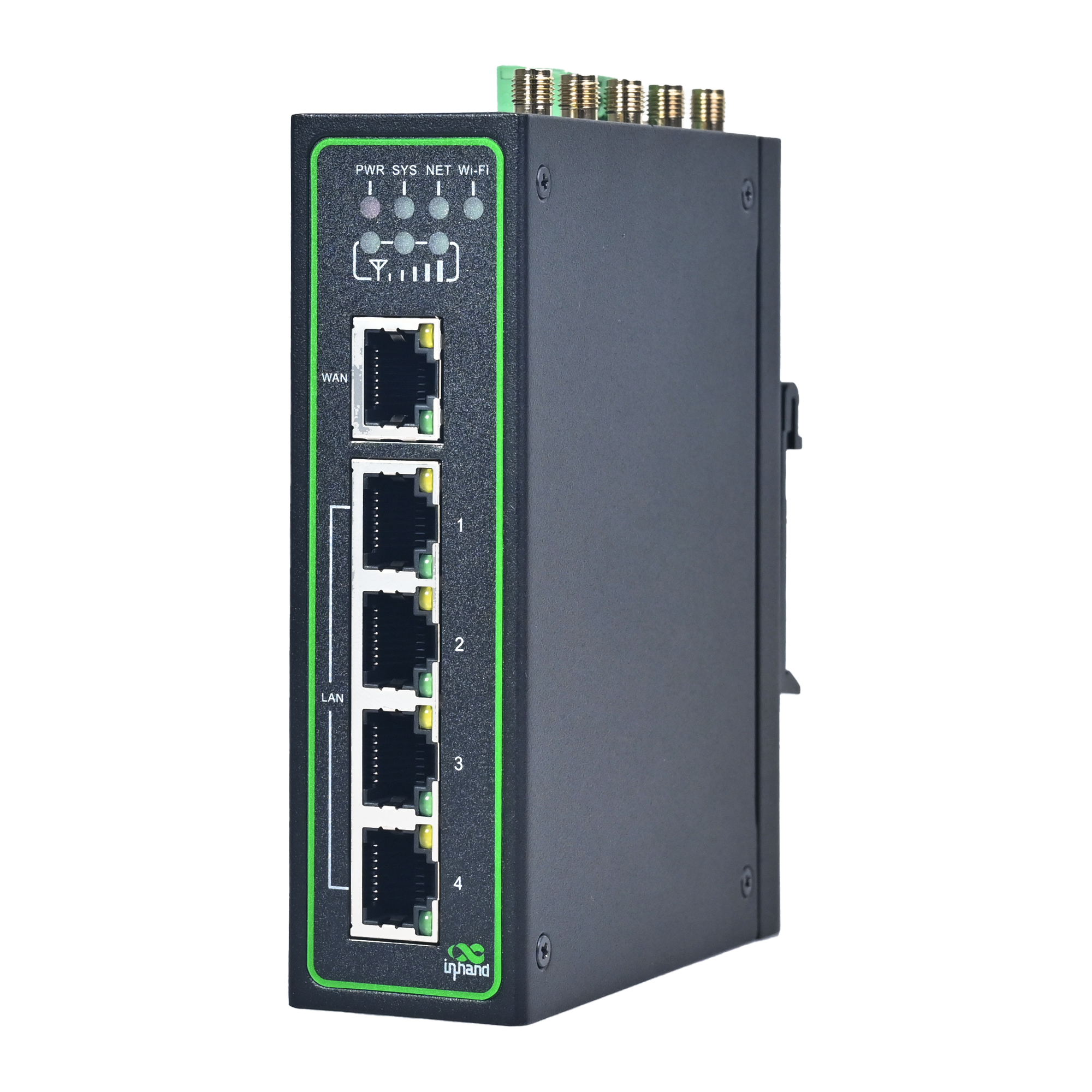

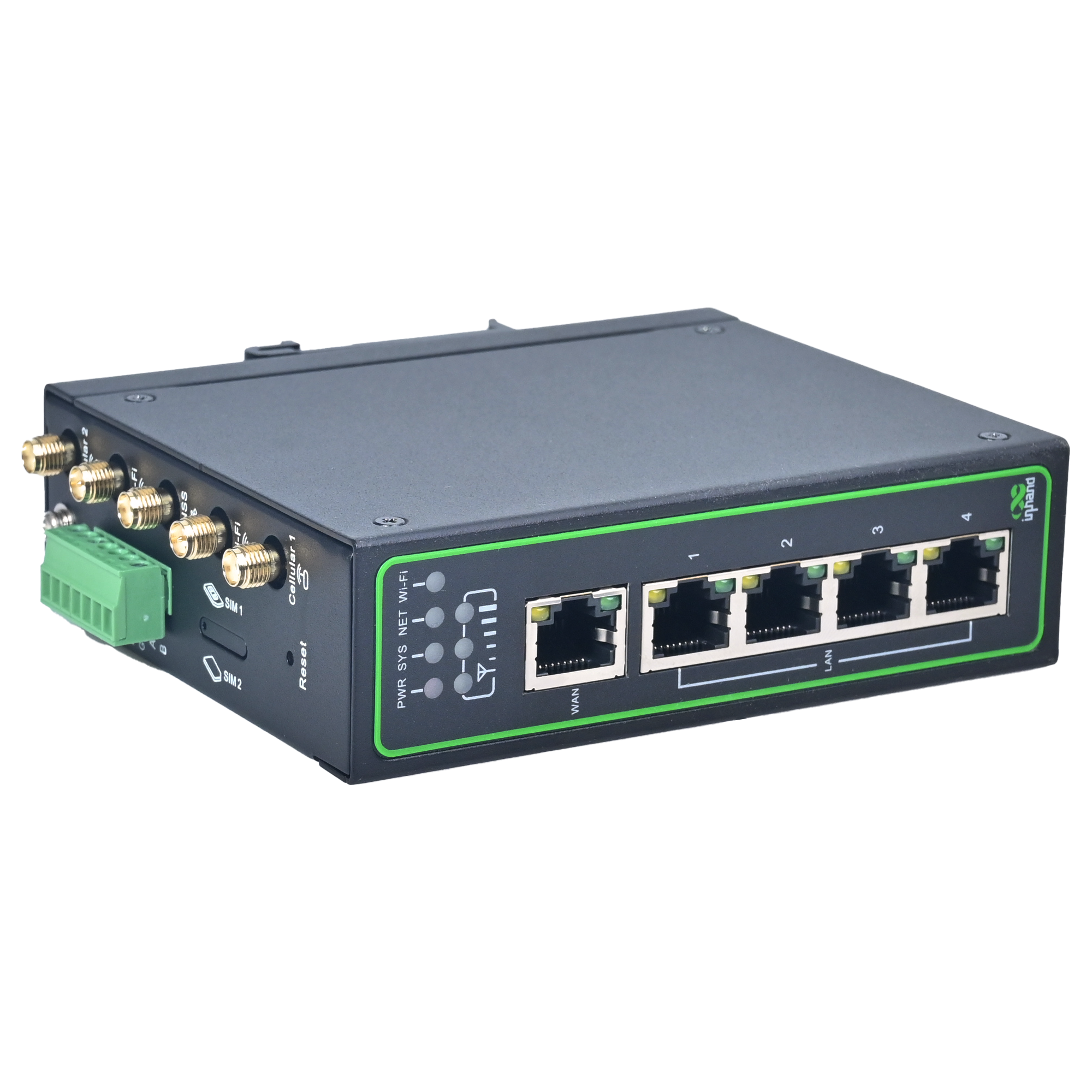

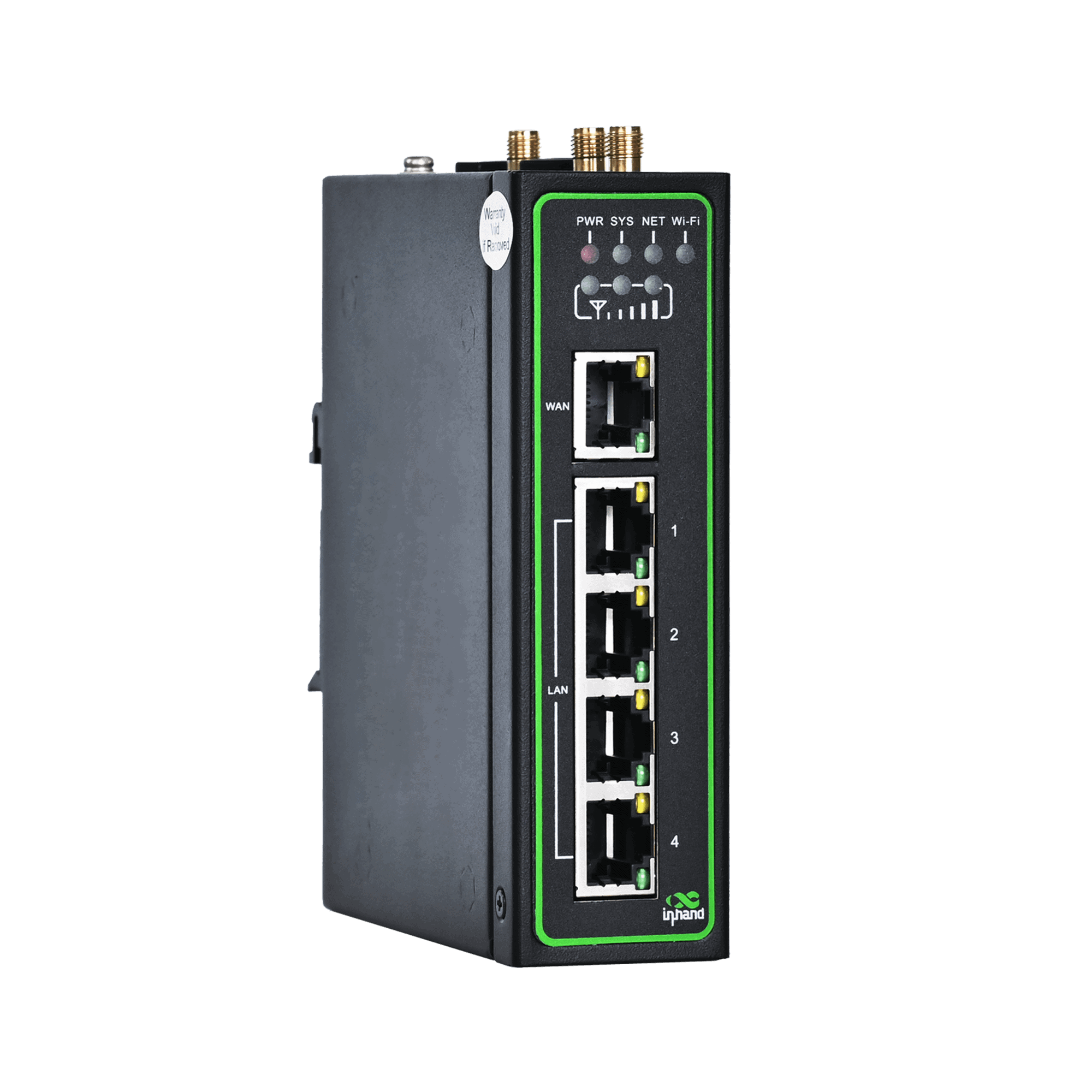

InHand Networks IR315 Industrial 4G LTE Router with Wi-Fi, RS-232/RS-485 Serial and GNSS – North America

4G LTEMPN IR315-FF39-WLAN-S-G
  • GPS/GNSS
  • Rugged
$216.91$259.00Save $42.09

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IR315-FF39-WLAN-S-G is the fully optioned North American LTE Cat 6 build of the IR315 industrial router. It adds multi-constellation GNSS to dual Nano-SIM cellular, five 10/100 Ethernet ports and 2.4 GHz 802.11n Wi-Fi. It also has one RS-232 and one RS-485 port. The router is housed in a fanless IP30 DIN-rail metal enclosure and runs on 9–36 V DC. It is designed for unattended industrial, utility, transport and commercial IoT sites that need location data alongside secure connectivity.

  • North American LTE Cat 6 with dual Nano-SIM drawer and policy-based SIM switching
  • GNSS positioning: GPS, GLONASS, BeiDou, Galileo and QZSS with ±2.5 m accuracy
  • 5 × 10/100 Mbps RJ45 ports configurable as WAN/LAN/VLAN with 1.5 kV isolation
  • 1 × RS-232 + 1 × RS-485 serial with DTU mode and Modbus RTU-to-TCP bridge
  • 2.4 GHz IEEE 802.11 b/g/n Wi-Fi up to 300 Mbps, AP/Client/WDS
  • IPsec, OpenVPN, WireGuard, ZeroTier, L2TP, GRE, DMVPN VPN support with SPI firewall
  • Fanless IP30 metal DIN-rail housing, 9–36 V DC, -35 °C to 70 °C standard operation
  • Tracks where equipment is with multi-constellation GNSS on the same router that carries its data

The InHand Networks IR315-FF39-WLAN-S-G is the North American LTE Cat 6 version of the IR315 industrial router, configured with Wi-Fi, serial and GNSS. The -G option adds positioning across GPS, GLONASS, BeiDou, Galileo and QZSS, with ±2.5 m accuracy. That makes the unit a good fit for assets whose location matters, such as vehicles, portable equipment and widely distributed field installations. GNSS parameters can be reported alongside cellular signal data.

The interface set covers most field cabinets. Five 10/100 Mbps RJ45 ports can be configured as WAN, LAN or VLAN, each with 1.5 kV isolation. One RS-232 and one RS-485 port support DTU transparent transmission and Modbus RTU to Modbus TCP bridging. The 2.4 GHz IEEE 802.11 b/g/n Wi-Fi runs at up to 300 Mbps in AP, Client or WDS mode.

For continuity, the router provides a dual Nano-SIM drawer with policy-based SIM switching. It also supports cellular/WAN hot backup, cold backup and load balancing, along with VRRP and an embedded watchdog. Security includes an SPI firewall, DoS protection, ACLs, 802.1x and signed firmware. VPN options are IPsec with up to 10 tunnels, OpenVPN, WireGuard, ZeroTier, L2TP, GRE, DMVPN and PPTP.

The fanless IP30 metal housing mounts on DIN rail and accepts 9–36 V DC with overcurrent and reverse-polarity protection. It is tested to IEC shock, vibration and drop standards. Operating range is -35 °C to 70 °C, or -40 °C to 75 °C on extended versions. Management options include InHand Device Manager, SNMP v1/v2c/v3, HTTP/HTTPS API, SSH and SMS alarms. The IR315 Datasheet V1.3 documents the full specification.

Ideal for

  • Location-aware connectivity for utility, oil and gas, and environmental monitoring sites
  • Connected transit, fleet and mobile equipment needing position reporting
  • Serial RTU and PLC backhaul with Modbus RTU-to-TCP bridging
  • Precise NTP time source for substations and industrial networks via GPS time sync
  • Failover WAN for distributed commercial IoT locations

Specifications

GNSS

Accuracy
±2.5 m
Time Sync
NTP server with GPS time synchronization
Constellations
GPS, GLONASS, BeiDou, Galileo, QZSS

Wi-Fi

Protocol
IEEE 802.11 b/g/n
Bandwidth
20 MHz / 40 MHz
Maximum Rate
Up to 300 Mbps
Working Mode
AP / Client / WDS
Transmit Power
16 dBm ±2 dBm (802.11b 11 Mbps; 802.11g 54 Mbps; 802.11n HT20/HT40 MCS7)
Encryption Mode
NONE, WEP, TKIP, AES
Radio Frequency
2.4 GHz
Antenna Interface
RP-SMA ×2
Security Features
Wi-Fi password encrypted display, Wi-Fi user isolation, AP black/whitelist
Authentication Mode
Open, WEP, WPA-PSK, WPA2-PSK, WPA/WPA2, etc.
Transmission Distance
Approx. 50 m line-of-sight (affected by site environment)

Power

Peak Current
320 mA @ 12 V
Input Voltage
DC 9~36 V, overcurrent/reverse polarity protection
Standby Current
120~200 mA @ 12 V
Operating Current
150~320 mA @ 12 V

General

MPN
IR315-FF39-WLAN-S-G
Brand
InHand Networks
Model
IR315 Industrial Router
Region
North American variant
Configuration
LTE Cat 6 with serial port, Wi-Fi and GNSS

Package

Documentation
IR315 Datasheet V1.3
Shipping Weight
0.95 lb

Routing

Nat
NAT with port mapping and virtual IP mapping
Ddns
DDNS with HTTPS update
Ospf
OSPF with router ID and network advertisement
Static Routing
Destination network, subnet mask, gateway, interface and priority

Cellular

Bands
North American LTE bands including B66 and B71
SIM Card
Dual Nano-SIM, drawer-type slot
Technology
4G LTE Cat 6
Dialing Mode
PPP, QMI, ECM (depending on model)
Network Access
APN, VPDN
Connection Mode
Always online, on-demand dialing, manual dialing
Signal Reporting
RSRP, RSRQ, SINR, RSSI, RSCP, Ec/Io, PCI, BAND and other parameters
Antenna Connector
SMA ×1 (North American 4G models)
Pdp Configuration
Supports IPv4/IPv4V6
Dual SIM Switching
SIM switching policies triggered by signal threshold, packet loss threshold, dial failure count, etc.
Access Authentication
CHAP/PAP
Operator Configuration
Built-in mainstream operator APN configurations, supports T-Mobile, AT&T, Verizon, etc.

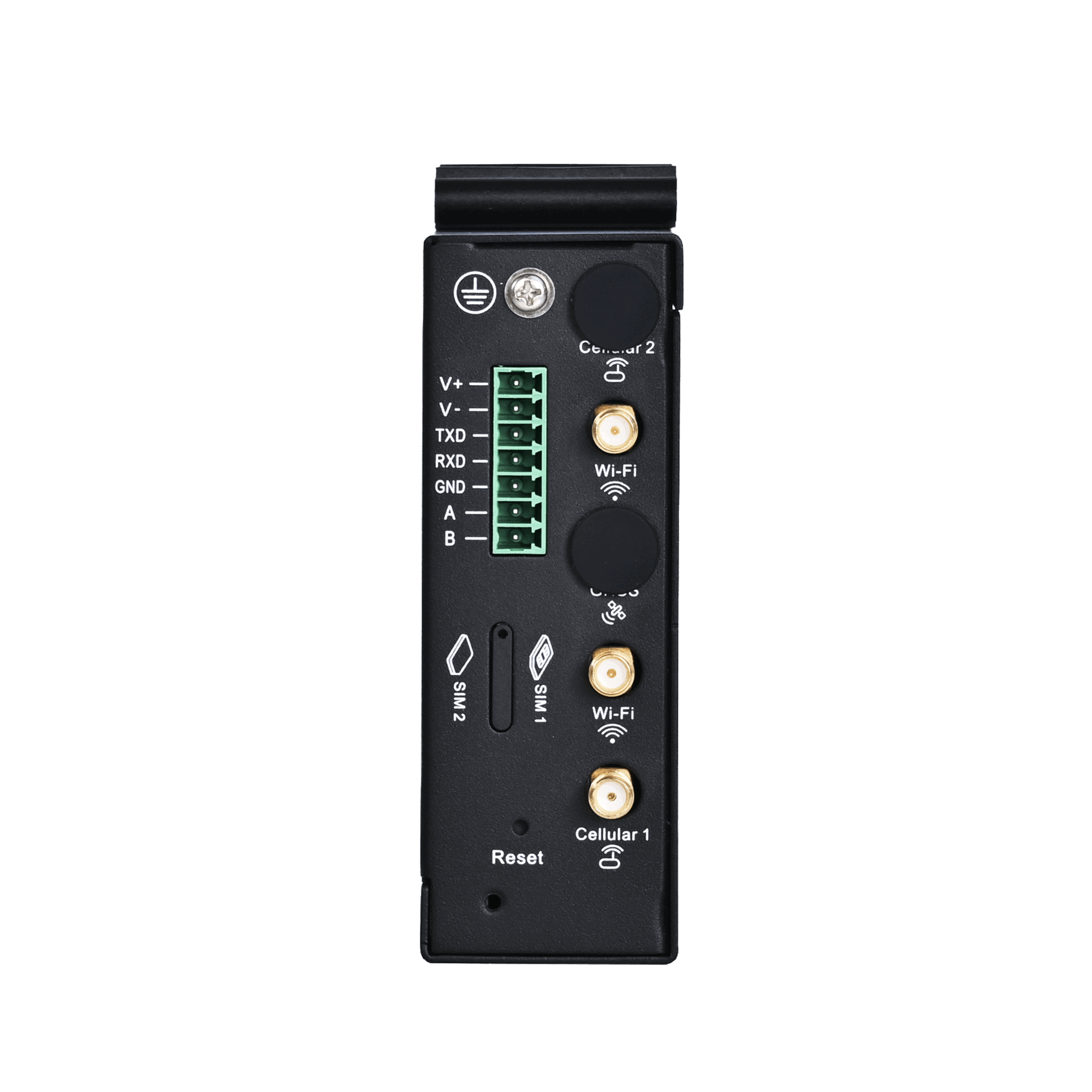

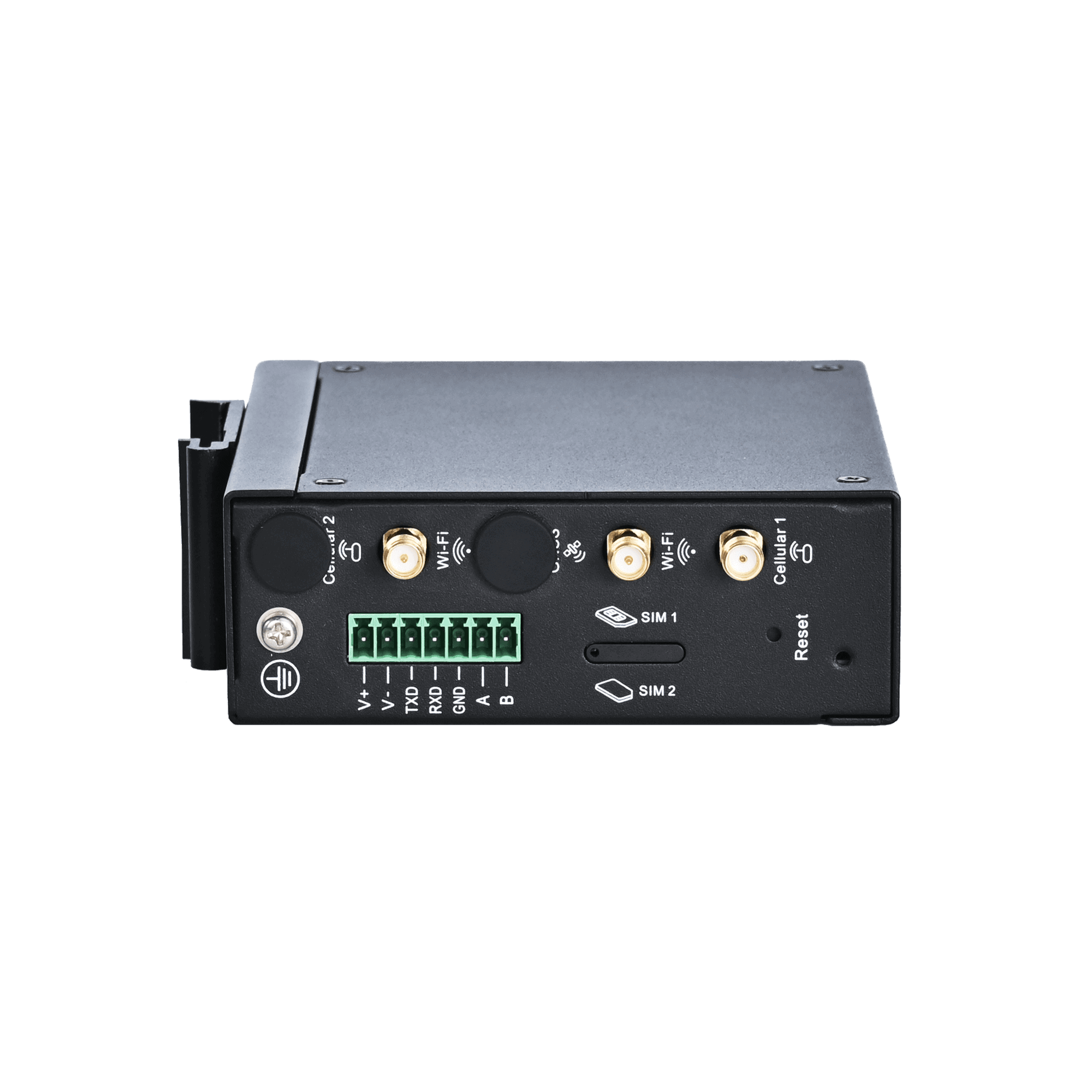

Interfaces

Serial
1 × RS-232 + 1 × RS-485
Ethernet
5 × 10/100 Mbps RJ45, WAN/LAN/VLAN, 1.5 kV isolation
SIM Slot
Drawer-type slot ×1, supports 2 × Nano-SIM
Reset Button
Pinhole reset button
LED Indicators
Power, System, Network, Wi-Fi, Signal
Power Interface
2-pin industrial terminal

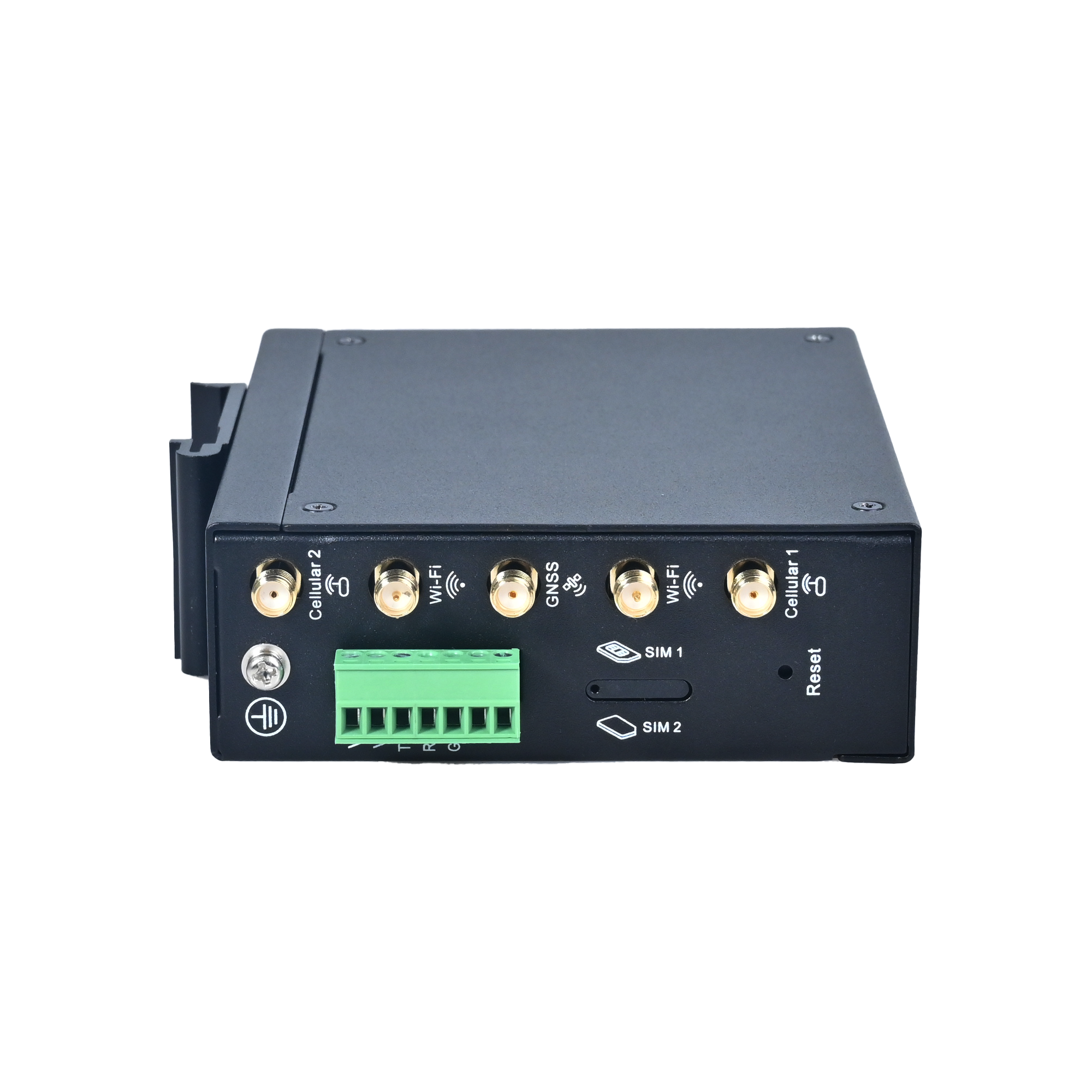

Antenna Connectors
Cellular: SMA ×1; Wi-Fi: RP-SMA ×2; GNSS antenna input
Grounding Terminal
Grounding terminal

Mechanical

Weight
454 g (1 lb)
Mounting
DIN rail
Enclosure
Metal shell, fanless cooling
Dimensions
127 × 108.2 × 35 mm (5 × 4.26 × 1.38 in), W × D × H
Protection Rating
IP30

CPU Storage

CPU
580 MHz
RAM
128 MB DDR2
Flash
64 MB SPI

Environment

Emc
EN61000-4-2, -3, -4, -5, -6, -12 level 3; EN61000-4-8 >level 2 (400 A/m)
Humidity
5~95% non-condensing
Physical
Shock IEC60068-2-27; Vibration IEC60068-2-6; Drop IEC60068-2-32
Certifications
IR315 series: CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, T-Mobile, RCM, IMDA, MIC&JATE, SRRC, UL, C1D2, IEC 62443-4-2, EN18031
Storage Temperature
-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Operating Temperature
Standard: -35 °C ~ 70 °C (-31 °F ~ 158 °F); Extended: -40 °C ~ 75 °C (-40 °F ~ 167 °F)

Link Backup

Vrrp
VRRP with virtual MAC and priority election
Watchdog
Embedded watchdog
Link Backup
Cellular/WAN mutual backup with hot backup, cold backup and load balancing modes
Icmp Detection
Configurable detection server, interval, timeout and maximum retry count
Load Balancing
Data transmitted through the corresponding link after ICMP detection succeeds

Logs Alarms

SMS Alarm
SMS query and configuration of APN/SIM/operator, remote status query and restart
Remote Log
Syslog server (UDP port 514)
System Log
Local/remote/serial log output, user-defined remote log prefix
System Alarm
System restart, LAN up/down, SIM failure, abnormal signal quality alarms
Traffic Alarm
Monthly/24-hour/hourly traffic thresholds, overrun reporting to cloud
Status Reporting
System, modem, network connection, routing and GPIO status reporting

VPN Security

Gre
GRE tunnel
L2tp
L2TP over IPsec with NAT traversal
Pptp
PPTP client/server mode
Dmvpn
Dynamic Multipoint VPN
Ipsec
IPsec IKEv1/IKEv2, AES256-SHA512, up to 10 tunnels, peer domain name support
Openvpn
OpenVPN TAP/TUN, TLS-auth/tls-crypt, AES-256-GCM/SHA256
Zerotier
ZeroTier virtual LAN networking, multiple tunnels
Wireguard
WireGuard with connection status detection
Certificate Management
CA certificate, PKCS12 certificate import/export

Wired Network

Vlan
Access/Trunk mode, VLAN IP address pool configuration
Port Roles
Flexible WAN/LAN/VLAN configuration
WAN Protocol
Static IP, DHCP, PPPoE
Ethernet Ports
5 × 10/100 Mbps RJ45
Gratuitous Arp
GARP broadcast, configurable count (1-10) and timeout (1-60 seconds)
IP Passthrough
IP Passthrough, distributing WAN address to LAN device
Isolation Protection
1.5 kV network isolation transformer protection

Network Services

Dns
DNS proxy, DNS forwarding, custom domain name server
Ntp
NTP server function, GPS time synchronization
Qos
Bandwidth limiting, IP rate limiting
Dhcp
DHCP server/client, static binding up to 200 entries, pool range auto-verification
Portal
Captive portal authentication
Sip Alg
SIP Application Layer Gateway
Packet Capture
Built-in TCPDUMP with interface, count and expert options
Scheduled Tasks
Scheduled restart with multiple configurable rules
Maintenance Tools
Ping, traceroute, speed test, ARPING

Wi-Fi Performance

Test 1m
Suction cup antenna: 91.26 Mbps (-36 dBm); Rod antenna: 90.22 Mbps (-25 dBm)
Test 5m
Suction cup antenna: 90.25 Mbps (-47 dBm); Rod antenna: 90.30 Mbps (-38 dBm)
Test 10m
Suction cup antenna: 90.96 Mbps (-54 dBm); Rod antenna: 90.74 Mbps (-45 dBm)
Test 30m
Suction cup antenna: 1.28 Mbps (-62 dBm); Rod antenna: 7.20 Mbps (-64 dBm)
Test Conditions
AP: IR305LQ20-WLAN / STA: Xiaomi 10S, WPA2-PSK AES, Channel 11, 40 MHz

Device Management

Cli
SSH/Telnet remote CLI; local serial console
Snmp
SNMP v1/v2c/v3 with custom port; SNMP TRAP alarm reporting
Http API
HTTP/HTTPS API for remote query and configuration
Inconnect
InConnect remote access and NAT rule issuance
Compliance
Supports U.S. TAA Act requirements
Cloud Platform
InHand Device Manager/ICS: batch management, remote configuration, firmware upgrade
System Upgrade
Web upgrade and Device Manager remote upgrade
Firmware Signature
Firmware signature verification against tampering
Configuration Management
Configuration import/export (files up to 128 KB, verified), factory reset

Industrial Protocols

Dtu
TCP/UDP transparent transmission, DCTCP/DCUDP mode, domain name support
Smart Ems
SMART-EMS cellular IP address reporting
Serial Ports
1 × RS-232 + 1 × RS-485
Modbus Bridge
Modbus RTU to Modbus TCP
Serial Traffic Statistics
RS-232/RS-485 traffic statistics, TCP connection status display

Firewall Access Control

Acl
ACL by source/destination address, port, protocol
Dmz
DMZ host configuration
Nat
NAT by source address, destination address, port, interface
Ieee 802 1x
802.1x port-level access authentication
Port Mapping
Port mapping by protocol, source address, service/internal port, external interface
Spi Firewall
SPI stateful packet inspection
Mac Filtering
MAC address filtering, black/whitelist mode
Dos Protection
Denial of Service attack protection
IP Mac Binding
Static IP-MAC binding
Content Filtering
Domain filtering with auto-refresh
Virtual IP Mapping
Virtual IP mapping with source address range
Device Access Control
Device access control by interface, protocol, source address, port

Questions buyers ask

What does the -G suffix add?

GNSS positioning. It supports GPS, GLONASS, BeiDou, Galileo and QZSS with ±2.5 m accuracy. The router can also use GPS for time synchronization of its NTP server.

Is this router 5G?

No. The IR315-FF39-WLAN-S-G uses a North American LTE Cat 6 module. InHand offers 5G models in the IR315 family, but this SKU is 4G LTE.

Does it include digital I/O?

No. Serial and 4 × I/O are mutually exclusive options on the IR315. This -S unit provides one RS-232 and one RS-485 port.

Can it switch between two SIM cards automatically?

Yes. The dual Nano-SIM drawer supports switching policies based on signal quality, ICMP detection, packet loss and dial failure count.

How is it powered and mounted?

It accepts 9–36 V DC through a 2-pin industrial terminal with overcurrent and reverse-polarity protection, and it mounts on DIN rail.
