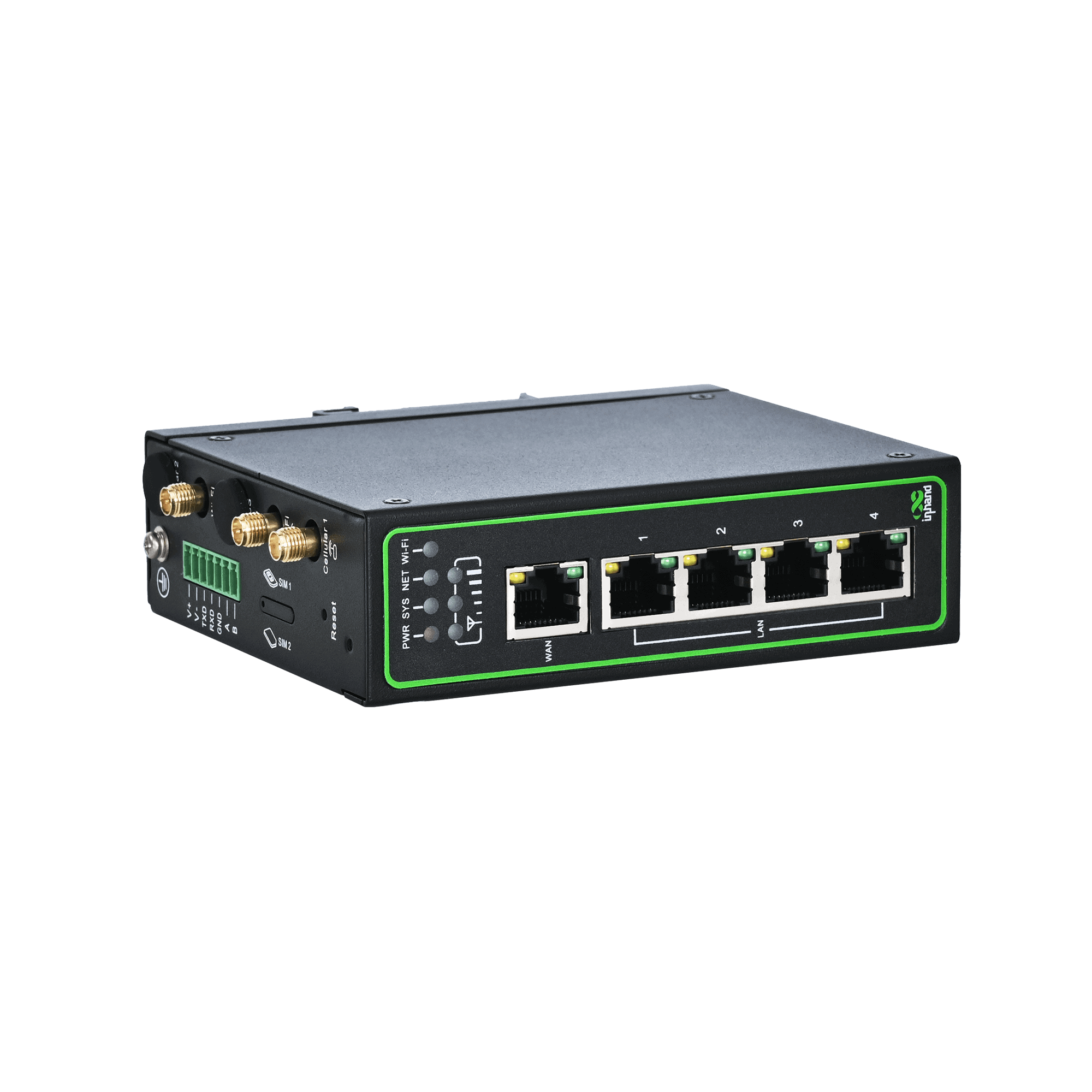

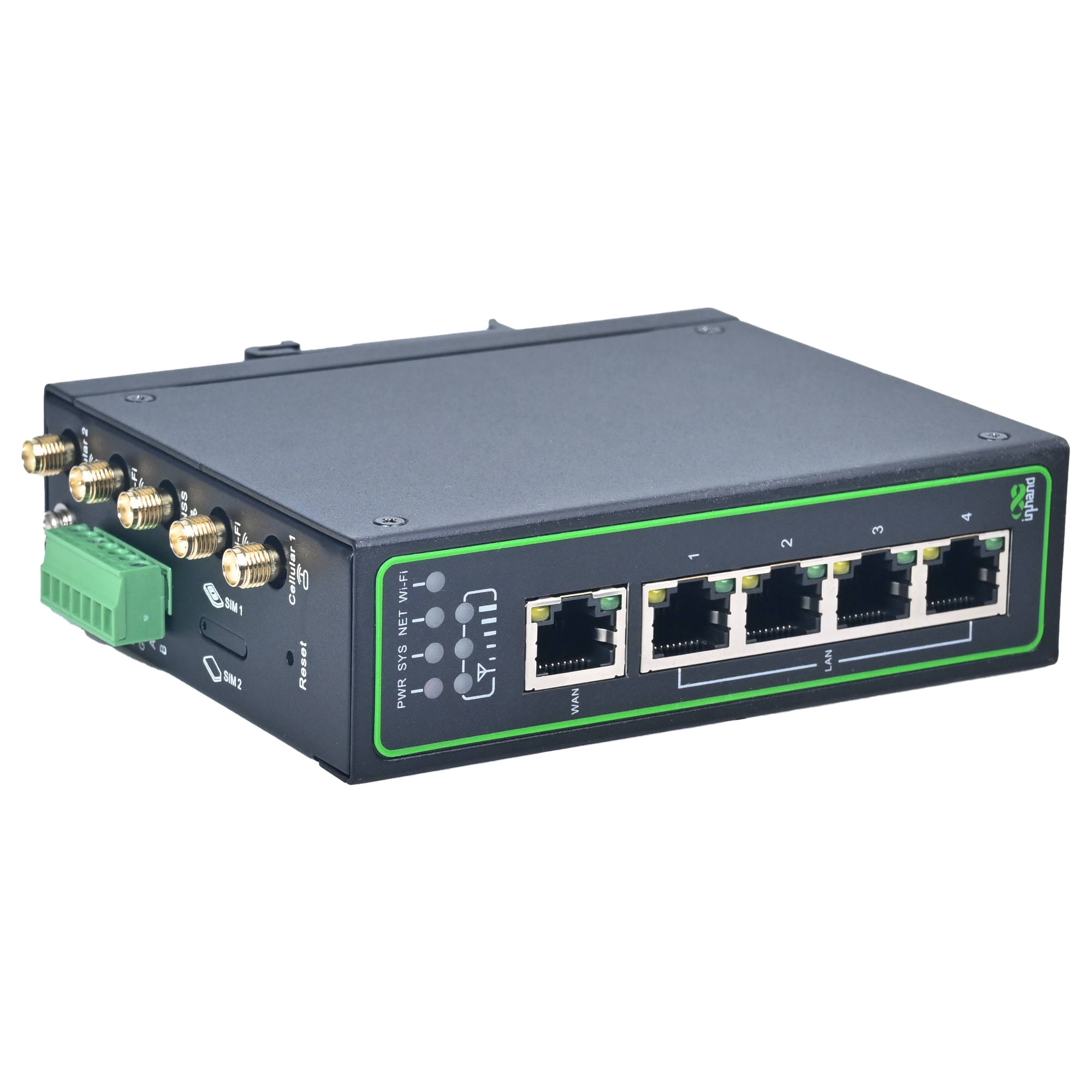

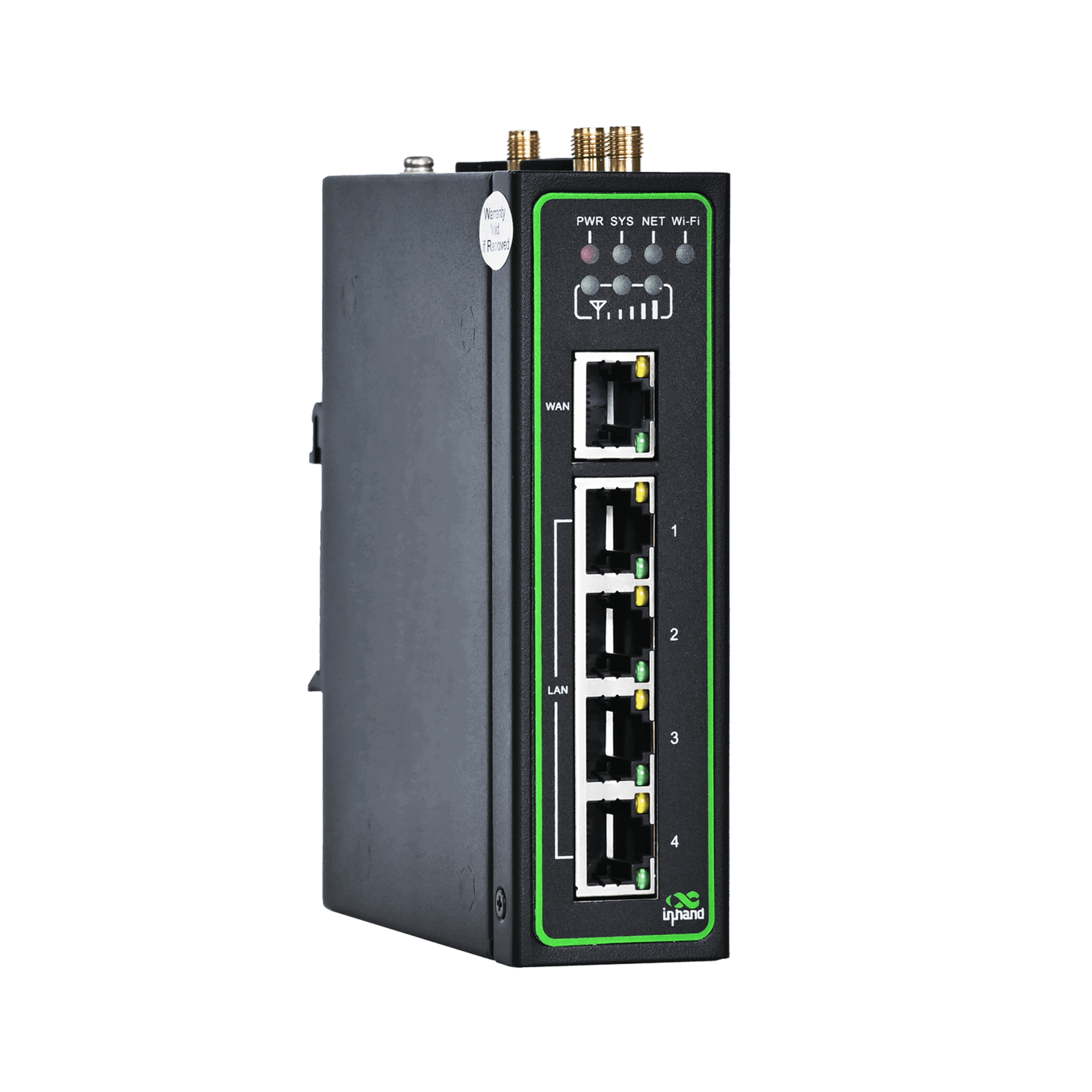

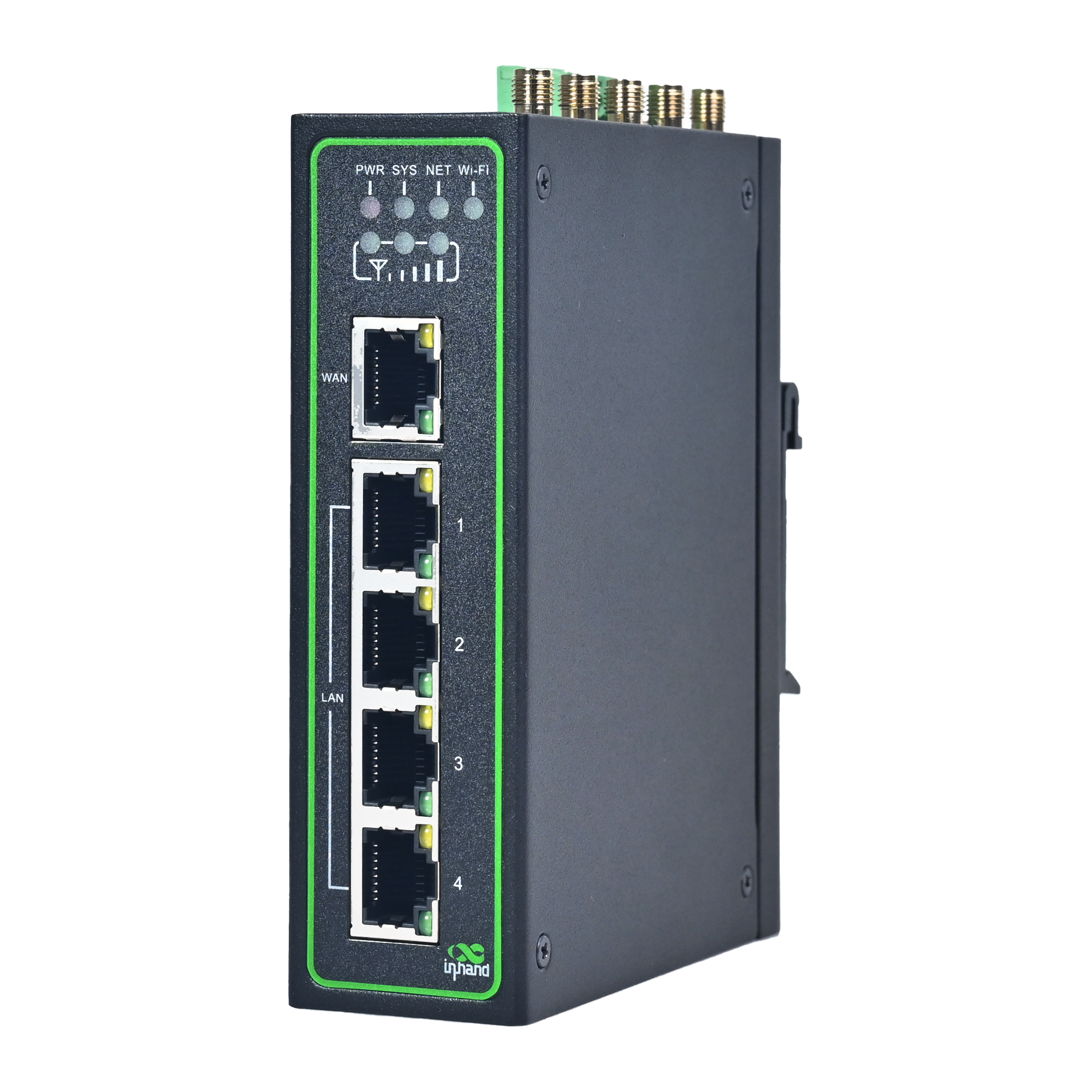

InHand Networks IR315 Industrial 4G LTE Cat 6 Router with Wi-Fi and Digital I/O (IR315-FF39-WLAN)

4G LTEMPN IR315-FF39-WLAN
  • Rugged
$208.68$249.00Save $40.32

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks IR315-FF39-WLAN is a North American LTE Cat 6 industrial router for unattended sites and IoT deployments. It combines dual Nano-SIM cellular with automatic SIM switching, five 10/100 Mbps Ethernet ports, 2.4 GHz 802.11b/g/n Wi-Fi and four configurable digital I/O channels. The router sits in a fanless metal DIN-rail housing, runs on 9-36 VDC and operates from -35 °C to 70 °C. VPN options include IPsec, OpenVPN, WireGuard and ZeroTier, and fleets can be managed through InHand Device Manager.

  • North American LTE Cat 6 cellular with dual Nano-SIM and policy-based SIM switching
  • Five 10/100 Mbps RJ45 ports configurable as WAN, LAN or VLAN, with 1.5 kV isolation
  • 2.4 GHz IEEE 802.11b/g/n Wi-Fi up to 300 Mbps in AP, Client or WDS mode
  • Four configurable digital I/O (DI/DO) with edge-triggered status reporting
  • IPsec, OpenVPN, WireGuard, ZeroTier, DMVPN, GRE, L2TP and PPTP VPN support
  • Fanless metal DIN-rail enclosure, IP30, 9-36 VDC, -35 °C to 70 °C operation
  • InHand Device Manager cloud, SNMP v1/v2c/v3 and HTTP/HTTPS API management
  • Keeps remote sites online with cellular/WAN failover, dual-SIM switching and VRRP redundancy

The IR315-FF39-WLAN is the North American LTE Cat 6 configuration of InHand Networks' IR315 industrial router, with built-in Wi-Fi and four digital I/O channels. It suits system integrators, utilities, retail and kiosk operators, and field-operations teams who need dependable connectivity at cabinets, remote assets and small sites. The router can connect through cellular, wired WAN or Wi-Fi. Its dual Nano-SIM drawer switches carriers based on signal threshold, packet loss or dial failures. Link backup runs in hot, cold or load-balancing mode, and VRRP provides gateway redundancy.

Five 10/100 Mbps RJ45 ports, each with 1.5 kV isolation, can be assigned as WAN, LAN or VLAN. The 2.4 GHz 802.11b/g/n radio delivers up to 300 Mbps in AP, Client or WDS mode through two RP-SMA antenna connectors. The four DI/DO channels support edge-triggered status reporting to the cloud platform, so the router can monitor alarm contacts or switch field equipment.

Security covers SPI firewall, DoS protection, ACLs, 802.1x, IP-MAC binding, domain content filtering and signed firmware. VPN options are IPsec (IKEv1/IKEv2, AES256-SHA512, up to 10 tunnels), OpenVPN, WireGuard, ZeroTier, DMVPN, GRE, L2TP and PPTP. For management, you can use InHand Device Manager, SNMP v1/v2c/v3, an HTTP/HTTPS API, SSH, Syslog and SMS alarms.

The fanless metal enclosure is IP30-rated and DIN-rail mounted, measuring 127 × 108.2 × 35 mm and weighing 454 g. It accepts 9-36 VDC through a 2-pin industrial terminal with reverse-polarity and overcurrent protection. The IR315 family is tested to IEC shock, vibration and drop standards and to EN61000 EMC levels.

Ideal for

  • Primary or failover WAN for remote cabinets, substations and pump or lift stations
  • Connectivity for kiosks, digital signage, ATMs and retail points of sale
  • Remote access to PLCs, HMIs and IP cameras over IPsec, OpenVPN or WireGuard
  • Alarm and status monitoring through the four digital inputs/outputs
  • Fleet-managed IoT gateways deployed across many distributed sites

Specifications

VPN

Gre
GRE tunnel
L2tp
L2TP over IPsec, NAT traversal
Pptp
PPTP client/server mode
Dmvpn
Dynamic Multipoint VPN
Ipsec
IPsec IKEv1/IKEv2, AES256-SHA512, up to 10 tunnels, peer domain name support
Openvpn
OpenVPN TAP/TUN, TLS-auth/tls-crypt, AES-256-GCM/SHA256
Zerotier
ZeroTier virtual LAN, multiple tunnels
Wireguard
WireGuard with connection status detection
Certificate Management
CA and PKCS12 certificate import/export

Wi-Fi

Test 1m
Suction cup antenna: 91.26 Mbps (-36 dBm); Rod antenna: 90.22 Mbps (-25 dBm)
Test 5m
Suction cup antenna: 90.25 Mbps (-47 dBm); Rod antenna: 90.30 Mbps (-38 dBm)
Protocol
IEEE 802.11 b/g/n
Test 10m
Suction cup antenna: 90.96 Mbps (-54 dBm); Rod antenna: 90.74 Mbps (-45 dBm)
Test 30m
Suction cup antenna: 1.28 Mbps (-62 dBm); Rod antenna: 7.20 Mbps (-64 dBm)
Bandwidth
20 MHz / 40 MHz
Maximum Rate
Up to 300 Mbps
Working Mode
AP / Client / WDS
Transmit Power
802.11b: 16 dBm ±2 dBm (11 Mbps); 802.11g: 16 dBm ±2 dBm (54 Mbps); 802.11n @2.4 GHz: 16 dBm ±2 dBm (HT20 MCS7 and HT40 MCS7)
Encryption Mode
NONE, WEP, TKIP, AES
Radio Frequency
2.4 GHz
Test Conditions
AP IR305LQ20-WLAN, STA Xiaomi 10S, WPA2-PSK AES, Channel 11, 40 MHz
Antenna Interface
RP-SMA ×2
Security Features
Wi-Fi password encrypted display, Wi-Fi user isolation, AP black/whitelist
Authentication Mode
Open, WEP, WPA-PSK, WPA2-PSK, WPA/WPA2, etc.
Transmission Distance
Approx. 50 m line-of-sight (affected by site environment)

Power

Peak Current
320 mA @ 12 V
Input Voltage
DC 9~36 V, overcurrent/reverse polarity protection
Standby Current
120~200 mA @ 12 V
Operating Current
150~320 mA @ 12 V

General

MPN
IR315-FF39-WLAN
Brand
InHand Networks
Model
IR315 Industrial Router
Configuration
North America, LTE Cat 6, I/O and Wi-Fi

Routing

Nat
NAT with port mapping and virtual IP mapping
Ddns
DDNS with HTTPS update
Ospf
OSPF dynamic routing, router ID and network advertisement
Watchdog
Embedded watchdog
Static Routing
Destination network, subnet mask, gateway, interface, priority

Cellular

Region
North America (ordering data lists B66/B71)
SIM Card
Dual Nano-SIM, drawer-type slot
Technology
4G LTE Cat 6 (TDD/FDD LTE)
Dialing Mode
PPP, QMI, ECM (depending on model)
Network Access
APN, VPDN
Connection Mode
Always online, on-demand dialing, manual dialing
Signal Reporting
Reports RSRP, RSRQ, SINR, RSSI, RSCP, Ec/Io, PCI, BAND and other parameters
Antenna Connector
4G: SMA ×1 (overseas 4G models are SMA ×2)
Pdp Configuration
Supports IPv4/IPv4V6
Dual SIM Switching
SIM switching policies triggered by signal threshold, packet loss threshold, dial failure count, etc.
Access Authentication
CHAP/PAP
Operator Configuration
Built-in operator APN configurations, supports T-Mobile, AT&T, Verizon, etc.

Firewall

Acl
ACL by source/destination address, port, protocol
Dmz
DMZ host configuration
Ieee 802 1x
802.1x port-level access authentication
Port Mapping
Protocol, source address, service port, internal port, external interface
Spi Firewall
Stateful packet inspection
Mac Filtering
MAC address filtering, black/whitelist mode
Dos Protection
Denial of Service attack protection
IP Mac Binding
Static IP-MAC binding
Content Filtering
Domain filtering with auto-refresh
Virtual IP Mapping
Source address range configuration
Device Access Control
By interface, protocol, source address, port

Physical

Weight
454 g (1 lb)
Mounting
DIN rail
Enclosure
Metal shell, fanless cooling
Dimensions
127 × 108.2 × 35 mm (5 × 4.26 × 1.38 in)
Protection Rating
IP30

Industrial

Dtu
DTU TCP/UDP transparent transmission, DCTCP/DCUDP (serial-port models)
Mqtt
MQTT/MQTTS, JWT registration, public/private key authentication
I/O Control
4 × IO (DI/DO configurable), edge-triggered status reporting
Modbus Bridge
Modbus RTU to Modbus TCP (serial-port models)
I/O Edge Control
4-channel digital I/O, relay output, I/O status reporting to cloud, alarm triggering

Interfaces

I/O Port
4 × IO, DI/DO configurable
Reset Button
Pinhole reset button
SIM Card Slot
Drawer-type slot ×1, supports 2 × Nano-SIM
LED Indicators
Power, System, Network, Wi-Fi, Signal
Power Interface
DC 9~36 V, 2-pin industrial terminal
Grounding Terminal
Grounding terminal supported

Management

Cli
SSH/Telnet remote CLI, local serial console
Snmp
SNMP v1/v2c/v3, custom port, SNMP TRAP
Http API
HTTP/HTTPS API for remote query and configuration
Inconnect
InConnect remote device access and NAT rule issuance
Device Manager
Cloud batch management, remote configuration, firmware upgrade
System Upgrade
Web upgrade and Device Manager remote upgrade
Firmware Signature
Signed firmware to prevent tampering
Configuration Management
Configuration import/export, factory reset

CPU Storage

CPU
580 MHz
RAM
128 MB DDR2
Flash
64 MB SPI

Environment

Emc
EN61000-4-2, -3, -4, -5, -6, -12 level 3; EN61000-4-8 >level 2 (400 A/m)
Humidity
5~95% non-condensing
Certifications
IR315 family: CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, T-Mobile, RCM, IMDA, MIC&JATE, SRRC, UL, C1D2, IEC 62443-4-2, EN18031
Physical Testing
Shock IEC60068-2-27; Vibration IEC60068-2-6; Drop IEC60068-2-32
Storage Temperature
-40 °C ~ 85 °C (-40 °F ~ 185 °F)
Operating Temperature
Standard -35 °C ~ 70 °C (-31 °F ~ 158 °F); Extended -40 °C ~ 75 °C (-40 °F ~ 167 °F)

Link Backup

Vrrp
VRRP with virtual MAC and priority election
Link Backup
Cellular/WAN mutual backup, hot backup, cold backup or load balancing
Icmp Detection
Configurable detection server, interval, timeout and maximum retries
Load Balancing
Traffic sent over a link after ICMP detection succeeds

Logs Alarms

SMS Alarm
SMS query/configuration of APN/SIM/operator, remote status query and restart
Remote Log
Syslog server (UDP port 514)
System Log
Local, remote and serial log output, custom remote log prefix
System Alarm
Restart, LAN up/down, SIM failure, abnormal signal quality
Traffic Alarm
Traffic threshold alarms with overrun reporting to cloud
Status Reporting
System, modem, connection, routing and GPIO status reporting

Wired Network

Vlan
Access/Trunk mode, VLAN IP address pool configuration
Port Roles
Flexible WAN/LAN/VLAN configuration
WAN Protocol
Static IP, DHCP, PPPoE
Ethernet Ports
5 × 10/100 Mbps RJ45
Gratuitous Arp
GARP broadcast, configurable count (1-10) and timeout (1-60 seconds)
IP Passthrough
IP Passthrough, distributes WAN port address to LAN port devices
Isolation Protection
1.5 kV network isolation transformer protection

Network Services

Dns
DNS proxy, DNS forwarding, custom DNS server
Ntp
NTP server function, GPS time synchronization
Qos
Bandwidth limiting, IP rate limiting
Dhcp
DHCP server/client, static binding up to 200 entries
Sip Alg
SIP Application Layer Gateway
Captive Portal
Captive portal authentication
Packet Capture
Built-in TCPDUMP packet capture
Scheduled Tasks
Scheduled restart, multiple rules
Maintenance Tools
Ping, traceroute, speed test, ARPING

Questions buyers ask

What does the IR315-FF39-WLAN part number include?

It is the North American LTE Cat 6 configuration with Wi-Fi and four configurable digital I/O channels. It does not include the RS-232/RS-485 serial option or GNSS.

Does the IR315 support dual SIM failover?

Yes. It has a drawer slot for two Nano-SIMs and switches SIMs based on signal threshold, packet loss threshold or dial failure count. It also supports cellular/WAN backup in hot, cold or load-balancing mode.

How do I log in for the first time?

Connect a computer to a LAN port and set the adapter to DHCP or a static IP in the 192.168.2.x range. Then browse to http://192.168.2.1 and log in with the credentials printed on the device label.

Do I need to set the APN manually?

In most cases, no. The IR315 detects the carrier and applies the matching APN from its built-in operator profiles, including AT&T, Verizon and T-Mobile. If the link does not come up, set the APN under Network > Cellular.

What power does it require?

It needs 9-36 VDC through a 2-pin industrial terminal with overcurrent and reverse-polarity protection. Operating draw is 150-320 mA at 12 V.
