InHand Networks5G & LTE Routers

InHand Networks VG710 4G LTE Cat 6 Vehicle Gateway with Wi-Fi 5, GNSS and CAN Bus (IVG710-FS39)

4G LTEMPN IVG710-FS39
  • 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
$531.32$619.00Save $87.68

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

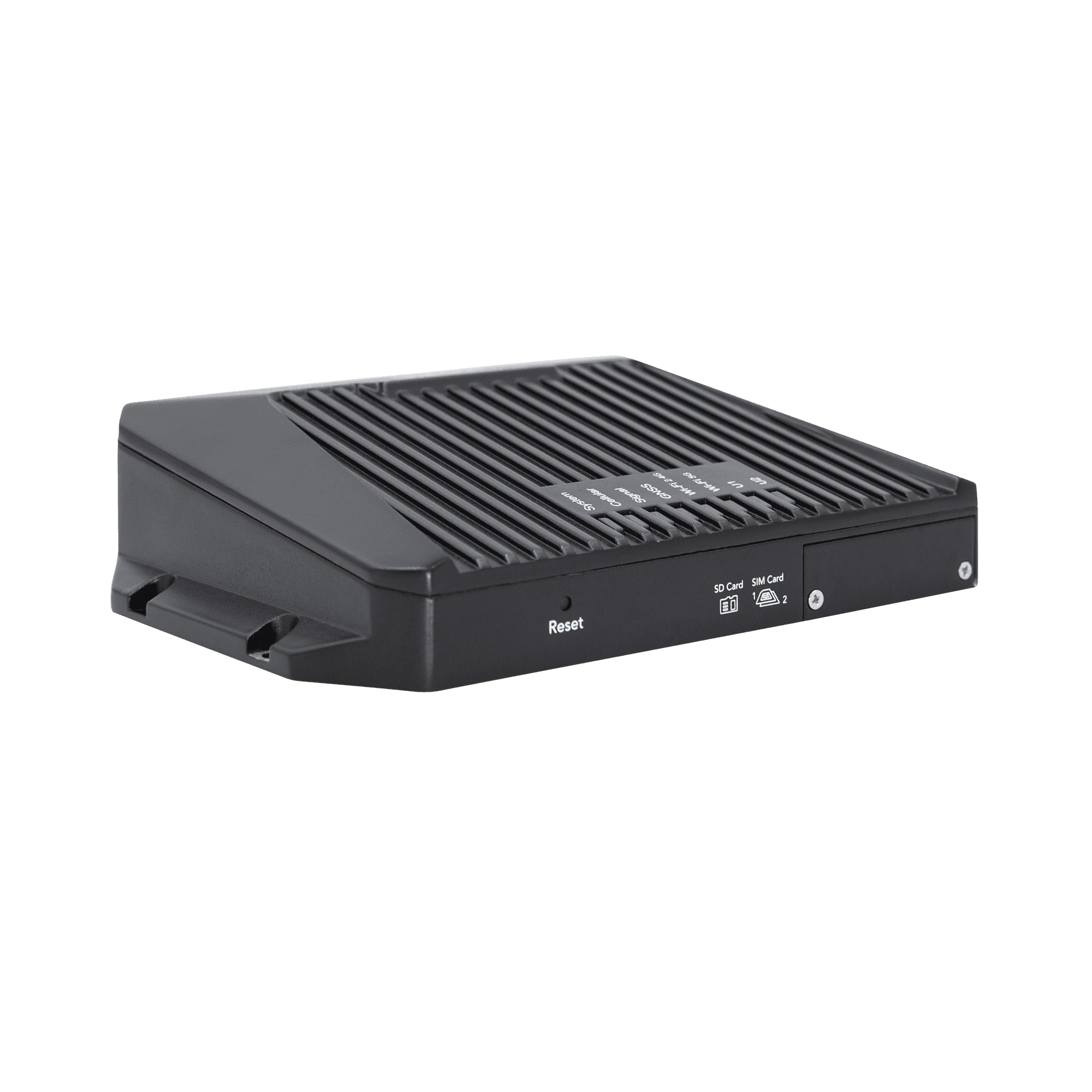

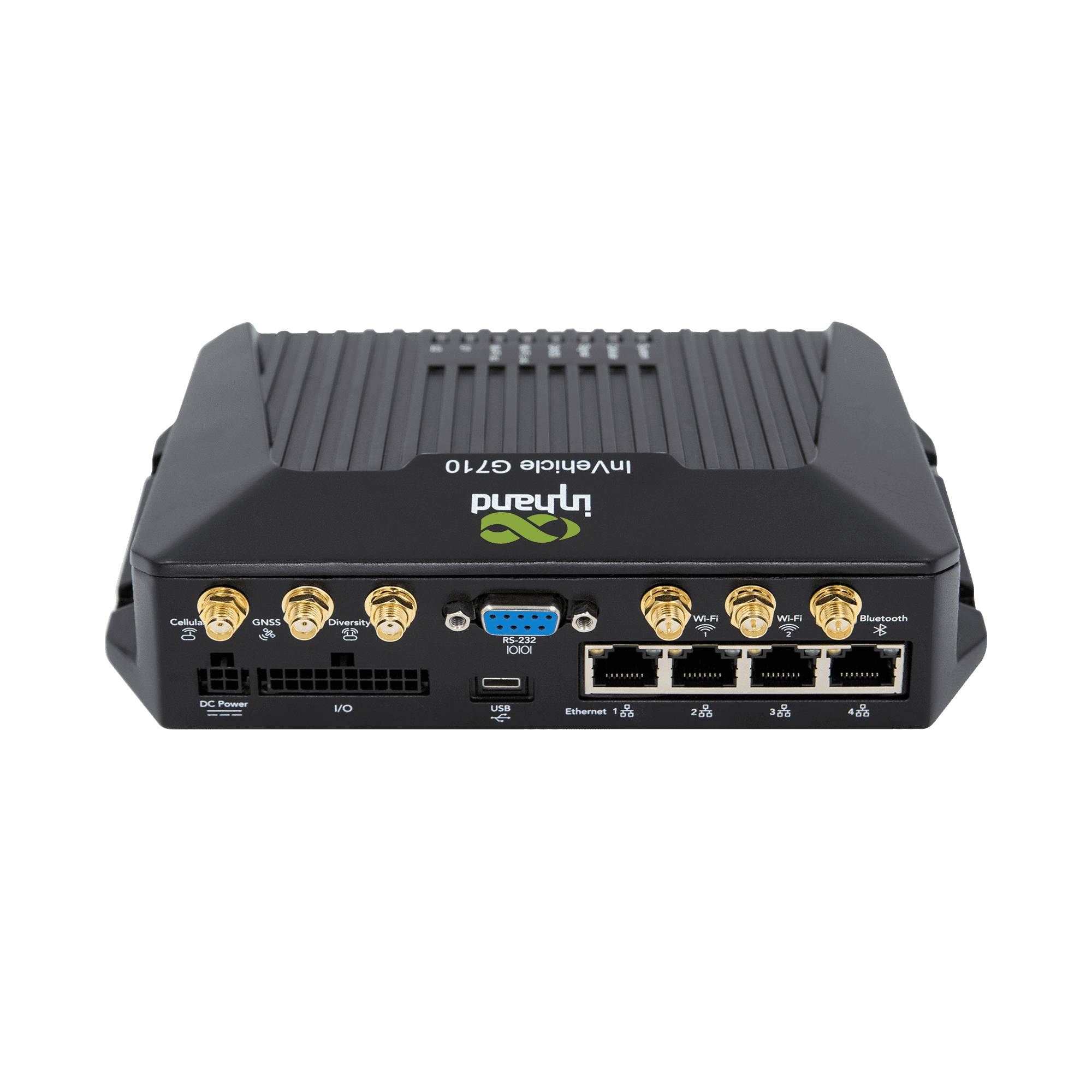

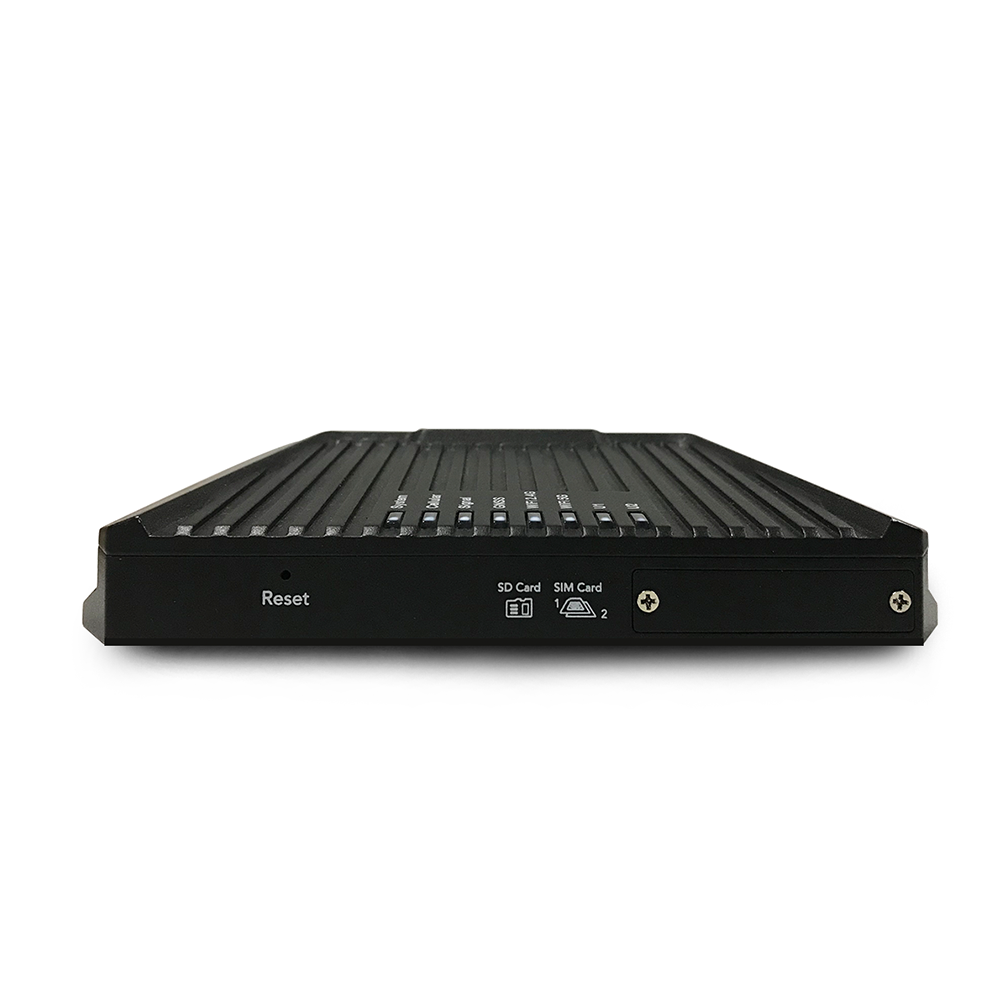

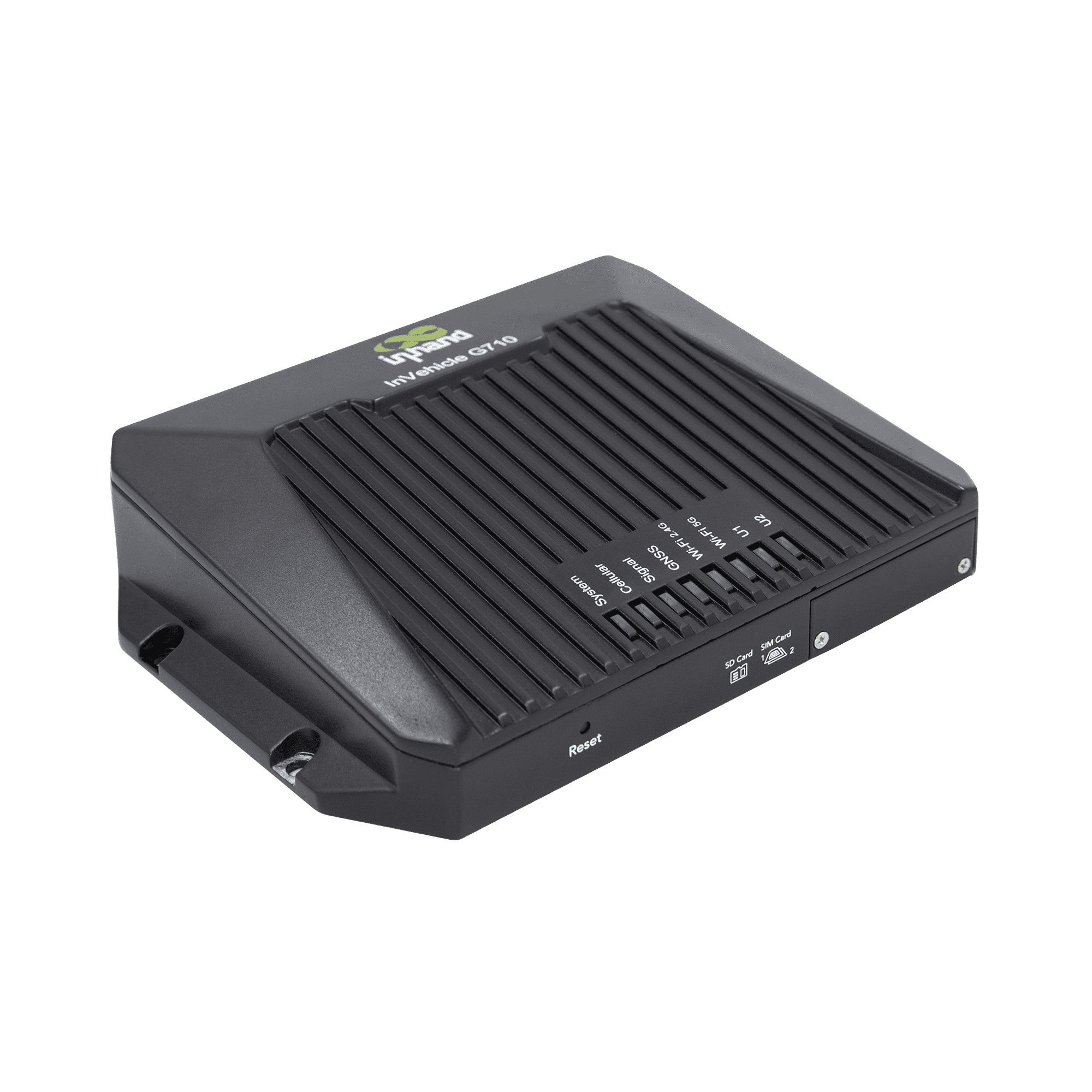

The InHand Networks VG710 (IVG710-FS39) is an IP64-rated 4G LTE vehicle gateway for commercial fleets, transit and field vehicles. This North America configuration pairs LTE Cat 6 with 512 MB of RAM. It combines four Gigabit Ethernet ports, dual-band Wi-Fi 5, Bluetooth 4.1, multi-constellation GNSS with inertial dead reckoning and CAN bus vehicle diagnostics. A programmable edge platform supports Python, C/C++ and Docker, so one die-cast aluminum unit can handle connectivity, tracking and telematics.

  • LTE Cat 6 cellular modem in the North America configuration, with dual 2FF SIM slots
  • 4 × 10/100/1000 Mbps RJ45 Ethernet plus dual-band Wi-Fi 5 (AP/Client) and Bluetooth 4.1
  • CAN bus with OBD-II and J1939 support, RS-232, RS-485, 1-WIRE and 6 DI / 4 DO / 6 AI
  • GNSS (GPS, GLONASS, Galileo, Beidou) with accelerometer and gyroscope dead reckoning, 2.5 m CEP
  • Edge computing with Python, C/C++, Docker and Node-RED on an ARM Cortex A7 with 8 GB eMMC
  • IP64 die-cast aluminum housing, -30 °C to +70 °C operation, 9–36 V DC input with ignition sense
  • Put vehicle connectivity, GPS tracking and CAN diagnostics into one box, which reduces onboard hardware and wiring
  • Connect cameras, MDTs and displays over four Gigabit Ethernet ports and share Wi-Fi 5 with crews and devices

The InHand Networks VG710 is an industrial-grade 4G vehicle gateway for logistics, transport, heavy equipment and public safety fleets. The IVG710-FS39 is the North America configuration with an LTE Cat 6 modem and 512 MB of DDR3 RAM. InHand's spec sheet lists FCC, IC, PTCRB and E-Mark certification, along with Verizon, AT&T and T-Mobile certifications for the VG710 family. The die-cast aluminum, IP64-rated housing operates from -30 °C to +70 °C on a 9–36 V DC supply (configurable to 7–36 V DC), with transient protection and ignition-sense power control.

In the vehicle, four 10/100/1000 Mbps RJ45 ports connect cameras, displays and onboard computers. Dual-band Wi-Fi 5 runs in AP or client mode, and Bluetooth 4.1 links nearby sensors. For telematics, the VG710 supports CAN bus, OBD-II and J1939 diagnostics, plus RS-232, RS-485, 1-WIRE for driver ID or temperature, and 6 DI, 4 DO and 6 AI. Dual 2FF SIM slots support carrier redundancy. The GNSS receiver tracks GPS, GLONASS, Galileo and Beidou at up to 30 Hz with 2.5 m CEP accuracy. An onboard accelerometer and gyroscope provide dead reckoning in tunnels and urban canyons.

The gateway also runs local applications. An ARM Cortex A7 processor, 8 GB of eMMC and microSD support up to 32 GB host Python, C/C++ and Docker workloads, including Node-RED and Ubuntu images. SDKs cover Python 3, Docker and Azure IoT Edge, and the gateway supports MQTT, AMQP, REST and CoAP for cloud integration. Networking features include IPsec, OpenVPN, L2TP and GRE VPNs, OSPF and BGP routing, VRRP and an SPI firewall. InHand SmartFleet adds route planning, tracking and geofencing. InHand publishes a datasheet and quick start guide for the VG710.

Ideal for

  • Commercial truck and logistics fleets that need LTE connectivity, GPS tracking and J1939/OBD-II diagnostics
  • Transit buses and shuttles that provide onboard Wi-Fi and connect cameras and passenger displays
  • Public safety and utility service vehicles that need a rugged mobile router with VPN back to headquarters
  • Heavy equipment telematics for predictive maintenance using CAN data and edge analytics
  • Custom in-vehicle applications built on Docker, Python or Node-RED

Specifications

Power

Peak Power
18.20 W peak
Protection
Built-in voltage transient protection with delayed ignition induction
Input Voltage
9–36 V DC (configurable to 7–36 V DC)
Standby Power
0.006 W
Pin Definition
V+, V-, ignition signal, NC (4 pins)
Operating Power
12.00 W average

WI FI

Protocol
Wi-Fi 5
Frequency
2.4 / 5 GHz dual-band
Max Output
2.4 GHz: 17 dBm; 5 GHz: 17 dBm
Working Mode
AP / Client

General

MPN
IVG710-FS39
Brand
InHand Networks
Model
VG710 4G Vehicle Gateway
Region
North America
Configuration
North America, 512 MB RAM, LTE Cat 6

Package

Contents
VG710 Vehicle Gateway ×1, VG710 Power Cable ×1

Security

Aaa
Local authentication, RADIUS, TACACS+, LDAP
VPN
IPsec VPN, L2TP, GRE, OpenVPN, CA
Firewall
SPI, DoS defense, multicast/Ping filter, ACL, NAT/PAT/DMZ/port mapping/virtual server
User Level
Administrator / read-only
CA Certificate
PEM, PKCS12, SCEP

Ports Wlan

Upgrade
Local/remote WEB, DM, TFTP, FTP, SFTP server
Diagnostics
Ping, Traceroute, Sniffer
Configuration
Local/remote HTTP, HTTPS, Telnet, SSH
Wlan Protocol
IEEE 802.11 b/g/n/a/ac
Wlan Security
Shared key, WPA/WPA2, WEP/TKIP/AES
Port Mirroring
Supported
Vlan Partition
Supported

Reliability

Backup
Floating routing, VRRP, interface backup
Watchdog
Self-detection and auto-repair
Link Detection
Heartbeat detection, auto redial
Offline Storage
Built-in cache when network unavailable

Connectivity

Antenna
SMA-K: Cellular/GNSS/Diversity; RP-SMA-K: 2 × Wi-Fi + BLE
Microsd
microSD up to 32 GB, 20 MB/s
Cellular
LTE Cat 6
Ethernet
4 × 10/100/1000 Mbps RJ45
USB Port
USB 2.0 Micro-B (up to 480 Mbps)
Bluetooth
Bluetooth 4.1
Serial Port
RS-232 (DB-9)

Edge Computing

Ide
Visual Studio Code
Sdk
Python 3 SDK, Docker SDK, Azure IoT Edge SDK
Programmable
Python, C/C++, Docker
Docker Images
Node-RED, Ubuntu, Docker for ARM 32, etc.
Edge Platform
Integrated network-computing-storage-application edge platform
Iot Architecture
MQTT, DDS, AMQP, XMPP, JMS, REST, CoAP
Third Party Cloud
MS Azure, SmartFleet and APIs for third-party platforms

Network Features

IP Routing
Static routing, RIP, OSPF, BGP, IGMP Proxy
LAN Protocol
ARP, Ethernet
Authentication
CHAP / PAP / MS-CHAP / MS-CHAP V2
IP Application
IPv6, Ping, Traceroute, DHCP server/relay/client, DNS relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, Portal
Network Access
APN, VPDN

Performance Metrics

CPU
ARM Cortex A7
RAM
512 MB DDR3
Storage
8 GB eMMC
Main Frequency
717 MHz

Application Services

Event Alarm
Customizable alarms for DI, network, service, power, temperature, voltage
Fleet Cloud
InHand SmartFleet: route planning, tracking, geofencing, batch operations
Message Push
SMS, Email, App, digital output
Vehicle Telemetry
Rich interfaces for telemetry and asset tracking devices

Satellite Navigation

GNSS Receiver
GPS, GLONASS, Galileo, Beidou
Built IN Sensor
Accelerometer + gyroscope, supports dead reckoning
Position Accuracy
2.5 m CEP
Location Update Rate
Up to 30 Hz
Tracking Sensitivity
-160 dBm

Automotive Interfaces

Other
1-WIRE (driver ID / temperature)
RS 485
RS-485 serial (A+, B-, GND)
DI DO AI
6 × DI, 4 × DO, 6 × AI
Diagnostics Interface
CAN bus

Mechanical Environment

Rtc
Supported
SIM
Dual-SIM, 2FF
Weight
775 g (1.71 lb)
Cooling
Radiation cooling
Housing
Die-cast aluminum
Humidity
95% RH @ 60 °C
Installation
Wall-mounting
Storage Temp
-40 °C ~ +85 °C (-40 °F ~ +185 °F)
Operating Temp
-30 °C ~ +70 °C (-22 °F ~ +158 °F)
Dimensions W D H
188.1 × 140.5 × 48.8 mm (7.41 × 5.53 × 1.92 in)
Protection Rating
IP64

Standards Certifications

Warranty
3 years
Certification
CE, E-Mark, ITxPT, FCC, IC, PTCRB, RoHS, VZW, AT&T, TMO
Rail Standard
EN50155, EN50121, EN61373
Fire Prevention
EN45545-2:2020
Vehicle Standard
ECE-R10, R118

Core Technical Specifications

VPN
IPsec / OpenVPN / L2TP / GRE
Weight
775 g (1.71 lb)
Dimensions
188.1 × 140.5 × 48.8 mm (7.41 × 5.53 × 1.92 in)
Edge Computing
Python, C/C++ and Docker development and deployment
Wireless Access
Dual-band Wi-Fi 5 (AP/Client) + Bluetooth 4.1
Cellular Network
LTE Cat.6/Cat.4 (global and regional band variants)
Protection Rating
IP64
Vehicle Interfaces
4 × Gigabit Ethernet, CAN, RS-485, DI/DO/AI, RS-232, USB 2.0
Input Voltage Range
9-36 V DC (configurable to 7-36 V DC)
Cloud Iot Integration
MQTT, DDS, AMQP, REST, CoAP; Azure and third-party platforms
Operating Temperature
-30 °C ~ +70 °C (-22 °F ~ +158 °F)
Positioning Capability
GNSS (GPS/GLONASS/Galileo/Beidou) + inertial DR

Questions buyers ask

What region and memory configuration is the IVG710-FS39?

InHand lists the FS39 configuration as North America with 512 MB of DDR3 RAM and an LTE Cat 6 modem. InHand's FAQ describes the VG710-FS39 as AT&T-certified for North America.

How does the VG710 power on in a vehicle?

The VG710 requires an ignition (IGT) signal. Wire the IGT pin on the 4-pin power connector (V+, V-, IGT, NC) to the vehicle's ignition-controlled circuit and supply 9–36 V DC. Ignition delay and delayed power-off are set in the web interface under Administration > System.

Do I need to set the APN manually?

Usually not. Insert the SIM with the unit powered off, then apply ignition. The VG710 auto-detects the carrier and applies the matching APN in most cases. If the cellular link does not come up, log in to http://192.168.2.1 and configure it under Network > Cellular.

Can it read vehicle diagnostic data?

Yes. The VG710 supports CAN bus with OBD-II and J1939 for real-time diagnostics, alongside RS-232, RS-485, 1-WIRE for driver ID or temperature, and 6 DI, 4 DO and 6 AI.

Is this the 5G version?

No. The IVG710-FS39 is the 4G LTE Cat 6 model. InHand's 5G model is the VG710-H, which uses the same RJ45 Ethernet and SMA antenna interface.
