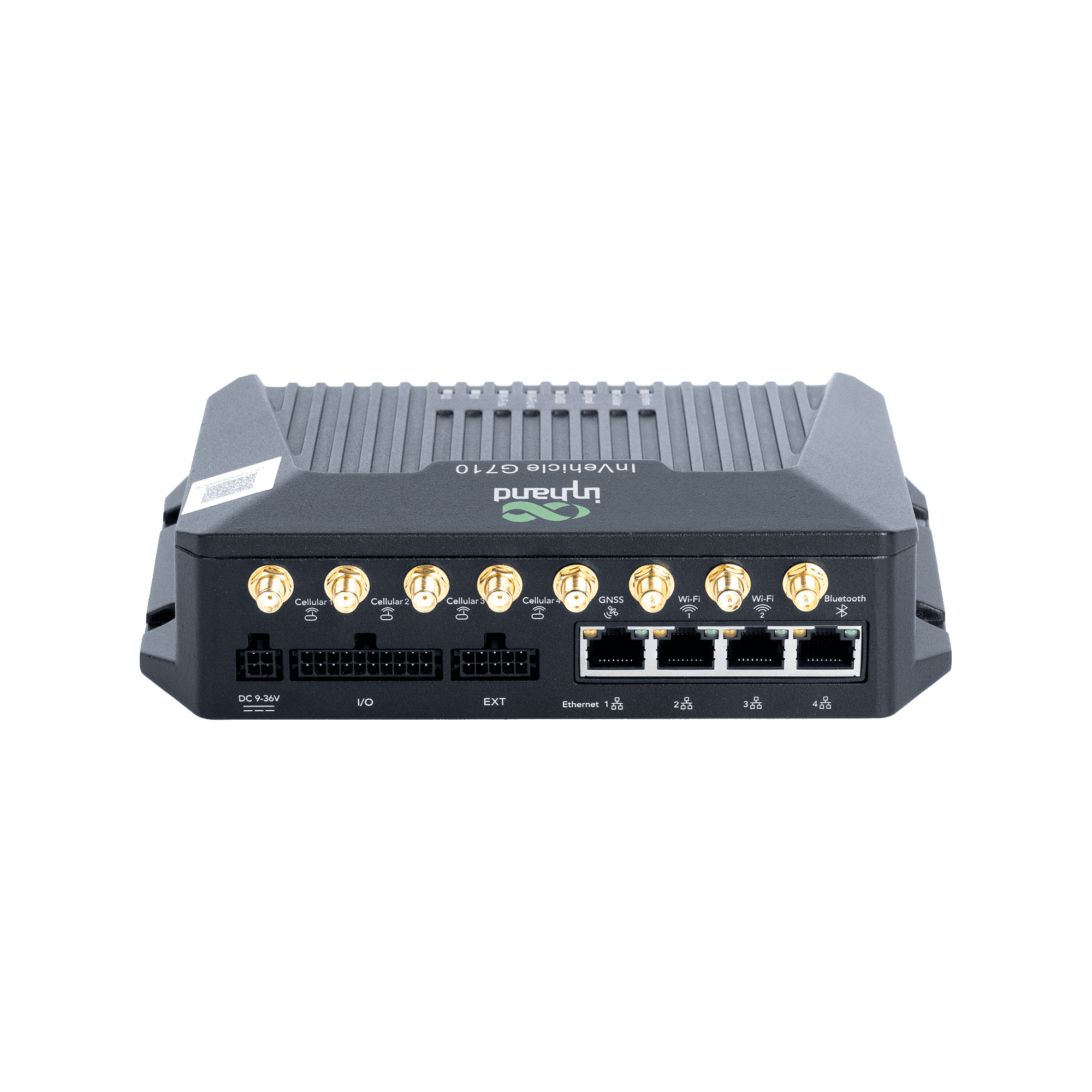

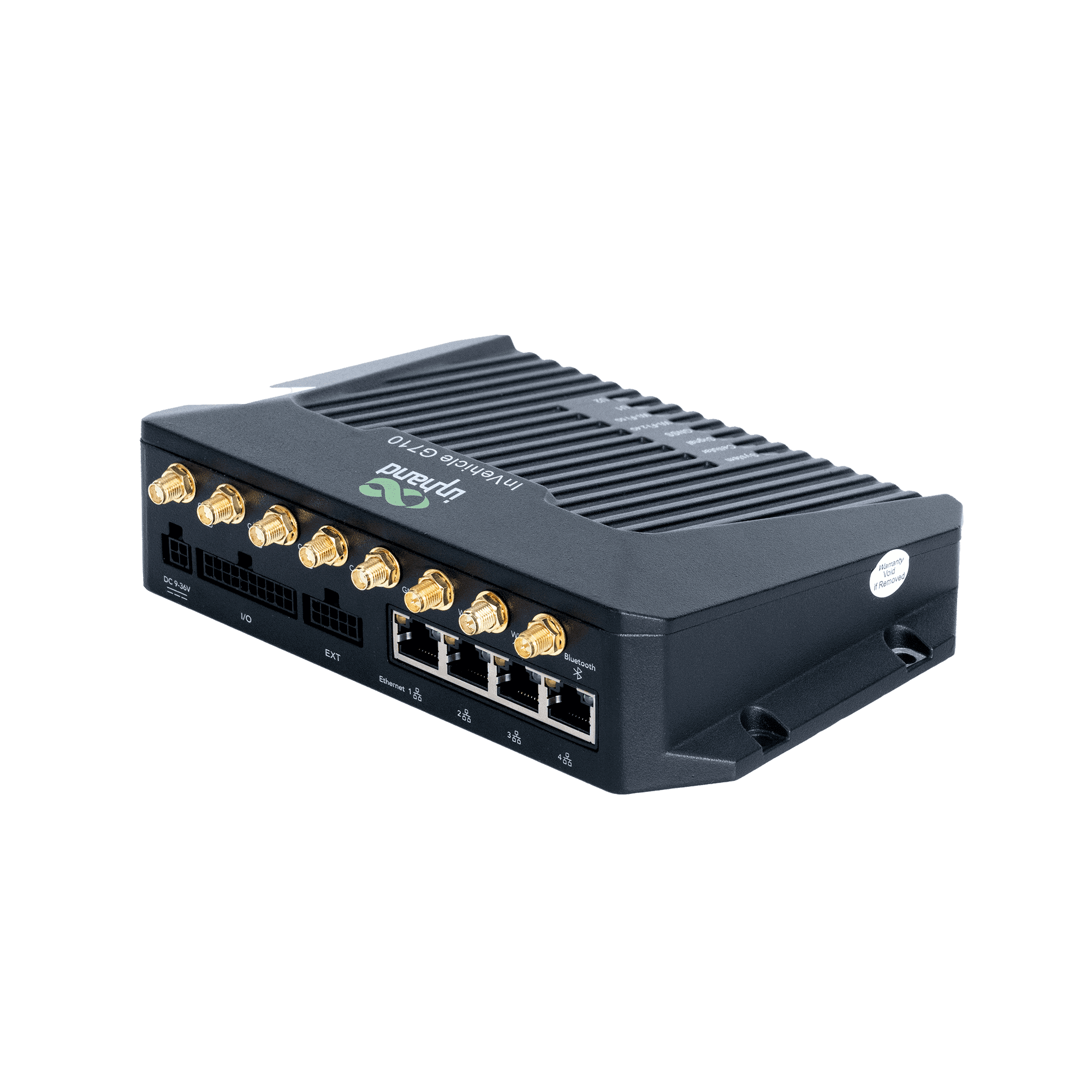

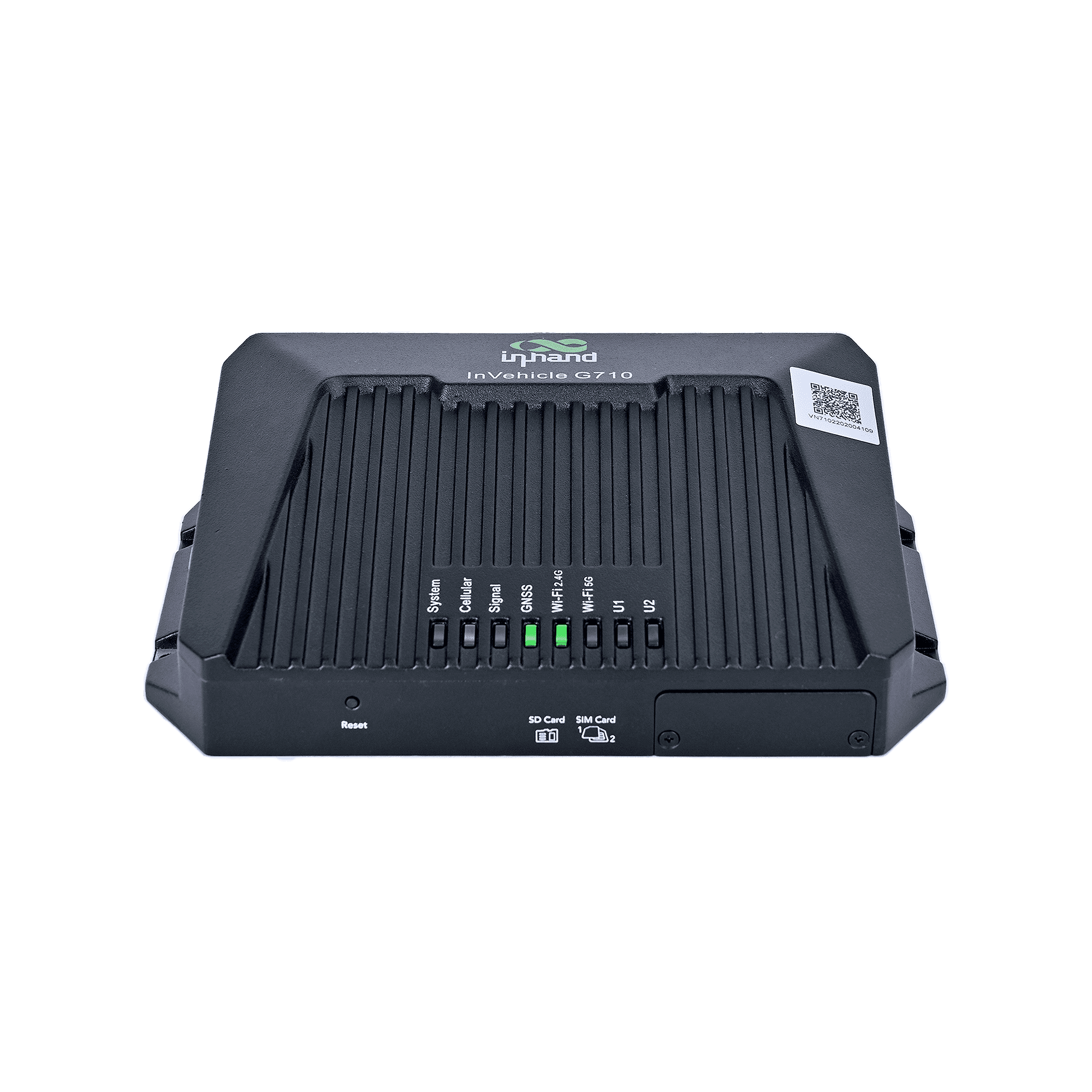

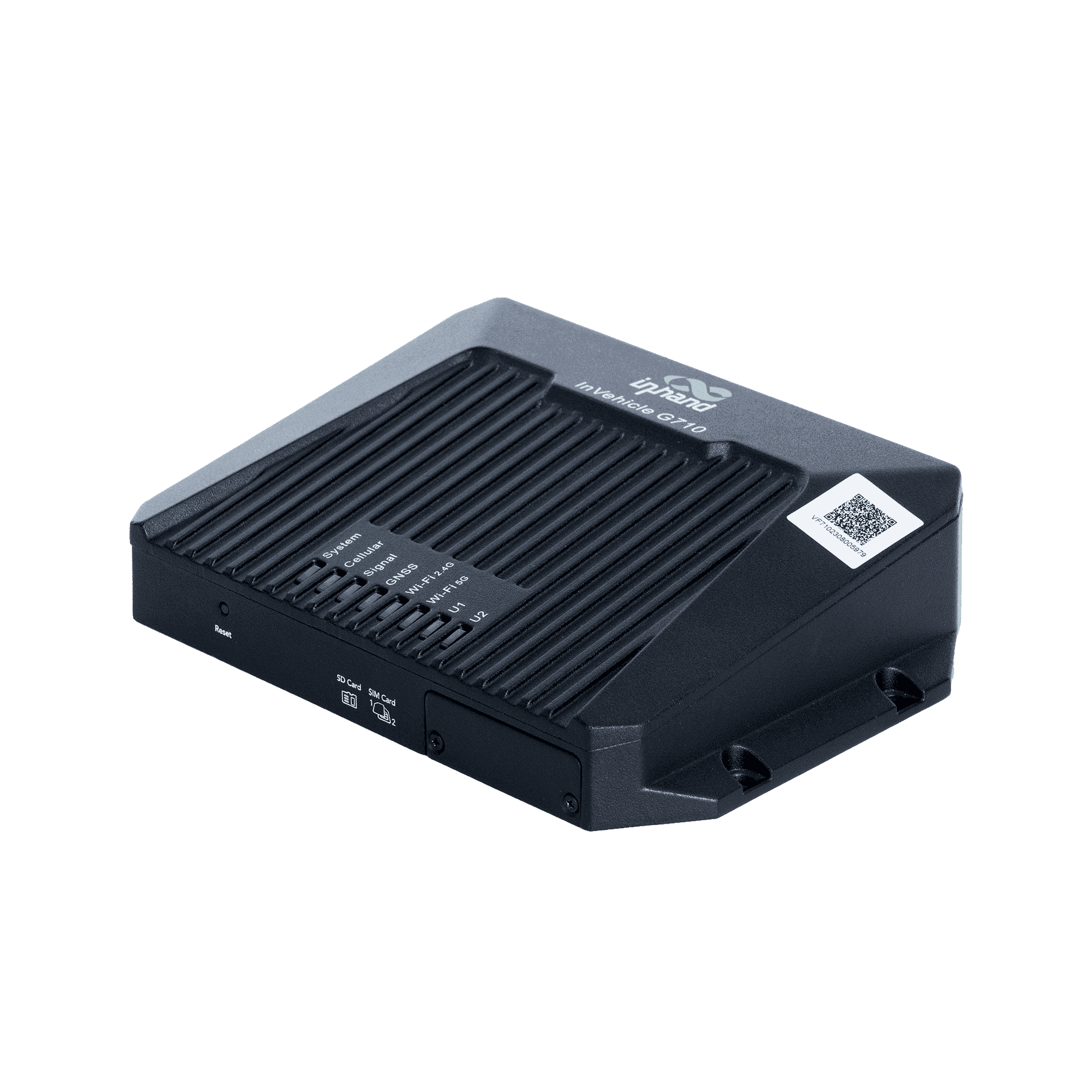

InHand Networks VG710-H 5G Vehicle Gateway with Wi-Fi 5, GNSS and CAN Bus (IVG710-NRQ3)

5GMPN IVG710-NRQ3
  • 1 Gb Ethernet
  • GPS/GNSS
  • Rugged
$851.00$1,099.00Save $248

Backordered · ships as soon as it arrives

Add a Cloud Care data plan

First month charged today · No contract · Cancel anytime

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The InHand Networks VG710-H (IVG710-NRQ3) is an IP64-rated 5G vehicle gateway for connected fleets, transit and emergency vehicles. Its global multiband 5G NR modem supports SA and NSA modes, with speeds up to 2.1 Gbps and LTE and WCDMA fallback. It adds four Gigabit Ethernet ports, dual-band Wi-Fi 5 and Bluetooth 4.1, plus dual CAN, J1708 and LIN vehicle interfaces. Multi-constellation GNSS with dead reckoning and a programmable edge platform complete the package, all in a die-cast aluminum enclosure.

  • Global multiband 5G NR SA/NSA modem (3GPP Rel-15) with up to 2.1 Gbps and LTE/WCDMA fallback
  • 4 × 10/100/1000 Mbps RJ45 Ethernet, dual-band Wi-Fi 5 (AP/Client) and Bluetooth 4.1
  • 2 × CAN bus, J1708 and LIN with J1939/OBD support, plus RS-232, RS-485, DI/DO/AI, 1-WIRE and audio
  • GPS, GLONASS, Galileo and Beidou with inertial dead reckoning and 2.5 m CEP accuracy
  • Programmable edge platform with Python, C/C++, Docker and Node-RED on 1 GB DDR3 and 8 GB eMMC
  • IP64 die-cast aluminum housing, -30 °C to +70 °C operation, 9–36 V DC input with ignition sense
  • Move high-bandwidth video, passenger Wi-Fi and telemetry over a 5G uplink rated up to 2.1 Gbps
  • Run on North American networks with NRQ3 certifications from Verizon, AT&T, T-Mobile, Rogers, Bell and FirstNet (LTE/4G)

The InHand Networks VG710-H is a rugged 5G vehicle gateway for public transport, logistics, emergency fleets and heavy-duty vehicles. The IVG710-NRQ3 corresponds to InHand's VG710-H-NRQ3. This configuration pairs a global multiband 3GPP Release 15 modem, covering 5G NR SA/NSA, LTE-FDD/LTE-TDD, LAA and WCDMA, with 1 GB of DDR3 RAM. InHand lists NRQ3 carrier certification with Verizon, AT&T, T-Mobile, Rogers, Bell (Canada) and FirstNet (LTE/4G), along with FCC, IC, PTCRB and E-Mark certification.

The gateway connects a wide range of vehicle systems. Four 10/100/1000 Mbps RJ45 ports serve cameras, recorders and onboard computers. Dual-band Wi-Fi 5 works in AP or client mode, and Bluetooth 4.1 reaches nearby sensors. Vehicle interfaces include 2 × CAN bus, J1708 and LIN, with J1939 and OBD support. The unit also offers RS-232, RS-485, digital and analog I/O, 1-WIRE for driver ID or temperature, and audio R/L/Mic lines. The GNSS receiver tracks GPS, GLONASS, Galileo and Beidou with 2.5 m CEP accuracy, and the accelerometer and gyroscope keep positioning through tunnels and urban canyons. Dual 2FF SIM slots support carrier redundancy.

The IP64 die-cast aluminum housing runs from -30 °C to +70 °C, starts at temperatures as low as -35 °C, and accepts 9–36 V DC with ignition-sense control. An ARM Cortex A7 with 8 GB of eMMC runs Python, C/C++ and Docker applications, including Node-RED. Azure IoT Edge, Python 3 and Docker SDKs are available. Networking features include IPsec, OpenVPN, L2TP and GRE VPNs, OSPF and BGP routing, VRRP and an SPI firewall. InHand publishes a datasheet and quick start guide for the gateway.

Ideal for

  • Transit buses and coaches that deliver passenger Wi-Fi and stream onboard video over 5G
  • Emergency and public safety fleets that need a certified, rugged 5G mobile router with VPN
  • Long-haul and logistics fleets that collect CAN, J1939 and J1708 diagnostics for predictive maintenance
  • Heavy-duty and specialty vehicles that integrate cameras, displays and sensors through one gateway
  • Edge AI and analytics applications that run in Docker containers inside the vehicle

Specifications

Wlan

Protocol
IEEE 802.11 b/g/n/a/ac
Security
Shared key, WPA/WPA2, WEP/TKIP/AES

Power

Peak Power
18.20 W peak
Protection
Built-in voltage transient protection with delayed ignition induction
Input Voltage
9–36 V DC (configurable to 7–36 V DC)
Standby Power
0.006 W
Pin Definition
V+, V-, ignition signal, NC (4 pins)
Operating Power
12.00 W average

WI FI

Protocol
Wi-Fi 5
Frequency
2.4 / 5 GHz dual-band
Max Output
2.4 GHz: 17 dBm; 5 GHz: 17 dBm
Working Mode
AP / Client

General

MPN
IVG710-NRQ3
Brand
InHand Networks
Model
VG710-H 5G Vehicle Gateway
Region
Global
Configuration
5G NR SA/NSA + LTE-FDD/TDD + LAA + WCDMA, 3GPP Rel-15
Carrier Certifications
Verizon, AT&T, T-Mobile, Rogers, Bell (Canada), FirstNet (LTE/4G)

Package

Contents
VG710-H Vehicle Gateway ×1, VG710-H Power Cable ×1
Optional Accessories
Optional (sold separately): 5G, 4G, Wi-Fi, GNSS and Bluetooth antennas; M12-to-RJ45 cable; ITxPT and FMS cables

Security

Aaa
Local authentication, RADIUS, TACACS+, LDAP
VPN
IPsec VPN, L2TP, GRE, OpenVPN, CA
Firewall
SPI, DoS defense, multicast/Ping filter, ACL, NAT/PAT/DMZ/port mapping/virtual server
User Level
Administrator / read-only
CA Certificate
PEM, PKCS12, SCEP

Reliability

Backup
Floating routing, VRRP, interface backup
Watchdog
Self-detection and auto-repair
Link Detection
Heartbeat detection, auto redial
Offline Storage
Built-in cache when network unavailable

Connectivity

Antenna
SMA-K: Cellular/GNSS; RP-SMA-K: 2 × Wi-Fi + BLE
Microsd
microSD up to 32 GB
Cellular
5G SA/NSA Sub-6
Ethernet
4 × 10/100/1000 Mbps RJ45
Bluetooth
Bluetooth 4.1

Edge Computing

Ide
Visual Studio Code
Sdk
Python 3 SDK, Docker SDK, Azure IoT Edge SDK
Programmable
Python, C/C++, Docker
Docker Images
Node-RED, Ubuntu, Docker for ARM 32, etc.
Edge Platform
Integrated edge computing platform
Iot Architecture
MQTT, DDS, AMQP, XMPP, JMS, REST, CoAP
Third Party Cloud
MS Azure, SmartFleet and APIs for third-party platforms

Network Features

Upgrade
Local/remote WEB, DM, TFTP, FTP, SFTP server
IP Routing
Static routing, RIP, OSPF, BGP, IGMP Proxy
Diagnostics
Ping, Traceroute, Sniffer
LAN Protocol
ARP, Ethernet
Configuration
Local/remote HTTP, HTTPS, Telnet, SSH
Authentication
CHAP / PAP / MS-CHAP / MS-CHAP V2
IP Application
IPv6, Ping, Traceroute, DHCP server/relay/client, DNS relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, Portal
Network Access
APN, VPDN

Vehicle Interfaces

Other
1-WIRE (driver ID / temperature)
DO DI AI
2 × DO, 4 × DI/AI or 2 × DI/AI
Audio Voice
R, L, Mic
Diagnostics
2 × CAN bus, 1 × J1708, 1 × LIN bus
Serial Port
1 × RS-232, 1 × RS-485

Performance Metrics

CPU
ARM Cortex A7
RAM
1 GB DDR3
Storage
8 GB eMMC
Main Frequency
717 MHz

Application Services

Event Alarm
Customizable alarms for DI, network, service, power, temperature, voltage
Message Push
SMS, Email, App, digital output
Cloud Services
Device Manager and InConnect
Vehicle Telemetry
Rich interfaces for telemetry and asset tracking

Satellite Navigation

GNSS Receiver
GPS, GLONASS, Galileo, Beidou
Built IN Sensor
Accelerometer + gyroscope, supports dead reckoning
Position Accuracy
2.5 m CEP
Tracking Sensitivity
-160 dBm
Navigation Update Rate
Max 10 Hz

Mechanical Environment

SIM
Dual-SIM, 2FF
Weight
775 g (1.71 lb)
Cooling
Radiation cooling
Housing
Die-cast aluminum
Humidity
95% RH @ 60 °C
Installation
Wall-mounting
Startup Temp
-35 °C
Storage Temp
-40 °C ~ +85 °C (-40 °F ~ +185 °F)
Operating Temp
-30 °C ~ +70 °C (-22 °F ~ +158 °F)
Dimensions W D H
188.1 × 140.5 × 48.8 mm (7.41 × 5.53 × 1.92 in)
Protection Rating
IP64

Standards Certifications

Warranty
3 years
Certification
CE, E-Mark, ITxPT, FCC, IC, PTCRB, RoHS, VZW, AT&T, TMO
Rail Standard
EN50155, EN50121, EN61373
Fire Prevention
EN45545-2:2020
Vehicle Standard
ECE-R10, R118

Core Technical Specifications

Weight
775 g (1.71 lb)
Dimensions
188.1 × 140.5 × 48.8 mm (7.41 × 5.53 × 1.92 in)
VPN Security
IPsec/L2TP/GRE/OpenVPN, SPI firewall, ACL, AAA, certificate management
Edge Computing
Python, C/C++, Docker; Python 3, Docker and Azure IoT Edge SDKs
Wlan Bluetooth
Dual-band Wi-Fi 5 (AP/Client) + Bluetooth 4.1
Cellular Network
5G SA/NSA Sub-6 with LTE/3G fallback
Protection Rating
IP64
Max Cellular Speed
Up to 2.1 Gbps (5G)
Input Voltage Range
9-36 V DC (configurable to 7-36 V DC)
Interface Capability
4 × Gigabit Ethernet, 2 × CAN, J1708, LIN, RS-232, RS-485, DI/DO/AI, 1-WIRE
Cloud Iot Integration
MQTT, DDS, AMQP, REST, CoAP; Azure and third-party platforms
Operating Temperature
-30 °C ~ +70 °C (-22 °F ~ +158 °F), minimum startup -35 °C
Positioning Capability
GPS/GLONASS/Galileo/Beidou + inertial navigation (DR)

Questions buyers ask

Which carriers is the IVG710-NRQ3 certified with?

InHand lists the VG710-H-NRQ3 as certified with Verizon, AT&T, T-Mobile, Rogers, Bell (Canada) and FirstNet (LTE/4G). It also carries FCC, IC, PTCRB, CE, E-Mark, ITxPT and RoHS certifications.

What 5G modes and speeds does it support?

The NRQ3 modem is a global multiband 3GPP Release 15 design. It covers 5G NR SA and NSA, LTE-FDD/LTE-TDD, LAA and WCDMA, and InHand rates 5G speeds at up to 2.1 Gbps.

How is the VG710-H powered in a vehicle?

The VG710-H requires an ignition (IGT) signal. Wire the IGT pin on the 4-pin power connector to the ignition-controlled circuit and supply 9–36 V DC. Ignition delay and delayed power-off are set under Administration > System > Basic Setup.

Are antennas included?

The standard package contains the VG710-H gateway and its power cable. InHand offers 5G, 4G, Wi-Fi, GNSS and Bluetooth antennas and ITxPT cables as optional accessories. Package contents can vary by order code.

How do I bring up the cellular connection?

Insert the SIM with the unit off, then apply ignition. The gateway auto-detects the carrier and applies the matching APN in most cases. If the cellular link does not come up, log in to http://192.168.2.1 and configure it under Network > Cellular > Cellular.
